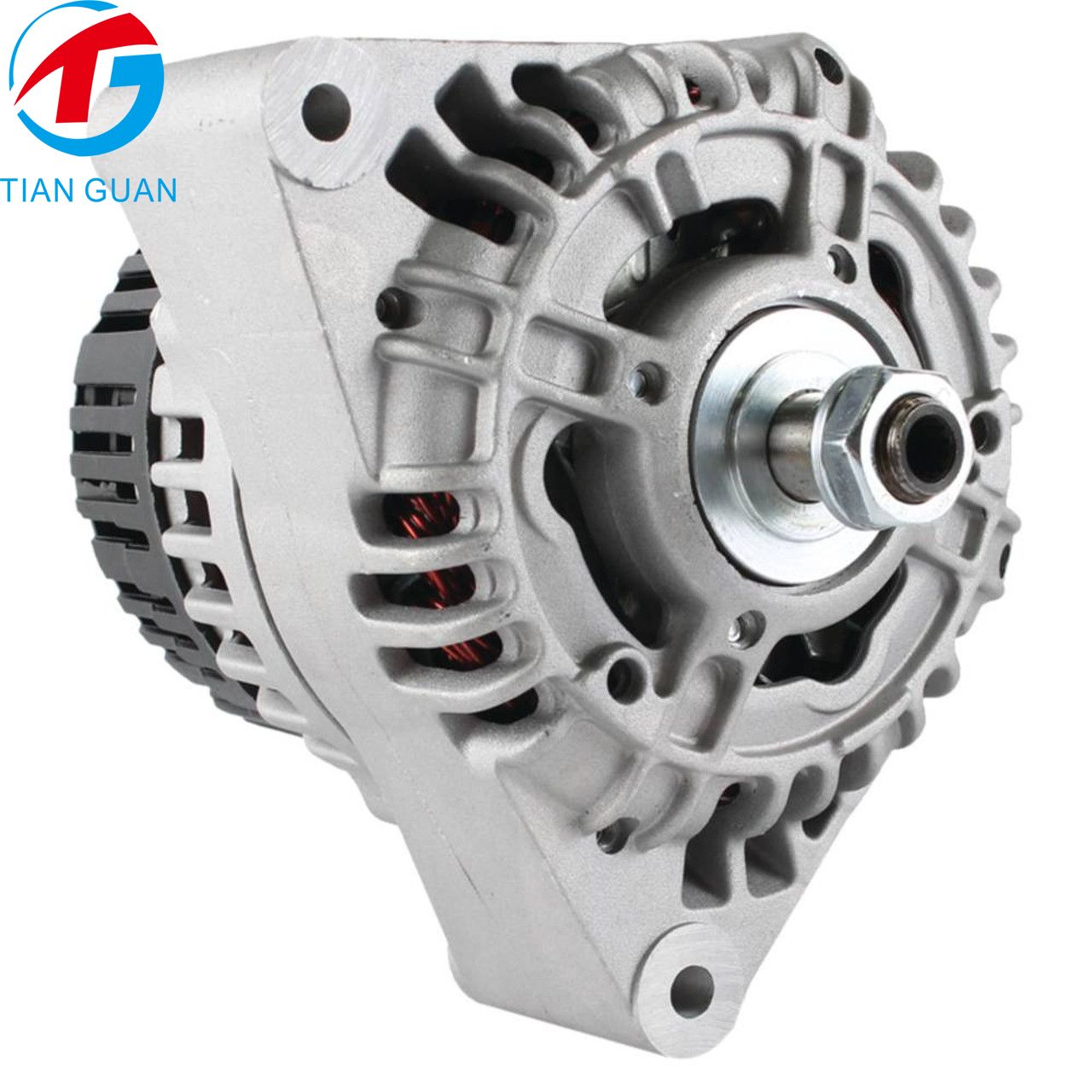

ATG10938 Alternator 1182167 1182403 AAK5565 for Deutz Industrial Tractors – 24V 55A

Part Numbers

Product Description

The ATG10938 Alternator is an aftermarket replacement charging unit designed for compatible Deutz industrial and agricultural equipment. Operating at 24 volts with a 55-amp output, it is intended to provide reliable charging performance for heavy-duty machinery and industrial tractor applications requiring matching electrical specifications.

This alternator features an M8 × 1.25 stud connection and mounting ears for installation in compatible equipment. It is designed as a replacement option for selected Deutz and Mahle alternator references. Before installation, compare the mounting dimensions, electrical terminals, pulley configuration, and original alternator specifications to ensure compatibility.

The ATG10938 cross-references Deutz part numbers 1182167, 1182403, 1182959, 118-3195, 1183443, 1183626, and D118-2167, along with Lester 12817 and Mahle AAK5565, IA1076, and MG337. The supplied title also references industrial tractor application code 1300-0509; confirm the exact equipment model and original part number before ordering.

Key Features

• 24V aftermarket replacement alternator

• 55A charging output

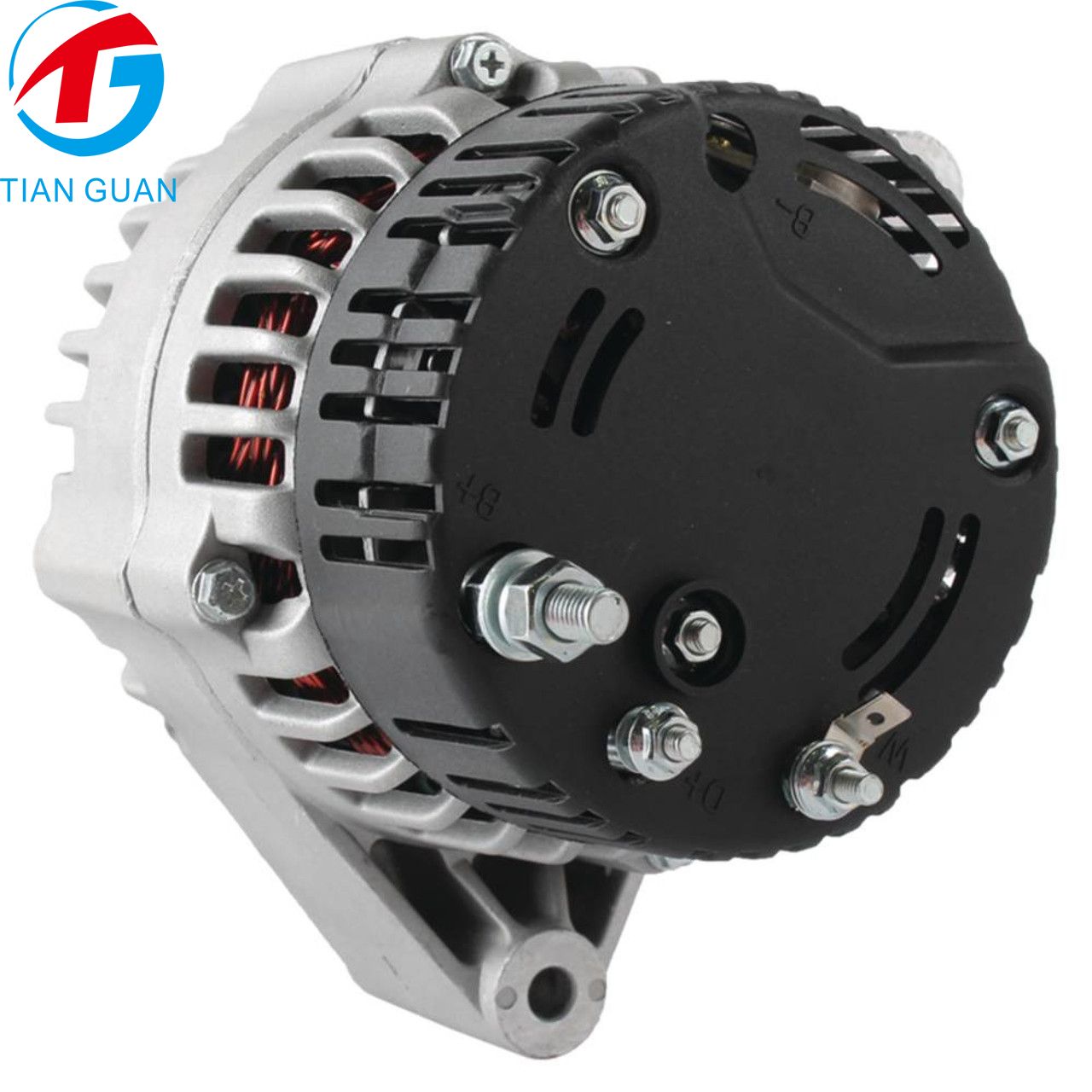

• M8 × 1.25 stud connection

• Mounting ears for compatible installations

• Designed for selected Deutz industrial and agricultural equipment

• Cross-references multiple Deutz, Lester, and Mahle part numbers

• Suitable for replacement when electrical and mounting specifications match
