ATG11171 Alternator 22737105 400-52145R for Chevrolet Cobalt HHR Pontiac G5 Pursuit 2.2L 2.4L 2005-2007 | 12V 120A Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： ATG11171

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG11171 Alternator 22737105 400-52145R for Chevrolet Cobalt HHR Pontiac G5 Pursuit 2.2L 2.4L 2005-2007 | 12V 120A Replacement

OEM / Part Numbers

Arrowhead: 400-52145R / VND0407
Denso: 104210-4330 / 104210-4420
General Motors: 10355395 / 22737105
J & N: 400-52123 / 400-52145

Product Description

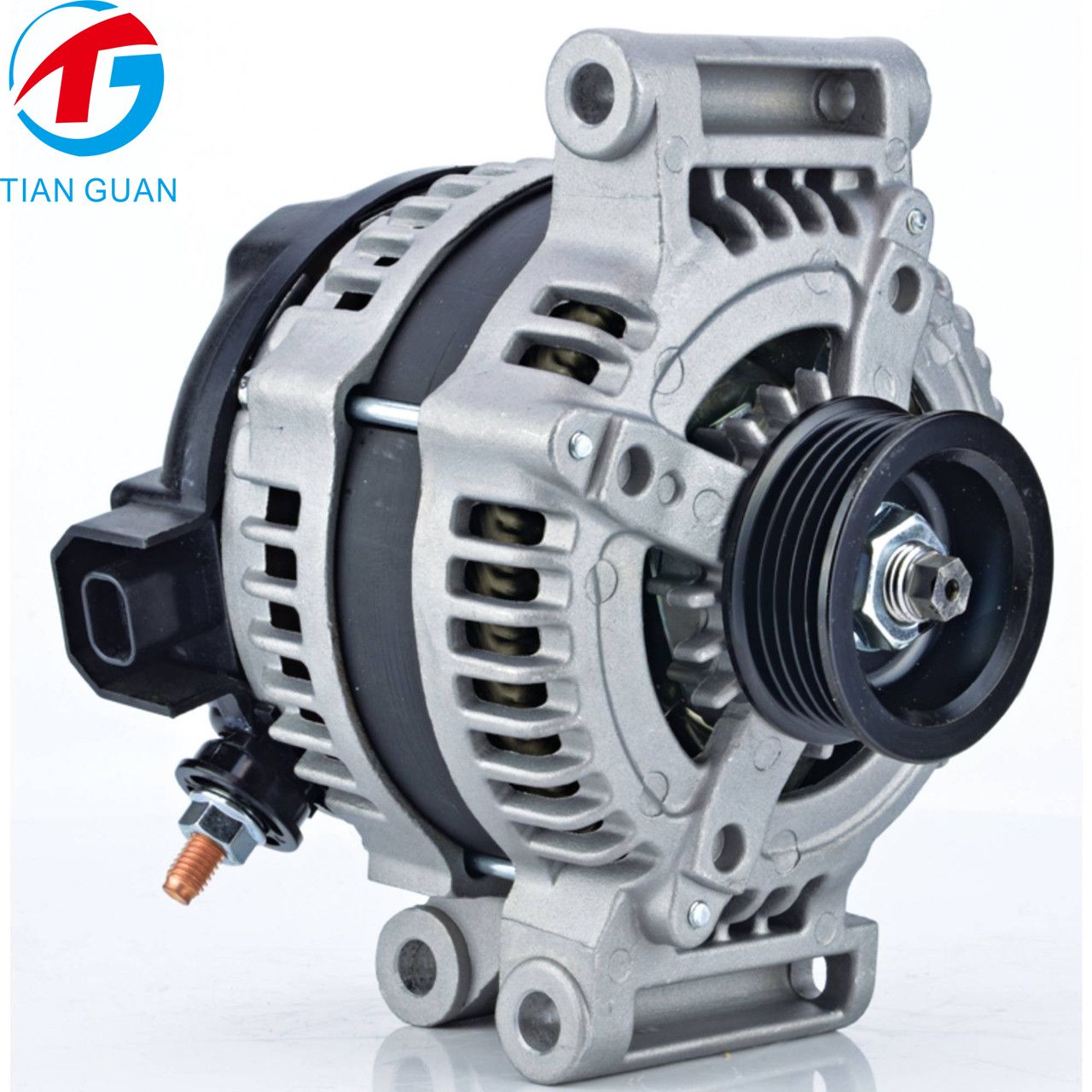

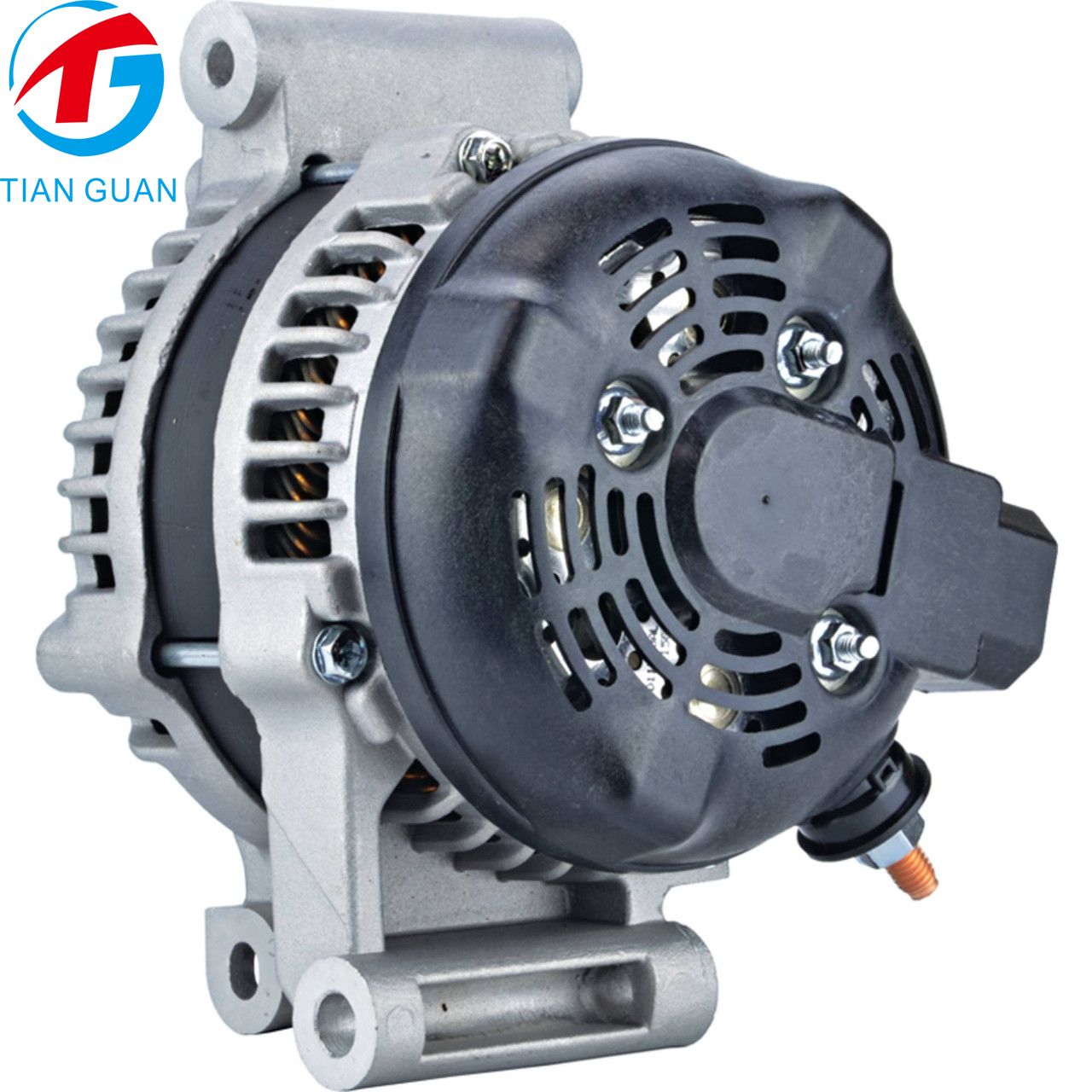

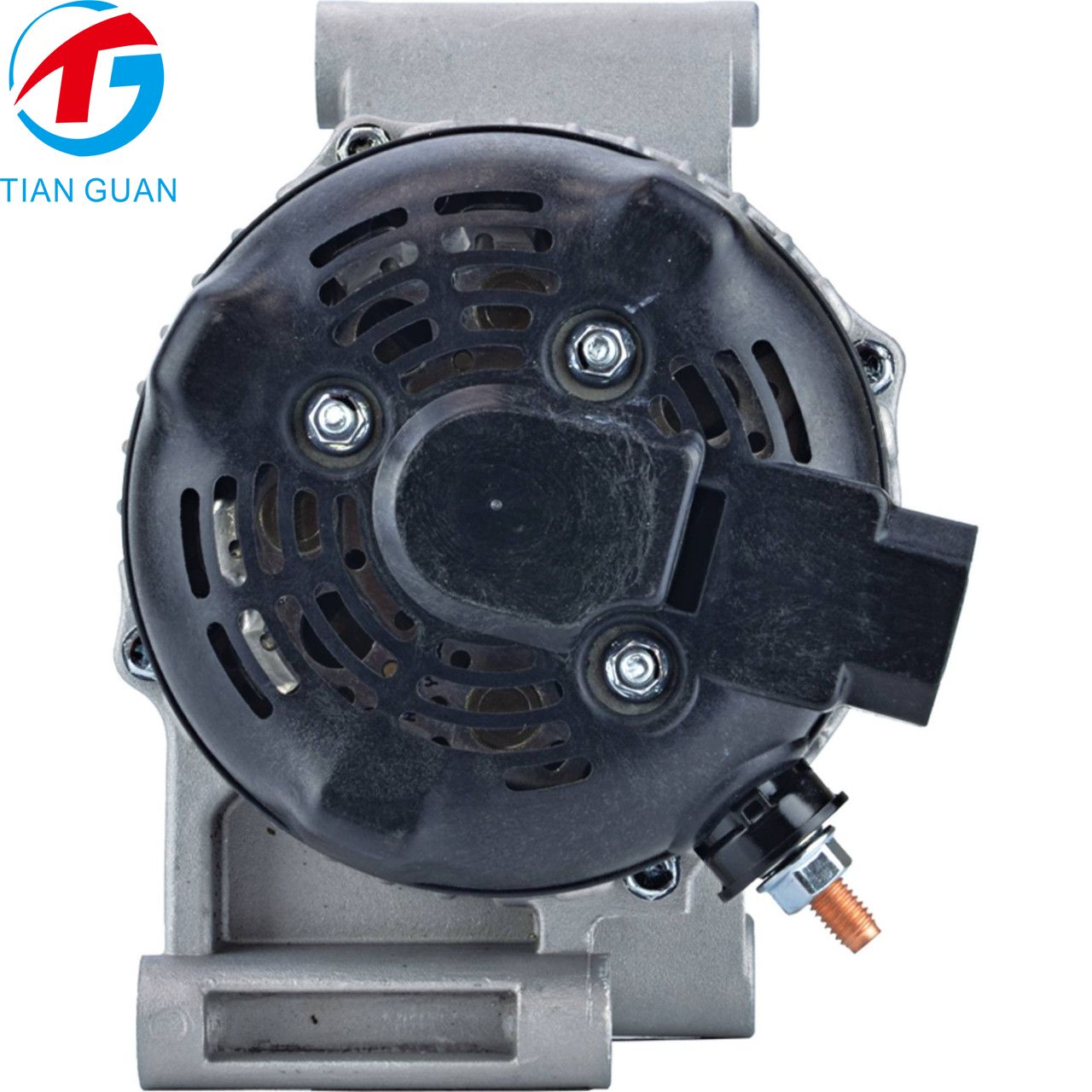

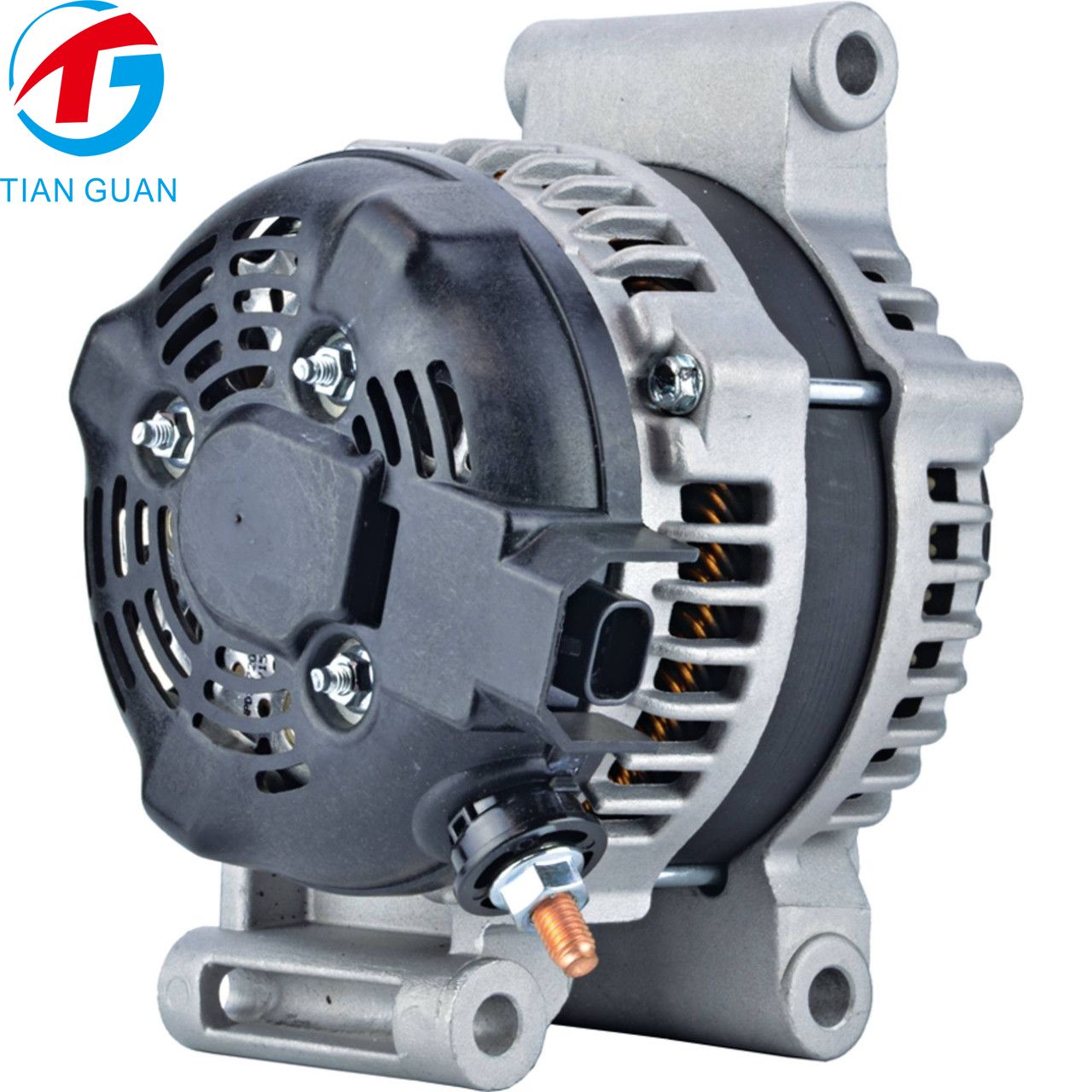

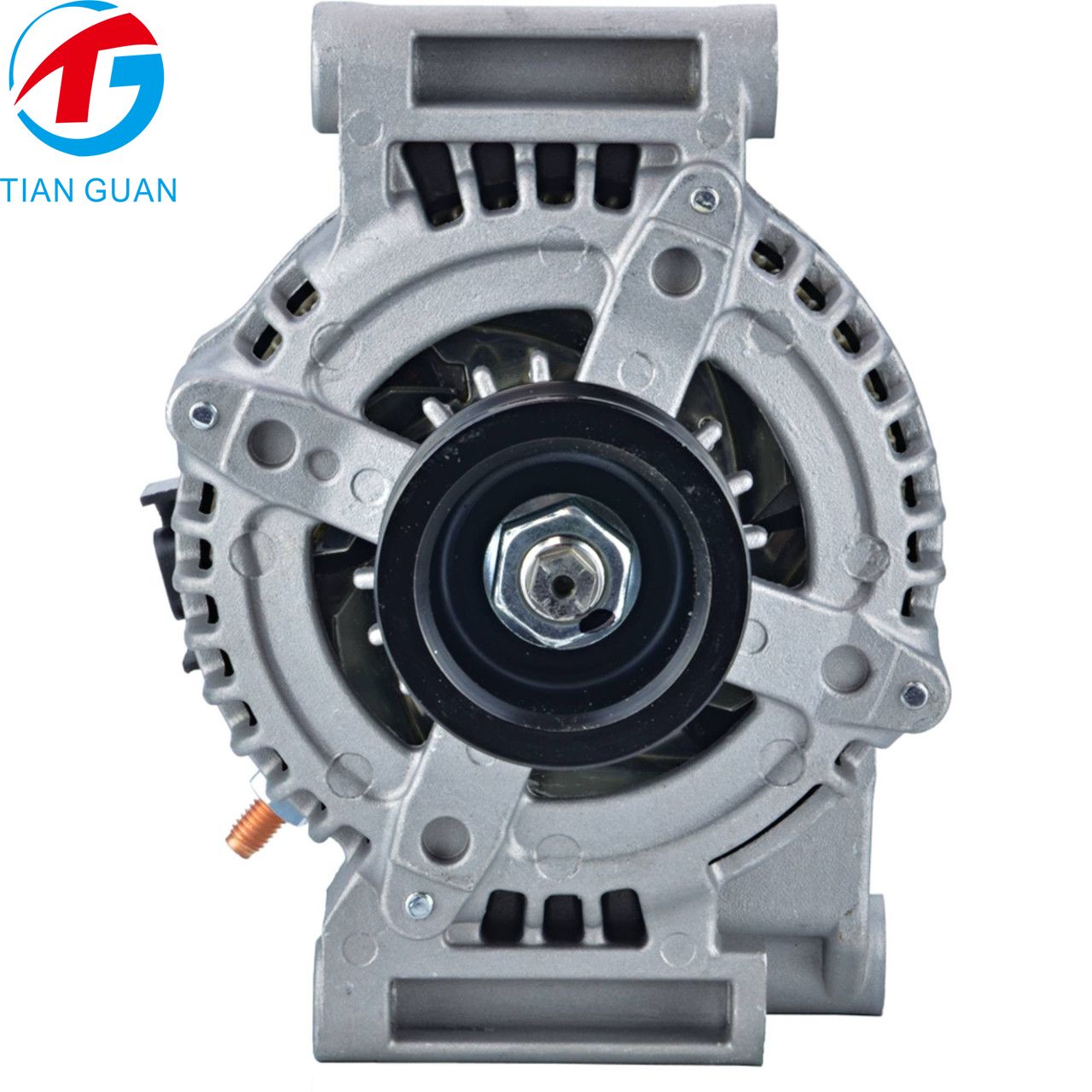

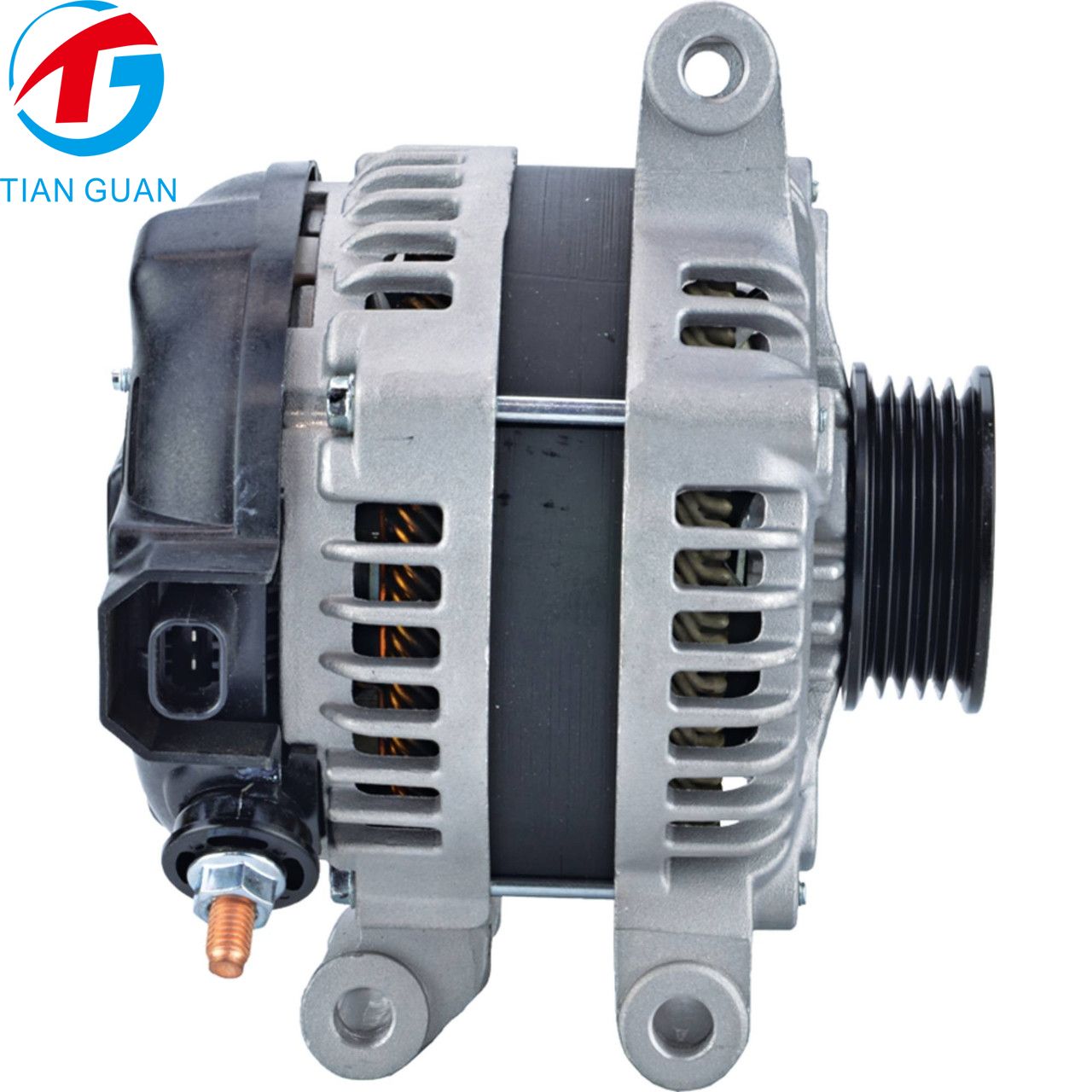

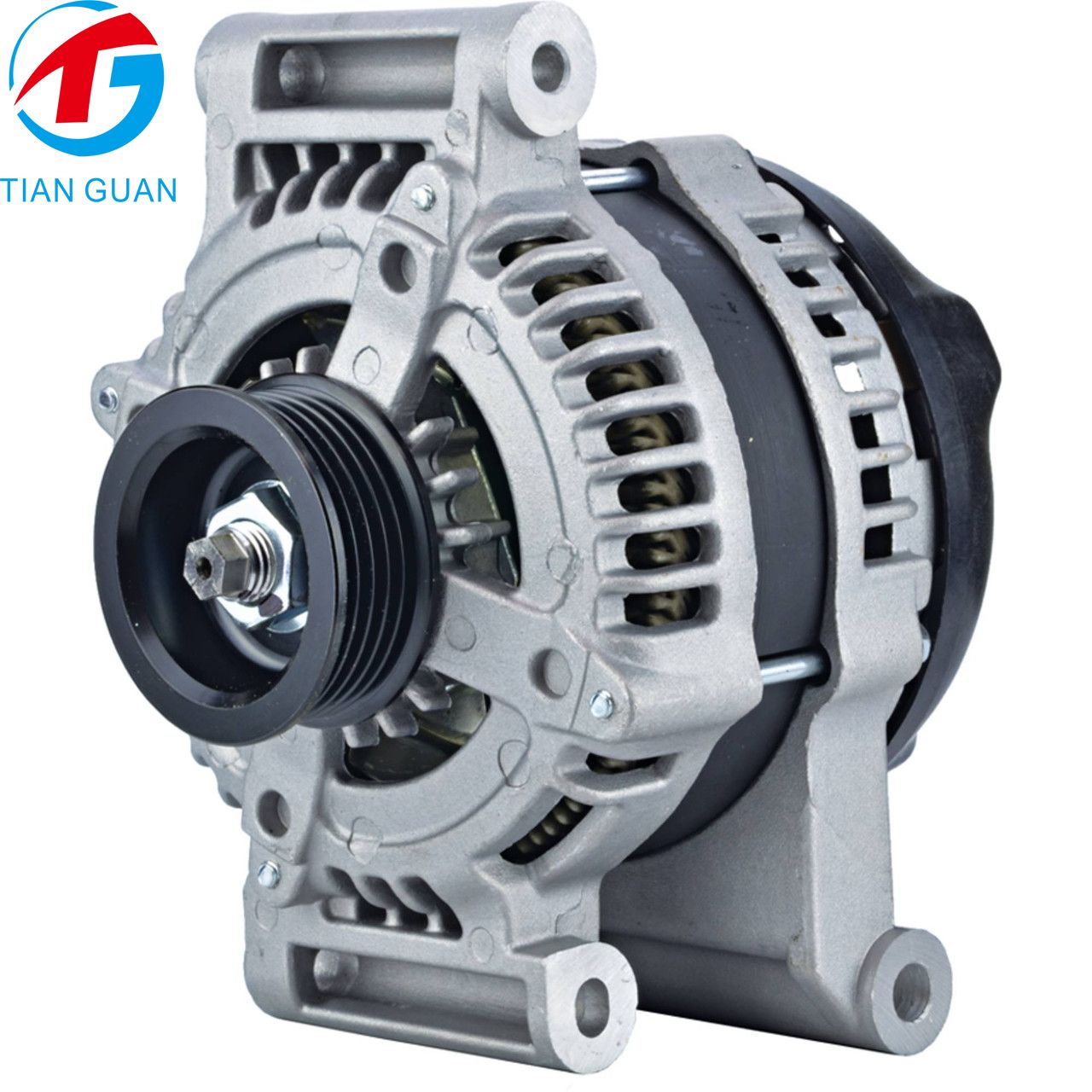

The ATG11171 Alternator is a 12V, 120A replacement charging unit designed for select Chevrolet, Pontiac, and related applications equipped with 2.2L or 2.4L L4 engines. It features clockwise rotation, an internal regulator, an internal fan, and a five-groove pulley with an outside diameter of approximately 57.5 mm.

Designed as an aftermarket replacement, this alternator is suitable for servicing compatible Chevrolet Cobalt, Chevrolet HHR, Pontiac G5, and Pontiac Pursuit vehicles. Verify the original alternator's part number, connector, mounting configuration, and pulley specifications before ordering.

Product Specifications

Property	Value
Product Model	ATG11171
Item Condition	Aftermarket Part
Unit Type	Remanufactured Alternator
Part Type	UNIT
Voltage	12V
Amperage	120A
Rotation	Clockwise (CW)
Pulley Class	S5
Pulley Groove Count	5-Groove
Pulley Outside Diameter	57.5 mm
Regulator Type	Internal (IR)
Fan Type	Internal Fan (IF)
Application	Select Chevrolet and Pontiac 2.2L / 2.4L L4 vehicles
Replacement Part Numbers	22737105 / 400-52145R

OEM / Cross Reference Table

Brand / Category	Part Number
Arrowhead	400-52145R / VND0407
Denso	104210-4330 / 104210-4420
General Motors	10355395 / 22737105
J & N	400-52123 / 400-52145
Lester	11110 / 11140
Victory Industrial Corp.	VDN11251203-A
WAI	1-2805-01ND-3 / 1-2818-01ND

Compatible Applications

Brand / Category	Compatible Applications
Chevrolet Cobalt	2.2L (134) L4, 2005–2007
Chevrolet Cobalt	2.4L (145) L4, 2006–2007
Chevrolet HHR	2.2L (134) L4, 2006–2007
Chevrolet HHR	2.4L (145) L4, 2006–2007
Pontiac G5	2.2L (134) L4, 2007
Pontiac G5	2.4L (145) L4, 2007
Pontiac Pursuit	2.2L (134) L4, 2005–2006
Pontiac Pursuit	2.4L (145) L4, 2006

Packing Information

Property	Value
Estimated Net Weight	Approx. 5.5 kg
Estimated Gross Weight	Approx. 6.3 kg
Estimated Carton Size	Approx. 30 × 28 × 25 cm
Estimated Package Volume	Approx. 0.0210 m³
Package Includes	1 × Alternator

PRODUCT HIGHLIGHTS

Product Highlights

12V 120A Output	Vehicle Compatibility	Replacement Design
12V charging system with 120A rated output	Select Chevrolet Cobalt, HHR, Pontiac G5, and Pursuit models	Internal regulator, internal fan, clockwise rotation
Five-groove pulley	2.2L and 2.4L L4 engine applications	Cross-referenced to listed OEM and aftermarket numbers
