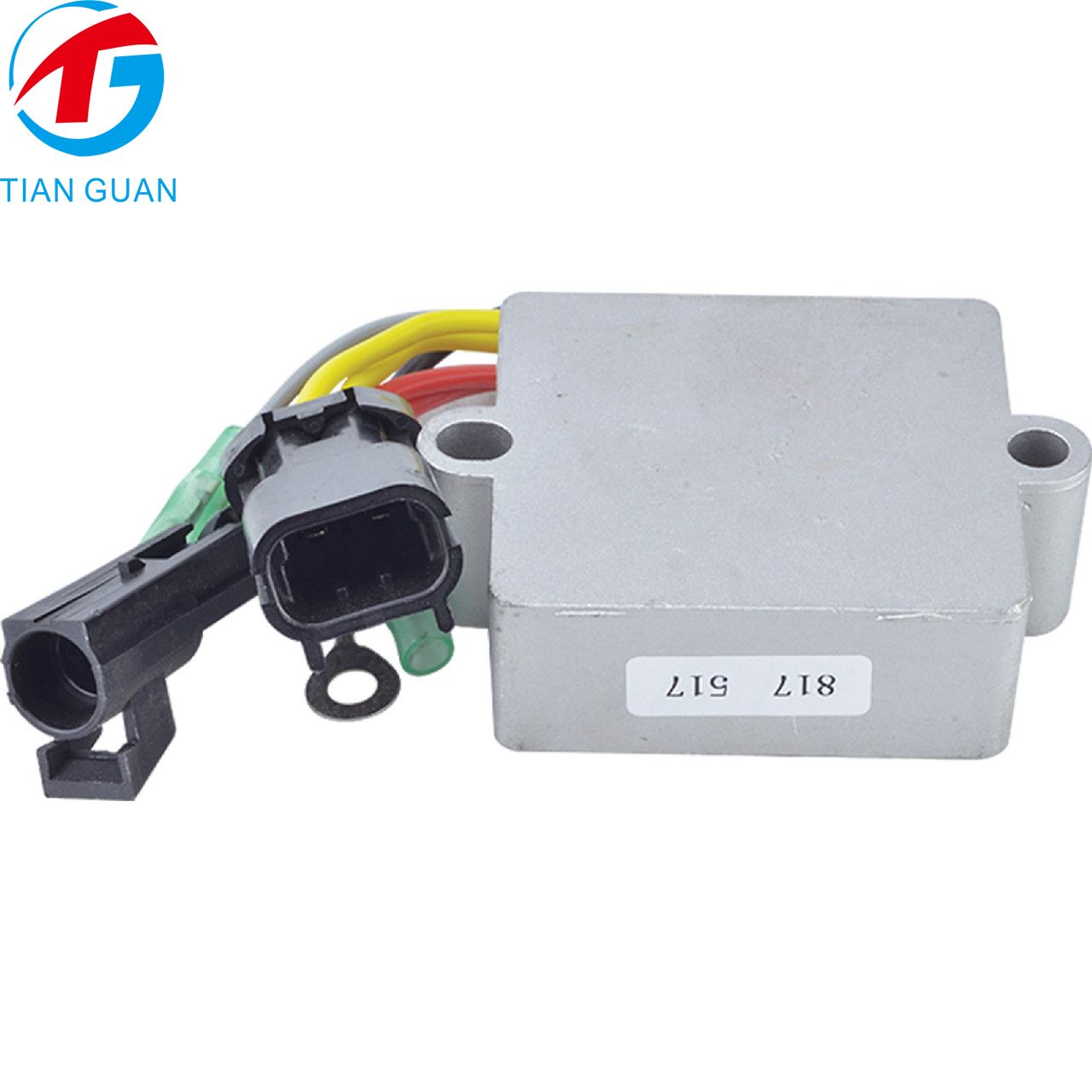

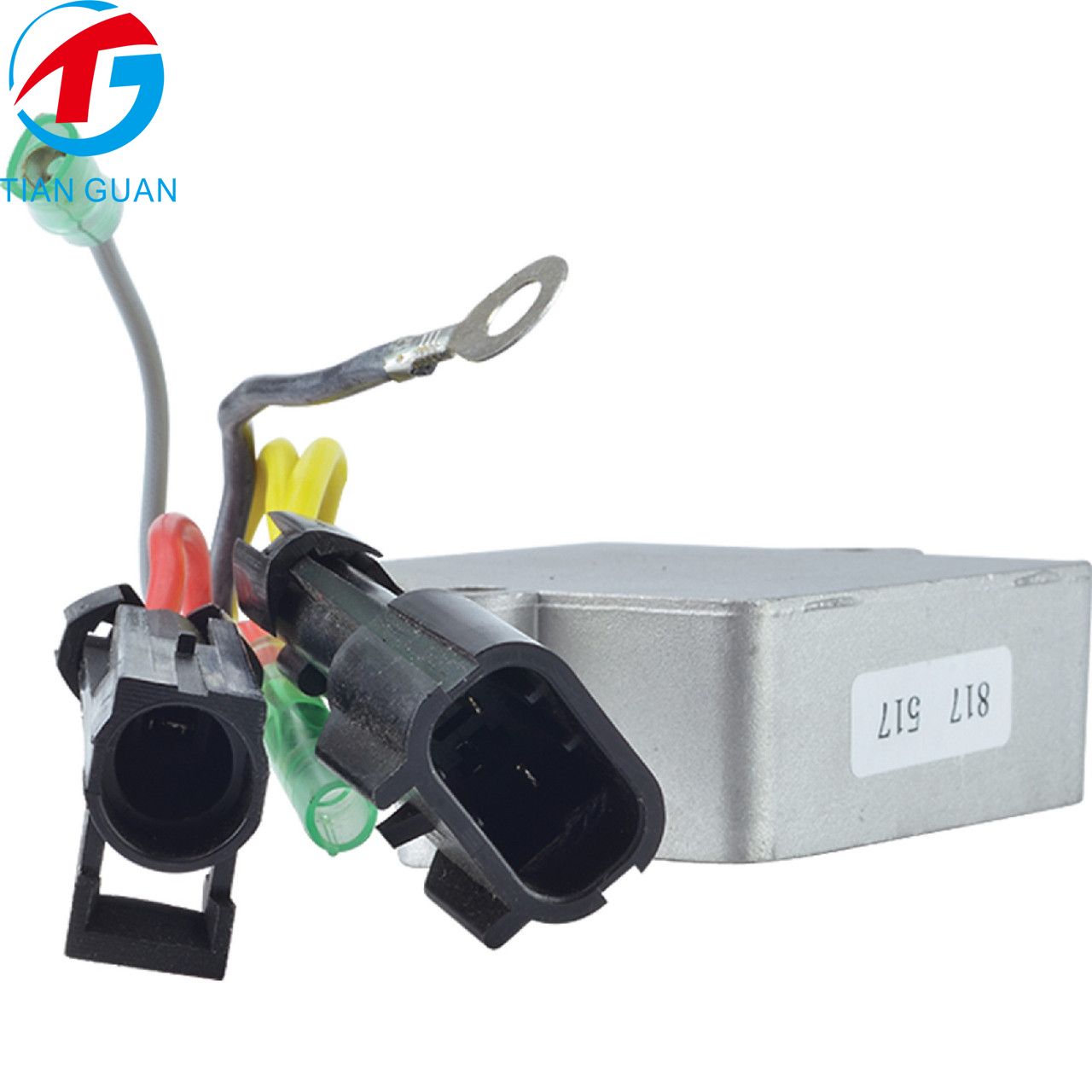

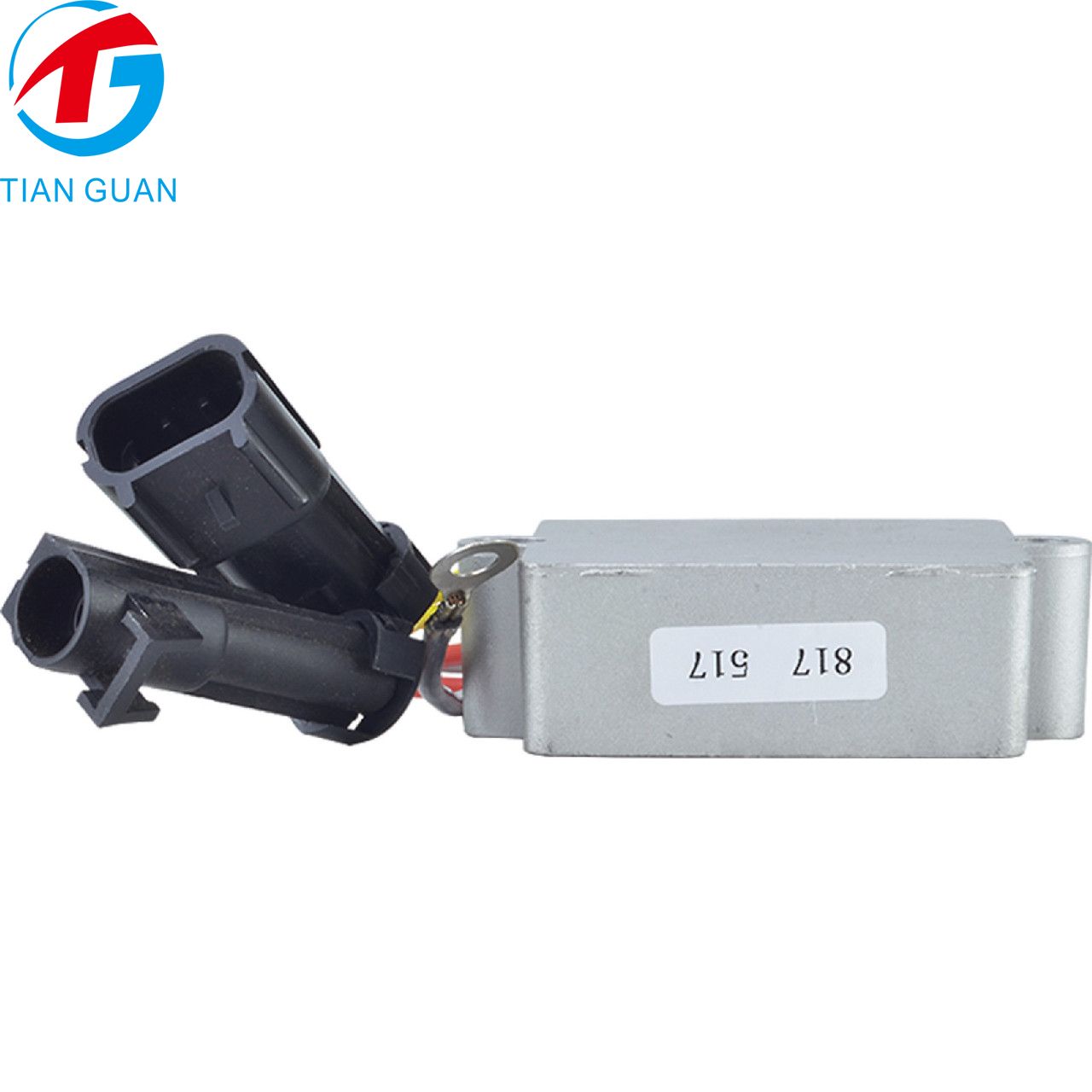

ATG11269 Voltage Regulator Rectifier 12V for Mercury Marine 140HP - 6 Cylinder 00-05 New

3 Reviews

Add Your Review

ITEMNO： ATG11269

OUT OF STOCK

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ARROWHEAD230-22185
    J & N230-22185
    MERCURY MARINE854515T2, 883072T1, 883072T2
    REFERENCE NUMBER194-2115K1

    Product Specs

    Item ConditionAftermarket Part
    Unit TypeRectifier / Regulator
    Voltage12
    Dimension85mm L x 65mm W x 27mm T, Plug #1, 2 Yellow Wires, 4.5" OAL, Plug #2, 1 Red Wire, 4.5" OAL, 3 Wires, 1 Red w/Female Bullet, 1 Grey w/Female Bullet, 1 Black w/Eyelet, All are 5" OAL, Oval (LH), Round (RH) Mtg. Hole, 79.8mm (Outer), 63.2mm (Inner),
    FitsMercury/Mariner Outboards
    25HP 2 Cylinder 1999-05
    30HP. 40HP 3 Cylinder 2002-05
    40HP, 50HP & 60HP 4 Cylinder 2002-07
    135HP, 140HP, 150HP, 175HP, 200HP, 240HP 6 Cylinder 2000-05
    MAKE TYPE MODEL YEAR ENGINE
    MERCURY MARINEEngines - 2-Stroke Carb - By SN135.0HP / V-135 - SN 0G960500 Thru 0T178499All135.0HP
    MERCURY MARINEEngines - 2-Stroke Carb - By SN140.0HP / Jet - SN 0G960500 Thru 0T178499All140.0HP, Jet
    MERCURY MARINEEngines - 2-Stroke Carb - By SN140.0HP / V-140 / Int'l - SN 0T178500 Thru 1B226999All140.0HP
    MERCURY MARINEEngines - 2-Stroke Carb - By SN150.0HP / V-150 - SN 0G960500 Thru 1B226999All150.0HP
    MERCURY MARINEEngines - 2-Stroke Carb - By SN200.0HP / V - 200 - SN 0G960500 Thru 1B226999All200.0HP
    MERCURY MARINEEngines - 2-Stroke Carb - By SNXR-6 Magnum III - SN 0G760300 Thru 0G960499All2-Stroke
    MERCURY MARINEEngines - 2-Stroke EFI OB - By SN150.0HP / V-150 - SN 0G960500 Thru 0T408999All150.0HP
    MERCURY MARINEEngines - 2-Stroke EFI OB - By SN175.0HP / V-175 - SN 0G960500 Thru 0T408999All175.0HP
    MERCURY MARINEEngines - 2-Stroke EFI OB - By SN200.0HP / V - 200 - SN 0G960500 Thru 0T408999All200.0HP
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI Jet Drive (Powerhead) - SN 0E384500 Thru 0E406399AllAll
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI Jet Drive (Pump) - SN 0E379931 Thru 0E406399AllAll
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI M2 Jet Drive (Powerhead) - SN 0E373939 Thru 0E384499AllAll
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI M2 Jet Drive (Powerhead) - SN 0E384500 Thru 0E406399AllAll
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI M2 Jet Drive (Pump) - SN 0E370718 Thru 0E379930AllAll
    MERCURY MARINEEngines - Jet Drive - SportJet - By SN240 EFI M2 Jet Drive (Pump) - SN 0E379931 Thru 0E406399AllAll
