ATG11683 Alternator 600-821-9220 600-821-9230 600-825-9120 600-825-9130 600-825-9131 600-825-9150 600-825-9330 0-35000-8030 for Komatsu HD785-5 WA380-5 WA380-6

3 Reviews

Add Your Review

US$316.00

ITEMNO： ATG11683

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ATG11683 Alternator 600-821-9220 600-821-9230 600-825-9120 600-825-9130 600-825-9131 600-825-9150 600-825-9330 0-35000-8030 for Komatsu HD785-5 WA380-5 WA380-6 WA430-5 – 24V 90A

    Part Numbers:
    KOMATSU 600-821-9220, 600-821-9230, 600-825-9120, 600-825-9130, 600-825-9131, 600-825-9150, 600-825-9230, 600-825-9231, 600-825-9330, 600-825-9331, 600-825-9720, 600-825-9730, 600-825-9731, 600-825-9820, 600-825-9821, 600-861-9120, 600-861-9121
    NIKKO 01-35-2021, 01-35-2022, 0-35000-8030, 0-35000-8040, 0-35000-8360, 0-35000-8380, 0-35000-8400, 0-35000-8410, 0-35000-8430, 0-35000-8490, 0-35000-8570, 0-35000-8571, 0-35000-8572, 0-35000-8573, 0-35000-8574, 0-35000-8610, 0-35000-8640, 0-35000-8641, 0-35000-8642, 0-35000-8790
    ARROWHEAD 400-50018, 400-50025
    CUMMINS 4064077
    J & N 400-50018

    Compatible Models: Komatsu HD785-5 | WA380-5, WA380-6, WA430-5, WA470-5, WA480-5
    Weight: 13.6 KG

    Product Overview

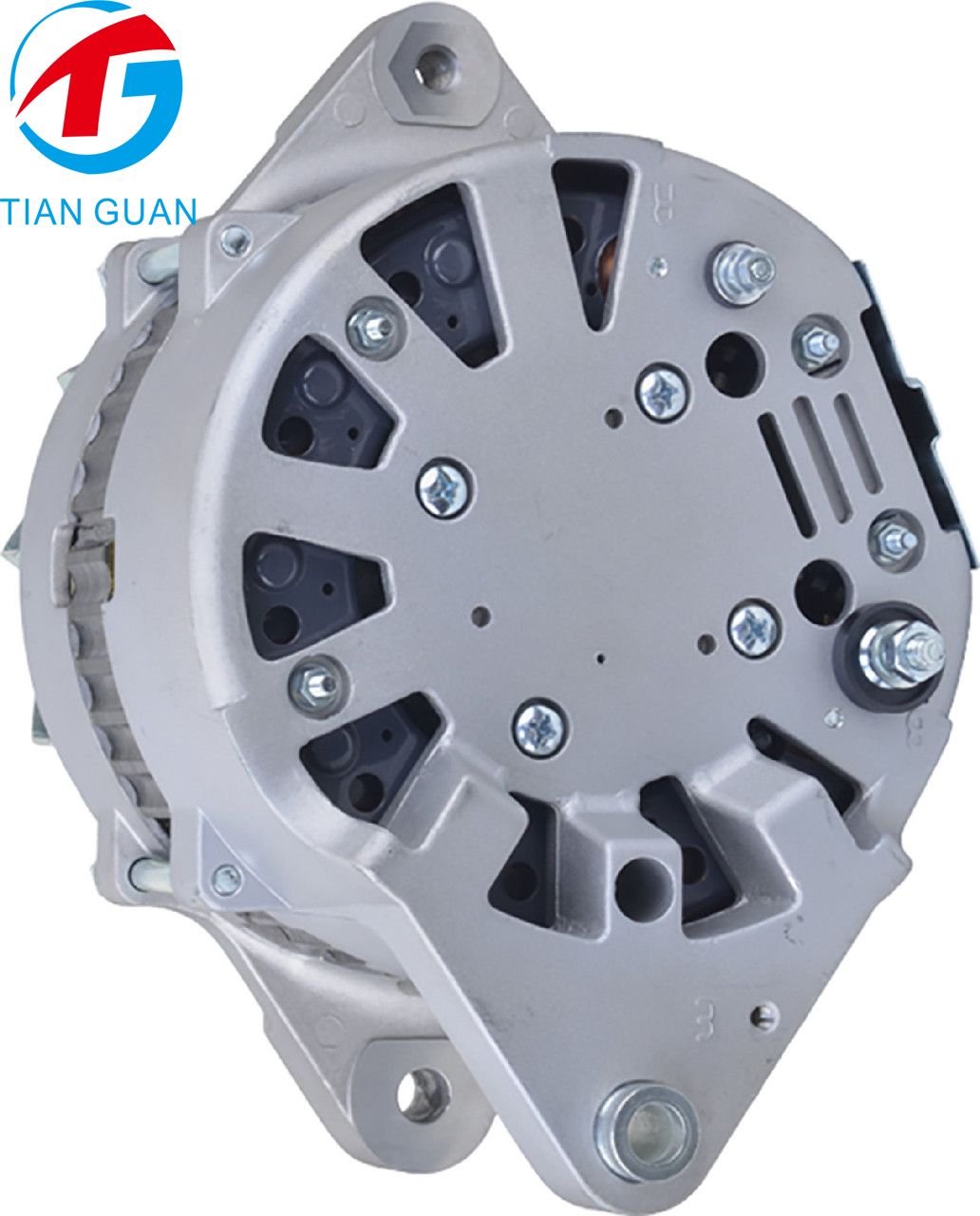

    The ATG11683 Alternator is a 24V, 90A aftermarket charging unit designed for selected Komatsu heavy-duty construction and mining equipment. Featuring an internal regulator and external fan, it is intended as a replacement alternator for compatible Komatsu wheel loaders and mining trucks.

    This alternator cross-references multiple Komatsu, Nikko, Cummins, Arrowhead, and J&N part numbers. Before ordering, verify the original alternator number, electrical connector, mounting points, shaft and pulley configuration, and rotation requirements to ensure compatibility with the specific machine.

    Key Specifications

    ParameterSpecification
    Product ModelATG11683
    Item ConditionAftermarket Part
    Unit TypeAlternator
    Voltage24V
    Amperage90A
    Regulator TypeInternal
    Fan TypeExternal
    Clock PositionApprox. 3 o'clock
    Application TypeHeavy-duty construction and mining equipment
    Compatible BrandKomatsu
    Weight13.6 KG

    Compatibility

    • Compatible Applications:

      • Komatsu Mining Truck HD785-5

      • Komatsu Wheel Loader WA380-5

      • Komatsu Wheel Loader WA380-6

      • Komatsu Wheel Loader WA430-5

      • Komatsu Wheel Loader WA470-5

      • Komatsu Wheel Loader WA480-5


  • PRODUCT HIGHLIGHTS

    Product Highlights

    24V 90A Charging OutputHeavy-Duty ApplicationsReplacement Compatibility
    24V electrical system with 90A rated outputDesigned for selected Komatsu loaders and mining trucksCross-references Komatsu, Nikko, Cummins, Arrowhead, and J&N part numbers
    Internal regulatorExternal fan designConfirm machine and mounting specifications before ordering
