ATG11701 Alternator BR3T-10300-KC BR3Z-10346-D 104210-2942 for Ford Mustang 5.0L V8 2011–2014 | 12V 150A CW Clutch Pulley Replacement

3 Reviews

Add Your Review

US$138.00

ITEMNO： ATG11701

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG11701 Alternator BR3T-10300-KC BR3Z-10346-D 104210-2942 for Ford Mustang 5.0L V8 2011–2014 | 12V 150A CW Clutch Pulley Replacement

Part Numbers

Brand	Part Numbers
Arrowhead	400-52431R
Denso	104210-2942
Family	Denso Hairpin
Ford	BR3T-10300-KC, BR3Z-10346-D
J & N	400-52431R
Lester	11625
Motorcraft	GL-998
PIC (Old)	250-517
PIC	290-5649
Remy Reman	AR134931

Product Description

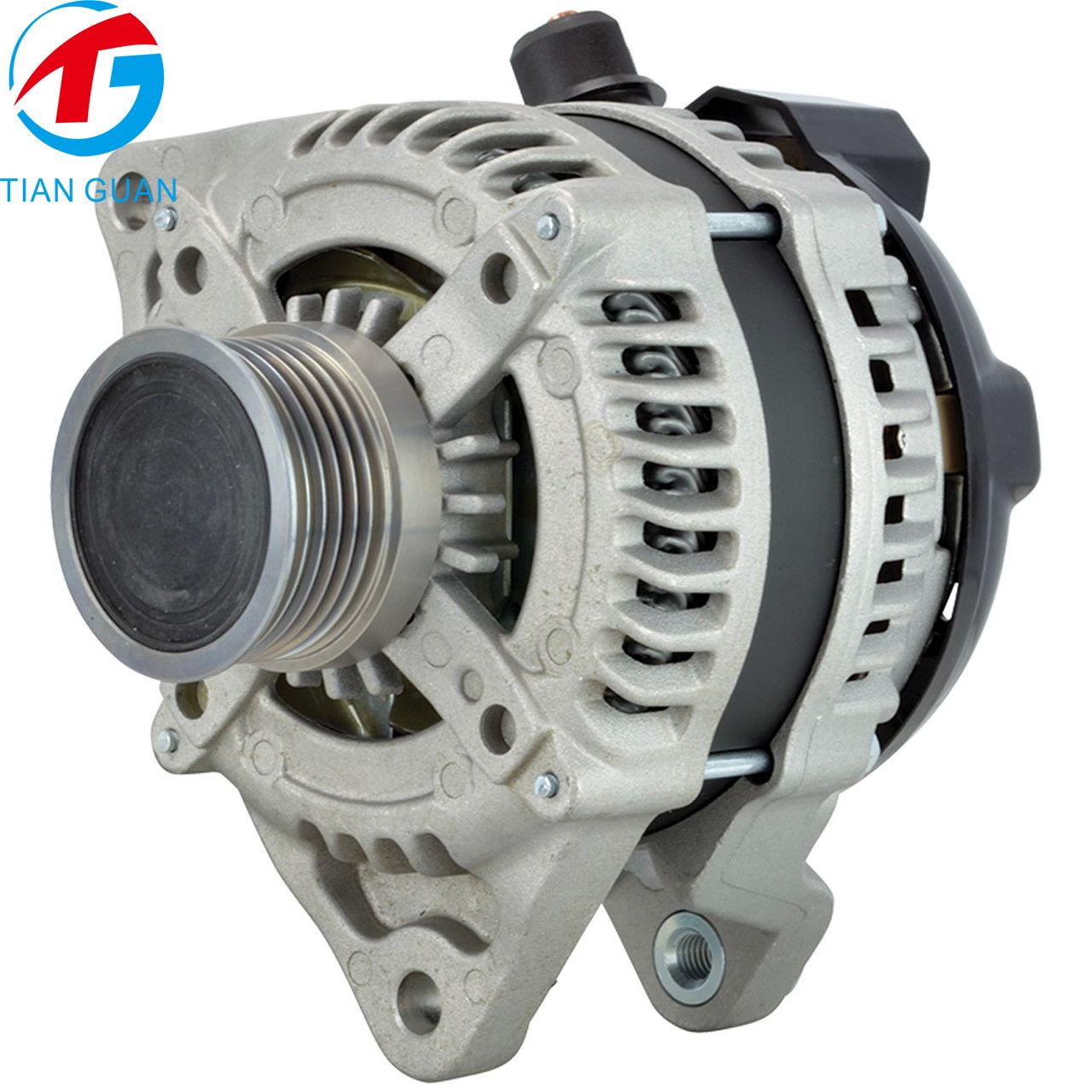

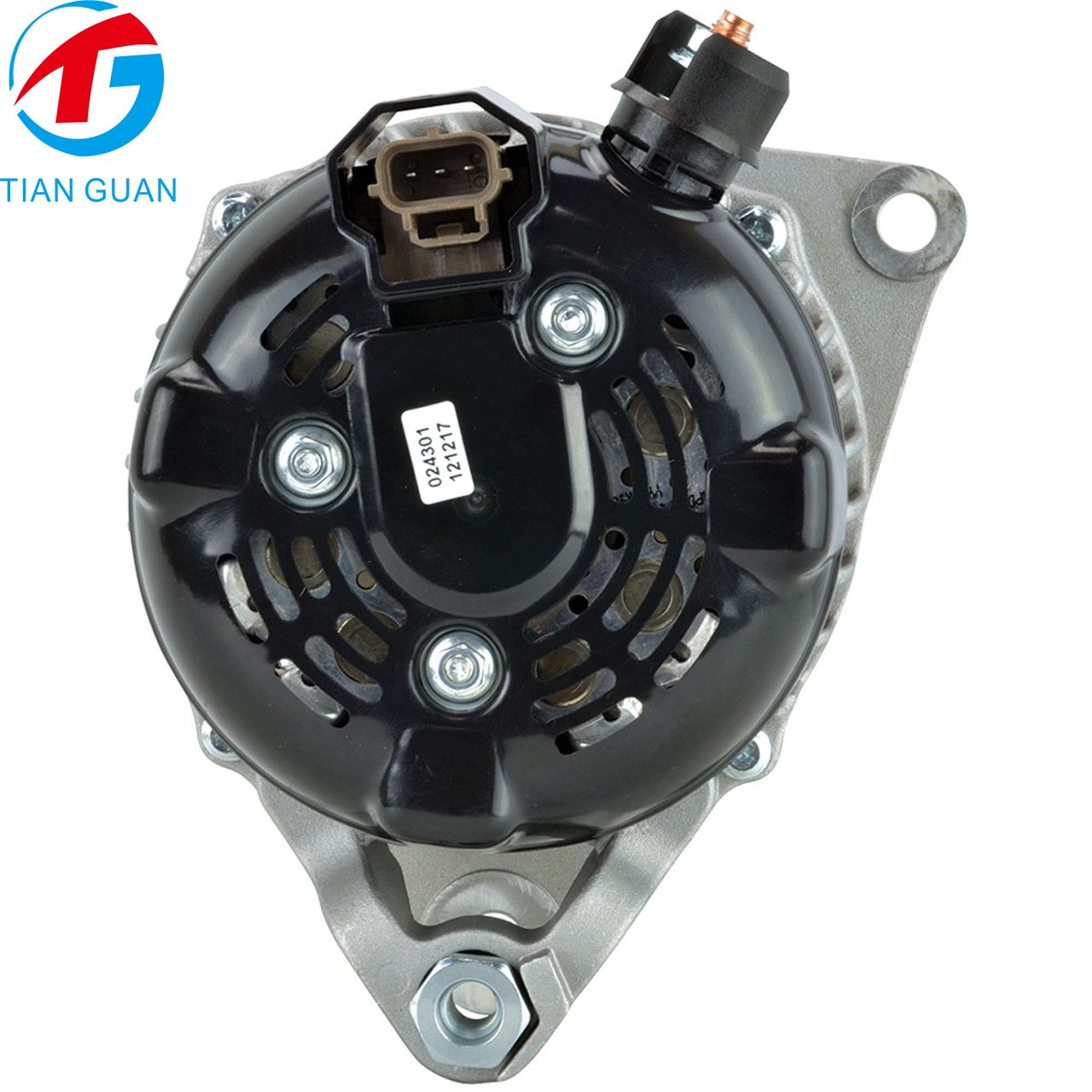

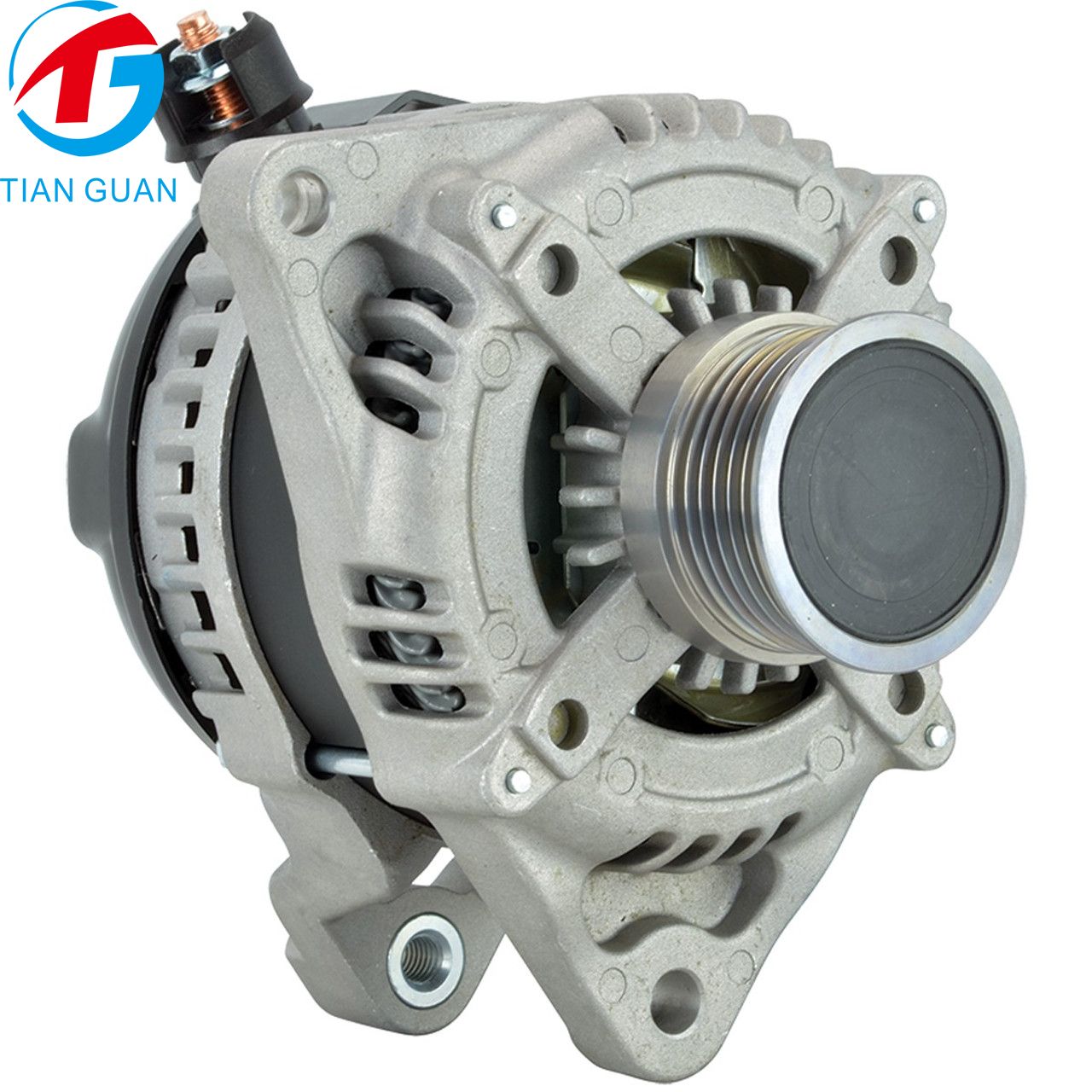

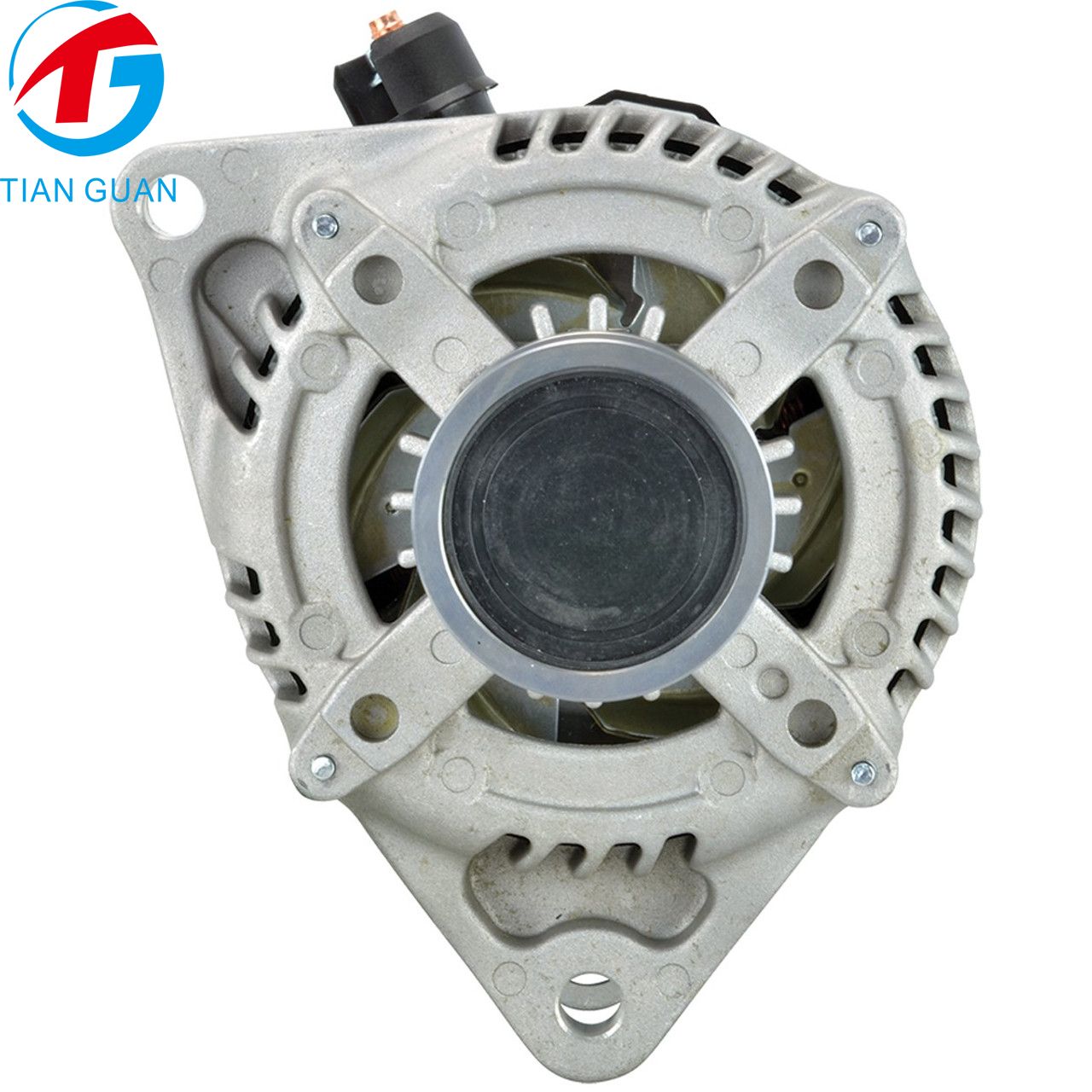

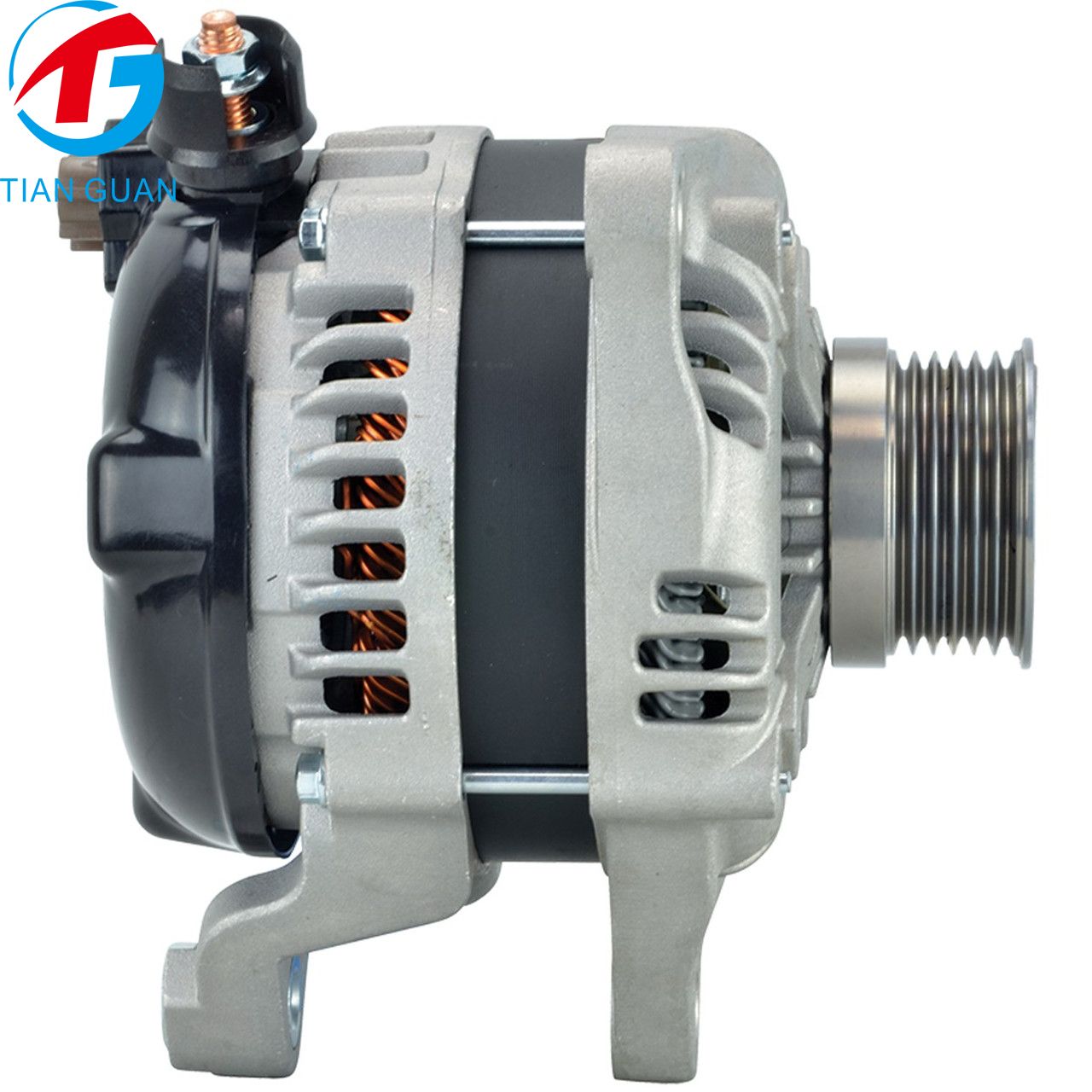

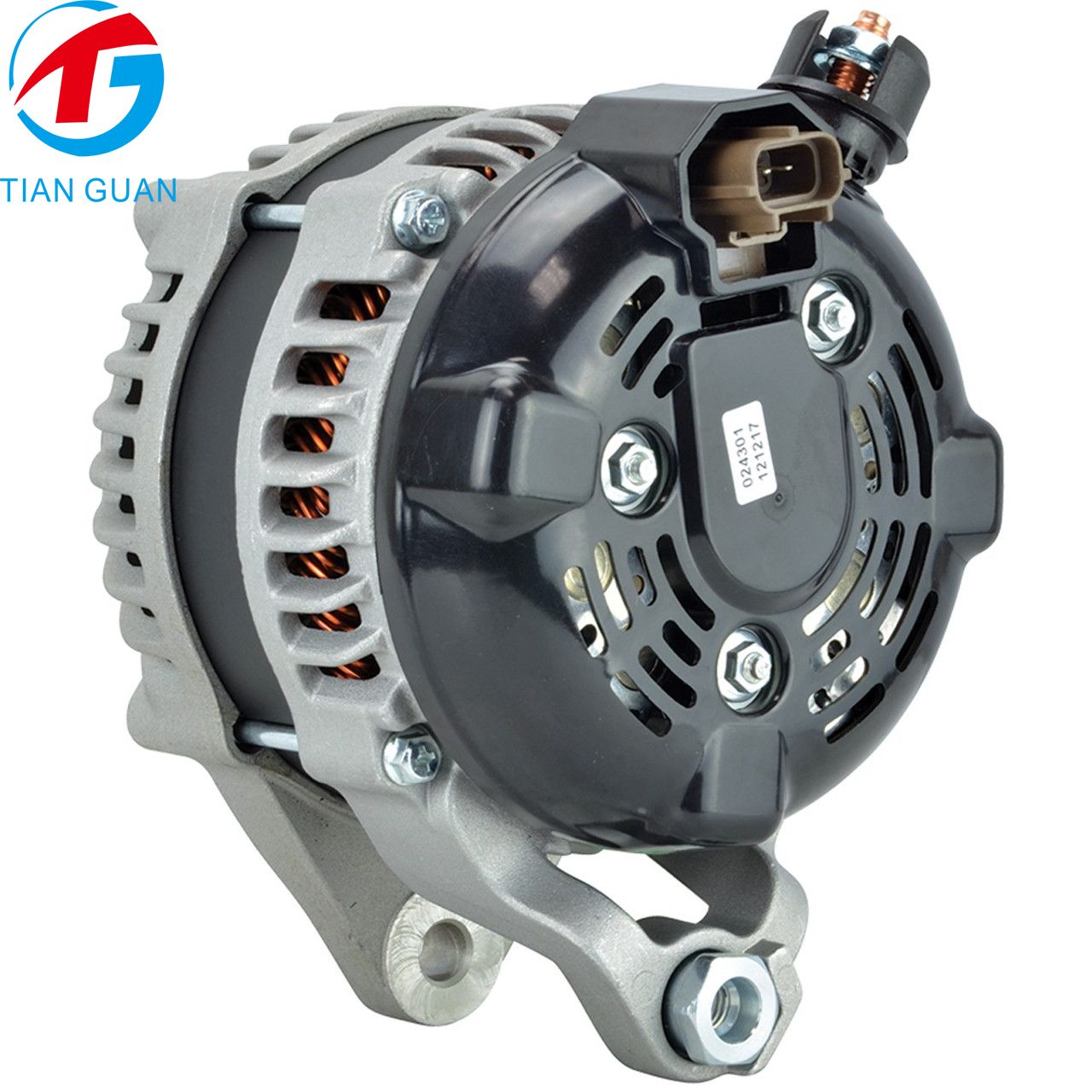

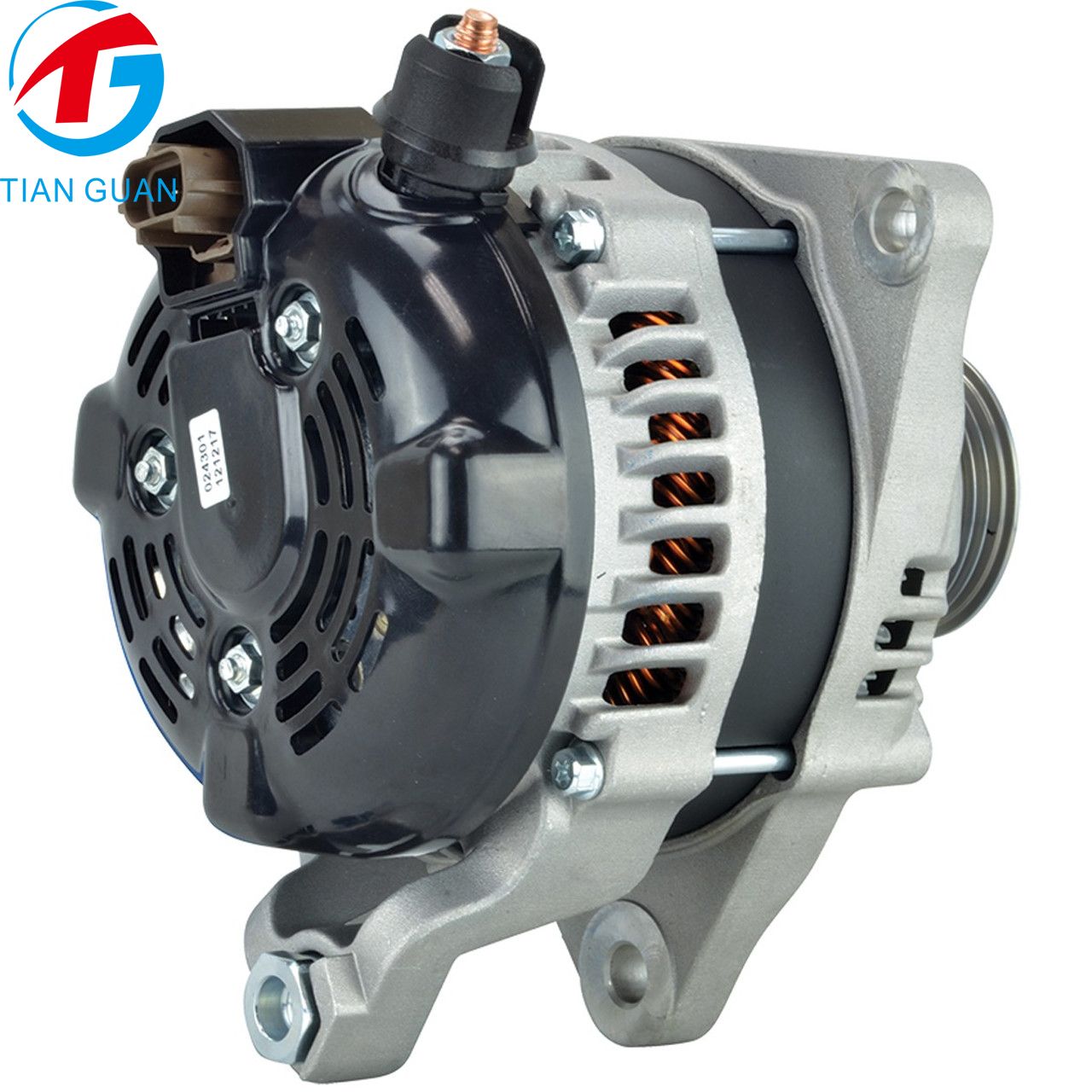

The ATG11701 alternator is a 12V, 150A replacement unit designed for compatible 2011–2014 Ford Mustang models equipped with the 5.0L V8 engine. It cross-references Ford part numbers BR3T-10300-KC and BR3Z-10346-D, as well as Denso reference 104210-2942 and other aftermarket replacement numbers.

This alternator features clockwise (CW) rotation, an internal regulator, an internal fan, and a 12 o’clock clock position. It is equipped with a clutch-type pulley measuring approximately 58.8 mm in diameter. These specifications help identify the correct replacement for compatible charging systems and should be checked against the original unit before installation.

Designed for applicable Ford Mustang 5.0L V8 vehicles from 2011 through 2014, the ATG11701 provides a replacement option for the vehicle's charging system. Verify the OEM reference, pulley type, diameter, mounting points, and electrical connections to ensure correct fitment.

Product Specifications

Specification	Details
Product SKU	ATG11701
Product Type	Alternator
Item Condition	Aftermarket Replacement
Voltage	12V
Amperage	150A
Rotation	Clockwise (CW)
Clock Position	12 o’clock
Regulator Type	Internal
Fan Type	Internal
Pulley Type	Clutch
Pulley Diameter	58.8 mm
Primary OEM Reference	BR3T-10300-KC
Additional OEM Reference	BR3Z-10346-D
Additional Cross-Reference	104210-2942, 11625, GL-998
Alternator Design	Denso Hairpin
Compatible Make	Ford
Compatible Model	Mustang
Compatible Engine	5.0L (302 cu. in.) V8
Application Years	2011–2014
Estimated Net Weight	6.0 kg (6000 g)
Estimated Gross Weight	6.5 kg (6500 g)

Compatible Applications

Manufacturer	Vehicle Type	Model	Year	Engine
Ford	Auto and Light Truck	Mustang	2011	5.0L (302 cu. in.) V8
Ford	Auto and Light Truck	Mustang	2012	5.0L (302 cu. in.) V8
Ford	Auto and Light Truck	Mustang	2013	5.0L (302 cu. in.) V8
Ford	Auto and Light Truck	Mustang	2014	5.0L (302 cu. in.) V8

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
High Charging Output	12V, 150A rated output	Supports the electrical demands of compatible vehicle systems
Integrated Components	Internal regulator and internal fan	Provides regulated charging and integrated cooling
Clutch Pulley Design	Clutch-type pulley with 58.8 mm diameter	Supports correct belt operation when matched to the original alternator
