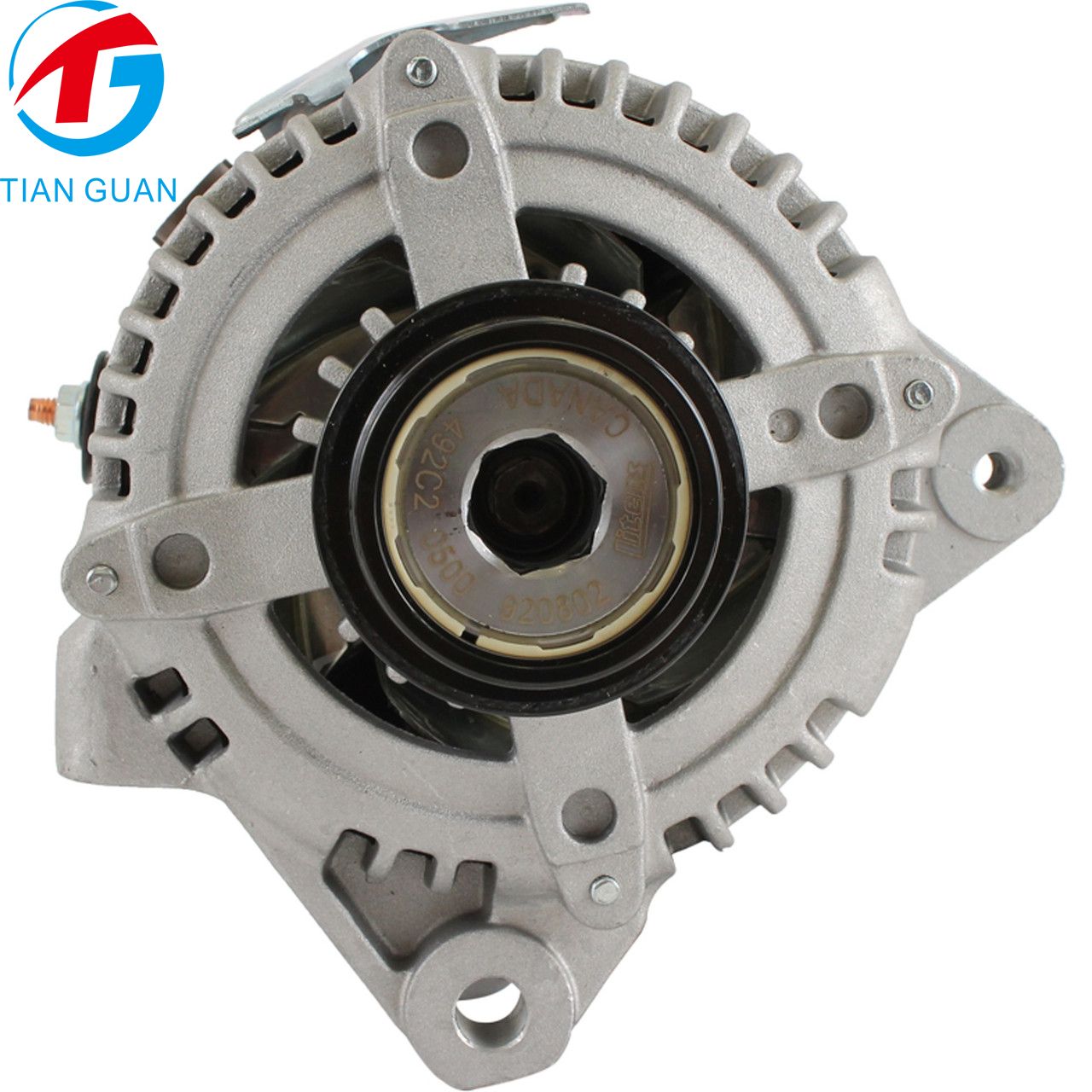

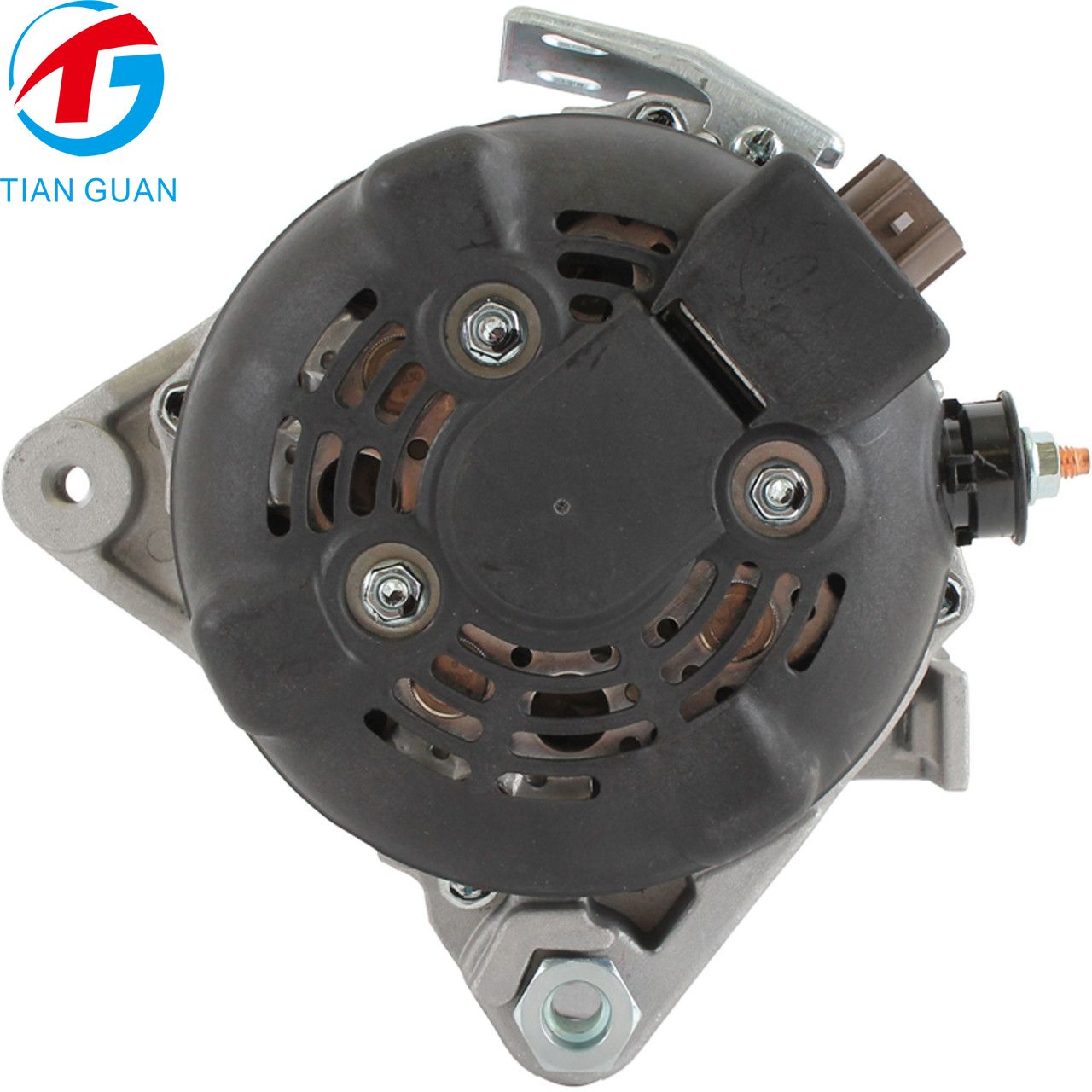

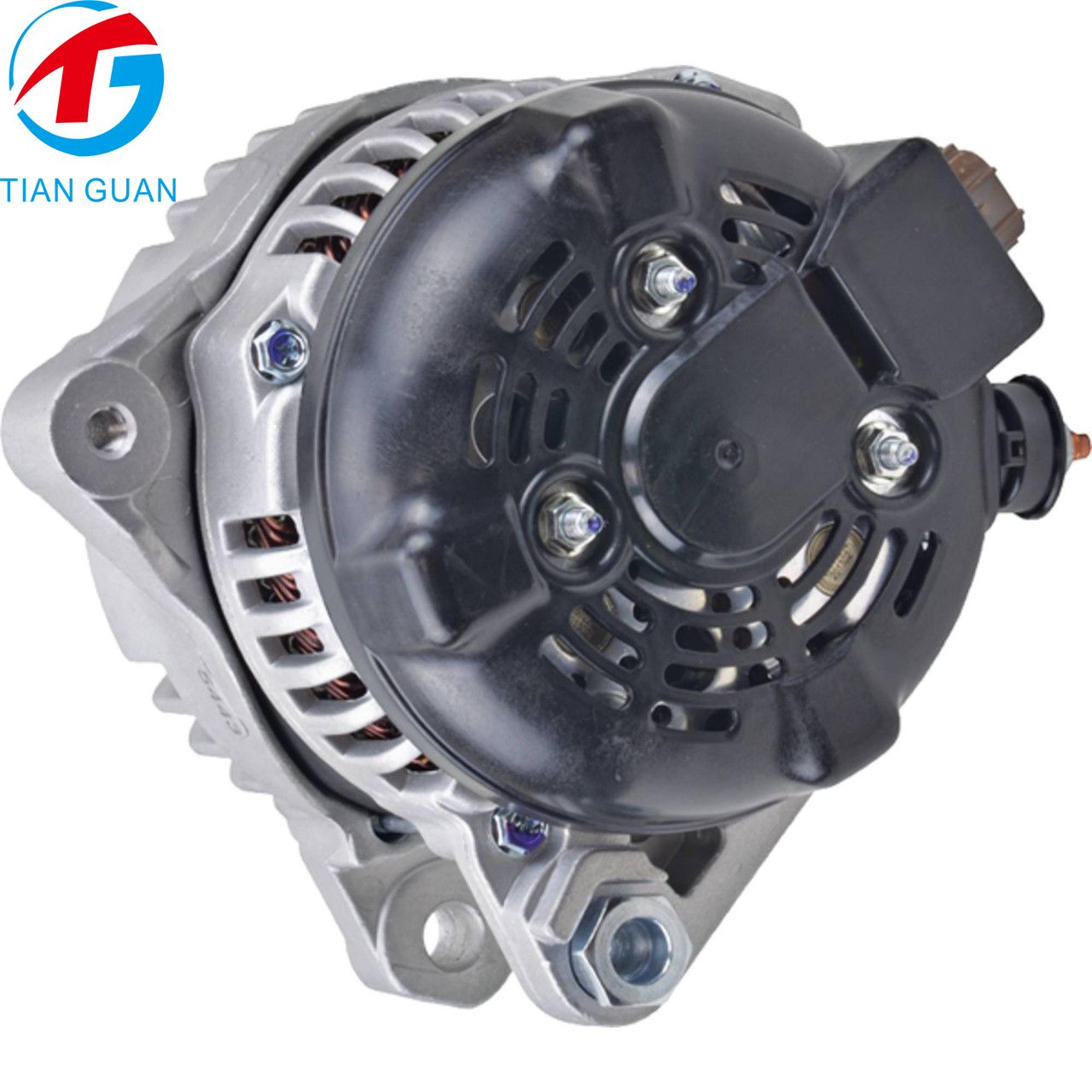

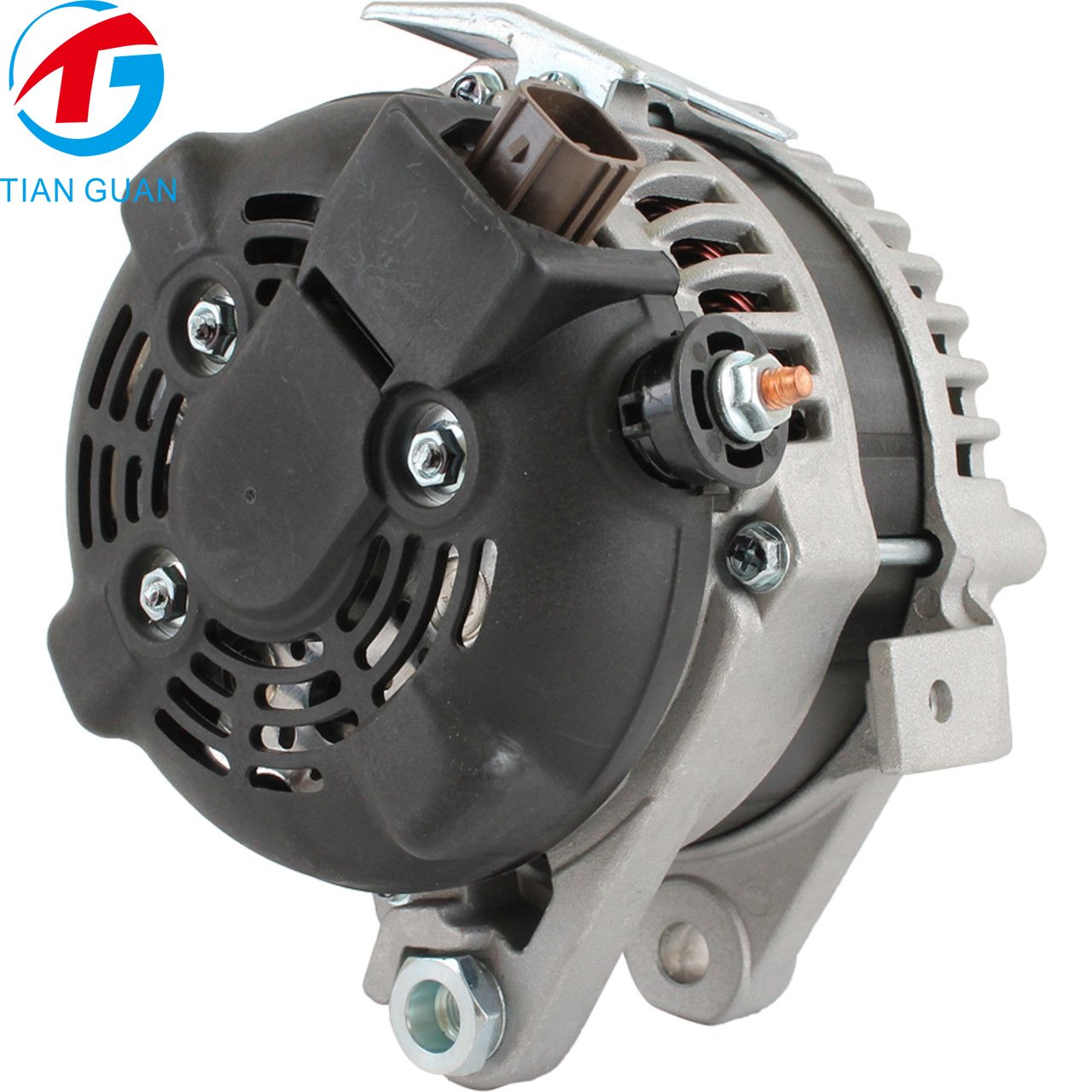

ATG11709 Alternator 27060-28300 104210-4790 400-52276R for Toyota RAV4 2.4L 2006–2008 | 12V 100A CW Replacement

3 Reviews

Add Your Review

US$118.00

ITEMNO： ATG11709

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ATG11709 Alternator 27060-28300 104210-4790 400-52276R for Toyota RAV4 2.4L 2006–2008 | 12V 100A CW Replacement

    PRODUCT DETAILS

    ARROWHEAD (OEM)VND0427
    ARROWHEAD400-52276R
    DENSO104210-4790
    DIXIEA-80338
    FAMILYDenso Hairpin
    J & N400-52276R
    LESTER11201
    LUCAS ELECTRICAL EUROPELRA04217
    NAPA POWER PREMIUM PLUS213-9724
    PIC290-5281
    REMY LIGHT DUTY12815
    TOYOTA27060-28300
    USA INDUSTRIESA3201
    WAI1-3044-01ND
    WILSON NEW90-29-5622
    WILSON90-29-5622

    Product Description

    The ATG11709 Alternator is a high-quality aftermarket replacement designed for compatible Toyota RAV4 2.4L applications. Featuring a 12V electrical system and 100A output, this alternator supports vehicle battery charging and electrical system operation. Its clockwise (CW) rotation, internal regulator (IR), internal fan (IF), and Denso Hairpin family design help identify the correct replacement configuration.

    This alternator cross-references Toyota OEM part number 27060-28300 and Denso 104210-4790, along with Arrowhead 400-52276R, Lester 11201, NAPA Power Premium Plus 213-9724, and other listed aftermarket references. It is specified for a 7-groove decoupler pulley with an approximate 55 mm outside diameter and an SD7 pulley classification.

    Designed for replacement and charging-system repairs, the ATG11709 is listed for Toyota RAV4 2.4L models from 2006 to 2008. The supplied data also references European-market RAV4 III 2.4L applications. Verify the original alternator part number, pulley dimensions, regulator configuration, and vehicle market before ordering.

    Product Specs

    Item ConditionAftermarket Part
    Unit TypeAlternator
    Voltage12
    RotationCW
    Amperage100
    Clock2
    Pulley ClassSD7

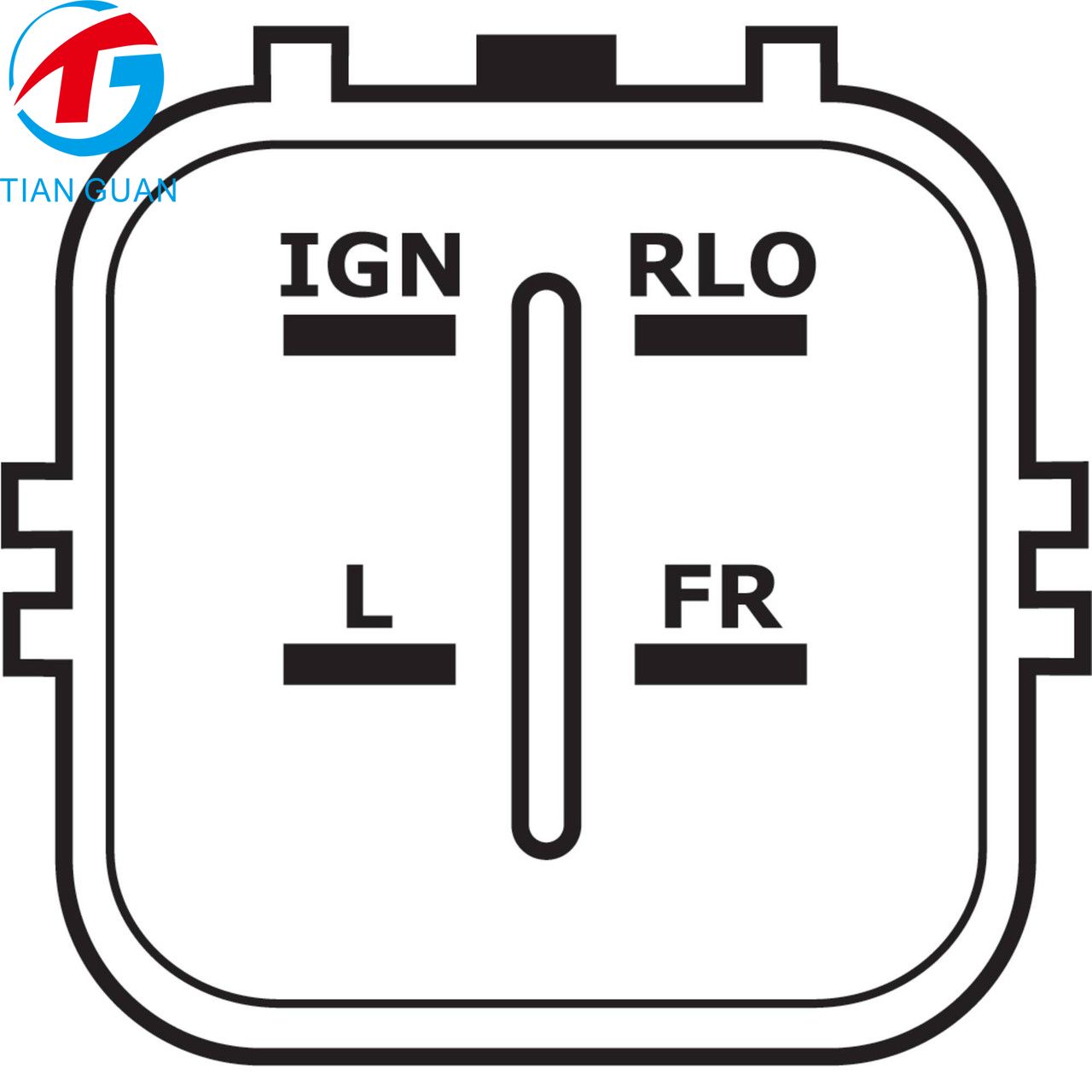

    RegulatorIR
    Fan TypeIF
    FitsTOYOTA RAV4 2.4L 2006-2008
    ALSO USED IN EUROPE:
    TOYOTA RAV4 III 2.4L 2005-2019

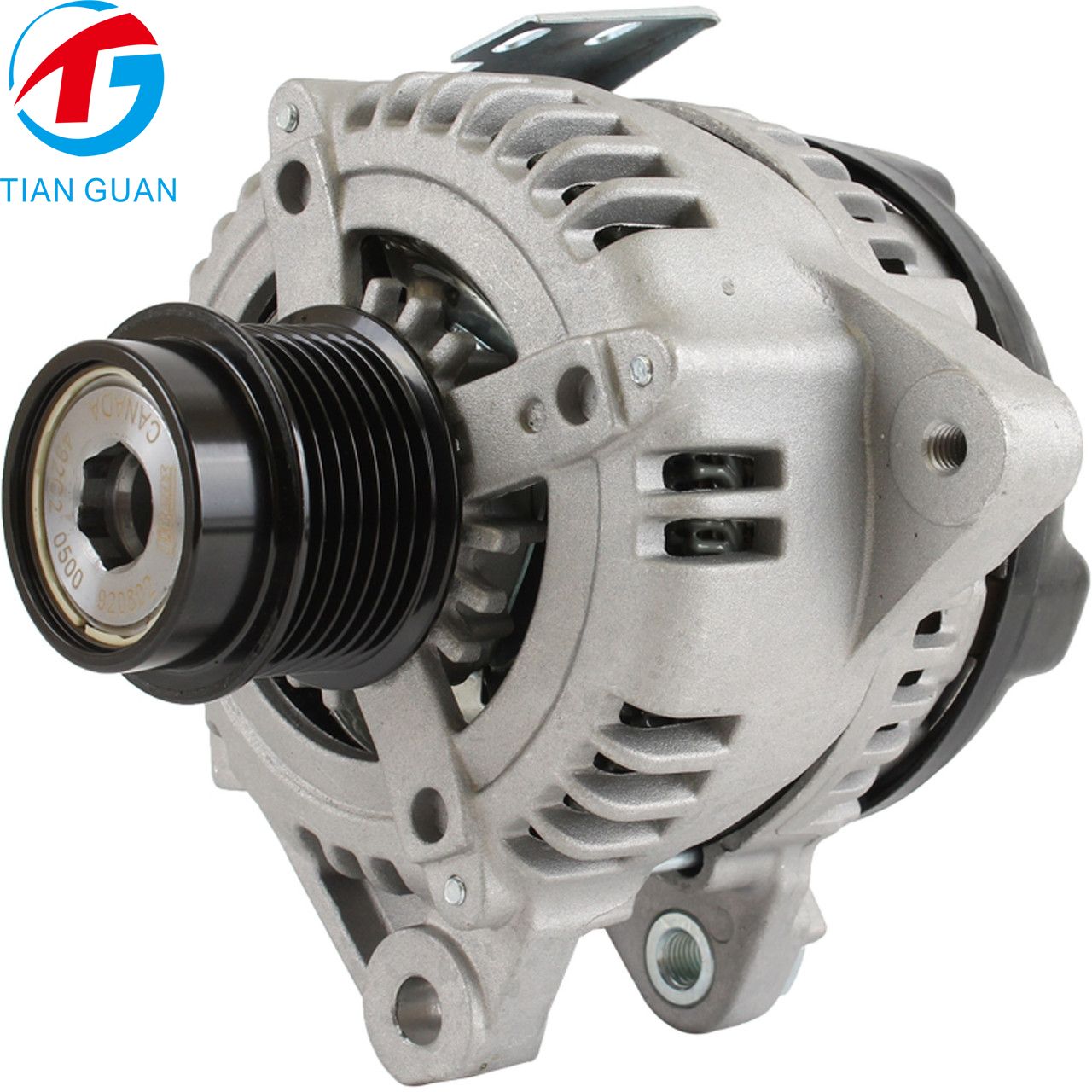

    7-GROOVE DECOUPLER PULLEY 55mm OD

         Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    ToyotaAuto and Light TruckRAV420062.4L
    ToyotaAuto and Light TruckRAV420072.4L
    ToyotaAuto and Light TruckRAV420082.4L

    Estimated Weight and Packaging

    Item

    Details

    Net Weight

    5.0 kg (5,000 g) — Estimated

    Gross Weight

    5.7 kg (5,700 g) — Estimated

    Package Dimensions

    28 × 24 × 22 cm — Estimated

    Packaging

    Protective carton with internal cushioning


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature

    Description

    Benefit

    100A Charging Output

    12V alternator rated at 100A

    Supports battery charging and vehicle electrical demands

    Decoupler Pulley

    7-groove pulley, approximately 55 mm OD

    Helps maintain correct belt engagement when specifications match

    Internal Regulation

    Internal regulator and fan configuration

    Supports charging control and alternator cooling
