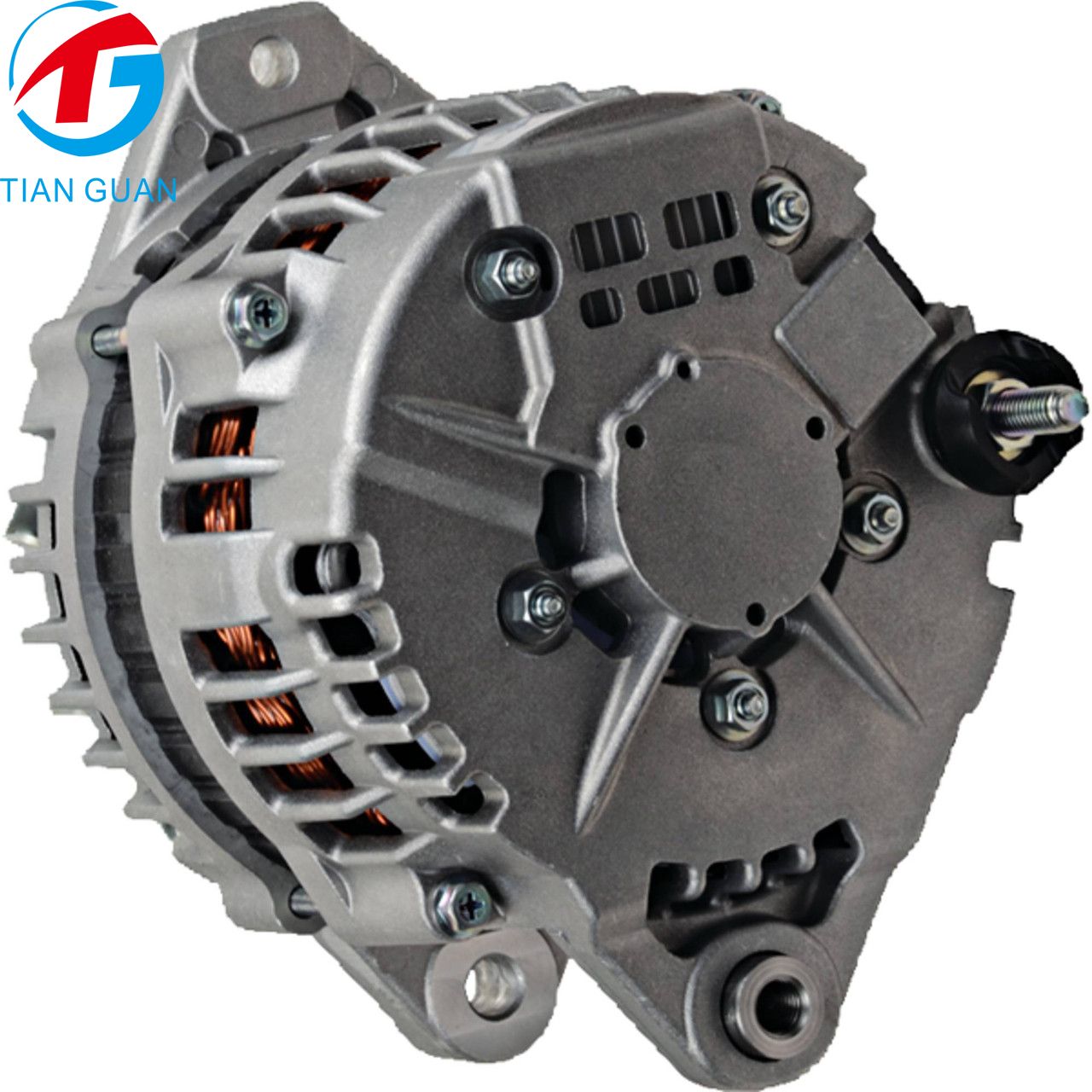

ATG11969 Alternator LR1110-533 LR1110-733CN for Chevrolet W4500 Tiltmaster 4HK1 5.2L | 12V 110A CW Replacement

3 Reviews

Add Your Review

US$136.00

ITEMNO： ATG11969

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG11969 Alternator LR1110-533 LR1110-733CN for Chevrolet W4500 Tiltmaster 4HK1 5.2L | 12V 110A CW Replacement

OEM / Compatible Part Numbers

Arrowhead	400-44133, LR1110-733C, LR1110-733CN
General Motors	98075025
Hitachi	LR1110-533, LR1110-533C, LR1110-733, LR1110-733C, LR1110-733CN
Isuzu	8980750250, 898075-025-0
J&N Electrical Products	400-44133
Lester	13215

Product Description

ATG11969 is a 12V 110A replacement alternator designed for Chevrolet W4500 Tiltmaster trucks equipped with the Isuzu 4HK1 5.2L diesel engine. It replaces Hitachi LR1110-533/LR1110-733 series units and compatible Isuzu and GM part numbers. The alternator features clockwise rotation, an internally regulated design, an external fan, and a combination pulley configuration for reliable charging performance in medium-duty commercial vehicle applications.

Product Specs

Item Condition	Aftermarket Part
Description	Alternator
Volt	12
Amps	110
Condition	New
Regulator Clock	2:00
Mount Hole ID 1	8.900mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mount Hole ID 3	M10x1.25
Mount Hole 3 Type	Threaded
Mounting Ear Thickness	0.669"
Mounting Ear Thickness	17mm
Mounting Ear 2 Thickness	0.693"
Mounting Ear 2 Thickness	17.600mm
Mounting Ear 3 Thickness	0.787"
Mounting Ear 3 Thickness	20mm
Fan Location	External
Regulator Location	Internal
Terminal ID 2	B+
Terminal 2 Size	M8x1.25
Terminal ID 3	S
Terminal 3 Size	Spade
Terminal ID 4	L
Terminal 4 Size	Spade
Polarity	Negative
Number Of Grooves	7
Groove OD	2.559"
Groove OD	65mm
Pulley Type	SolID
Pulley Outer Diameter	2.717"
Pulley Outer Diameter	69mm

MAKE	TYPE	MODEL	YEAR	ENGINE
Chevrolet		W3500 Tiltmaster	5200cc, 4HK1, Diesel	2007, 2008
Chevrolet		W4500 Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009, 2010
Chevrolet		W5500 Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009
Chevrolet		W5500HD Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009
Chevrolet/GMC		W3500 Tiltmaster	Isuzu 5.2L - 4HK1 Engin	2007, 2008
Chevrolet/GMC		W4500 Tiltmaster	Isuzu 5.2L - 4HK1 Engin	2008, 2009, 2010
Chevrolet/GMC		W5500 Tiltmaster	Isuzu 5.2L - 4HK1 Engin	2008, 2009
Chevrolet/GMC		W5500HD Tiltmaster	Isuzu 5.2L - 4HK1 Engin	2008, 2009
GMC	W3500 Tiltmaster	5200cc, 4HK1, Diesel	2007, 2008
GMC	W4500 Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009, 2010
GMC	W5500 Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009
GMC	W5500HD Tiltmaster	5200cc, 4HK1, Diesel	2008, 2009
Isuzu		NPR	Isuzu 5.2L - 4HK1 Diese	2007, 2008, 2009, 2010
Isuzu		NPR	5200cc, 4HK1, Diesel	2007, 2008, 2009, 2010
Isuzu		NPR-HD	Isuzu 5.2L - 4HK1 Diese	2008, 2009, 2010, 2011, 2012, 2013
Isuzu		NPR-HD	5200cc, 4HK1, Diesel	2008, 2009, 2010, 2011, 2012, 2013
Isuzu		NQR	Isuzu 5.2L - 4HK1 Diese	2008, 2009, 2010, 2011, 2012, 2013
Isuzu		NQR	5200cc, 4HK1, Diesel	2008, 2009, 2010, 2011, 2012, 2013
Isuzu		NRR	Isuzu 5.2L - 4HK1 Diese	2008, 2009, 2010, 2011, 2012, 2013
Isuzu		NRR	5200cc, 4HK1, Diesel	2008, 2009, 2010, 2011, 2012, 2013

Packaging Information

Item	Details
NW	Approx. 7.2 KG (Estimated)
GW	Approx. 8.0 KG (Estimated)
Package Dimensions	Approx. 30 × 25 × 25 cm
Packaging	1 × Alternator, protective foam and export carton

PRODUCT HIGHLIGHTS

Feature	Description	Benefit
110A Charging Output	Provides 110A electrical output	Supports dependable charging for medium-duty truck electrical systems
OEM Cross-Reference	Replaces LR1110-533, LR1110-733CN and related GM/Isuzu numbers	Makes replacement identification easier
Heavy-Duty Design	External fan and internal regulator	Designed for demanding commercial vehicle operation
