STG91436 Starter 847307 870729 881683 240502 240503 5001682 AZK5431 AZK5562 for Volvo Penta TAMD61A Marine Diesel Engine

3 Reviews

Add Your Review

US$185.00

ITEMNO： STG91436

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG91436 Starter 847307 870729 881683 240502 240503 5001682 AZK5431 AZK5562 for Volvo Penta TAMD61A Marine Diesel Engine

    Part Numbers

    VOLVO PENTA / VOLVO: 241011, 842774, 843510, 847307, 8473076, 870729, 881683, 240502, 240503, 5001682
    BOSCH: 0001402072, 0001402079, 0001414011, 0001416028, 0001402043, 0001402058, 0001410029, 0001410030, 0001414017, 0001414018, 0001415010, 0001416013, 0001416017, 0001416025, 0001416027, 0986012800, 9000847307
    KHD: 0152440109, 1170738, C6R24X4H7622
    MAN: 51262017014, 90801105110
    RENAULT: 0025841025
    BOMAG: 05710926
    API MARINE: 15098-24, 97307
    ARROWHEAD: 410-24276, IMI45002-018, MS487, MS703, IS9068
    CARGO: 111218
    J & N: 410-24276
    LESTER: 18388
    LETRIKA (ISKRA): IS9068, AZK5431, AZK5562, 11.139.077, 11.139.523, MS487, MS703
    MARELLI: 63214371, 8961949, 943252046
    LUCAS: LRS00843, LRS843, LRS01807, LRS1807, LRS01812, LRS1812
    PSH: 811.209.093.010, 18388, 91157157
    WAI: 18388N

    Product Description

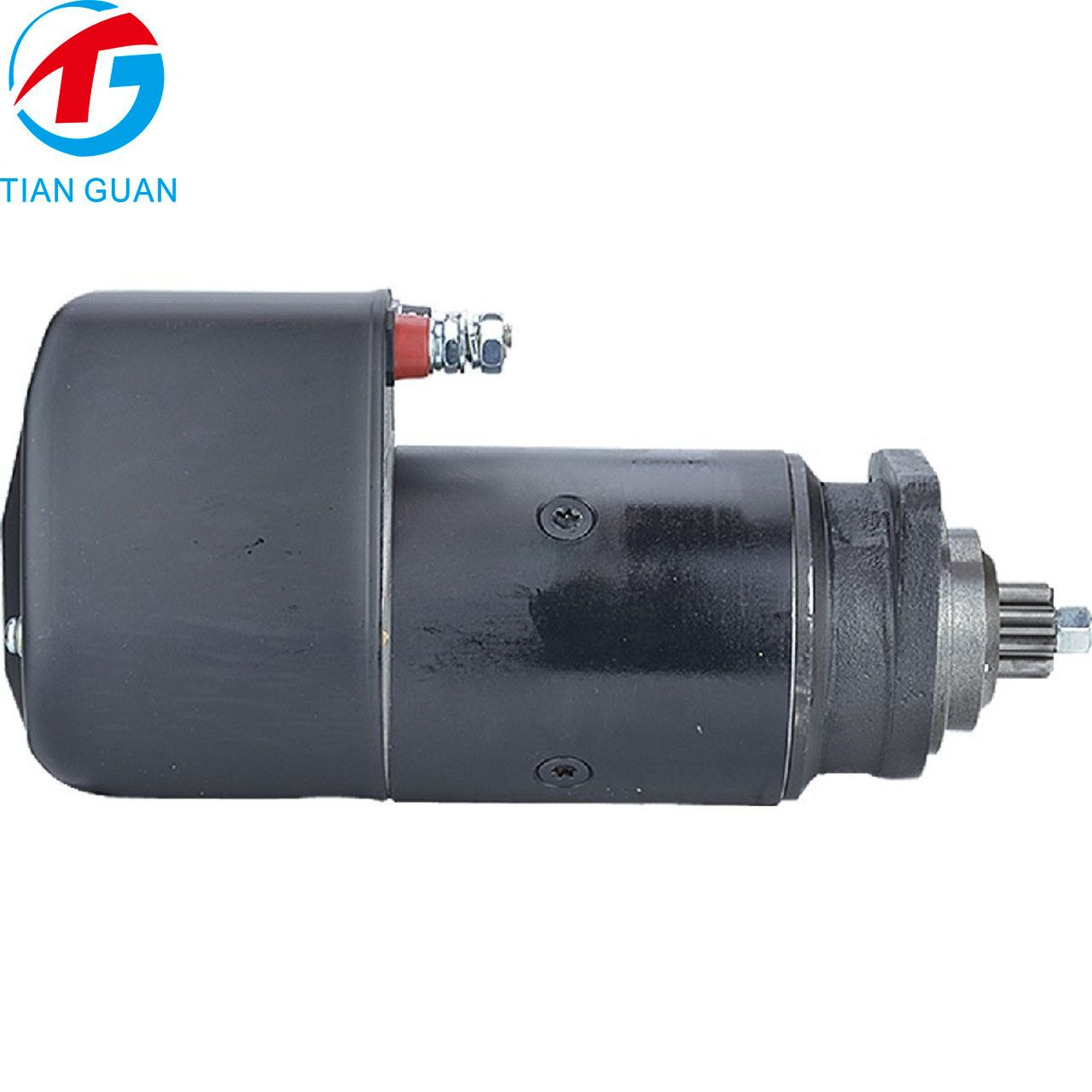

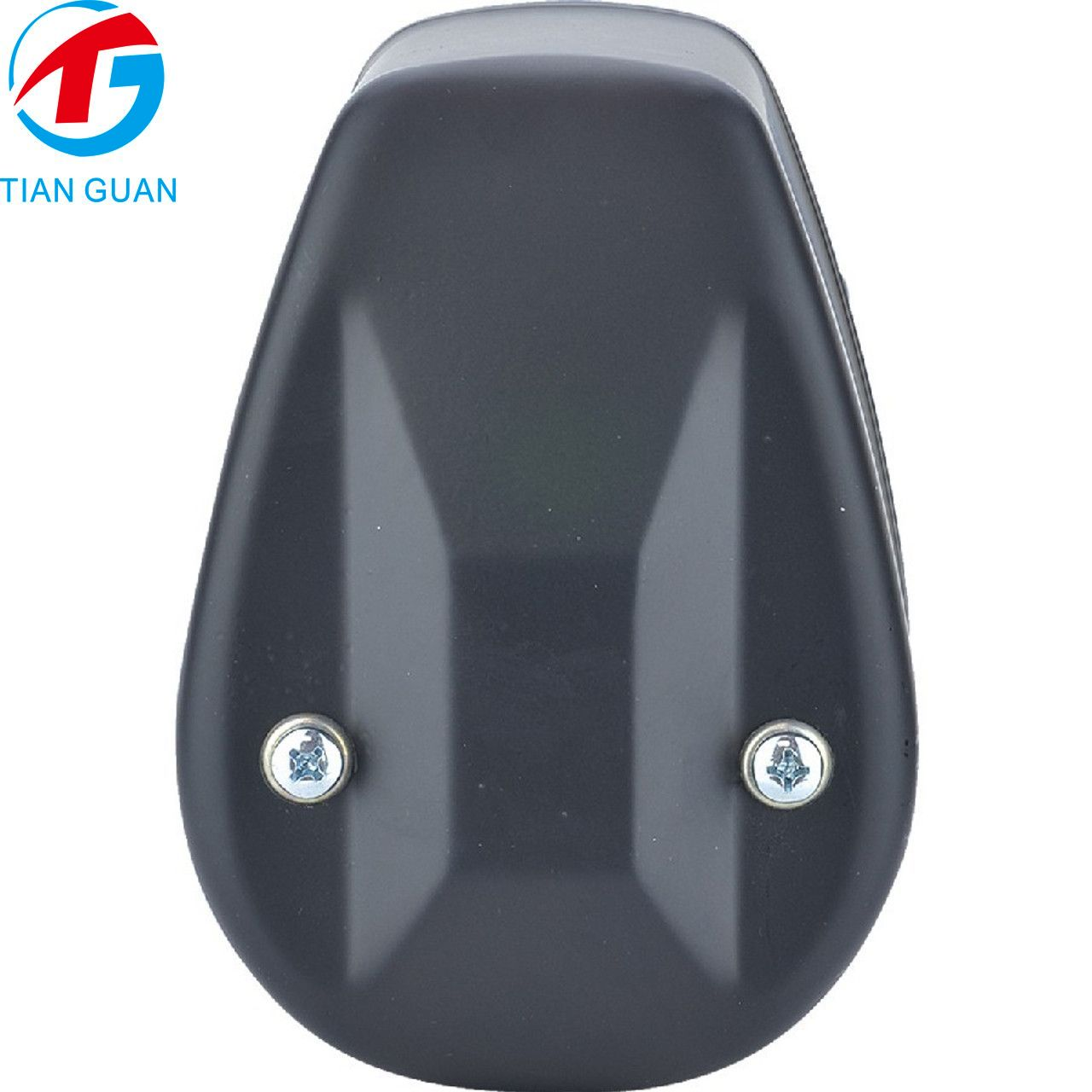

    STG91436 is a heavy-duty aftermarket starter motor designed for Volvo Penta marine diesel engine applications, including TAMD61A and related Volvo Penta engine families.

    The starter uses a 24V 5.4KW configuration with 9-tooth pinion gear and CW (Clockwise) rotation. Prestolite's marine catalog identifies the corresponding 860543GB starter as a 24V, 5.4KW, 9T, CW, insulated-polarity unit with SAE1 mounting and lists Volvo Penta references including 847307, 870729, 240503 and 0001402072 / 0001402079.

    This starter replaces OE part numbers 847307, 870729, 881683, 240502, 240503, 5001682, 241011, 842774, 843510, 8473076 (Volvo Penta / Volvo), 0001402072, 0001402079, 0001414011, 0001416028, 0001402043, 0001402058, 0001410029, 0001410030, 0001414017, 0001414018, 0001415010, 0001416013, 0001416017, 0001416025, 0001416027, 0986012800, 9000847307 (Bosch), and additional cross-reference numbers listed above.

    • 24V starter motor

    • 5.4KW power output

    • 9-tooth pinion gear

    • Gear Reduction / Co-Axial design

    • Clockwise (CW) rotation

    • Pinion OD: 34.8mm

    • Mounting type: SAE1

    • Polarity: Insulated

    • Direct replacement for Volvo Penta TAMD61A

    • Fits Volvo Penta marine diesel applications

    • New aftermarket part

    • Approx. 19.5 kg

    Specifications

    Product Model: STG91436
    Volvo Penta Part Numbers: 847307 / 870729 / 881683 / 240502 / 240503 / 5001682
    Bosch Part Numbers: 0001402072 / 0001402079 / 0001414011 / 0001416028
    Voltage: 24V
    Power Output: 5.4KW
    Starter Type: Gear Reduction / Co-Axial
    Rotation: CW
    Teeth Count: 9T
    Pinion OD: 34.8mm
    Mounting Type: SAE1
    Polarity: Insulated
    Application: Volvo Penta Marine Diesel
    Condition: New Aftermarket
    Weight: 19.5KG

    Fitment

    Volvo Penta – TAMD61A Marine Diesel Engine
    Volvo Penta – Related TAMD Marine Diesel Applications
    Volvo Penta – Marine Applications Using 847307 / 870729 / 881683
    KHD – Diesel Engine Applications Using Compatible Starter
    MAN – Heavy-Duty Diesel Applications
    BOMAG – Construction Equipment Applications
    RENAULT – Heavy-Duty Diesel Applications
    API Marine – Marine Starter Application

    Compatible with equipment using 847307, 870729, 881683, 240502, 240503, 5001682, 0001402072, 0001402079, AZK5431, AZK5562, 410-24276, 18388, IS9068, or 18388N starter motor part numbers.



  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Volvo Penta TAMD61A Replacement24V 5.4KW High-Torque Starter9T CW Gear Reduction
    Bosch 0001402072 / 0001402079 CompatibleSAE1 Mounting DesignInsulated Polarity
    847307 / 870729 / 881683 ReplacementMarine Diesel ApplicationReliable Engine Starting
