ATG12165 Alternator 600-825-3160 600-825-3161 0-35000-0400 0-35000-0402 400-50015 for Komatsu BR380JG-1 BR480RG-1 BR500JG-1 BR550JG-1 – 24V 35A IR/EF

Part Numbers

ARROWHEAD: ANK0018
J & N: 400-50015
KOMATSU: 600825-3160, 600825-3161
NIKKO: 0-35000-0400, 0-35000-0402

Product Description

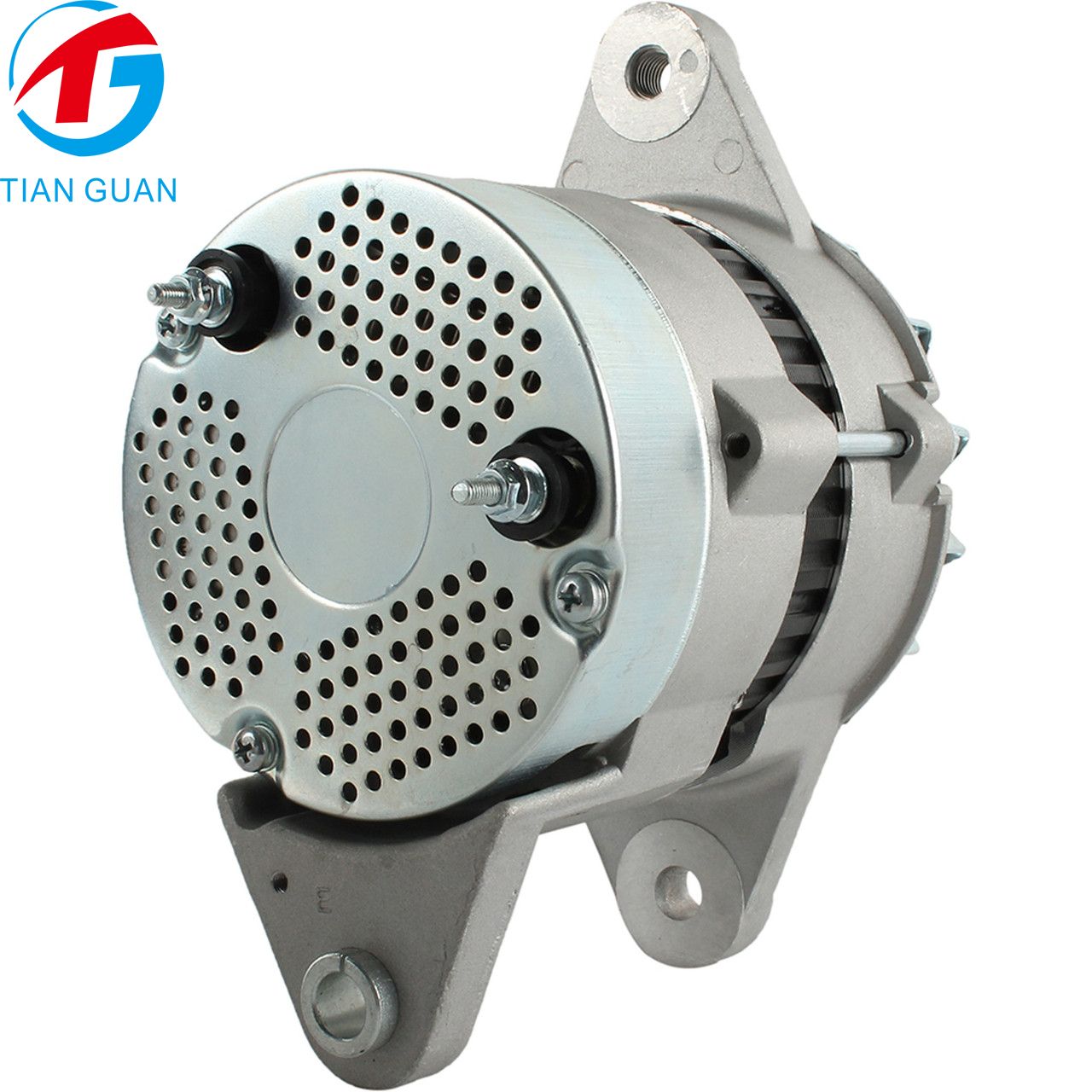

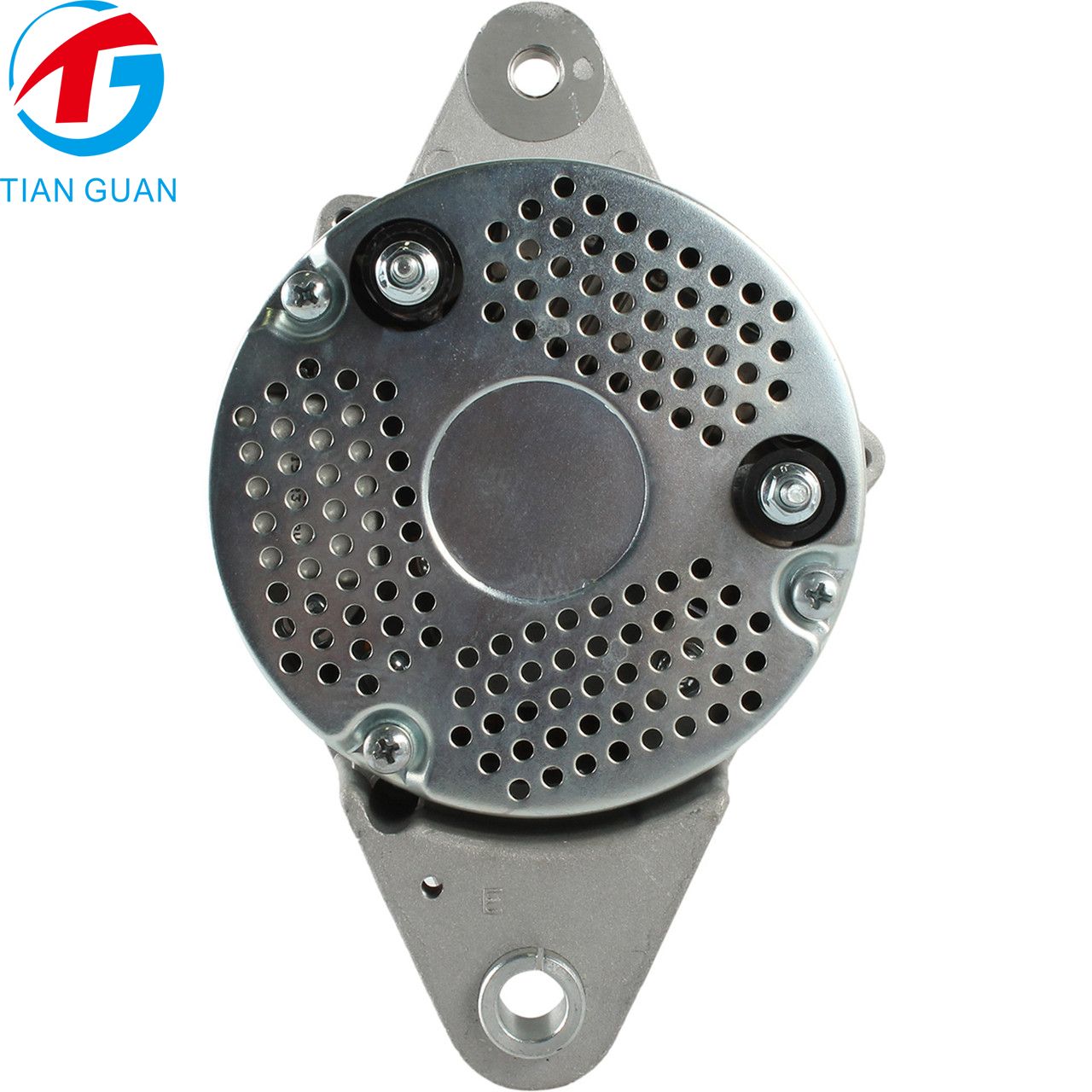

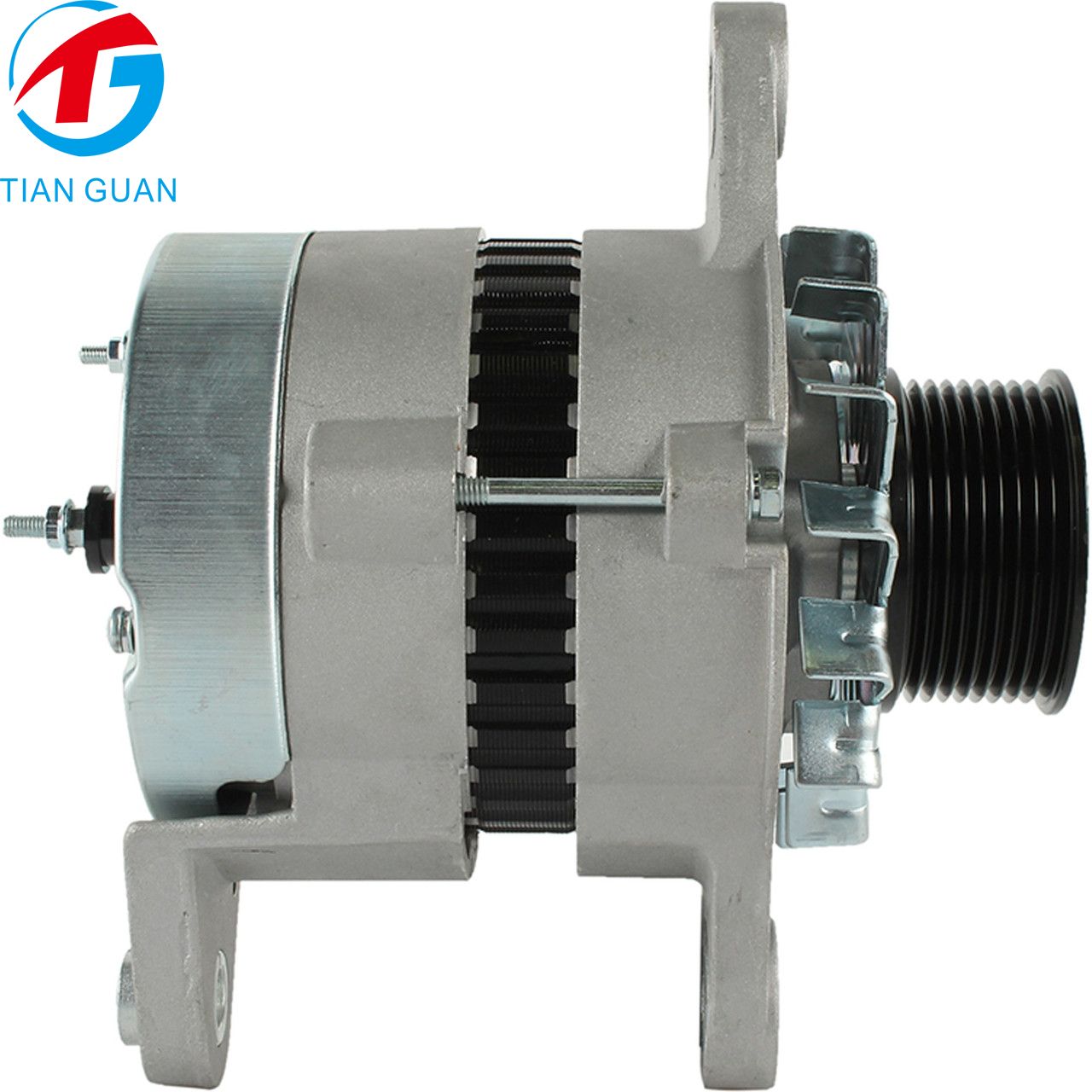

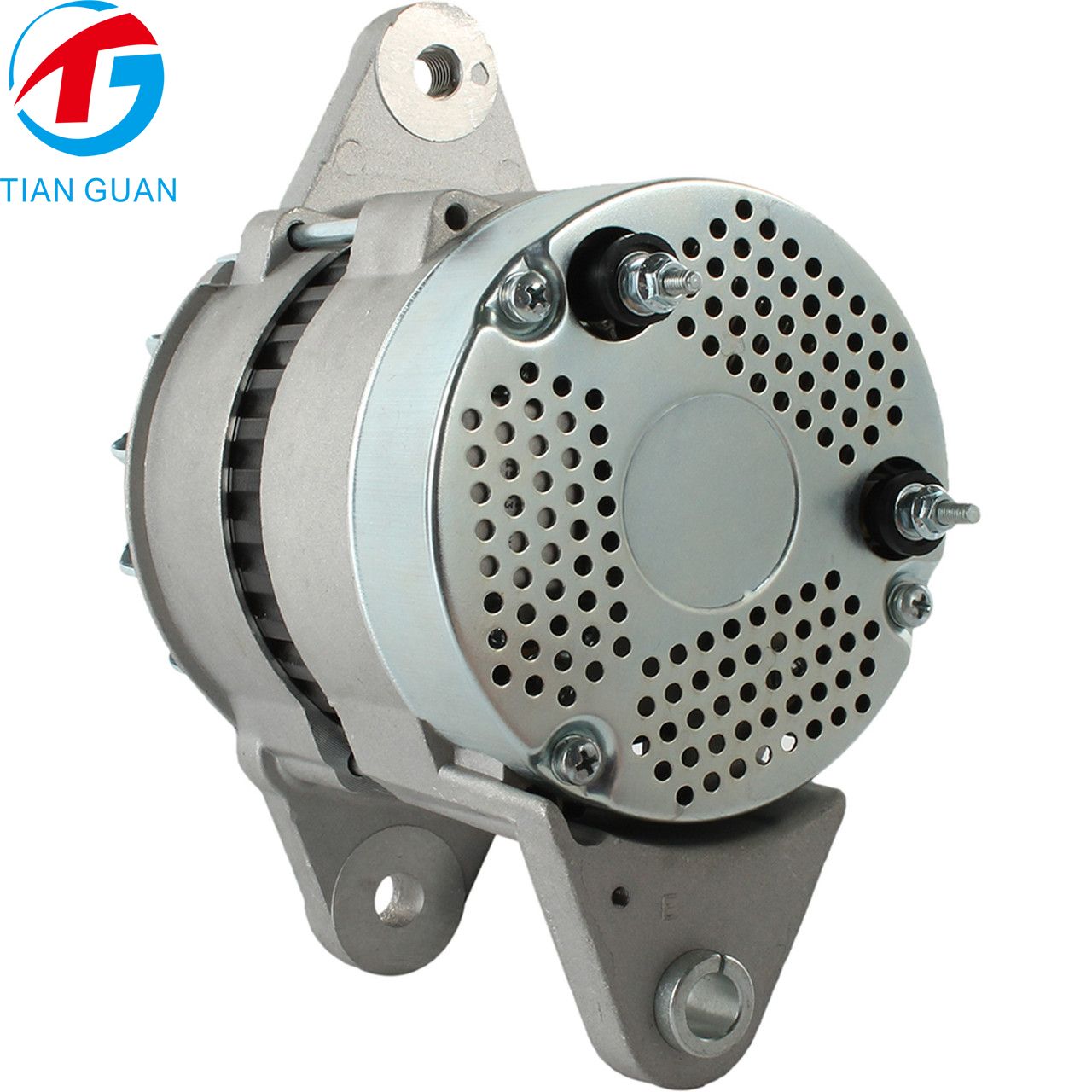

This premium aftermarket 24V 35A Alternator is designed as a direct replacement for Komatsu applications, including BR380JG-1, BR480RG-1, BR500JG-1, and BR550JG-1. With 35A output, internal regulator (IR), external fan (EF), and brushless self-excited design, it delivers reliable charging performance and dependable service in demanding construction and mining applications.

This alternator replaces OE part numbers ANK0018 (Arrowhead), 400-50015 (J & N), 600825-3160, 600825-3161 (Komatsu), and 0-35000-0400, 0-35000-0402 (Nikko).

• 24V alternator

• 35A amperage

• Internal regulator (IR)

• External fan (EF)

• Clockwise (CW) rotation

• Brushless, self-excited design

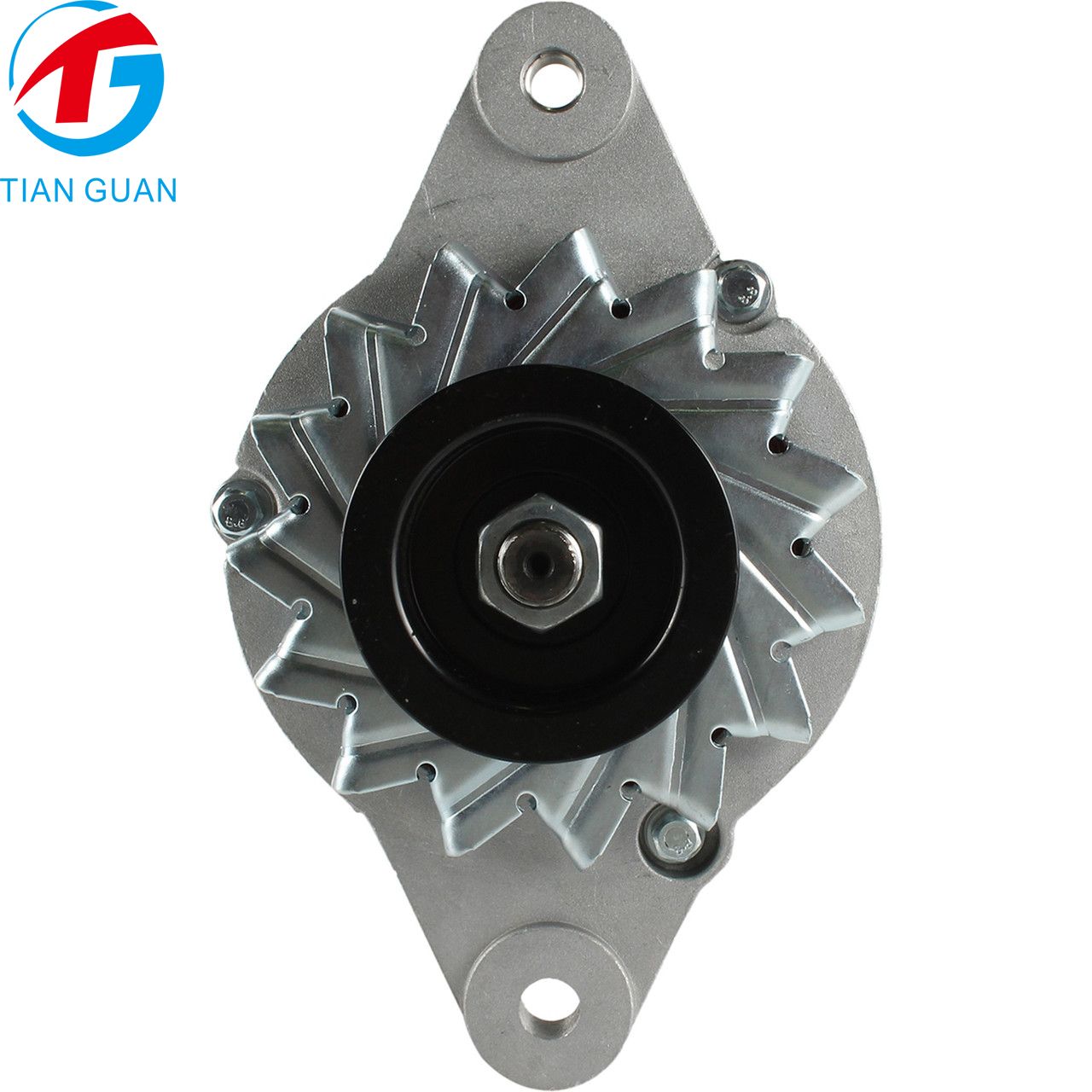

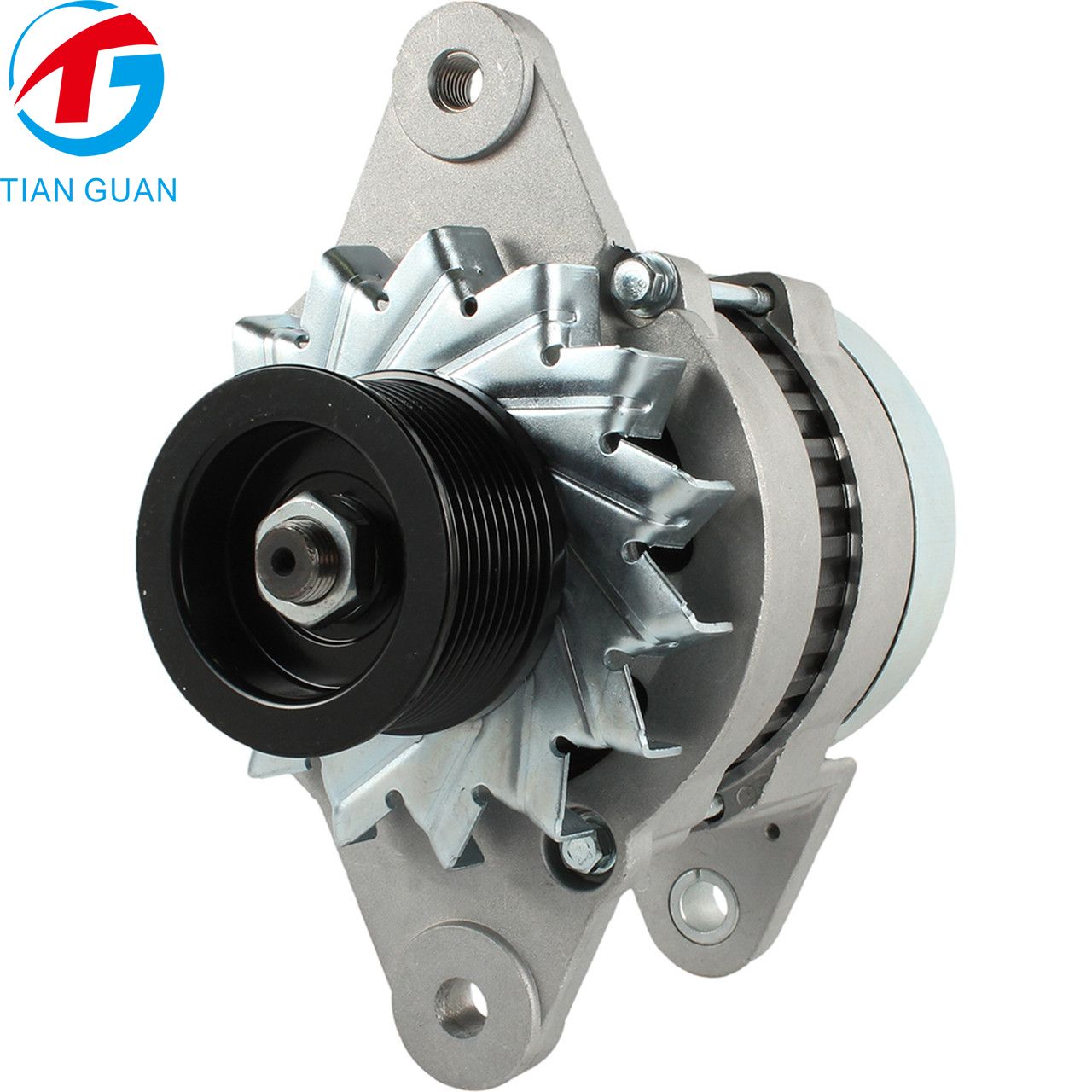

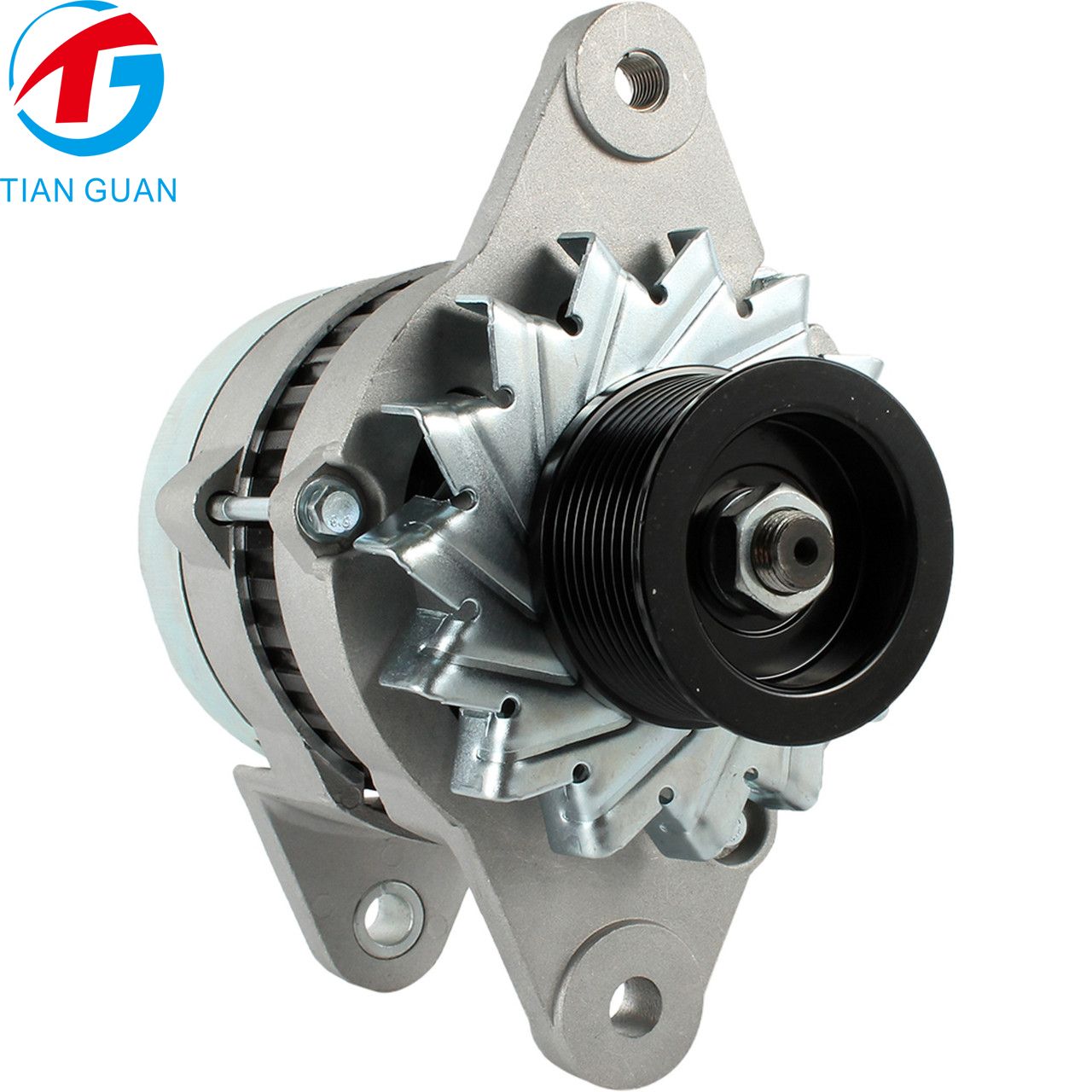

• 9-groove pulley, 75mm OD

• Mounting ear hole (1): M12-1.5 threaded

• Mounting ear holes (2): 13mm unthreaded

• Mounting ear thickness (1): 20mm

• Mounting ear thickness (2): 16mm

• B+ terminal: M5-0.8

• R terminal: M5-0.8

• Polarity: Negative

• Direct replacement for Komatsu equipment

• Aftermarket replacement part

• Approx. 7.3 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Alternator
Voltage: 24V
Rotation: CW
Dimension: Mtg. Ear Hole (1): M12-1.5 Threaded; Mtg. Ear Holes (2): 13mm Unthreaded; Mtg. Ear Thick (2): 16mm; Mtg. Ear Thick (1): 20mm; B+ Terminal: M5-0.8; R Terminal: M5-0.8; Polarity: Negative; Brushless; Self Excited
Amperage: 35A
Clock: 9
Pulley Class: S9
Regulator: IR
Fan Type: EF
Fits: Komatsu
Pulley: 9-Groove Pulley, 75mm OD
Weight: 7.3KG

Fitment

Komatsu – D60P – 1991-1997 – 6D12
Komatsu – D65A – 1991-1997 – 6D12
Komatsu – D65E – 1994-1997 – 6D12 / 6D125 Engine
Komatsu – GD625A – 1995-1997 – 6D10
Komatsu – PC130 – 1998 – 6D11 / 6D110 Engine
Komatsu – PC400 – 1995-1997 – 6D12 / 6D125 Engine
Komatsu – WA320 – 1998 – 6D11 / 6D110 Engine

Compatible with equipment using 600-825-3160, 600-825-3161, 0-35000-0400, 0-35000-0402, 400-50015, or ANK0018 alternator part numbers.
