ATG12219 Alternator 12477 112358 102211-5200 for Toyota 7FG10 7FG14 7FG15 Forklifts | 12V 60A CW IR/IF Replacement

Part Numbers

Product Description

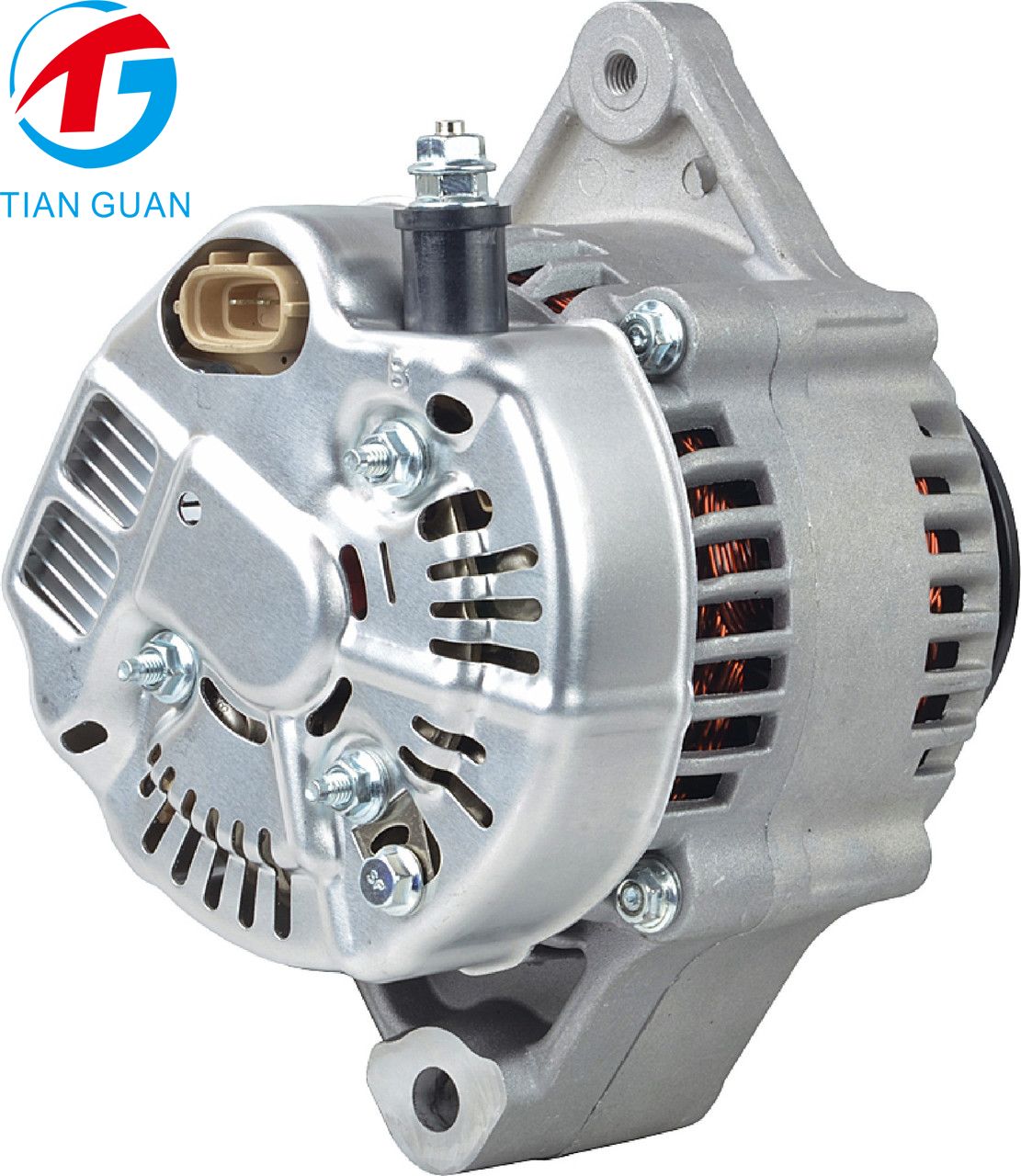

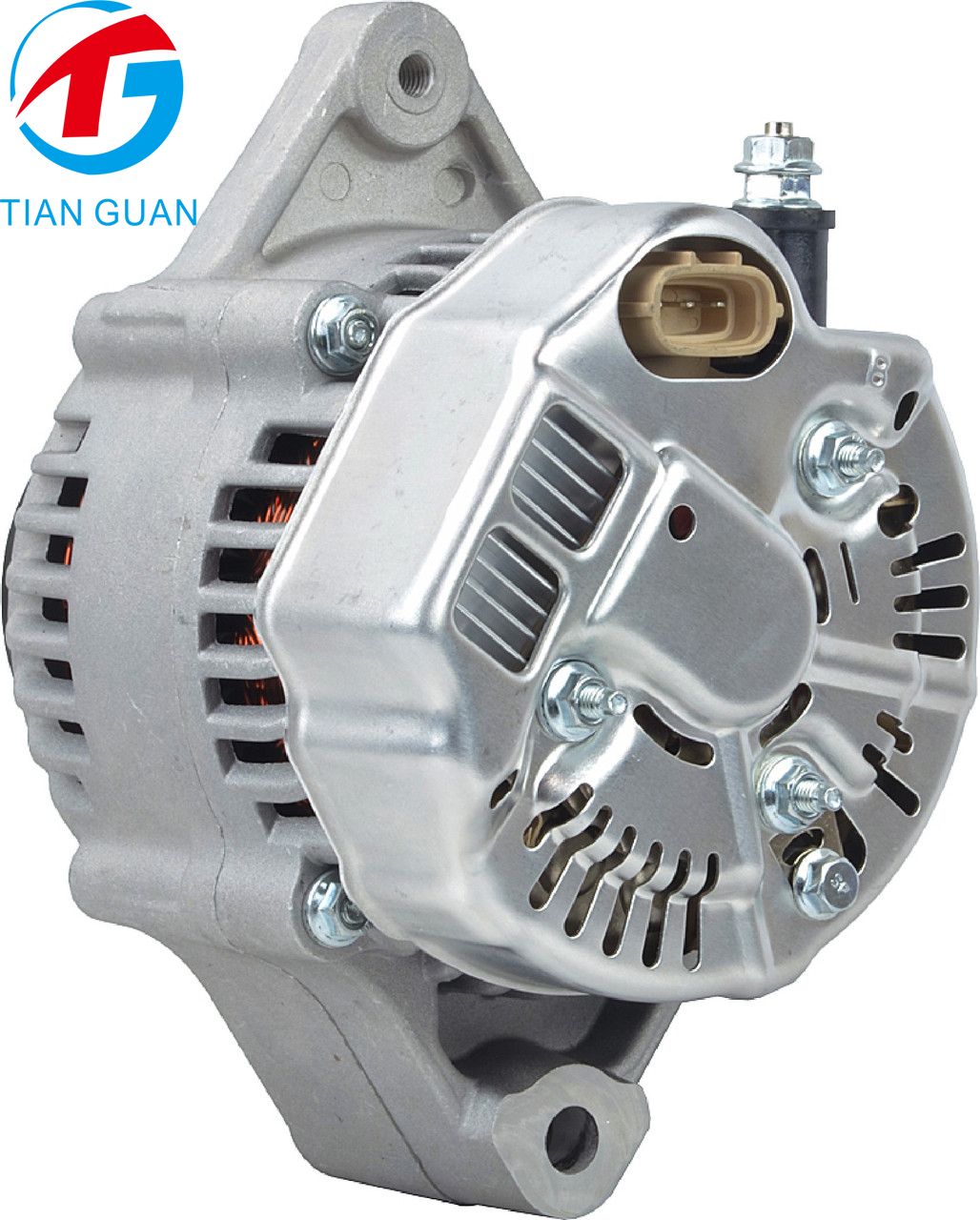

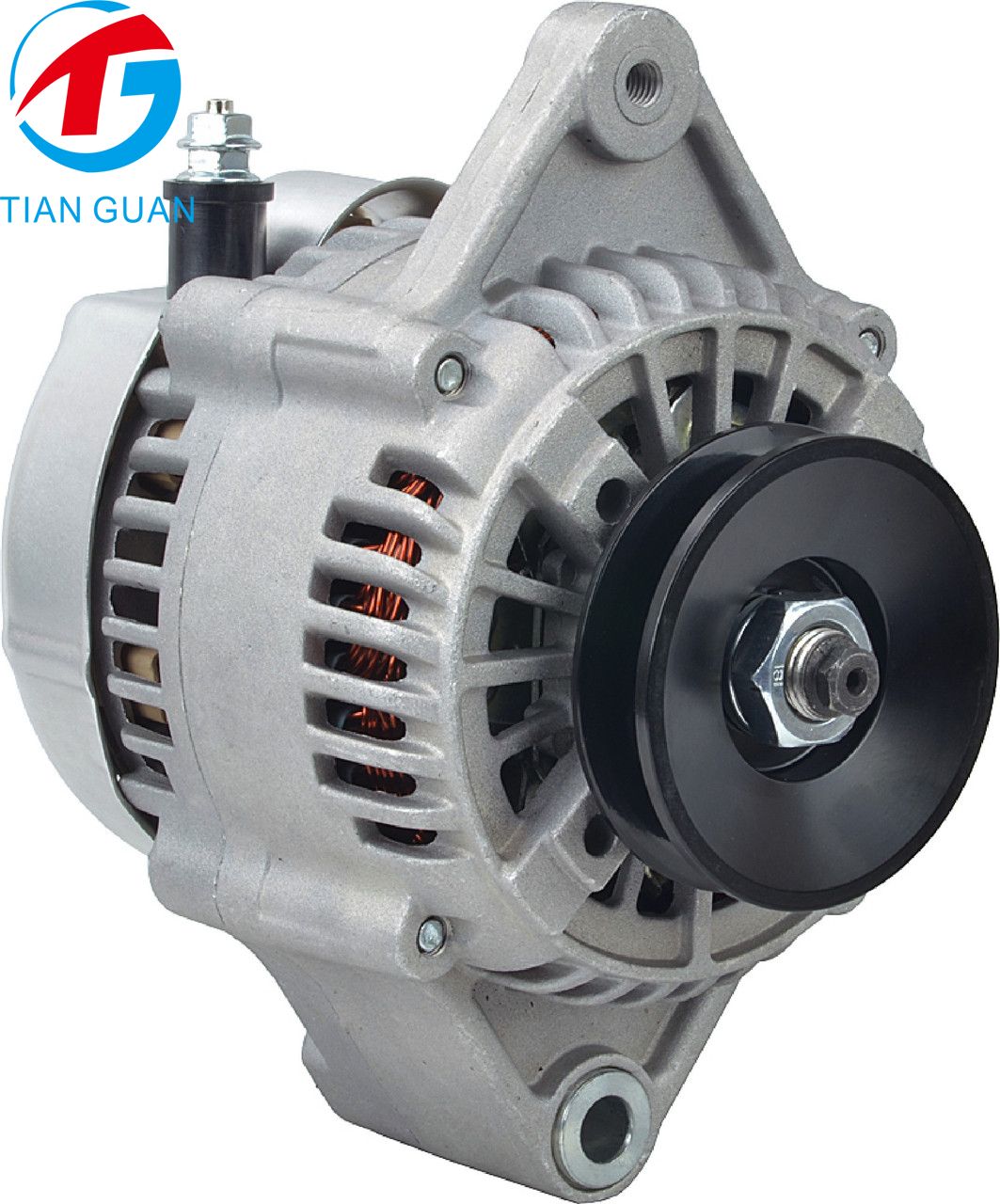

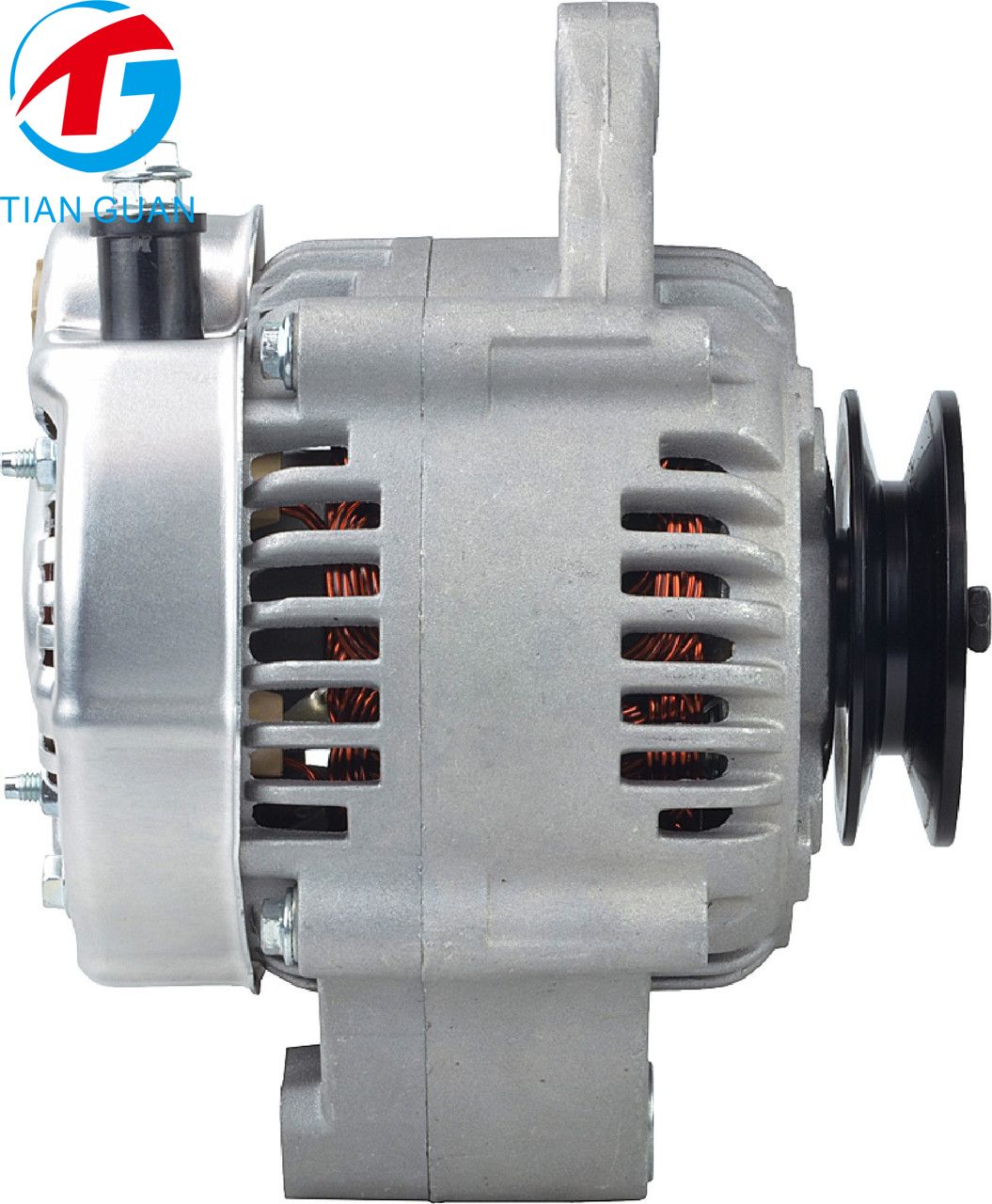

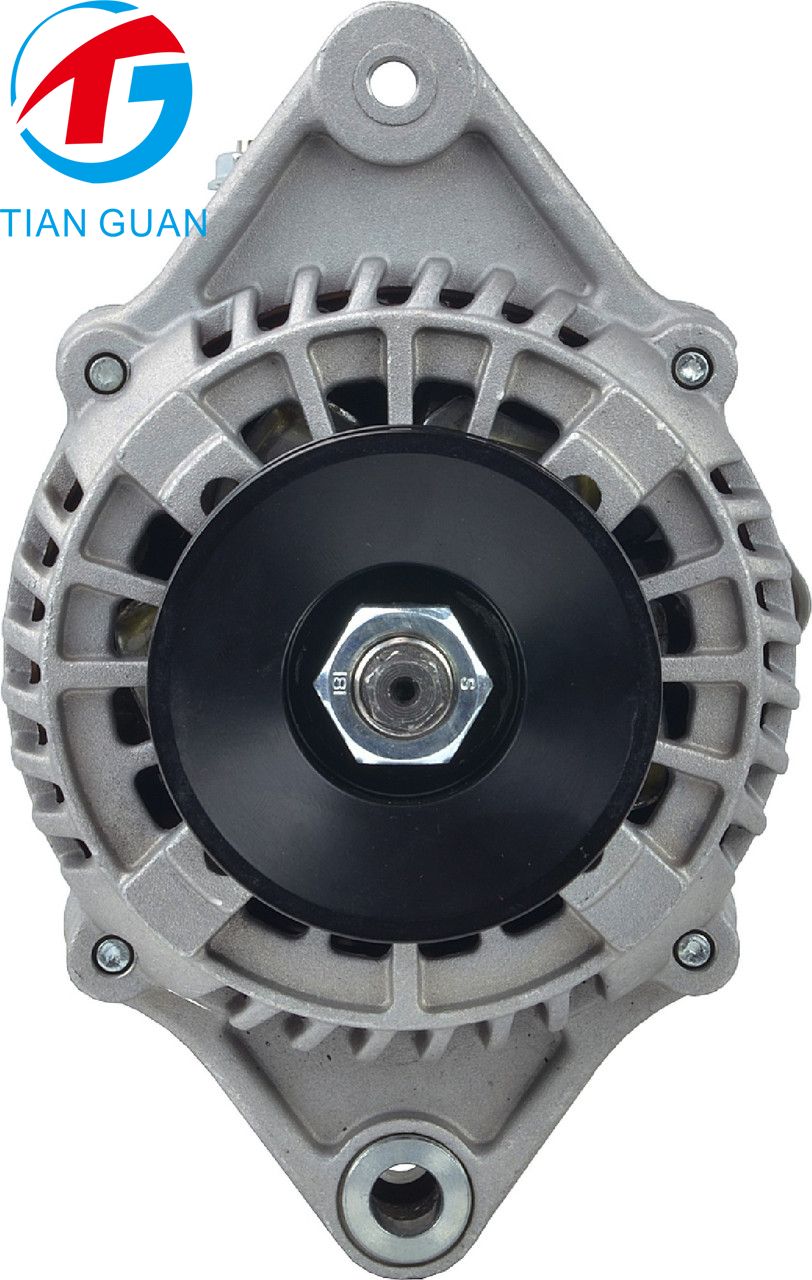

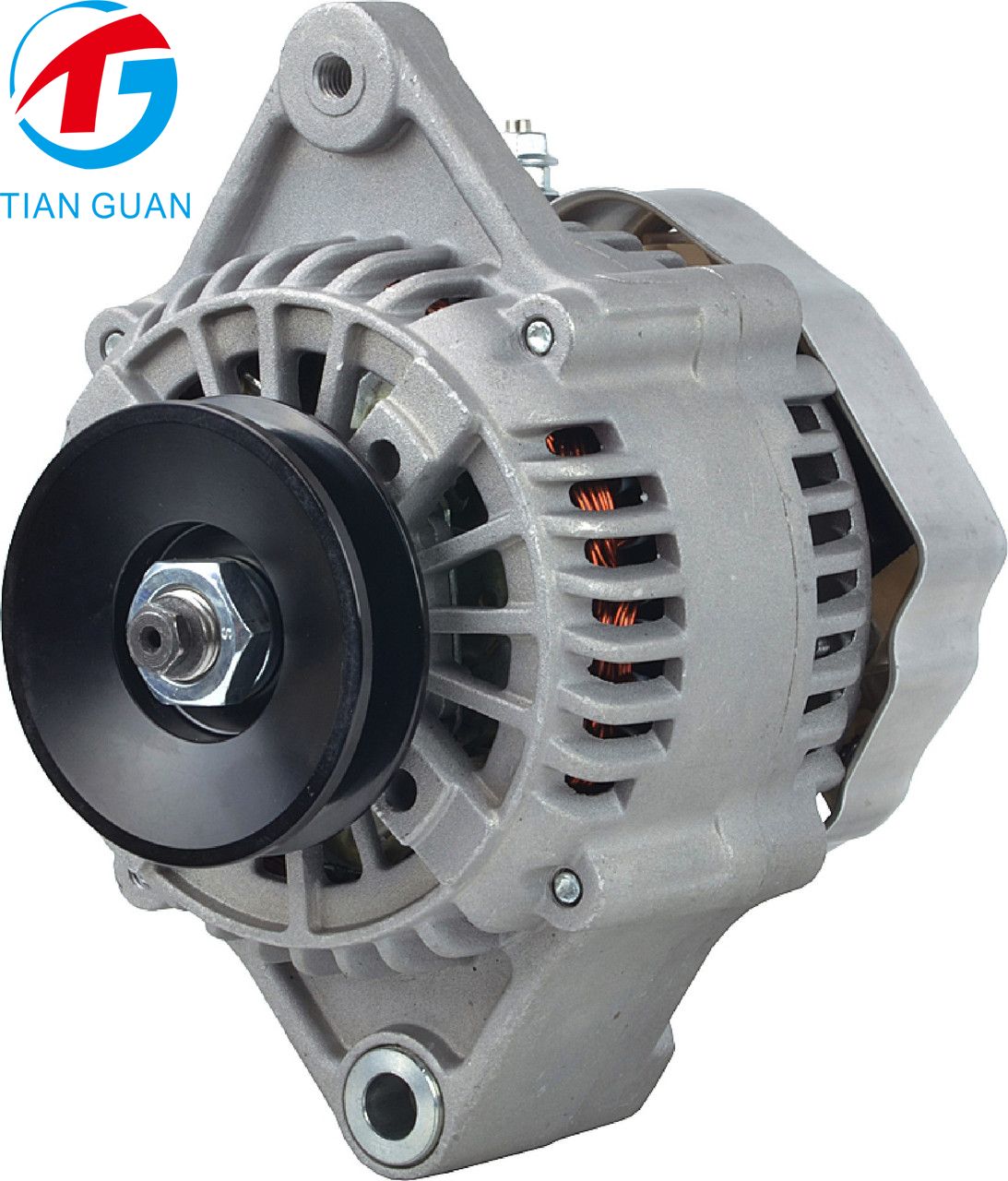

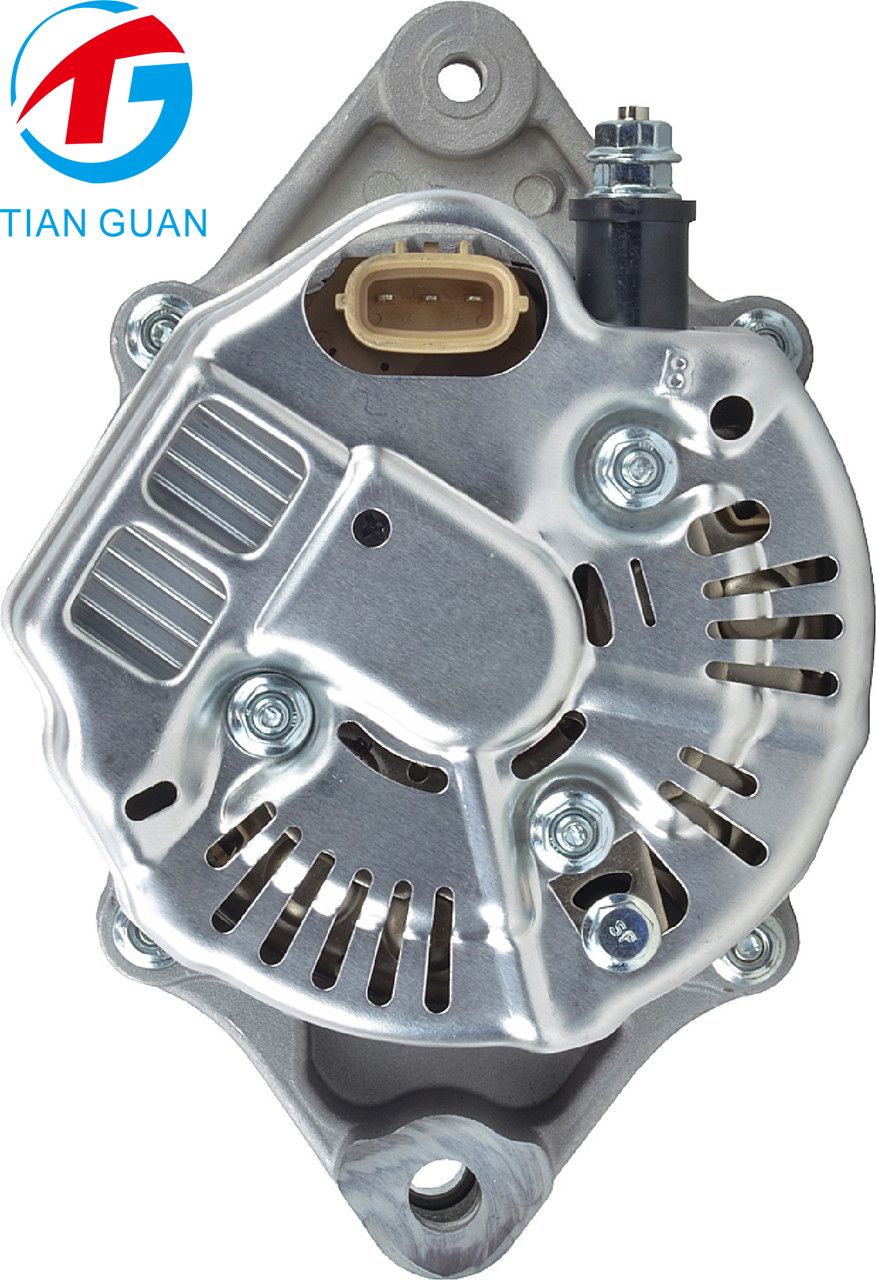

The ATG12219 Alternator is a brand-new aftermarket replacement designed for selected Toyota 7FG-series forklifts. Operating at 12V with a rated output of 60A, this alternator is intended to supply electrical power for compatible charging systems and support battery charging during equipment operation.

This alternator features clockwise (CW) rotation, an internal regulator (IR), and an internal fan (IF). It is cross-referenced to Toyota part number 27060-78154-71 and Denso 102211-5200, along with additional industry references including Lester 12477, Cargo 112358, and Lucas Electrical Europe LRA02044. These references help buyers identify the appropriate replacement unit for compatible equipment.

The supplied fitment data lists Toyota 7FG10 and 7FG14 forklifts with 5K engines, as well as Toyota 7FG15 forklifts with either 4Y or 5K engines, for applications from 1998 onward. Before ordering, confirm the original alternator part number, engine type, mounting configuration, pulley arrangement, and electrical connections to ensure correct fitment.

Key Features

• 12V, 60A Output: Designed for compatible Toyota forklift charging systems.

• Internal Regulator and Fan: Features IR regulation and an IF cooling fan.

• Multiple Cross-References: Includes Toyota, Denso, Lester, Cargo, and other industry part numbers.

Product Specifications

Compatible Applications
