STG91509 Starter 3675152 5811000860 5811001662 5811001663 5811001860 6008131750 8941233870 8973168950 AM108722 for Isuzu C190 C201 C240 2AB1 3AB1 4FA1 Engines

Part Numbers

DENSO: 0280005060, 0280007000, 1280000960, 1280003100, 1280003101, 2280009690, DSN2128
PSH: 130598092
ISUZU: 2903729140, 5811000860, 5811001662, 5811001663, 5811001860, 8941233870, 8973168950
WAI: 31822N
HYSTER: 323812
CUMMINS: 3675152
KOMATSU: 6008131750
JOHN DEERE: AM108722
WOOD AUTO: DEN1280000960, DENDSN2128
LUCAS: LRS01142, LRS1142

Product Description

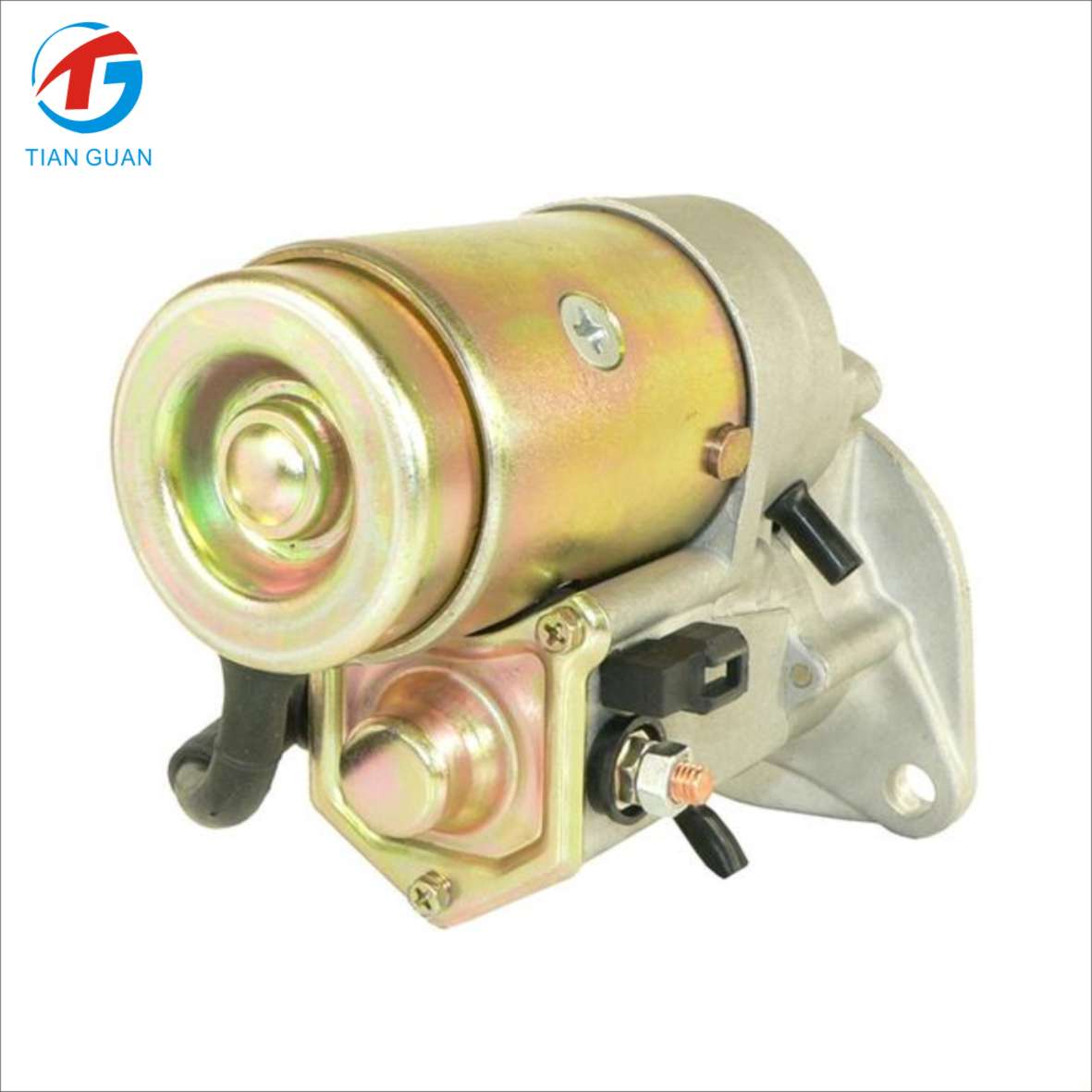

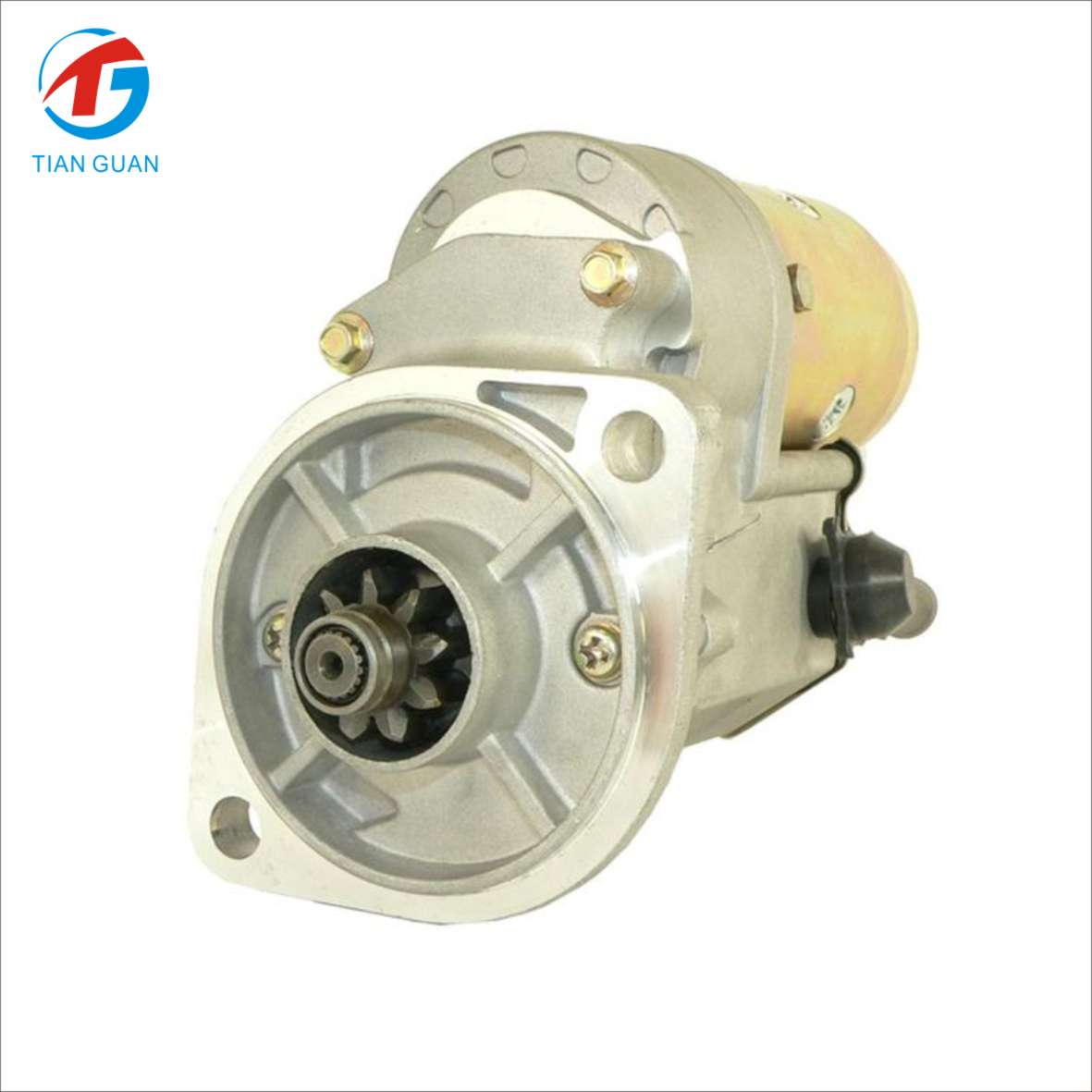

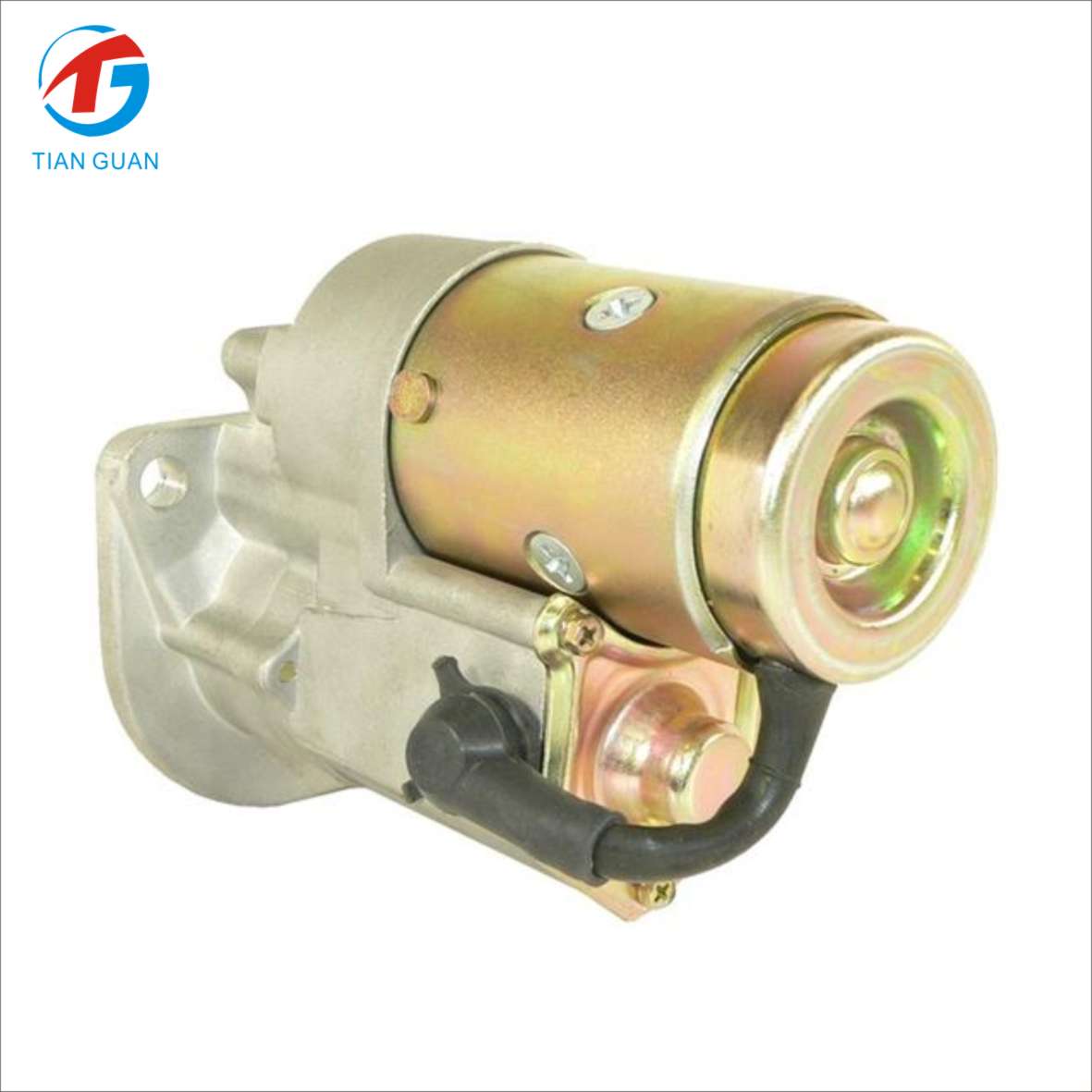

This premium aftermarket 12V 2.0KW Starter Motor is designed as a direct replacement for Isuzu C190, C201, C240, 2AB1, 3AB1, and 4FA1 engine applications, as well as a wide range of construction, agricultural, and material handling equipment. With 9-tooth pinion gear and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding applications.

This starter replaces OE part numbers 0280005060, 0280007000, 1280000960, 1280003100, 1280003101, 2280009690, DSN2128 (Denso), 130598092 (PSH), 2903729140, 5811000860, 5811001662, 5811001663, 5811001860, 8941233870, 8973168950 (Isuzu), 31822N (WAI), 323812 (Hyster), 3675152 (Cummins), 6008131750 (Komatsu), AM108722 (John Deere), DEN1280000960, DENDSN2128 (Wood Auto), and LRS01142, LRS1142 (Lucas).

• 12V starter motor

• 2.0KW power output

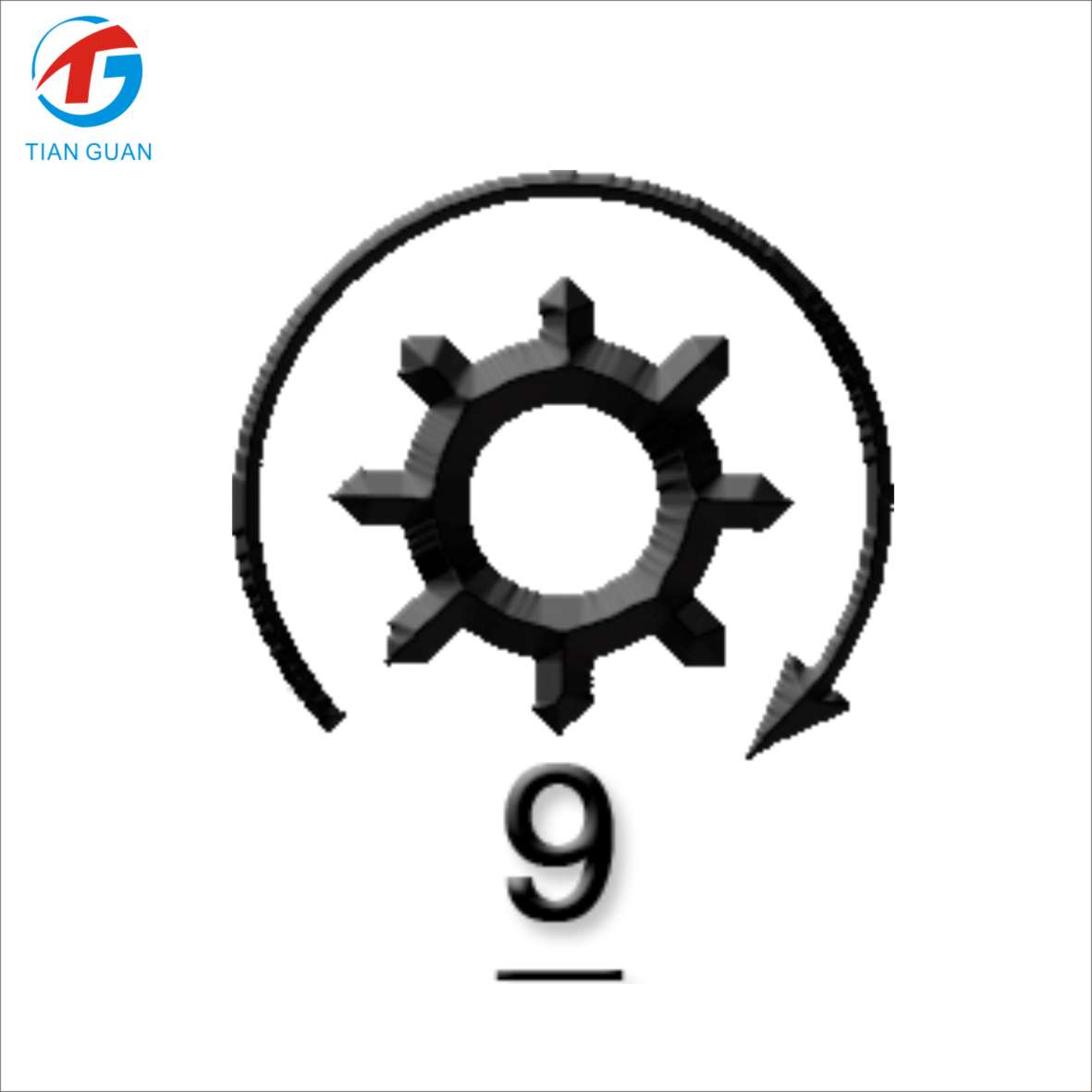

• 9-tooth pinion gear

• Clockwise (CW) rotation

• Spigot: 96mm

• Pinion home position: 19

• B+ terminal: M8

• No. mounting holes: 2

• PSH number: 130.598.092.050

• GTIN: 8720264460076

• Direct replacement for Isuzu C190 / C201 / C240 / 2AB1 / 3AB1 / 4FA1

• Aftermarket replacement part

• Approx. 4.8 kg

Specifications

Description: Starter Isuzu 2.0KW
PSH Number: 130.598.092.050
GTIN: 8720264460076
Voltage: 12V
Power (kW): 2.0
Spigot (mm): 96
Teeth: 9
Pinion Home Position: 19
B+: M8
No. Mounting Holes: 2
Rotation: CW
Condition: Aftermarket Part
Weight: 4.8KG

Fitment

Isuzu – C190, C201, C240, 2AB1, 3AB1, 4FA1 Engines
Ausa – C200H, C200Hx4, C250H-LE, C250Hx4-LE
Doosan – D10S, D15S, D18S, D20-2, D25-2, DH50, DH50W
Elgin – Eagle, Rear Sweeper
Gehl – M747B
Hitachi – ZX40U, ZX50U
Hyster – H25XL, H25-35XL, H25-60XL, H30XL, H35XL, H40XL, H40-60XL, H50XLB, H60XL, S25XL, S35XL, S40XL, S40-60XL, S50XL, S60XL
Hydra-Mac – C20
John Deere – 24A, 125
Komatsu – EC35Z-2, EC35ZS-2, EC35ZSB-2
Takeuchi – TB1400
Thermo King – Applications
Toyota – MK4x4

Compatible with equipment using 0280005060, 1280000960, 2280009690, 2903729140, 3675152, 5811000860, 5811001662, 5811001663, 5811001860, 6008131750, 8941233870, 8973168950, AM108722, 31822N, 323812, DSN2128, LRS01142, or LRS1142 starter motor part numbers.
