STG91512 Starter Motor 1G023-63010 1G023-63011 1G023-63012 K3511-81410 for Kubota D722 Diesel Engine Tractor Replacement

3 Reviews

Add Your Review

US$126.00

ITEMNO： STG91512

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

Starter Motor 1G023-63010 1G023-63011 1G023-63012 K3511-81410 for Kubota D722 D782 D1005 D1105 V1305 Mowers & Tractors

Part Numbers

Brand	Part Number
Denso	228000-5400, 228000-5910, 228000-5911, 228000-7090, 228000-7091, 228000-7480, 228000-7481
Denso	9722809-540, 9722809-591, 9722809-709, 9722809-748
Kubota	1G023-63010, 1G023-63011, 1G023-63012
Kubota	67980-31150, 67980-31151, 6A320-59210, 6A320-59212
Kubota	K3511-81410, K3511-81411
Arrowhead	ND228000-5400, ND9722809-540, ND9722809-591, ND9722809-709, ND9722809-748
Arrowhead	SND0280, SND0481, 0131151, 015400, SND0338, 410-52106
Atlantic	1700-0156, 1900-0112
Cargo	110447, 113211
Case	CLC102648501, CLC103886501
Dixie	S-8941, 243-12141
J & N	410-52106, 410-52106R, 410-52168, 410-52238, 410-52238R, 410-52396
Lester	18414, 18417, 19791
Lucas	LRS02300
Minnpar	57-3225
PIC	190-482, 190-6126, 190-6126A, 190-6127
Societa	17.81122
WAI	18414N, 18417N
Wilson	HD91-29-5554, 91-29-5563, 91-29-5662, 71-29-18414
Wood Auto	STR30014

Product Overview

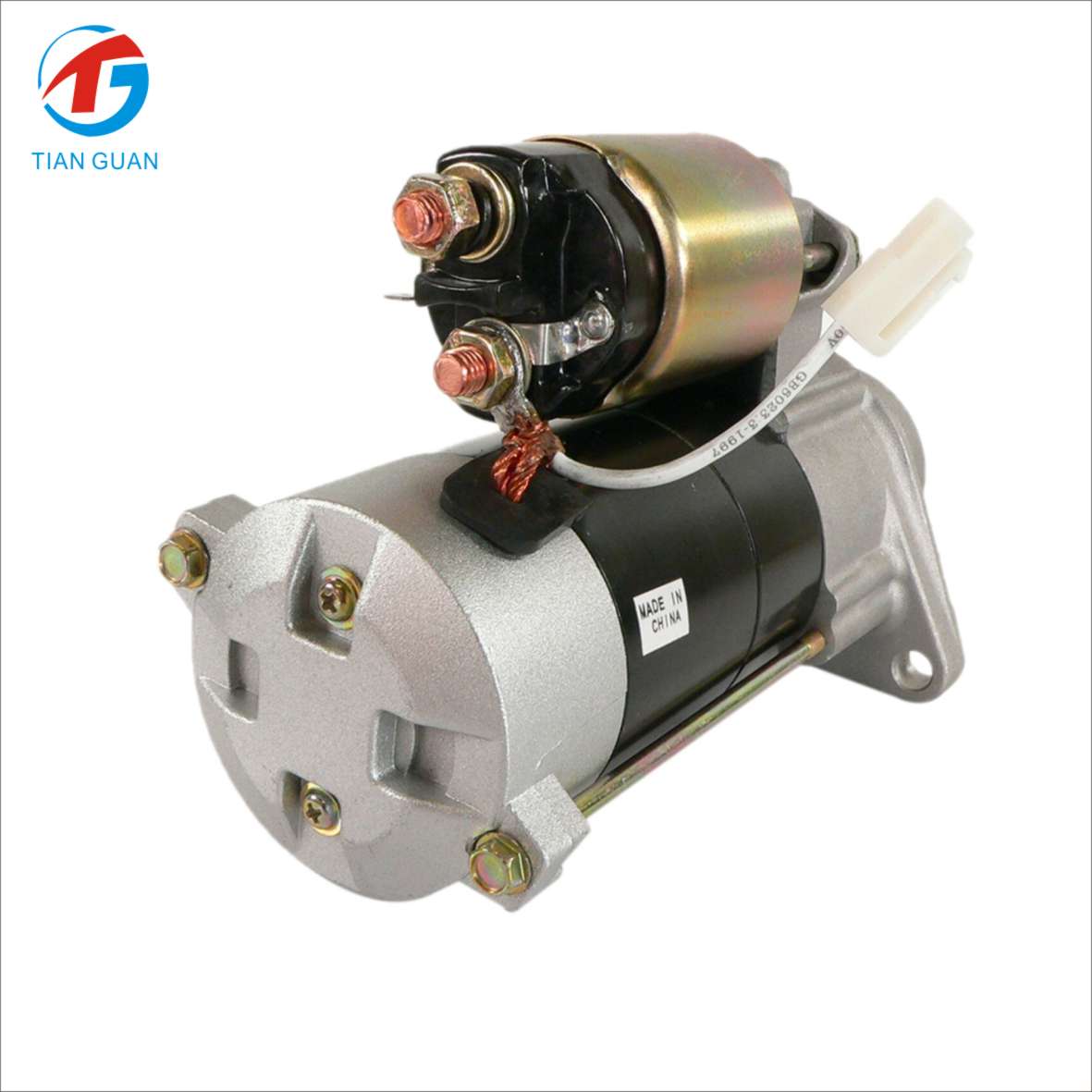

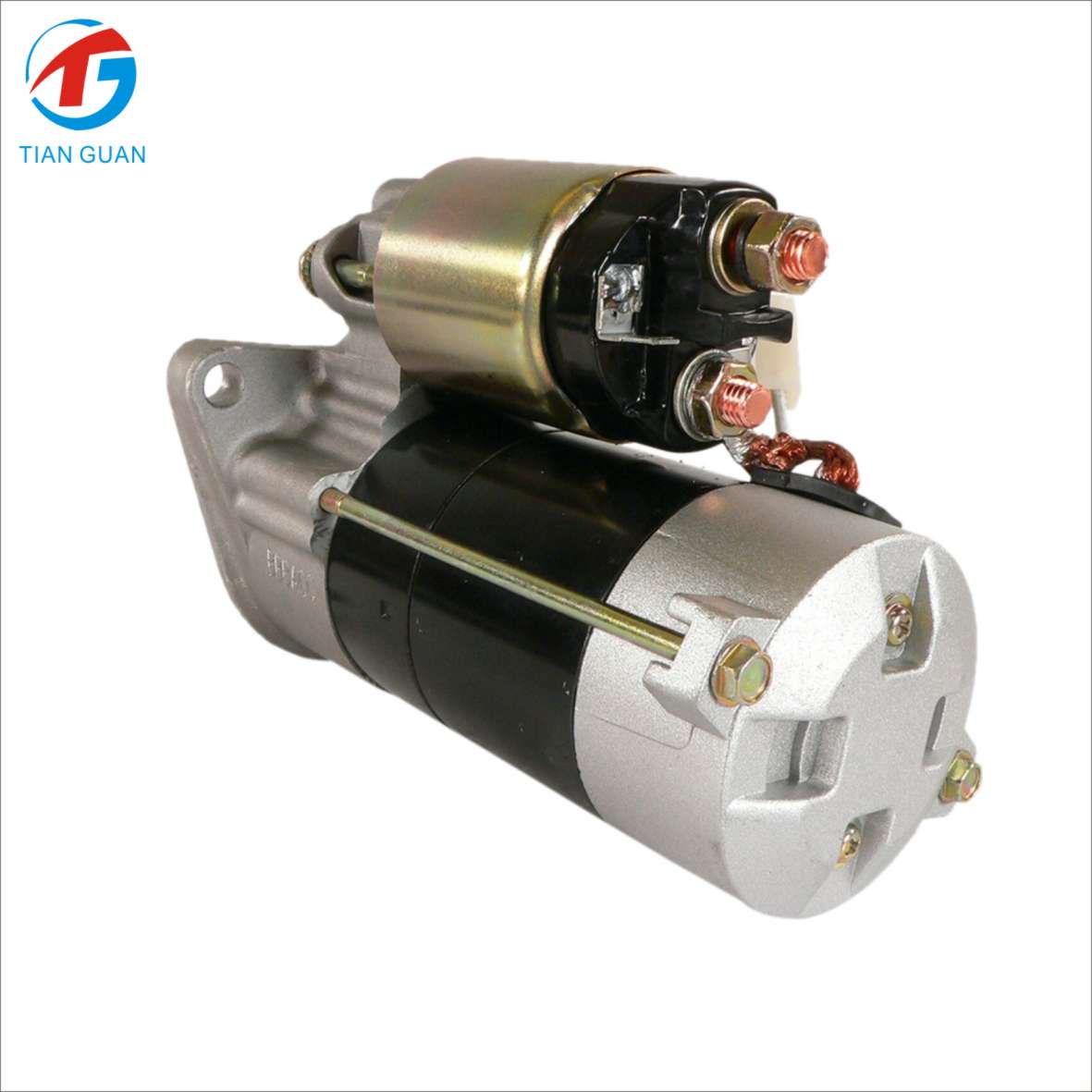

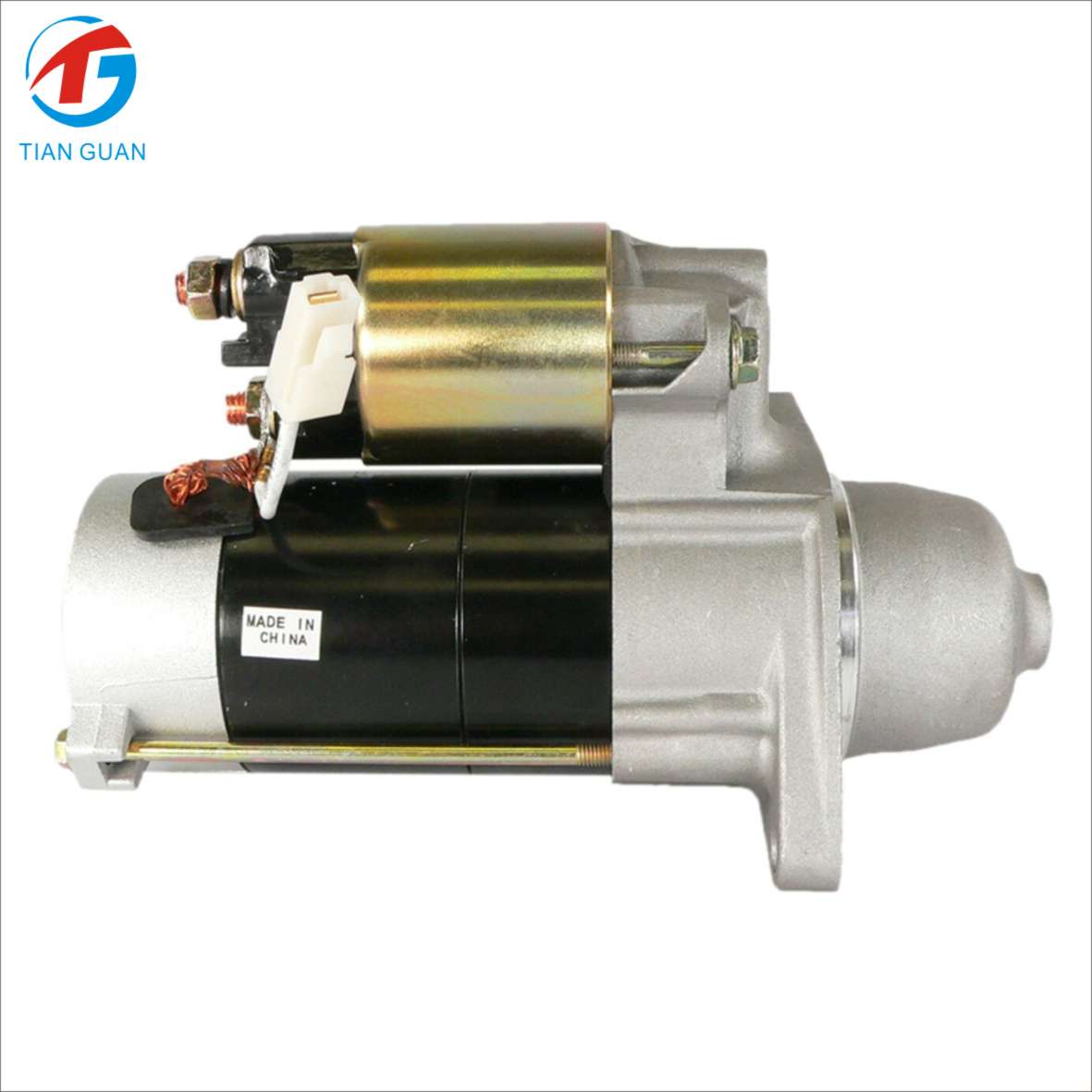

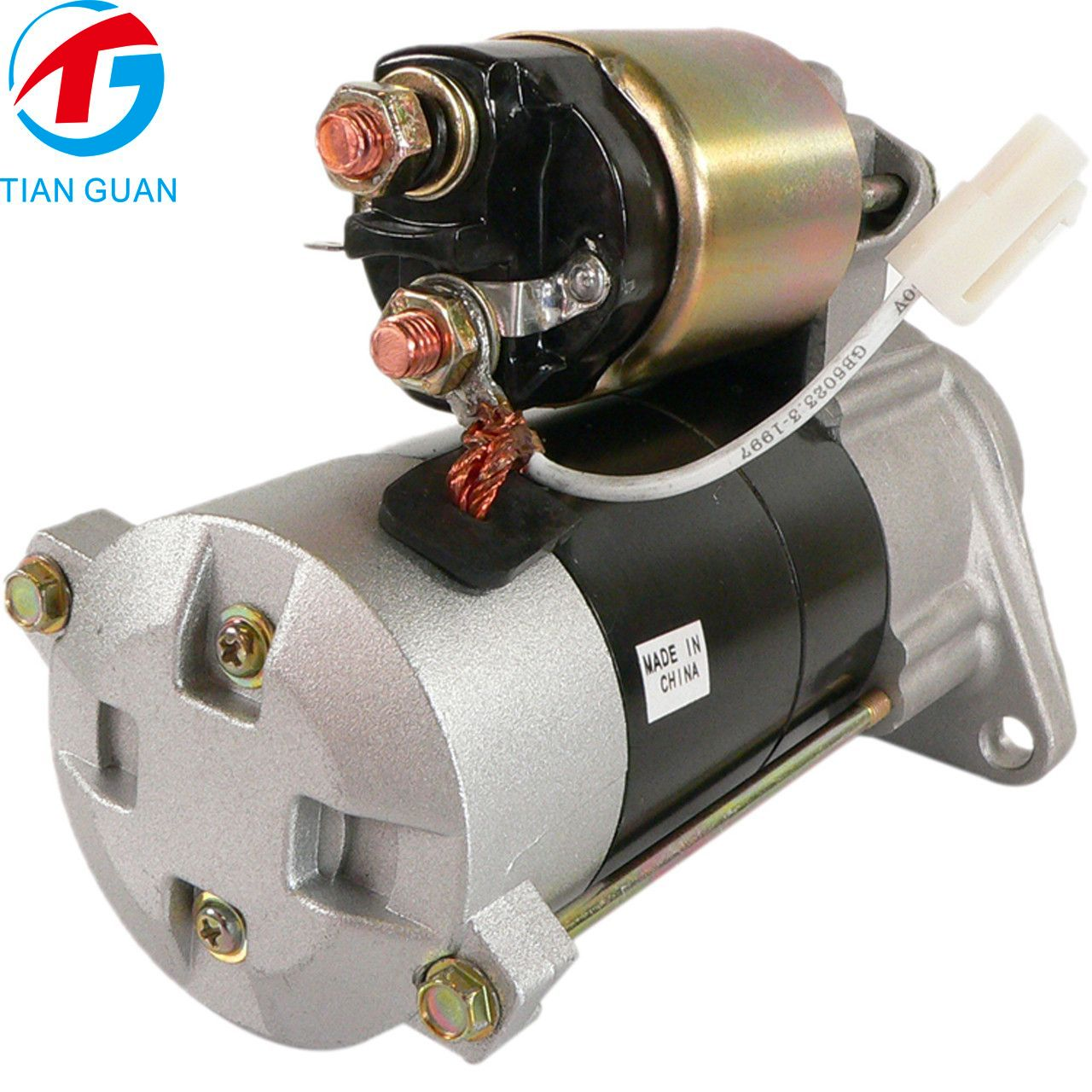

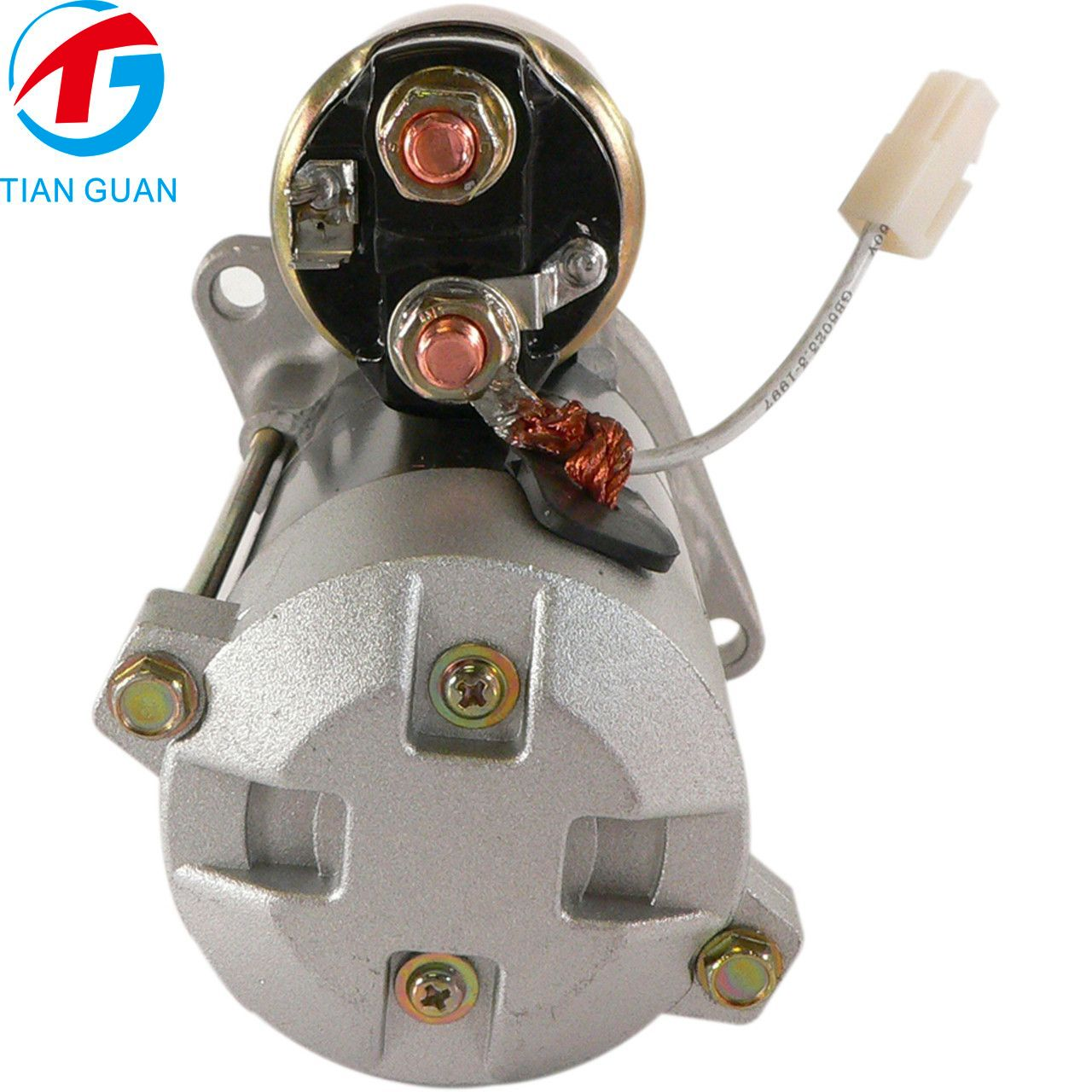

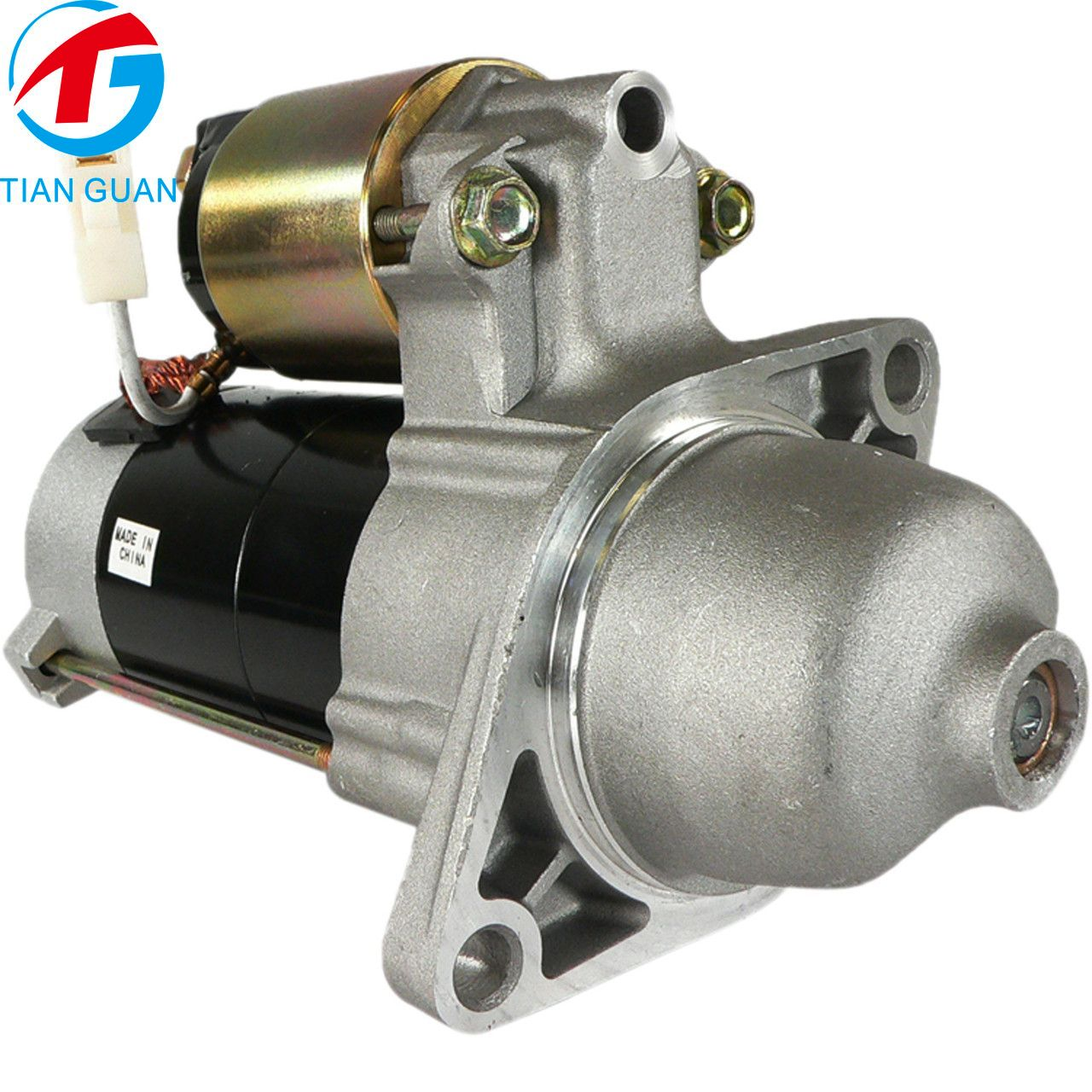

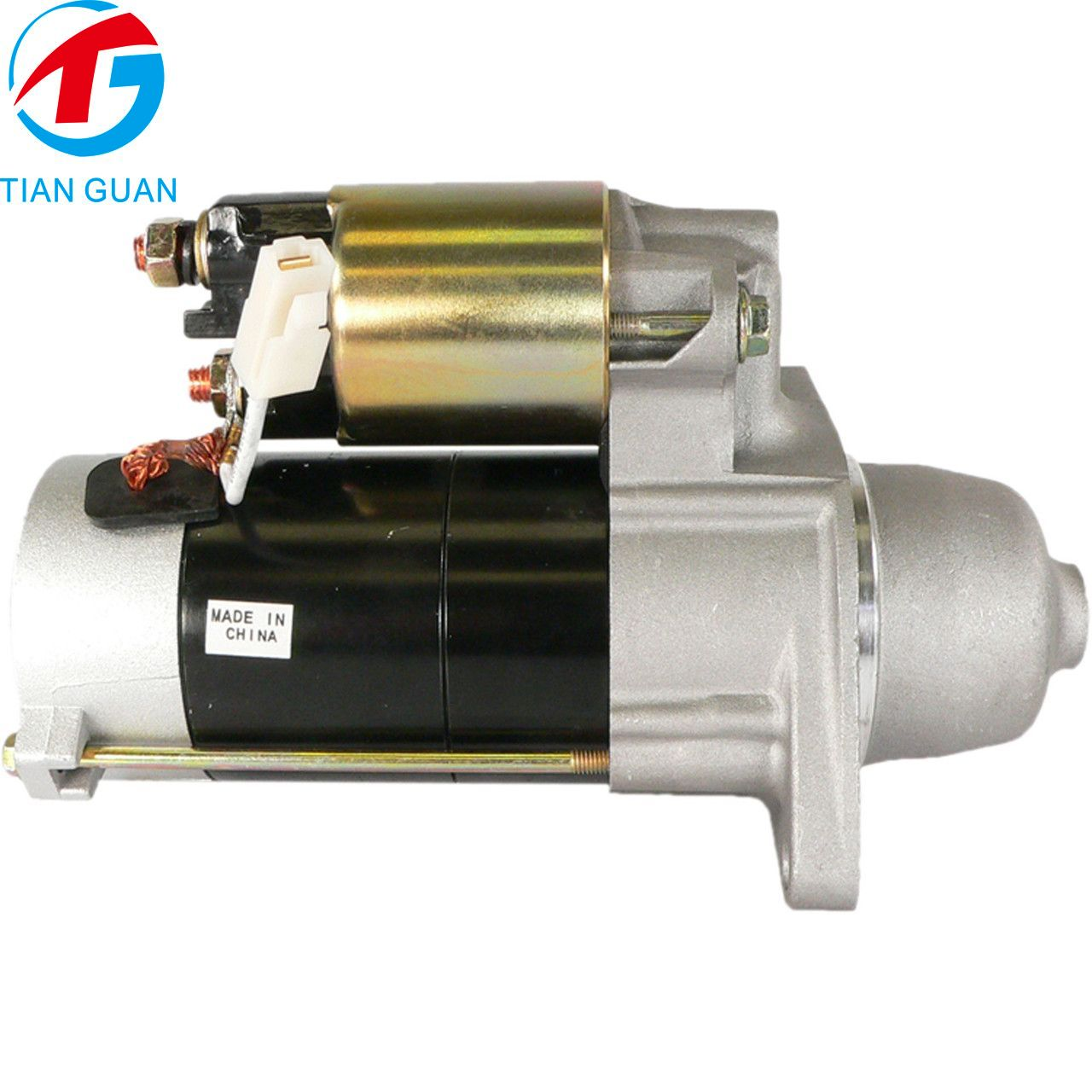

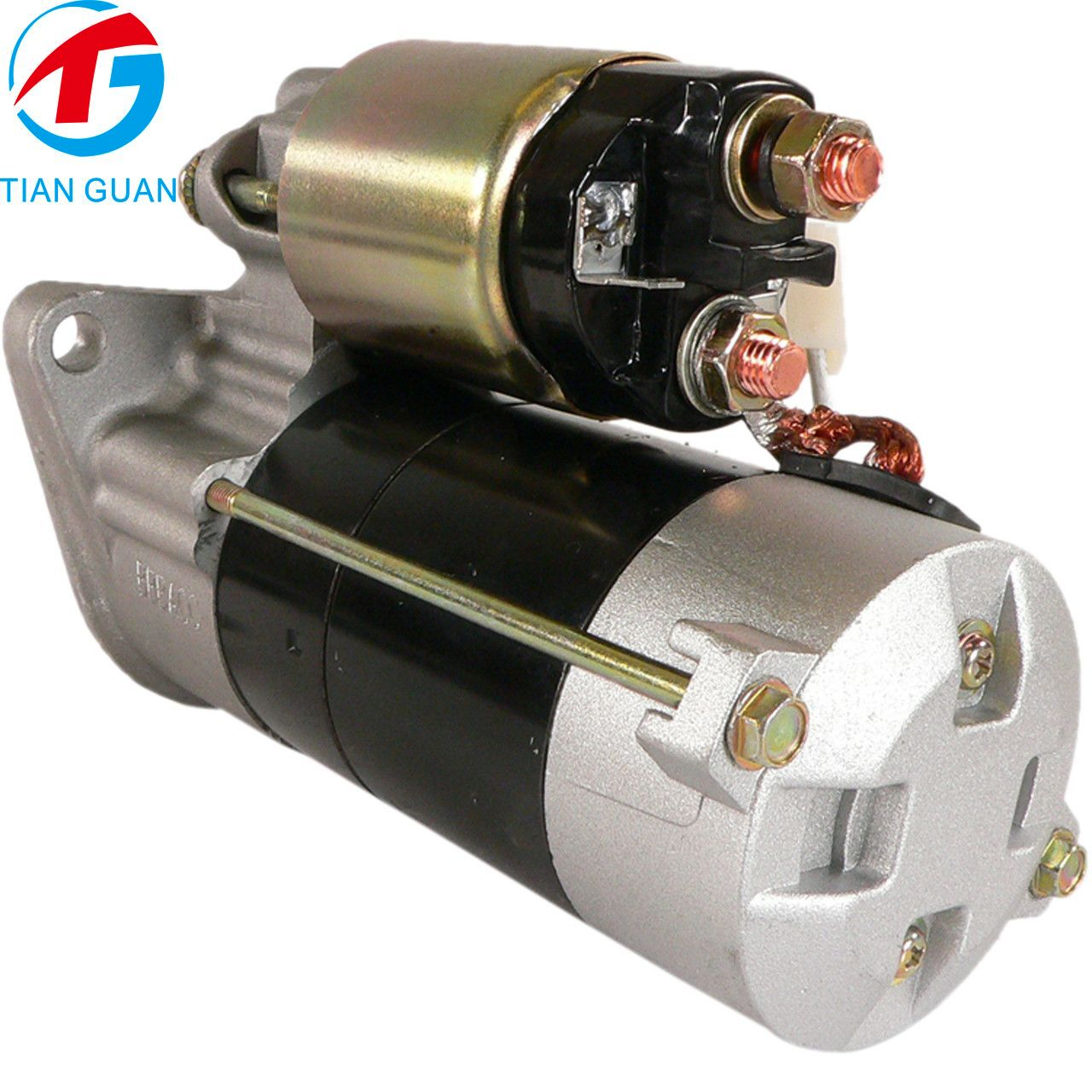

This 12V 1.2KW Starter Motor is a direct replacement starter designed for selected Kubota diesel engines, including Kubota D722, D782, D1005, D1105 and V1305 engine applications.

The starter features clockwise rotation and a 9-tooth pinion gear, making it suitable for compatible Kubota lawn mowers, commercial mowers, garden tractors and turf equipment.

It is a suitable replacement option for starters matching the listed Denso, Kubota, Arrowhead, Lester, WAI, Wilson and other cross-reference part numbers.

Specifications

Item	Specification
Product Type	Starter Motor
Unit Type	Denso
Voltage	12V DC
Power	1.2KW
Rotation Direction	Clockwise (CW)
Number of Teeth	9T
Mounting	Direct Replacement
Condition	New Aftermarket
Product Weight	3.8 KG

Compatible Kubota Engines

Kubota D722 Diesel Engine
Kubota D782 Diesel Engine
Kubota D1005-EFM Diesel Engine
Kubota D1105-EFM Diesel Engine
Kubota V1305-FM Diesel Engine

Compatible Applications

Kubota Mowers

F2260-R — 2005 – Kubota D1005-EFM, 22 HP Diesel
F2560-E — 2005 – Kubota D1105-EFM, 25 HP Diesel
F2560-R — 2005 – Kubota D1105-EFM, 25 HP Diesel
F3060-R — 2005 – Kubota V1305-FM, 30 HP Diesel
ZD18 — 2005 – Kubota D722, 18 HP Diesel
ZD21 — 2005 – Kubota D782, 21 HP Diesel

Kubota Garden Tractors

G2160-R48S — 2005 – Kubota D782, 21 HP Diesel
