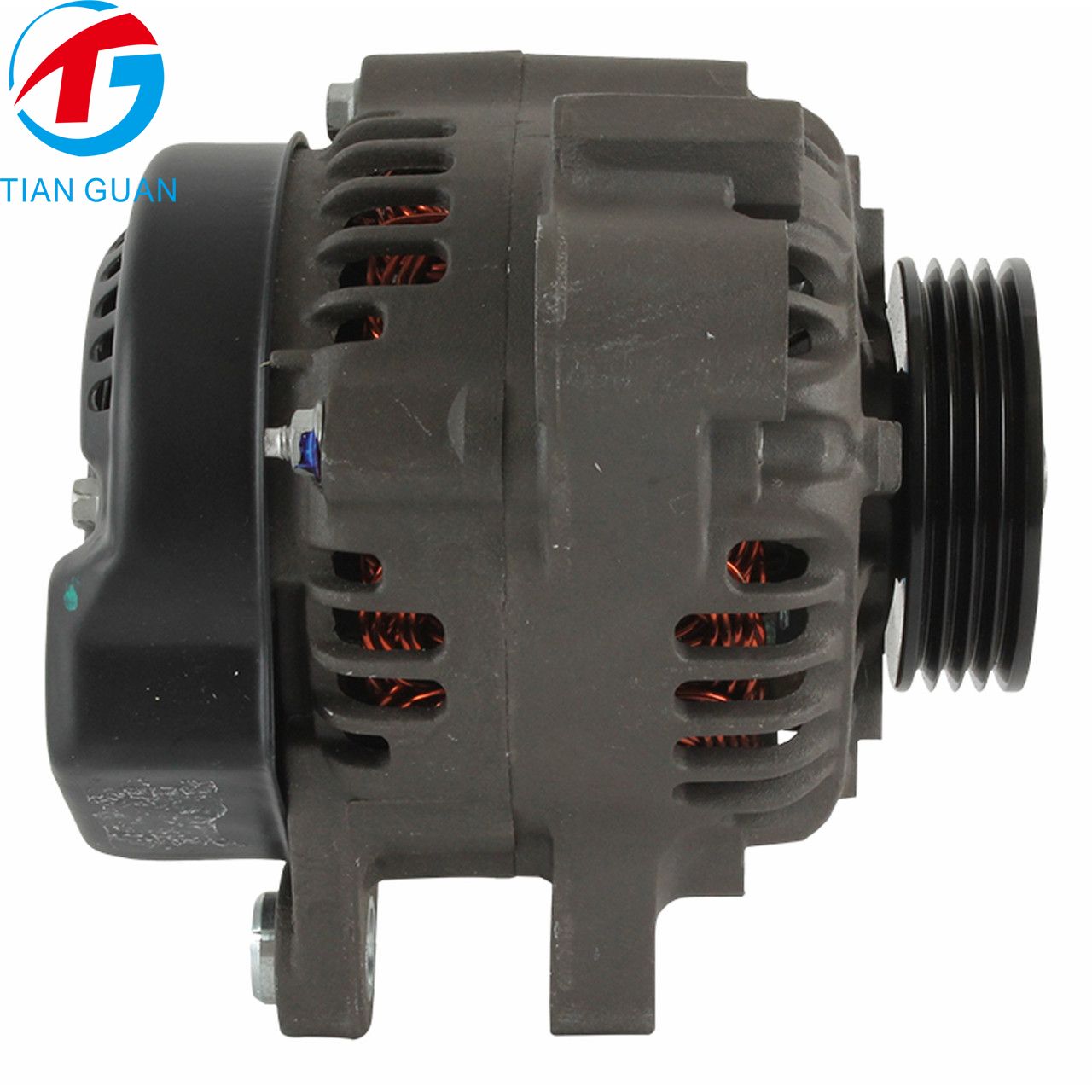

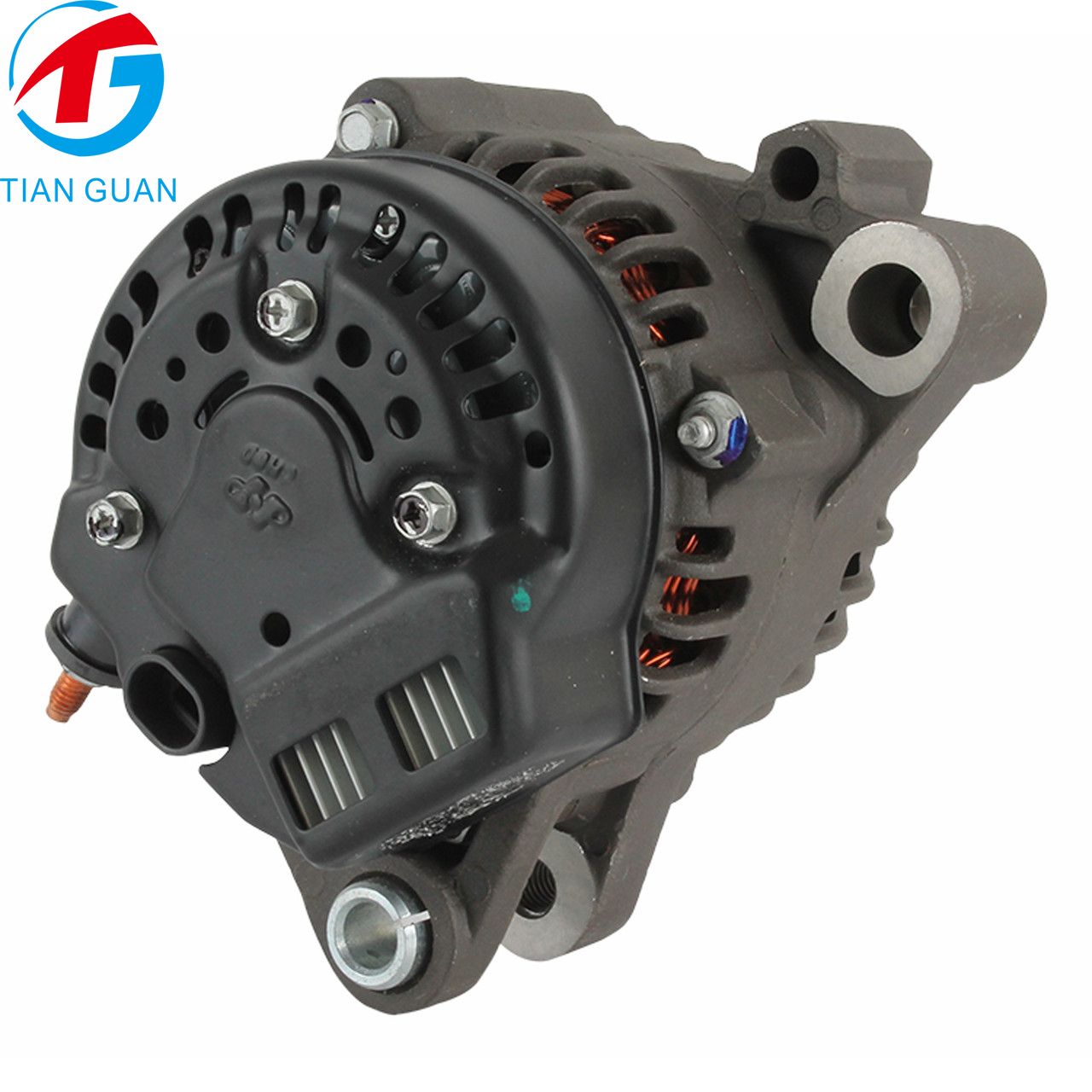

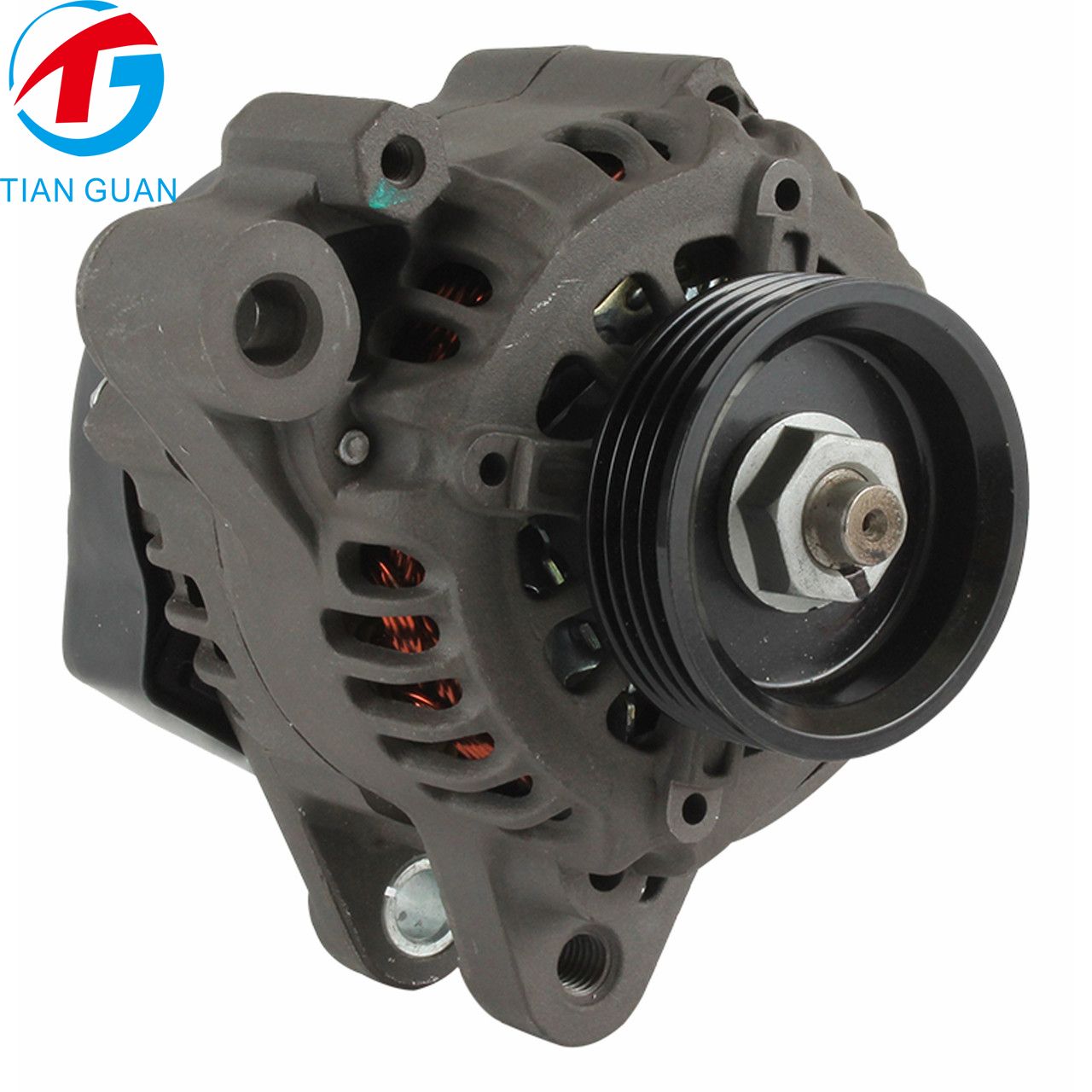

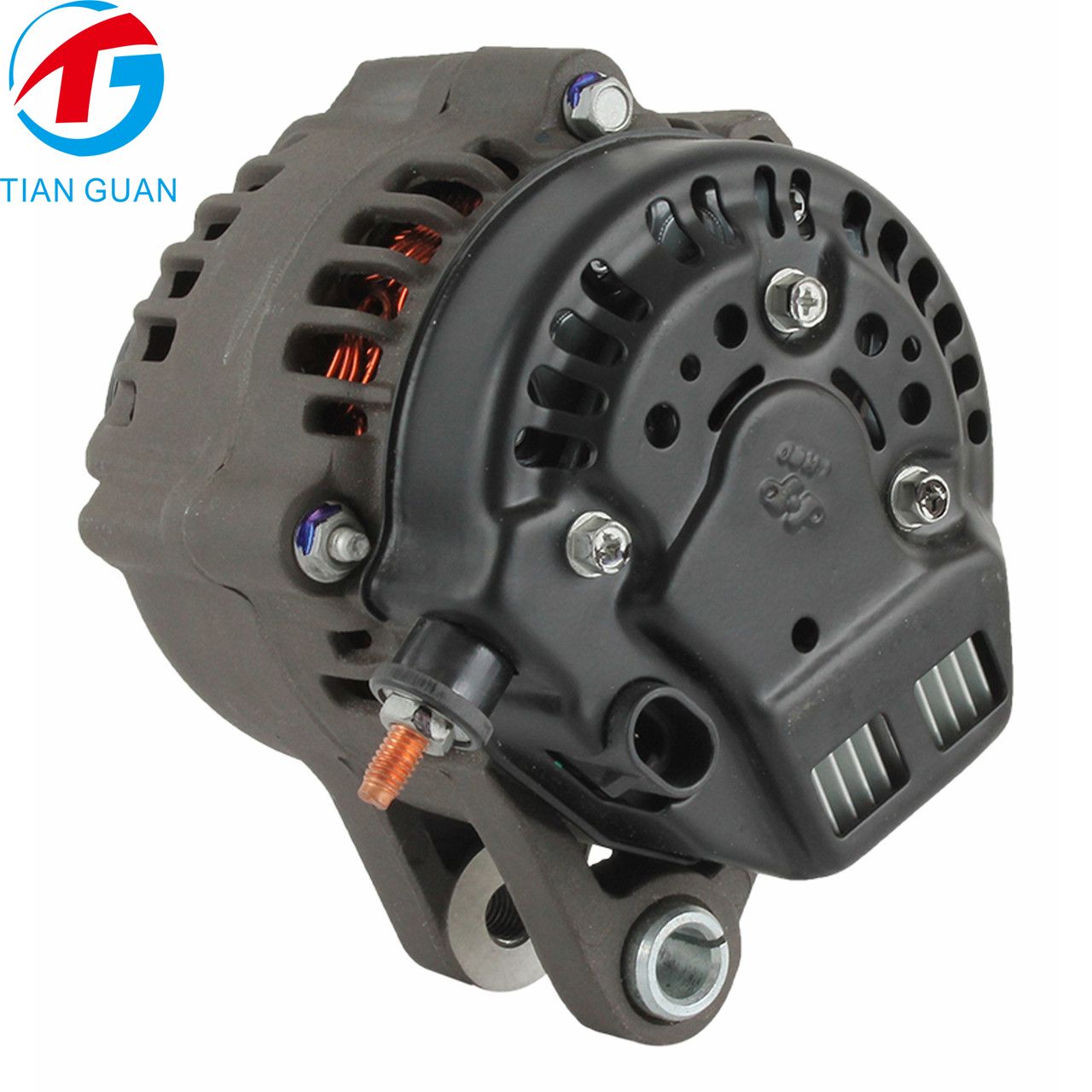

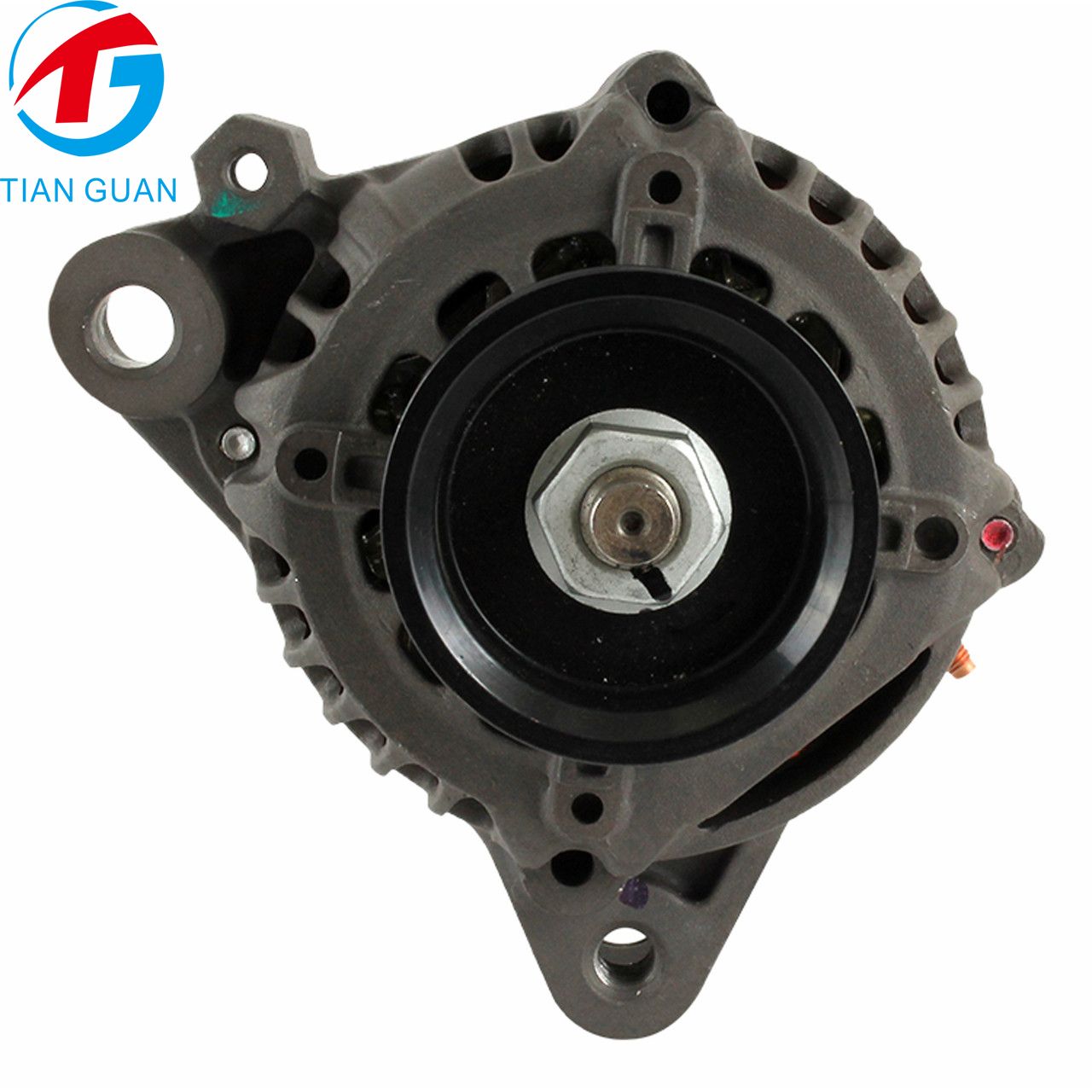

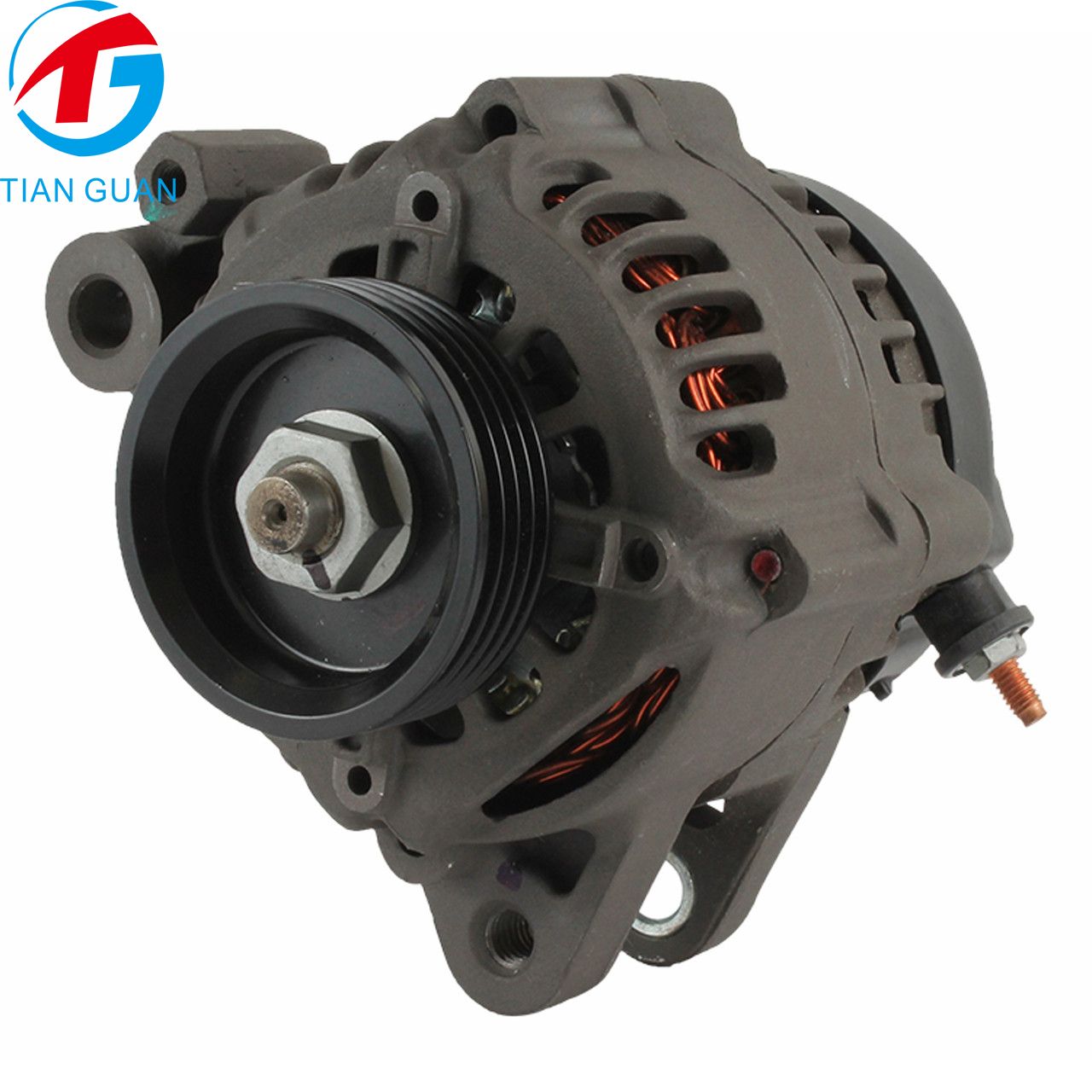

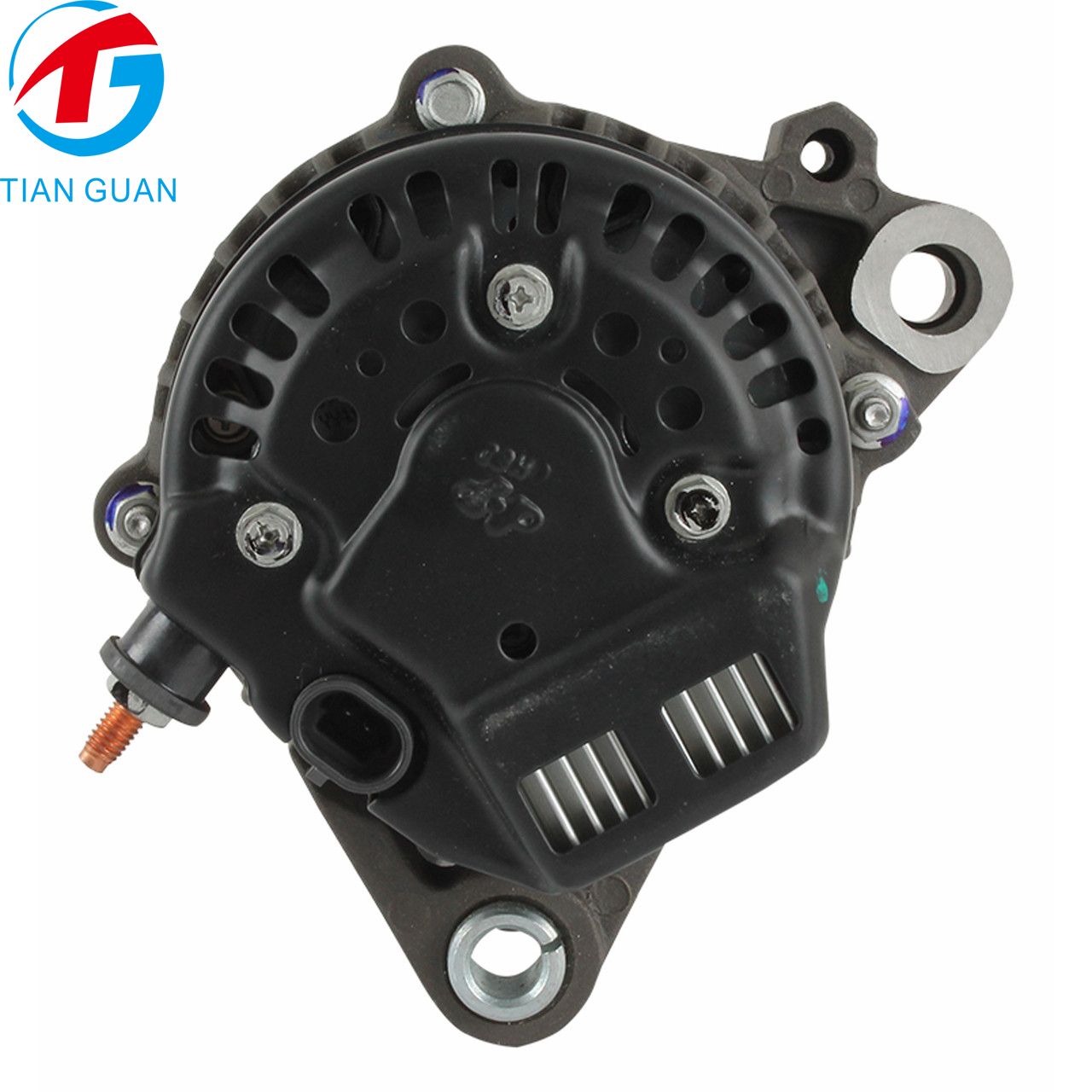

Product Description – Alternator 8M0057693 / 8M0062515 / 8M0065239 for Mercury Marine 135–150HP Outboard Engines
This high-quality aftermarket alternator is designed as a direct replacement for Mercury Marine 135HP and 150HP 4-Stroke outboard engines. Built with durable internal components, it provides stable charging performance and long service life in harsh marine environments. Ideal for maintenance, repair, and professional service use.
Replaces the Following Part Numbers
Mercury Marine:
8M0057693, 8M0062515, 8M0065239
ARROWHEAD: AND0626
J & N: 400-52434
(Use these OEM and aftermarket numbers to ensure proper fit before purchasing.)
Product Specifications
Item Condition: Aftermarket Part
Unit Type: Alternator
Voltage: 12V
Amperage: 55A
Rotation: CW (Clockwise)
Clock Position: 7
Pulley Type: 4-Groove Pulley, 64 mm OD
Regulator Type: Internal Regulator (IR)
Fan Type: Internal Fan (IF)
Pulley Class: S4
Mounting & Terminal Details
Mtg. Ear 1 Hole: 10.4 mm Unthreaded
Mtg. Ear 2 Hole: M10 × 1.50 Threaded
Mtg. Ear 3 Hole: 11.1 mm Unthreaded
Mtg. Ear 4 Hole: M6 × 1.00 Threaded
B+ Terminal: M6 × 1.00
S Terminal: Spade
L Terminal: Spade
Fits the Following Mercury Marine Engines
Mercury 4-Stroke Outboard – By Serial Number
135HP – SN 2B131942 & Up
150HP – SN 1B905505 & Up
150HP ProXS – SN 2B550139 & Up
150HP SeaPro – SN 2B139139 & Up
Mercury Marine Models – By Engine Size
150CXL SeaPro: 2016–2020
150L 4-Stroke: 2012–2020
150L Pro XS: 2019–2020
150L SeaPro: 2016–2020
150XL 4-Stroke: 2012–2020
150XL Pro XS: 2019–2020
150XL SeaPro: 2016–2020
Alternator 8M0057693 8M0062515 8M0065239 – Fits Mercury Marine 135HP & 150HP Outboard Engines
| MAKE | TYPE | MODEL | YEAR | ENGINE |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 135.0HP - SN 2B131942 & Up | All | 135.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 150.0HP - SN 1B905505 & Up | All | 150.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 150.0HP ProXS - SN 2B550139 & Up | All | 150.0HP |
| MERCURY MARINE | Engines - 4-Stroke OB - By SN | 150.0HP SeaPro - SN 2B139139 & Up | All | 150.0HP |
| MERCURY MARINE | Models - By Engine Size | 150CXL SeaPro | 2016 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150CXL SeaPro | 2017 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150CXL SeaPro | 2018 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150CXL SeaPro | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150CXL SeaPro | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2012 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2013 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2014 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2015 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2016 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2017 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2018 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L 4-Stroke | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L Pro XS | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L Pro XS | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L SeaPro | 2016 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L SeaPro | 2017 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L SeaPro | 2018 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L SeaPro | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150L SeaPro | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2012 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2013 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2014 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2015 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2016 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2017 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2018 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL 4-Stroke | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL Pro XS | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL Pro XS | 2020 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL SeaPro | 2016 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL SeaPro | 2017 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL SeaPro | 2018 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL SeaPro | 2019 | 150HP |
| MERCURY MARINE | Models - By Engine Size | 150XL SeaPro | 2020 | 150HP |
