ATG12976 Alternator 400-12138 400-12315 3675254RX 10459469 19009950 19009951 19009952 for Agco 3440 3640 4440 4640 Hyster H120XM H230HD H280HD John Deere – 12V 105A 19SI

Part Numbers

ARROWHEAD: 400-12138
CUMMINS: 3675254RX
DELCO: 10459469, 19009950, 19009951, 19009952
J & N: 400-12138
LESTER: 8098
WAI: 8098N

Product Description

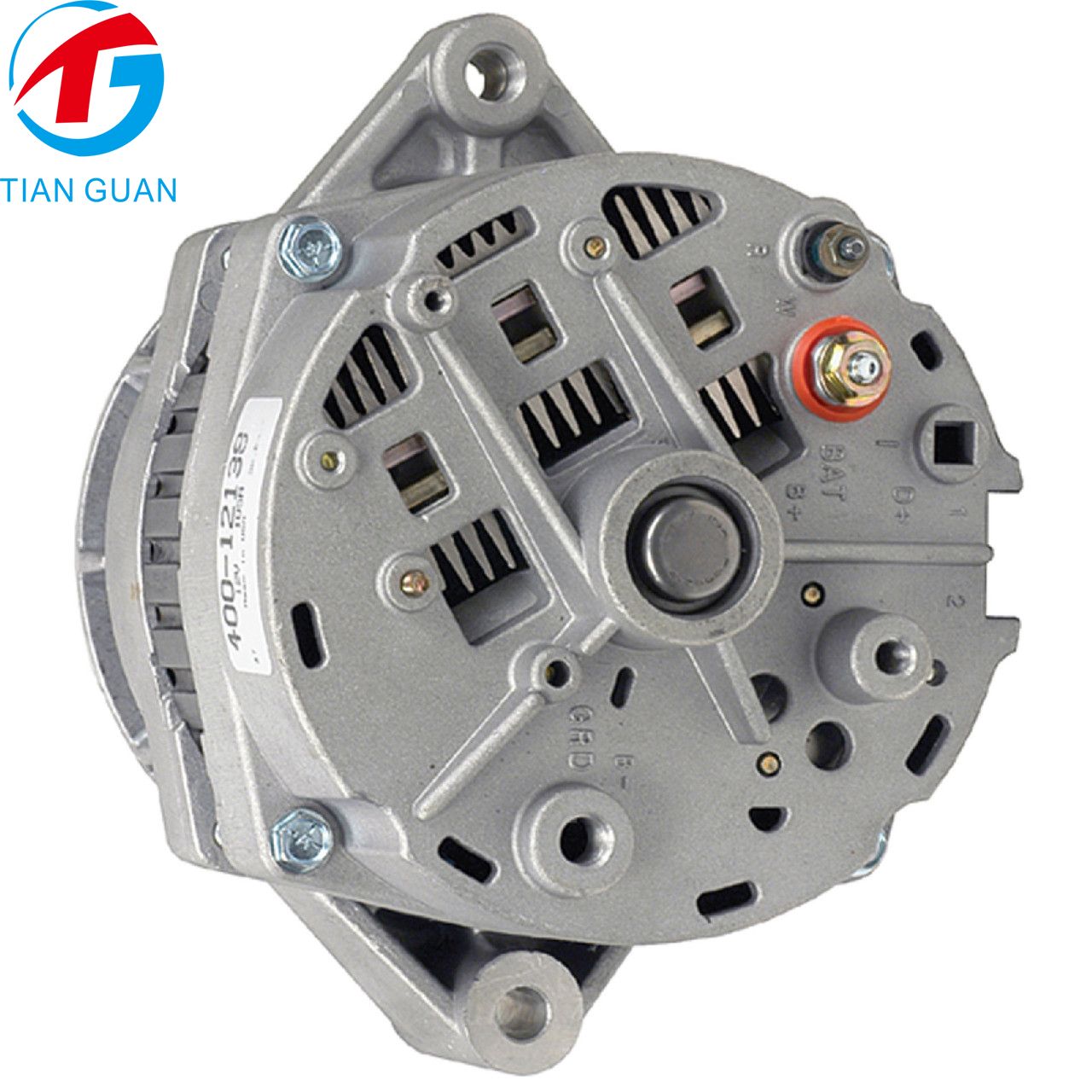

This premium aftermarket 12V Alternator is designed as a direct replacement for Delco 19SI Series alternators used on heavy-duty trucks and marine applications. With 105A output, clockwise rotation, internal regulator (IR), and external fan (EF), it delivers reliable charging performance for agricultural, construction, and industrial equipment applications.

This alternator replaces OE part numbers 400-12138 (Arrowhead / J & N), 3675254RX (Cummins), 10459469, 19009950, 19009951, 19009952 (Delco), and cross-reference numbers 8098 (Lester), 8098N (WAI).

Replacement 105A 19SI Unit. B+ Terminal: M6 x 1.00. R Terminal: M4 x 0.7. Polarity: Negative. 3-Wire System. 2" / 50.8mm Mounting Foot.

• 12V alternator

• 105A amperage

• Clockwise rotation

• Internal regulator (IR)

• External fan (EF)

• 3 o'clock clock position

• Fits Delco 19SI Series

• Used on heavy-duty trucks and marine applications

• Aftermarket replacement part

• Approx. 7.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Alternator
Voltage: 12V
Rotation: CW
Dimension: Replacement 105A 19SI Unit; B+ Terminal: M6 x 1.00; R Terminal: M4 x 0.7; Polarity: Negative; 3-Wire System; 2" / 50.8mm Mounting Foot
Amperage: 105A
Clock: 3
Regulator: IR
Fan Type: EF
Fits: Delco 19SI Series
Application: Heavy-Duty Trucks and Marine Applications
Weight: 7.8KG

Fitment

Agco – 3440 – 1998-2003 – Perkins 4-Cycle Diesel
Agco – 3640 – 1998-2003 – Perkins 4-Cycle Diesel
Agco – 4440 – 1998-2003 – Perkins 4-Cycle Diesel
Agco – 4640 – 1998-2003 – Perkins 4-Cycle Diesel
Case IH – 485 – 1985-1990 – 3-179 Diesel
Detroit Diesel – 8.2L – DD 8 Cyl. 500CI 8.2
Elgin Sweeper – Eagle – 1989-1993 – Isuzu C-240 Ds
Elgin Sweeper – Falcon – 4039 John Deere Diesel
Elgin Sweeper – Pelican – 1979-1995 – 4039 John Deere Diesel
Elgin Sweeper – Rear Sweeper – 1989-1993 – C240 Isuzu Engine
Ford – 276 – 1986-1992 – 4-239 Diesel
Gleaner – F2 – 1977-1982 – Allis Chalmers 6-43 / Chevrolet 292 Ga
Gleaner – F3 – 1983-1986 – Allis Chalmers 6-43
Hyster – H120XM – 1999-2007
Hyster – H230HD – 2002-2007
Hyster – H280HD – 2002-2007
John Deere – 344E – 1988-1995
John Deere – 4039DFM (Code 3113) – 3.9L 239ci 4cy
John Deere – 4039DFM (Code 3116) – 3.9L 239ci 4cy
John Deere – 4045TFM (Code 3113) – 4.5L 276ci 4cy
John Deere – 4045TFM (Code 3116) – 4.5L 276ci 4cy
John Deere – 444E – 1988-1995
John Deere – 450G
John Deere – 544E – 1988-1995
John Deere – 6068DFM (Code 3113) – 6.8L 414ci 6cy
John Deere – 6068DFM (Code 3116) – 6.8L 414ci 6cy
John Deere – 6068TFM (Code 3113) – 6.8L 414ci 6cy
John Deere – 6068TFM (Code 3116) – 6.8L 414ci 6cy
