ATG12996 Alternator 1C010-64010 1C010-64011 3C081-74011 3C081-74012 A7TA1677 A7TA3577 A7TA3577A A7TA3577C 12363 AMT0118 for Kubota M8200DTC 1998-2005

Part Numbers

ARROWHEAD: AMT0118, A7TA1677, A7TA3577
KUBOTA: 1C010-64010, 1C010-64011, 3C081-74011, 3C081-74012
LESTER: 12363
MITSUBISHI: A7TA1677, A7TA3577, A7TA3577A, A7TA3577C

Product Description

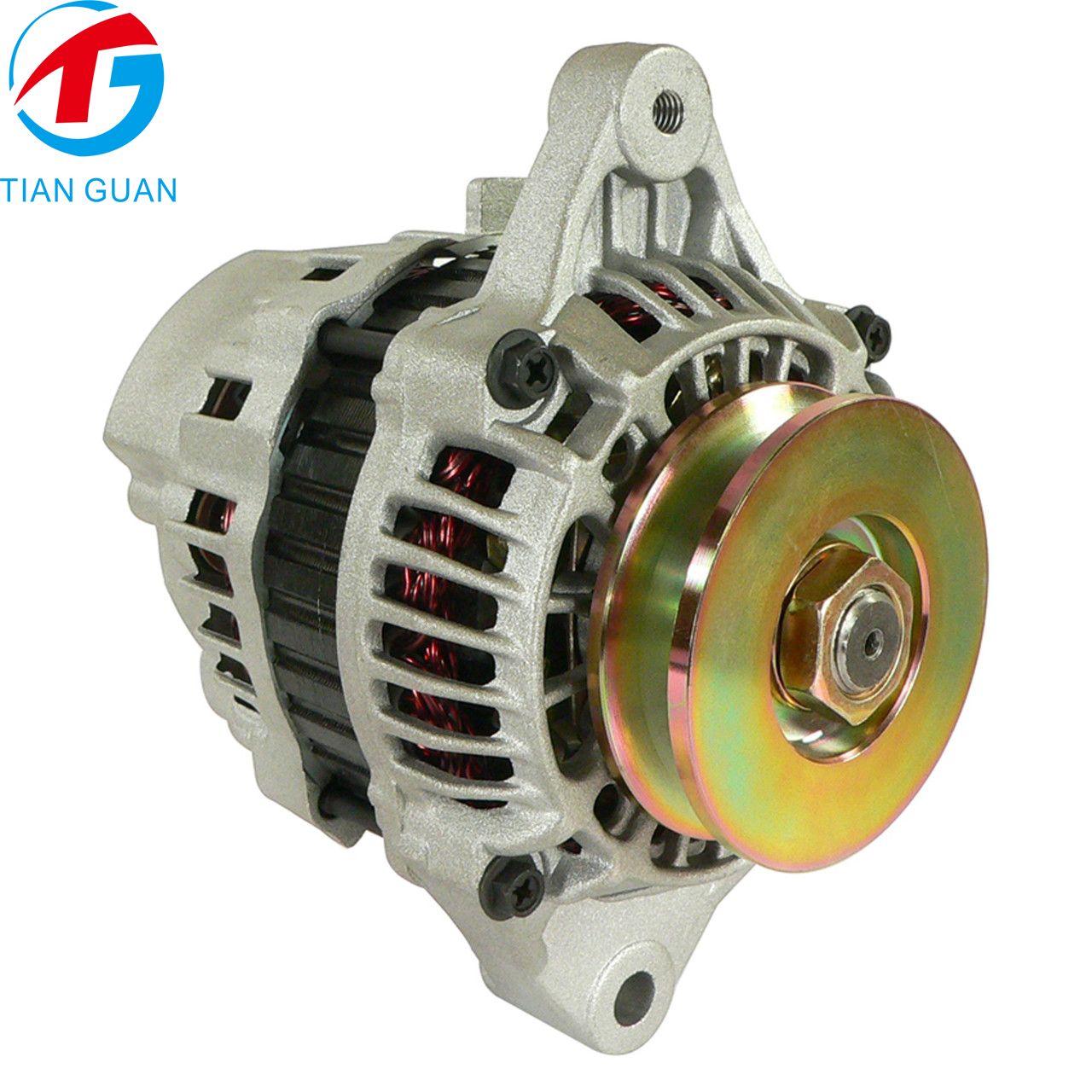

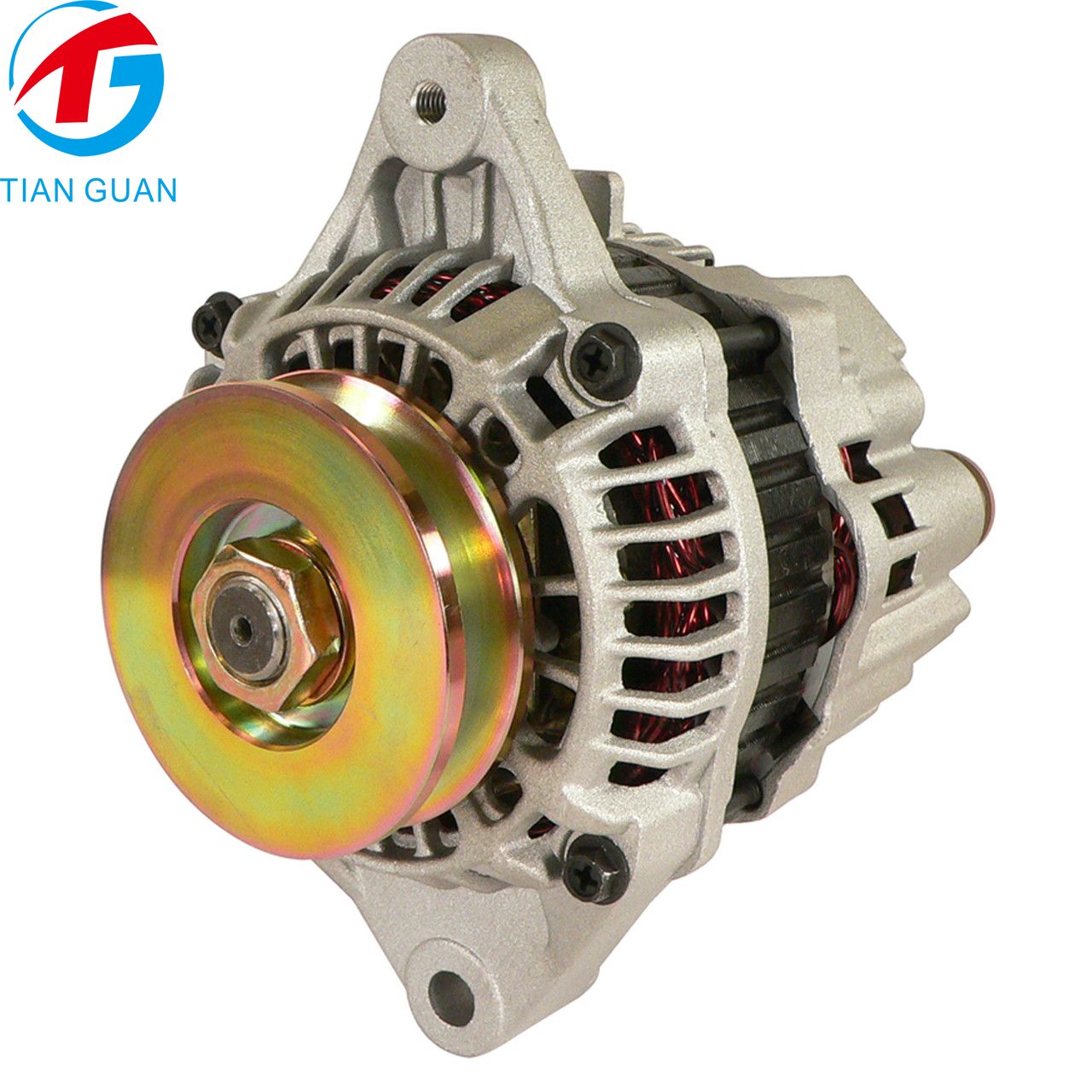

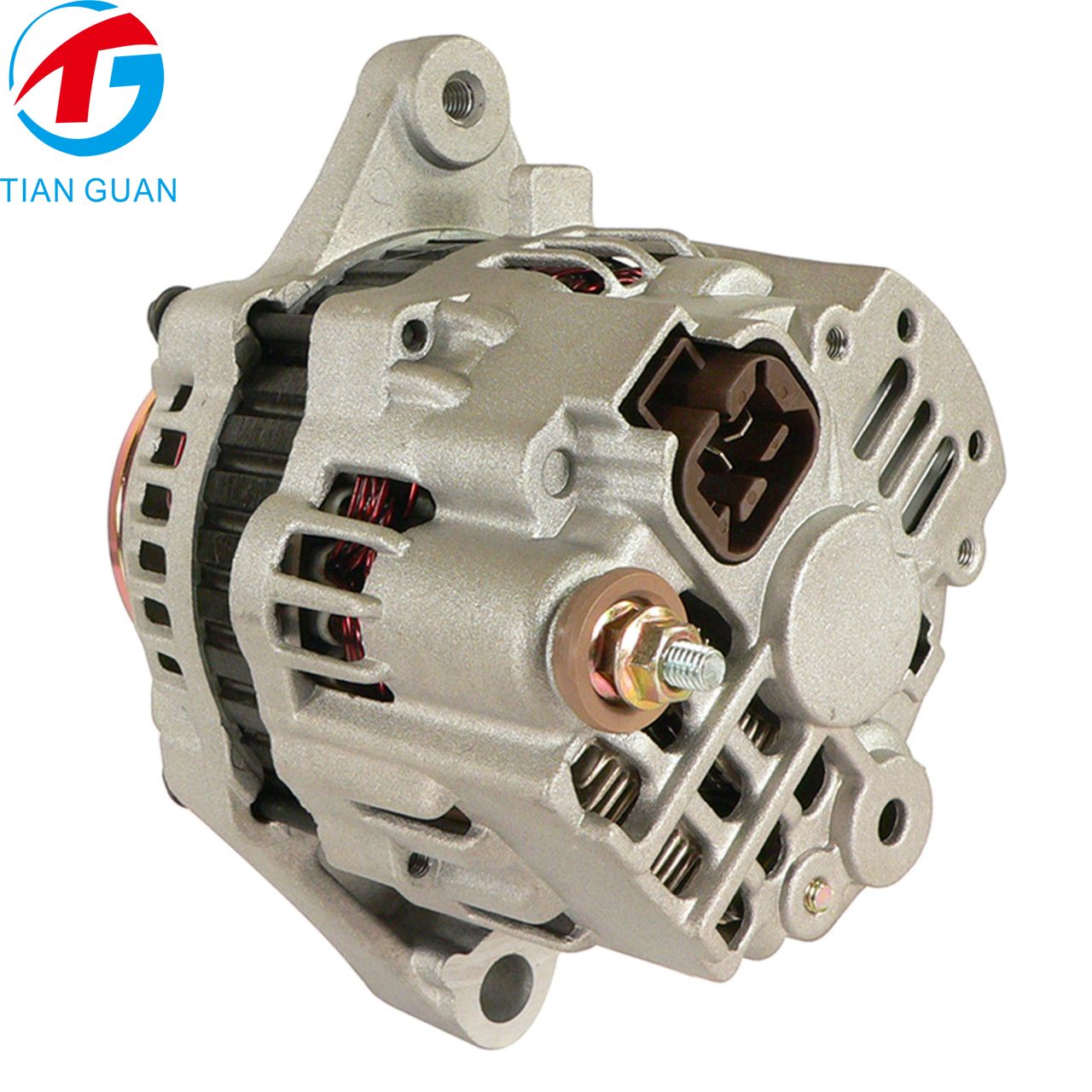

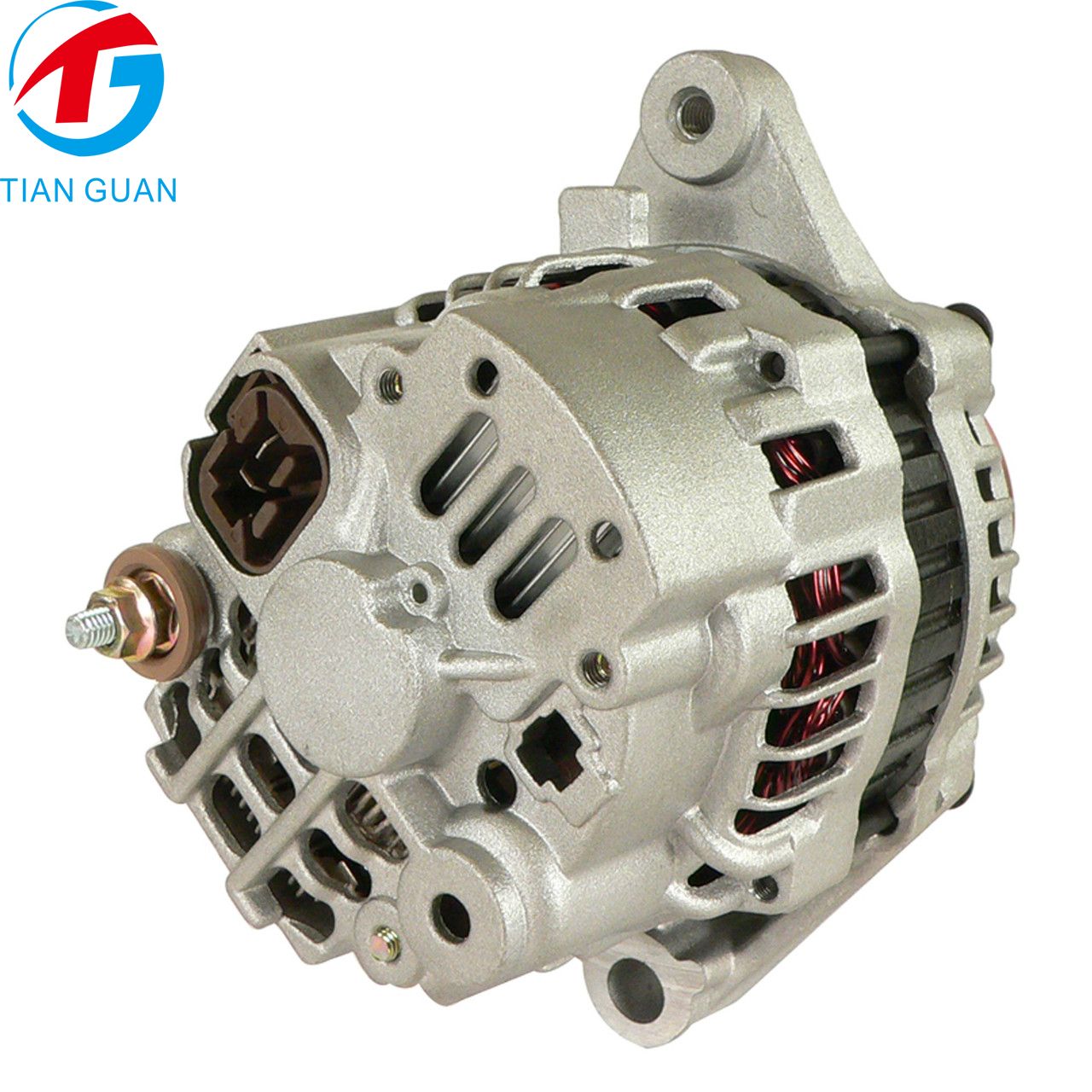

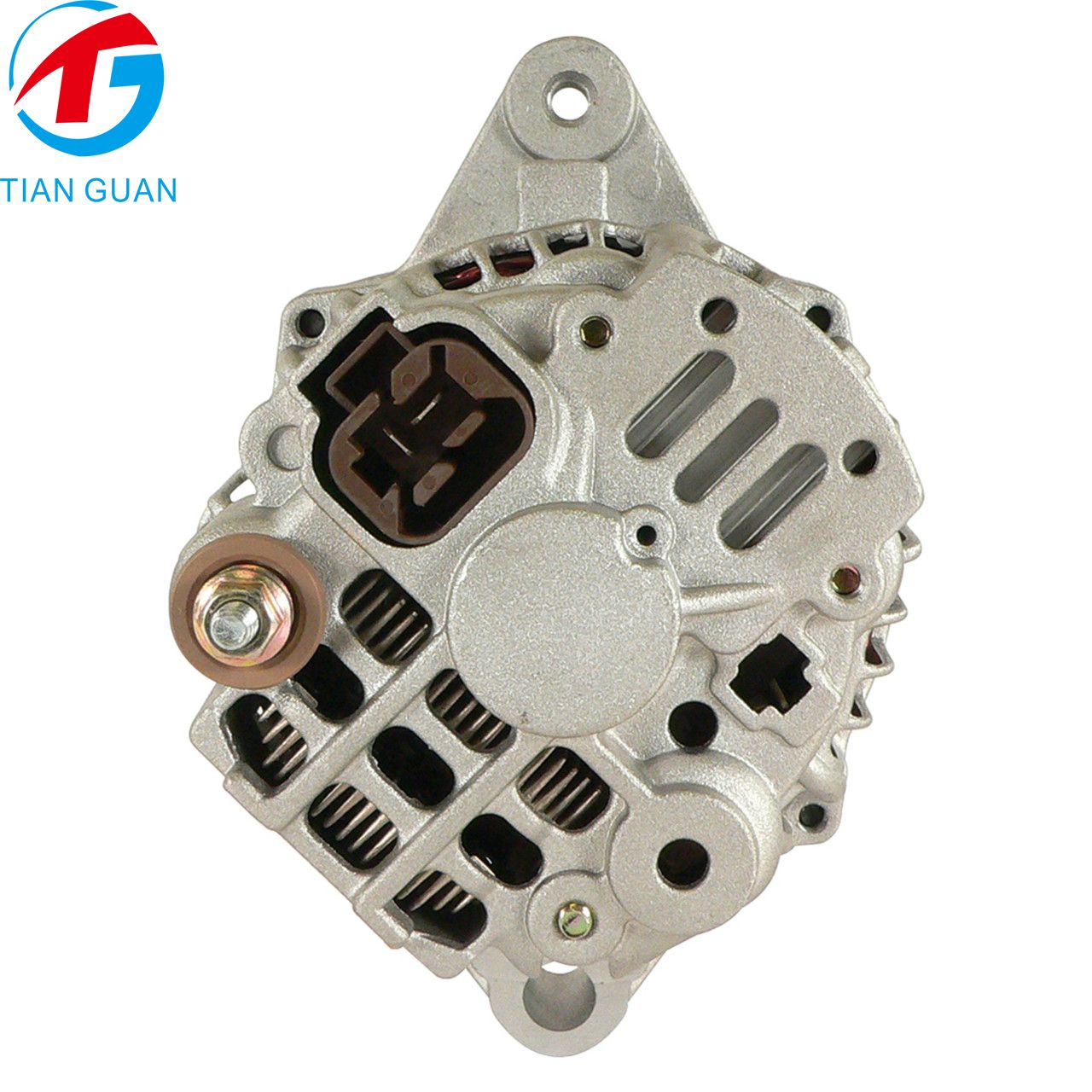

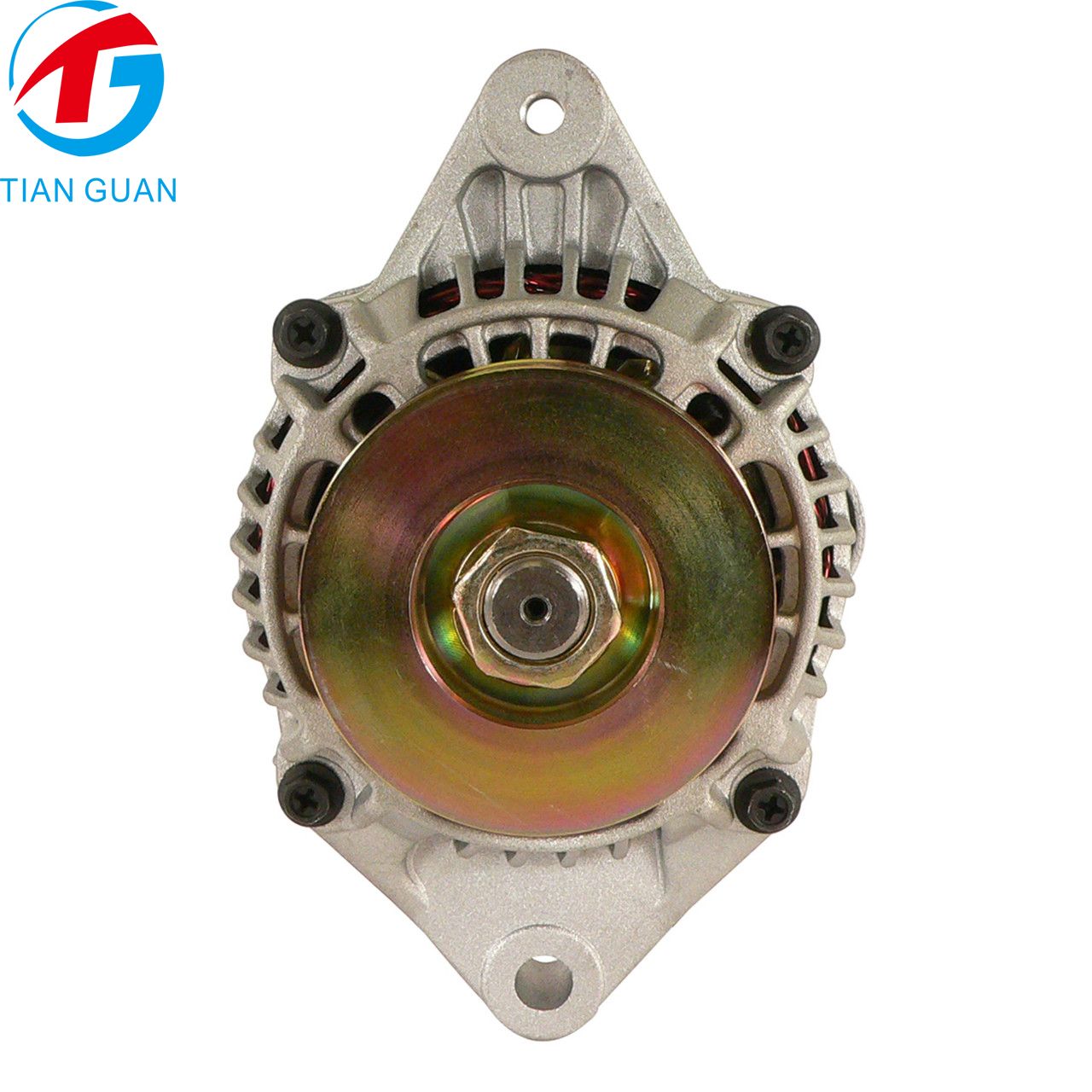

This premium aftermarket 12V 45A Alternator is designed as a direct replacement for Kubota tractor applications, including M6800, M8200, and M9000 series. With 45A output, V1 pulley, internal regulator (IR), internal fan (IF), and clockwise (CW) rotation, it delivers reliable charging performance and dependable service in demanding agricultural applications.

This alternator replaces OE part numbers AMT0118, A7TA1677, A7TA3577 (Arrowhead), 1C010-64010, 1C010-64011, 3C081-74011, 3C081-74012 (Kubota), 12363 (Lester), and A7TA1677, A7TA3577, A7TA3577A, A7TA3577C (Mitsubishi).

• 12V alternator

• 45A amperage

• V1 pulley class

• Internal regulator (IR)

• Internal fan (IF)

• Clockwise (CW) rotation

• 1-V pulley, 74mm OD

• Direct replacement for Kubota M6800 / M8200 / M9000

• Reliable charging performance

• Durable construction

• Aftermarket replacement part

• Approx. 3.6 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Alternator
Part Type: UNIT
Voltage: 12V
Rotation: CW
Amperage: 45A
Pulley Class: V1
Regulator: IR
Fan Type: IF
Fits: Kubota Tractors M6800, M8200, M9000
Pulley: 1-V Pulley, 74mm OD
Weight: 3.6KG

Fitment

Kubota – Tractor M6800 – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800DT – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800HD-F – 2001-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800S – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800SC – 1999-2004 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800SDC – 2000-2004 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800SD-F – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800SDT – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M6800S-F – 1998-2005 – Kubota V3300E 68HP Dsl
Kubota – Tractor M8200 – 1998-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200C – 1998-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200CCS – 1998-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200DTC – 1999-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200DT-F – 1998-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200F – 1998-2004 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200SDNB – 2000-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200SDNBC – 2000-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M8200SDNBF – 2000-2005 – Kubota V3300 82HP Dsl
Kubota – Tractor M9000 – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000C – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTC – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTCCS – 2000-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DT-F – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTL – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTL-F – 1999-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTM – 2000-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTMC – 2001-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTMCW – 2001-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000DTMW – 2001-2009 – Kubota V3300 90HP Dsl
Kubota – Tractor M9000F – 1999-2009 – Kubota V3300 90HP Dsl
