ATG13014 Alternator 47383500 87311822 400-29024 6510784M92 12785 for Case Farmall 55C Farmall 60 Farmall 65C Farmall 70

3 Reviews

Add Your Review

US$128.00

ITEMNO： ATG13014

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ATG13014 Alternator 47383500 87311822 400-29024 6510784M92 12785 IA1352 IA1504 AAK4314 for Case IH Farmall 55C 60 65C 70 75C 80 85U 90 95 New Holland T4020 T4030 T4040 T5040 – 12V 120A

    Part Numbers:
    ARROWHEAD IA1352, IA1504, MG223
    ATLANTIC QUALITY PARTS 1100-0599, 1700-0541, 4800-0502, 5000-0501
    CASE IH 47383500, 87311822
    FORD/NEW HOLLAND 47383500, 87311822
    IVECO 504271461, 5801453378
    J & N 400-29024
    LANDINI 6510784M92
    LESTER 12785
    LETRIKA/ISKRA 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1205, IA1352, IA1504
    LUCAS ELECTRIC LRA03793
    MAHLE 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1205, IA1275, IA1352, IA1504, MG223, MG673
    PERKINS T412776

    Compatible Models: Case IH Farmall 55C, 60, 65C, 70, 75C, 75N, 80, 85U, 90, 95, 95N, 95U, 105U, JX1080U, JX1090U, JX1100U | New Holland T4020, T4020V, T4030, T4030F, T4030V, T4040, T4040F, T4040V, T4050, T4050F, T4050V, T5040, T5050, T5060, T5070, TD5010, TD5050, TK4020F, TK4020V, TK4030, TK4030F, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TL80A, TL90A, TL100A
    Weight: 6.3 KG

    Product Overview

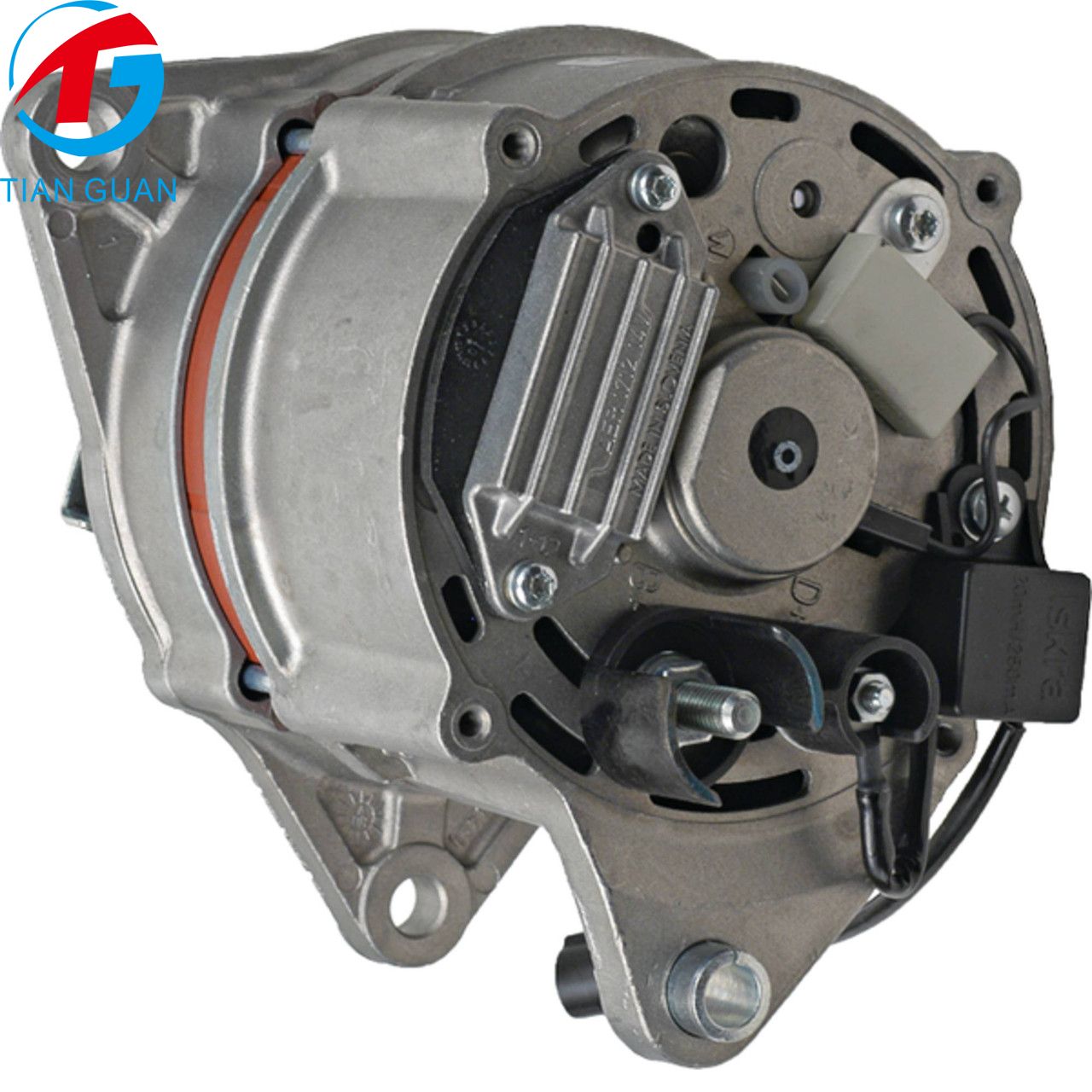

    ATG13014 is a heavy-duty aftermarket alternator designed for Case IH Farmall and JX series tractors, as well as New Holland T, TD, TK, and TL series tractors. It directly replaces OEM part numbers 47383500, 87311822, 400-29024, 6510784M92, 12785, IA1352, IA1504, AAK4314, and related references, delivering reliable charging performance for agricultural diesel engines.

    Key Specifications

    ParameterSpecification
    Voltage12V
    Amperage120A
    RotationClockwise
    Number of Grooves8
    Pulley TypeSolid
    Pulley Outer Diameter59.5mm / 2.343"
    Fan LocationExternal
    Regulator LocationInternal
    PolarityNegative
    Terminal B+M8x1.25
    Terminal D+Pin
    Terminal WSpade
    Mount Hole ID 110.200mm, Unthreaded
    Mount Hole ID 310.200mm, Unthreaded
    Mounting Ear Thickness11mm / 0.433"
    Mounting Ear 2 Thickness12.300mm / 0.484"
    Mounting Ear 3 Thickness20.200mm / 0.795"
    Weight6.3 KG
    ConditionNew Aftermarket Part
    FamilyLetrika/MAHLE AAK

    Compatibility

    • Compatible Models:

      • Case IH: Farmall 55C, 60, 65C, 70, 75C, 75N, 80, 85U, 90, 95, 95N, 95U, 105U, JX1080U, JX1090U, JX1100U

      • New Holland: T4020, T4020V, T4030, T4030F, T4030V, T4040, T4040F, T4040V, T4050, T4050F, T4050V, T5040, T5050, T5060, T5070, TD5010, TD5050, TK4020F, TK4020V, TK4030, TK4030F, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TL80A, TL90A, TL100A

    • Replaces OEM Part Numbers:

      • ARROWHEAD: IA1352, IA1504, MG223

      • ATLANTIC QUALITY PARTS: 1100-0599, 1700-0541, 4800-0502, 5000-0501

      • CASE IH: 47383500, 87311822

      • FORD/NEW HOLLAND: 47383500, 87311822

      • IVECO: 504271461, 5801453378

      • J & N: 400-29024

      • LANDINI: 6510784M92

      • LESTER: 12785

      • LETRIKA/ISKRA: 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1205, IA1352, IA1504

      • LUCAS ELECTRIC: LRA03793

      • MAHLE: 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1205, IA1275, IA1352, IA1504, MG223, MG673

      • PERKINS: T412776

    Product Features

    • Direct Fit: Built to OEM specifications — no modification required, install and go

    • Stable Output: 12V 120A output delivers reliable charging performance for agricultural tractors

    • Durable Design: High-quality regulator, fan, and pulley components withstand harsh agricultural conditions

    • Precise Match: 8-groove solid pulley, 59.5mm OD, clockwise rotation, internal regulator, and negative polarity ensure exact fitment

    Applications

    Suitable for Case IH Farmall 55C, 60, 65C, 70, 75C, 75N, 80, 85U, 90, 95, 95N, 95U, 105U, JX1080U, JX1090U, and JX1100U tractors, New Holland T4020 through T5070, TD5010, TD5050, TK4020F through TK4060, TL80A, TL90A, and TL100A tractors, and related equipment requiring alternator part numbers 47383500, 87311822, 400-29024, 6510784M92, 12785, IA1352, IA1504, AAK4314, or MG223.
