ATG13069 Alternator 400-12315 for Hyster H120XM 1999-2007 H230HD 2002-2007 H280HD 2002-2007

Part Numbers

ARROWHEAD: 400-12315
J & N: 400-12315

Product Description

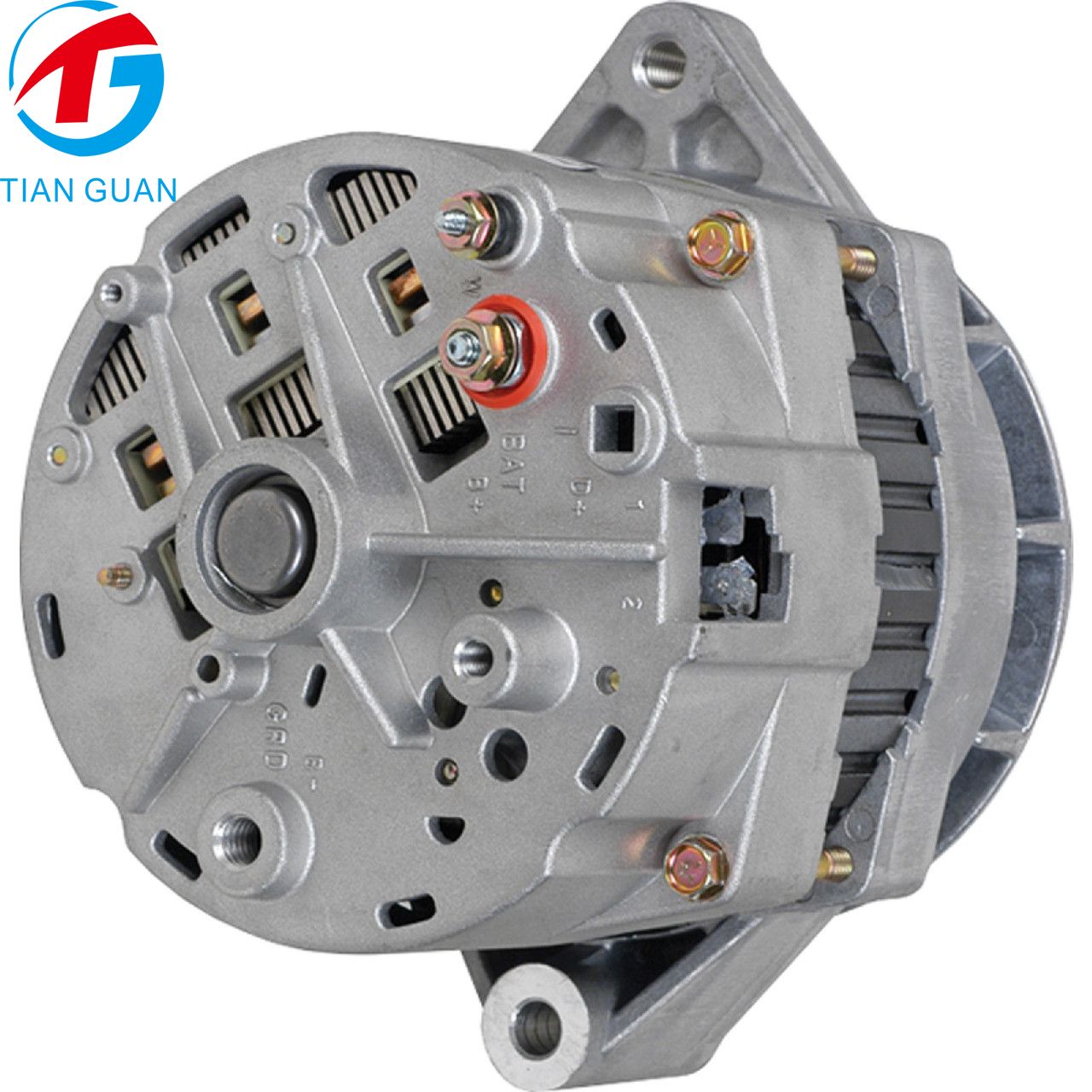

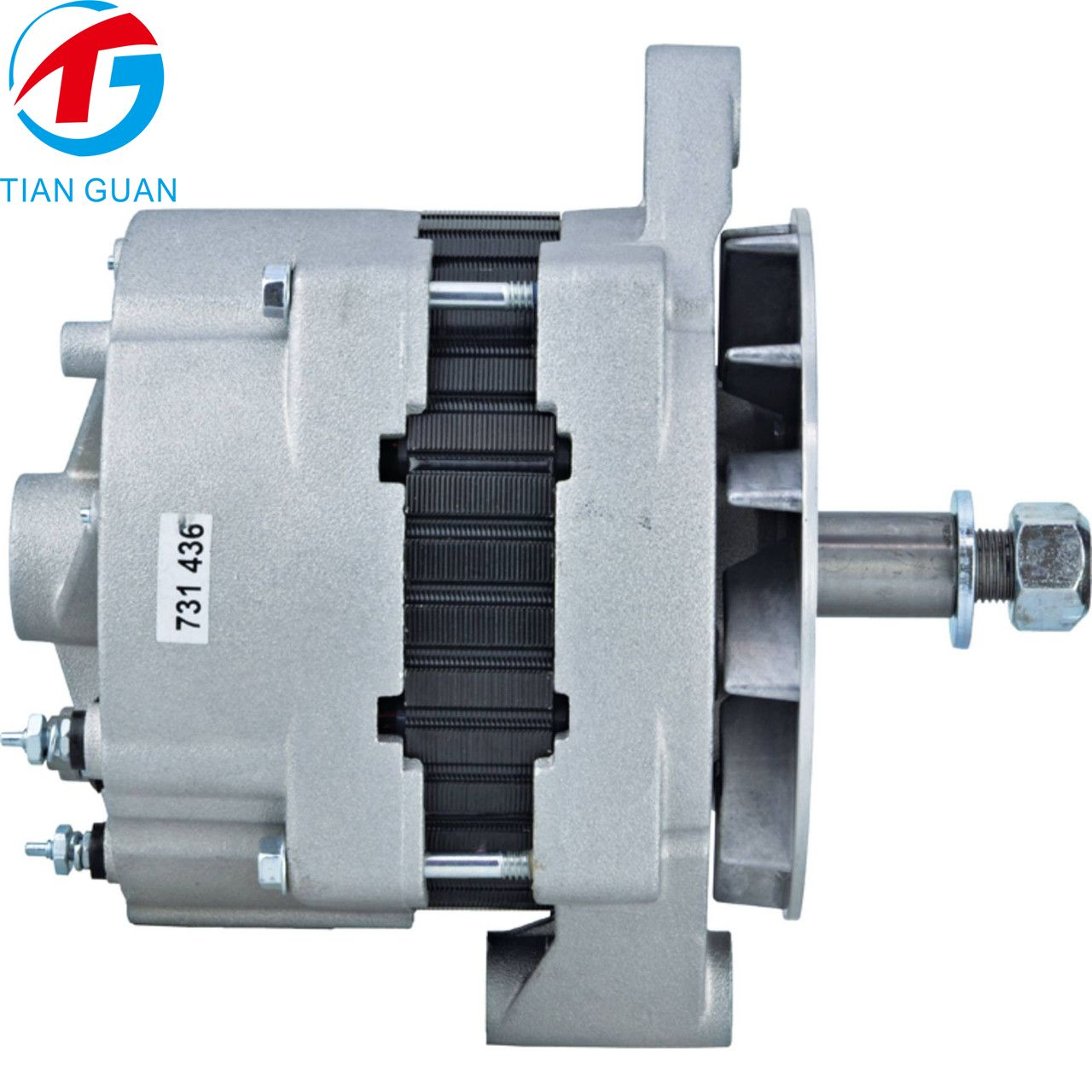

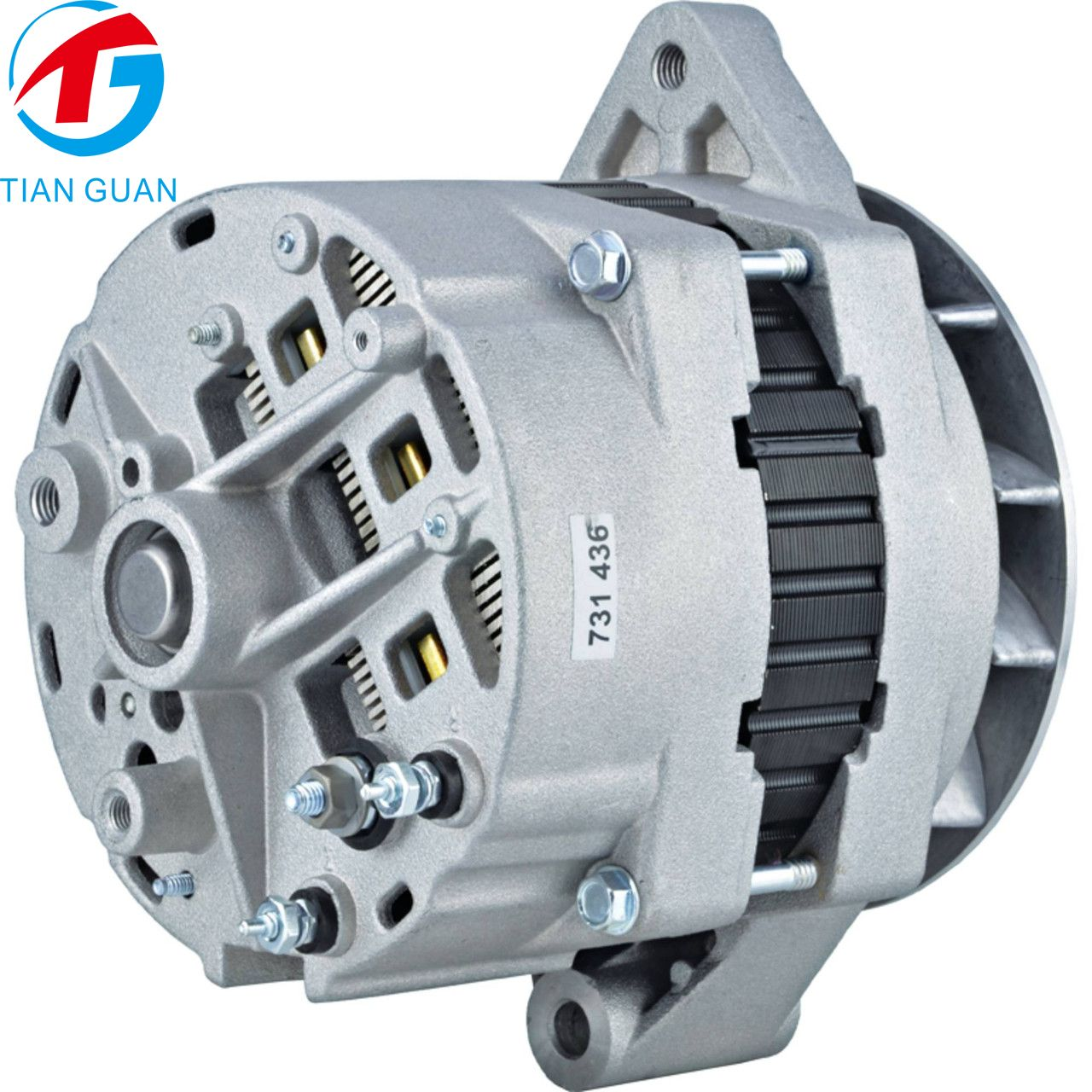

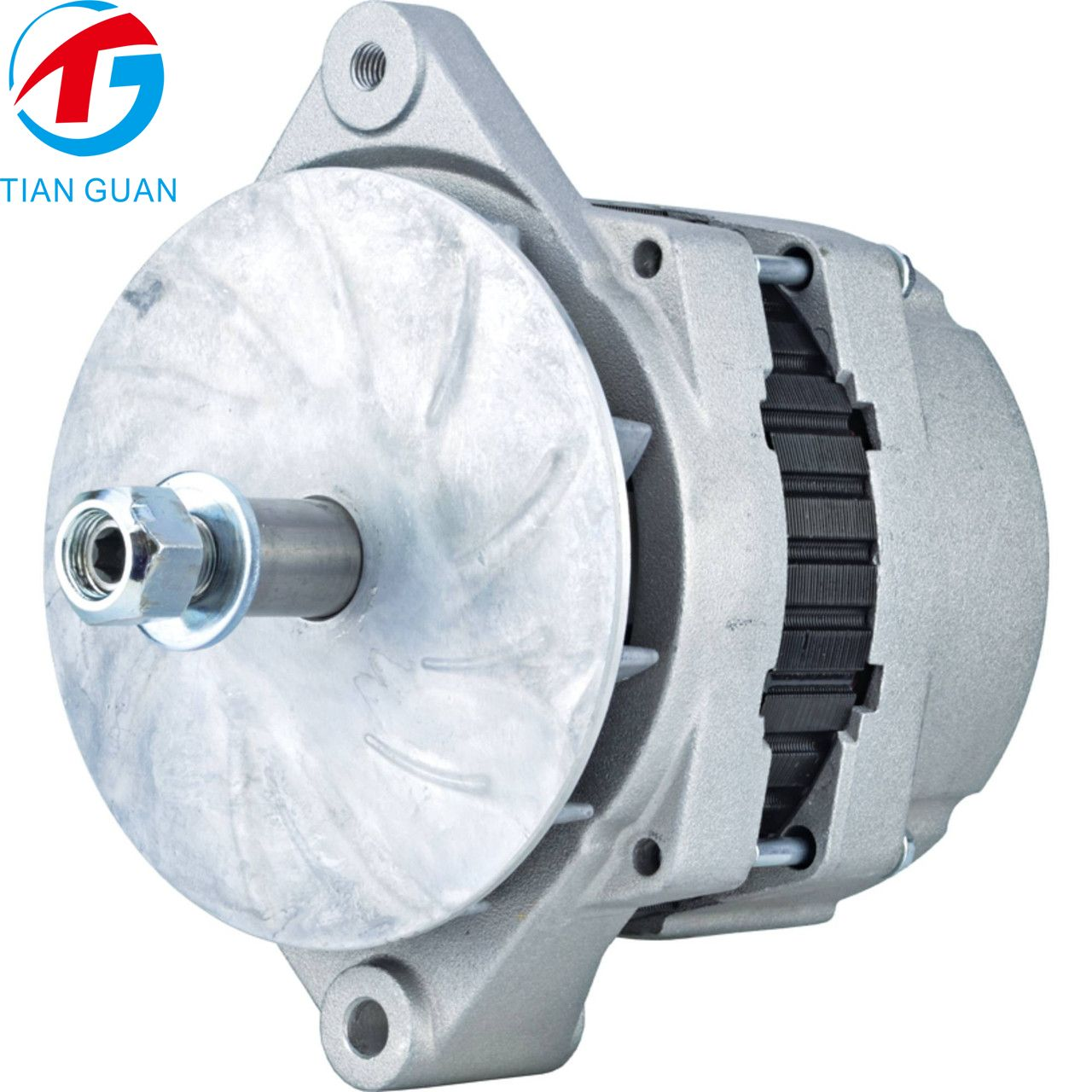

This premium aftermarket 12V Alternator is designed as a direct replacement for Delco 19SI alternators used on heavy-duty truck and marine applications. With 145A output, clockwise rotation, internal regulator (IR), and external fan (EF), it delivers reliable charging performance for Hyster forklift applications.

This alternator replaces OE part number 400-12315 (Arrowhead / J & N).

Replacement 145A 19SI Unit. B+ Terminal: M6 x 1.00. R Terminal: M4 x 0.7. Polarity: Negative. 1-Wire System. 2" / 50.8mm Mounting Foot.

• 12V alternator

• 145A amperage

• Clockwise rotation

• Internal regulator (IR)

• External fan (EF)

• 3 o'clock clock position

• Fits Delco 19SI Alternator

• Used on heavy-duty truck and marine applications

• Aftermarket replacement part

• Approx. 7.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Alternator
Voltage: 12V
Rotation: CW
Dimension: Replacement 145A 19SI Unit; B+ Terminal: M6 x 1.00; R Terminal: M4 x 0.7; Polarity: Negative; 1-Wire System; 2" / 50.8mm Mounting Foot
Amperage: 145A
Clock: 3
Regulator: IR
Fan Type: EF
Fits: Delco 19SI Alternator
Application: Heavy-Duty Truck and Marine Applications
Weight: 7.8KG

Fitment

Hyster – H120XM – 1999-2007
Hyster – H230HD – 2002-2007
Hyster – H280HD – 2002-2007

Compatible with equipment using 400-12315 alternator part number.
