ATG13305 Alternator – Detailed Description

Part Numbers

New Holland / Ford: SBA18504-6220

Kubota: 15881-64200, 15881-64201

Denso: 100211-1630, 100211-4690, 100211-1680

Daihatsu: 27060-87201

Arrowhead: AND0003, 400-52028

Cargo: 111048

WAI: 12189N

Thermo King: 41-0749, 5D36221G01

Lester: 12189

Product Description

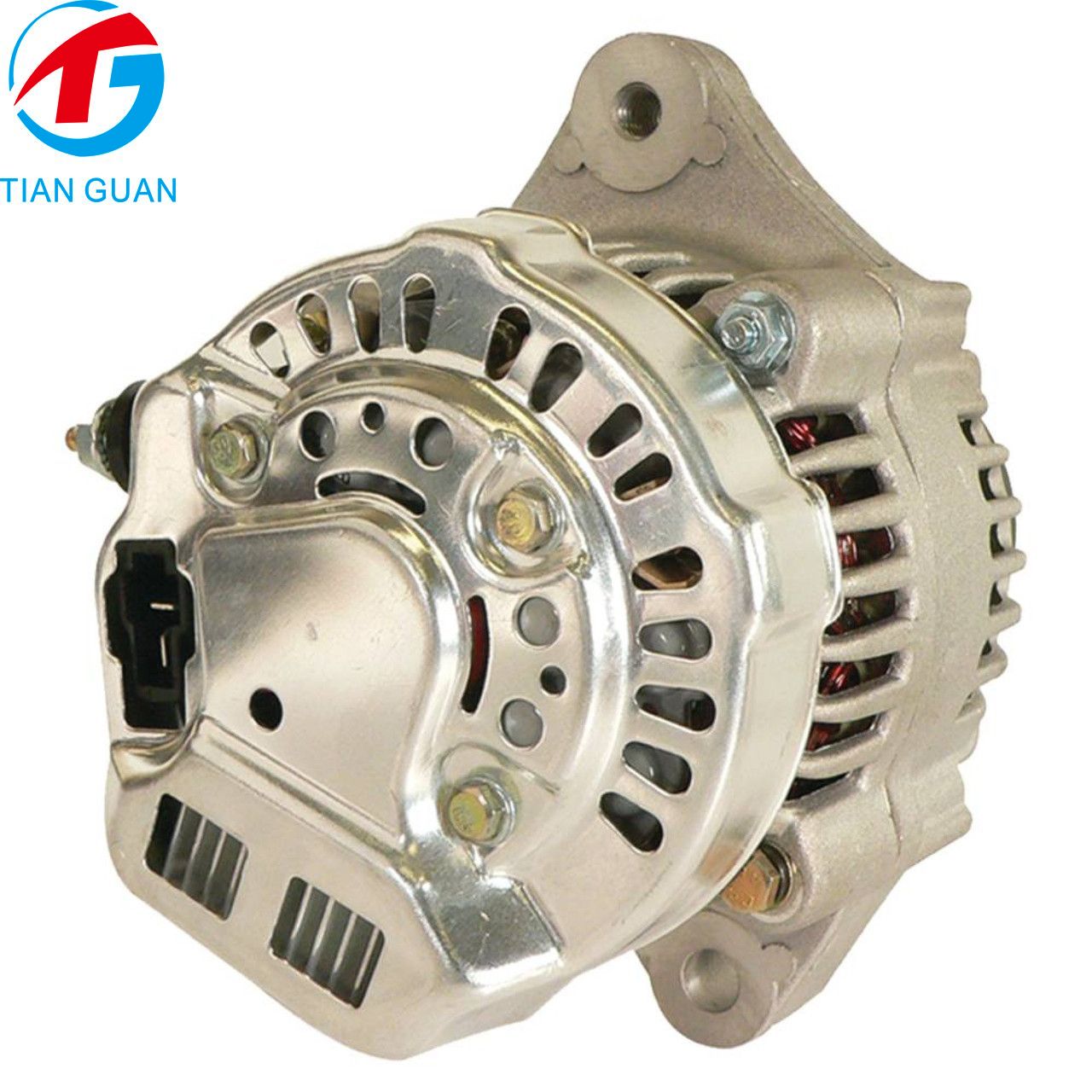

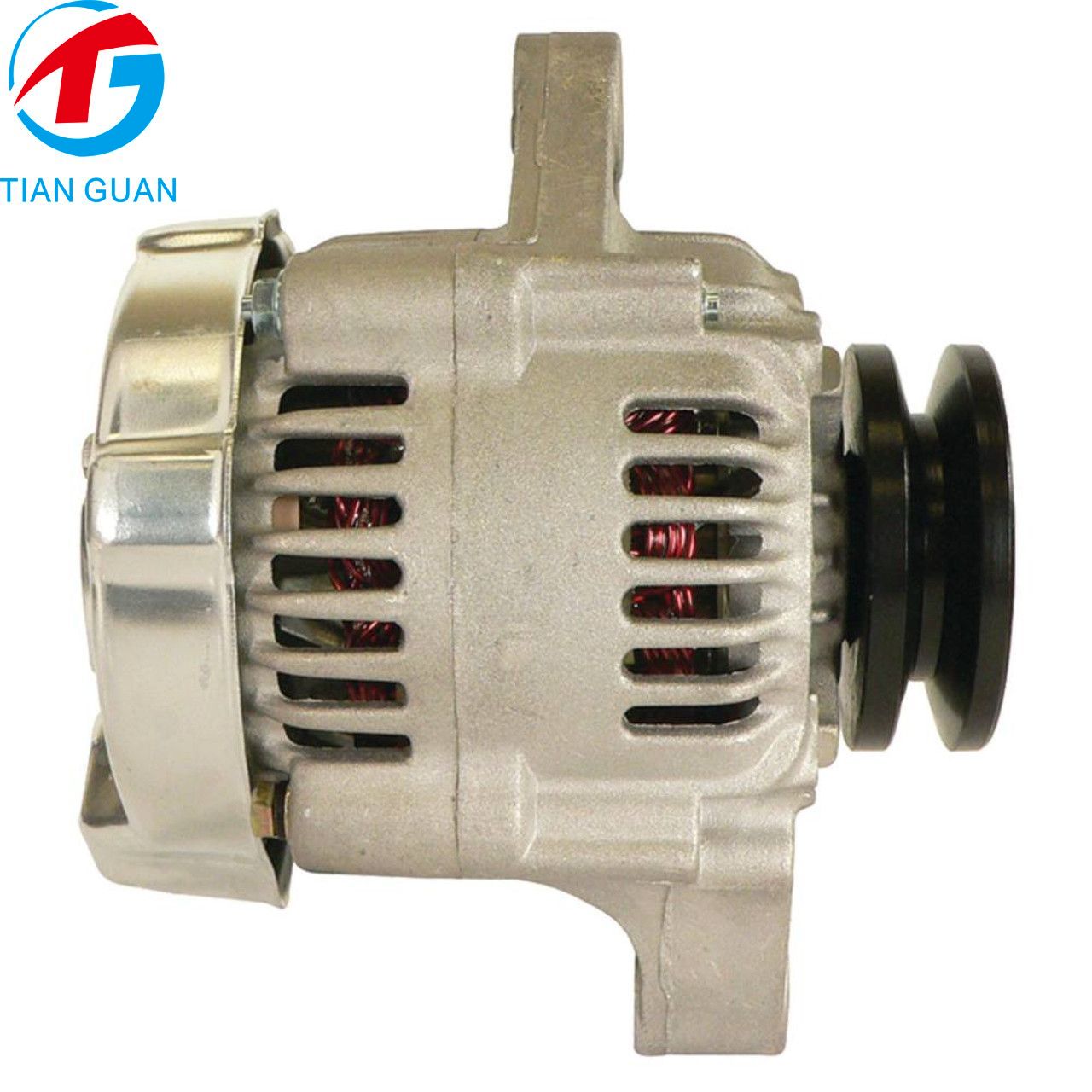

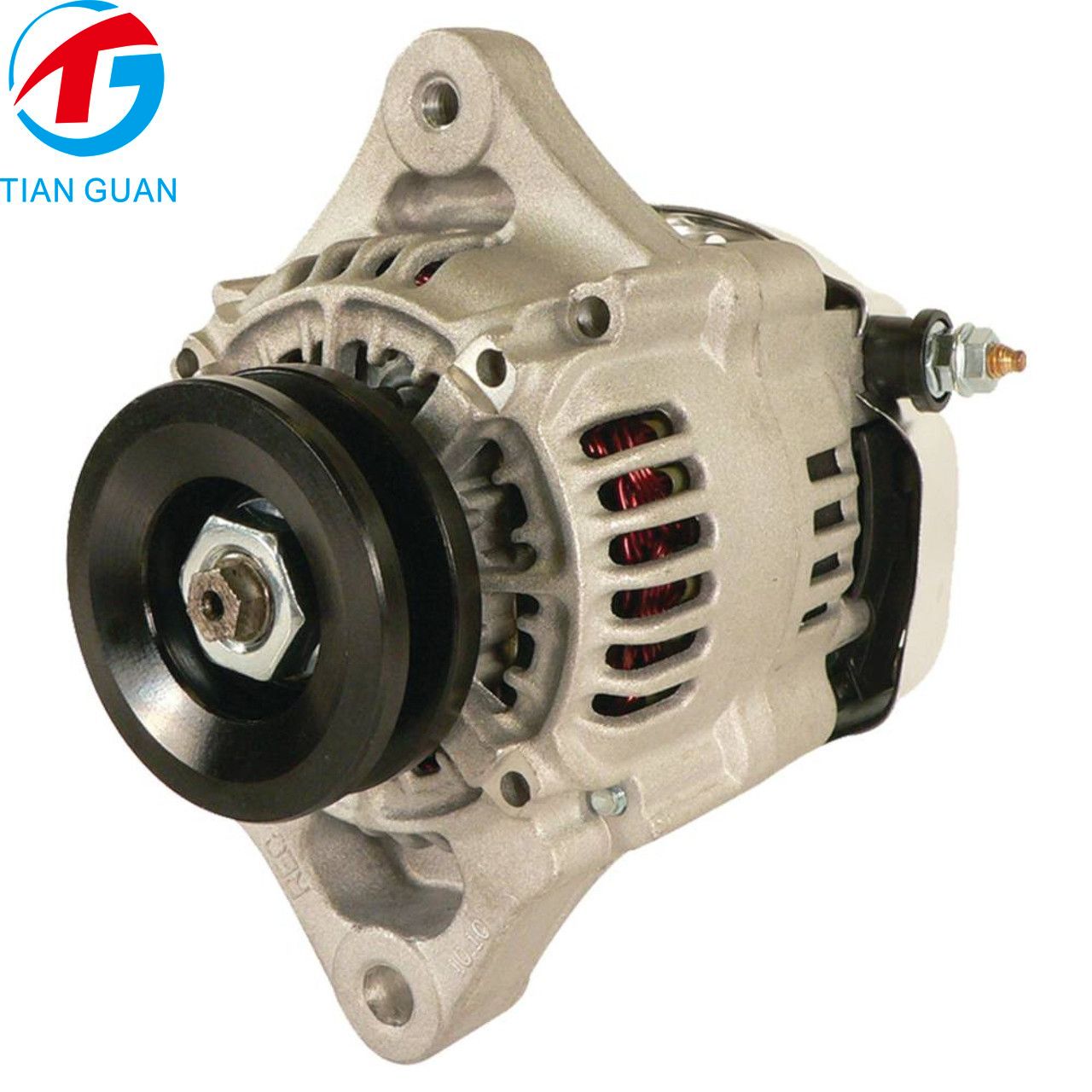

The TG-Tian Guan ATG13305 Alternator is a high-quality aftermarket 12V 40A alternator designed for compatible compact tractors, diesel engines, and utility vehicles. It is suitable for New Holland 1220, TC21D, and TC24 tractors, as well as Kubota A28 diesel engine applications.

This alternator cross-references New Holland / Ford SBA18504-6220; Kubota 15881-64200 and 15881-64201; Denso 100211-1630, 100211-4690, and 100211-1680; and Daihatsu 27060-87201. Additional cross-reference numbers include Arrowhead AND0003 and 400-52028, Cargo 111048, WAI 12189N, Thermo King 41-0749 and 5D36221G01, and Lester 12189.

Featuring a 12V electrical system, 40A charging output, internal regulator (IR), internal fan (IF), and a single V-belt pulley, this alternator is designed to provide stable charging performance for compatible agricultural and utility equipment. Its 9:00 clock position supports applications requiring the corresponding mounting and terminal configuration.

Please verify the original alternator part number, mounting dimensions, pulley configuration, and electrical connections before ordering.

Specifications

Fitment

New Holland Tractors: 1220, TC21D, TC24

Kubota Diesel Engine: A28
