ATG13472 Alternator 27060-61100 13562 for Toyota Land Cruiser 4.0L 1990-1992 | 12V 90A Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： ATG13472

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG13472 Alternator 27060-61100 13562 for Toyota Land Cruiser 4.0L 1990-1992 | 12V 90A Replacement

OEM / Part Numbers

Arrowhead: 400-52333
Denso: 100211-6130 / 100211-6131
NSA (Old): ALT-6216
Toyota: 27060-61100

Product Description

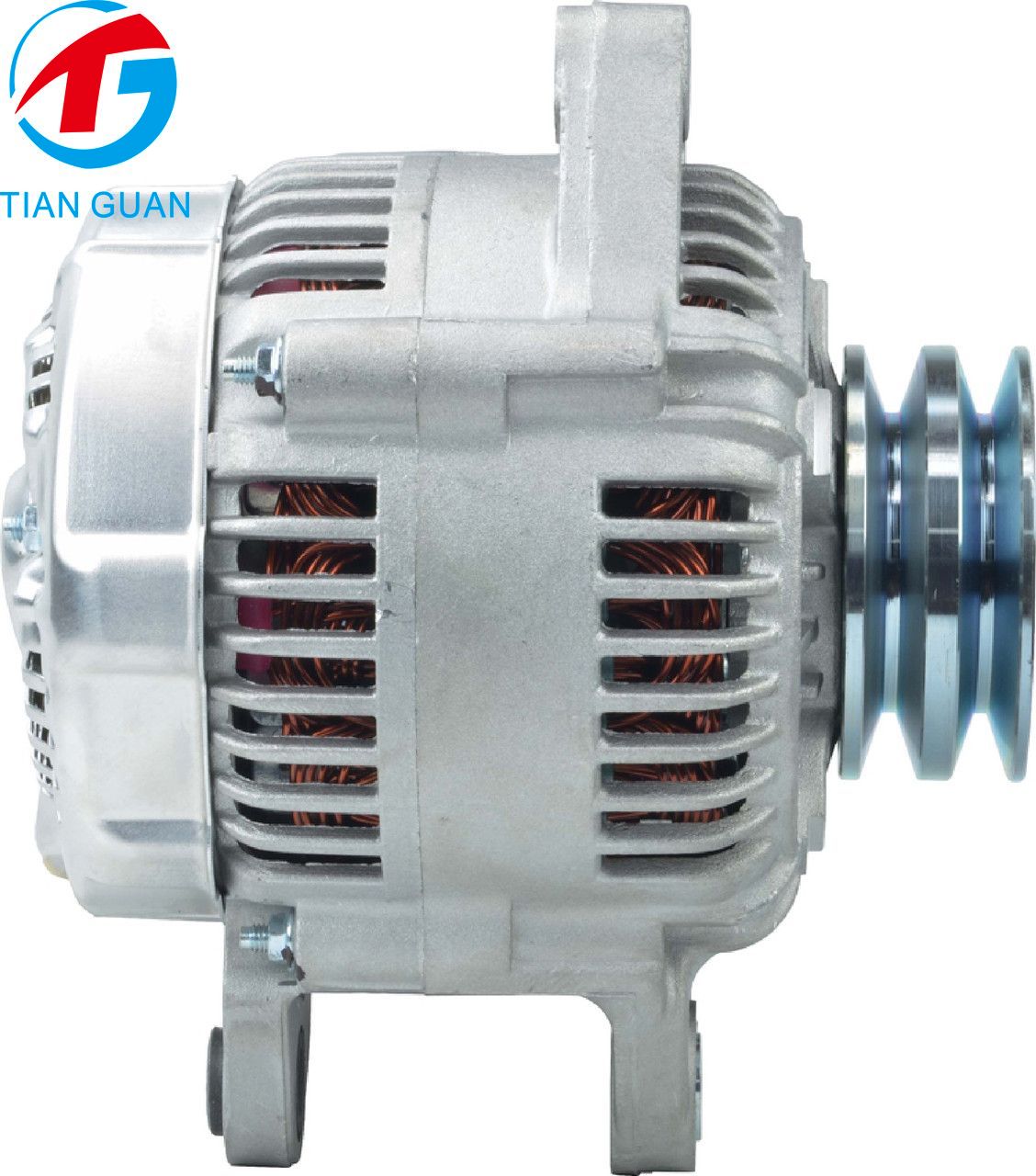

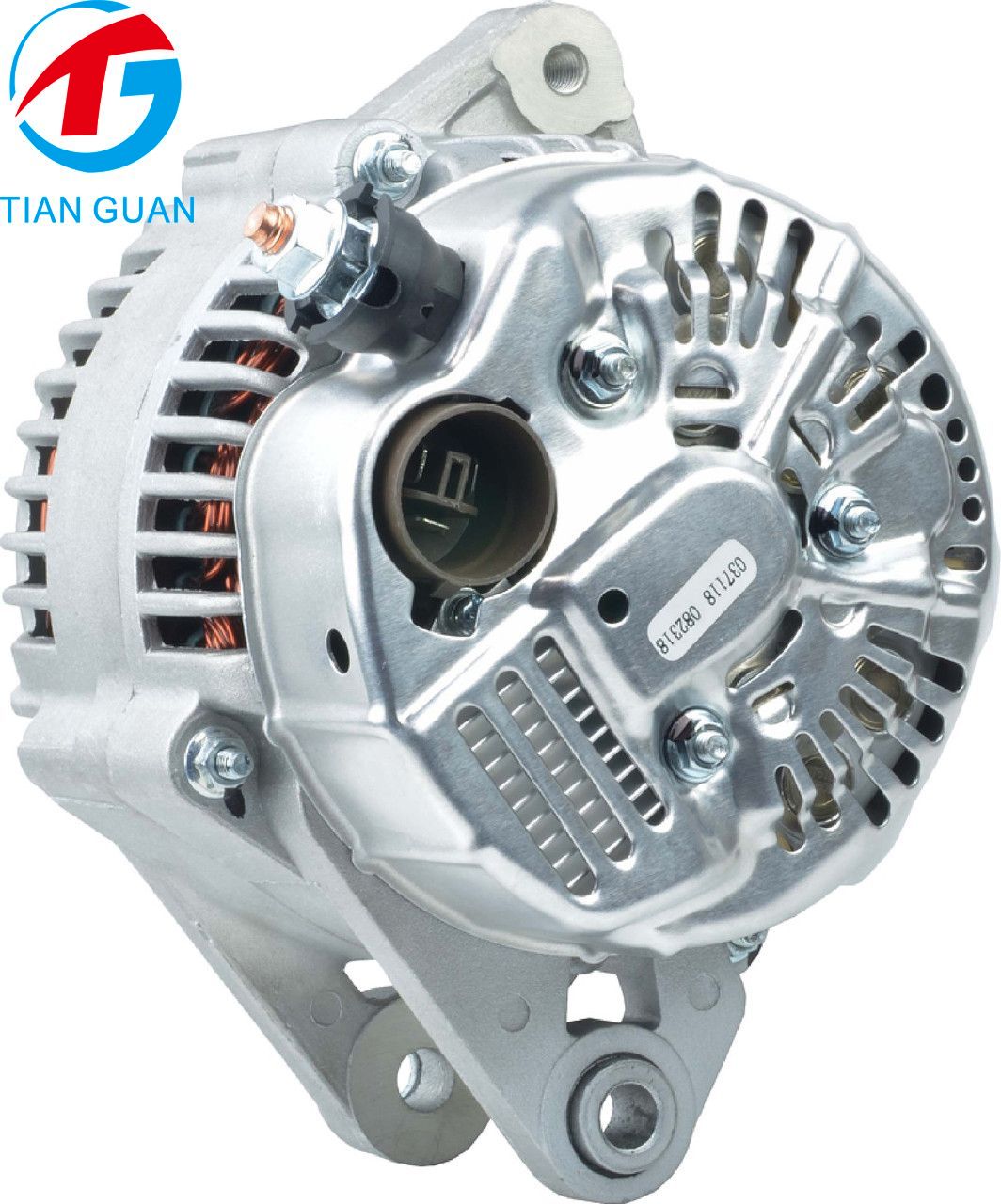

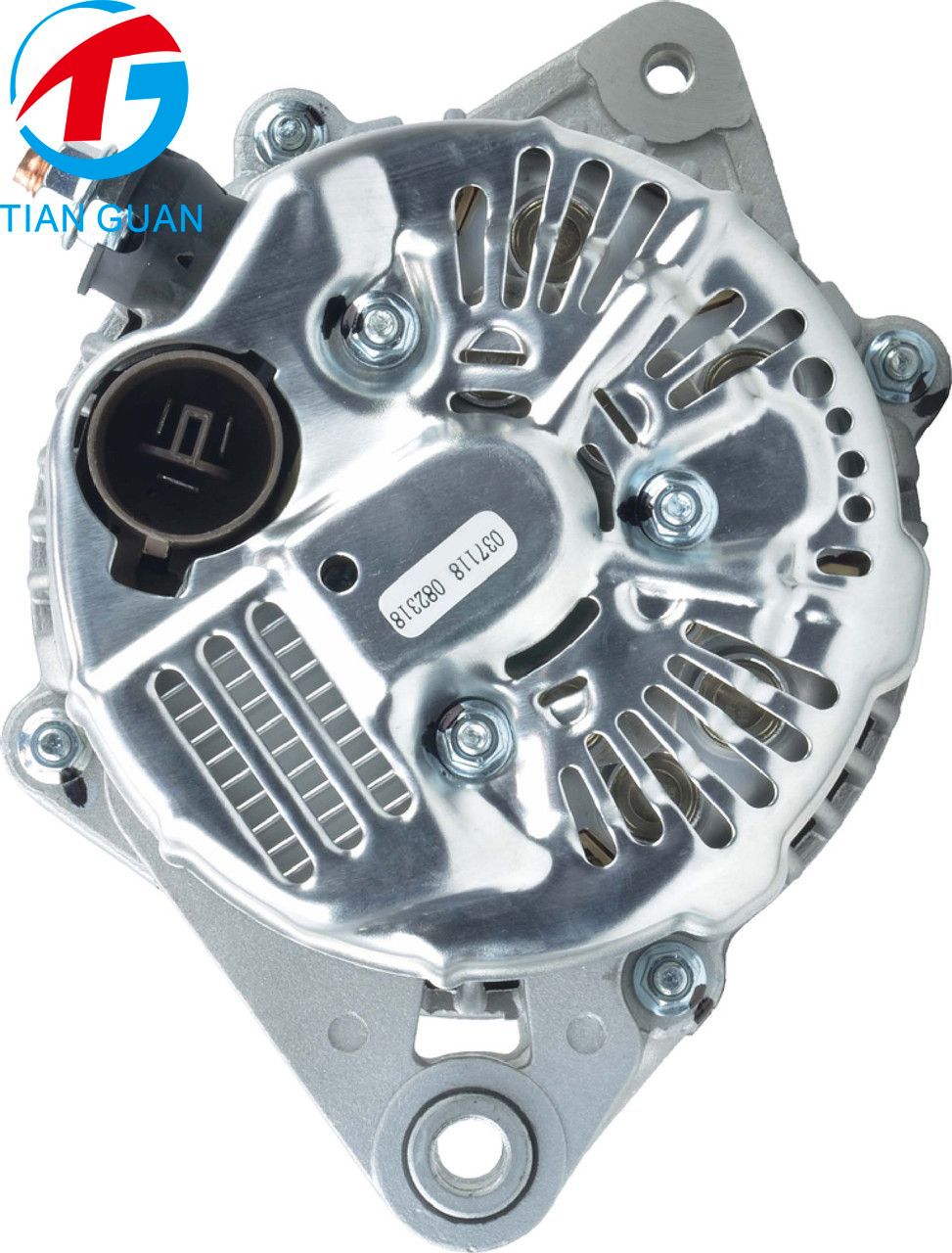

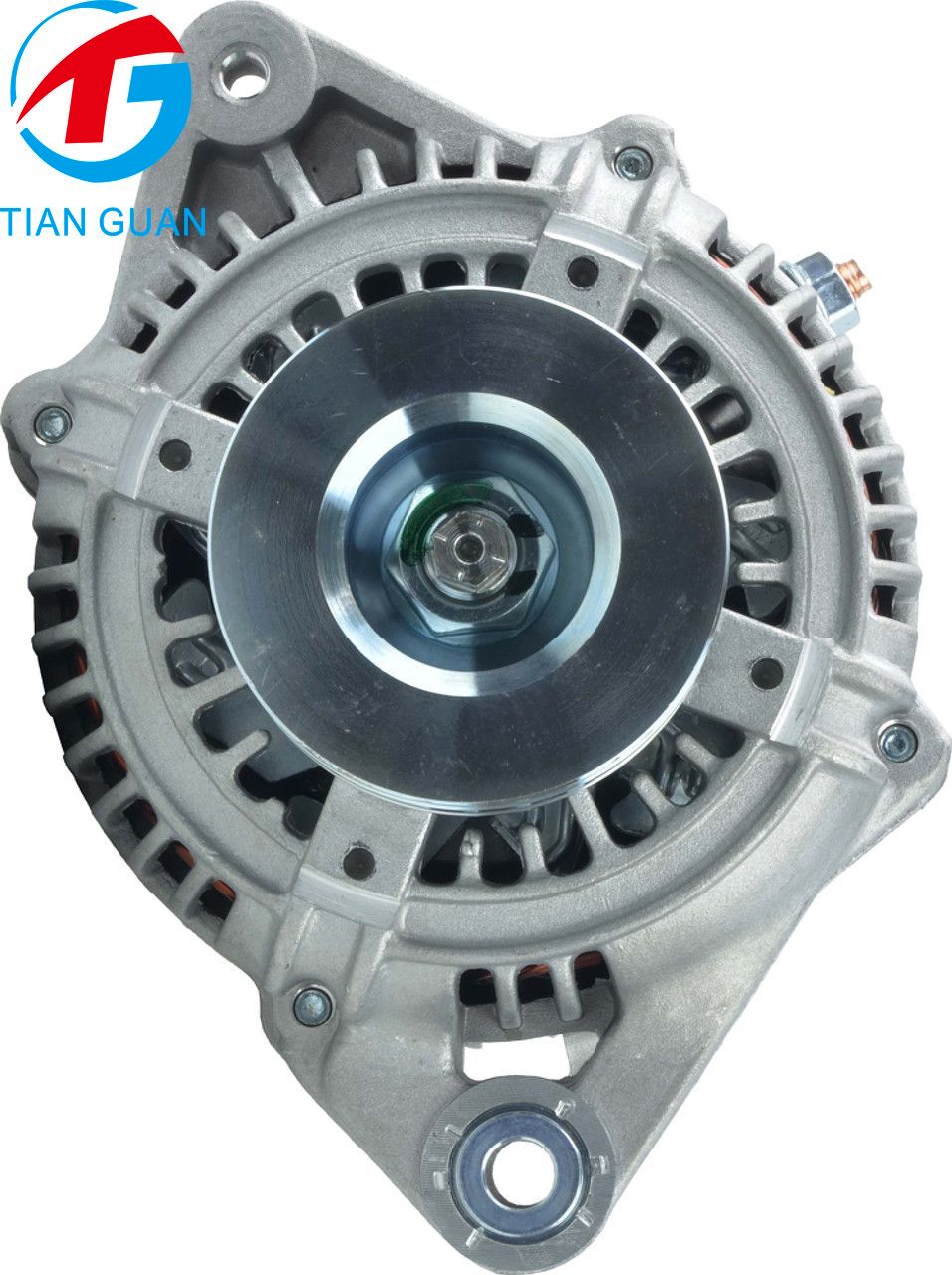

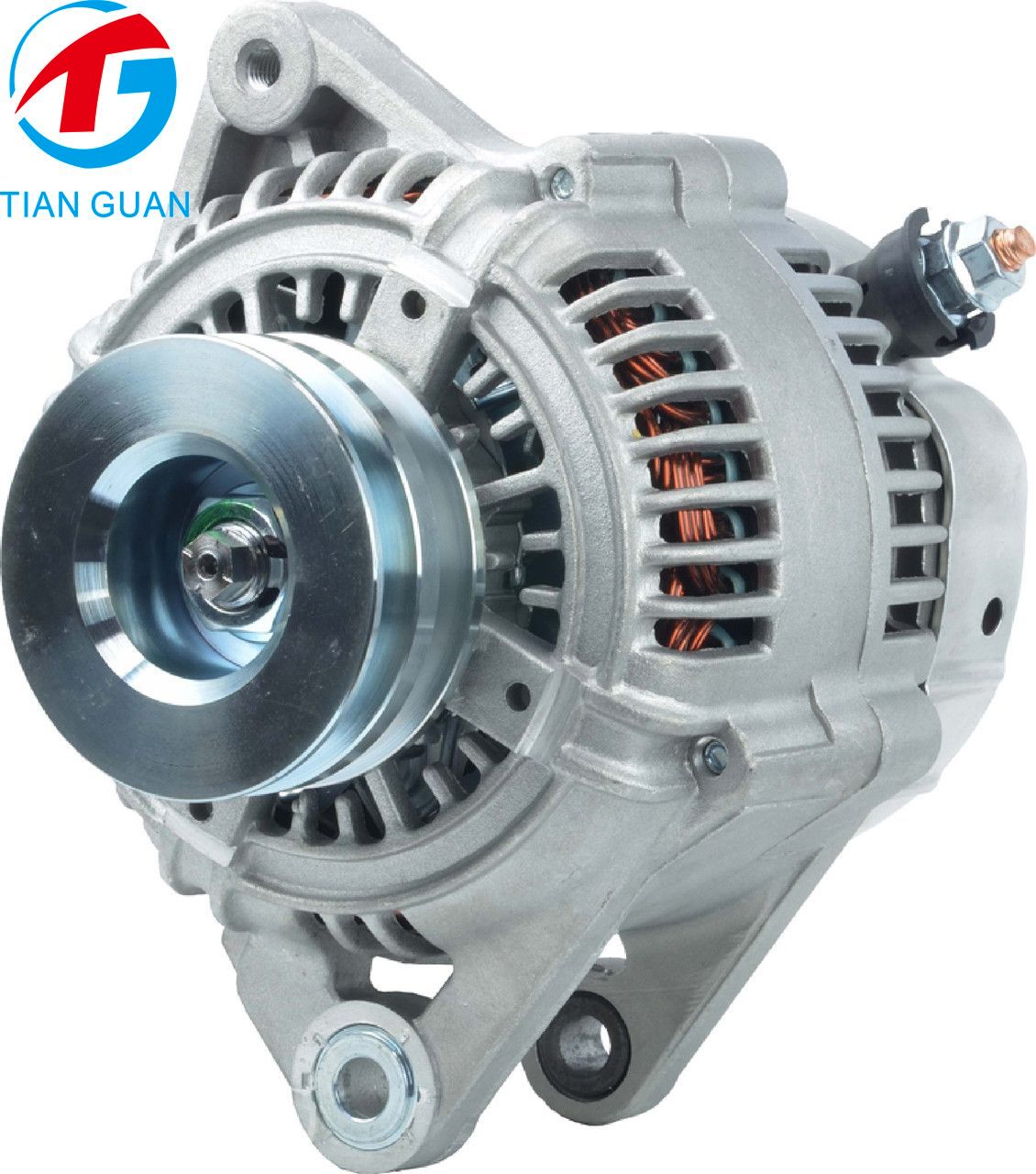

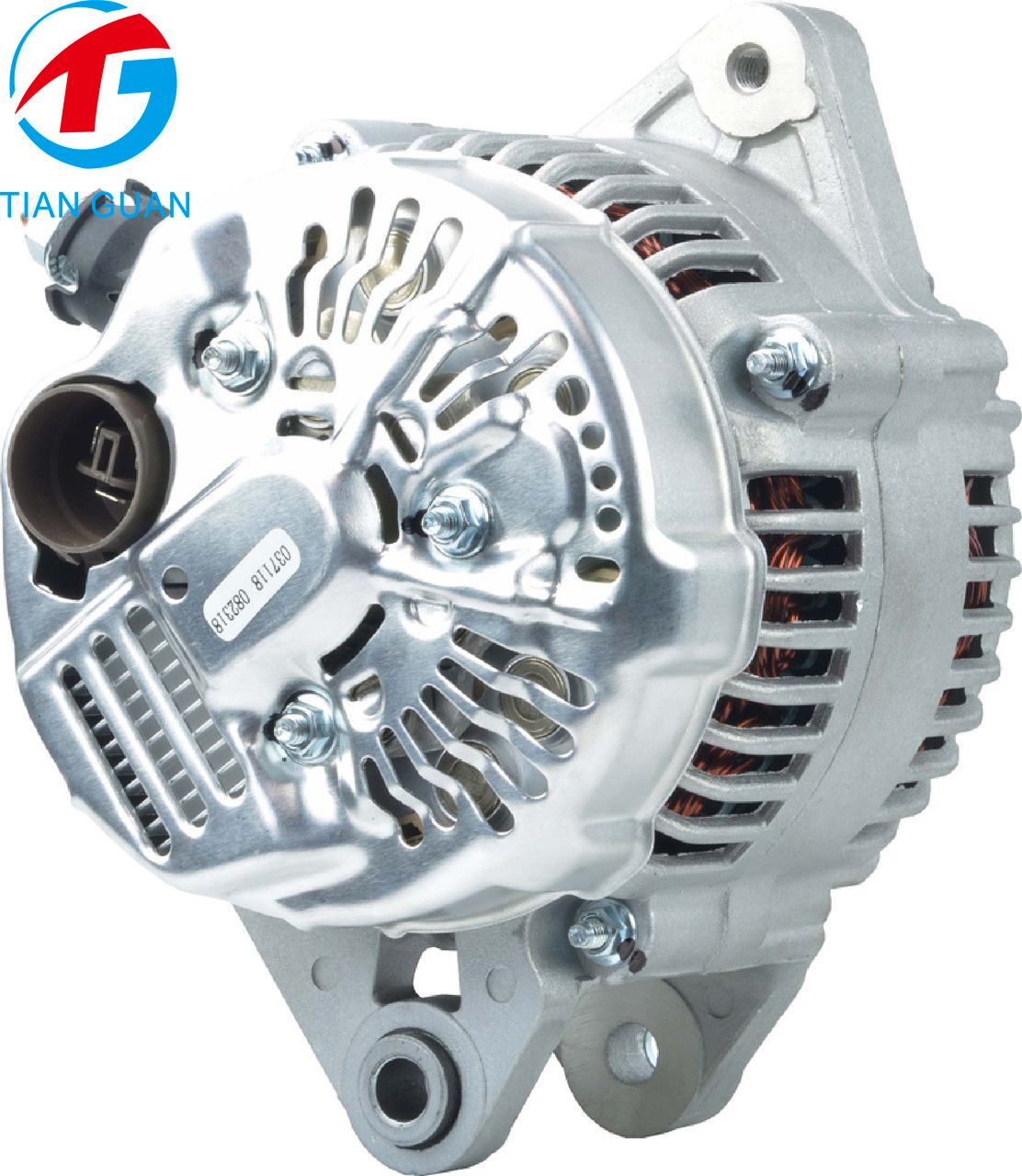

The ATG13472 Alternator is a 12V, 90A aftermarket replacement charging unit designed for Toyota Land Cruiser 4.0L vehicles from 1990 to 1992. It features clockwise rotation, an internal regulator, and a two-V-groove pulley with an approximate outside diameter of 87 mm and inside diameter of 17 mm.

Designed to replace compatible original alternators, this unit supports the vehicle's electrical charging system. Before ordering, compare the OEM part number, pulley dimensions, mounting points, electrical connections, and rotation direction with the original unit to ensure proper fitment.

Product Specifications

Property	Value
Product Model	ATG13472
Item Condition	Aftermarket Part
Unit Type	Alternator
Voltage	12V
Amperage	90A
Rotation	Clockwise (CW)
Pulley Class	V2
Pulley Type	2-V-Groove Pulley
Pulley Outside Diameter	87 mm
Pulley Inside Diameter	17 mm
Regulator Type	Internal (IR)
Compatible Vehicle	Toyota Land Cruiser
Engine	4.0L
Model Years	1990–1992

OEM / Cross Reference Table

Brand / Category	Part Number
Arrowhead	400-52333
Denso	100211-6130 / 100211-6131
Lester	13562
NSA (Old)	ALT-6216
Toyota	27060-61100
WAI	1-1417-01ND

Compatible Applications

Brand / Category	Compatible Applications
Toyota Land Cruiser	4.0L, 1990
Toyota Land Cruiser	4.0L, 1991
Toyota Land Cruiser	4.0L, 1992

Packing Information

Property	Value
Estimated Net Weight	Approx. 5.0 kg
Estimated Gross Weight	Approx. 5.8 kg
Estimated Carton Size	Approx. 28 × 26 × 24 cm
Estimated Package Volume	Approx. 0.0175 m³
Package Includes	1 × Alternator

PRODUCT HIGHLIGHTS

Product Highlights

12V 90A Output	Vehicle-Specific Fitment	Reliable Replacement Design
12V electrical system with 90A rated output	For Toyota Land Cruiser 4.0L, 1990–1992	Internal regulator and clockwise rotation
Two-V-groove pulley	Approx. 87 mm pulley OD and 17 mm ID	Cross-referenced to Toyota, Denso, Arrowhead, Lester, NSA, and WAI part numbers
