ATG13497 Alternator 14376 1N-9092 210-0174 for Lexus LS400 4.0L 1995 1996 1997 12V 80 Amp Replacement

3 Reviews

Add Your Review

US$126.00

ITEMNO： ATG13497

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG13497 Alternator 14376 1N-9092 210-0174 for Lexus LS400 4.0L 1995 1996 1997 12V 80 Amp Replacement

Part Numbers

ARROWHEAD	AND0157, 400-52242
DENSO FIRST TIME FIT	210-0174
DENSO	101211-9150
DIXIE	A-8634
J & N	400-52242
LESTER	13669
LUCAS ELECTRICAL EUROPE	LRA03914
MINNPAR	47-3541
NAPA POWER NEW	1N-9092
NAPA POWER PREMIUM PLUS	213-9092
NAPA POWER SUPREME	13-9092
PIC	290-396
REMY LIGHT DUTY	14376
TOYOTA	27060-50190
USA INDUSTRIES	A2086
WAI	1-2146-01ND
WILSON NEW	90-29-5220, 90-29-5220N
WILSON	90-29-5220

Product Description

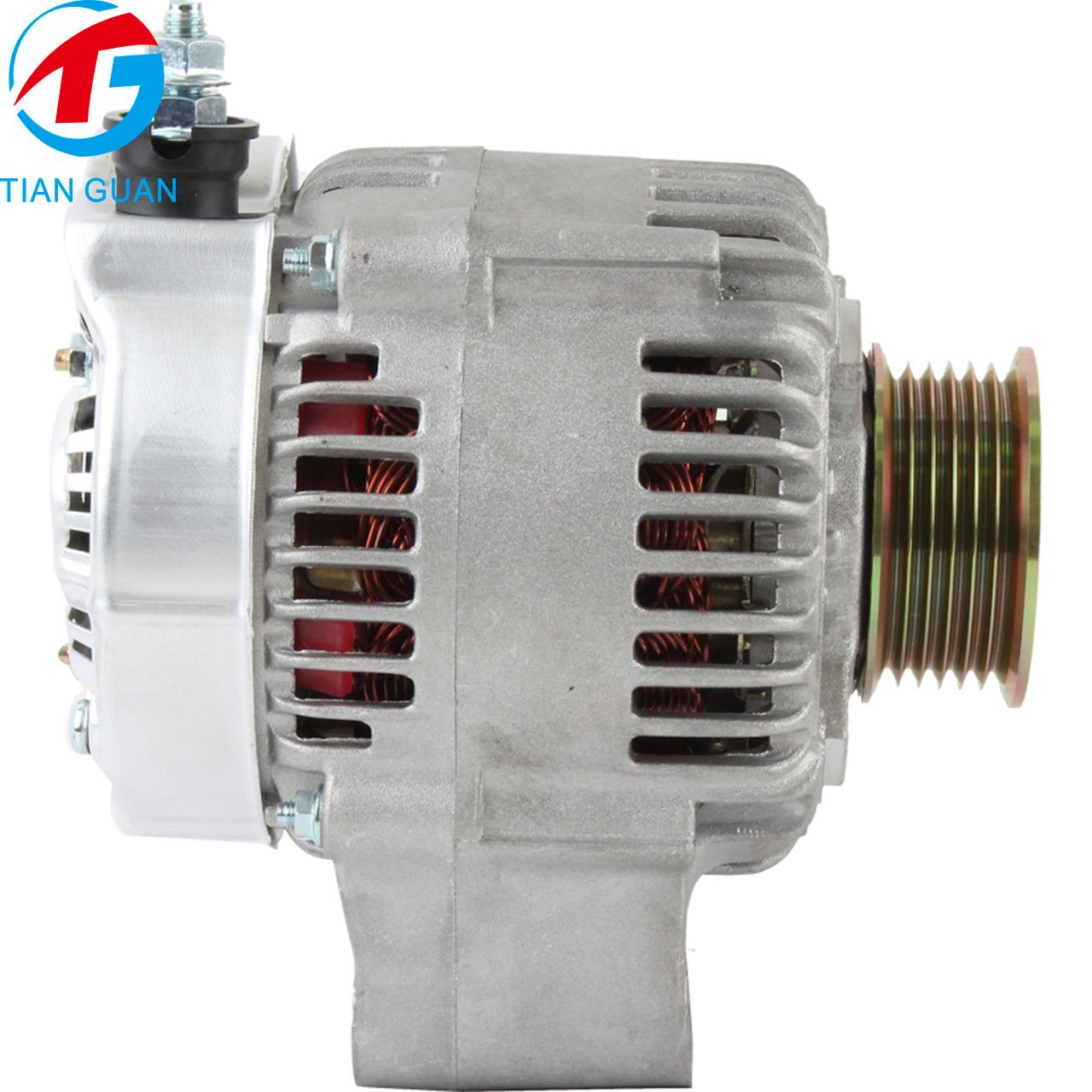

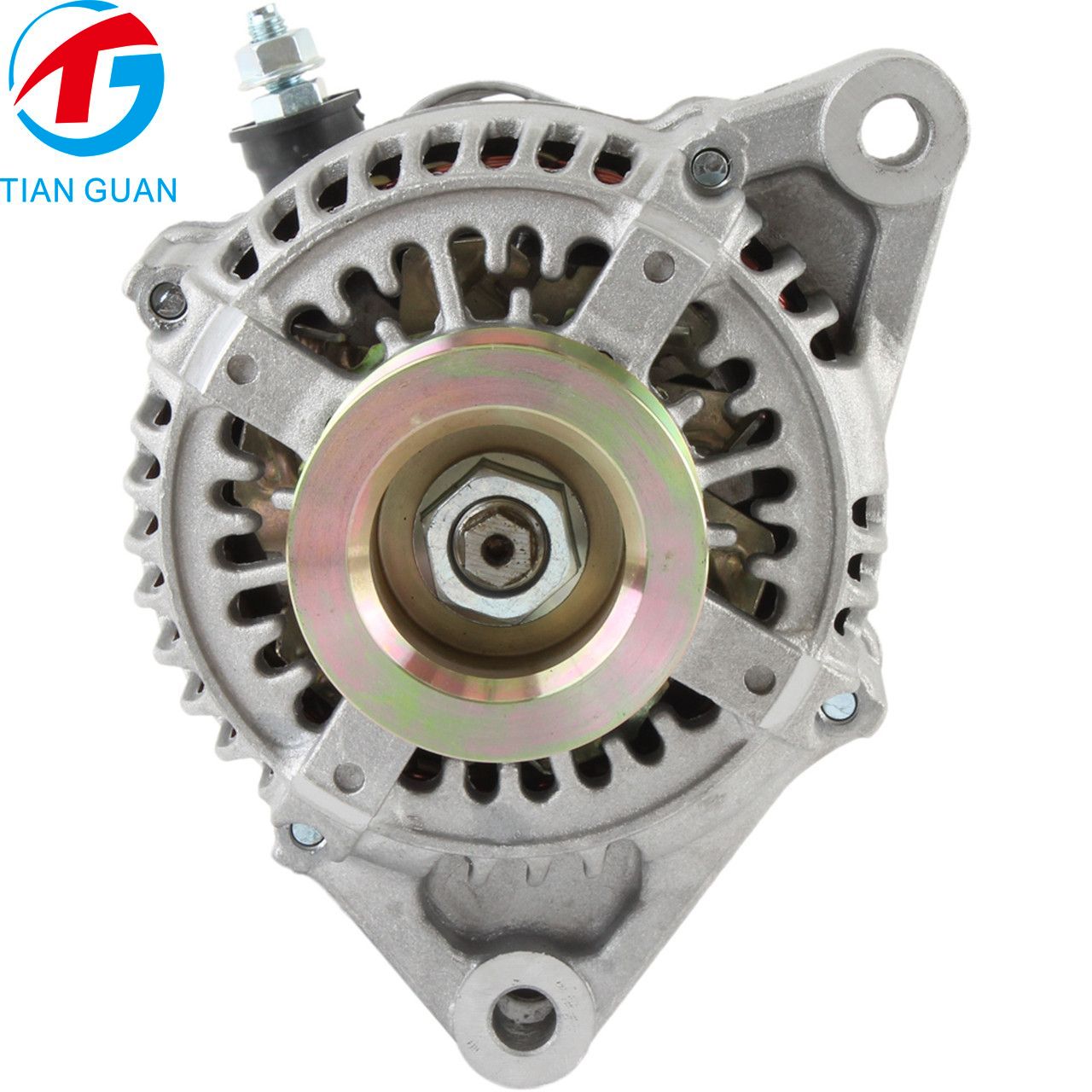

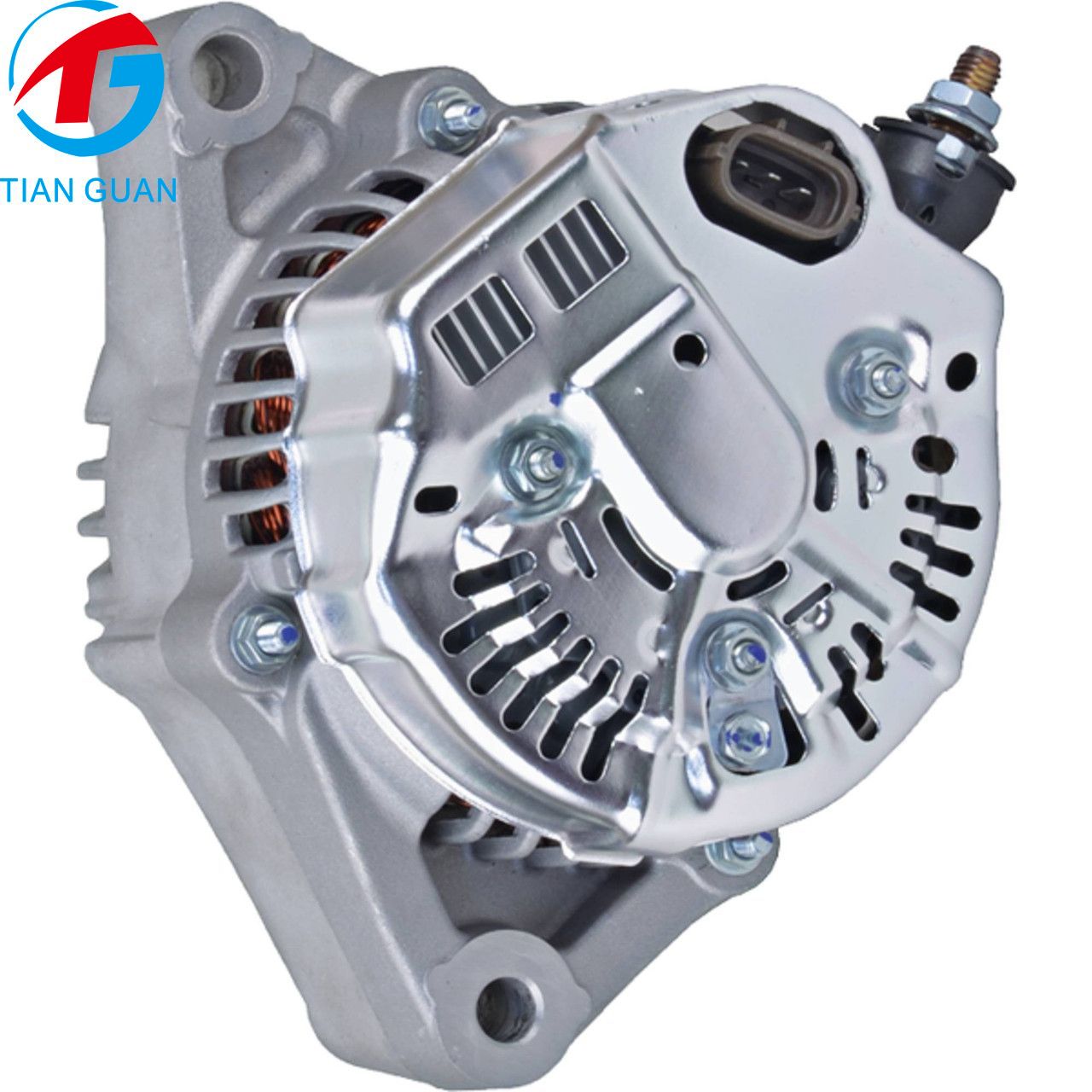

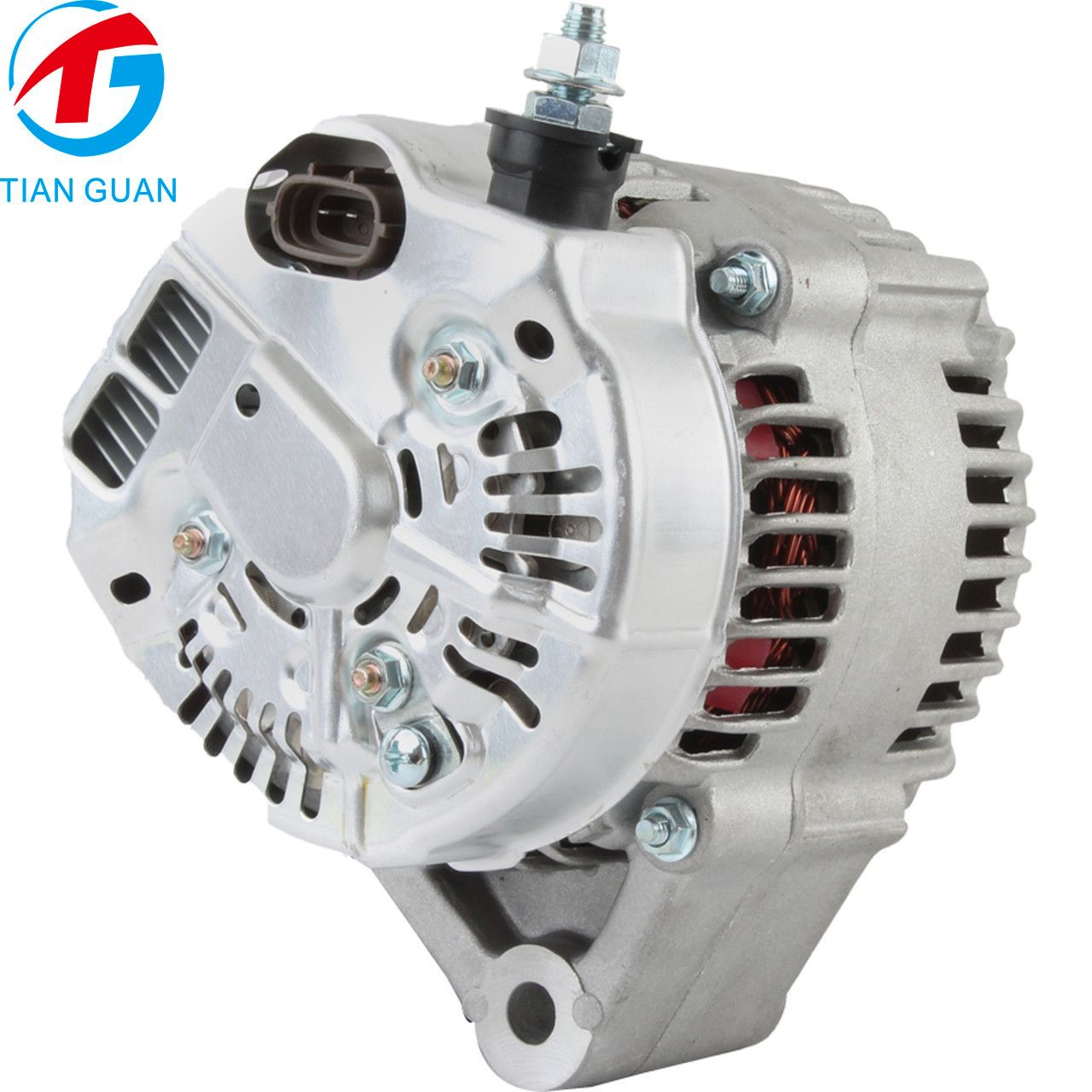

The ATG13497 Alternator is an aftermarket replacement alternator designed for selected Lexus LS400 models equipped with a 4.0L engine from 1995 through 1997. Rated at 12 volts and 80 amps, it is designed to supply electrical power to the vehicle's systems and help maintain battery charge during normal engine operation.

This alternator features clockwise rotation, an internal regulator (IR), an internal fan (IF), and an S6 pulley class. These specifications help identify the correct replacement configuration for compatible vehicles. Before installation, compare the original alternator's mounting points, pulley grooves, electrical connections, and overall dimensions to confirm compatibility.

The ATG13497 cross-references multiple part numbers from Denso, Toyota, Arrowhead, Lester, NAPA, Remy, Wilson, and other suppliers. These references make it easier to identify a potential replacement using the original alternator number or an established interchange number. Verify the vehicle's model year, engine, and original alternator part number before ordering.

Product Specs

Item Condition	Aftermarket Part
Unit Type	Alternator
Voltage	12
Rotation	CW
Amperage	80
Pulley Class	S6
Regulator	IR
Fan Type	IF

Vehicle Fitment

MAKE	TYPE	MODEL	YEAR	ENGINE
LEXUS	Auto and Light Truck	LS400	1995	4.0L
LEXUS	Auto and Light Truck	LS400	1996	4.0L
LEXUS	Auto and Light Truck	LS400	1997	4.0L

Packaging Information

Item	Details
Product SKU	ATG13497
Package Contents	1 × Alternator
Packaging Type	Protective shipping carton
Estimated Gross Package Weight	Approx. 5.7 kg
Installation	Professional installation recommended

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
12V 80A Output	Rated for 12 volts and 80 amps	Supports charging-system requirements for compatible applications
Internal Regulator and Fan	Features IR regulator and IF fan design	Helps match the original alternator configuration
Multiple Cross References	Includes Toyota, Denso, Remy, NAPA, and other references	Makes part-number identification and replacement matching easier
