Starter Motor SND0474 228000-1530 228000-1531 228000-6770 228000-6771 for Kubota D905B F2880 F2880E F3680 Mower

3 Reviews

Add Your Review

US$136.00

ITEMNO： STG50063

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

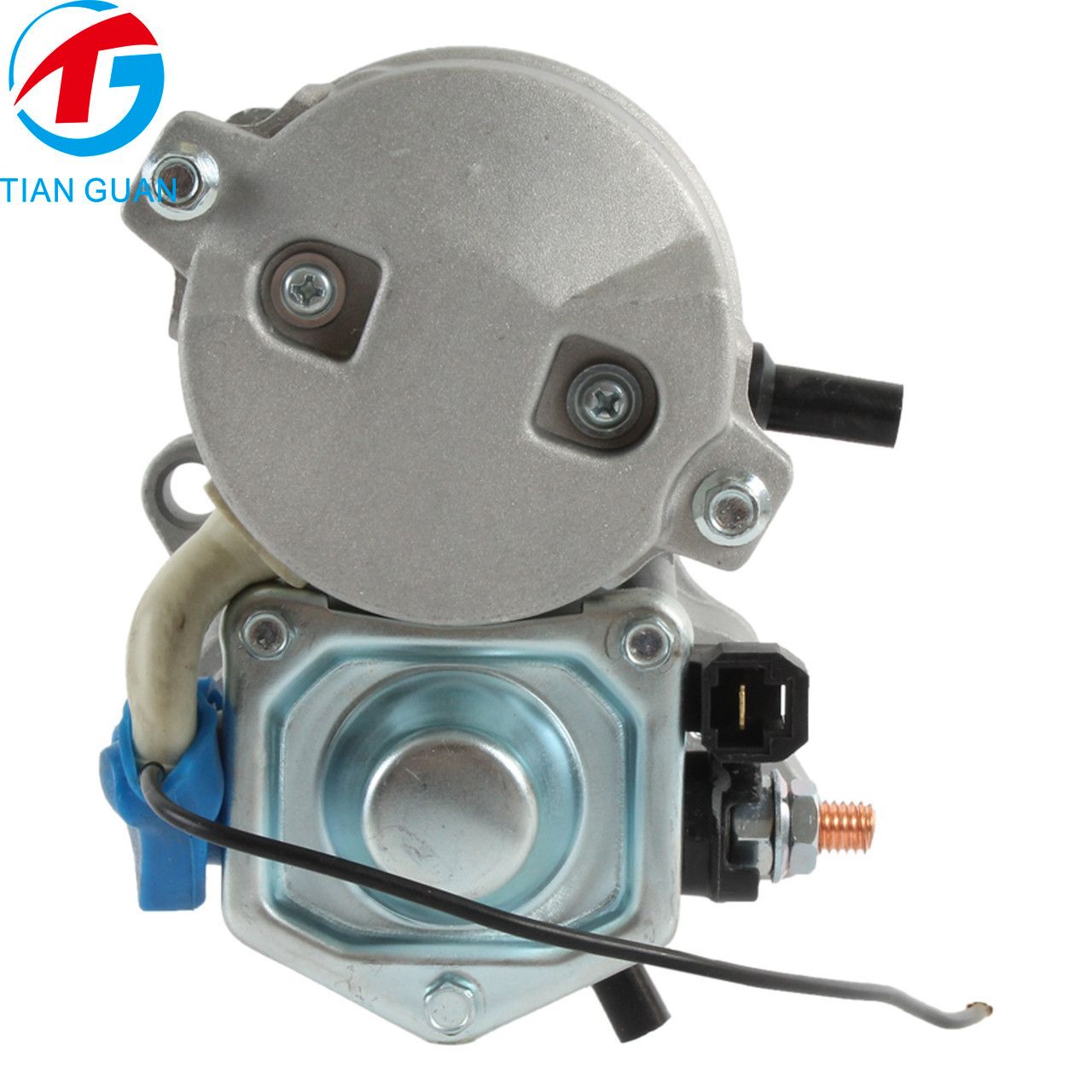

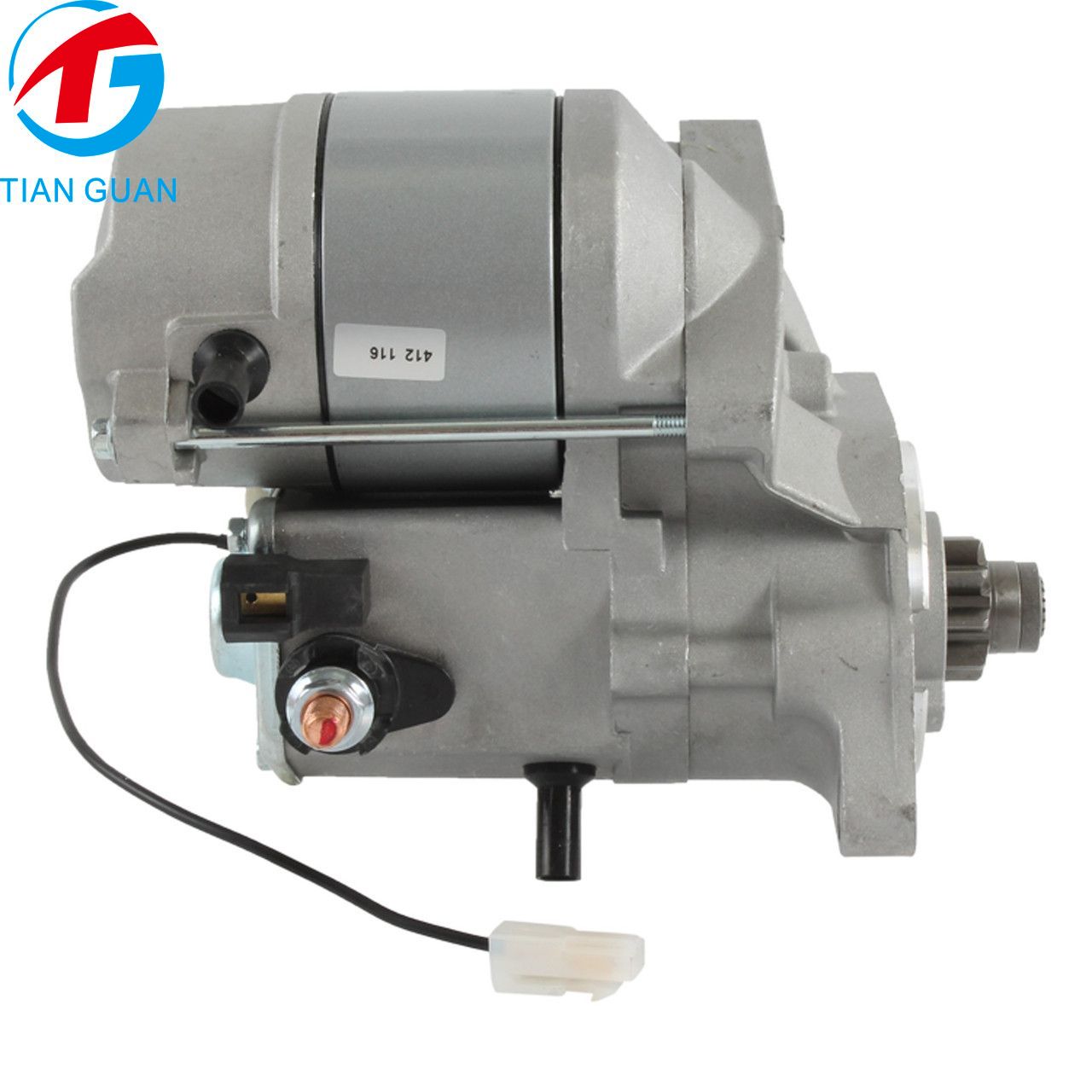

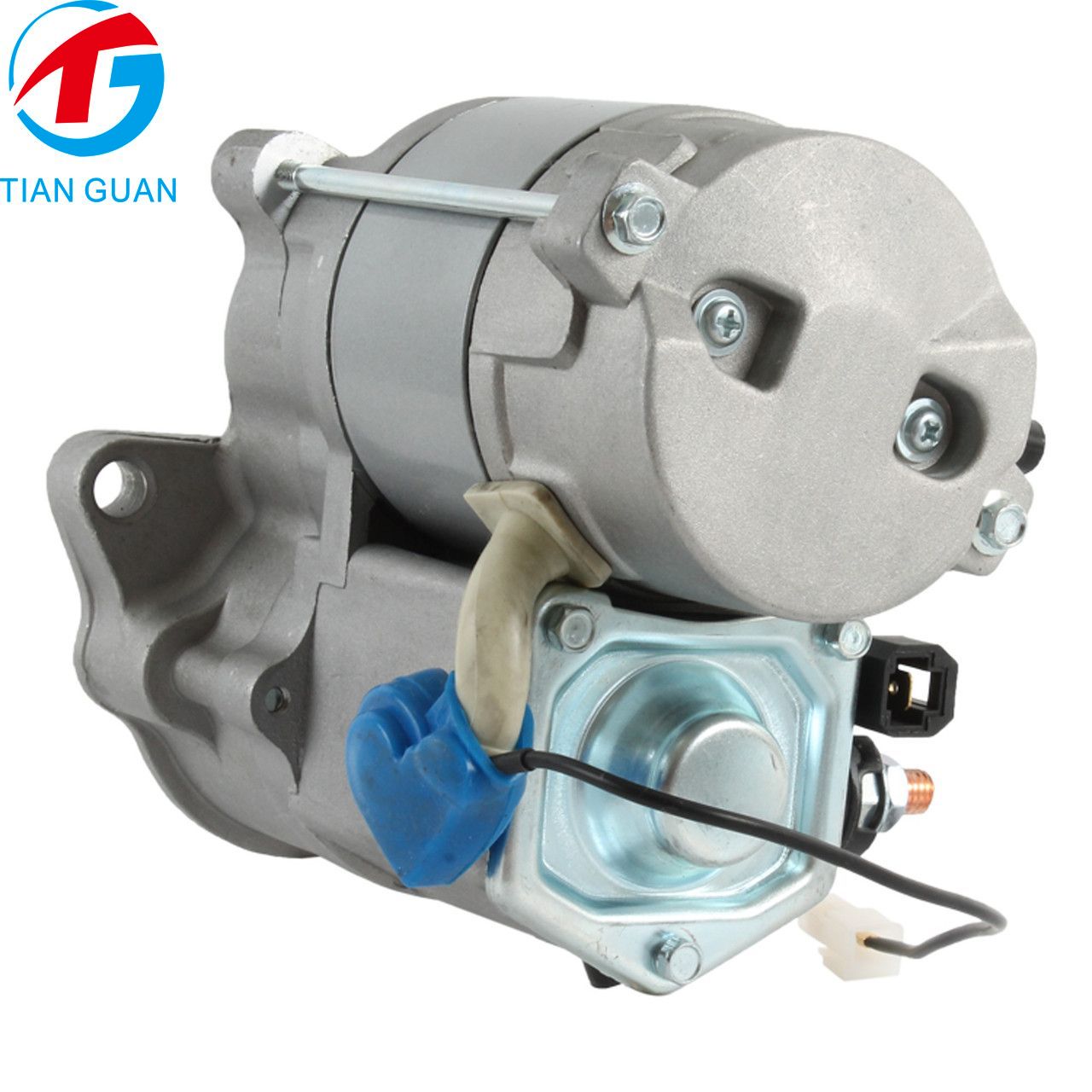

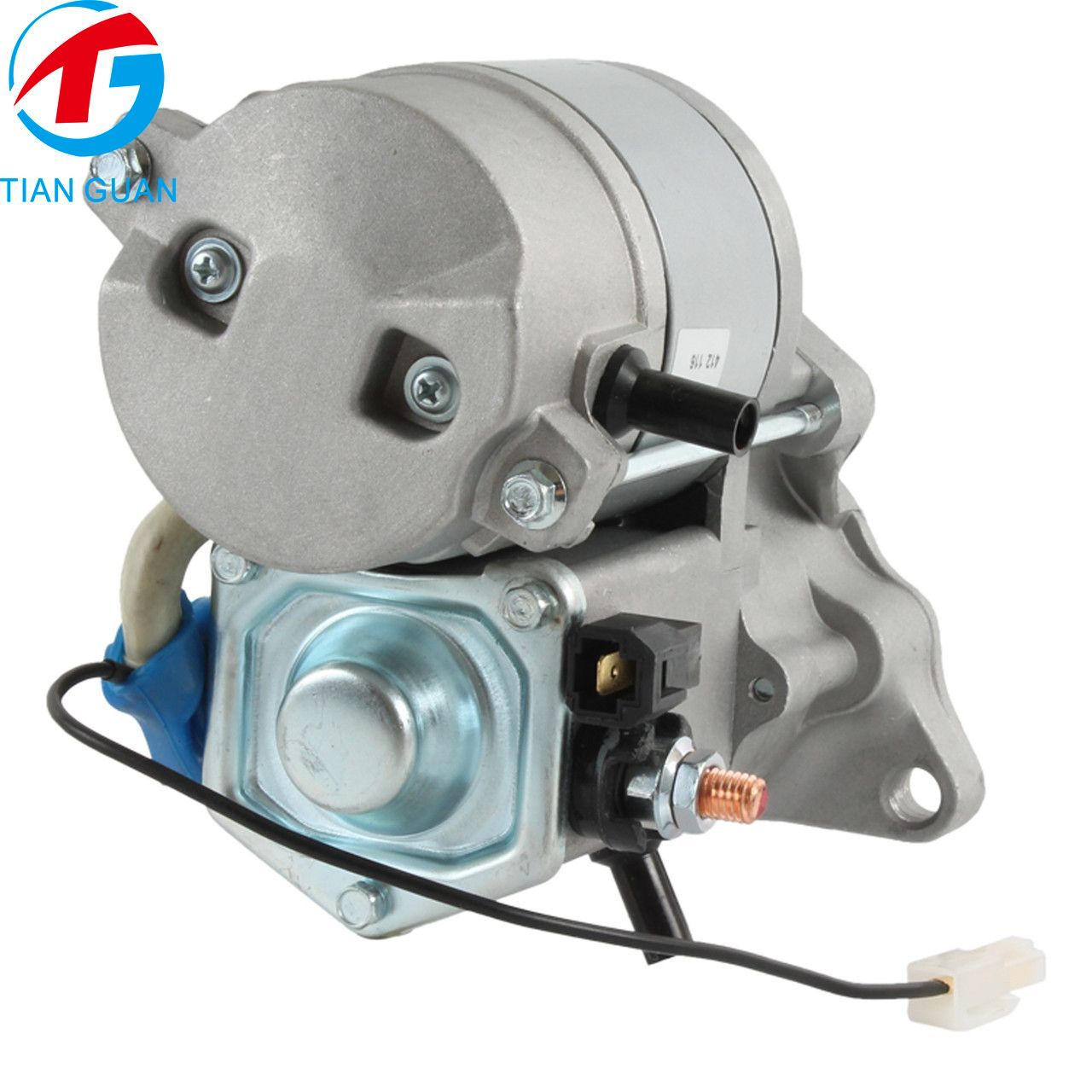

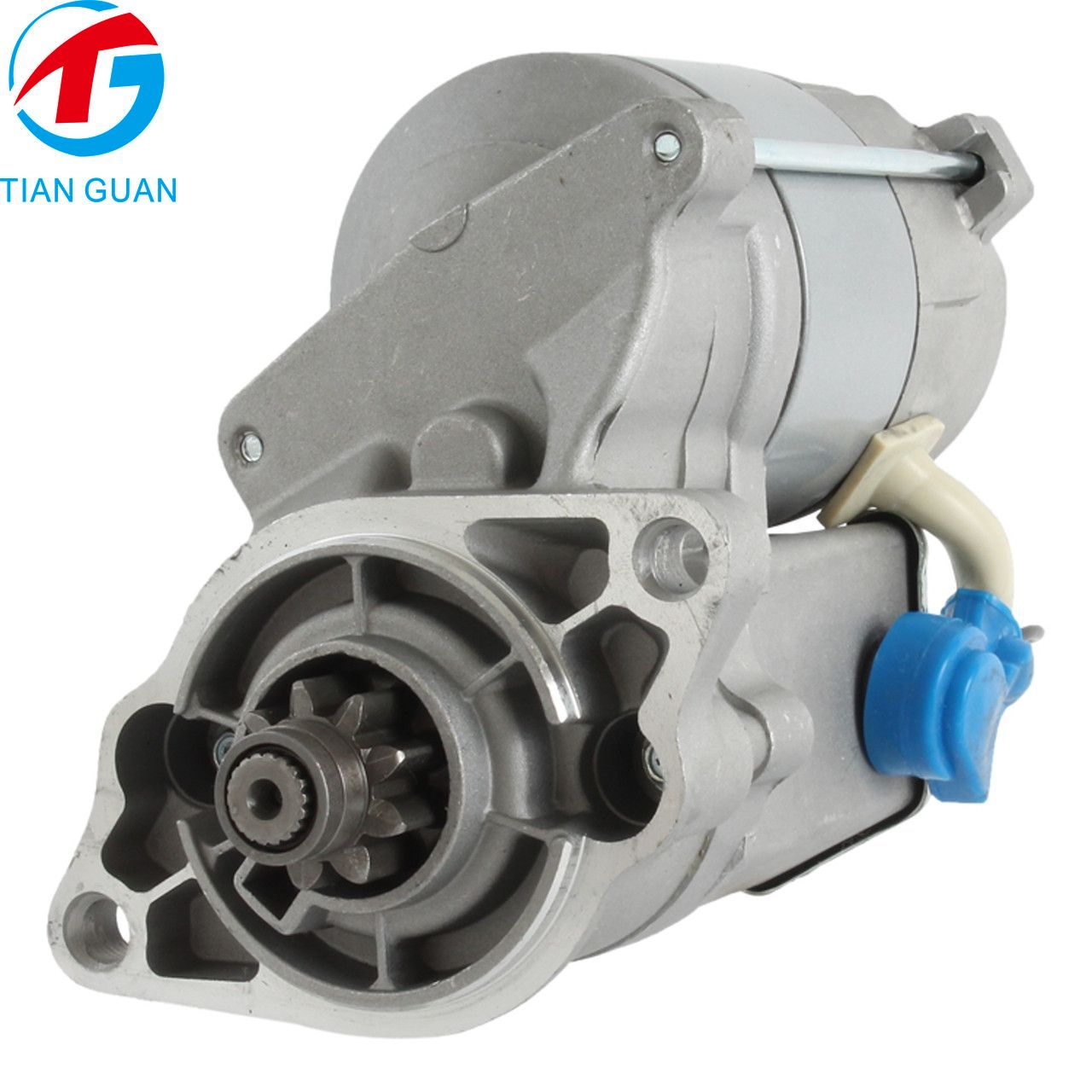

    Starter Motor SND0474 228000-1530 228000-1531 228000-6770 228000-6771 for Kubota D905B F2880 F2880E F3680 Mower

    Product Overview

    This 12V 1.2KW OSGR Starter is a reliable aftermarket replacement starter designed for Kubota, Bobcat, Case IH, GEHL, and Vermeer equipment equipped with compatible Kubota diesel engines. With 9 teeth, clockwise rotation, and OSGR starter design, it provides dependable engine cranking performance for construction, agricultural, landscaping, and utility equipment.

    Net Weight: 3.8 KG

    Replacement Part Numbers

    BrandPart Number
    ArrowheadSND0474
    Arrowhead (OEM)ND228000-0791, ND228000-0981, ND228000-6771, ND9722809-098, ND9722809-153, SND0307, SND0725
    Denso228000-0790, 228000-0791, 228000-0980, 228000-0981, 228000-1530, 228000-1531, 228000-6770, 228000-6771
    Denso Reman9722809-098, 9722809-153
    Kubota16611-63010, 16611-63011, 16611-63012, 16611-63013, 16612-63011, 16612-63012, 37560-63010, 37560-63011, 37560-63012
    Bobcat3390105, 6680542, 6681742, 6962169
    Lester18019, 18400, 19882
    Lucas Electrical EuropeLRS01169, LRS01251, LRS01526
    Cargo110447, 111021
    Atlantic1700-0118, 1900-0103, 1900-0107, 1900-0117, 1900-0124
    DixieS-8322, S-8524
    Dixie New246-14119
    Doosan37560-6301-0
    J & N410-52078
    Minnpar57-1310, 57-2808
    NSA / UnipointSTR-8110
    PIC190-316A, 190-583, 190-6106, 190-6280
    RCPST-17028, ST-18400
    Remy Light Duty69044
    Toro98-9705
    Vermeer296-271-101, 296271-101, 296271101
    WAI2-2036-ND, 2-2658-ND
    Wilson91-29-5315, 91-29-5374, 91-29-5450
    Wilson HD91-29-5315
    Wilson Small Engine71-29-17028, 71-29-18400
    Wood AutoSTR8090

    Specifications

    SpecificationDetails
    Product TypeStarter Motor
    ConditionAftermarket
    Voltage12V
    Power1.2 KW
    Rotation DirectionCW / Clockwise
    Number of Teeth9 Teeth
    Starter TypeOSGR
    Unit Weight3.8 KG
    ApplicationConstruction, Agricultural & Utility Equipment
    Compatible BrandsKubota, Bobcat, Case IH, GEHL, Vermeer

    Fit for Engine

    • Kubota D1105 Turbo

    • Kubota V1505-B Diesel

    • Kubota 1505 Series Engines

    • Other compatible Kubota diesel engine applications

    Vehicle & Equipment Applications

    MakeTypeModelYearEngine
    BobcatLoader BackhoeB2002002Kubota D1105 Turbo
    BobcatLoader BackhoeB2002003Kubota D1105 Turbo
    BobcatLoader BackhoeB2502002Kubota D1105 Turbo
    BobcatLoader BackhoeB2502003Kubota D1105 Turbo
    BobcatLoader BackhoeB2502004Kubota D1105 Turbo
    BobcatLoader BackhoeB2502005Kubota D1105 Turbo
    BobcatLoader BackhoeB2502006Kubota D1105 Turbo
    Case IHTrencher4601994Kubota V1505-B Diesel
    Case IHTrencher4601995Kubota V1505-B Diesel
    Case IHTrencher4601996Kubota V1505-B Diesel


  • PRODUCT HIGHLIGHTS

  • SHIPPING

    Item Details
    Processing Time Orders are processed within 1-3 business days after payment confirmation
    Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight
    Estimated Delivery Time Express shipping: 3-7 business days, depending on destination
    Packaging Export-standard cartons with protective inner packing
    Tracking Tracking number will be provided once the order is shipped
    Shipping Cost Calculated based on weight, dimensions, and destination
