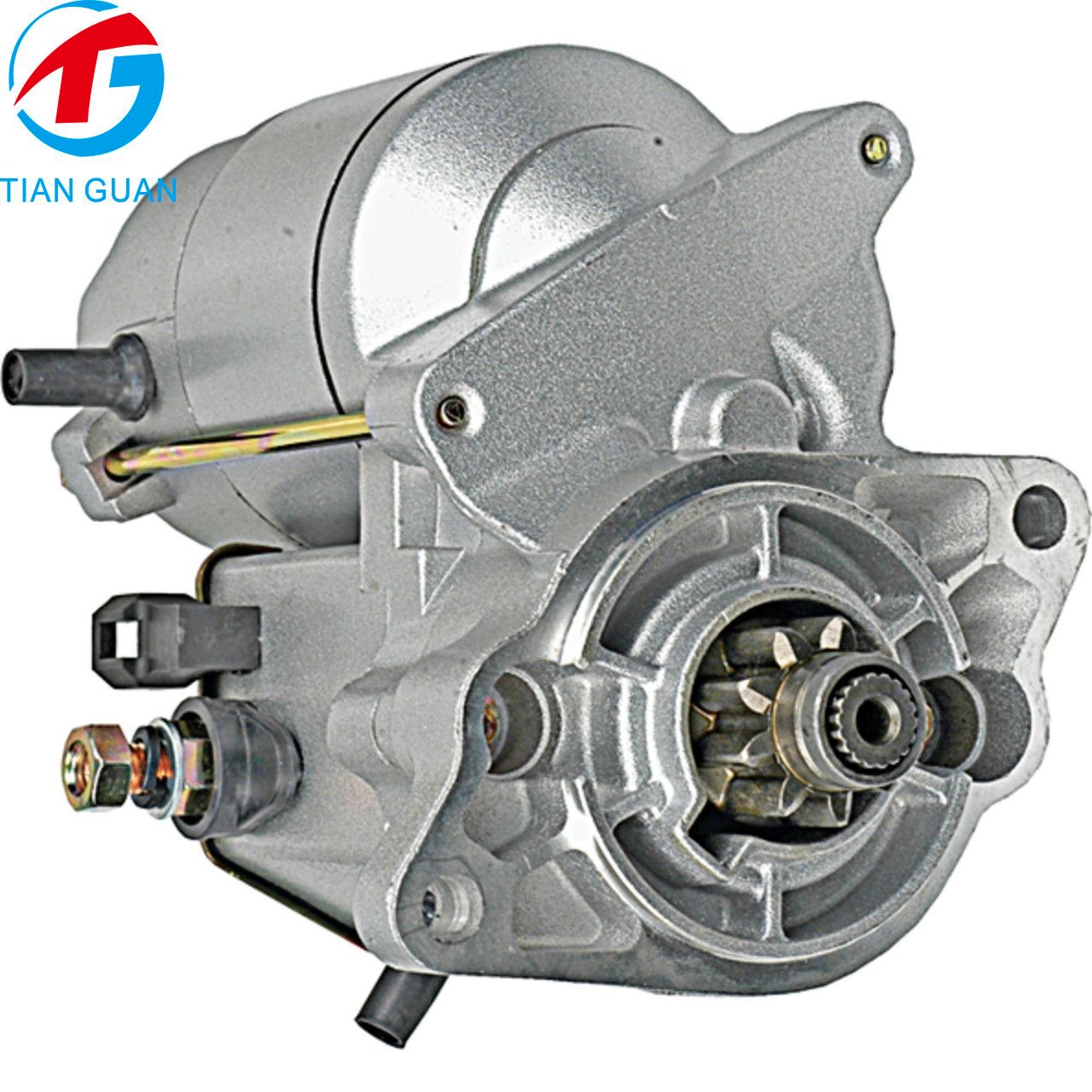

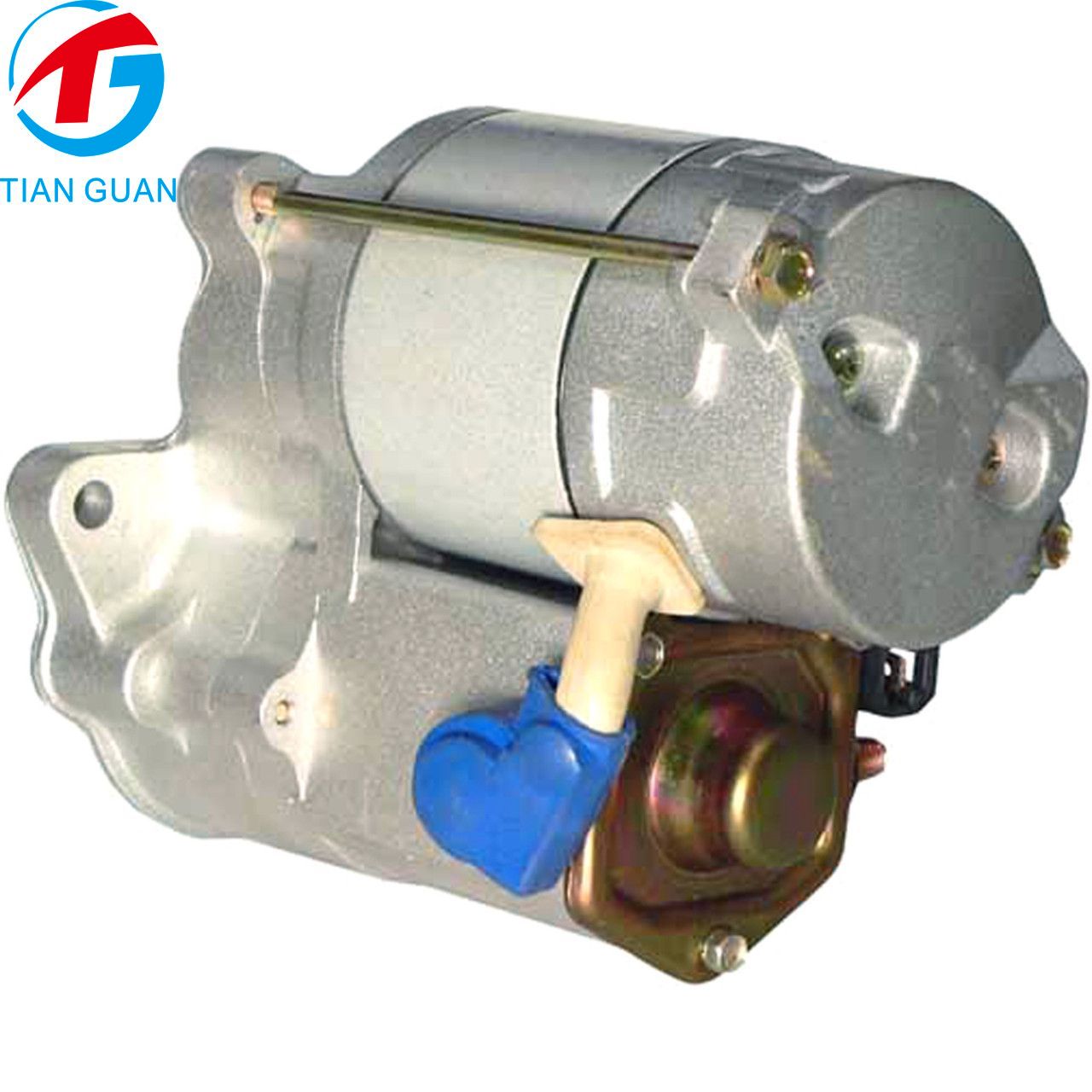

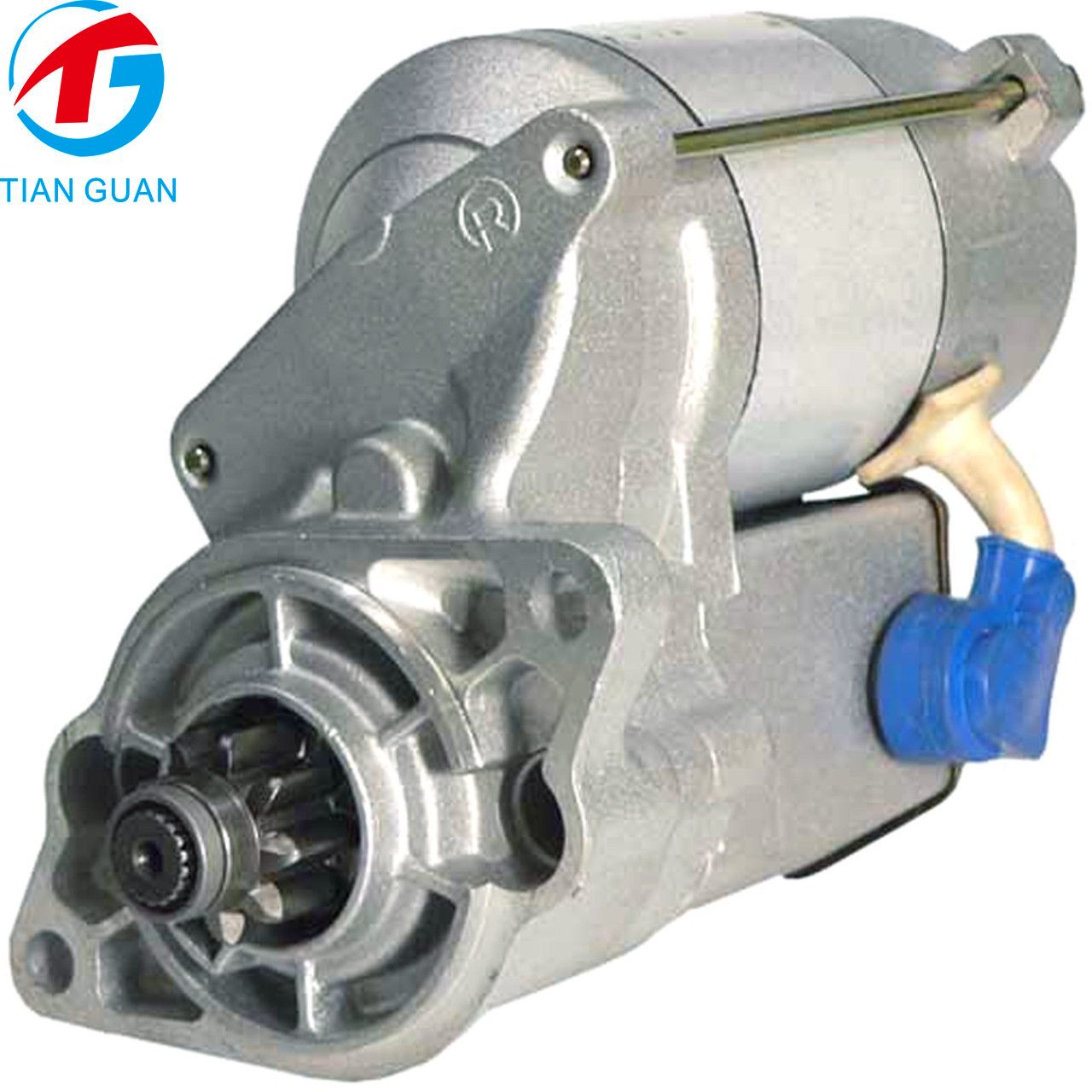

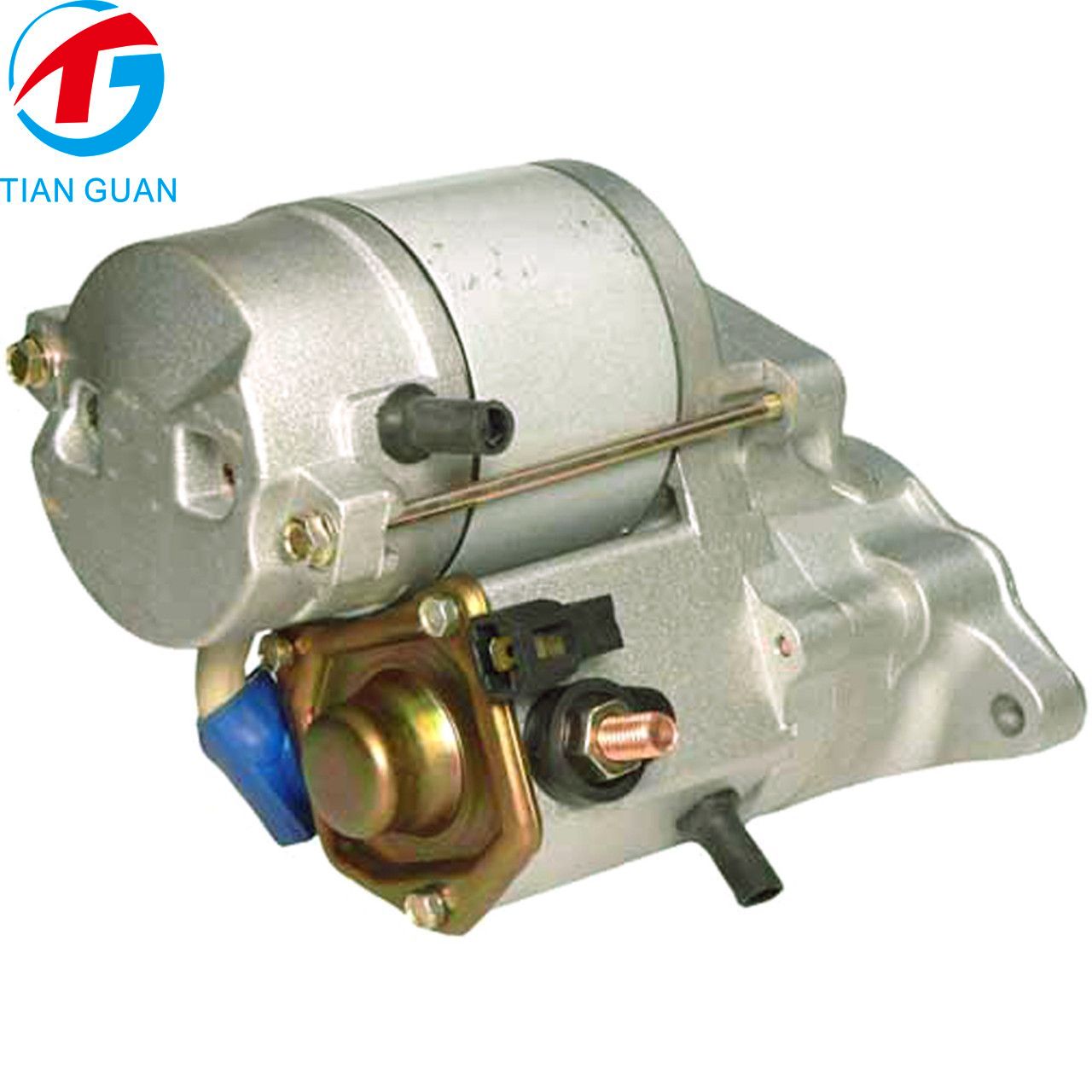

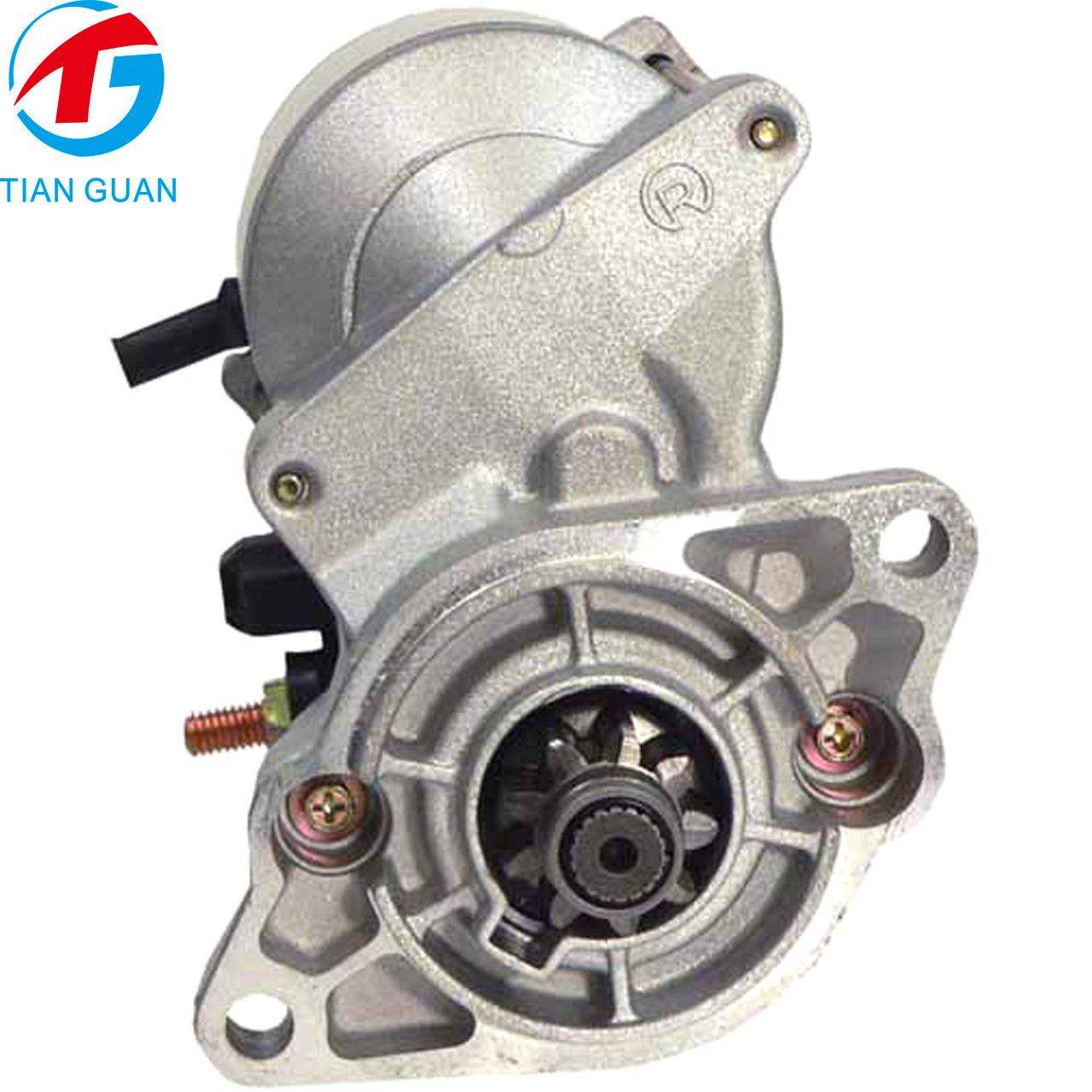

STG50090 Starter 16695-63011 16695-63013 19269-63010 19269-63011 228000-0991 228000-3660 for Kubota Tractor B2150 B2150E BX1800D BX1830D

Part Numbers

ARROWHEAD: SND0264, 410-52020
ANDRE NIERMANN: 014901, 019269
ARROWHEAD (OEM): ND9722809-097, ND9722809-099, ND9722809-366, SND0345
ATLANTIC: 1700-0118
BARSANCO: 610-17098
BOMAG: 5740325
CARGO: 110447, 111021
CARRIER TRANSICOLD: 25-15370-00, 25-15520-00, 945634
DENSO REMAN: 9722809-097, 9722809-099
DENSO: 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660
DIXIE NEW: 246-14119
DIXIE: S-8524
EMS: 17098N
INTL HARVESTER: 1959380C1
J & N: 410-52020, 410-52020R
KUBOTA: 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013
LESTER: 17098
LUCAS ELECTRICAL EUROPE: LRS01251, LRS01629
MINNPAR: 57-1310, 57-1725, 57-3230
PIC: 190-432, 190-560, 190-560A, 190-560B
WILSON HD: 91-29-5193
WILSON SMALL ENGINE: 71-29-17098
WILSON: 91-29-5193, 91-29-5619
WOOD AUTO: STR8090

Product Description

This premium aftermarket 12V 1.2KW Starter Motor is designed as a direct replacement for Kubota tractor applications, including B2150, B2150E, BX1800D, and BX1830D. Built with OSGR design, 9-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding agricultural applications.

This starter replaces OE part numbers 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013 (Kubota), 228000-0990, 228000-0991, 228000-3660, 228000-0970, 228000-0971, 128000-0050 (Denso), SND0264, 410-52020 (Arrowhead), and additional cross-reference numbers listed above.

• 12V starter motor

• 1.2KW power output

• 9-tooth pinion gear

• OSGR design

• Clockwise (CW) rotation

• Direct replacement for Kubota B2150 / B2150E / BX1800D / BX1830D

• Fits Carrier Transicold with Kubota engine

• Reliable starting performance

• Durable construction

• Aftermarket replacement part

• Approx. 3.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Voltage: 12V
Rotation: CW
Teeth: 9T
KW: 1.2
Starter Type: OSGR
Fits: Carrier Transicold with Kubota Engine
Weight: 3.8KG

Fitment

Kubota – Tractor B2150 / B2150E / BX1800D / BX1830D
Kubota – Excavator KH41 / KH61 / KX41 / KX41-3 / KX71-3 / KX71H
Kubota – Loader R310
Kubota – Sub Compact Tractor BX1500D / BX1850D / BX1860D / BX2230D / BX2350D / BX2360 / BX24 / BX25
Case IH – Uni-Loader 1818 / 1825
Carrier Transicold – Engine Various Models / Trailer Units Maxima / Optima
