  • PRODUCT DETAILS

    STG50212 Starter Motor HE191-1567 191-1567 191-1255 for John Deere 316 318 420 and Onan Engines | 12V 10T CCW PMDD Replacement

    Part Numbers

    • Arrowhead: SAB0009

    • Arrowhead (Old): SAB0008

    • Andre Niermann: 011567

    • Atlantic: 1400-0136

    • Barsanco: 690-010 / 690-023


    Product Description

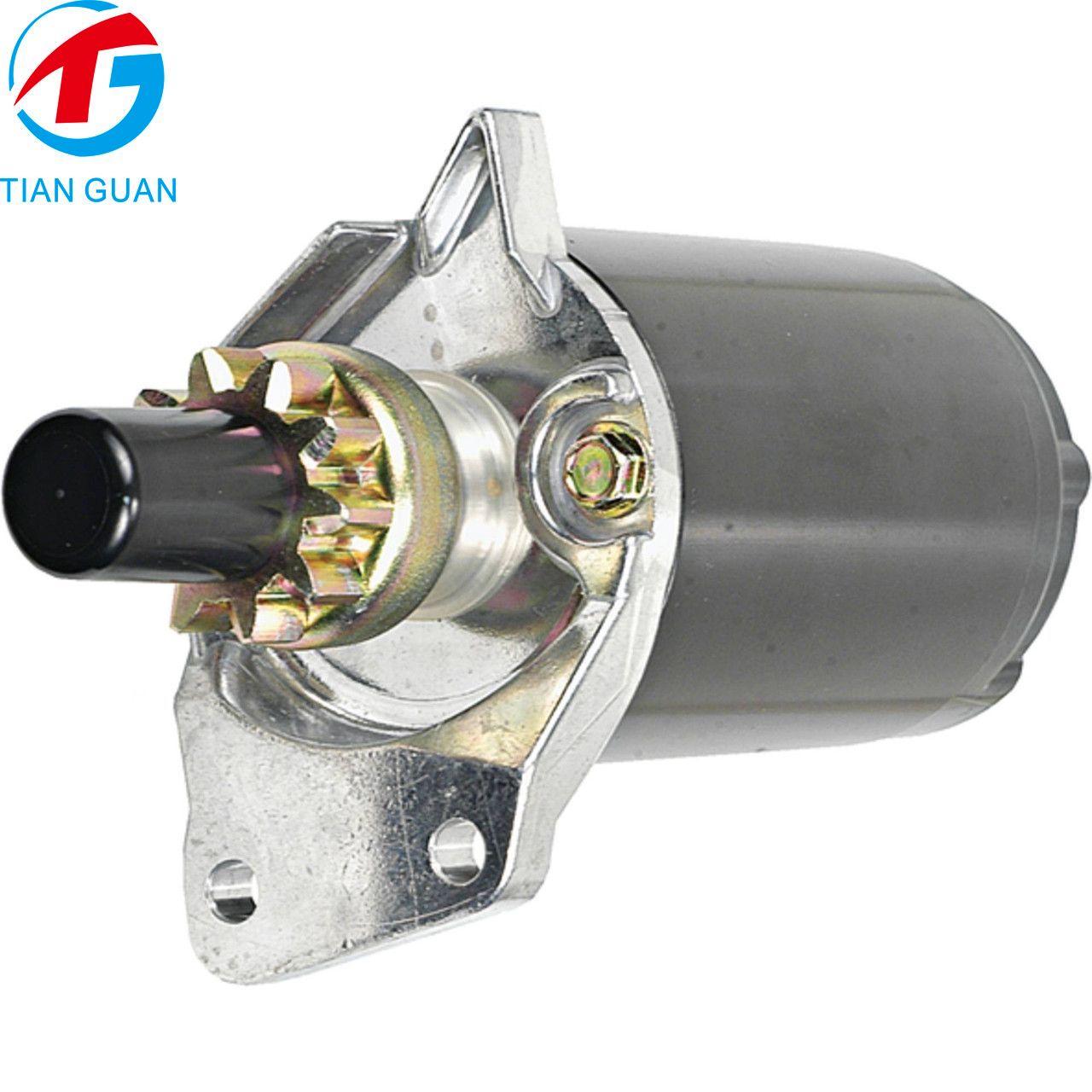

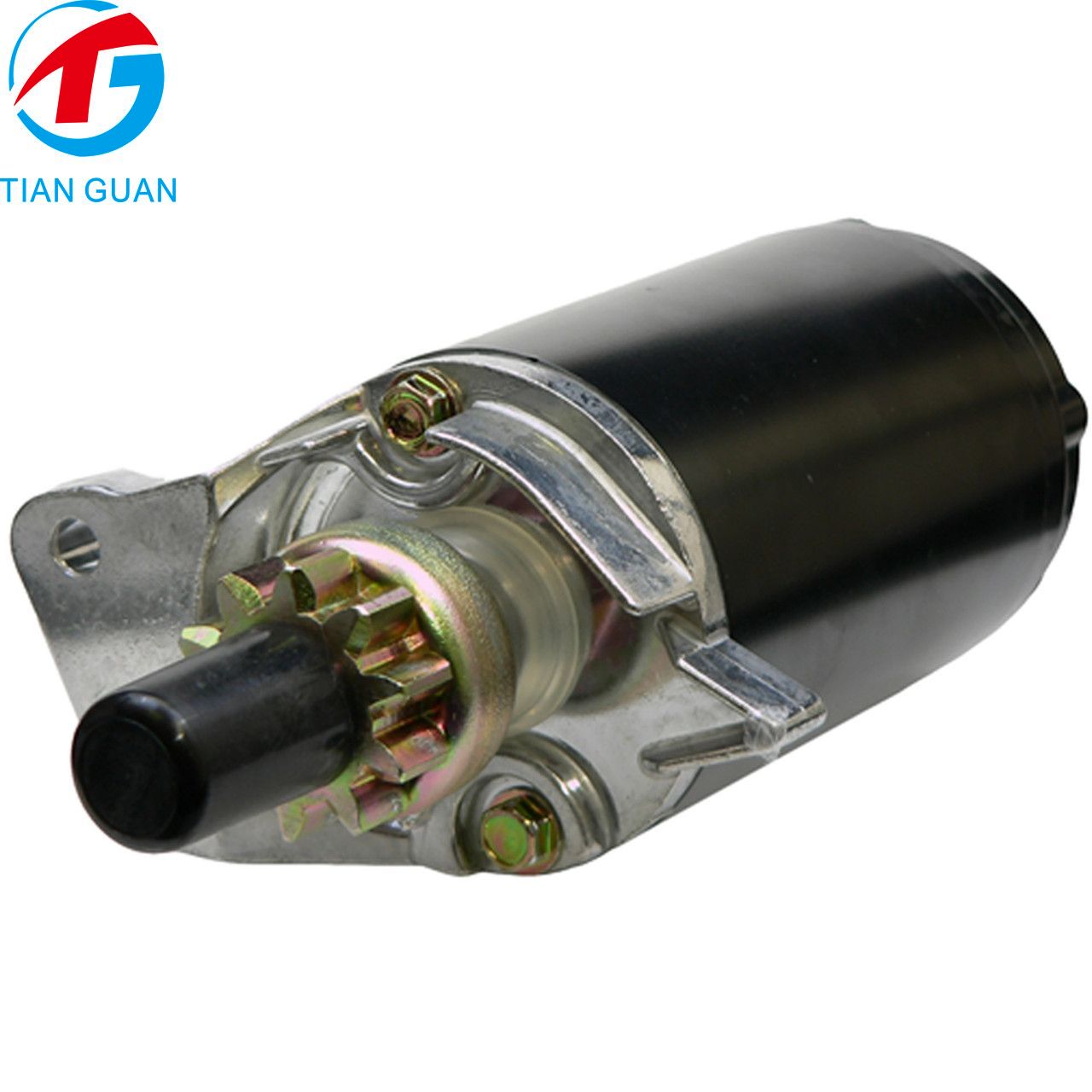

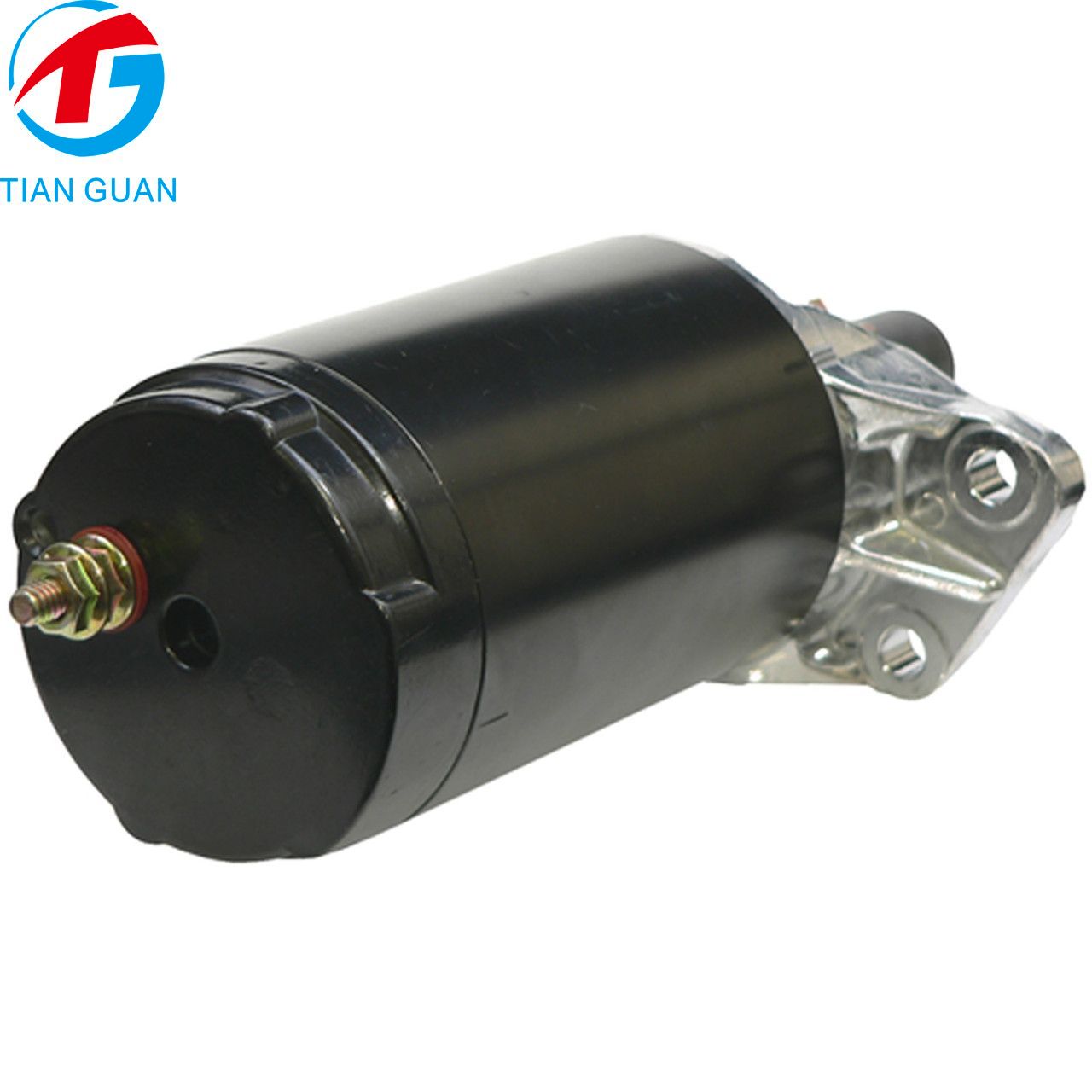

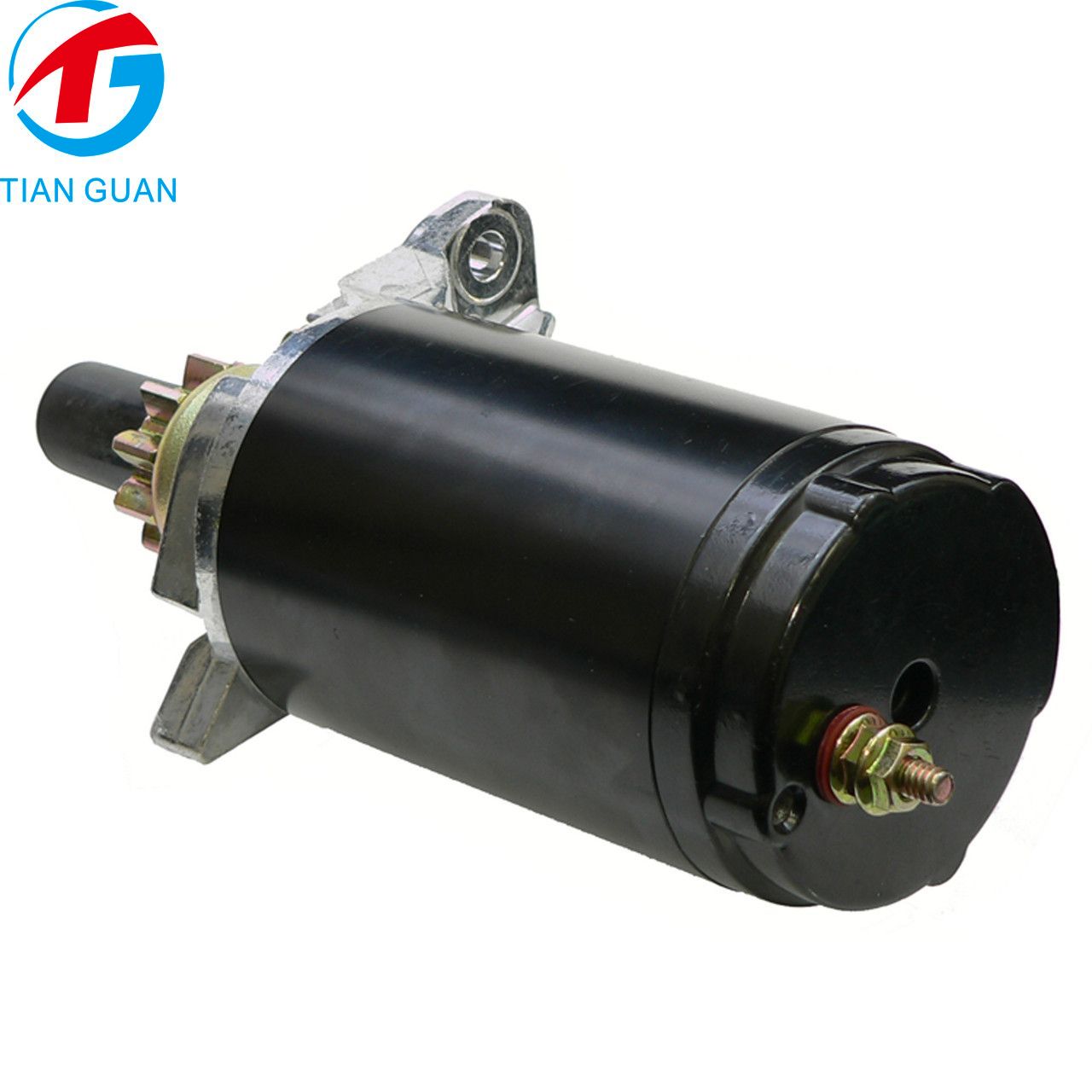

    The STG50212 Starter Motor is an aftermarket replacement starter designed for selected John Deere lawn tractors, garden tractors, mowing equipment, and compatible Onan engines. It features a 12V electrical system, counterclockwise rotation, a 10-tooth pinion, and a permanent magnet direct-drive (PMDD) design.

    This starter cross-references John Deere HE191-1567, Onan 191-1255 and 191-1567, and a range of other aftermarket and replacement part numbers. Listed applications include John Deere 316, 318, and 420 tractors, Cub Cadet garden tractors, New Holland L250 skid steer loaders, and Toro Groundsmaster 62 mowers.

    Verify the original starter part number, engine model, and mounting configuration before ordering.

    Product Specifications

    PropertyValue
    SKUSTG50212
    Product TypeStarter Motor
    Item ConditionNew Aftermarket Part
    Voltage12V
    Rotation DirectionCounterclockwise (CCW)
    Number of Teeth10
    Starter TypePermanent Magnet Direct Drive (PMDD)
    Compatible Engine FamilyOnan B43E / B43G / B48G
    Approximate Weight3.0 kg

    OEM / Cross Reference Numbers

    Brand / CategoryPart Numbers
    ArrowheadSAB0009
    Arrowhead (Old)SAB0008
    Andre Niermann011567
    Atlantic1400-0136
    Barsanco690-010 / 690-023
    Cargo113015
    DixieMS-672 / MS-673
    Dixie New206-03112
    EMS49-7240
    International Harvester78669C91
    J&N410-21036
    John DeereHE191-1567
    Lester5701 / 5916
    Minnpar57-2244
    New Holland507127
    Onan191-1255 / 191-1527 / 191-1529 / 191-1567
    PIC106-030 / 106-064
    RCPST-5701
    Toro57-9480
    United Tech2030940-M030SM / 4367040-M030SM / 4367140-M030SM / 4367240-M030SM / 4379040-M030SM / SM20309 / SM43670 / SM43671 / SM43672 / SM43787 / SM43790
    WAI2-2642-UT
    Wilson HD91-09-1025 / 91-09-1026
    Wilson Small Engine71-09-5701
    Wilson91-09-1025 / 91-09-1026

    Compatible Applications

    John Deere — Front Mowers and Lawn Tractors

    ModelYearCompatible Engine
    F910Not specifiedOnan B48G / P220G
    3161984–1992Onan B43E / P218G
    3181983–1992Onan B43E / P218G
    4201983–1991Onan B48G / P220G

    Cub Cadet — Garden Tractors

    ModelYearCompatible Engine
    19121985–1986Onan B48G, 19.9 HP
    19141985–1986Onan B48G, 19.9 HP
    9821979–1984Onan B48G, 19.9 HP
    9841982–1984Onan B48G, 19.9 HP
    9861982–1984Onan B48G, 19.9 HP

    New Holland — Skid Steer Loaders

    ModelYearCompatible Engine
    L2501984–1999Onan B43G

    Toro — Fairway Mowers

    ModelYearEquipment
    Groundsmaster 621982–1986Fairway mower

    Onan — Engines

    Engine ModelYear Range
    B43E1979 onward
    B43G1979 onward
    B48G1979 onward



    Cub Cadet — Garden Tractors

    MAKETYPE MODEL YEAR ENGINE
    CUB CADETTractors - Garden19121985Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden19121986Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden19141985Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden19141986Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821979Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821980Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821981Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821982Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821983Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9821984Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9841982Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9841983Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9841984Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9861982Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9861983Onan B48G 19.9HP Engine
    CUB CADETTractors - Garden9861984Onan B48G 19.9HP Engine
    JOHN DEEREMowers - FrontF910AllOnan B48G Engine
    JOHN DEEREMowers - FrontF910AllOnan P220G Engine
    JOHN DEERETractors - Lawn3161984Onan B43E Engine
    JOHN DEERETractors - Lawn3161984Onan P218G Engine
    JOHN DEERETractors - Lawn3161985Onan B43E Engine
    JOHN DEERETractors - Lawn3161985Onan P218G Engine
    JOHN DEERETractors - Lawn3161986Onan B43E Engine
    JOHN DEERETractors - Lawn3161986Onan P218G Engine
    JOHN DEERETractors - Lawn3161987Onan B43E Engine
    JOHN DEERETractors - Lawn3161987Onan P218G Engine
    JOHN DEERETractors - Lawn3161988Onan B43E Engine
    JOHN DEERETractors - Lawn3161988Onan P218G Engine
    JOHN DEERETractors - Lawn3161989Onan B43E Engine
    JOHN DEERETractors - Lawn3161989Onan P218G Engine
    JOHN DEERETractors - Lawn3161990Onan B43E Engine
    JOHN DEERETractors - Lawn3161990Onan P218G Engine
    JOHN DEERETractors - Lawn3161991Onan B43E Engine
    JOHN DEERETractors - Lawn3161991Onan P218G Engine
    JOHN DEERETractors - Lawn3161992Onan B43E Engine
    JOHN DEERETractors - Lawn3161992Onan P218G Engine
    JOHN DEERETractors - Lawn3181983Onan B43E Engine
    JOHN DEERETractors - Lawn3181983Onan P218G Engine
    JOHN DEERETractors - Lawn3181984Onan B43E Engine
    JOHN DEERETractors - Lawn3181984Onan P218G Engine
    JOHN DEERETractors - Lawn3181985Onan B43E Engine
    JOHN DEERETractors - Lawn3181985Onan P218G Engine
    JOHN DEERETractors - Lawn3181986Onan B43E Engine
    JOHN DEERETractors - Lawn3181986Onan P218G Engine
    JOHN DEERETractors - Lawn3181987Onan B43E Engine
    JOHN DEERETractors - Lawn3181987Onan P218G Engine
    JOHN DEERETractors - Lawn3181988Onan B43E Engine
    JOHN DEERETractors - Lawn3181988Onan P218G Engine
    JOHN DEERETractors - Lawn3181989Onan B43E Engine
    JOHN DEERETractors - Lawn3181989Onan P218G Engine
    JOHN DEERETractors - Lawn3181990Onan B43E Engine
    JOHN DEERETractors - Lawn3181990Onan P218G Engine
    JOHN DEERETractors - Lawn3181991Onan B43E Engine
    JOHN DEERETractors - Lawn3181991Onan P218G Engine
    JOHN DEERETractors - Lawn3181992Onan B43E Engine
    JOHN DEERETractors - Lawn3181992Onan P218G Engine
    JOHN DEERETractors - Lawn4201983Onan B48G
    JOHN DEERETractors - Lawn4201983Onan P220G
    JOHN DEERETractors - Lawn4201984Onan B48G
    JOHN DEERETractors - Lawn4201984Onan P220G
    JOHN DEERETractors - Lawn4201985Onan B48G
    JOHN DEERETractors - Lawn4201985Onan P220G
    JOHN DEERETractors - Lawn4201986Onan B48G
    JOHN DEERETractors - Lawn4201986Onan P220G
    JOHN DEERETractors - Lawn4201987Onan B48G
    JOHN DEERETractors - Lawn4201987Onan P220G
    JOHN DEERETractors - Lawn4201988Onan B48G
    JOHN DEERETractors - Lawn4201988Onan P220G
    JOHN DEERETractors - Lawn4201989Onan B48G
    JOHN DEERETractors - Lawn4201989Onan P220G
    JOHN DEERETractors - Lawn4201990Onan B48G
    JOHN DEERETractors - Lawn4201990Onan P220G
    JOHN DEERETractors - Lawn4201991Onan B48G
    JOHN DEERETractors - Lawn4201991Onan P220G
    NEW HOLLANDSkid Steer LoadersL2501984B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501985B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501986B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501987B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501988B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501989B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501990B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501991B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501992B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501993B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501994B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501995B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501996B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501997B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501998B43G Onan Engine
    NEW HOLLANDSkid Steer LoadersL2501999B43G Onan Engine
    ONANEnginesB43E79-On
    ONANEnginesB43G79-On
    ONANEnginesB48G79-On
    TOROMowers - FairwayGroundsmaster 621982Onan Gas Engines
    TOROMowers - FairwayGroundsmaster 621983Onan Gas Engines
    TOROMowers - FairwayGroundsmaster 621984Onan Gas Engines
    TOROMowers - FairwayGroundsmaster 621985Onan Gas Engines
    TOROMowers - FairwayGroundsmaster 621986Onan Gas Engines

  • PRODUCT HIGHLIGHTS

    Product Highlights

    Reliable Starting PerformancePMDD ConstructionBroad Equipment Compatibility
    12V system with a 10-tooth pinion and counterclockwise rotationPermanent magnet direct-drive designListed for selected John Deere, Cub Cadet, New Holland, and Toro equipment with compatible Onan engines
