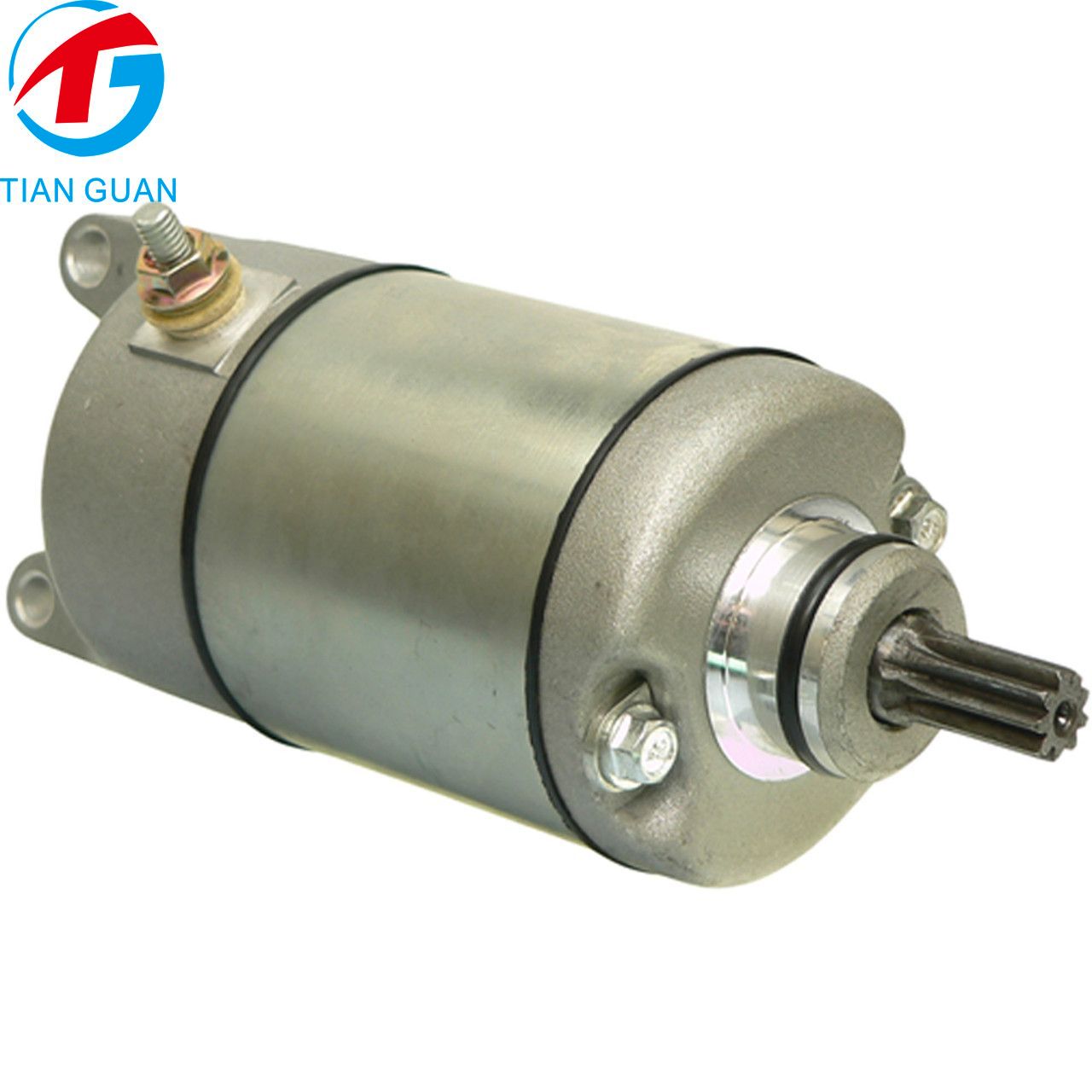

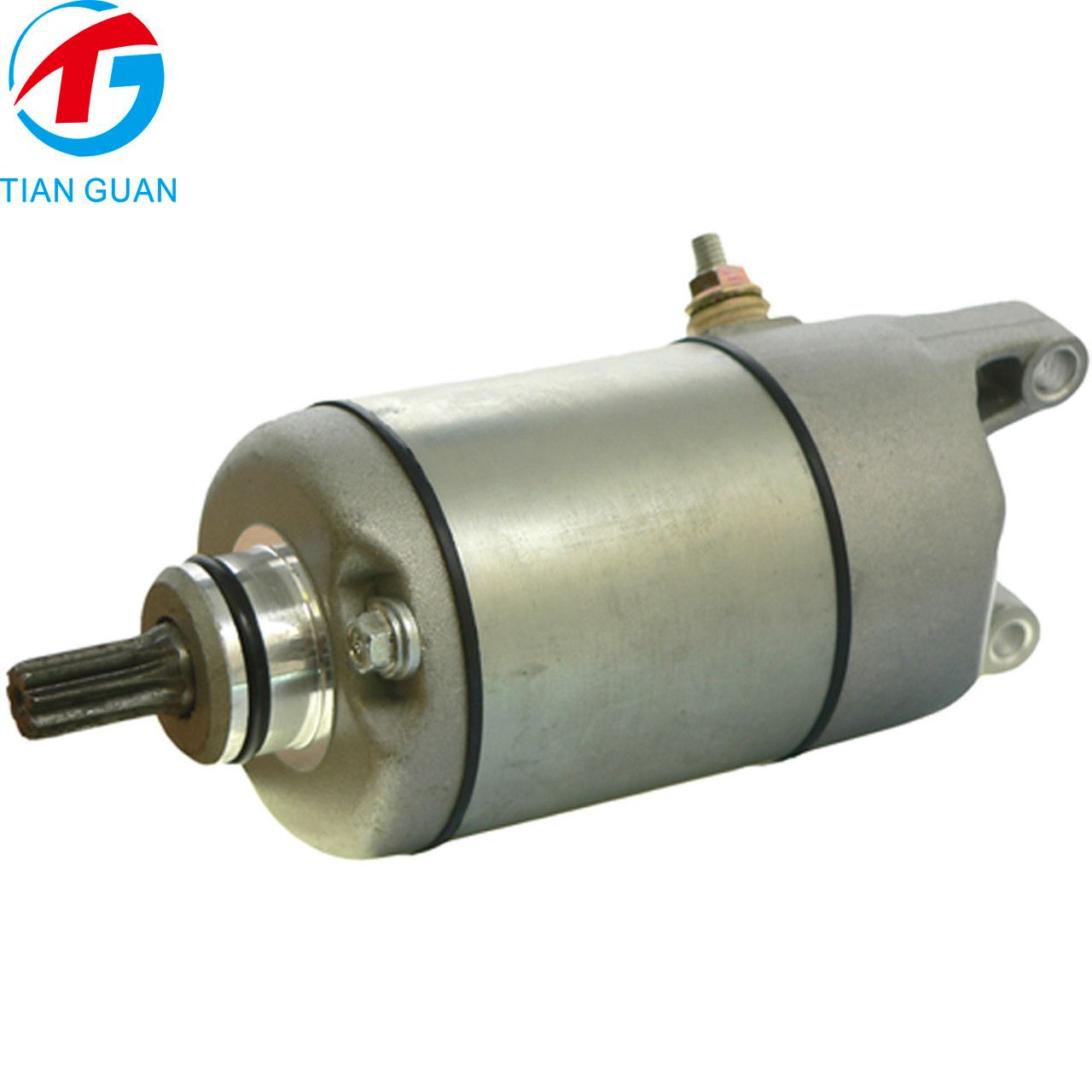

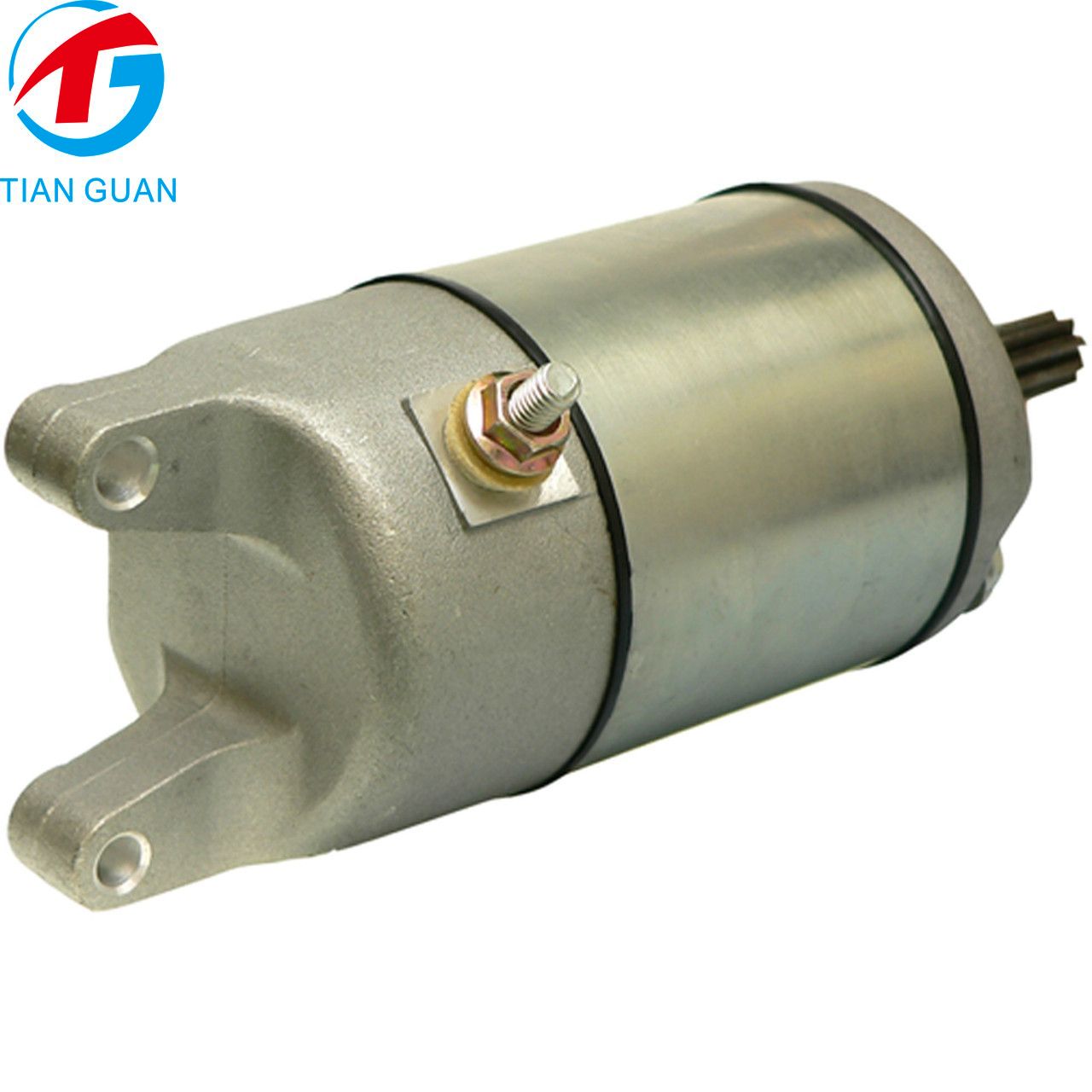

STG50266 Starter Motor 21163-0037 for Kawasaki KFX700 KSV700 | 12V 9T CCW PMDD Replacement

OEM / Reference Part Numbers:
KAWASAKI: 21163-0037 / 21163-1320 / 21163-1321
SUZUKI: K2116-31320
ARROWHEAD: 410-54042
LESTER: 18719
WAI: 2-2417-MT

Product Description

STG50266 Starter Motor is a high-quality aftermarket replacement for Kawasaki KFX700 / KSV700 697cc ATV applications. Kawasaki's official parts diagram identifies 21163-0037 as the electric starter for the 2009 KFX700, and the same part number is listed for KSV700 models from 2006-2009.

The starter is a 12V, 9-tooth, counter-clockwise (CCW) unit. Available cross-reference specifications also list a 50 mm mounting-hole spacing, 30 mm drive-bushing diameter, 12 mm drive diameter and 180 mm overall length.

Product Specifications

Property	Value
Product Model	STG50266
Kawasaki Part Numbers	21163-0037 / 21163-1320 / 21163-1321
Suzuki Part Number	K2116-31320
Voltage	12V
Starter Type	PMDD
Rotation	CCW
Teeth Count	9T
Mounting Hole Spacing	50 mm
Drive Bushing Diameter	30 mm
Drive Diameter	12 mm
Drive Length	23 mm
Starter Diameter	68 mm
Overall Length	180 mm
Engine	697cc
Condition	New Aftermarket

OEM / Cross Reference Table

Brand	Part Number
KAWASAKI	21163-0037 / 21163-1320 / 21163-1321
SUZUKI	K2116-31320
ARROWHEAD	410-54042
LESTER	18719
WAI	2-2417-MT
DIXIE NEW	242-06113
EMS	KA-114N
HI LEVEL	STK0280
J&N ELECTRICAL PRODUCTS	410-54042
MES MOTORCYCLE & MARINE	ME0270 / ME3480
MINNPAR	57-2728
PIC	191-356 / 191-356A
RCP	ST-18719
TUCKER ROCKY	495756 / 49-5756
WILSON SMALL ENGINE	71-26-18719

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
KAWASAKI	ATV	KSV700 KFX700	2004	697cc
KAWASAKI	ATV	KSV700 KFX700	2005	697cc
KAWASAKI	ATV	KSV700 KFX700	2006	697cc
KAWASAKI	ATV	KSV700 KFX700	2007	697cc
KAWASAKI	ATV	KSV700 KFX700	2008	697cc
KAWASAKI	ATV	KSV700 KFX700	2009	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2004	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2005	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2006	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2007	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2008	697cc
KAWASAKI	ATV	KSV700 KFX700 IG	2009	697cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2005	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2006	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2007	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2008	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2009	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2010	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2011	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2012	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4	2013	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2006	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2007	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2008	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2009	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2010	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2011	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2012	633cc
KAWASAKI	ATV	KVF650 Brute Force 4x4i	2013	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4 Camo	2005	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4 Camo	2006	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4 Camo	2007	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4 Camo	2008	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4 Camo	2009	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4i Camo	2006	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4i Camo	2007	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4i Camo	2008	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4i Camo	2009	633cc
KAWASAKI	ATV	KVF650 Brute Force 650 4x4i Camo	2010	633cc
KAWASAKI	ATV	KVF650 Prairie 650 4x4	2002	633cc
KAWASAKI	ATV	KVF650 Prairie 650 4x4	2003	633cc
KAWASAKI	ATV	KVF650 Prairie 650 4x4 Adv. Classic	2002	633cc
KAWASAKI	ATV	KVF650 Prairie 650 4x4 Adv. Classic	2003	633cc
KAWASAKI	ATV	KVF700 Prairie 4x4	2004	697cc
KAWASAKI	ATV	KVF700 Prairie 4x4	2005	697cc
KAWASAKI	ATV	KVF700 Prairie 4x4	2006	697cc
KAWASAKI	ATV	KVF700 Prairie 700 4x4 Camo	2005	697cc
KAWASAKI	ATV	KVF700 Prairie 700 4x4 Camo	2006	697cc
KAWASAKI	ATV	KVF700 Prairie 700 4x4 SE	2005	697cc
KAWASAKI	ATV	KVF700 Prairie 700 4x4 SE	2006	697cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2005	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2006	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2007	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2008	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2009	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2010	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2011	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2012	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2013	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2014	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2015	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2016	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2017	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2018	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i	2019	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2005	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2006	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2007	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2008	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2009	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo	2010	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo NRA Outdoors	2007	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo NRA Outdoors	2008	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i Camo NRA Outdoors	2009	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2012	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2013	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2014	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2015	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2016	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2017	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2018	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS	2019	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2012	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2013	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2014	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2015	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2016	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2017	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2018	749cc
KAWASAKI	ATV	KVF750 Brute Force 750 4x4i EPS Camo	2019	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 4x4	2008	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 4x4 LE	2008	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 4x4 NRA	2008	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4	2009	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4	2010	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4	2011	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE	2009	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE	2010	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE	2011	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE NRA Outdoors	2009	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE Sport	2009	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 LE Sport ME	2009	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 SGE	2010	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 SGE	2011	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 SGE	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 Sport	2010	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 Sport	2011	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 Sport	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF750 Teryx 750 FI 4x4 Sport	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx Camo	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE Camo	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRF800 Teryx LE Camo	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS Camo	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS LE	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS LE	2013	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT750 Teryx4 750 4x4 EPS Realtree AGP	2012	749cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 Camo	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2014	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2015	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2016	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2017	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE	2019	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE Camo	2018	783cc
KAWASAKI	Utility Vehicle (UTV)	KRT800 Teryx4 LE Camo	2019	783cc
SUZUKI	ATV	LT-V700F Twin Peaks	2004	697cc
SUZUKI	ATV	LT-V700F Twin Peaks	2005	697cc

Weight & Package Information

Item	Value
Net Weight	2.3 KG
Gross Weight	2.7 KG
Package Size	25 × 18 × 18 CM

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Kawasaki KFX700 / KSV700 Replacement	12V 9T Starter Motor	CCW PMDD Design
697cc ATV Application	21163-0037 Direct Replacement	50 mm Mounting Spacing
410-54042 / 18719 Equivalent	Compact Powersports Design	Reliable Engine Starting

SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination

Need Help?

Our product experts will respond to your email within 24 business hours.

Question *

Name *

Email *

Verification code *

WARRANTY POLICY

All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.

SHIPPING POLICY

We offer express and standard shipping options to ensure your off-road machine gets back in action—fast and reliably. For more details, please visit our Shipping Policy .

EASY RETURN POLICY

We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.

PRODUCT RECOMMENDATION
