STG50421 Starter Motor 31100-02C00 31100-02C01 31100-02C02 for Suzuki LT160 LTF160 LT230 LTF230 LTF250 LTZ250 QuadRunner | 12V 10T CCW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG50421

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG50421 Starter Motor 31100-02C00 31100-02C01 31100-02C02 for Suzuki LT160 LTF160 LT230 LTF230 LTF250 LTZ250 QuadRunner | 12V 10T CCW PMDD Replacement

    Part Numbers

    SUZUKI: 31100-02C00 / 31100-02C01 / 31100-02C02 / 31100-02C10 / 31100-35B10 / 31100-35B11

    ARROWHEAD: SMU0058 / SMU0059

    BARSANCO: 620-025 / 620-026

    DIXIE: 242-06112

    EMS: SA-102 / SA-103 / SA-103N

    HI LEVEL: STS0059

    J&N: 410-54046

    LESTER: 18808

    MES MOTORCYCLE & MARINE: ME0240

    MINNPAR: 57-2789

    PIC: 191-519 / 191-519A

    STOCKERS STARTERS: SA-102 / SA-103

    TUCKER ROCKY: 495747 / 49-5747

    WAI: 2-2765-MT

    WILSON SMALL ENGINE: 71-26-18808

    The cross-reference numbers and core specifications are supported by current starter catalogs.

    Product Description

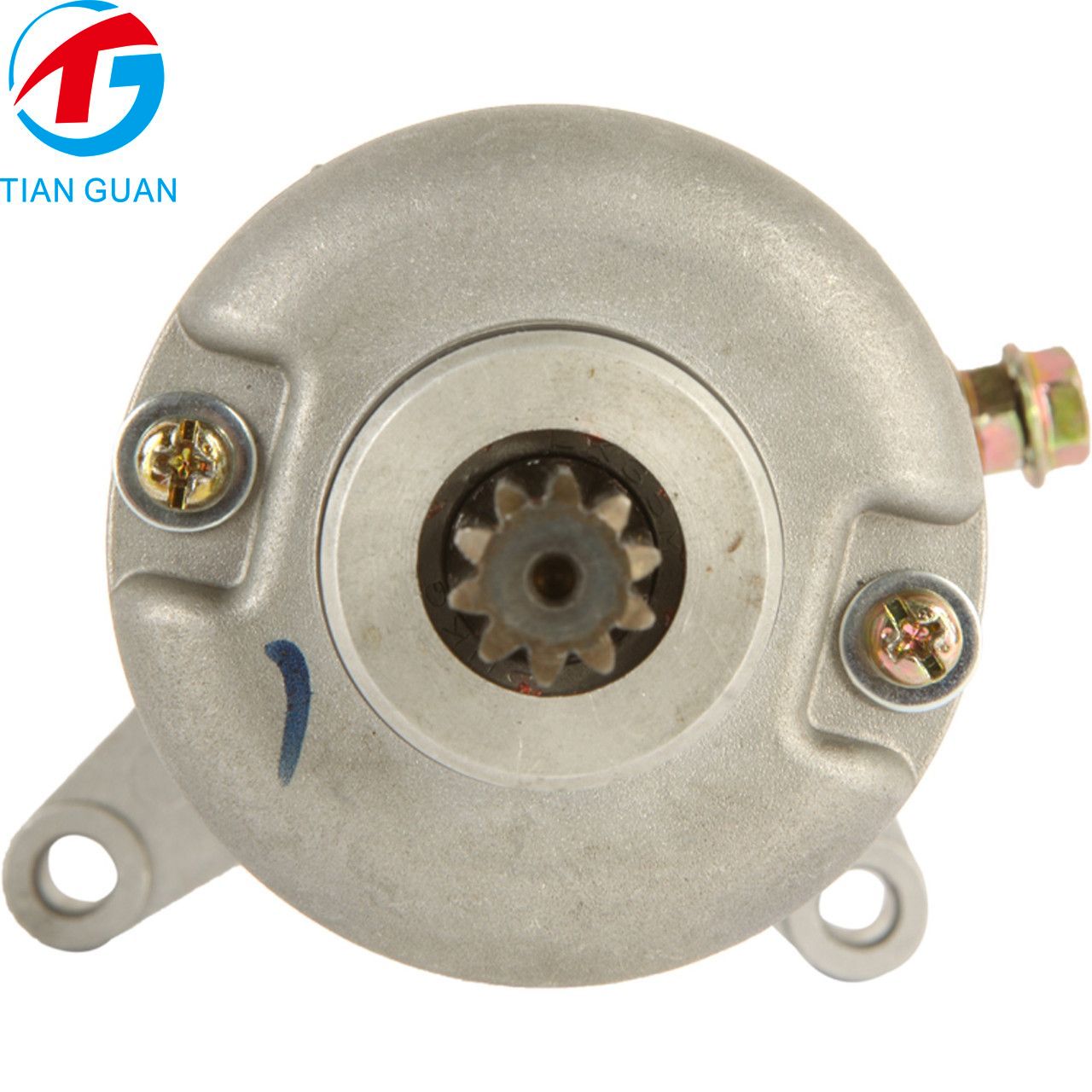

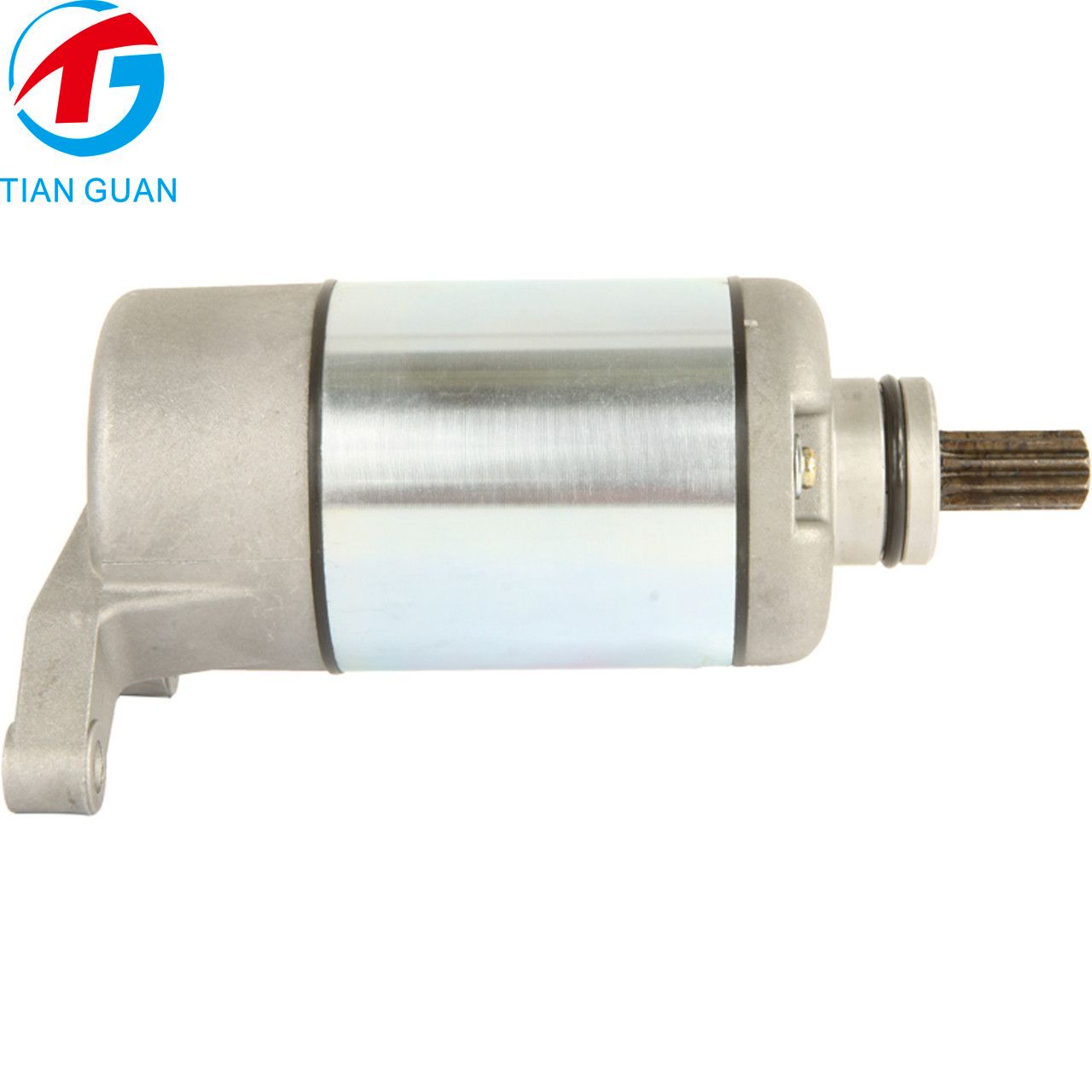

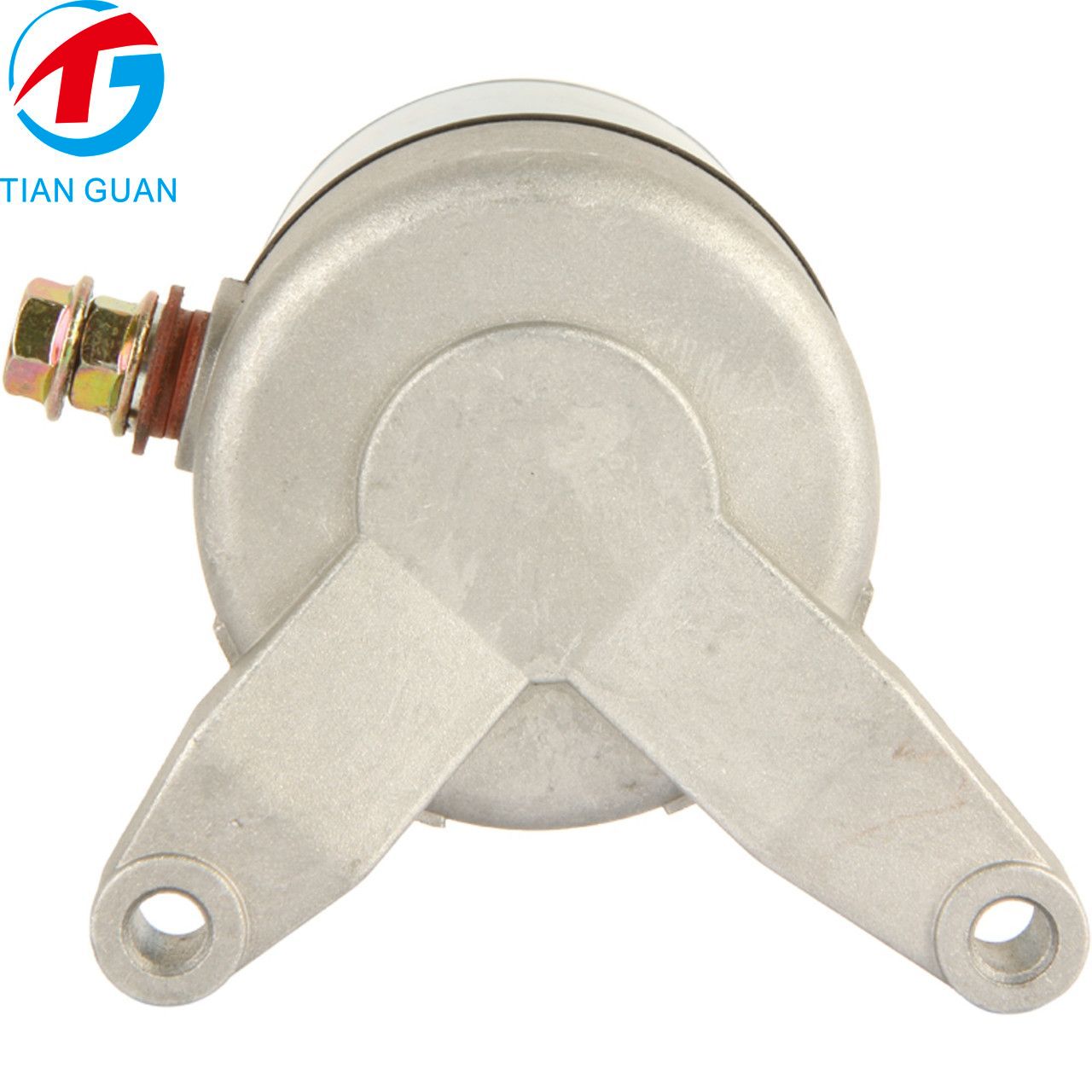

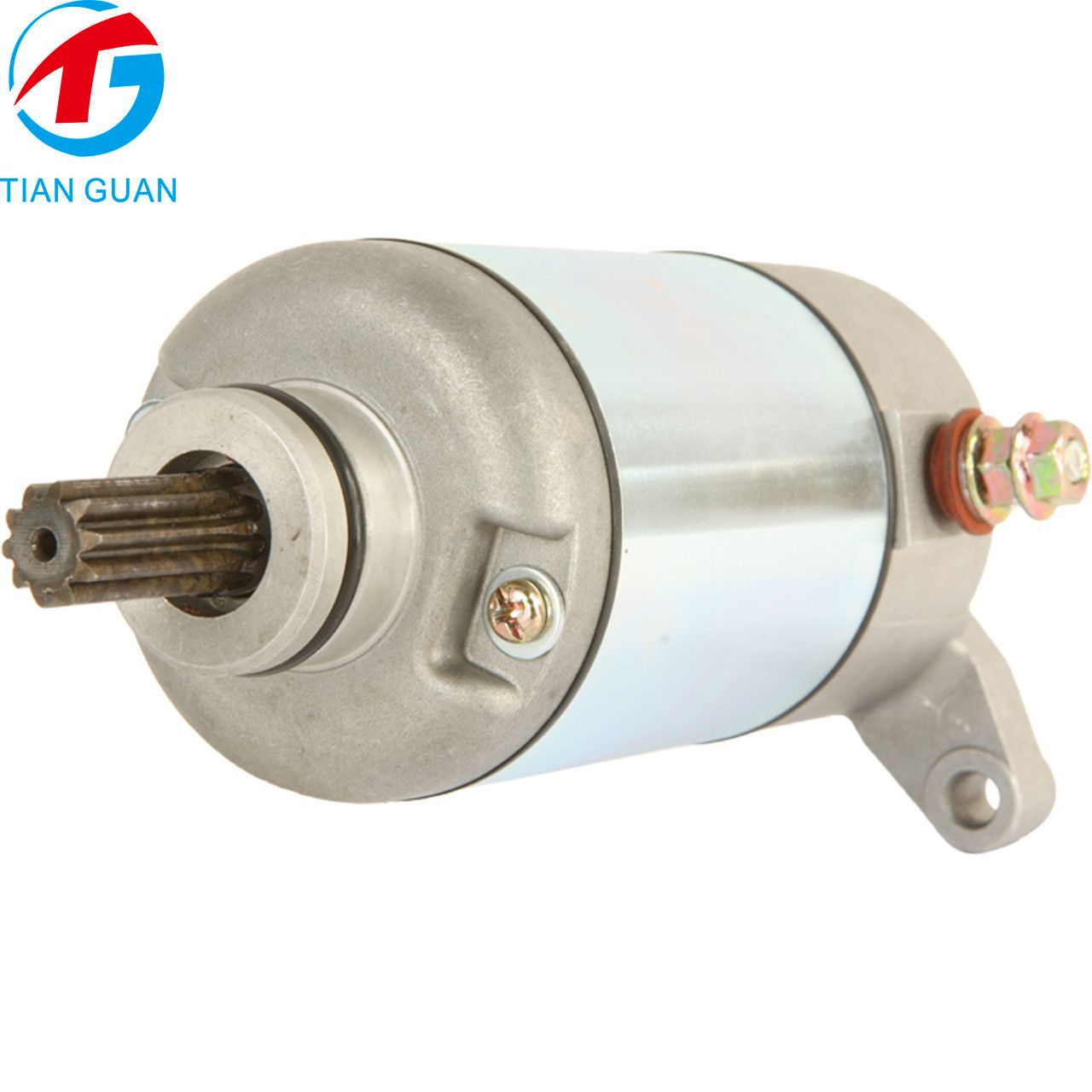

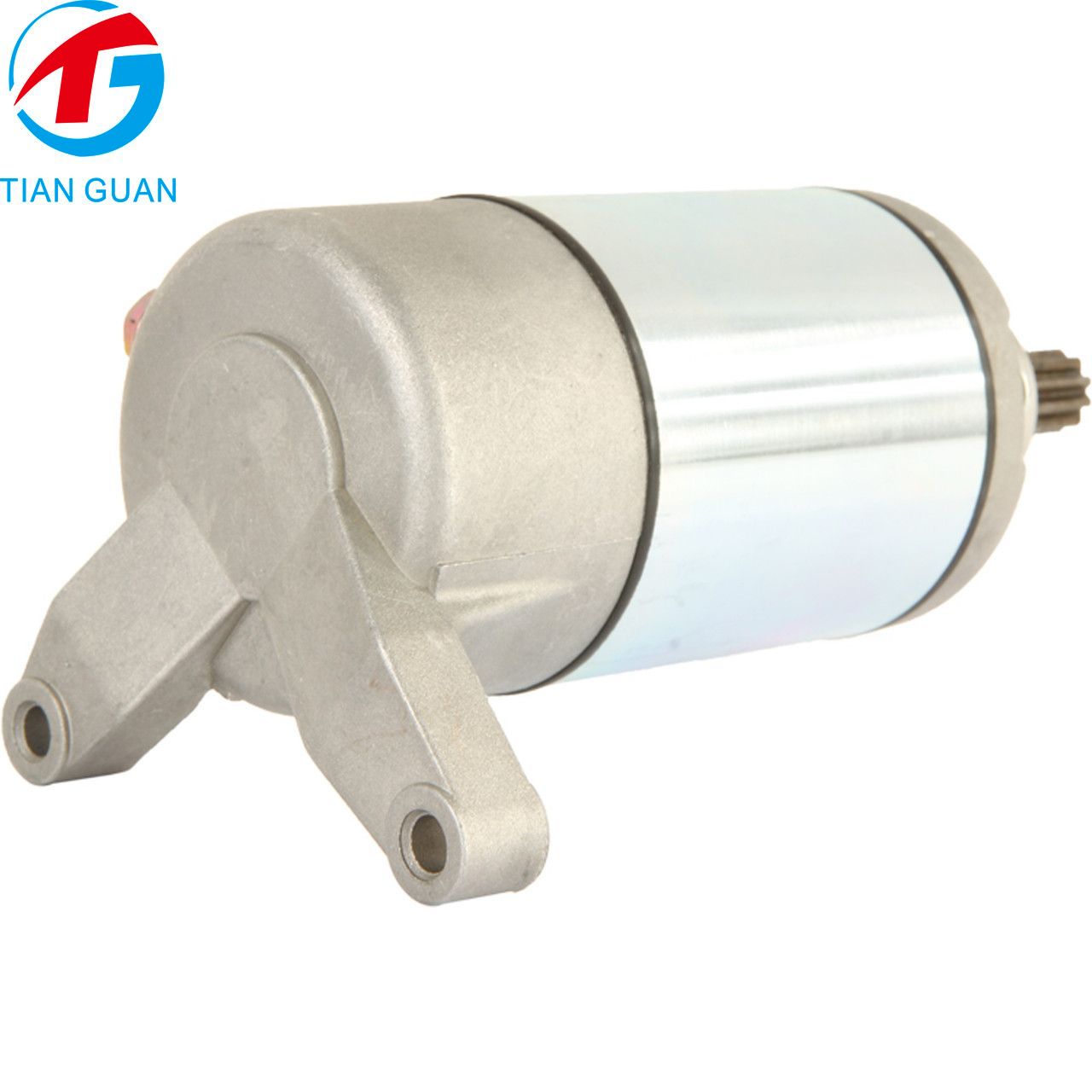

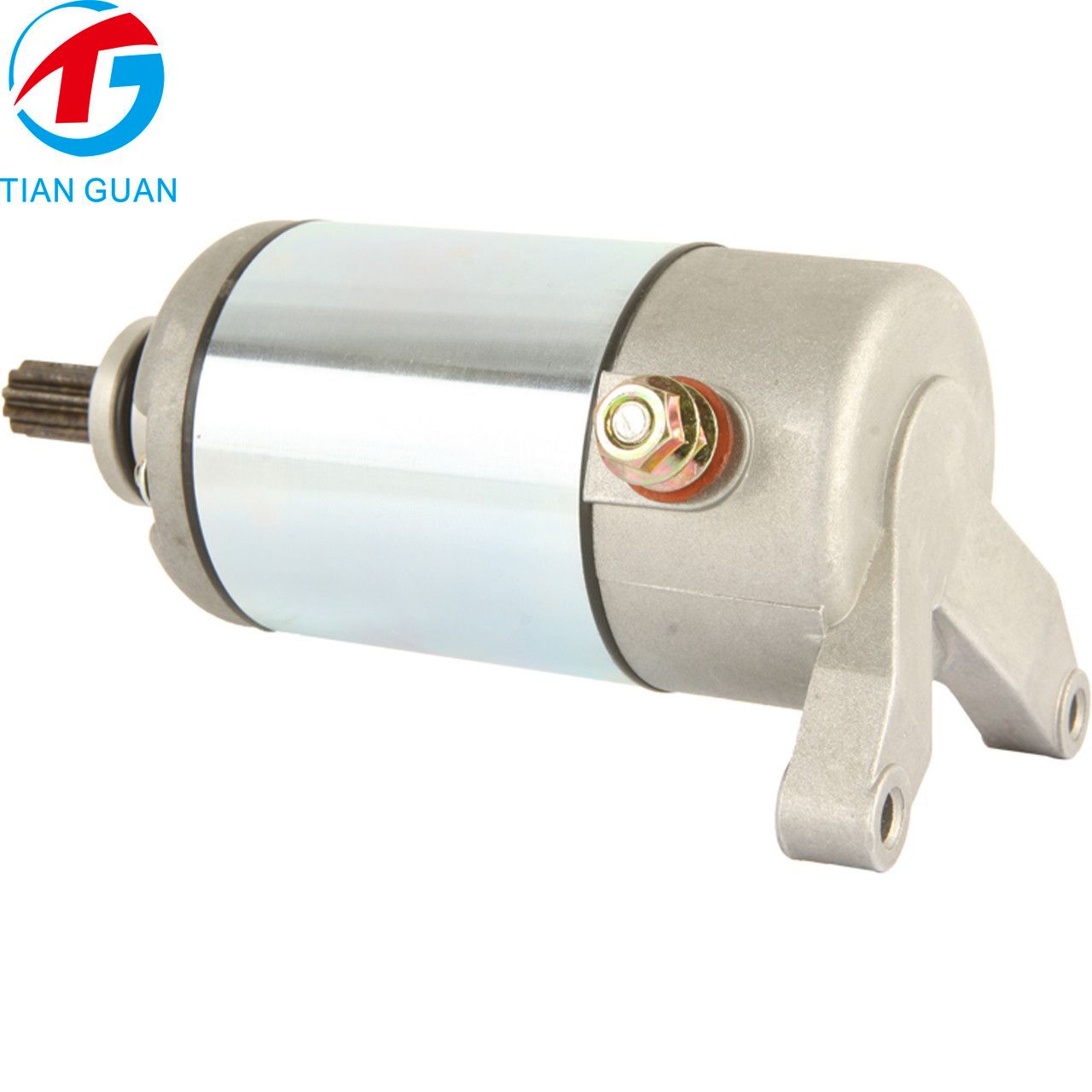

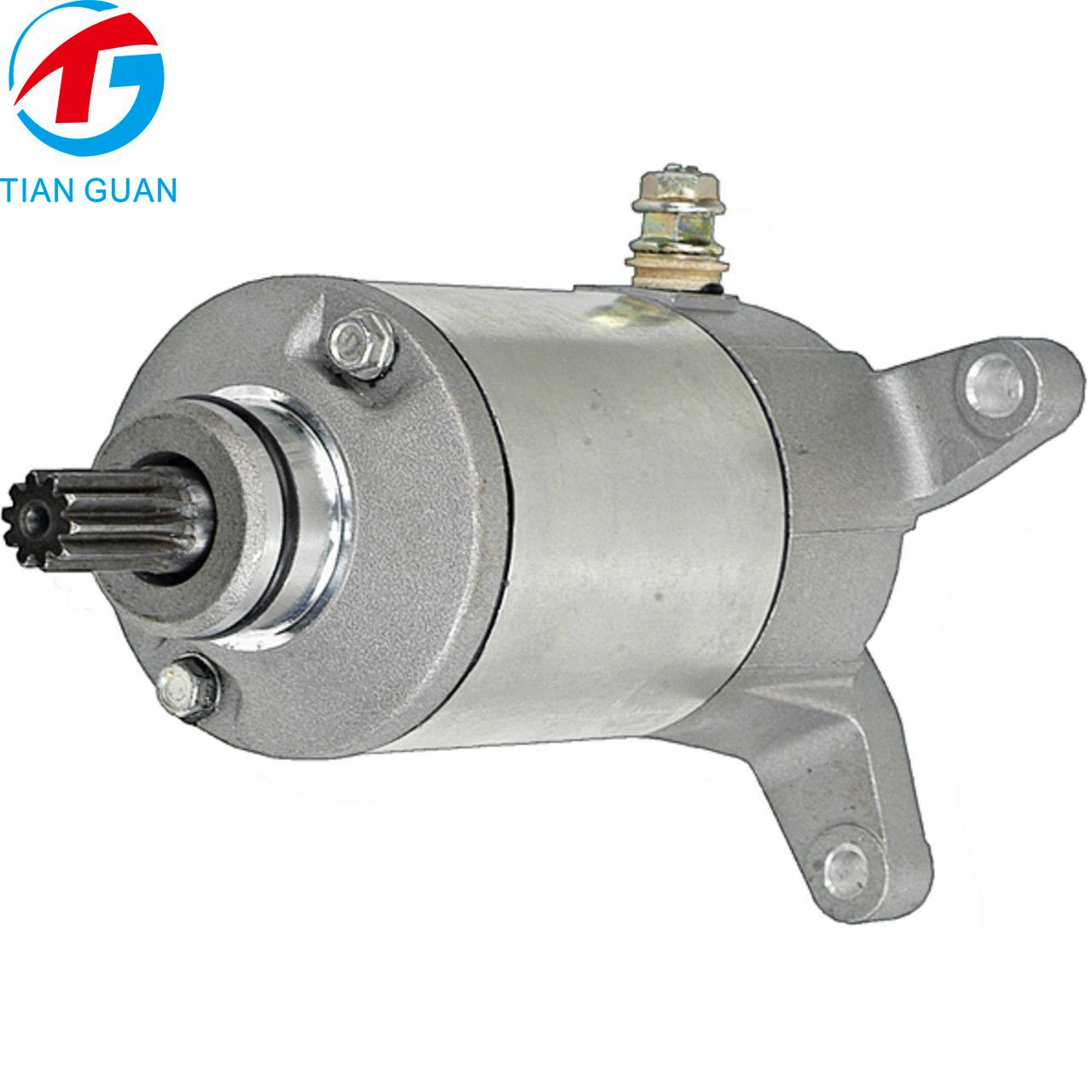

    STG50421 Starter Motor is a high-quality aftermarket replacement designed for Suzuki QuadRunner and QuadSport ATV applications. Featuring a 12V, 10-tooth, counterclockwise-rotation PMDD design, it provides reliable cranking performance and dependable engine starting.

    It is designed for applications including Suzuki LT160, LT-F160, LT230E, LT-F250 Ozark and LT-Z250 QuadSport models. Fitment data covers various model years from 1988 through 2014 depending on the specific ATV model.

    Product Specifications

    PropertyValue
    Product ModelSTG50421
    Part Numbers31100-02C00 / 31100-02C01 / 31100-02C02
    Voltage12V
    Power Output—
    Number of Teeth10T
    Starter TypePMDD (Permanent Magnet Direct Drive)
    RotationCCW
    ConditionNew Aftermarket
    ApplicationATV Starter
    Compatible BrandSuzuki
    Compatible ModelsLT160 / LTF160 / LT230 / LTF230 / LTF250 / LTZ250
    Net Weight2.8 KG


    OEM / Cross Reference Table

    ARROWHEAD (OLD)SMU0058
    ARROWHEADSMU0059
    BARSANCO620-025, 620-026
    DIXIE NEW242-06112
    EMSSA-102, SA-103, SA-103N
    HI LEVELSTS0059
    J & N410-54046
    LESTER18808
    MES MOTORCYCLE & MARINEME0240
    MINNPAR57-2789
    PIC191-519, 191-519A
    STOCKERS STARTERSSA-102, SA-103
    SUZUKI31100-02C00, 31100-02C01, 31100-02C02, 31100-02C10, 31100-35B10, 31100-35B11
    TUCKER ROCKY495747, 49-5747
    WAI2-2765-MT
    WILSON SMALL ENGINE71-26-18808

    Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    SuzukiATVLT160 QuadRunner2003160cc
    SuzukiATVLT160 QuadRunner2004160cc
    SuzukiATVLT160E QuadRunner1989160cc
    SuzukiATVLT160E QuadRunner1990160cc
    SuzukiATVLT160E QuadRunner1991160cc
    SuzukiATVLT160E QuadRunner1992160cc
    SuzukiATVLT230E QuadRunner1988230cc
    SuzukiATVLT230E QuadRunner1989230cc
    SuzukiATVLT230E QuadRunner1990230cc
    SuzukiATVLT230E QuadRunner1991230cc
    SuzukiATVLT230E QuadRunner1992230cc
    SuzukiATVLT230E QuadRunner1993230cc
    SuzukiATVLT-F160 Quadrunner1991160cc
    SuzukiATVLT-F160 Quadrunner1992160cc
    SuzukiATVLT-F160 Quadrunner1993160cc
    SuzukiATVLT-F160 Quadrunner1994160cc
    SuzukiATVLT-F160 Quadrunner1995160cc
    SuzukiATVLT-F160 Quadrunner1996160cc
    SuzukiATVLT-F160 Quadrunner1997160cc
    SuzukiATVLT-F160 Quadrunner1998160cc
    SuzukiATVLT-F160 Quadrunner1999160cc
    SuzukiATVLT-F160 Quadrunner2000160cc
    SuzukiATVLT-F160 Quadrunner2001160cc
    SuzukiATVLT-F160 Quadrunner2002160cc
    SuzukiATVLT-F160 Quadrunner2003160cc
    SuzukiATVLT-F160 Quadrunner2004160cc
    SuzukiATVLT-F250 Ozark2002246cc
    SuzukiATVLT-F250 Ozark2003246cc
    SuzukiATVLT-F250 Ozark2004246cc
    SuzukiATVLT-F250 Ozark2005246cc
    SuzukiATVLT-F250 Ozark2006246cc
    SuzukiATVLT-F250 Ozark2007246cc
    SuzukiATVLT-F250 Ozark2008246cc
    SuzukiATVLT-F250 Ozark2009246cc
    SuzukiATVLT-F250 Ozark2012246cc
    SuzukiATVLT-F250 Ozark2013246cc
    SuzukiATVLT-F250 Ozark2014246cc
    SuzukiATVLT-Z250 Quadsport2004246cc
    SuzukiATVLT-Z250 Quadsport2005246cc
    SuzukiATVLT-Z250 Quadsport2006246cc
    SuzukiATVLT-Z250 Quadsport2007246cc
    SuzukiATVLT-Z250 Quadsport2008246cc
    SuzukiATVLT-Z250 Quadsport2009246cc
    SuzukiATVLT-Z250 Quadsport2010246cc

    Packing Information

    ItemValue
    Net Weight (NW)2.8 KG
    Gross Weight (GW)3.4 KG
    Carton Size30 × 20 × 20 CM
    Package Volume0.012 m³
    Package Includes1 × Starter Motor


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Suzuki QuadRunner Replacement12V 10T Starter MotorCCW PMDD Design
    LT160 / LT230 CompatibleLT-F160 / LT-F250 CompatibleLT-Z250 QuadSport Compatible
    31100-02C00 Cross ReferenceMultiple ATV ApplicationsDirect Aftermarket Replacement
