Starter Motor 410-24248 4169096 4699705 4702248 4755109 4807375 12V 3.0kW 9T CW for New Holland Fiat Iveco

Replacement Part Numbers

Specifications

Product Description

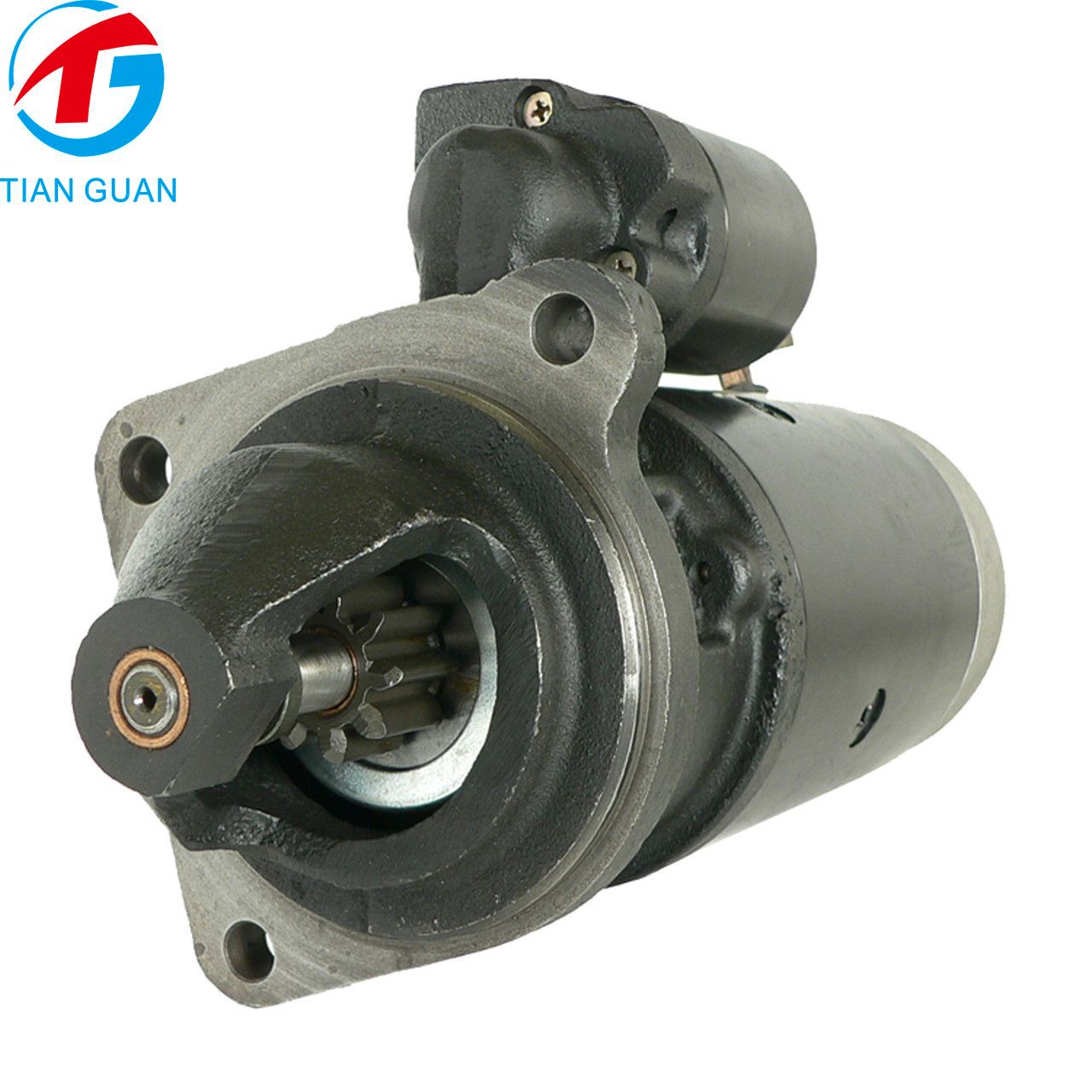

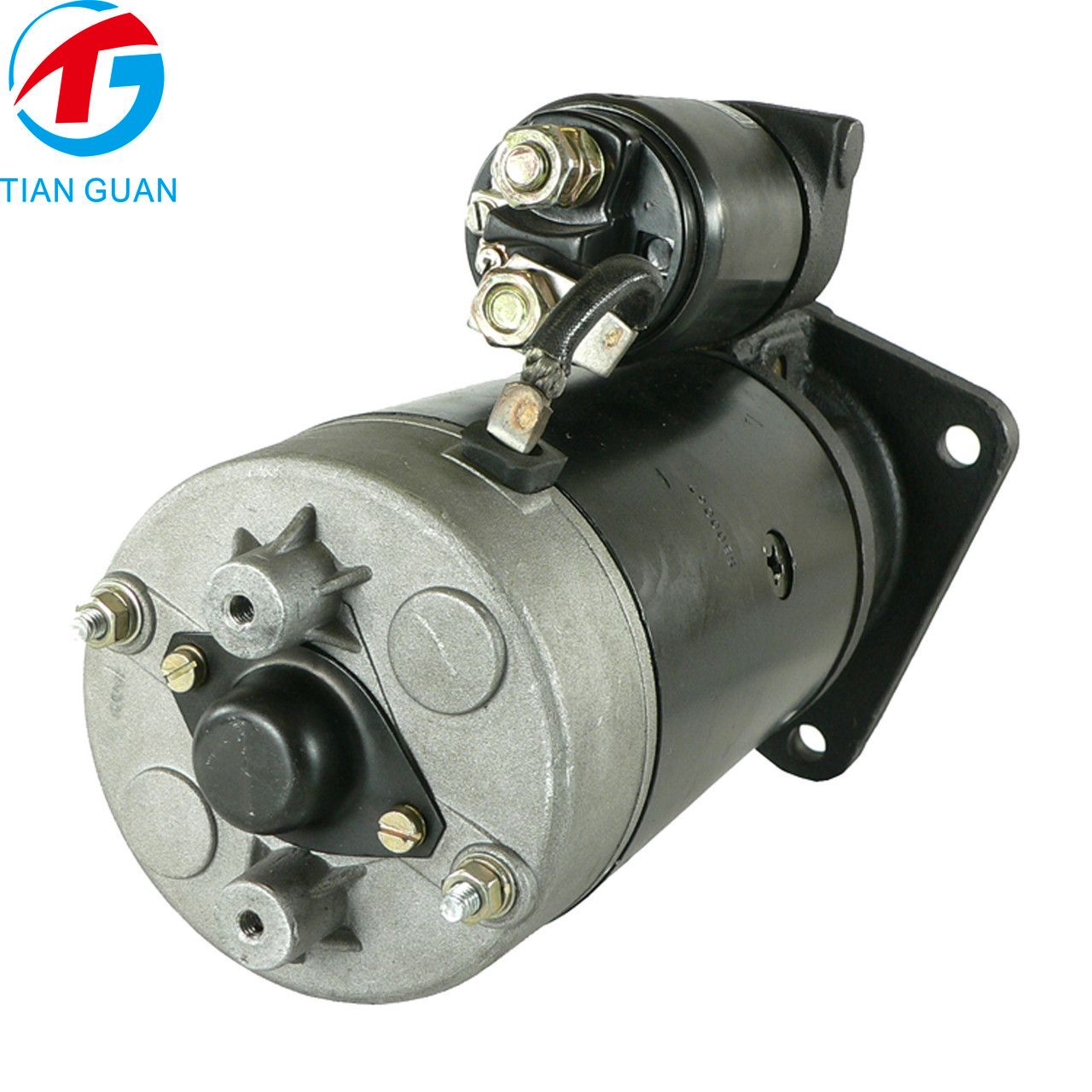

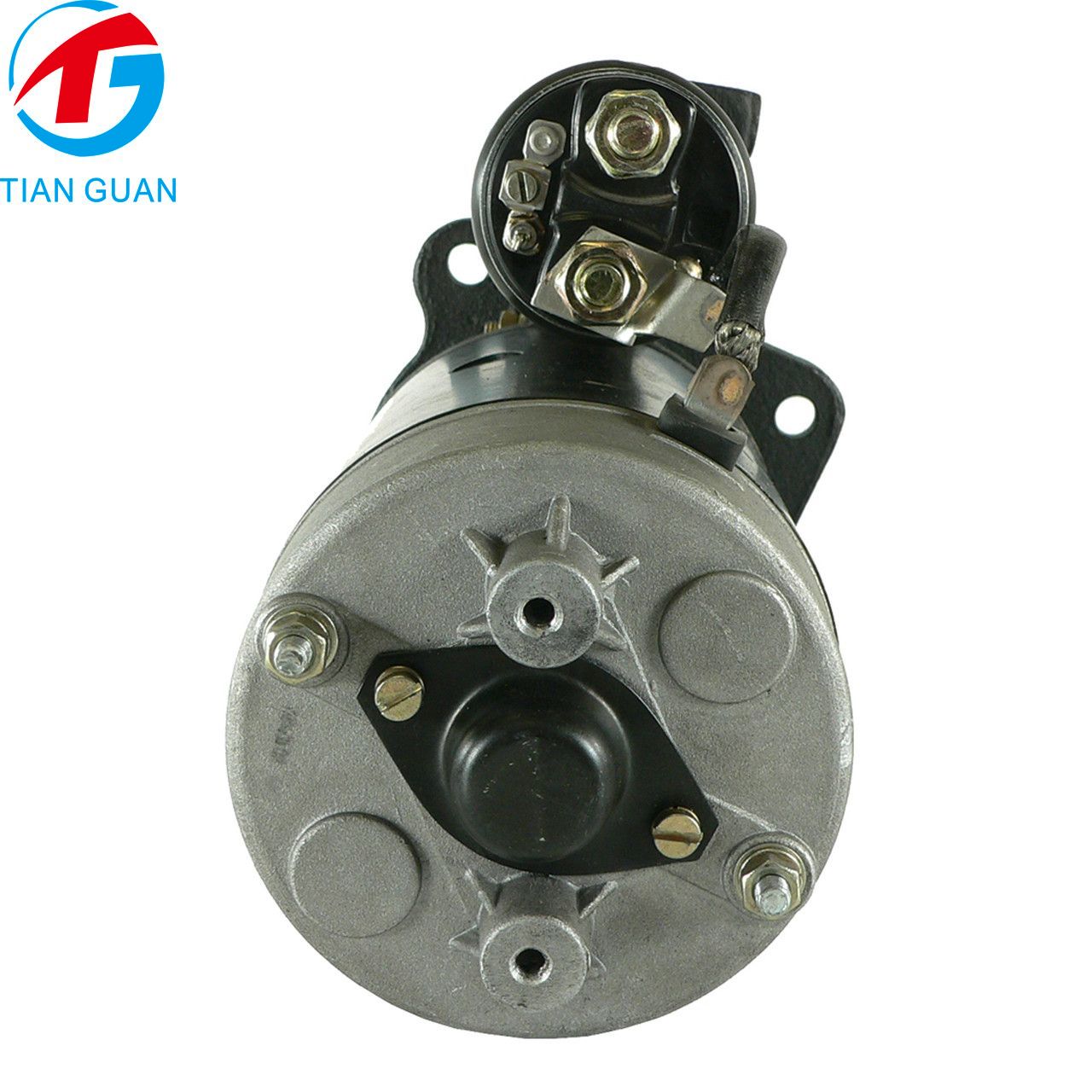

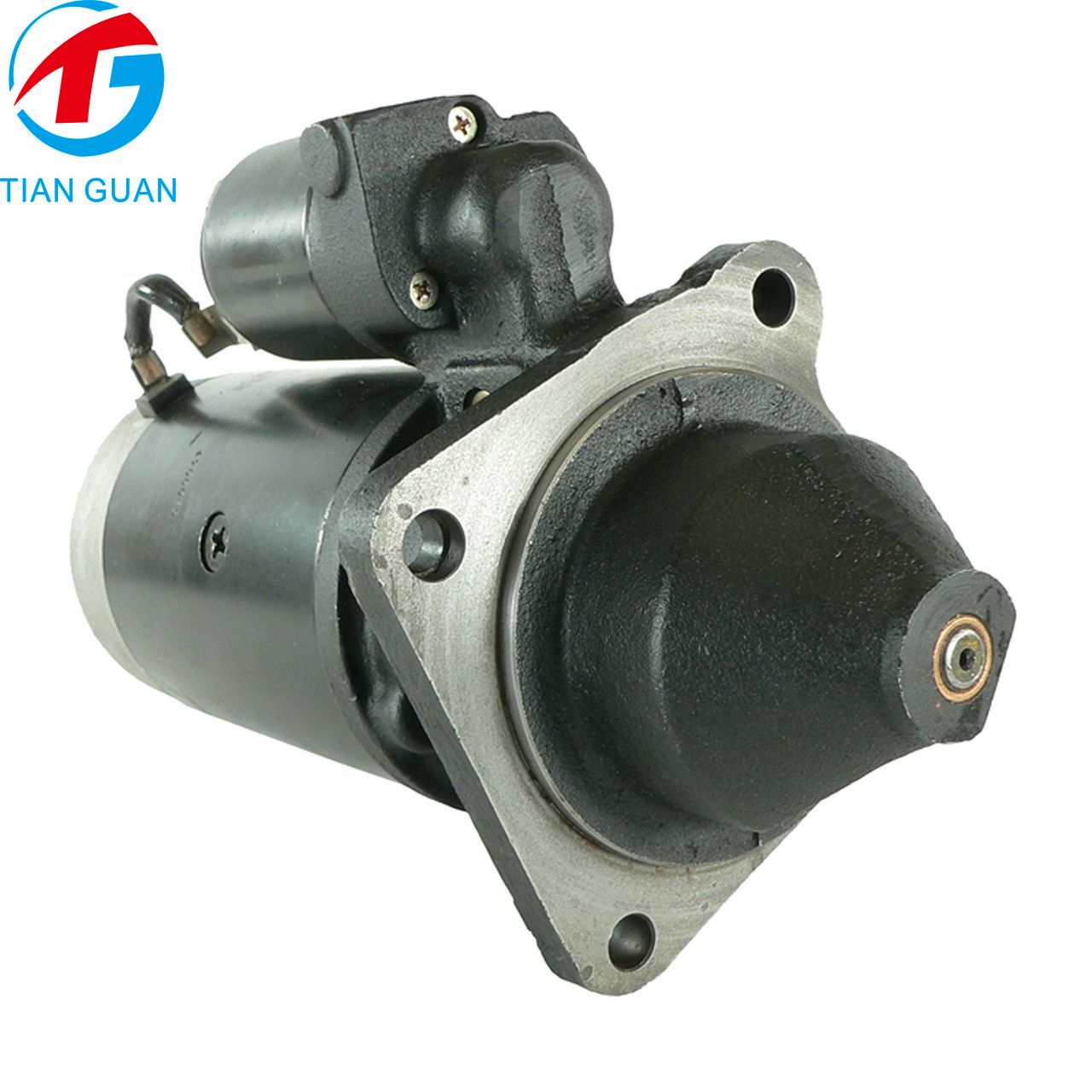

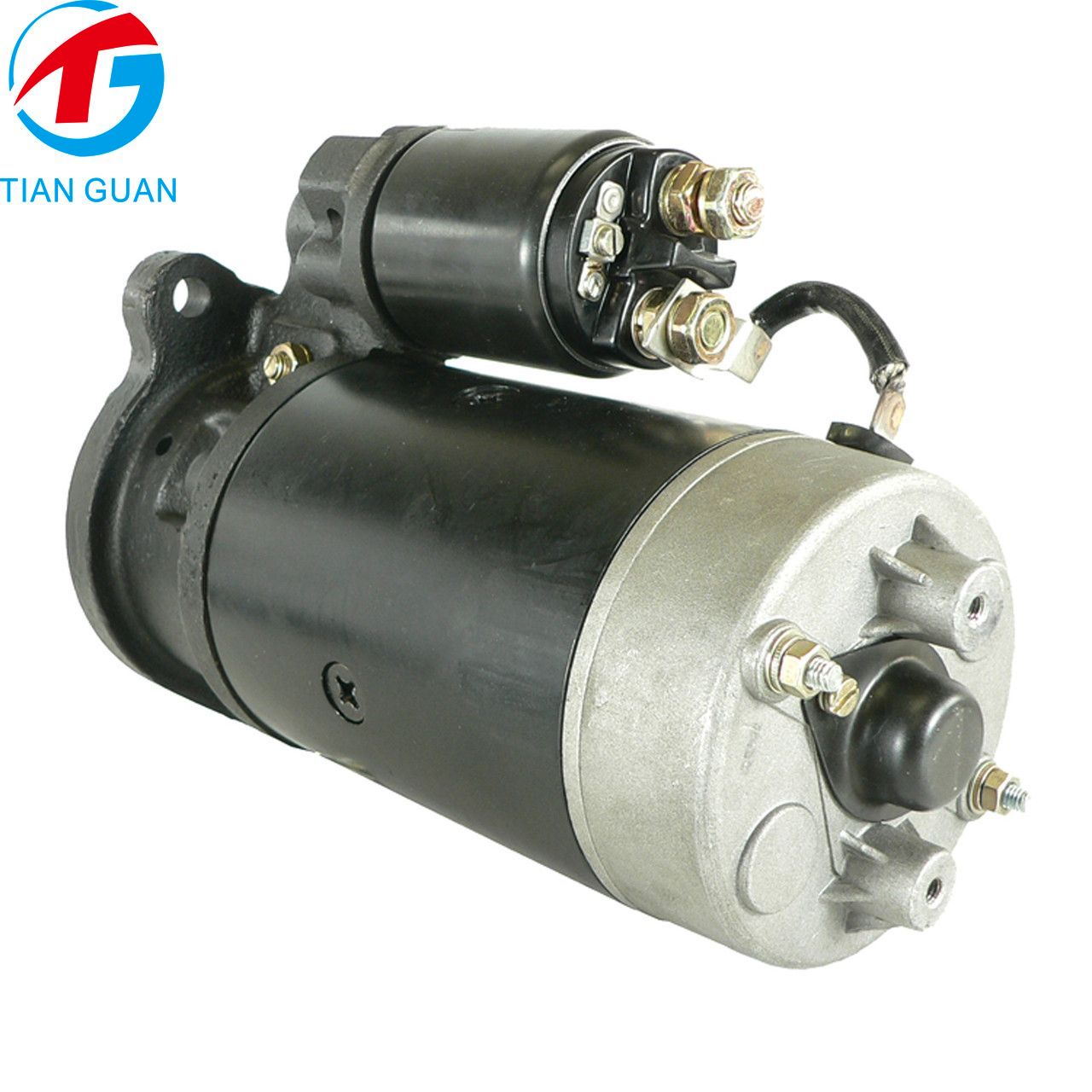

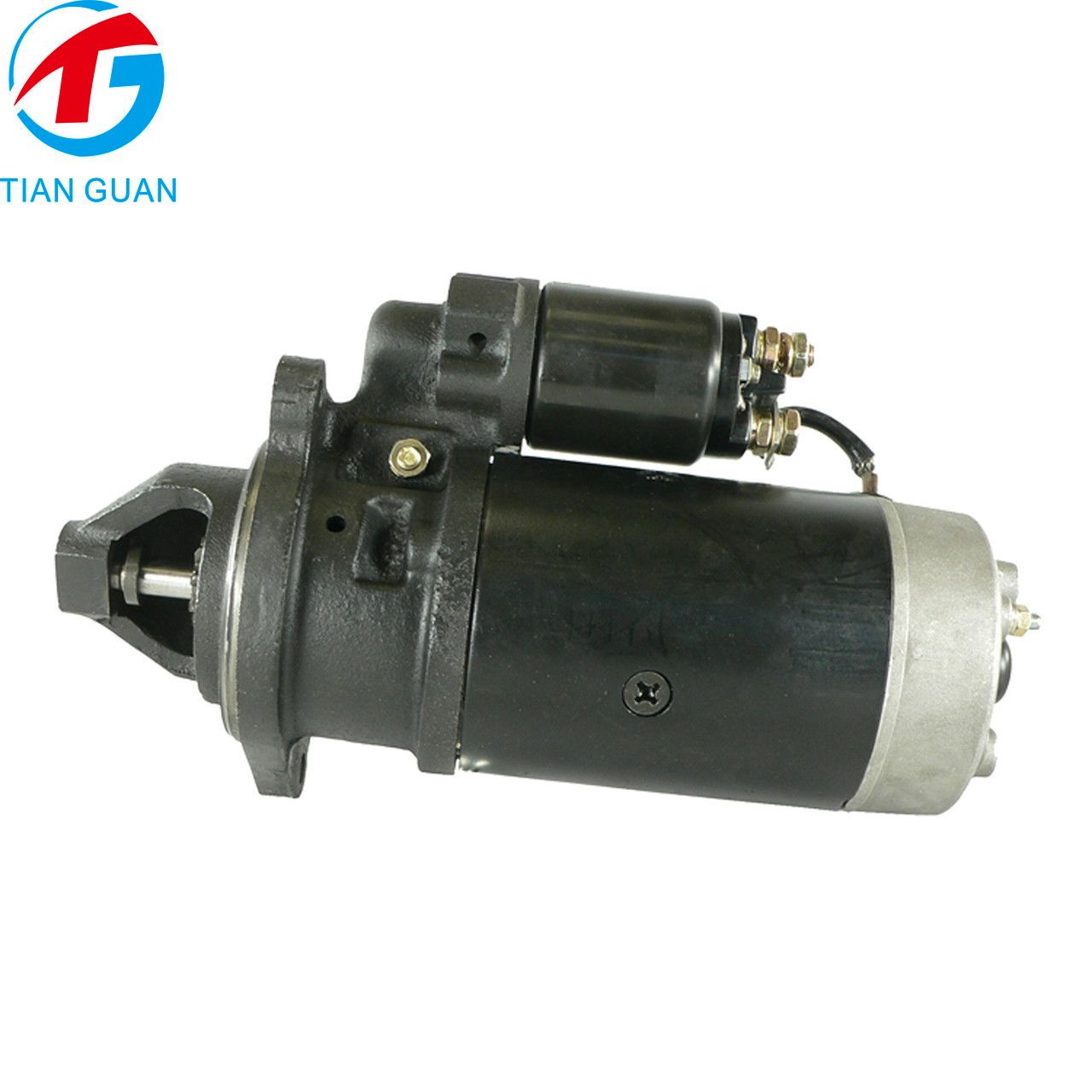

This 12V 3.0kW Starter Motor is an aftermarket replacement unit designed for a wide range of New Holland, Fiat, Iveco, AIFO, Allis Chalmers, Fiat-Allis, Fiat-Hesston, Ford, Long and White applications.

The starter features a 9-tooth pinion gear, clockwise rotation and Direct Drive (DD) configuration, providing reliable cranking performance for compatible diesel engines.

With a wide range of OEM and aftermarket cross-reference numbers, this starter is suitable for agricultural tractors, marine engines, construction machinery, crawlers, graders, wheel loaders, backhoe loaders and commercial vehicles.

Please verify the original starter part number, voltage, power, rotation direction, number of teeth, mounting dimensions and electrical connections before ordering.

Product Features

• 12V / 3.0kW starter motor

• 9-tooth pinion gear

• Clockwise (CW) rotation

• Direct Drive (DD) starter design

• Aftermarket replacement unit

• Multiple OEM and aftermarket reference numbers

• Suitable for agricultural, marine and industrial diesel applications

• Net weight: 11.6 kg

Main Applications

AIFO Engines

Compatible applications include:

• AIFO 8041

• AIFO 8060

• AIFO 8061

• AIFO 8065

• AIFO Marine 8031

• AIFO Marine 8041

• AIFO Marine 8060

• AIFO Marine 8061

• AIFO Marine 8065

New Holland Tractors

• 3830

• 4230

• 4330V

• 4430N

• 4430V

• 4835

• 5530HC

• TL70

• TL80

• TL90

• TL100

• TN75F

• TN90F

Fiat-Hesston Tractors

• 55.85

• 65.46

• 65.56

• 65.66

• 65.88

• 65.9

• 70.56

• 70.65

• 70.66

• 70.75

• 70.76

• 70.86

• 70.88

• 70.9

• 80.65

• 80.66

• 80.75

• 80.88

• 80.9

• 82.86

• 85.55

• 85.9

Fiat-Allis Equipment

Applications include:

• 545B Crawlers

• FG-65A Graders

• 545B Wheel Loaders

• FL-4C Wheel Loaders

Allis Chalmers Tractors

• 5045

• 5050

Benfra Backhoe Loader

• Benfra 1.45 with Iveco 8041 engine

Ford Tractors

• 4230

• 4835

• 5530HC

Long Tractors

• 1010

• 350

• 360

• 445

• 460

• 550

• 560

Iveco Trucks

• Iveco Z Series Medium-Duty Trucks

• 1983-On applications

• Compatible with listed engine configurations

White Tractors

• White 2-60

• White 2-60 4WD

Engine Applications

The starter is listed for various diesel engines including:

• AIFO 8031

• AIFO 8041

• AIFO 8060

• AIFO 8061

• AIFO 8065

• Fiat 3-158 Diesel

• Fiat 3-168 Diesel

• Ford 3-165 Diesel

• Ford 4-220 Diesel

• Ford 4-238 Diesel

• Fiat 4-211 Diesel

• Iveco 8041

• Iveco Z Series engines

• Other compatible diesel engine applications

Compatibility Reference

BOSCH: 0-001-359-021, 0-001-359-102, 0-001-367-028, 0-001-367-082

FIAT: 4169096, 4699705, 4702248, 4703751, 4755109, 4807375

IVECO: 500333271

NEW HOLLAND: 4703751, 4807375, 4832942

ARROWHEAD: SBO0067, 410-24248, IS0403, IS1386, MS195

LETRIKA (ISKRA): IS0403, AZJ3110, AZJ3116, AZJ3517, AZJ3535, AZJ3582, 11.130.140, 11.130.199, 11.130.322, 11.130.403, 11.130.410

MARELLI: 63216825, 63216826, 63216827, 63216831, MSN219, MT68AA, MT68AB, MT68AC, MT68AD

CARGO: 110529

J & N: 410-41002

LESTER: 17111, 18029

MAHLE: MS195

SPAREX: S-35971, S-62406

WAI: 50-9101

WHITE: 31-2903335, 31-2904907

Package Information
