STG50777 Starter Motor 5003617 for Volvo Penta Marine 4 & 6 Cylinder Engines | 12V 1.4KW 9T CW PMGR Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： STG50777

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

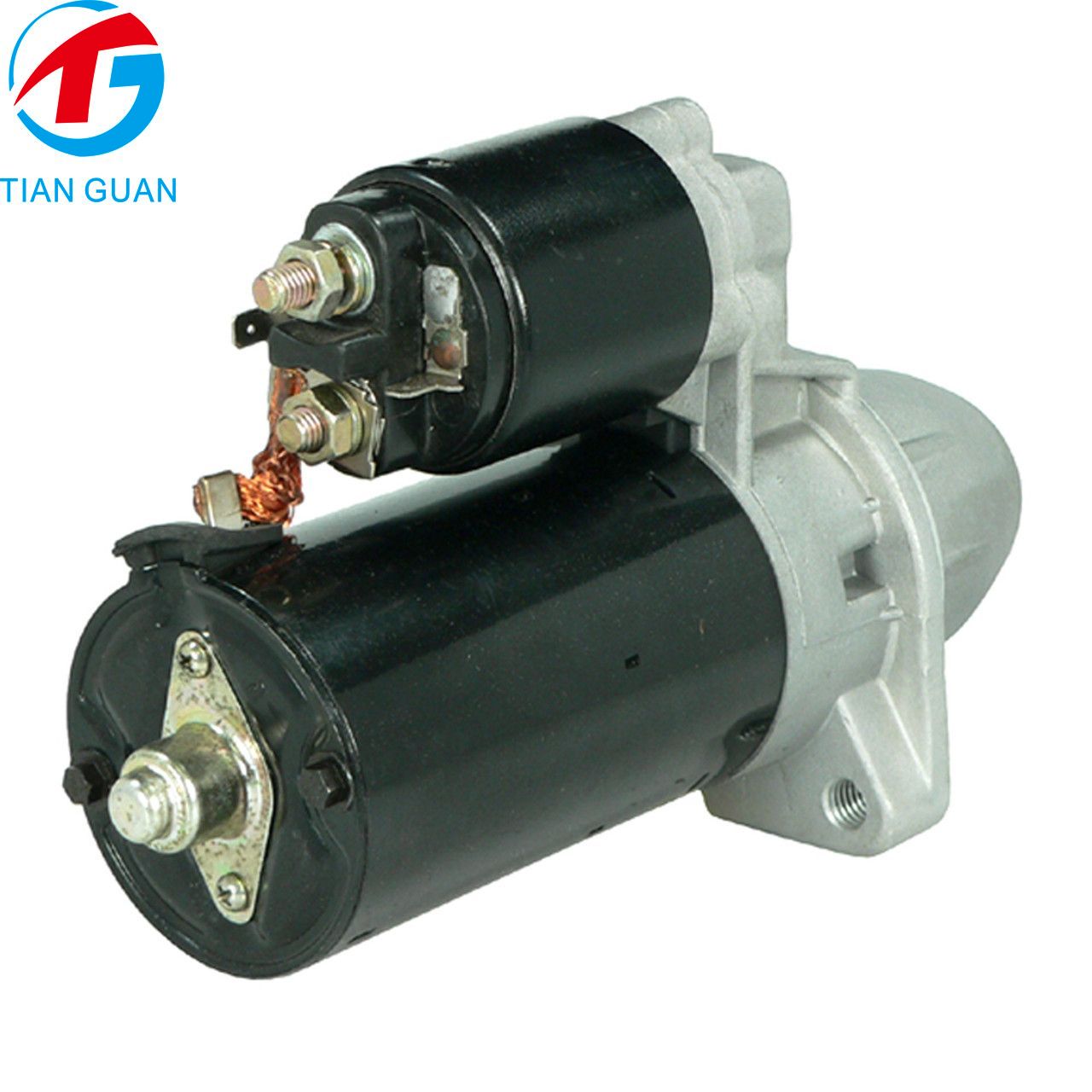

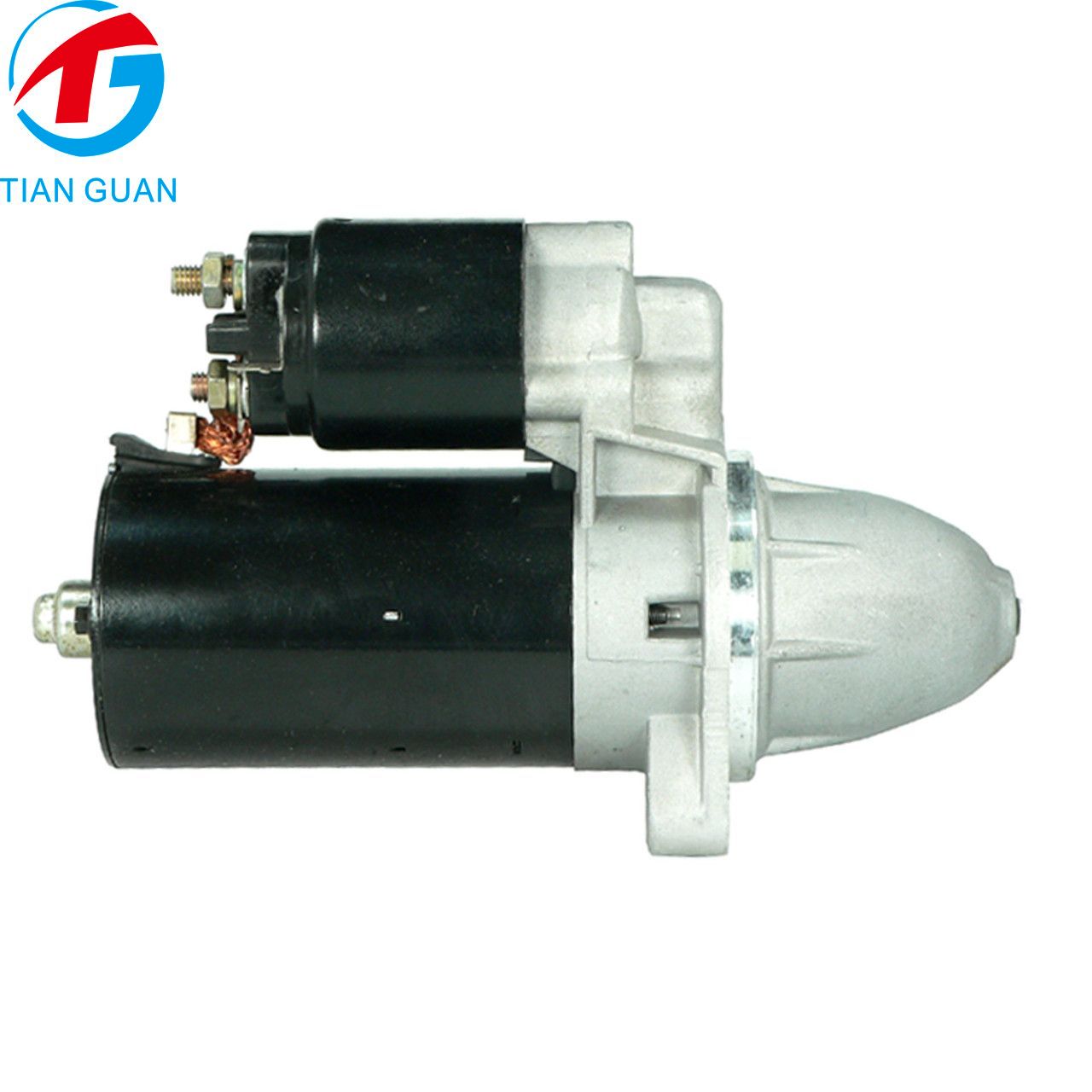

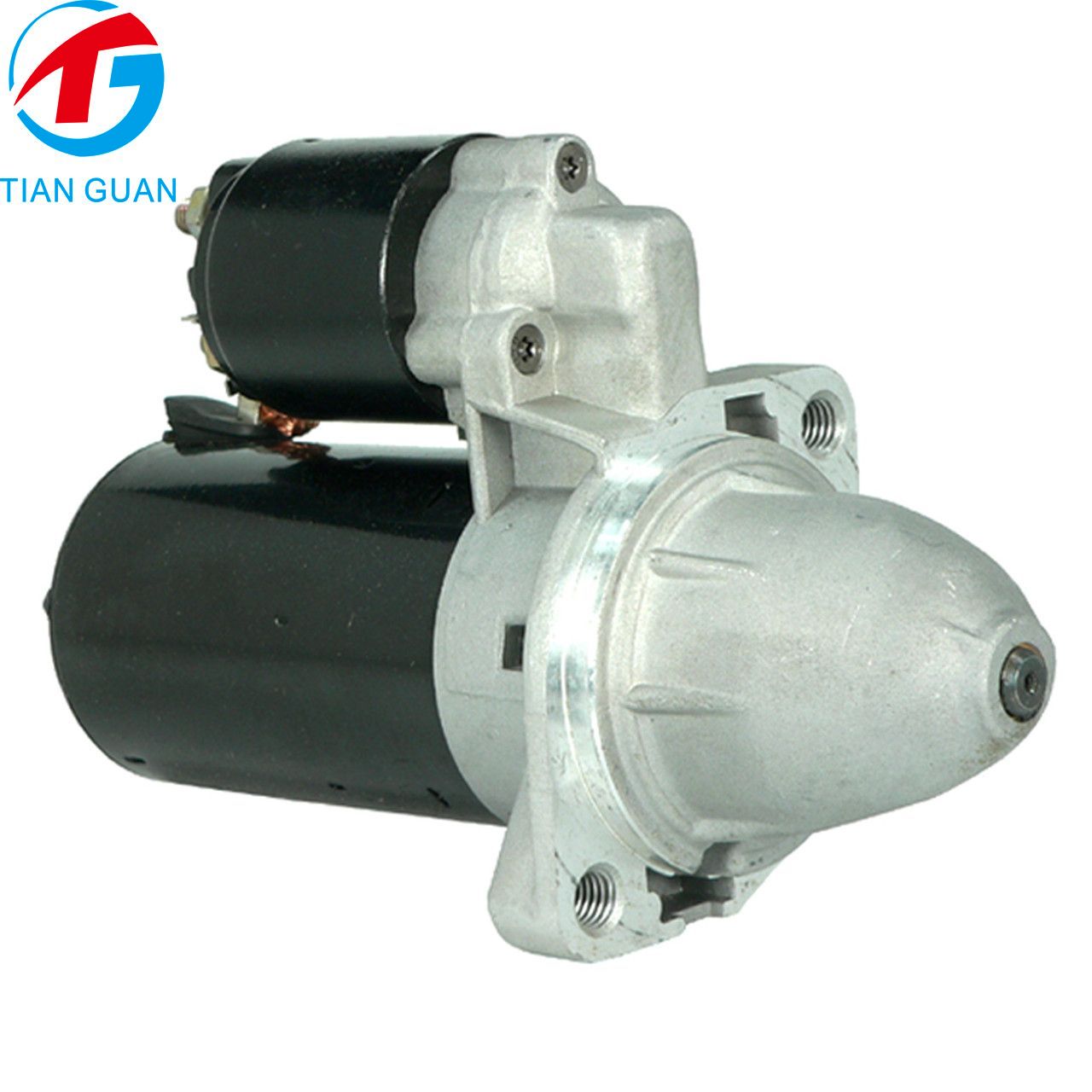

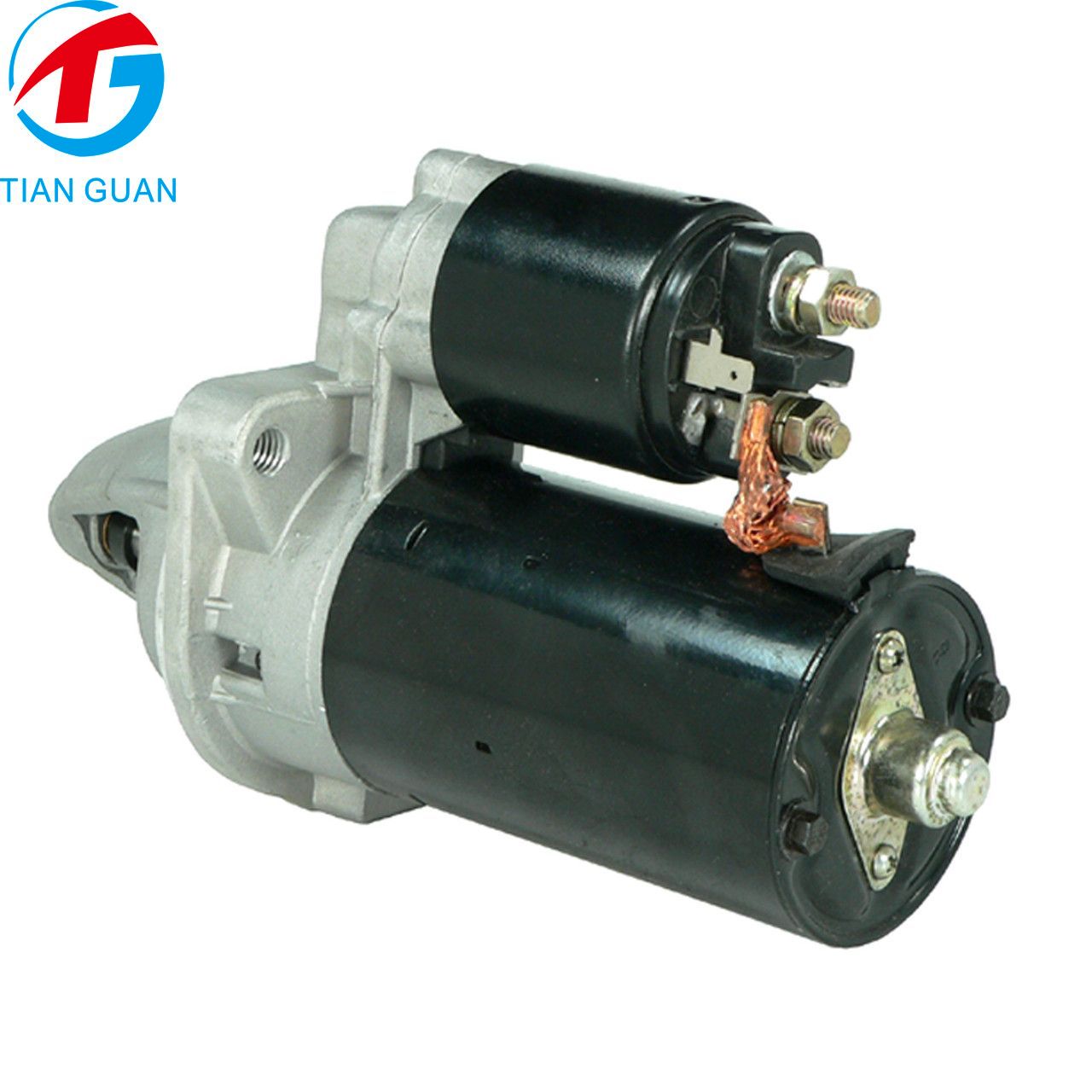

    STG50777 Starter Motor 5003617 for Volvo Penta Marine 4 & 6 Cylinder Engines | 12V 1.4KW 9T CW PMGR Replacement

    OEM Part Numbers: 5003617 / 5003617-7
    VOLVO PENTA Part Numbers: 5003617 / 5003617-7
    Cross Reference: 410-24048 / Lester 16353 / 16360 / 16954 / 16985 / 17135

    Product Description

    STG50777 Starter Motor is a high-quality aftermarket replacement designed for Volvo Penta Marine 4 & 6 Cylinder Engines.

    This marine starter features a 12V 1.4KW PMGR (Permanent Magnet Gear Reduction) design with 9-tooth pinion gear and CW (Clockwise) rotation, providing strong cranking torque, reliable ignition performance, and durable operation in marine environments.

    Product Specifications

    PropertyValue
    Product ModelSTG50777
    OEM Part Numbers5003617 / 5003617-7
    Reference Number410-24048
    Voltage12V
    Power Output1.0KW
    Starter TypePMGR (Permanent Magnet Gear Reduction)
    RotationCW (Clockwise)
    Teeth Count9T
    Gear OD25.3 mm
    Mounting TypeM12 Threaded Mounting Holes
    ApplicationVolvo Penta Marine 4 & 6 Cylinder Engines
    ConditionNew Aftermarket

    OEM / Cross Reference Table

    BrandPart Number
    VOLVO PENTA5003617 / 5003617-7 / 5003564 / 5003564-1 / 5001599 / 5001599-9 / 3523301 / 3523301-4 / 1357199 / 1357199-7
    ARROWHEAD410-24048 / BSR37X / BSR437X / IS0777 / MS266
    BOSCH0-001-108-030 / 0-001-108-088 / 0-001-305-016 / 0-001-311-001 / 0-001-311-027 / 0-001-311-103 / 0-001-311-104 / 0-001-311-127 / 0-001-311-146 / 0-001-311-147
    API MARINEST20A / ST20B
    ARCO MARINE10110 / 10111 / 10112
    CARGO110160 / 111054 / 111489
    EMP PARTS4-5918
    HITACHIS114-232 / S114-232A
    J&N410-24002 / 410-24048
    LESTER16353 / 16360 / 16954 / 16985 / 17135
    LETRIKA / ISKRAIS0777
    MAHLEMS266
    NSASTR-2003
    SIERRA MARINE18-5918
    WAI17135N / 2-1285-BO / 2-1288-BO / 2-1288-HI / 2-1290-BO

    Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    VOLVOAuto and Light Truck120 SERIES19621.8L
    VOLVOAuto and Light Truck120 SERIES19631.8L
    VOLVOAuto and Light Truck120 SERIES19641.8L
    VOLVOAuto and Light Truck120 SERIES19651.8L
    VOLVOAuto and Light Truck120 SERIES19661.8L
    VOLVOAuto and Light Truck120 SERIES19671.8L
    VOLVOAuto and Light Truck120 SERIES19681.8L
    VOLVOAuto and Light Truck140 SERIES19671.8L
    VOLVOAuto and Light Truck140 SERIES19681.8L
    VOLVOAuto and Light Truck140 SERIES19692.0L
    VOLVOAuto and Light Truck140 SERIES19702.0L
    VOLVOAuto and Light Truck140 SERIES19712.0L
    VOLVOAuto and Light Truck140 SERIES19722.0L
    VOLVOAuto and Light Truck140 SERIES19732.0L
    VOLVOAuto and Light Truck140 SERIES19742.0L
    VOLVOAuto and Light Truck160 SERIES19693.0L
    VOLVOAuto and Light Truck160 SERIES19703.0L
    VOLVOAuto and Light Truck160 SERIES19713.0L
    VOLVOAuto and Light Truck160 SERIES19723.0L
    VOLVOAuto and Light Truck160 SERIES19733.0L
    VOLVOAuto and Light Truck160 SERIES19743.0L
    VOLVOAuto and Light Truck160 SERIES19753.0L
    VOLVOAuto and Light Truck1800 SERIES19621.8L
    VOLVOAuto and Light Truck1800 SERIES19631.8L
    VOLVOAuto and Light Truck1800 SERIES19641.8L
    VOLVOAuto and Light Truck1800 SERIES19651.8L
    VOLVOAuto and Light Truck1800 SERIES19661.8L
    VOLVOAuto and Light Truck1800 SERIES19671.8L
    VOLVOAuto and Light Truck1800 SERIES19681.8L
    VOLVOAuto and Light Truck1800 SERIES19692.0L
    VOLVOAuto and Light Truck1800 SERIES19702.0L
    VOLVOAuto and Light Truck1800 SERIES19712.0L
    VOLVOAuto and Light Truck1800 SERIES19722.0L
    VOLVOAuto and Light Truck1800 SERIES19732.0L
    VOLVOAuto and Light Truck24019902.3L
    VOLVOAuto and Light Truck24019912.3L
    VOLVOAuto and Light Truck24019922.3L
    VOLVOAuto and Light Truck24019932.3L
    VOLVOAuto and Light Truck242, 244, 24519752.0L
    VOLVOAuto and Light Truck242, 244, 24519762.1L
    VOLVOAuto and Light Truck242, 244, 24519772.1L
    VOLVOAuto and Light Truck242, 244, 24519782.1L
    VOLVOAuto and Light Truck242, 244, 24519792.1L
    VOLVOAuto and Light Truck242, 244, 24519802.1L
    VOLVOAuto and Light Truck242, 244, 24519812.1L
    VOLVOAuto and Light Truck242, 244, 24519812.3L
    VOLVOAuto and Light Truck242, 244, 24519822.1L
    VOLVOAuto and Light Truck242, 244, 24519822.3L
    VOLVOAuto and Light Truck242, 244, 24519832.1L
    VOLVOAuto and Light Truck242, 244, 24519832.3L
    VOLVOAuto and Light Truck242, 244, 24519842.1L
    VOLVOAuto and Light Truck242, 244, 24519842.3L
    VOLVOAuto and Light Truck244, 24519852.1L
    VOLVOAuto and Light Truck244, 24519852.3L
    VOLVOAuto and Light Truck244, 24519862.3L
    VOLVOAuto and Light Truck244, 24519872.3L
    VOLVOAuto and Light Truck244, 24519882.3L
    VOLVOAuto and Light Truck244, 24519892.3L
    VOLVOAuto and Light Truck544 SERIES19621.8L
    VOLVOAuto and Light Truck544 SERIES19631.8L
    VOLVOAuto and Light Truck544 SERIES19641.8L
    VOLVOAuto and Light Truck544 SERIES19651.8L
    VOLVOAuto and Light Truck740 SERIES19852.3L
    VOLVOAuto and Light Truck740 SERIES19862.3L
    VOLVOAuto and Light Truck740 SERIES19872.3L
    VOLVOAuto and Light Truck740 SERIES19882.3L
    VOLVOAuto and Light Truck740 SERIES19892.3L
    VOLVOAuto and Light Truck740 SERIES19902.3L
    VOLVOAuto and Light Truck740 SERIES19912.3L
    VOLVOAuto and Light Truck740 SERIES19922.3L
    VOLVOAuto and Light Truck760 SERIES19842.3L
    VOLVOAuto and Light Truck760 SERIES19852.3L
    VOLVOAuto and Light Truck760 SERIES19862.3L
    VOLVOAuto and Light Truck760 SERIES19872.3L
    VOLVOAuto and Light Truck760 SERIES19882.3L
    VOLVOAuto and Light Truck760 SERIES19892.3L
    VOLVOAuto and Light Truck760 SERIES19902.3L
    VOLVOAuto and Light Truck780 SERIES19892.3L
    VOLVOAuto and Light Truck780 SERIES19902.3L
    VOLVOAuto and Light Truck780 SERIES19912.3L
    VOLVOAuto and Light Truck940 SERIES19912.3L
    VOLVOAuto and Light Truck940 SERIES19922.3L
    VOLVOAuto and Light Truck940 SERIES19932.3L
    VOLVOAuto and Light Truck940 SERIES19942.3L
    VOLVOAuto and Light Truck940 SERIES19952.3L

    Weight & Package Information

    ItemValue
    Net Weight3.6  KG
    Gross Weight4.2  KG
    Package Size30 × 22 × 22 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Volvo Penta Marine Replacement12V 1.4KW PMGR Starter Design410-24048 Equivalent
    9T Pinion Gear ConfigurationCW Rotation Starter MotorReliable Marine Engine Starting
    Marine Grade Starter StructureDirect OEM ReplacementDurable Corrosion-Resistant Performance
