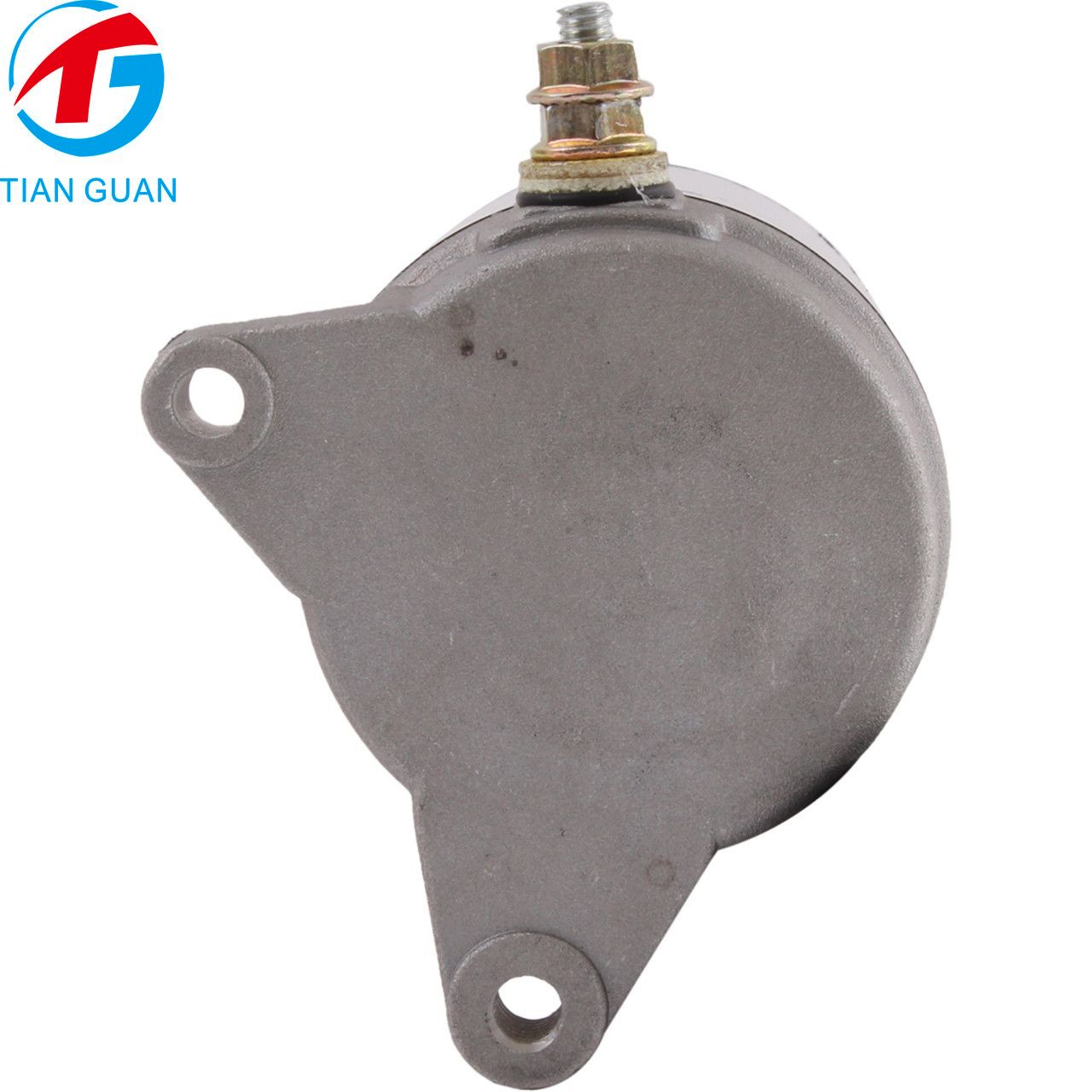

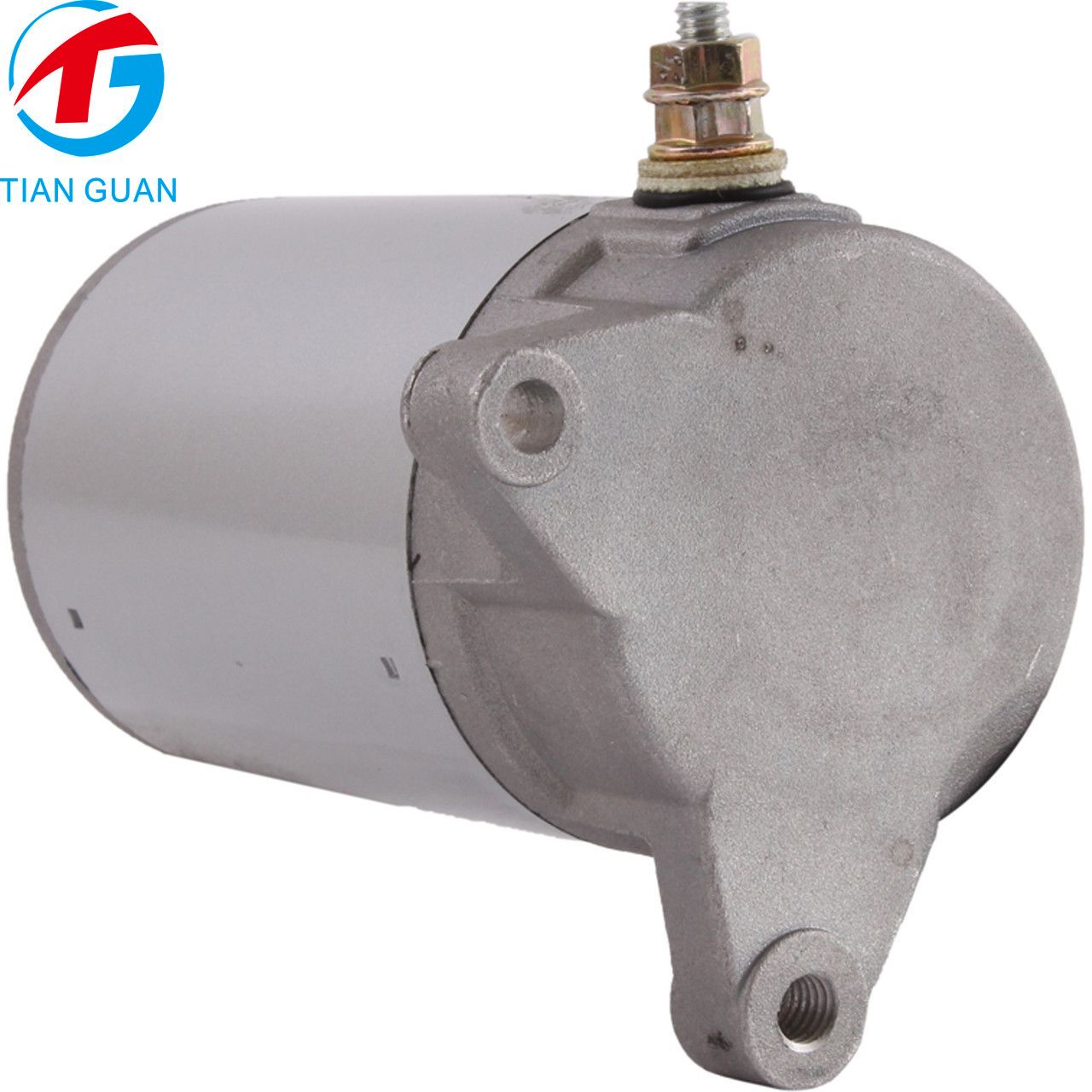

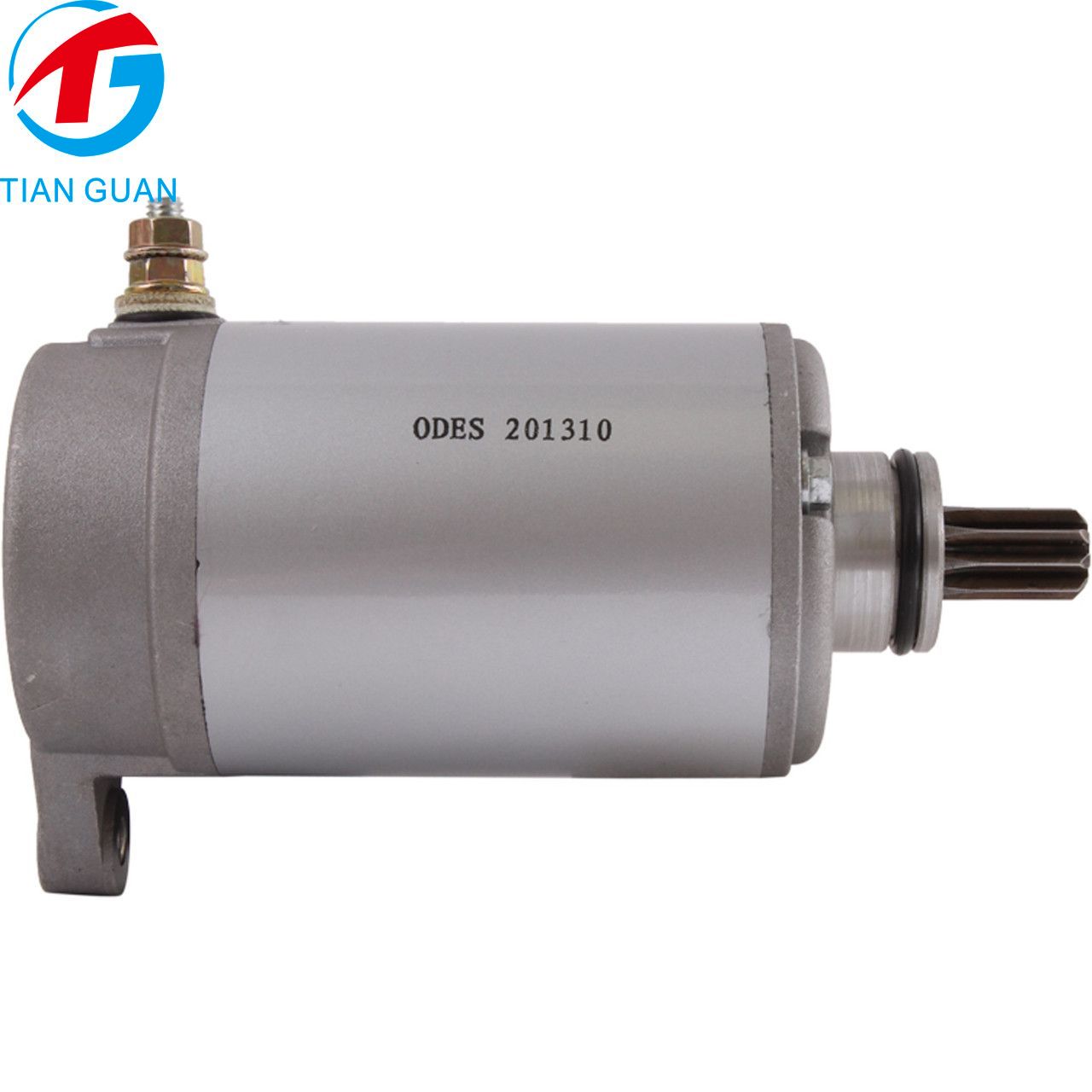

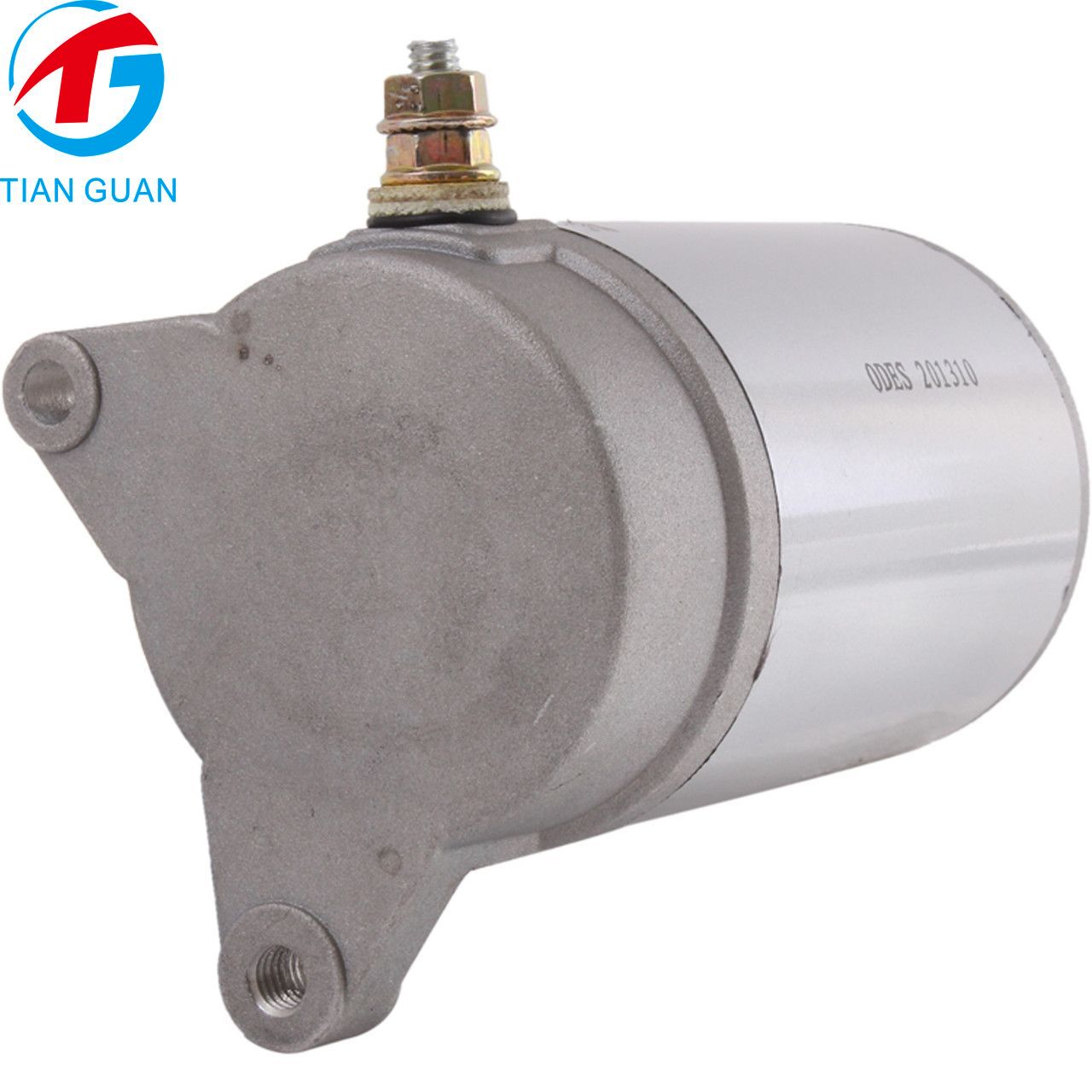

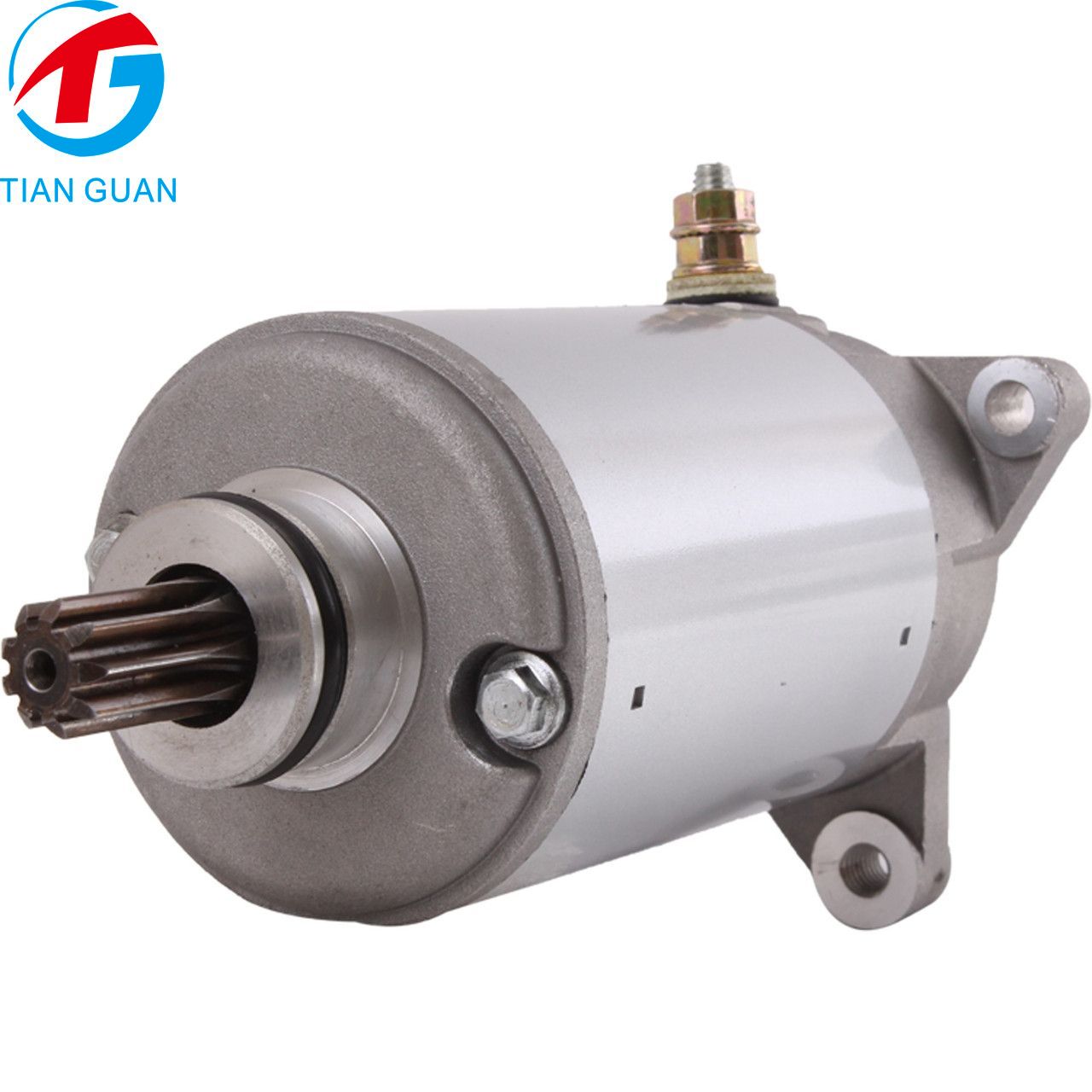

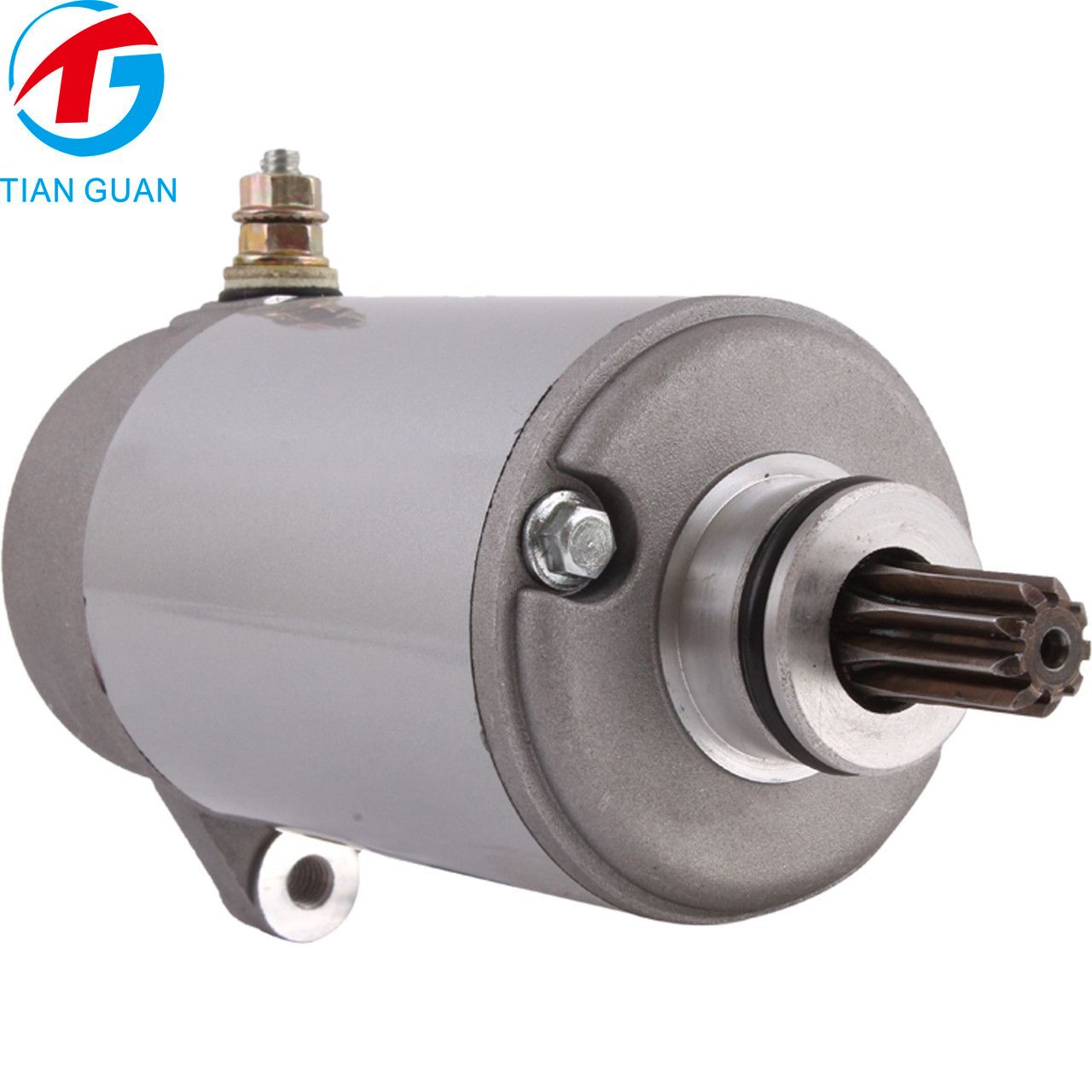

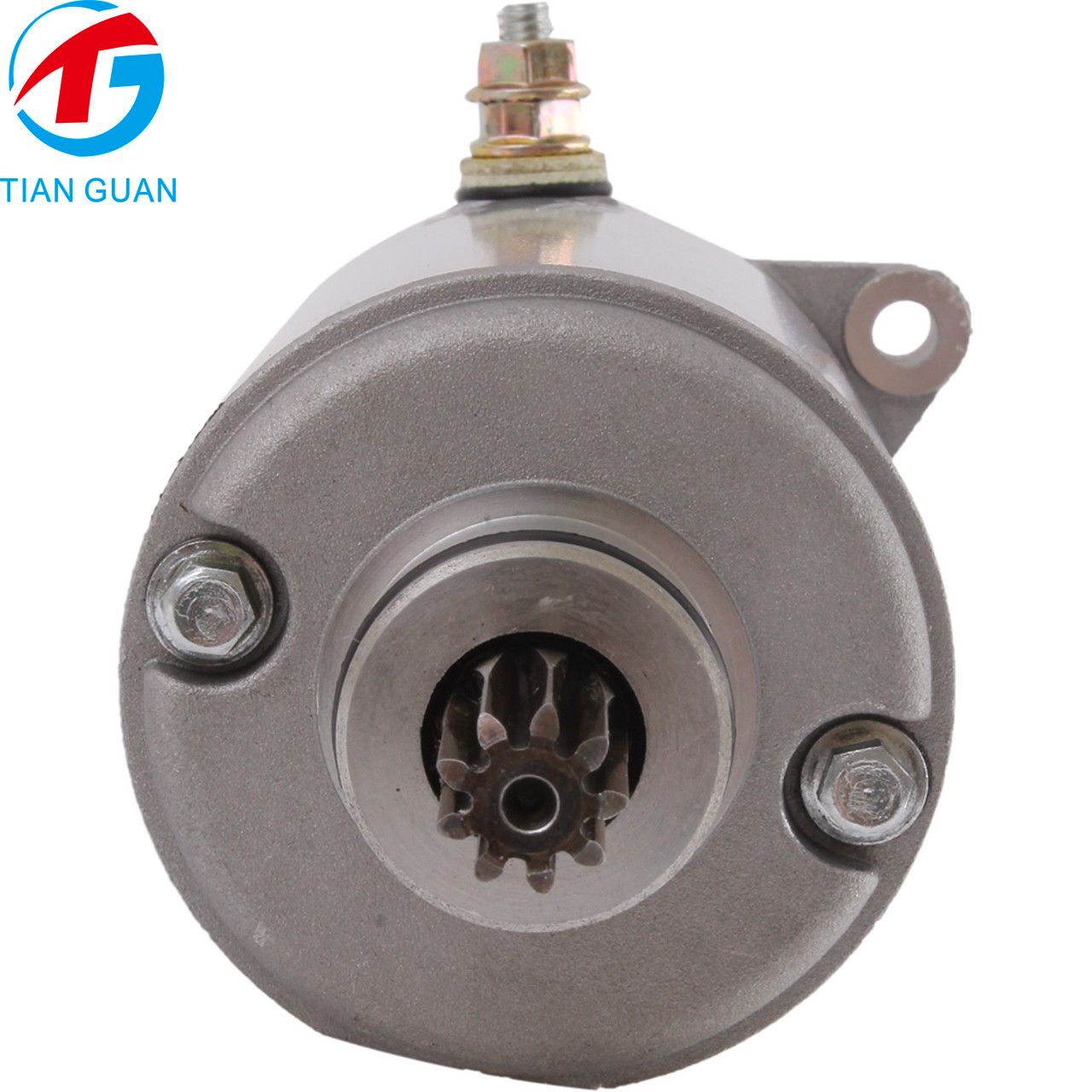

STG51024 Starter Motor 18880 410-52128 420-684-560 420-684-562 for Bombardier Can-Am Outlander 650XT Outlander 800XT ATV | 12V 0.7KW 9T CCW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG51024

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS


    STG51024 Starter Motor 18880 410-52128 420-684-560 420-684-562 for Bombardier Can-Am Outlander 650XT Outlander 800XT ATV | 12V 0.7KW 9T CCW PMDD Replacement

    Part Numbers

    BOMBARDIER / CAN-AM: 420-684-560 / 420-684-562

    DENSO: 428000-3580

    ARROWHEAD: 410-52128 / SND0513

    J&N: 410-52128

    LESTER: 18880

    TUCKER ROCKY: 464257 / 495269 / 49-5269

    WILSON SMALL ENGINE: 71-29-18880

    The starter cross references include Bombardier 420-684-560/420-684-562, Denso 428000-3580, Arrowhead 410-52128, and Lester 18880. The unit specification is 12V, 9T, CCW, PMDD.

    Product Description

    STG51024 Starter Motor is a high-quality aftermarket replacement designed for Bombardier and Can-Am ATV/UTV applications, including Outlander 650XT and Outlander 800XT models.

    Featuring a 12V, 0.7KW, 9-tooth, counterclockwise-rotation PMDD (Permanent Magnet Direct Drive) design, it provides reliable engine cranking performance and stable starting power for ATV and utility vehicle applications.

    This starter replaces Bombardier 420-684-560 / 420-684-562, Denso 428000-3580, Arrowhead 410-52128, and Lester 18880 starter assemblies.

    Product Specifications

    PropertyValue
    Product ModelSTG51024
    Part Numbers18880 / 410-52128 / 420-684-560
    Voltage12V
    Power Output0.7 KW
    Number of Teeth9T
    Starter TypePMDD (Permanent Magnet Direct Drive)
    RotationCCW
    ConditionNew Aftermarket
    ApplicationATV / UTV Starter
    Compatible BrandBombardier / Can-Am
    Engine Range500cc / 650cc / 800cc

    OEM / Cross Reference Table

    BrandPart Number
    BOMBARDIER / CAN-AM420-684-560 / 420-684-562
    DENSO428000-3580
    ARROWHEAD410-52128 / SND0513
    J&N410-52128
    LESTER18880
    TUCKER ROCKY464257 / 495269 / 49-5269
    WILSON SMALL ENGINE71-29-18880

    Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    BOMBARDIERATVOutlander 650 4x42006650cc
    BOMBARDIERATVOutlander 650 XT 4x42006650cc
    BOMBARDIERATVOutlander 800 4x42006800cc
    BOMBARDIERATVOutlander 800 XT 4x42006800cc
    BOMBARDIERATVOutlander Max 650 4x42006650cc
    BOMBARDIERATVOutlander Max 650 XT 4x42006650cc
    BOMBARDIERATVOutlander Max 800 4x42006800cc
    BOMBARDIERATVOutlander Max 800 XT 4x42006800cc
    CAN-AMATVOutlander 1000 6x6 Pro2018976cc
    CAN-AMATVOutlander 1000 6x6 XT2014976cc
    CAN-AMATVOutlander 1000 6x6 XT2015976cc
    CAN-AMATVOutlander 1000 6x6 XT2016976cc
    CAN-AMATVOutlander 1000 6x6 XT2017976cc
    CAN-AMATVOutlander 1000 6x6 XT2018976cc
    CAN-AMATVOutlander 1000 6x6 XT2019976cc
    CAN-AMATVOutlander 1000 EFI2012976cc
    CAN-AMATVOutlander 1000 EFI2013976cc
    CAN-AMATVOutlander 1000 EFI2014976cc
    CAN-AMATVOutlander 1000 EFI2015976cc
    CAN-AMATVOutlander 1000 EFI2016976cc
    CAN-AMATVOutlander 1000 EFI2017976cc
    CAN-AMATVOutlander 1000 EFI2018976cc
    CAN-AMATVOutlander 1000 EFI2019976cc
    CAN-AMATVOutlander 1000 EFI DPS2013976cc
    CAN-AMATVOutlander 1000 EFI DPS2014976cc
    CAN-AMATVOutlander 1000 EFI DPS2015976cc
    CAN-AMATVOutlander 1000 EFI DPS2016976cc
    CAN-AMATVOutlander 1000 EFI DPS2017976cc
    CAN-AMATVOutlander 1000 EFI DPS2018976cc
    CAN-AMATVOutlander 1000 EFI Hunter Edition2018976cc
    CAN-AMATVOutlander 1000 EFI MOS2017976cc
    CAN-AMATVOutlander 1000 EFI Pro2017976cc
    CAN-AMATVOutlander 1000 EFI XMR2013976cc
    CAN-AMATVOutlander 1000 EFI XMR2014976cc
    CAN-AMATVOutlander 1000 EFI XMR2015976cc
    CAN-AMATVOutlander 1000 EFI XMR2016976cc
    CAN-AMATVOutlander 1000 EFI XMR2017976cc
    CAN-AMATVOutlander 1000 EFI XT2012976cc
    CAN-AMATVOutlander 1000 EFI XT2013976cc
    CAN-AMATVOutlander 1000 EFI XT2014976cc
    CAN-AMATVOutlander 1000 EFI XT2015976cc
    CAN-AMATVOutlander 1000 EFI XT2016976cc
    CAN-AMATVOutlander 1000 EFI XT2017976cc
    CAN-AMATVOutlander 1000 EFI XT2018976cc
    CAN-AMATVOutlander 1000 EFI XTP2013976cc
    CAN-AMATVOutlander 1000 EFI XTP2014976cc
    CAN-AMATVOutlander 1000 EFI XTP2015976cc
    CAN-AMATVOutlander 1000 EFI XTP2016976cc
    CAN-AMATVOutlander 1000 EFI XTP2017976cc
    CAN-AMATVOutlander 1000 EFI XTP2018976cc
    CAN-AMATVOutlander 1000 EFI XXC2018976cc
    CAN-AMATVOutlander 500 4x42007500cc
    CAN-AMATVOutlander 500 4x42008500cc
    CAN-AMATVOutlander 500 4x4 XT2007500cc
    CAN-AMATVOutlander 500 4x4 XT2008500cc
    CAN-AMATVOutlander 500 EFI2009500cc
    CAN-AMATVOutlander 500 EFI2010500cc
    CAN-AMATVOutlander 500 EFI2011500cc
    CAN-AMATVOutlander 500 EFI2012500cc
    CAN-AMATVOutlander 500 EFI2013500cc
    CAN-AMATVOutlander 500 EFI2014500cc
    CAN-AMATVOutlander 500 EFI2015500cc
    CAN-AMATVOutlander 500 EFI DPS2013500cc
    CAN-AMATVOutlander 500 EFI DPS2014500cc
    CAN-AMATVOutlander 500 EFI DPS2015500cc
    CAN-AMATVOutlander 500 EFI XT2009500cc
    CAN-AMATVOutlander 500 EFI XT2012500cc
    CAN-AMATVOutlander 500 EFI XT2013500cc
    CAN-AMATVOutlander 500 EFI XT2014500cc
    CAN-AMATVOutlander 500 EFI XT2015500cc
    CAN-AMATVOutlander 570 EFI2017570cc
    CAN-AMATVOutlander 570 EFI2018570cc
    CAN-AMATVOutlander 570 EFI2019570cc
    CAN-AMATVOutlander 570 EFI DPS2016570cc
    CAN-AMATVOutlander 570 EFI DPS2017570cc
    CAN-AMATVOutlander 570 EFI DPS2018570cc
    CAN-AMATVOutlander 570 EFI DPS2019570cc
    CAN-AMATVOutlander 570 EFI Hunter Edition2018570cc
    CAN-AMATVOutlander 570 EFI Pro2016570cc
    CAN-AMATVOutlander 570 EFI Pro2017570cc
    CAN-AMATVOutlander 570 EFI Pro2018570cc
    CAN-AMATVOutlander 570 EFI Pro Nordic2019570cc
    CAN-AMATVOutlander 570 EFI XMR2017570cc
    CAN-AMATVOutlander 570 EFI XMR2018570cc
    CAN-AMATVOutlander 570 EFI XT2016570cc
    CAN-AMATVOutlander 570 EFI XT2017570cc
    CAN-AMATVOutlander 570 EFI XT2018570cc
    CAN-AMATVOutlander 650 4x42007650cc
    CAN-AMATVOutlander 650 4x42008650cc
    CAN-AMATVOutlander 650 4x4 XT2007650cc
    CAN-AMATVOutlander 650 4x4 XT2008650cc
    CAN-AMATVOutlander 650 6x6 DPS2016650cc
    CAN-AMATVOutlander 650 6x6 DPS2017650cc
    CAN-AMATVOutlander 650 6x6 DPS2018650cc
    CAN-AMATVOutlander 650 6x6 DPS2019650cc
    CAN-AMATVOutlander 650 6x6 XT2014650cc
    CAN-AMATVOutlander 650 6x6 XT2015650cc
    CAN-AMATVOutlander 650 6x6 XT2016650cc
    CAN-AMATVOutlander 650 EFI2009650cc
    CAN-AMATVOutlander 650 EFI2010650cc
    CAN-AMATVOutlander 650 EFI2011650cc
    CAN-AMATVOutlander 650 EFI2012650cc
    CAN-AMATVOutlander 650 EFI2013650cc
    CAN-AMATVOutlander 650 EFI2014650cc
    CAN-AMATVOutlander 650 EFI2015650cc
    CAN-AMATVOutlander 650 EFI2016650cc
    CAN-AMATVOutlander 650 EFI2017650cc
    CAN-AMATVOutlander 650 EFI2018650cc
    CAN-AMATVOutlander 650 EFI2019650cc
    CAN-AMATVOutlander 650 EFI DPS2013650cc
    CAN-AMATVOutlander 650 EFI DPS2014650cc
    CAN-AMATVOutlander 650 EFI DPS2015650cc
    CAN-AMATVOutlander 650 EFI DPS2016650cc
    CAN-AMATVOutlander 650 EFI DPS2017650cc
    CAN-AMATVOutlander 650 EFI DPS2018650cc
    CAN-AMATVOutlander 650 EFI North Edition2018650cc
    CAN-AMATVOutlander 650 EFI Pro2016650cc
    CAN-AMATVOutlander 650 EFI Pro2017650cc
    CAN-AMATVOutlander 650 EFI Pro2018650cc
    CAN-AMATVOutlander 650 EFI XMR2013650cc
    CAN-AMATVOutlander 650 EFI XMR2014650cc
    CAN-AMATVOutlander 650 EFI XMR2015650cc
    CAN-AMATVOutlander 650 EFI XMR2016650cc
    CAN-AMATVOutlander 650 EFI XMR2017650cc
    CAN-AMATVOutlander 650 EFI XMR2018650cc
    CAN-AMATVOutlander 650 EFI XT2009650cc
    CAN-AMATVOutlander 650 EFI XT2012650cc
    CAN-AMATVOutlander 650 EFI XT2013650cc
    CAN-AMATVOutlander 650 EFI XT2014650cc
    CAN-AMATVOutlander 650 EFI XT2015650cc
    CAN-AMATVOutlander 650 EFI XT2016650cc
    CAN-AMATVOutlander 650 EFI XT2017650cc
    CAN-AMATVOutlander 650 EFI XT2018650cc
    CAN-AMATVOutlander 650 EFI XTP2016650cc
    CAN-AMATVOutlander 800 4x42007800cc
    CAN-AMATVOutlander 800 4x42008800cc
    CAN-AMATVOutlander 800 4x4 XT2007800cc
    CAN-AMATVOutlander 800 4x4 XT2008800cc
    CAN-AMATVOutlander 800R EFI2009800cc
    CAN-AMATVOutlander 800R EFI2010800cc
    CAN-AMATVOutlander 800R EFI2011800cc
    CAN-AMATVOutlander 800R EFI2012800cc
    CAN-AMATVOutlander 800R EFI2013800cc
    CAN-AMATVOutlander 800R EFI2014800cc
    CAN-AMATVOutlander 800R EFI2015800cc
    CAN-AMATVOutlander 800R EFI DPS2013800cc
    CAN-AMATVOutlander 800R EFI DPS2014800cc
    CAN-AMATVOutlander 800R EFI DPS2015800cc
    CAN-AMATVOutlander 800R EFI XMR2011800cc
    CAN-AMATVOutlander 800R EFI XMR2012800cc
    CAN-AMATVOutlander 800R EFI XT2009800cc
    CAN-AMATVOutlander 800R EFI XT2012800cc
    CAN-AMATVOutlander 800R EFI XT2013800cc
    CAN-AMATVOutlander 800R EFI XT2014800cc
    CAN-AMATVOutlander 800R EFI XT2015800cc
    CAN-AMATVOutlander 800R EFI XTP2013800cc
    CAN-AMATVOutlander 800R EFI XTP2014800cc
    CAN-AMATVOutlander 800R EFI XTP2015800cc
    CAN-AMATVOutlander 800R EFI XXC2011800cc
    CAN-AMATVOutlander 850 EFI DPS2016850cc
    CAN-AMATVOutlander 850 EFI DPS2017850cc
    CAN-AMATVOutlander 850 EFI DPS2018850cc
    CAN-AMATVOutlander 850 EFI DPS2019850cc
    CAN-AMATVOutlander 850 EFI MOS2017850cc
    CAN-AMATVOutlander 850 EFI North Edition2018850cc
    CAN-AMATVOutlander 850 EFI XMR2016850cc
    CAN-AMATVOutlander 850 EFI XMR2017850cc
    CAN-AMATVOutlander 850 EFI XMR2018850cc
    CAN-AMATVOutlander 850 EFI XT2016850cc
    CAN-AMATVOutlander 850 EFI XT2017850cc
    CAN-AMATVOutlander 850 EFI XT2018850cc
    CAN-AMATVOutlander 850 EFI XTP2016850cc
    CAN-AMATVOutlander 850 EFI XTP2017850cc
    CAN-AMATVOutlander 850 EFI XTP2018850cc
    CAN-AMATVOutlander L 500 EFI2015500cc
    CAN-AMATVOutlander L 500 EFI DPS2015500cc
    CAN-AMATVOutlander L 570 EFI2016570cc
    CAN-AMATVOutlander L 570 EFI DPS2016570cc
    CAN-AMATVOutlander L 570 EFI Pro2016570cc
    CAN-AMATVOutlander L 570 EFI XMR2016570cc
    CAN-AMATVOutlander L Max 500 EFI2015500cc
    CAN-AMATVOutlander L Max 500 EFI DPS2015500cc
    CAN-AMATVOutlander L Max 570 EFI DPS2016570cc
    CAN-AMATVOutlander L Max 570 EFI STD2016570cc
    CAN-AMATVOutlander Max 1000 6x62019976cc
    CAN-AMATVOutlander Max 1000 EFI2013976cc
    CAN-AMATVOutlander Max 1000 EFI2014976cc
    CAN-AMATVOutlander Max 1000 EFI2015976cc
    CAN-AMATVOutlander Max 1000 EFI2016976cc
    CAN-AMATVOutlander Max 1000 EFI2017976cc
    CAN-AMATVOutlander Max 1000 EFI2018976cc
    CAN-AMATVOutlander Max 1000 EFI2019976cc
    CAN-AMATVOutlander Max 1000 EFI DPS2013976cc
    CAN-AMATVOutlander Max 1000 EFI DPS2014976cc
    CAN-AMATVOutlander Max 1000 EFI DPS2015976cc
    CAN-AMATVOutlander Max 1000 EFI DPS2017976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2013976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2014976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2015976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2016976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2017976cc
    CAN-AMATVOutlander Max 1000 EFI LTD2018976cc
    CAN-AMATVOutlander Max 1000 EFI Pro2016976cc
    CAN-AMATVOutlander Max 1000 EFI Pro2017976cc
    CAN-AMATVOutlander Max 1000 EFI Pro2018976cc
    CAN-AMATVOutlander Max 1000 EFI XMR2018976cc
    CAN-AMATVOutlander Max 1000 EFI XT2013976cc
    CAN-AMATVOutlander Max 1000 EFI XT2014976cc
    CAN-AMATVOutlander Max 1000 EFI XT2015976cc
    CAN-AMATVOutlander Max 1000 EFI XT2016976cc
    CAN-AMATVOutlander Max 1000 EFI XT2017976cc
    CAN-AMATVOutlander Max 1000 EFI XT2018976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2013976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2014976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2015976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2016976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2017976cc
    CAN-AMATVOutlander Max 1000 EFI XTP2018976cc
    CAN-AMATVOutlander Max 500 4x42007500cc
    CAN-AMATVOutlander Max 500 4x42008500cc
    CAN-AMATVOutlander Max 500 4x4 XT2007500cc
    CAN-AMATVOutlander Max 500 4x4 XT2008500cc
    CAN-AMATVOutlander Max 500 EFI2009500cc
    CAN-AMATVOutlander Max 500 EFI2010500cc
    CAN-AMATVOutlander Max 500 EFI2011500cc
    CAN-AMATVOutlander Max 500 EFI2012500cc
    CAN-AMATVOutlander Max 500 EFI2013500cc
    CAN-AMATVOutlander Max 500 EFI2014500cc
    CAN-AMATVOutlander Max 500 EFI2015500cc
    CAN-AMATVOutlander Max 500 EFI DPS2013500cc
    CAN-AMATVOutlander Max 500 EFI DPS2014500cc
    CAN-AMATVOutlander Max 500 EFI DPS2015500cc
    CAN-AMATVOutlander Max 500 EFI XT2009500cc
    CAN-AMATVOutlander Max 500 EFI XT2012500cc
    CAN-AMATVOutlander Max 500 EFI XT2013500cc
    CAN-AMATVOutlander Max 500 EFI XT2014500cc
    CAN-AMATVOutlander Max 500 EFI XT2015500cc
    CAN-AMATVOutlander Max 570 EFI2017570cc
    CAN-AMATVOutlander Max 570 EFI2018570cc
    CAN-AMATVOutlander Max 570 EFI2019570cc
    CAN-AMATVOutlander Max 570 EFI DPS2016570cc
    CAN-AMATVOutlander Max 570 EFI DPS2017570cc
    CAN-AMATVOutlander Max 570 EFI DPS2018570cc
    CAN-AMATVOutlander Max 570 EFI DPS2019570cc
    CAN-AMATVOutlander Max 570 EFI Pro2016570cc
    CAN-AMATVOutlander Max 570 EFI Pro2017570cc
    CAN-AMATVOutlander Max 570 EFI Pro2018570cc
    CAN-AMATVOutlander Max 570 EFI Pro Nordic2019570cc
    CAN-AMATVOutlander Max 570 EFI XT2016570cc
    CAN-AMATVOutlander Max 570 EFI XT2017570cc
    CAN-AMATVOutlander Max 570 EFI XT2018570cc
    CAN-AMATVOutlander Max 570 EFI XT2019570cc
    CAN-AMATVOutlander Max 650 4x42007650cc
    CAN-AMATVOutlander Max 650 4x42008650cc
    CAN-AMATVOutlander Max 650 4x4 Pro2018650cc
    CAN-AMATVOutlander Max 650 4x4 XT2007650cc
    CAN-AMATVOutlander Max 650 4x4 XT2008650cc
    CAN-AMATVOutlander Max 650 4x4 XT2017650cc
    CAN-AMATVOutlander Max 650 4x4 XT2018650cc
    CAN-AMATVOutlander Max 650 4x4 XT2019650cc
    CAN-AMATVOutlander Max 650 EFI2009650cc
    CAN-AMATVOutlander Max 650 EFI2010650cc
    CAN-AMATVOutlander Max 650 EFI2011650cc
    CAN-AMATVOutlander Max 650 EFI2012650cc
    CAN-AMATVOutlander Max 650 EFI2013650cc
    CAN-AMATVOutlander Max 650 EFI2014650cc
    CAN-AMATVOutlander Max 650 EFI2015650cc

    Packing Information

    ItemValue
    Net Weight (NW)1.8 KG
    Gross Weight (GW)2.3 KG
    Carton Size26 × 18 × 18 CM
    Package Volume0.0084 m³
    Package Includes1 × Starter Motor
    <!--=""-->

  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Bombardier ATV Replacement12V 9T Starter MotorCCW PMDD Design
    Outlander 650XT / 800XT Compatible420-684-560 OEM ReplacementDenso 428000-3580 Cross Reference
    ATV / UTV ApplicationReliable Starting PerformanceDirect Aftermarket Replacement

  • SHIPPING

    Item Details
    Processing Time Orders are processed within 1-3 business days after payment confirmation
    Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight
    Estimated Delivery Time Express shipping: 3-7 business days, depending on destination
    Packaging Export-standard cartons with protective inner packing
    Tracking Tracking number will be provided once the order is shipped
    Shipping Cost Calculated based on weight, dimensions, and destination

Need Help?

Our product experts will respond to your email within 24 business hours.

Question *

Name *

Email *

Verification code *

    WARRANTY POLICY

    All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.

    SHIPPING POLICY

    We offer express and standard shipping options to ensure your off-road machine gets back in action—fast and reliably. For more details, please visit our Shipping Policy .

    EASY RETURN POLICY

    We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.

PRODUCT RECOMMENDATION

WhatsApp图标
