STG51032 Starter Motor 410-22077 for Polaris Sportsman 570 ACE EFI 567cc | 12V 0.45KW 9T CW PMDD Replacement

3 Reviews

Add Your Review

US$98.00

ITEMNO： STG51032

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

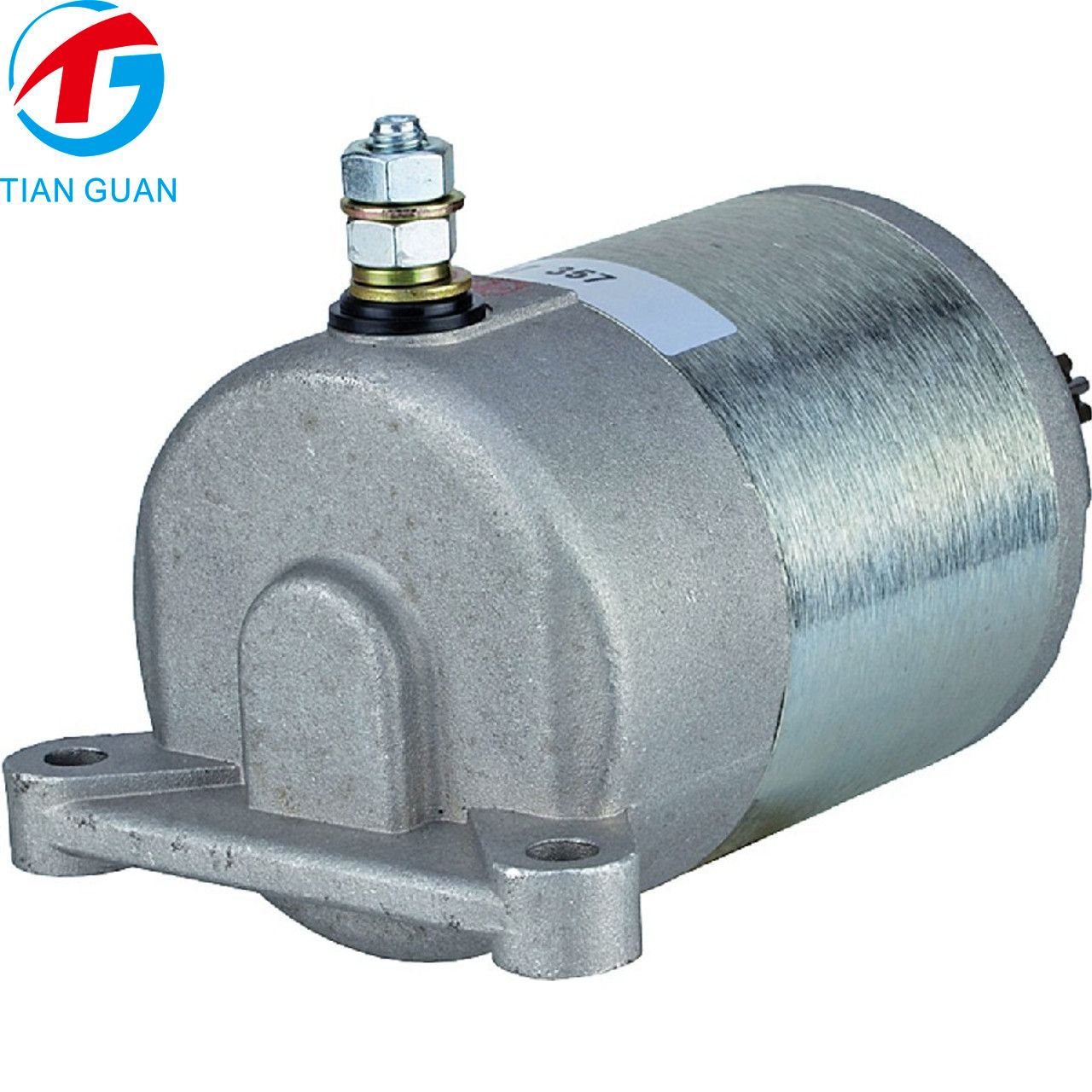

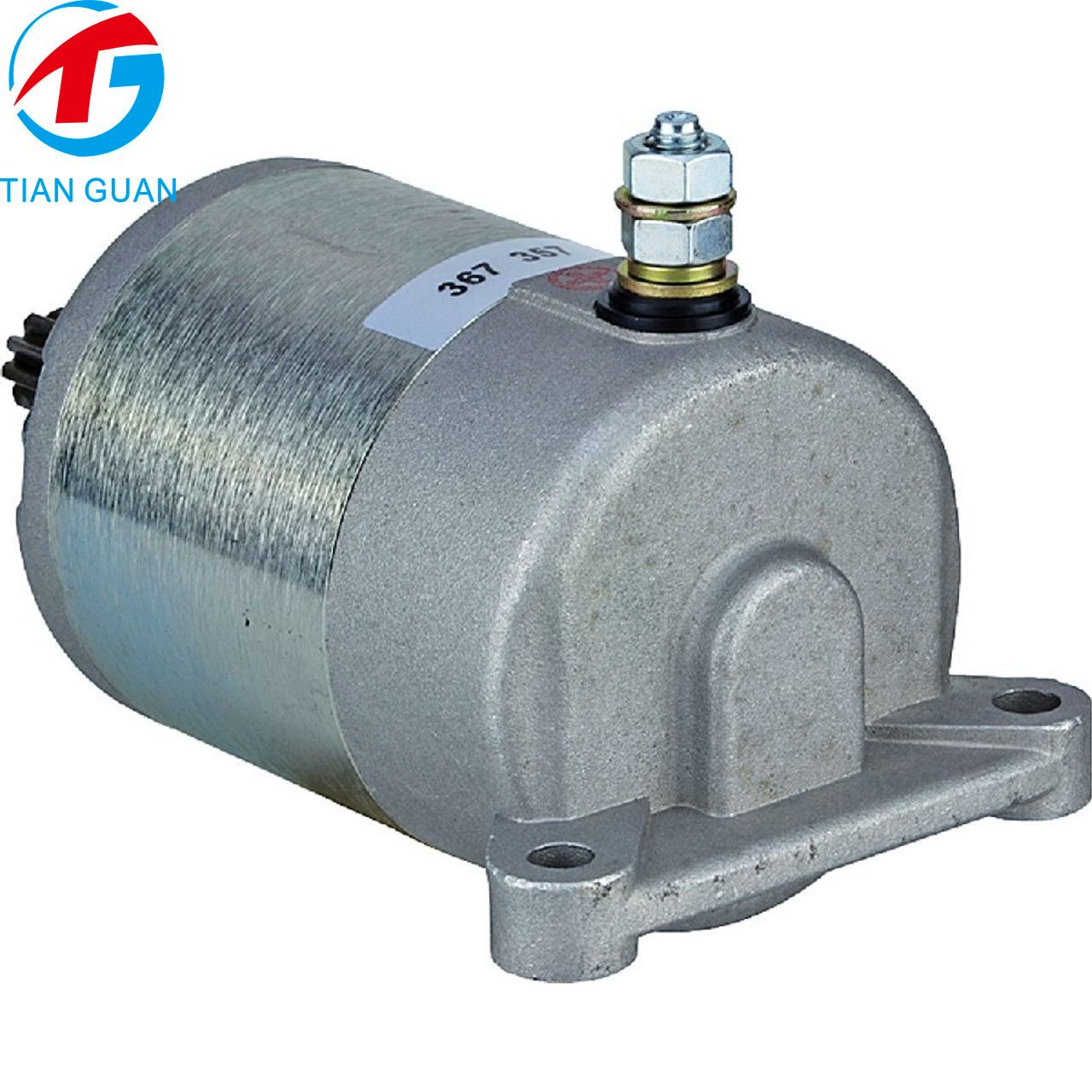

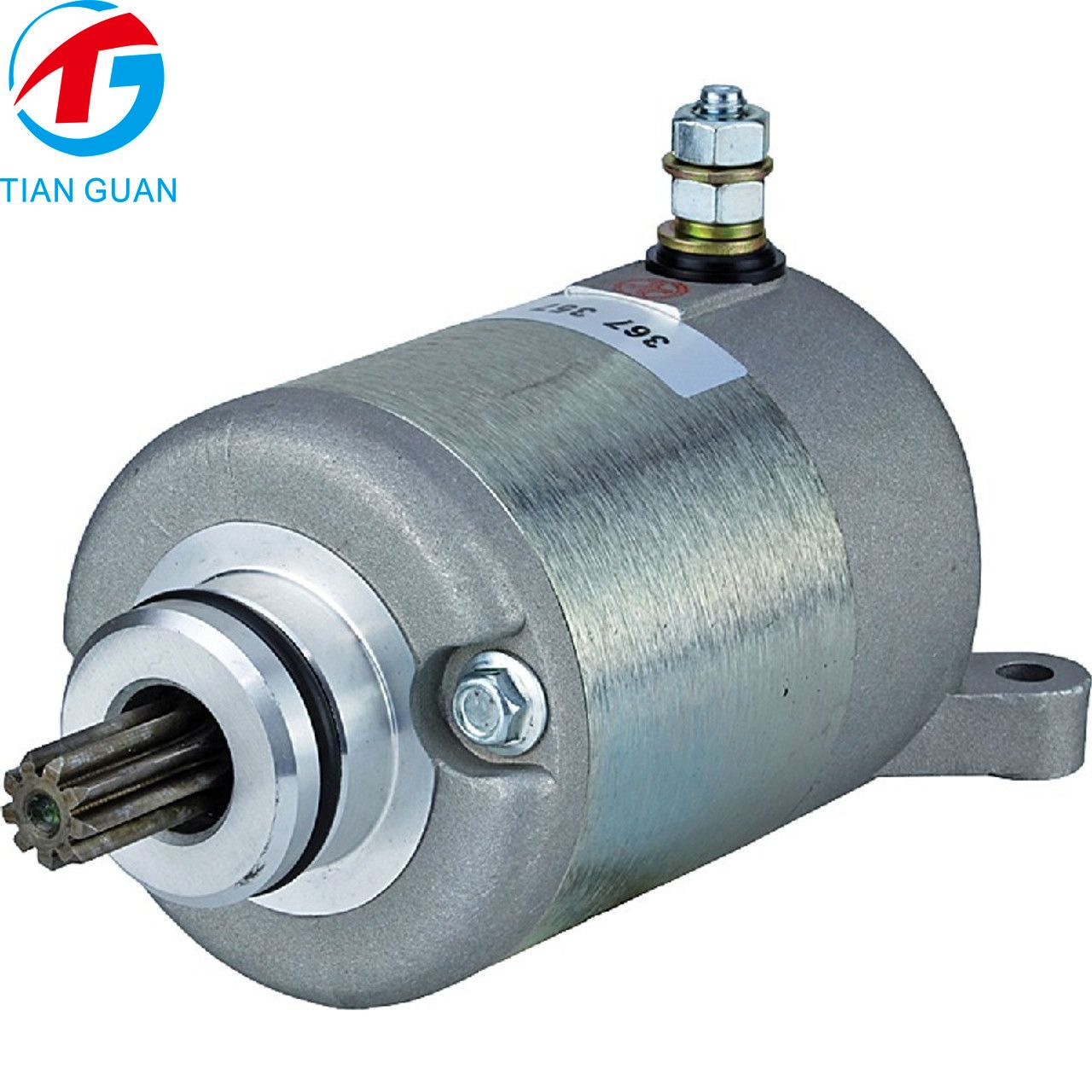

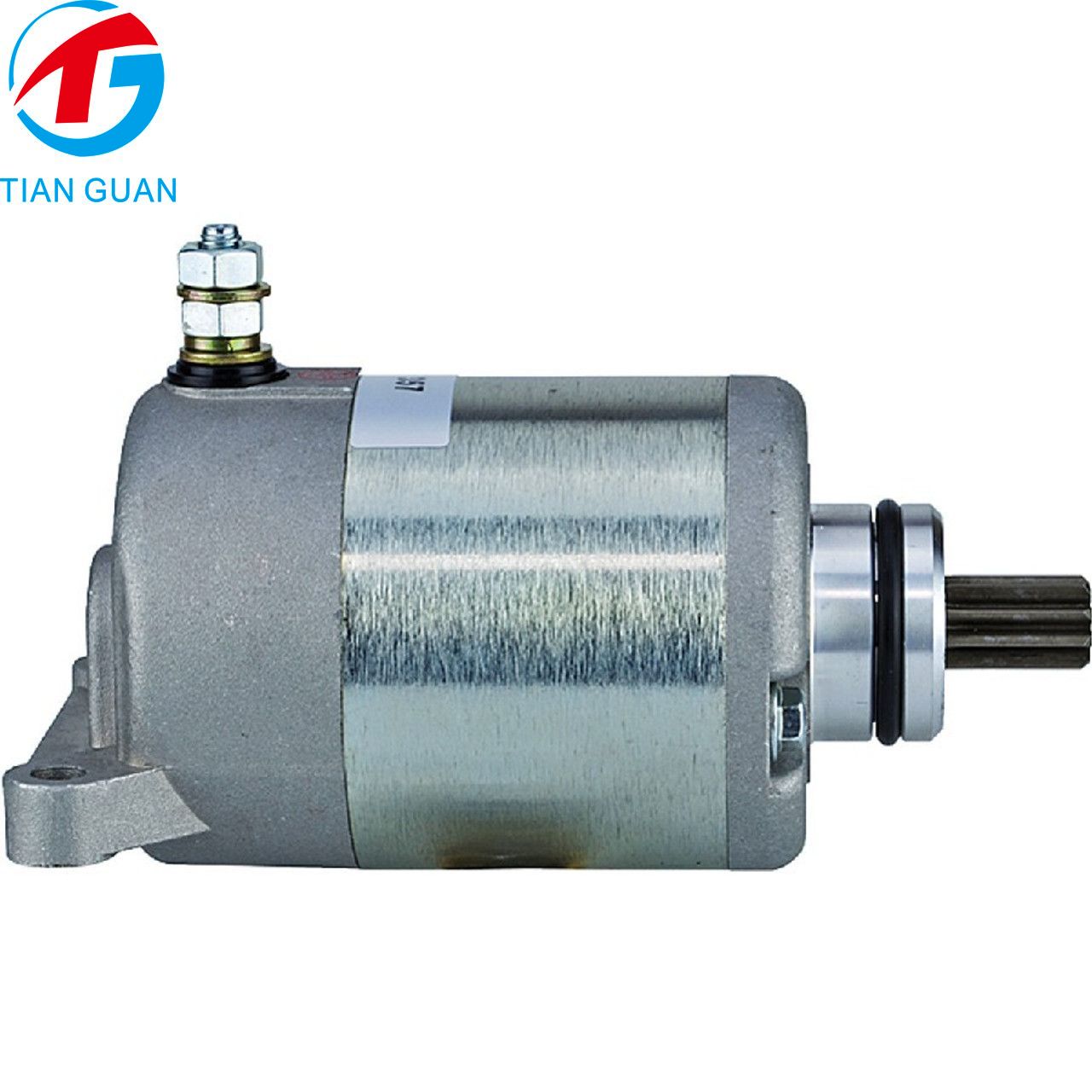

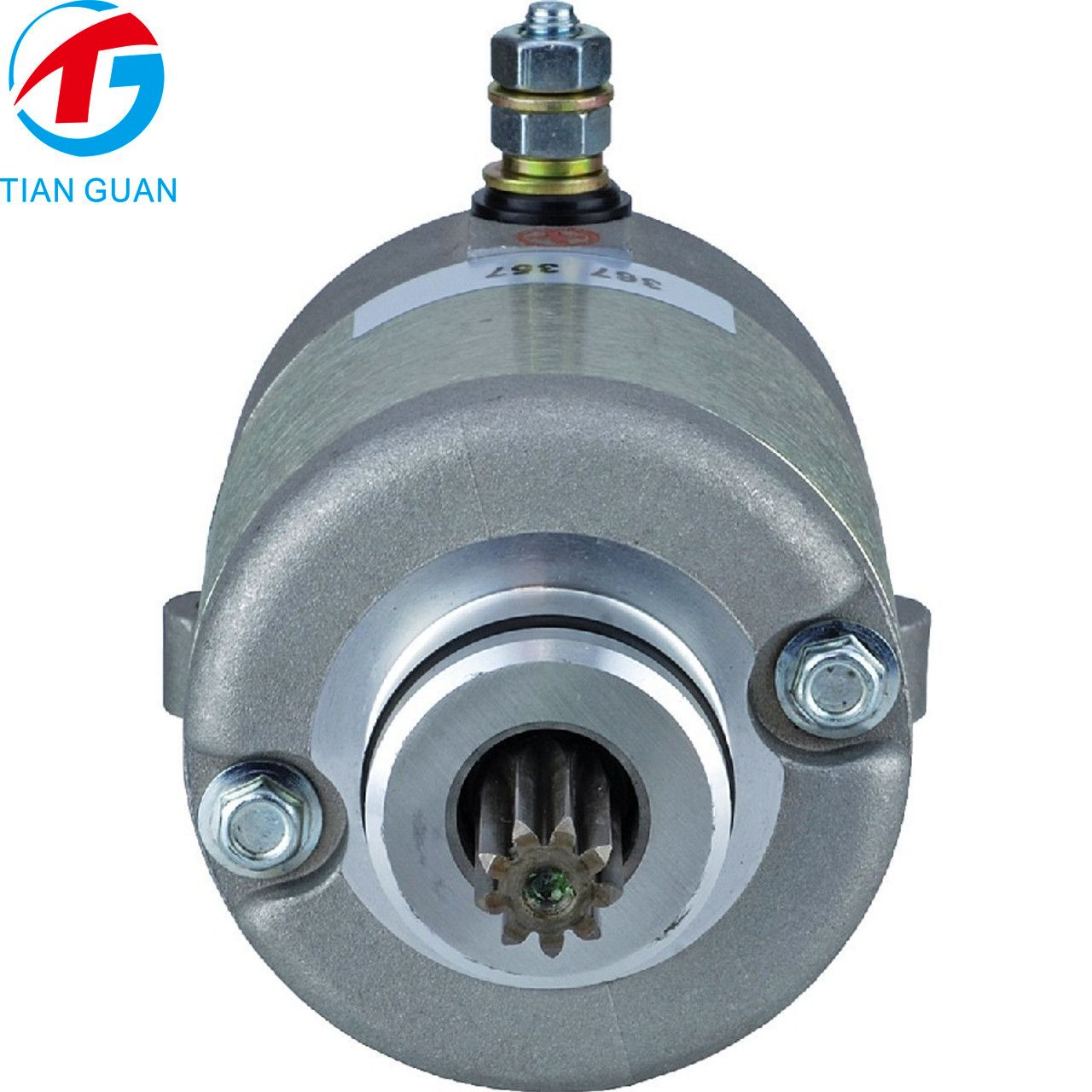

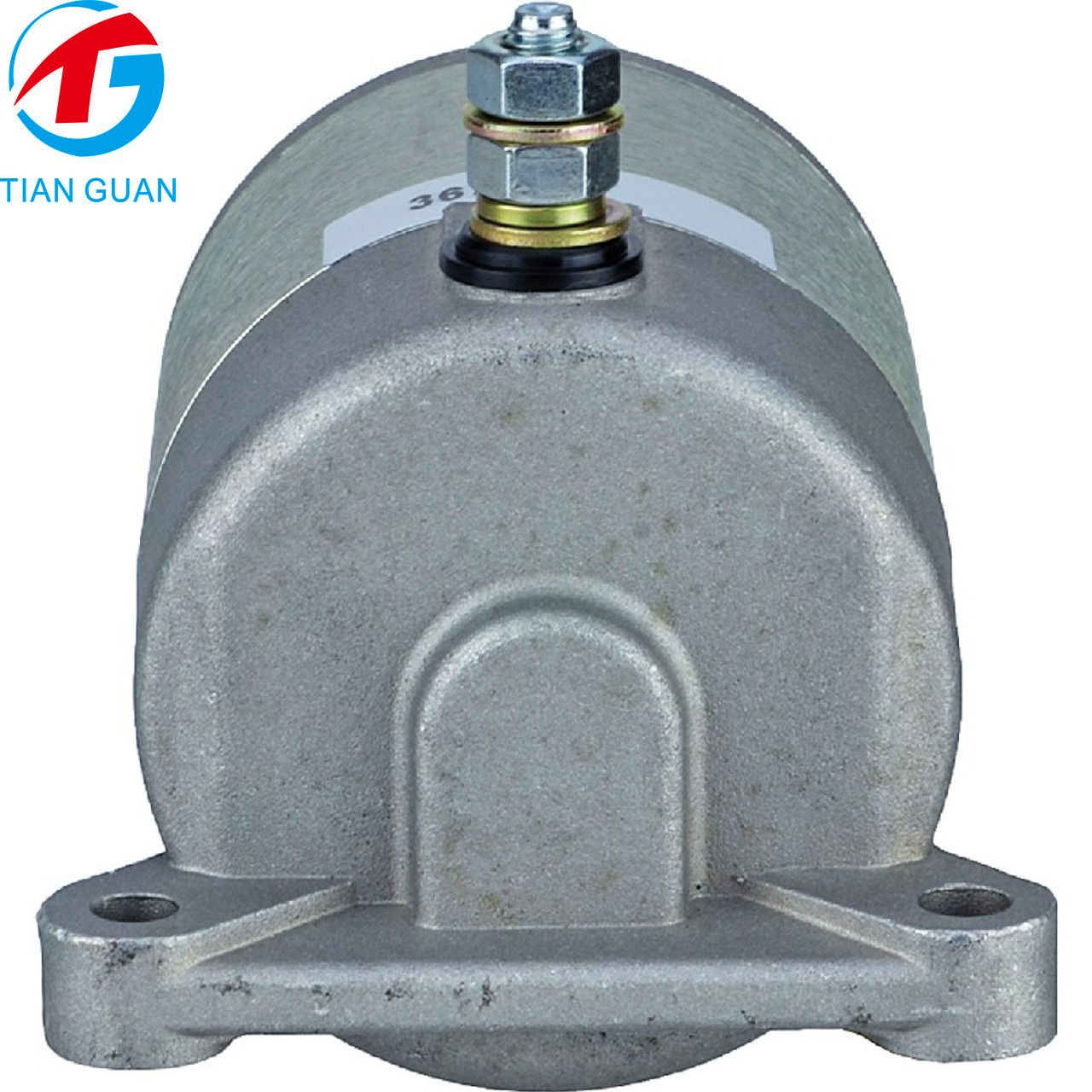

STG51032 Starter Motor 410-22077 for Polaris Sportsman 570 ACE EFI 567cc | 12V 0.45KW 9T CW PMDD Replacement

OEM / Reference Part Numbers:
POLARIS: 4013428 / 4014972 / 4015223
ARROWHEAD: SMU0569
J&N: 410-22077
LESTER: 34050
PIC: 191-693 / 191-695

Product Description

STG51032 Starter Motor is a new aftermarket replacement for Polaris 567cc Sportsman 570 ACE EFI and Sportsman 570 ACE Euro 2015 applications. It is also used on selected Polaris 325cc ATV/UTV models.

The starter uses a 12V 0.45KW PMDD (Permanent Magnet Direct Drive) design with 9-tooth pinion gear and CW rotation. The published specifications confirm a 11.8 mm gear outside diameter, making it a compact powersports starter.

Product Specifications

Property	Value
Product Model	STG51032
OEM Part Numbers	4013428 / 4014972 / 4015223
Reference Numbers	410-22077 / SMU0569 / 34050 / 191-693 / 191-695
Voltage	12V
Power Output	0.45KW
Starter Type	PMDD
Rotation	CW
Teeth Count	9T
Gear OD	11.8 mm
Mounting Holes	2
Mount Hole Diameter	6.5 mm / 7.0 mm
Engine	567cc / 325cc
Condition	New Aftermarket

OEM / Cross Reference Table

Arrowhead	SMU0569
J & N	410-22077
Polaris	4013428
Polaris	4014972
Polaris	4015223

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
POLARIS	ATV	Hawkeye 325 2x4	2015	325cc
POLARIS	ATV	Sportsman 325 ACE EFI	2014	325cc
POLARIS	ATV	Sportsman 325 ACE EFI	2015	325cc
POLARIS	ATV	Sportsman 325 ACE EFI	2016	325cc
POLARIS	ATV	Sportsman 570 ACE EFI	2015	567cc
POLARIS	ATV	Sportsman 570 ACE Euro	2015	567cc
POLARIS	ATV	Sportsman ETX EFI HD	2015	325cc
POLARIS	ATV	Sportsman ETX EFI	2015	325cc
POLARIS	ATV	Sportsman ETX EPS	2016	325cc
POLARIS	ATV	Sportsman ETX	2016	325cc
POLARIS	UTV	Ranger ETX	2015	325cc
POLARIS	UTV	Ranger ETX	2016	325cc

Weight & Package Information

Item	Value
Net Weight	1.04 KG
Gross Weight	1.4 KG
Package Size	25 × 17 × 16 CM
