STG51544 Starter Motor E5500-63016 for Kioti CK35H DK35H DK35SEH | 12V 1.7KW 9T CW PLGR Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： STG51544

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

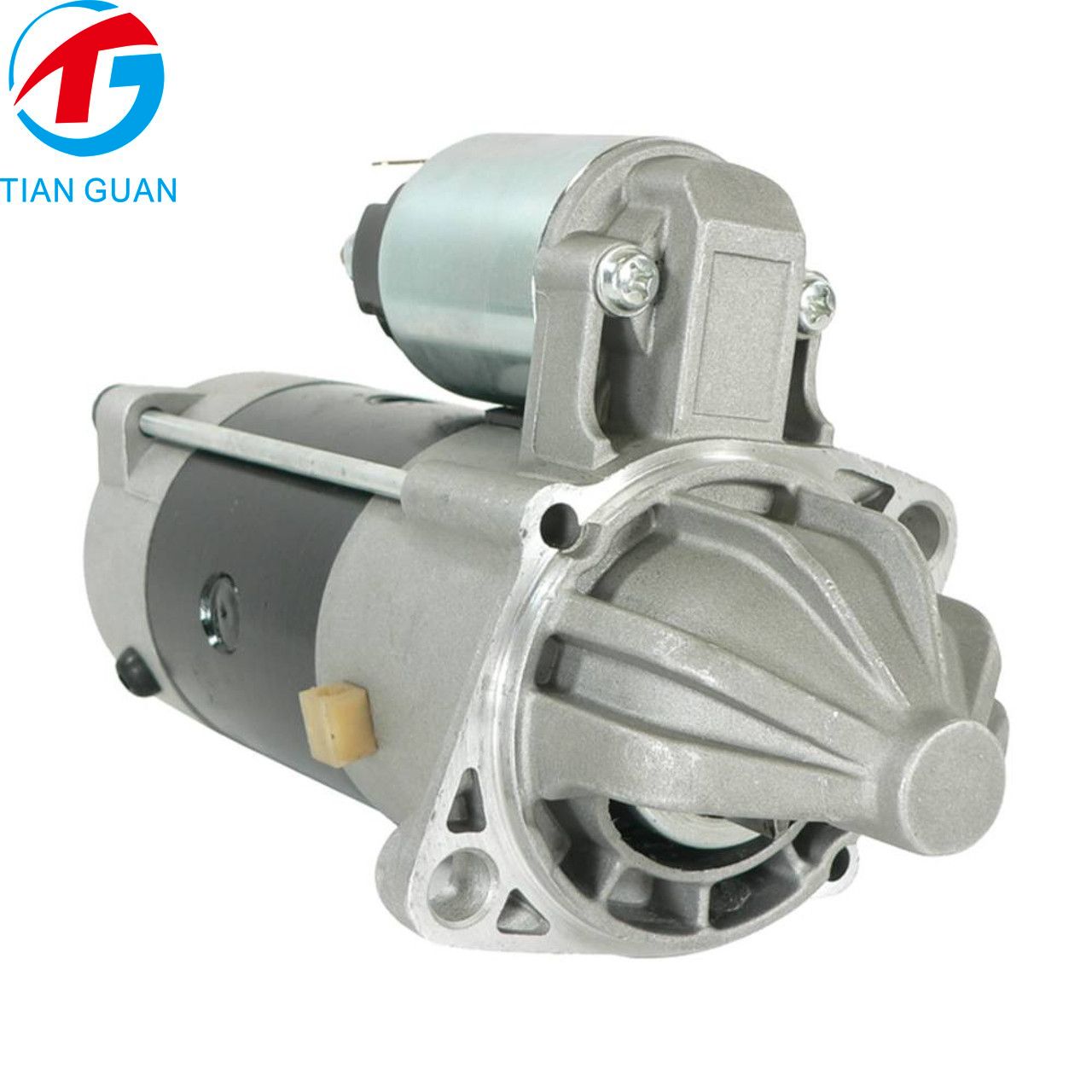

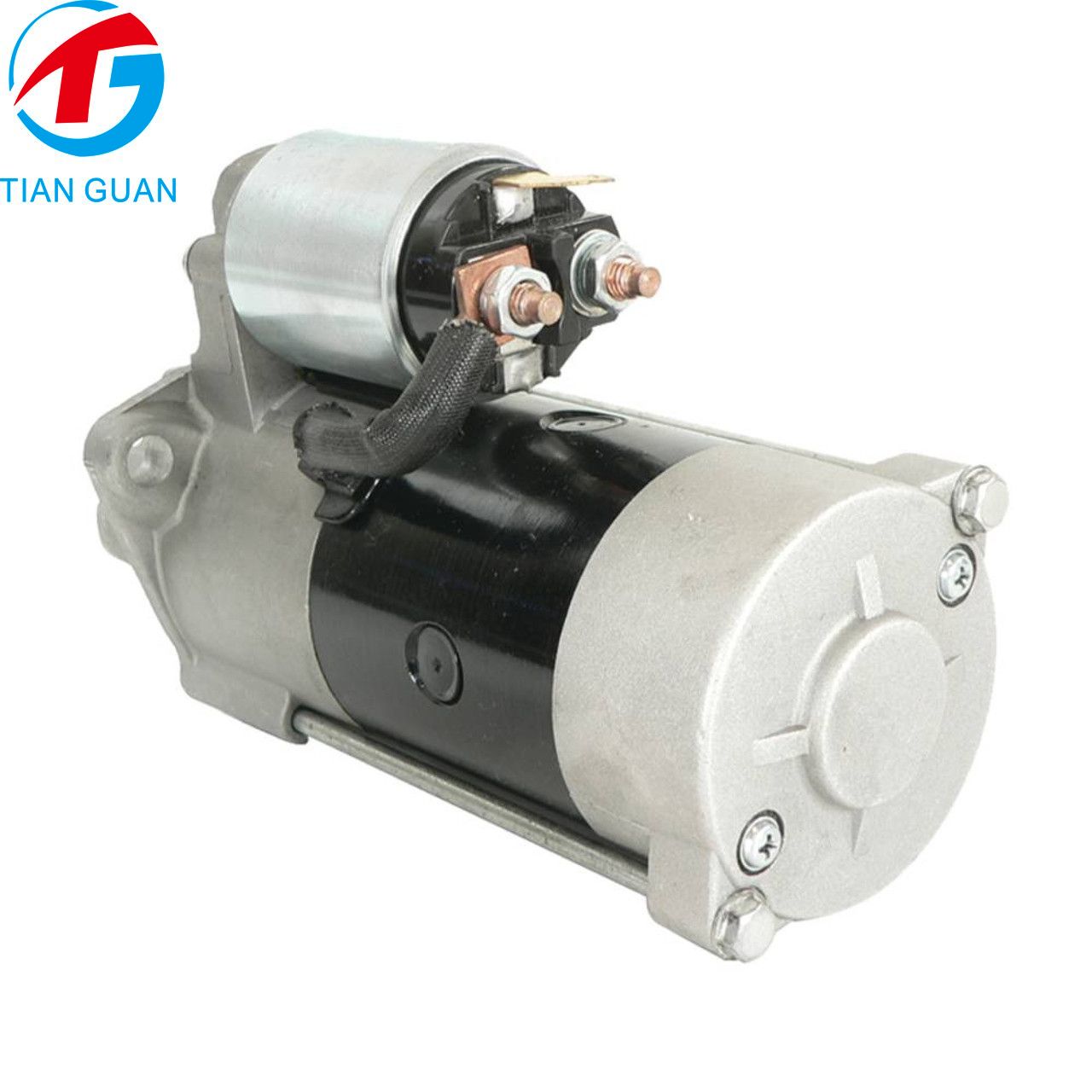

    STG51544 Starter Motor E5500-63016 for Kioti CK35H DK35H DK35SEH | 12V 1.7KW 9T CW PLGR Replacement

    OEM / Reference Part Numbers:
    KIOTI: E5500-63014 / E5500-63015 / E5500-63016
    DAEDONG: DD-E5500-63015 / DD-E5500-63016
    MANDO: MG117559 / G117559
    VALEO: 600350 / 600931 / TM000A07101
    LESTER: 19601
    ARROWHEAD: SMN0006 / V600350
    LUCAS: LRS04077
    J&N: 410-40023

    Product Description

    STG51544 Starter Motor is a new aftermarket replacement designed for Kioti CK35H, DK35H and DK35SEH diesel tractors. It replaces Kioti E5500-63014, E5500-63015 and E5500-63016 and is also cross-referenced with Mando, Valeo, Arrowhead and Lester starter numbers.

    The starter features a 12V, 1.7KW PLGR (Planetary Gear Reduction) design with 9-tooth pinion gear and CW (Clockwise) rotation. The published specifications also identify a 33.8 mm gear outside diameter and 11.1 mm mounting-hole diameter.

    Product Specifications

    PropertyValue
    Product ModelSTG51544
    Kioti Part NumbersE5500-63014 / E5500-63015 / E5500-63016
    Mando Part NumberMG117559 / G117559
    Valeo Part Numbers600350 / 600931 / TM000A07101
    Voltage12V
    Power Output1.7KW
    Starter TypePLGR
    RotationCW
    Teeth Count9T
    Gear OD33.8 mm
    Mounting Hole Diameter11.1 mm
    Battery StudM8-1.25
    ApplicationKioti / Daedong Diesel Tractors
    ConditionNew Aftermarket

    OEM / Cross Reference Table

    BrandPart Number
    KIOTIE5500-63014 / E5500-63015 / E5500-63016
    DAEDONGDD-E5500-63015 / DD-E5500-63016
    MANDOG117559 / MG117559
    VALEO600350 / 600931 / TM000A07101
    ARROWHEADSMN0006 / V600350
    LESTER19601
    LUCASLRS04077
    J&N ELECTRICAL PRODUCTS410-40023
    Other Reference600931 / T50063014E / STR54183

    Compatible Applications

    ManufacturerApplication
    KIOTICK25 / CK25H / CK27 / CK27H / CK30 / CK30H / CK35 / CK35H
    KIOTIDK35 / DK35CR / DK35HSE / DK35SE / DK35SEH
    KIOTIDK40 / DK40CR / DK40HSE / DK40SE
    KIOTIDK45 / DK45C / DK45CSE / DK45HSE / DK45S / DK45SC / DK45SE
    KIOTIDK50 / DK50C / DK50SE / DK55 / DK55C
    KIOTIDS3510 / DS4110 / DS4110HS / DS4510 / DS4510HS
    KIOTILK2554 / LK30 / LK3054 / LK3054XS / LK3504
    KIOTINX4510 / NX5010 / NX5510 / NX6010 Series
    MAHINDRA2310 / 2810 / 3510 / 4110
    KUBOTAKX101 / R420 Selected Applications

    Weight & Package Information

    ItemValue
    Net Weight3.8 KG
    Gross Weight4.3 KG
    Package Size30 × 22 × 22 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Kioti CK35H / DK35H Replacement12V 1.7KW High-Torque Starter9T CW PLGR Design
    E5500-63016 Direct ReplacementPlanetary Gear Reduction33.8 mm Gear OD
    Mando / Valeo EquivalentHeavy-Duty Tractor ApplicationReliable Diesel Engine Starting
