STG52300 Starter Motor 410-52607 428000-7410 for Toyota Yaris 2012-2018 1.5L Engine | 12V 1.0KW 9T CW PMGR Replacement

3 Reviews

Add Your Review

US$116.00

ITEMNO： STG52300

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52300 Starter Motor 410-52607 428000-7410 for Toyota Yaris 2012-2018 1.5L Engine | 12V 1.0KW 9T CW PMGR Replacement

Part Numbers

TOYOTA: 28100-0T020 / 28100-0T030 / 28100-0T040

DENSO: 428000-7410 / 428000-7411

ARROWHEAD: 410-52607

WAI: 16202N

LESTER: 31216

J&N: 410-52607

Product Description

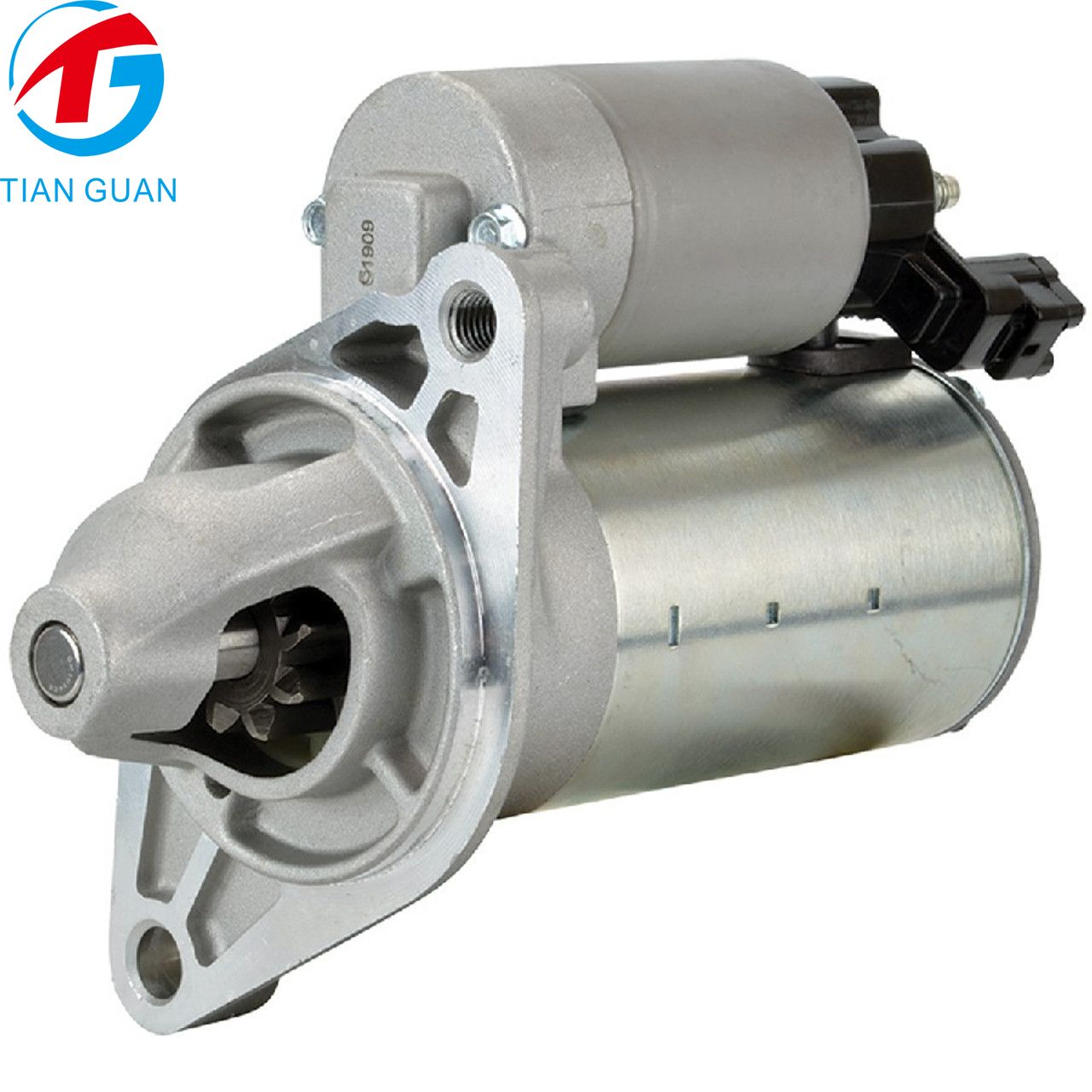

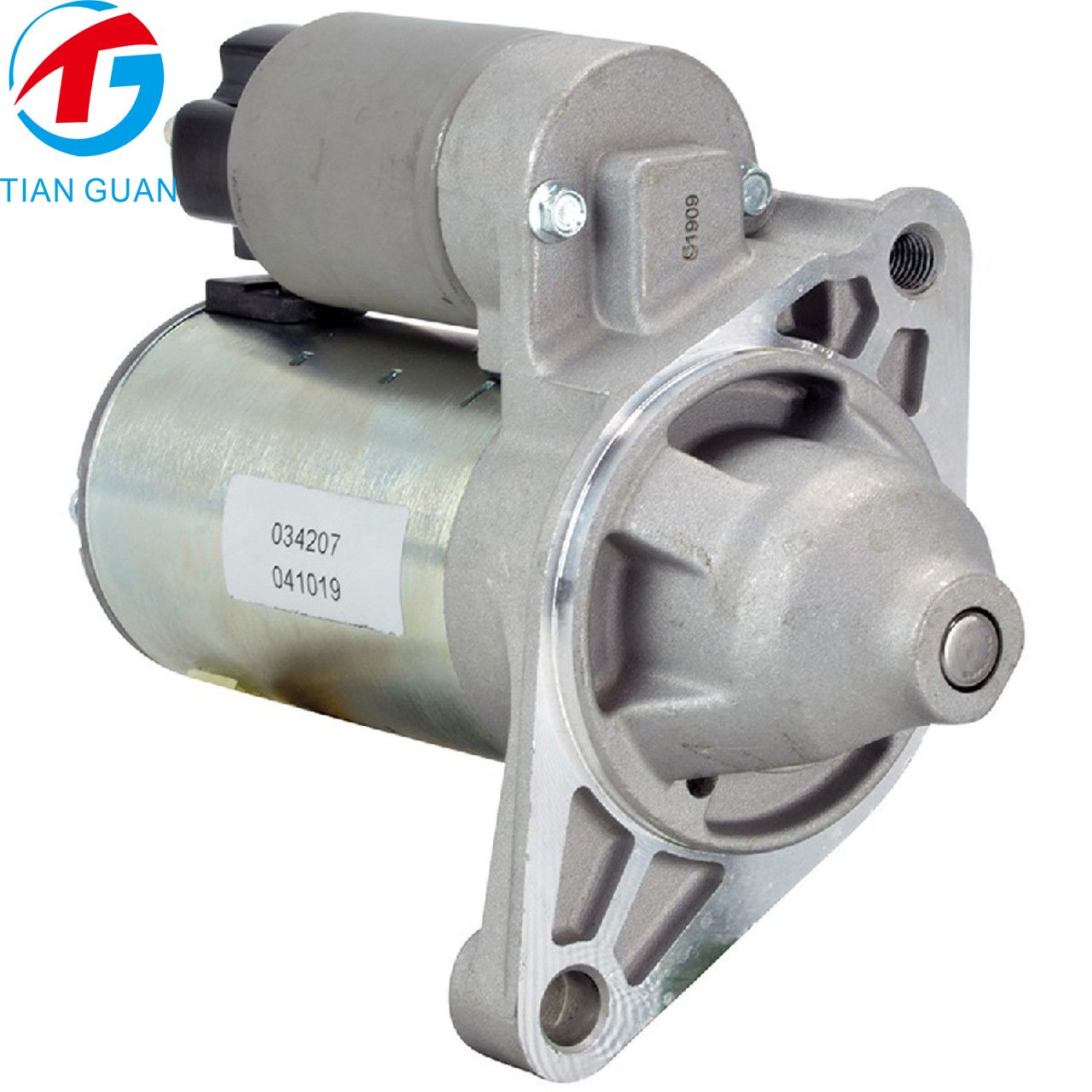

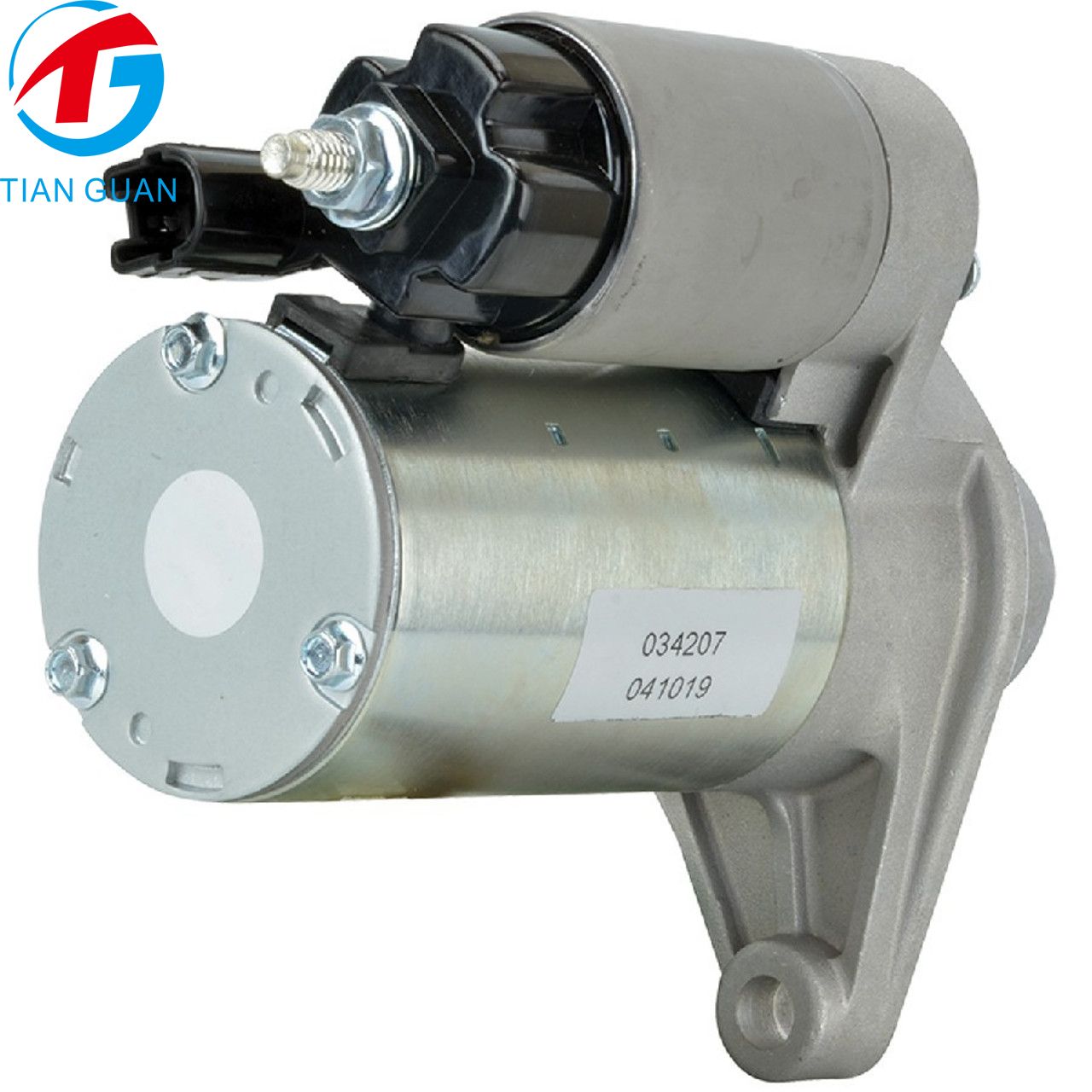

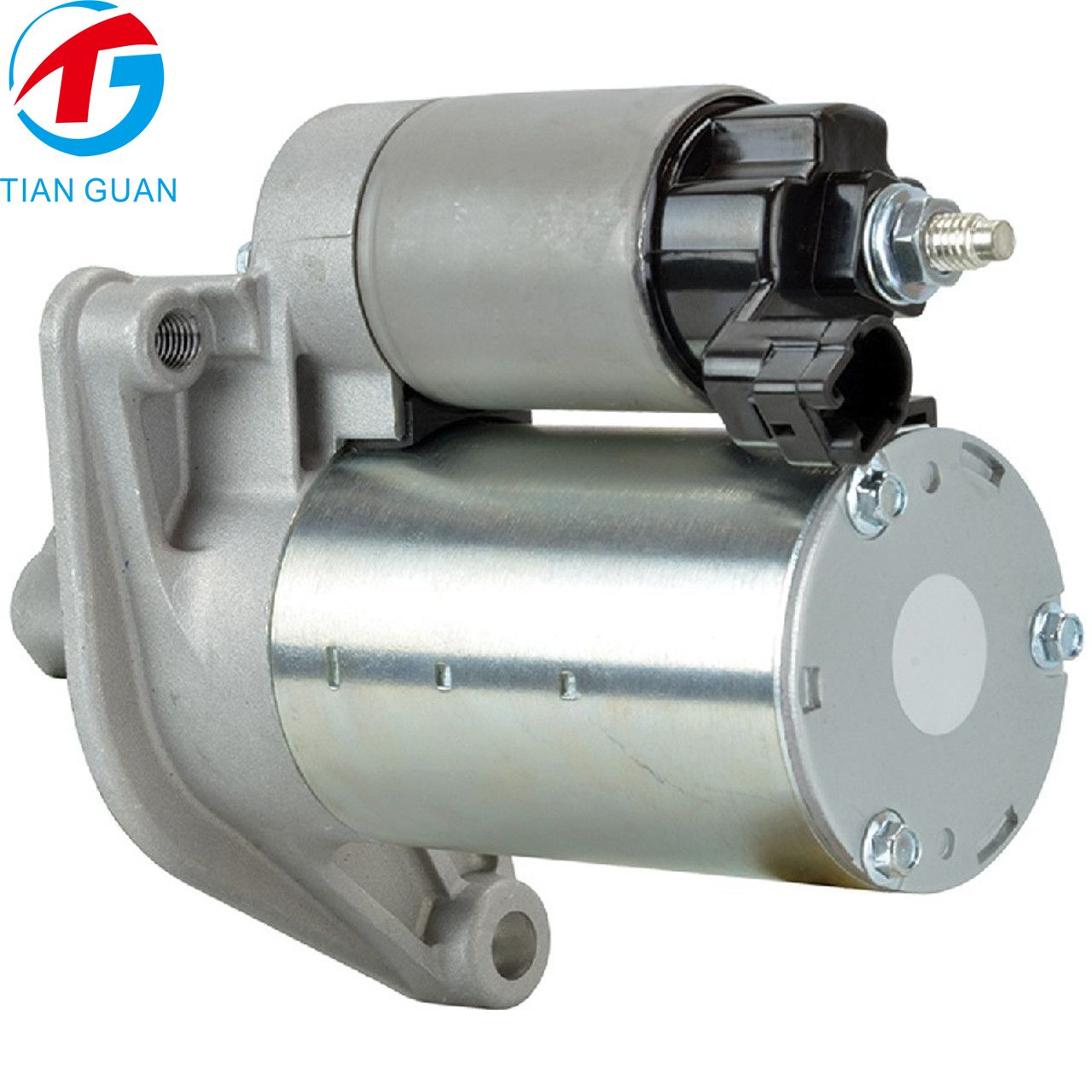

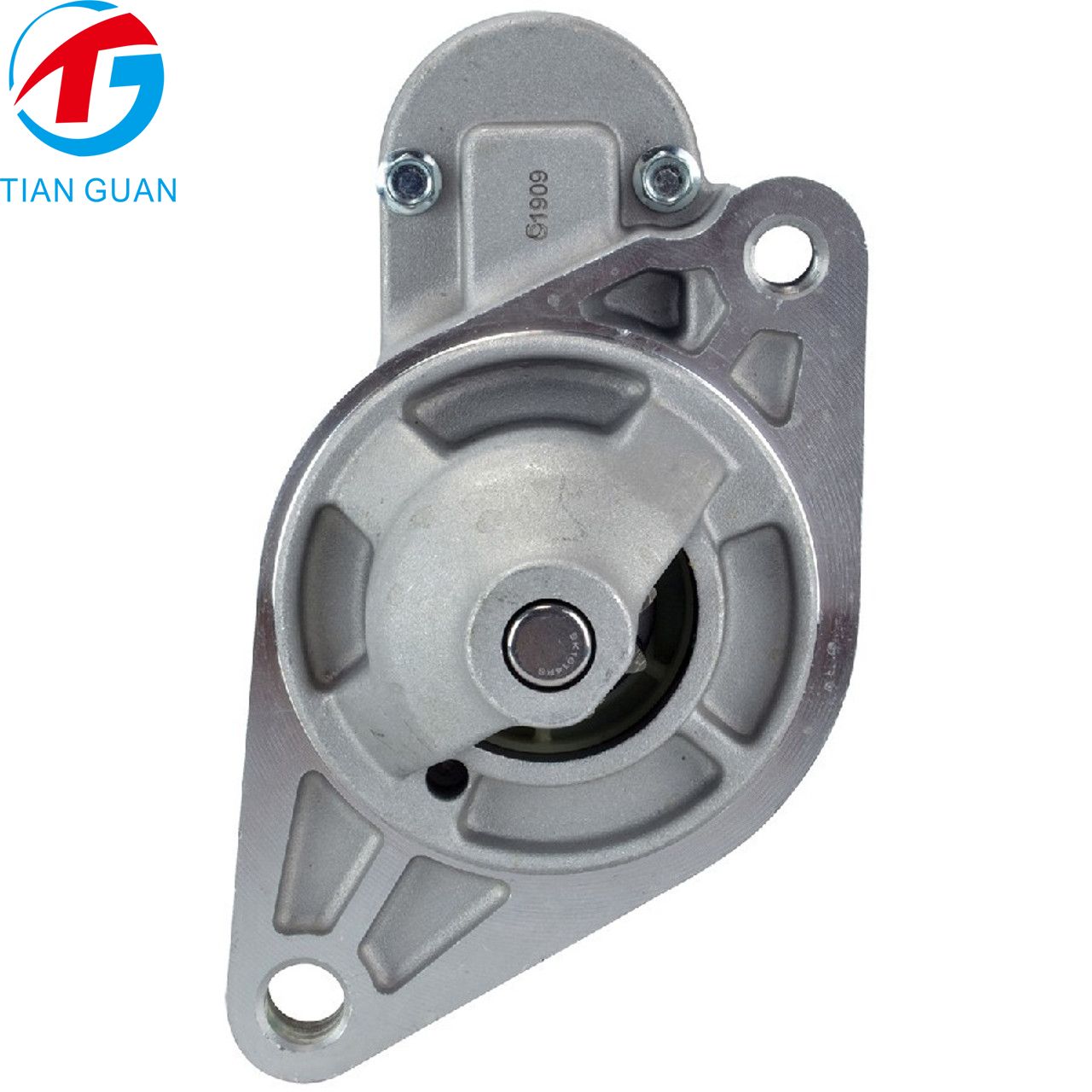

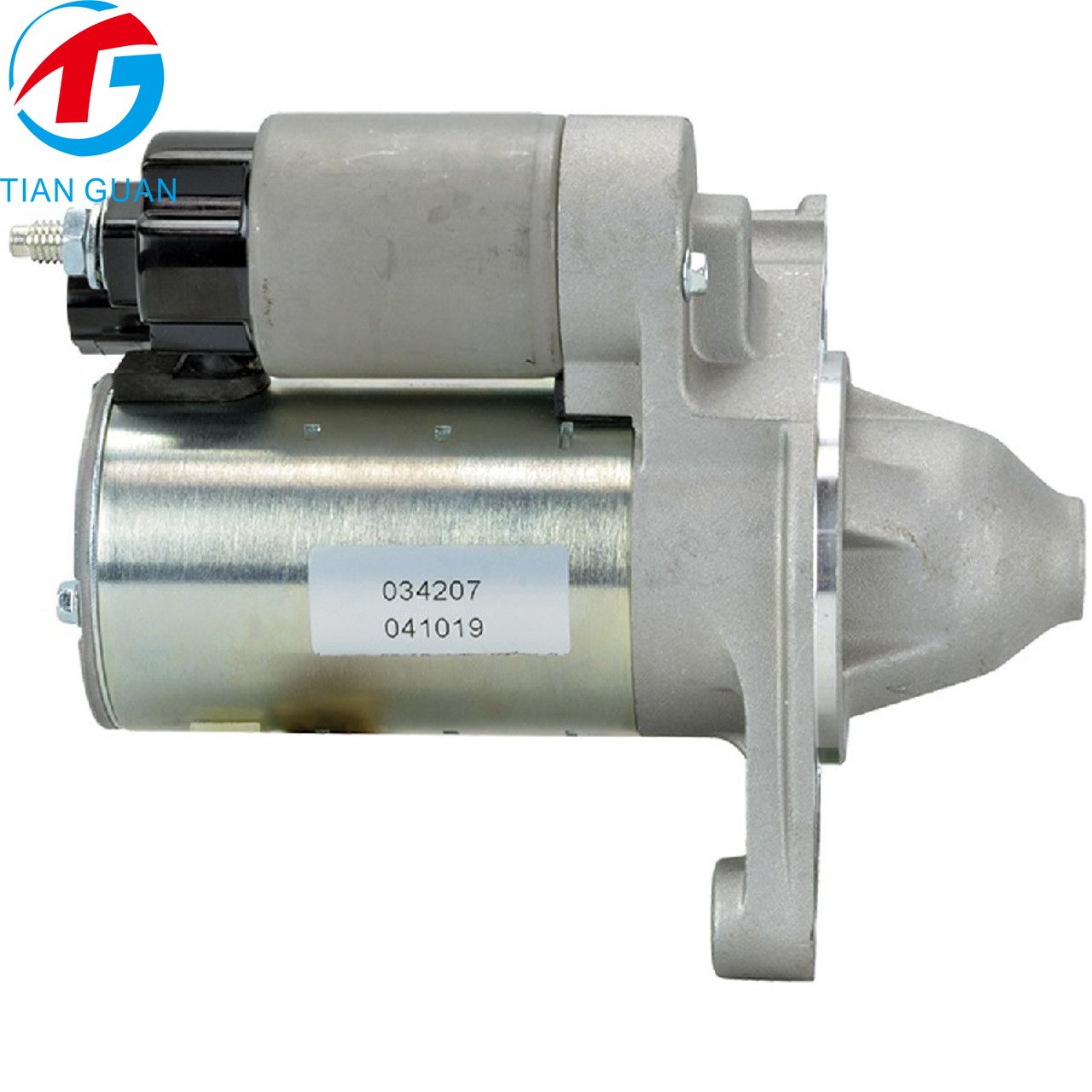

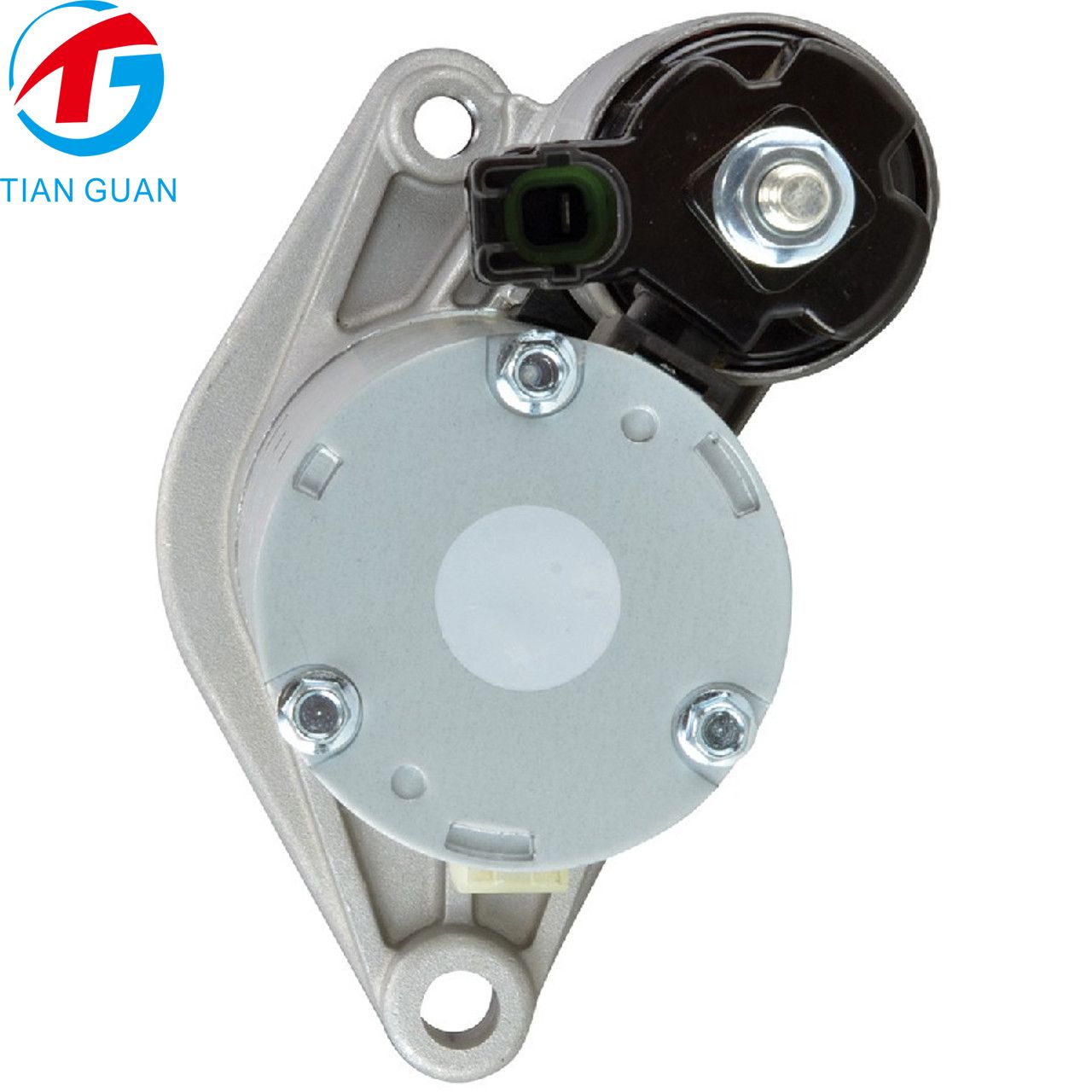

STG52300 Starter Motor is a new aftermarket replacement designed for Toyota Yaris 2012-2018 1.5L gasoline engine applications.

Featuring a 12V, 1.0KW, 9-tooth, clockwise-rotation PMGR (Permanent Magnet Gear Reduction) design, it provides reliable cranking power, efficient gear reduction and stable engine starting performance.

This starter replaces Denso 428000-7410 and aftermarket reference Arrowhead 410-52607, offering a direct replacement solution for Toyota compact vehicle applications.

Product Specifications

Property	Value
Product Model	STG52300
Part Numbers	410-52607 / 428000-7410 / 16202
Voltage	12V
Power Output	1.0 KW
Number of Teeth	9T
Starter Type	PMGR (Permanent Magnet Gear Reduction)
Rotation	CW
Condition	New Aftermarket
Application	Automotive Starter
Compatible Brand	Toyota
Engine Type	Gasoline Engine
Engine Range	1.5L

OEM / Cross Reference Table

Brand	Part Number
TOYOTA	28100-0T020 / 28100-0T030 / 28100-0T040
DENSO	428000-7410 / 428000-7411
ARROWHEAD	410-52607
WAI	16202N
LESTER	31216
J&N	410-52607

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
Toyota	Auto and Light Truck	YARIS	2012	1.5L
Toyota	Auto and Light Truck	YARIS	2013	1.5L
Toyota	Auto and Light Truck	YARIS	2014	1.5L
Toyota	Auto and Light Truck	YARIS	2015	1.5L
Toyota	Auto and Light Truck	YARIS	2016	1.5L
Toyota	Auto and Light Truck	YARIS	2017	1.5L
Toyota	Auto and Light Truck	YARIS	2018	1.5L

Packing Information

Item	Value
Net Weight (NW)	2.8 KG
Gross Weight (GW)	3.4 KG
Carton Size	30 × 20 × 20 CM
Package Volume	0.012 m³
Package Includes	1 × Starter Motor
