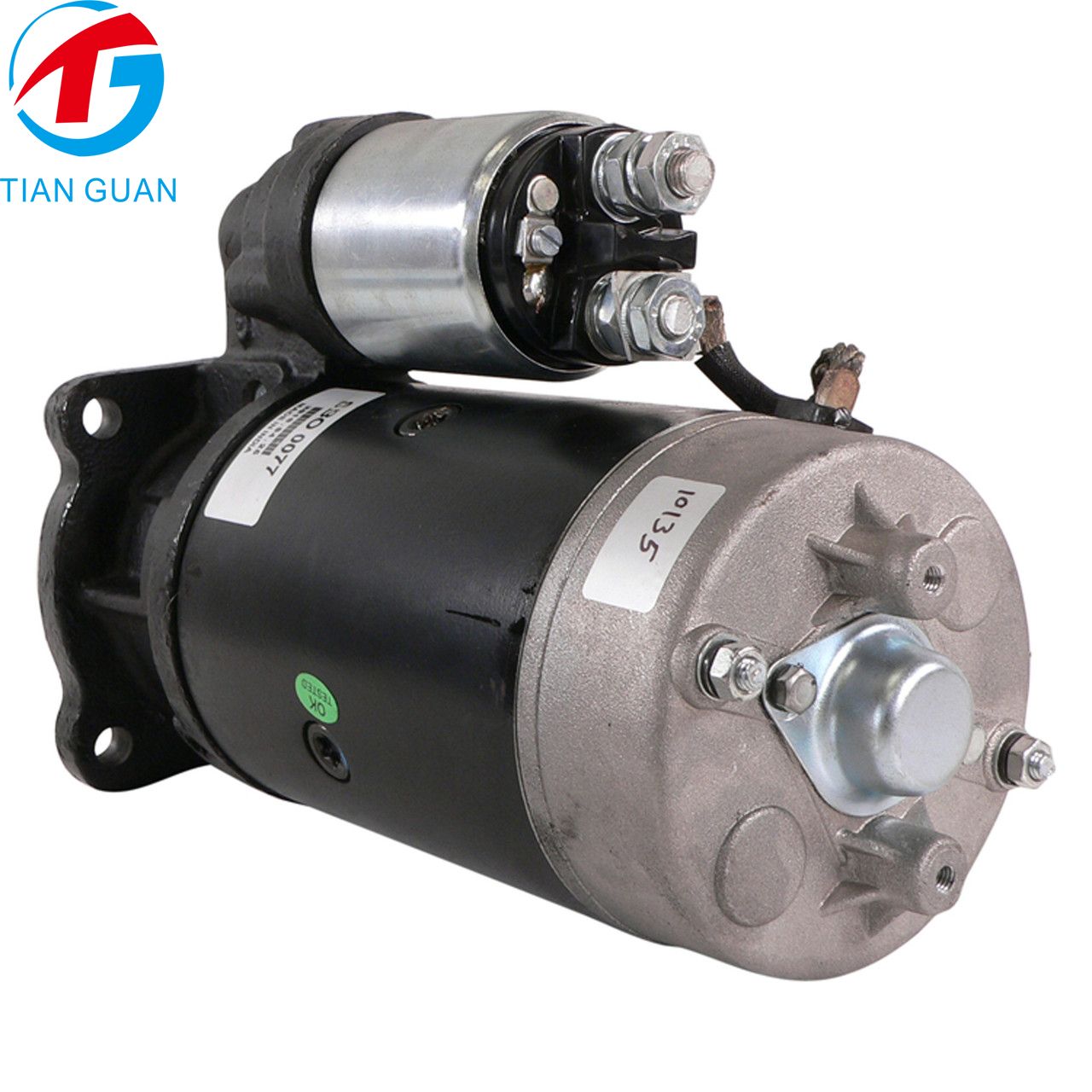

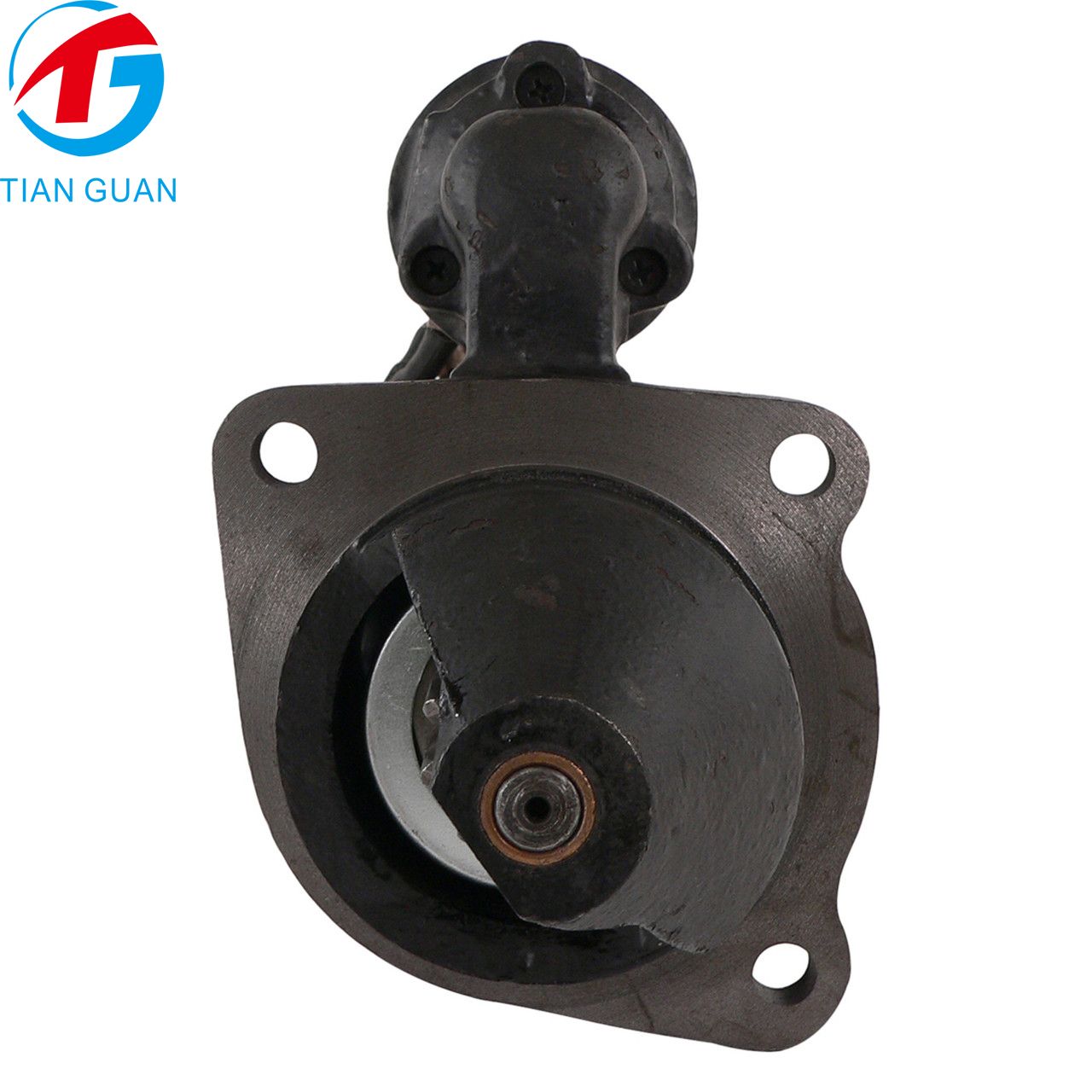

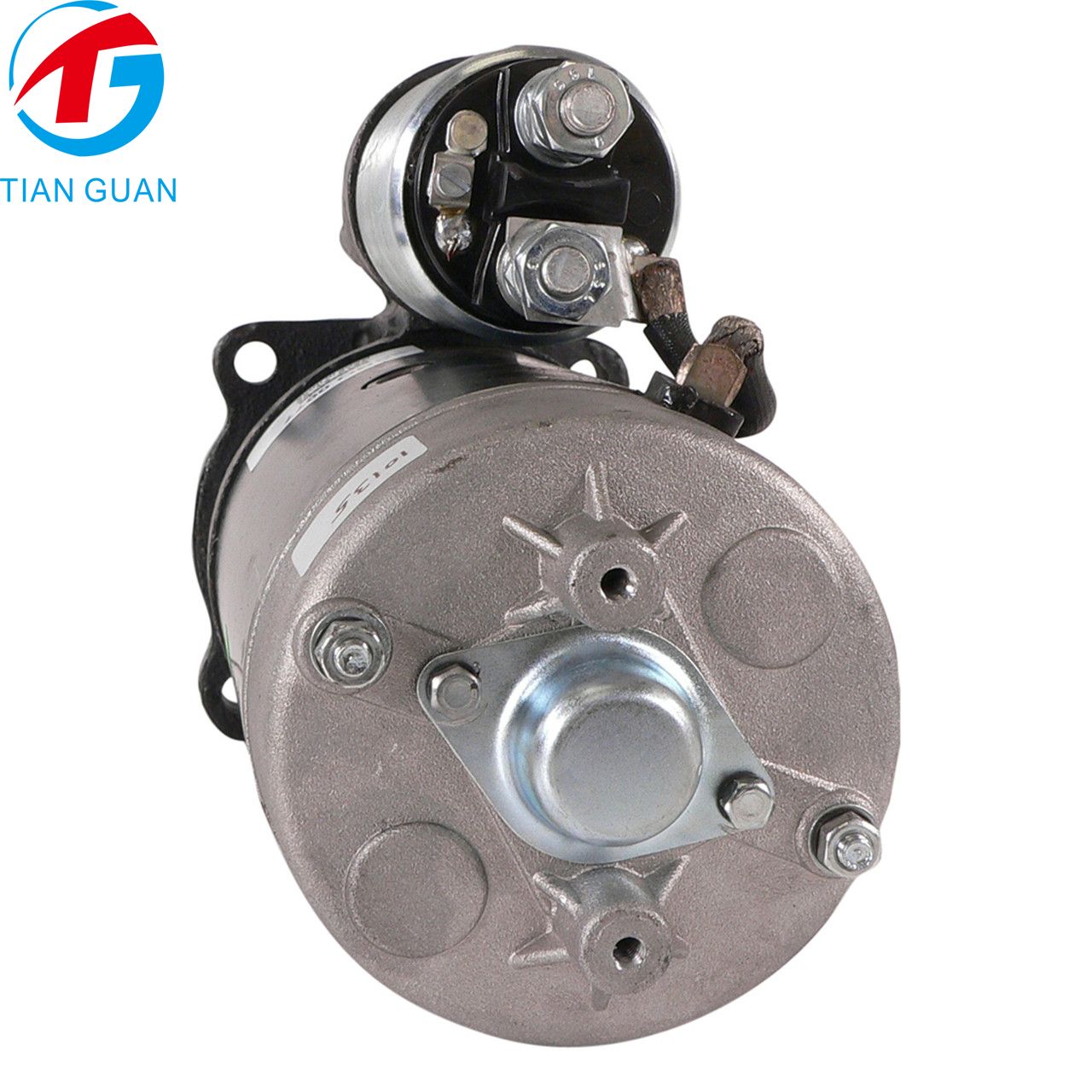

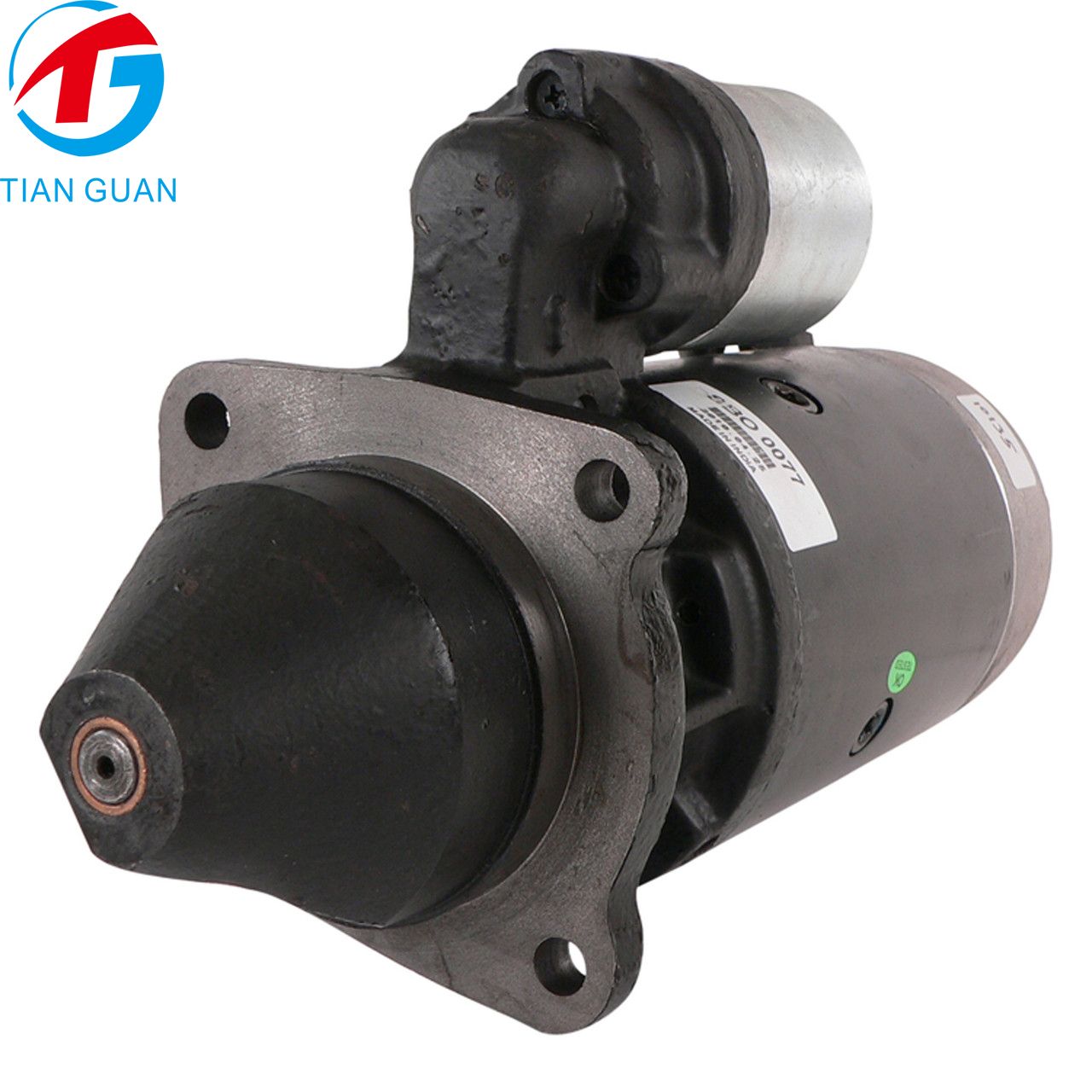

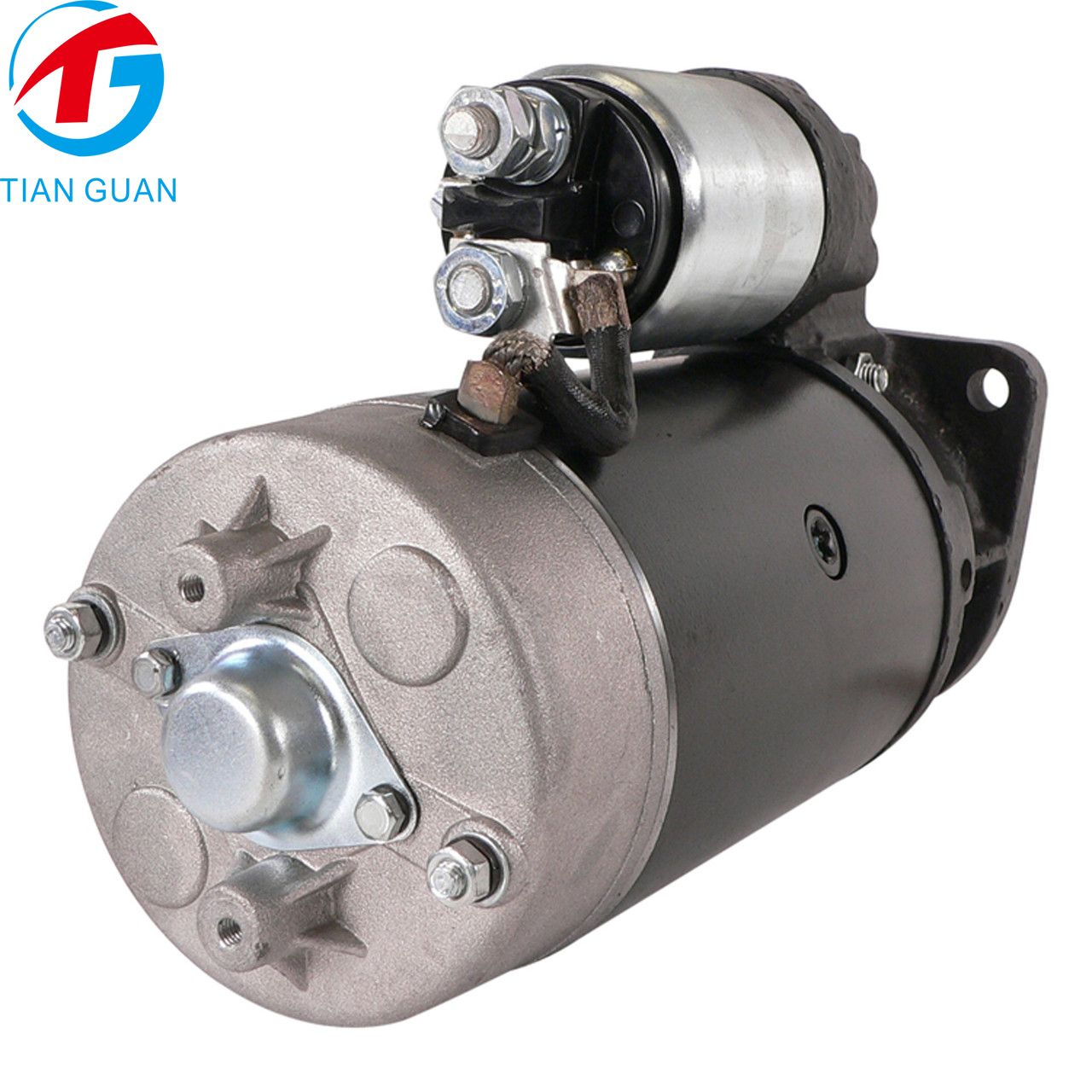

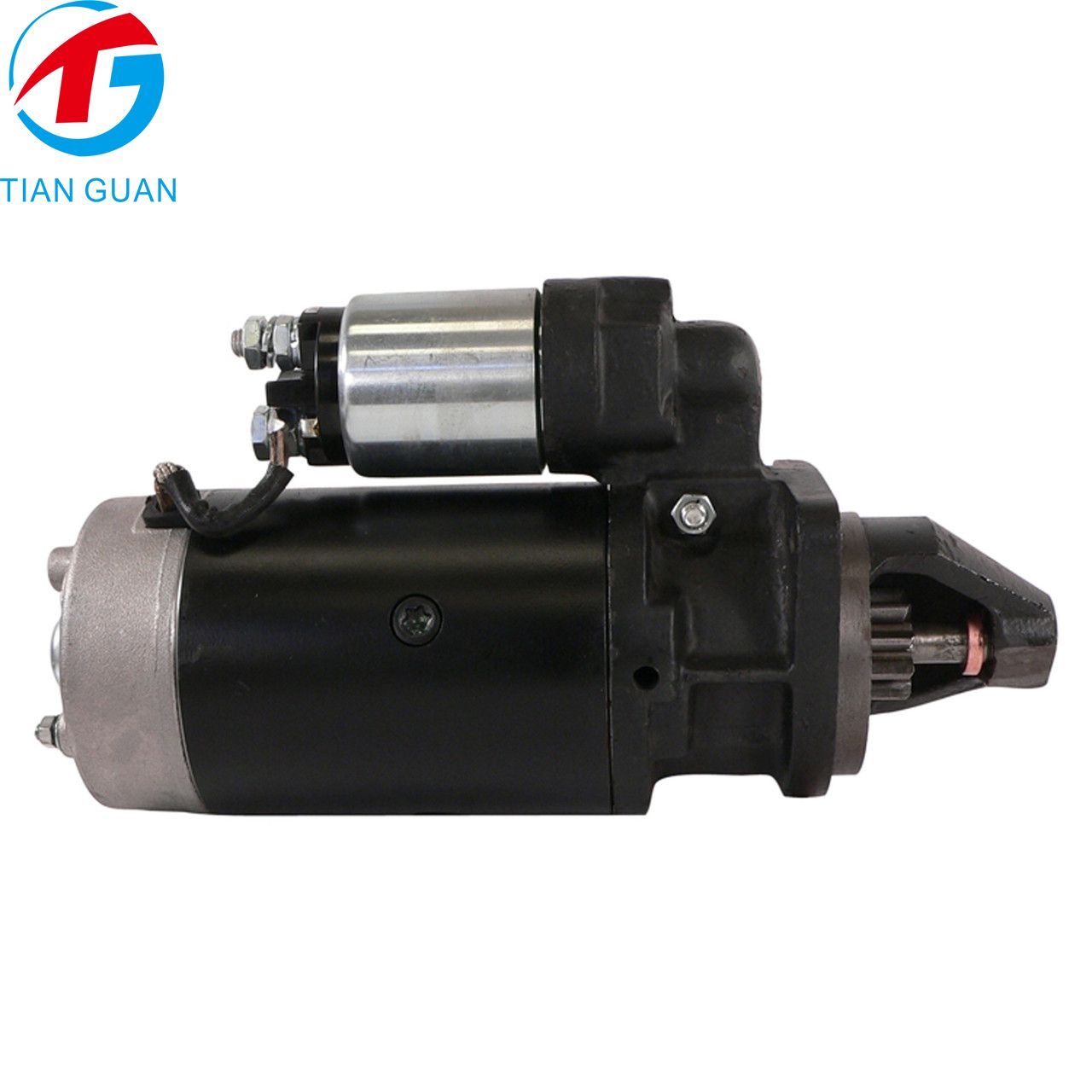

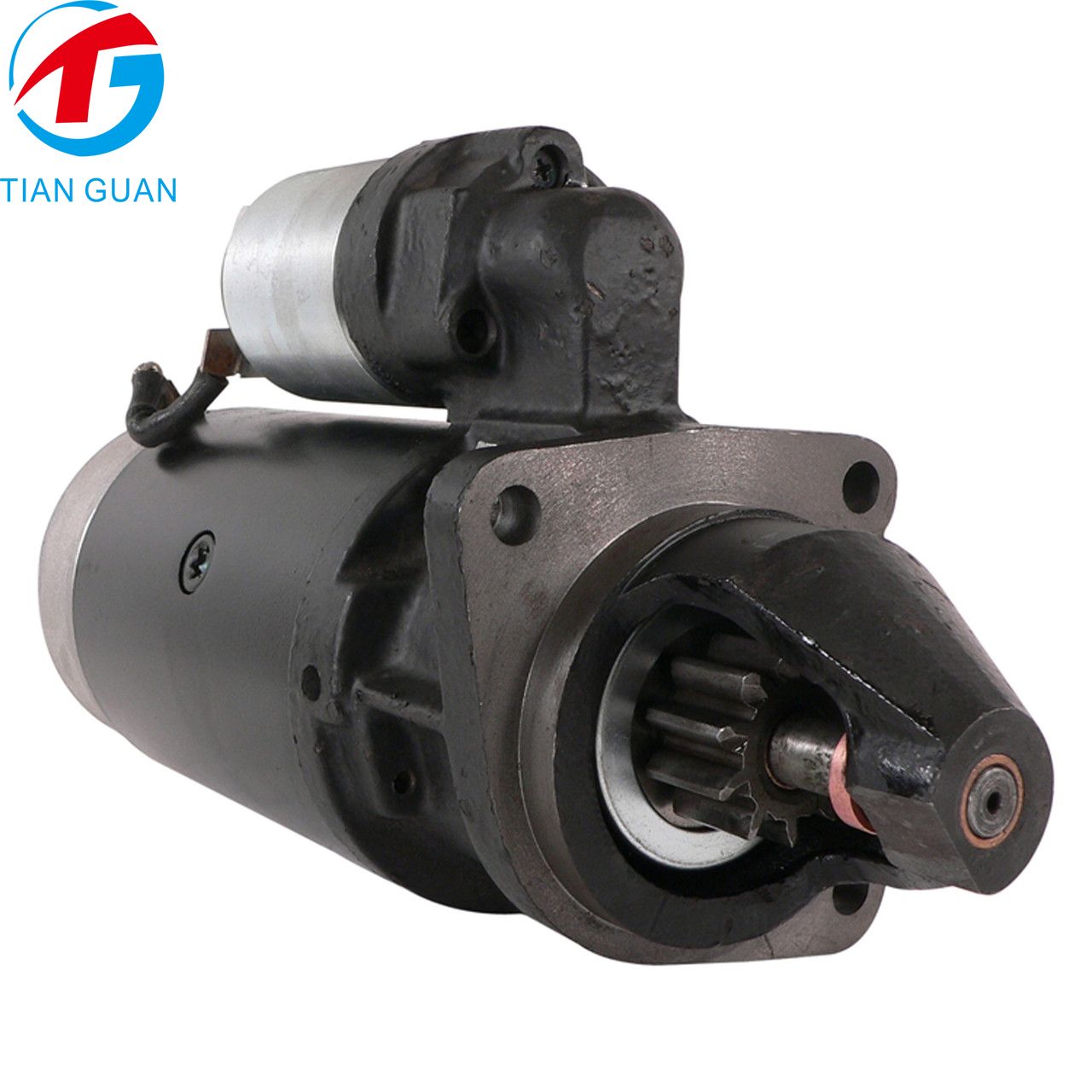

STG52310 Starter Motor 410-24383 for Timberjack Caterpillar Massey Ferguson with Perkins Engine | 24V 4.0KW 10T CW DD Replacement

3 Reviews

Add Your Review

US$158.00

ITEMNO： STG52310

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG52310 Starter Motor 410-24383 for Timberjack Caterpillar Massey Ferguson with Perkins Engine | 24V 4.0KW 10T CW DD Replacement

    OEM / Reference Part Numbers:
    BOSCH: 0-001-368-026 / 0-001-368-040 / 0-001-368-051
    CATERPILLAR: OR1903
    MASSEY FERGUSON: 3091293M91 / 8091293M91 / 3091293M92
    PERKINS: PF54924
    ARROWHEAD: SBO0077 / IMI45002-005 / MS369 / IS0993
    J&N ELECTRICAL PRODUCTS: 410-24189 / 410-24383
    LESTER: 18254
    LETRIKA (ISKRA): IS0993
    MAHLE: MS369
    CARGO: 112670

    Product Description

    STG52310 is a heavy-duty aftermarket starter motor designed for Timberjack, Caterpillar and Massey Ferguson equipment equipped with Perkins 6.354.4 industrial diesel engines.

    The starter is rated at 24V and 4.0KW, with a 10-tooth pinion, CW (Clockwise) rotation and Direct Drive (DD) configuration. The 410-24383 listing specifies a 39.9 mm gear outside diameter and 10.9 mm unthreaded mounting-ear holes.

    Product Specifications

    PropertyValue
    Product ModelSTG52310
    Main Reference410-24383
    Bosch Part Numbers0-001-368-026 / 0-001-368-040 / 0-001-368-051
    Caterpillar Part NumberOR1903
    Massey Ferguson Part Numbers3091293M91 / 8091293M91 / 3091293M92
    Perkins Part NumberPF54924
    Voltage24V
    Power Output4.0KW
    Starter TypeDD (Direct Drive)
    RotationCW
    Teeth Count10T
    Gear OD39.9 mm
    Mounting Ear Hole Diameter10.9 mm
    EnginePerkins 6.354.4
    Engine Displacement5791cc
    ConditionNew Aftermarket

    OEM / Cross Reference Table

    BrandPart Number
    BOSCH0-001-368-026 / 0-001-368-040 / 0-001-368-051
    CATERPILLAROR1903
    MASSEY FERGUSON3091293M91 / 8091293M91 / 3091293M92
    PERKINSPF54924
    ARROWHEADSBO0077 / IMI45002-005 / MS369 / IS0993
    J&N ELECTRICAL PRODUCTS410-24189 / 410-24383
    LESTER18254
    LETRIKA (ISKRA)IS0993
    MAHLEMS369
    CARGO112670



    Compatible Applications

    ManufacturerApplication
    PERKINS6.354.4 Industrial Diesel Engine
    PERKINSIHB D500E 5791cc Engine
    CATERPILLARApplications Using OR1903 Starter
    MASSEY FERGUSONIndustrial / Agricultural Equipment with Perkins 6.354.4
    TIMBERJACKEquipment with Perkins Industrial Engine



    Weight & Package Information

    ItemValue
    Net Weight14.1 KG
    Gross Weight15.0 KG
    Package Size40 × 28 × 27 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Timberjack / Caterpillar / Massey Ferguson Replacement24V 4.0KW Heavy-Duty Starter10T CW Direct Drive
    Perkins 6.354.4 Engine CompatibleBosch 368 Series Replacement39.9 mm Gear OD
    410-24383 / SBO0077 Equivalent10.9 mm Mounting HolesReliable Industrial Diesel Starting
