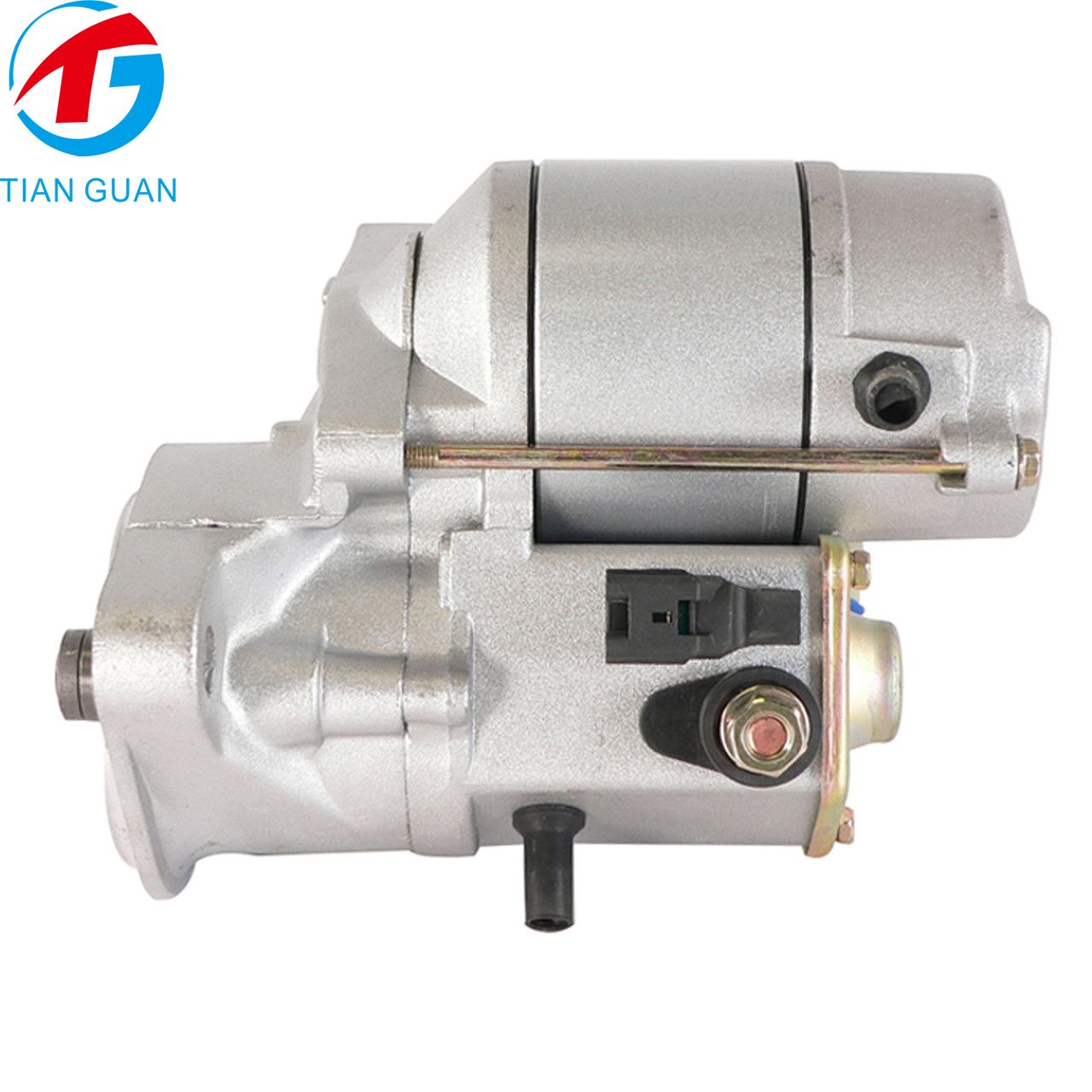

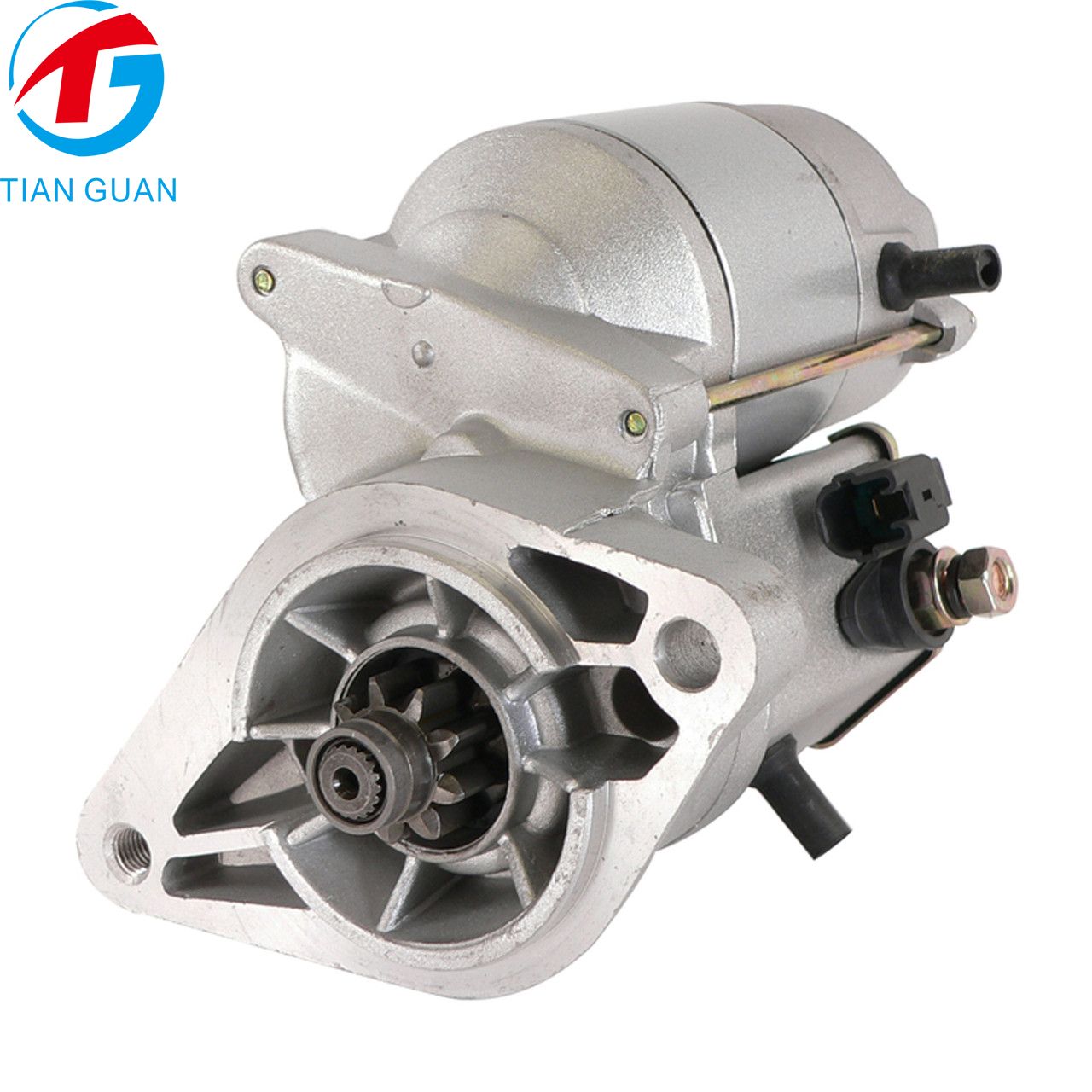

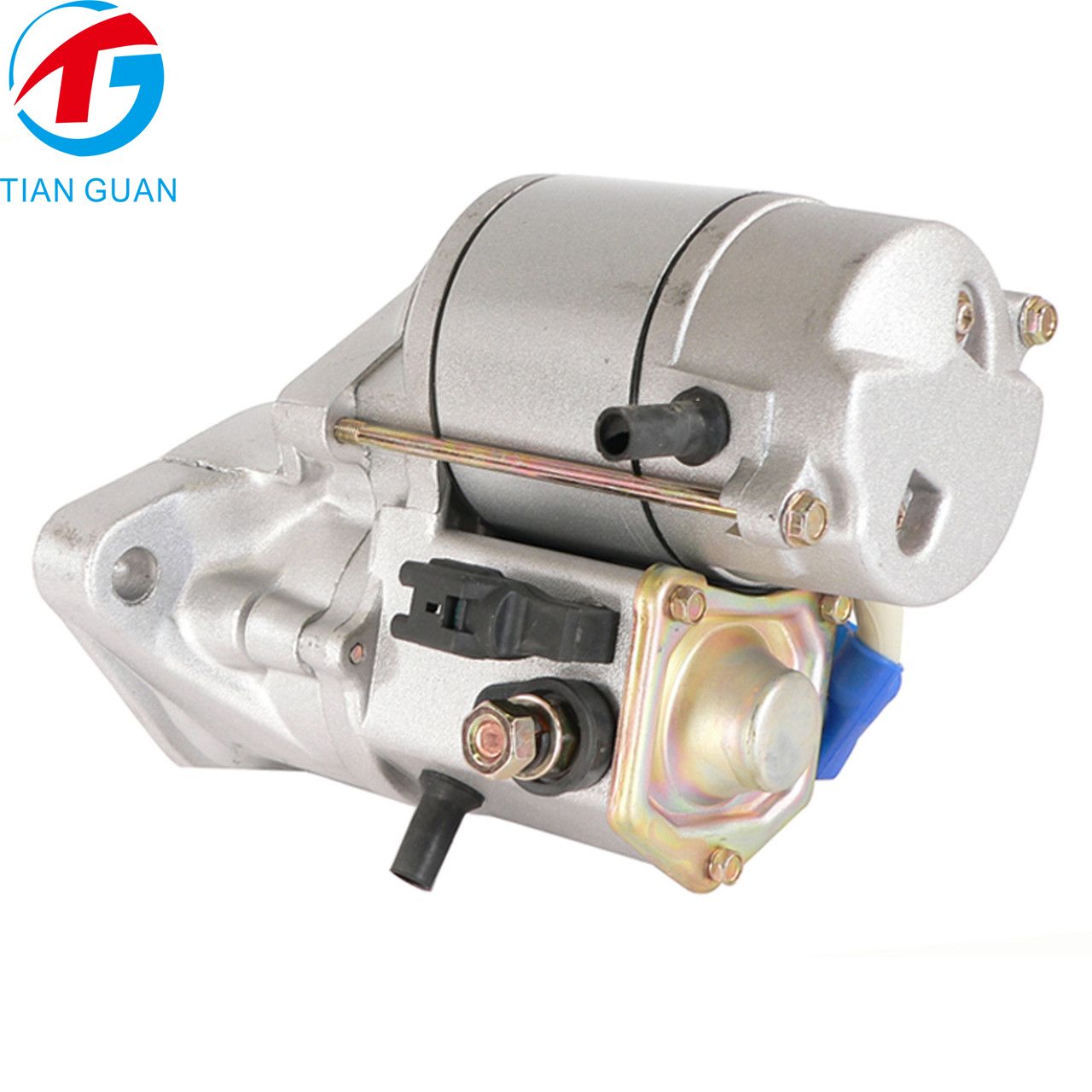

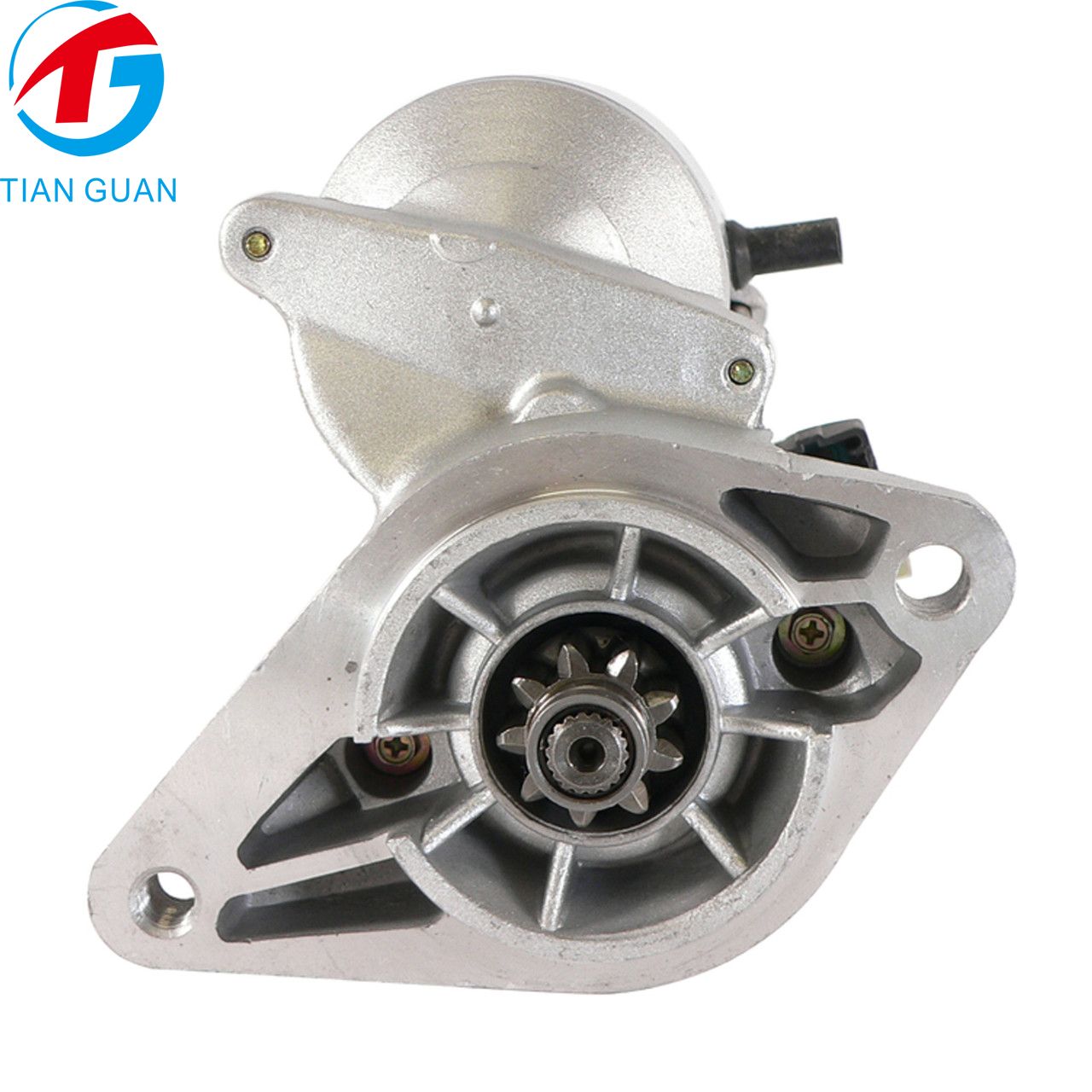

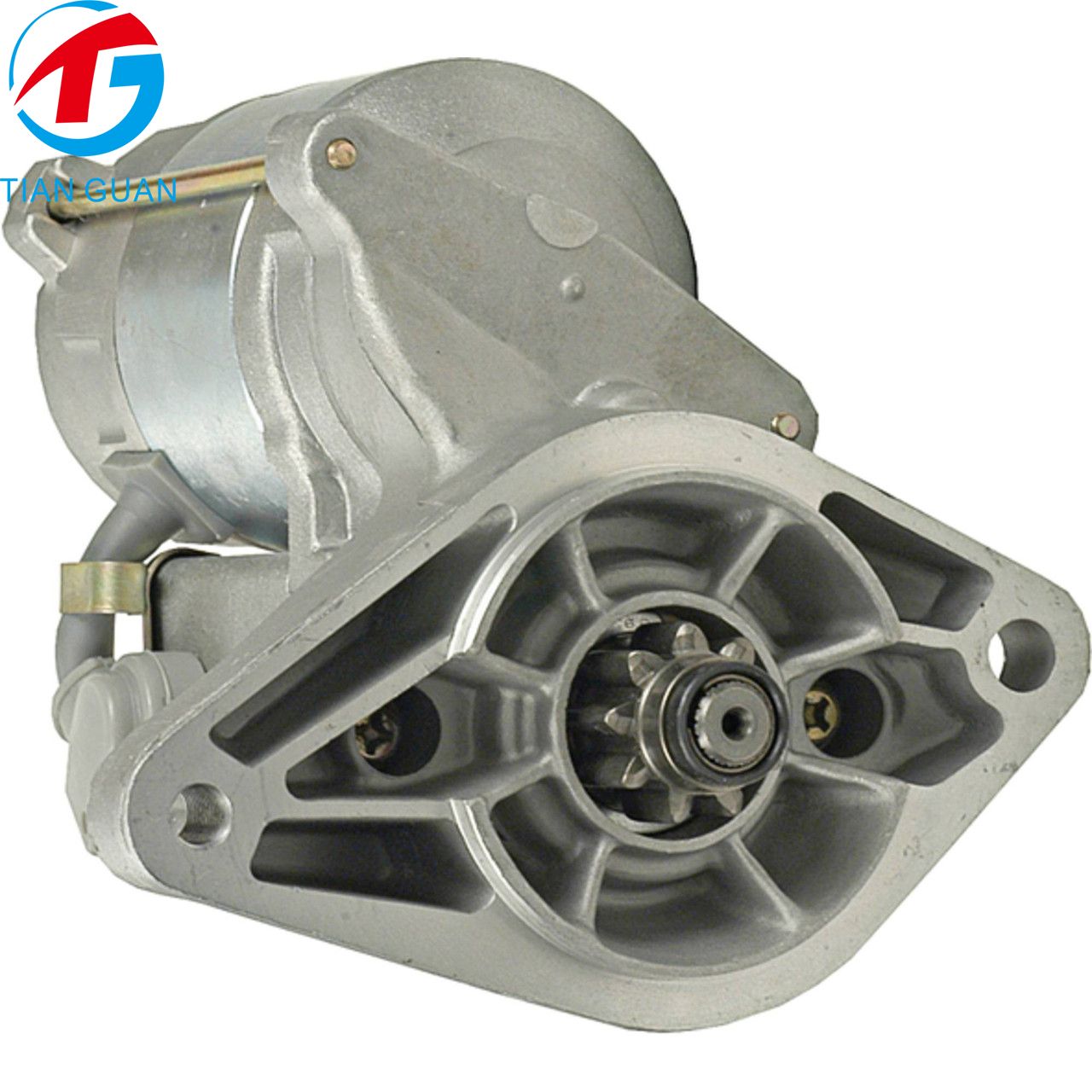

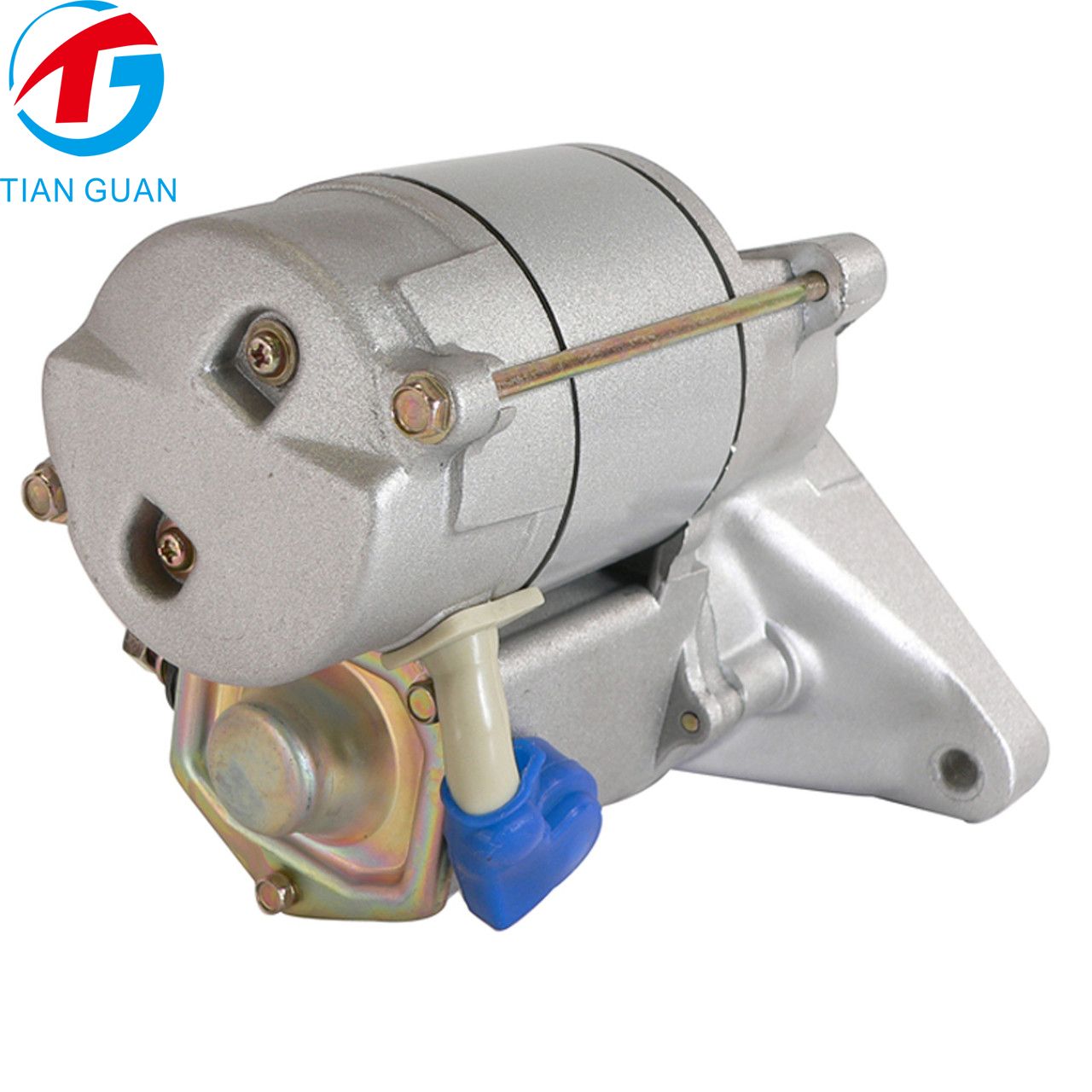

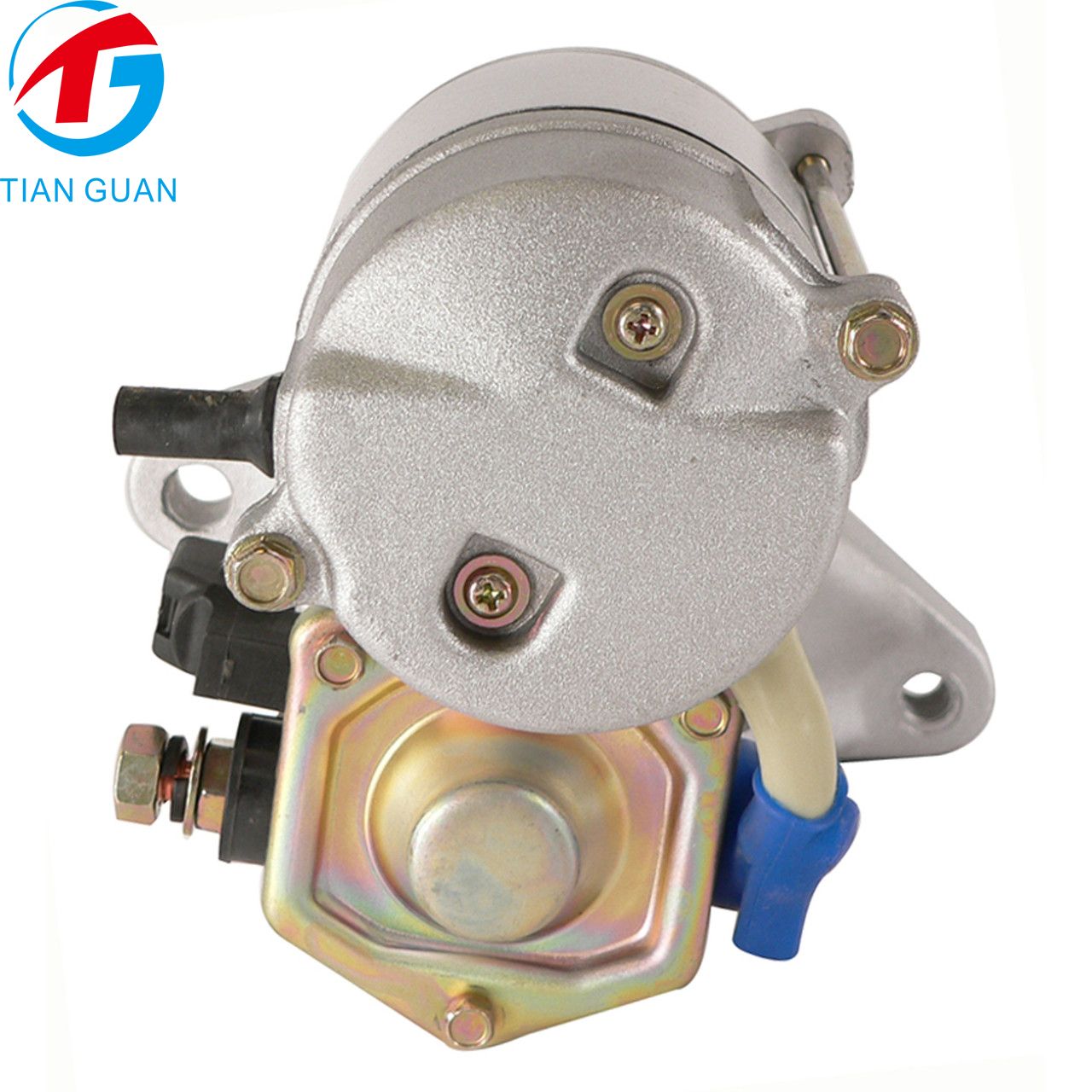

STG52573 Starter Motor 28100-02060 28100-16150 28100-16270 for Geo Prizm Toyota Corolla 1.6L 1.8L 1994-1997 | 12V 1.2KW 9T CW OSGR Replacement

3 Reviews

Add Your Review

US$132.00

ITEMNO： STG52573

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS


    STG52573 Starter Motor 28100-02060 28100-16150 28100-16270 for Geo Prizm Toyota Corolla 1.6L 1.8L 1994-1997 | 12V 1.2KW 9T CW OSGR Replacement

    OEM / Reference Part Numbers:
    TOYOTA: 28100-02060 / 28100-16150 / 28100-16270
    GENERAL MOTORS: 94855154
    DENSO: 228000-1100 / 228000-1102 / 228000-2940 / 228000-2942 / 228000-2960 / 228000-2961
    DENSO FIRST TIME FIT: 280-0100 / 280-0249 / 280-0305
    ARROWHEAD: SND0126 / SND0100 / 410-52037
    LESTER: 17495 / 17519 / 17554
    J&N: 410-52037
    PIC: 190-253 / 190-253A / 190-268
    CARGO: 111984 / 112033
    LUCAS ELECTRICAL EUROPE: LRS01491
    REMY: 17223 / 99610
    WAI: 2-1700-ND / 2-1784-ND
    WILSON: 91-29-5262 / 91-29-5280
    NSA: STR-8033 / STR-8091
    WOOD AUTO: STR8091

    Product Description

    STG52573 is a new aftermarket starter motor for Geo Prizm and Toyota Corolla 1.6L and 1.8L engines from 1994–1997. It uses a 12V, 1.2KW, 9-tooth, clockwise (CW) OSGR configuration and is designed as a direct replacement for the listed Toyota, Denso, GM and aftermarket reference numbers.

    The 410-52037 starter family is also listed for compatible Toyota Celica 1.8L applications from 1994–1997.

    Product Specifications

    PropertyValue
    Product ModelSTG52573
    Main OEM28100-02060 / 28100-16150 / 28100-16270
    Voltage12V
    Power Output1.2KW
    Starter TypeOSGR
    RotationCW
    Teeth Count9T
    Gear OD29 mm
    Mount Hole 110 mm, Unthreaded
    Mount Hole 2M10 × 1.25, Threaded
    ApplicationAutomotive
    ConditionNew Aftermarket

    OEM / Cross Reference Table


    ARROWHEADSND0126, 410-52037,SND0100
    BARSANCO610-17519
    CARGO111984, 112033
    DENSO FIRST TIME FIT280-0100, 280-0249, 280-0305
    DENSO228000-1100, 228000-1102, 228000-2940, 228000-2942, 228000-2960, 228000-2961
    DIXIE NEWS-8448N
    DIXIES-8448
    GENERAL MOTORS94855154
    J & N410-52037
    LESTER (OLD)17554
    LESTER17495, 17519
    LUCAS ELECTRICAL EUROPELRS01491
    MINNPAR57-2819, 57-3158
    NAPA POWER NEW4N-6575, 4N-6777
    NAPA POWER PREMIUM PLUS244-6575, 244-6777
    NAPA POWER SUPREME44-6575, 44-6777
    NSASTR-8033, STR-8091
    PIC190-253, 190-253A, 190-268
    RCPST-17519
    REMY LIGHT DUTY NEW99610
    REMY LIGHT DUTY17223
    TOYOTA28100-02060, 28100-16150, 28100-16270
    USA INDUSTRIESS1548
    WAI2-1700-ND, 2-1784-ND
    WILSON NEW91-29-5262, 91-29-5262N, 91-29-5280, 91-29-5280N
    WILSON91-29-5262, 91-29-5280
    WOOD AUTOSTR8091

    Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    GEOAuto and Light TruckPRIZM19941.6L
    GEOAuto and Light TruckPRIZM19941.8L
    GEOAuto and Light TruckPRIZM19951.6L
    GEOAuto and Light TruckPRIZM19951.8L
    GEOAuto and Light TruckPRIZM19961.6L
    GEOAuto and Light TruckPRIZM19961.8L
    GEOAuto and Light TruckPRIZM19961.8L


    GEO

    		Auto and Light TruckPRIZM19971.6L
    GEOAuto and Light TruckPRIZM19971.8L
    TOYOTAAuto and Light TruckCOROLLA19941.6L
    TOYOTAAuto and Light TruckCOROLLA19941.8L
    TOYOTAAuto and Light TruckCOROLLA19951.6L
    TOYOTAAuto and Light TruckCOROLLA19951.8L
    TOYOTAAuto and Light TruckCOROLLA19961.6L
    TOYOTAAuto and Light TruckCOROLLA19961.8L
    TOYOTAAuto and Light TruckCOROLLA19971.6L
    TOYOTAAuto and Light TruckCOROLLA19971.8L

    Weight & Package Information

    ItemValue
    Net Weight3.8 KG
    Gross Weight4.5 KG
    Package Size25 × 19 × 17 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Geo Prizm 1994–1997 Replacement12V 1.2KW Starter Motor9T CW OSGR Design
    Toyota Corolla 1.6L / 1.8L Compatible28100-02060 / 28100-16270 Replacement29 mm Gear OD
    Denso 228000 Series Cross ReferenceCompact Gear-Reduction StarterReliable Starting Performance
