STG52574 Starter Motor 28100-21022 for Toyota Echo 1.5L Yaris 1.5L | 12V 0.8KW 9T CW PLGR Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： STG52574

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

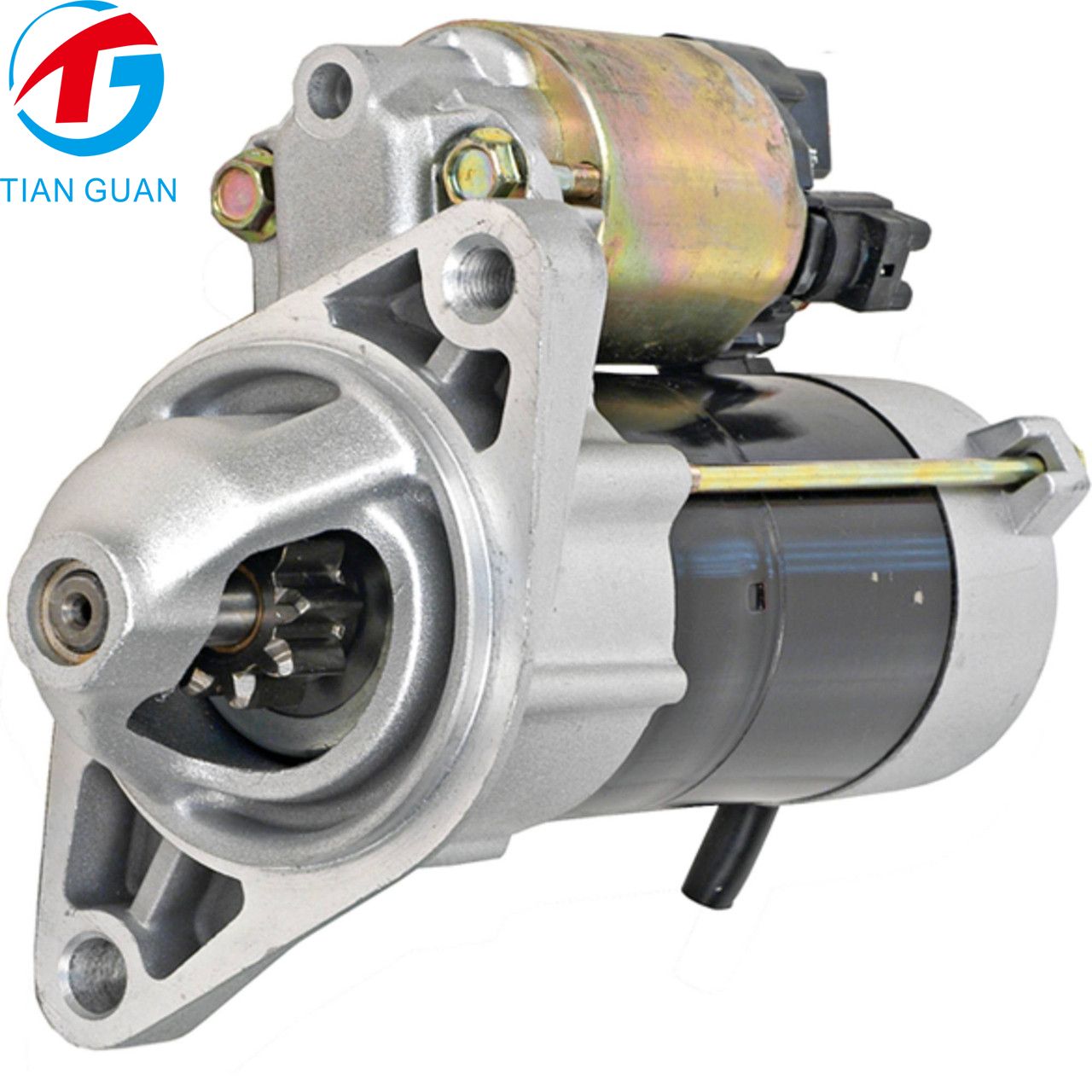

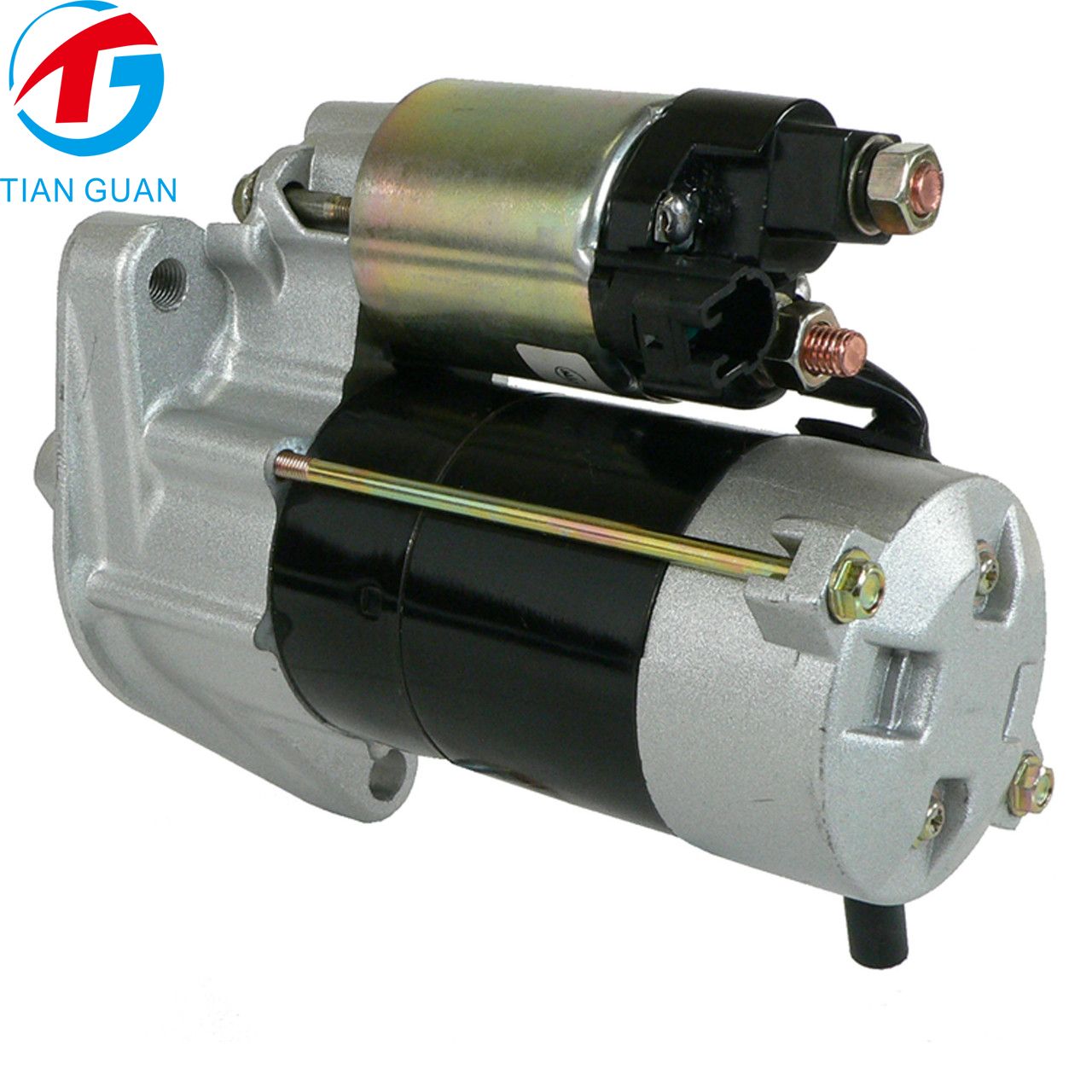

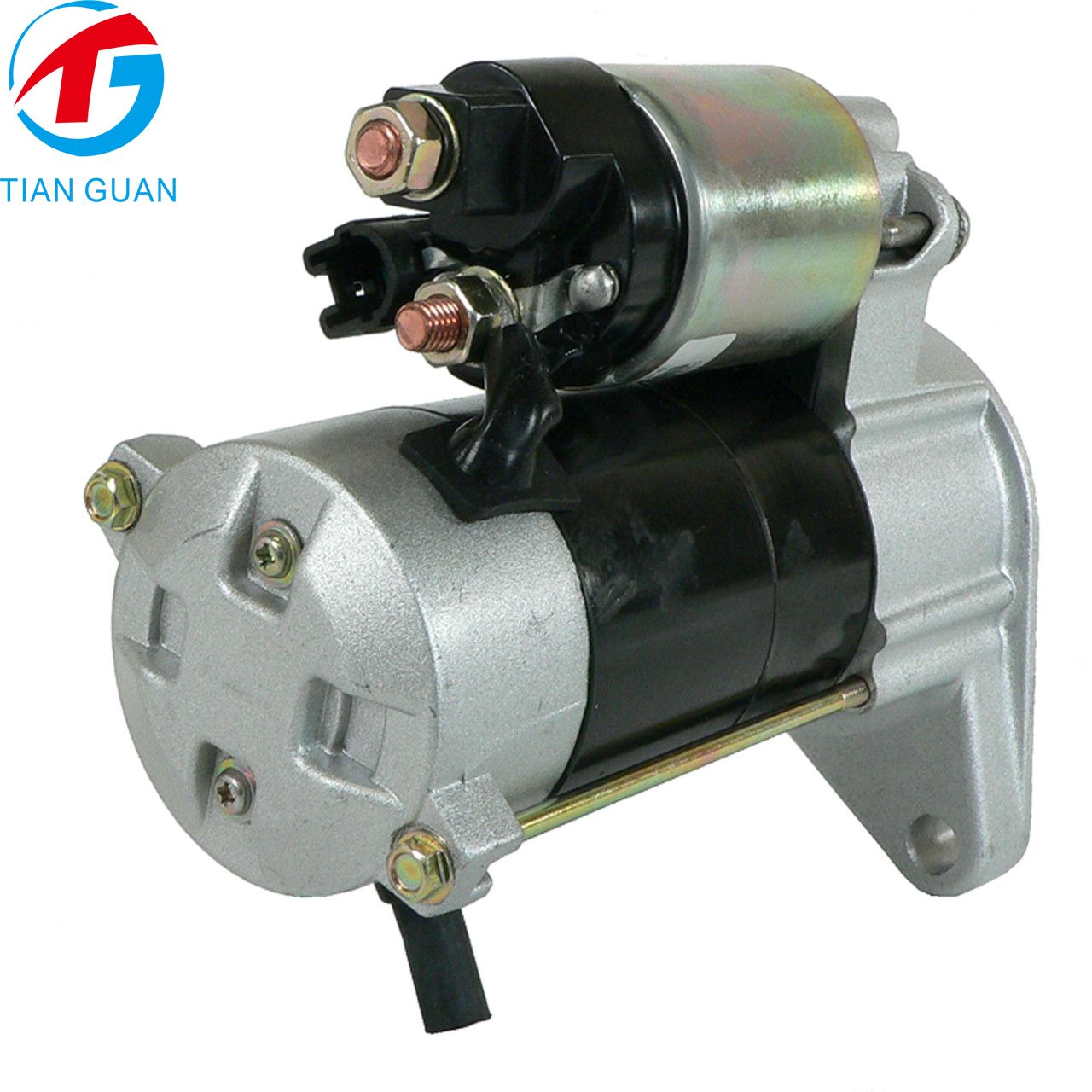

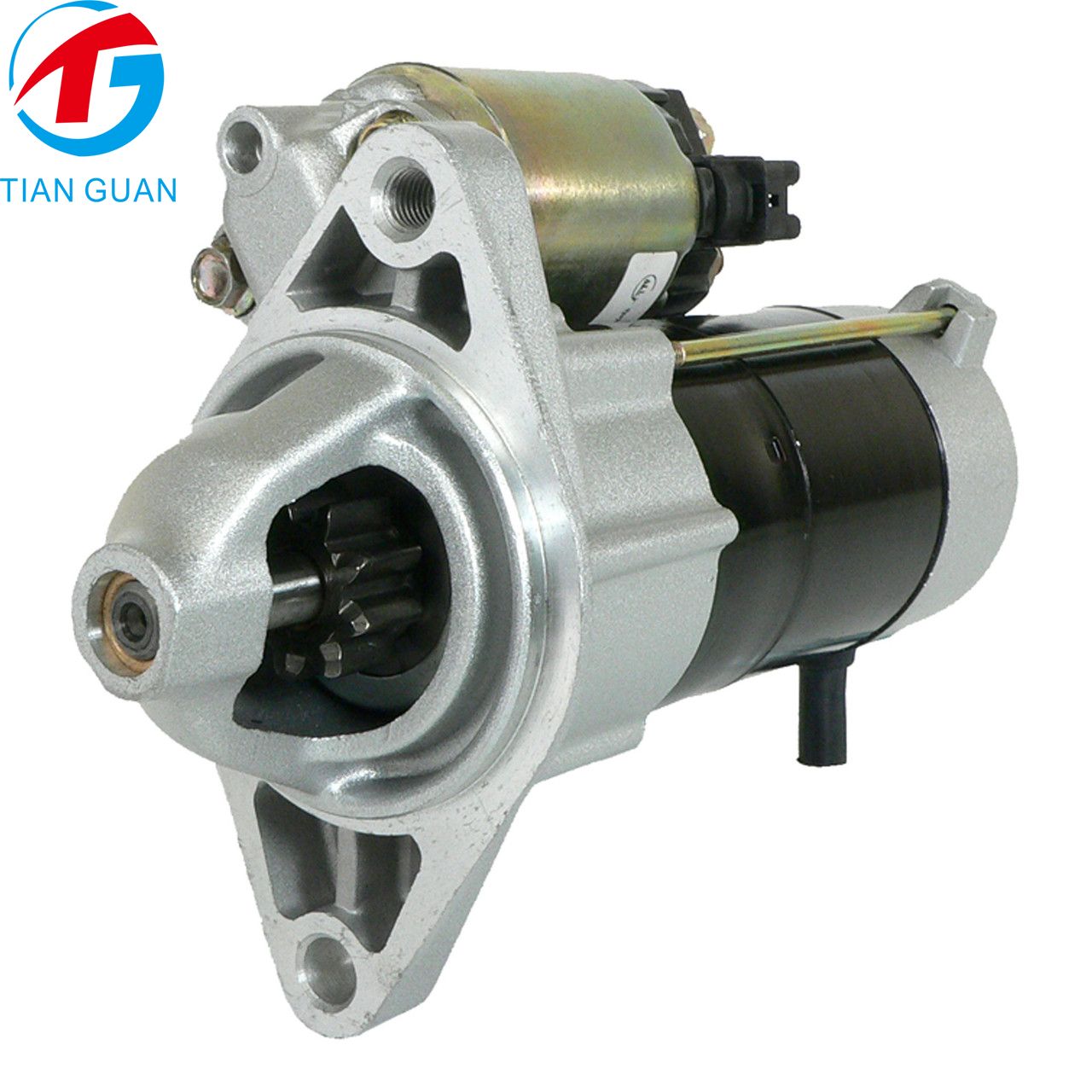

    STG52574 Starter Motor 28100-21022 for Toyota Echo 1.5L Yaris 1.5L | 12V 0.8KW 9T CW PLGR Replacement

    OEM Part Numbers: 28100-21020 / 28100-21021 / 28100-21022
    DENSO Part Numbers: 228000-8540 / 228000-8542
    Reference Numbers: 410-52176 / SND0256 / 17805 / STR-8268 / 2-2057-ND
    Application: Toyota Echo 2000-2005 1.5L / Toyota Yaris 2006-2009 1.5L

    Product Description

    STG52574 Starter Motor is a high-quality aftermarket replacement designed for Toyota Echo 1.5L and Toyota Yaris 1.5L gasoline engine applications.

    This starter features a 12V 0.8KW PLGR (Planetary Gear Reduction) design with 9-tooth pinion gear and CW (Clockwise) rotation, providing reliable starting torque, efficient cranking performance, and compact gear-reduction construction. The listed 410-52176 replacement cross-references Toyota 28100-21020, 28100-21021, and 28100-21022, along with Denso 228000-8540 / 228000-8542.

    Product Specifications

    PropertyValue
    Product ModelSTG52574
    OEM Part Numbers28100-21020 / 28100-21021 / 28100-21022
    Denso Part Numbers228000-8540 / 228000-8542
    Reference Numbers410-52176 / SND0256 / 17805
    Voltage12V
    Power Output0.8KW
    Starter TypePLGR
    RotationCW
    Teeth Count9T
    EngineToyota 1.5L
    ApplicationToyota Echo / Yaris
    ConditionNew Aftermarket

    OEM / Cross Reference Table

    ARROWHEADSND0256, 410-52176
    CARGO113314
    DENSO228000-8540, 228000-8542
    DENSO REMAN9622809-854
    J & N410-52176
    LESTER17805
    NSASTR-8268
    TOYOTA28100-21020, 28100-21021, 28100-21022
    WAI2-2057-ND

      Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    TOYOTAAuto and Light TruckECHO20001.5L
    TOYOTAAuto and Light TruckECHO20011.5L
    TOYOTAAuto and Light TruckECHO20021.5L
    TOYOTAAuto and Light TruckECHO20031.5L
    TOYOTAAuto and Light TruckECHO20041.5L
    TOYOTAAuto and Light TruckECHO20051.5L
    TOYOTAAuto and Light TruckYARIS20061.5L
    TOYOTAAuto and Light TruckYARIS20071.5L
    TOYOTAAuto and Light TruckYARIS20081.5L
    TOYOTAAuto and Light TruckYARIS20091.5L
    TOYOTAAuto and Light TruckYARIS20101.5L
    TOYOTAAuto and Light TruckYARIS20111.5L

    Weight & Package Information

    ItemValue
    Net Weight3.0 KG
    Gross Weight3.5 KG
    Package Size28 × 20 × 20 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights
    Feature 1Feature 2Feature 3
    Toyota Echo 1.5L Replacement12V 0.8KW Starter Motor9T CW PLGR Design
    Toyota Yaris 1.5L CompatiblePlanetary Gear ReductionOEM 28100-21022 Replacement
    Denso 228000-8540 SeriesReliable Engine CrankingCompact Automotive Starter
