STG52813 Starter Motor 5S9-H1800-00 for Yamaha ZUMA 125 YW125 Scooter 2009-2014 | 12V 0.2KW 9T CW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG52813

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

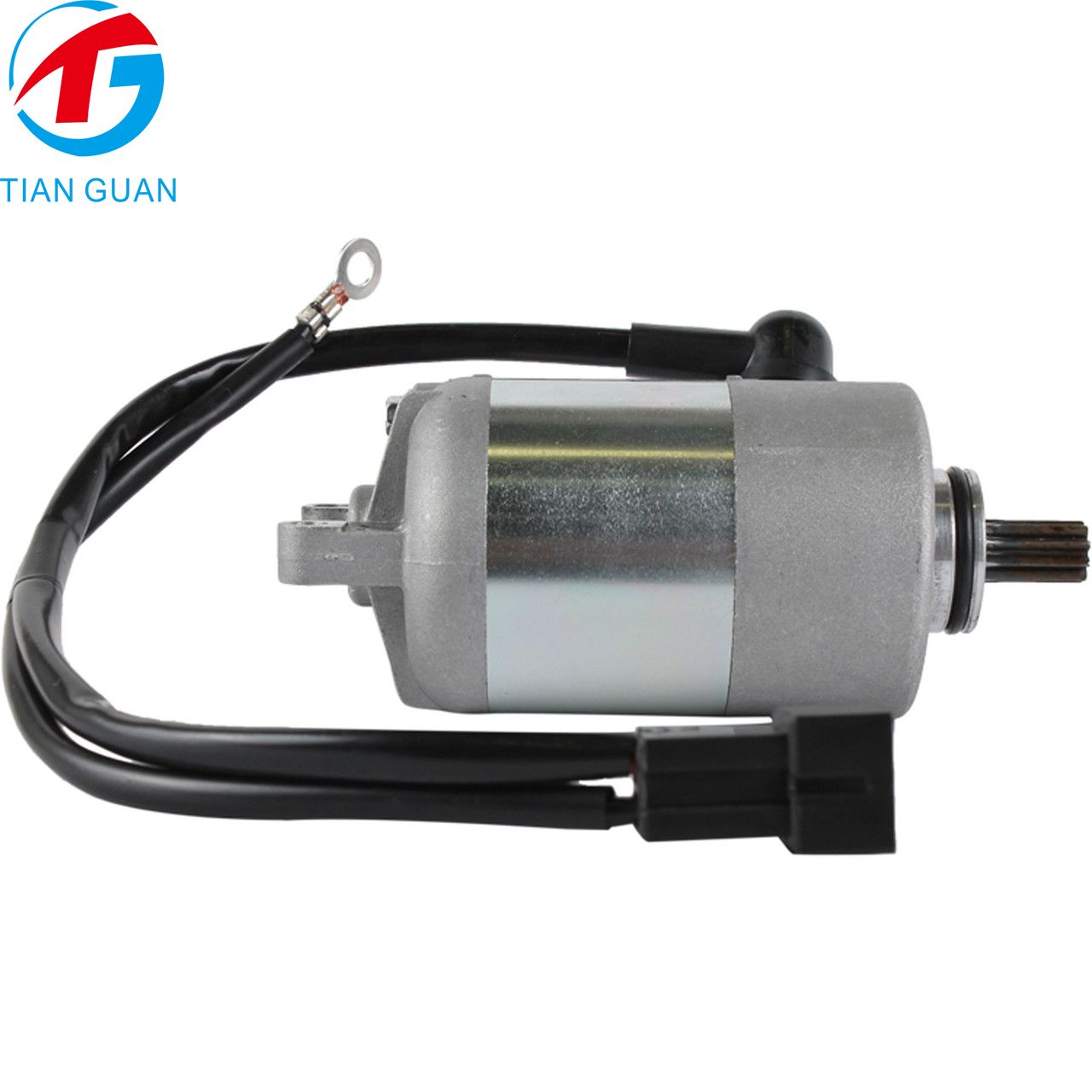

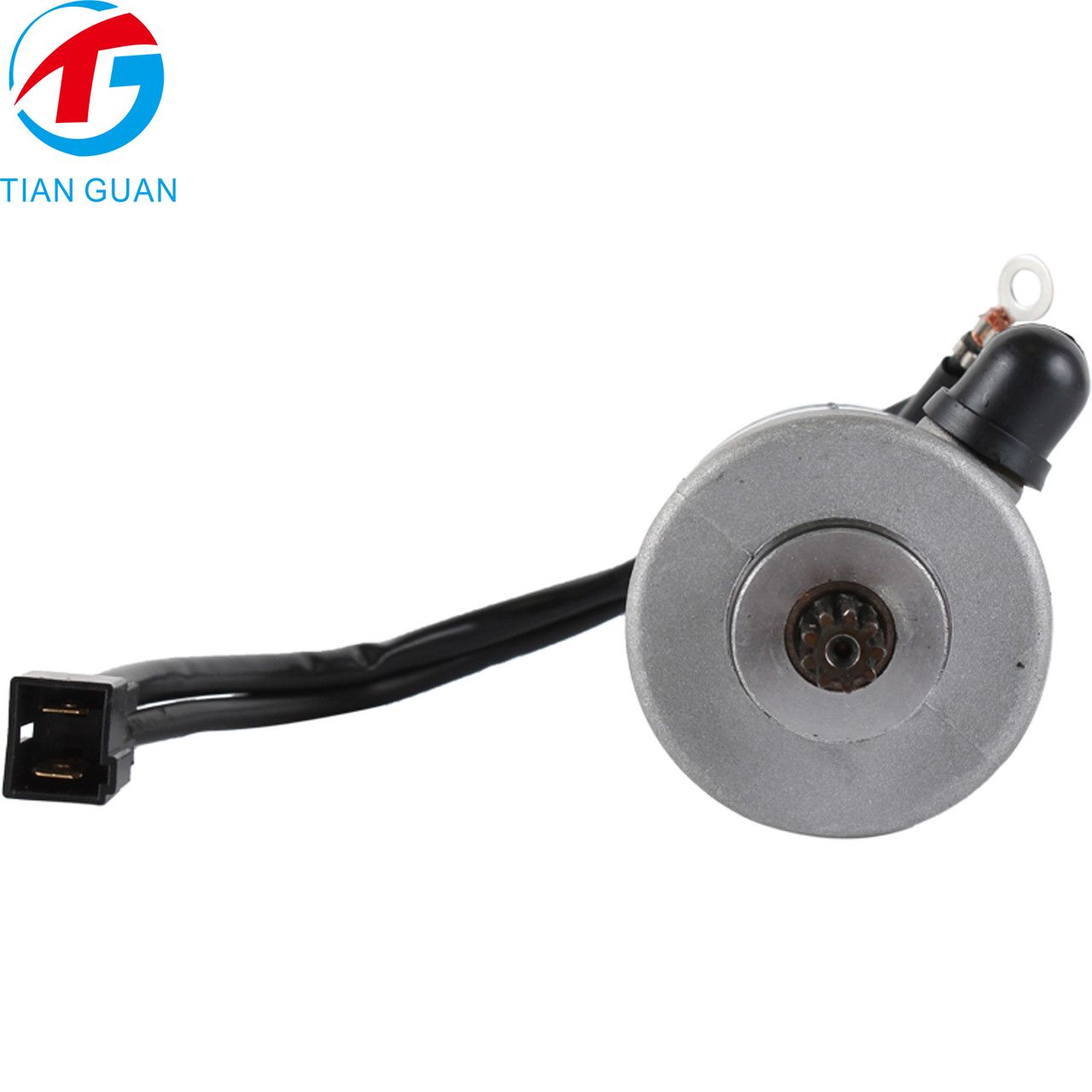

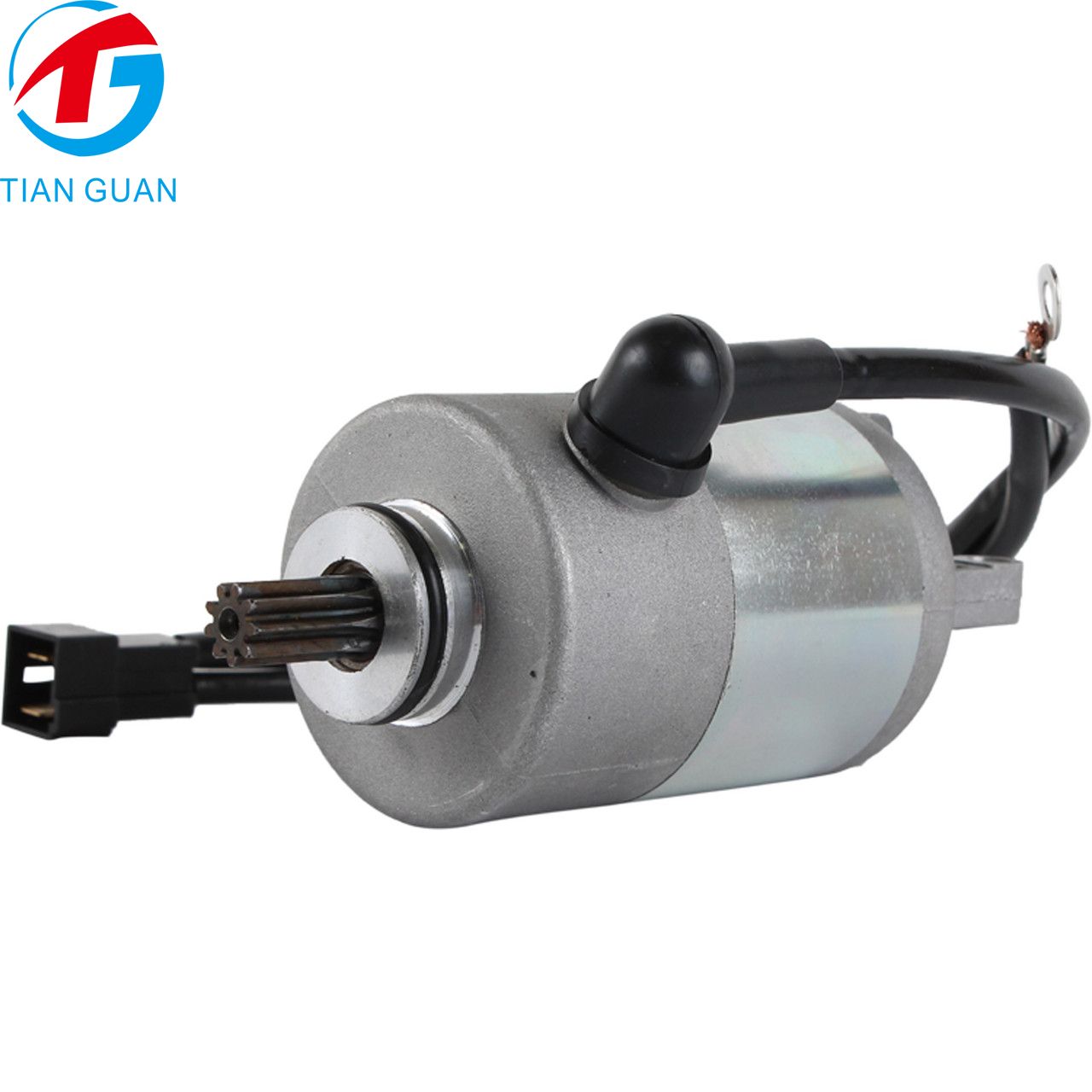

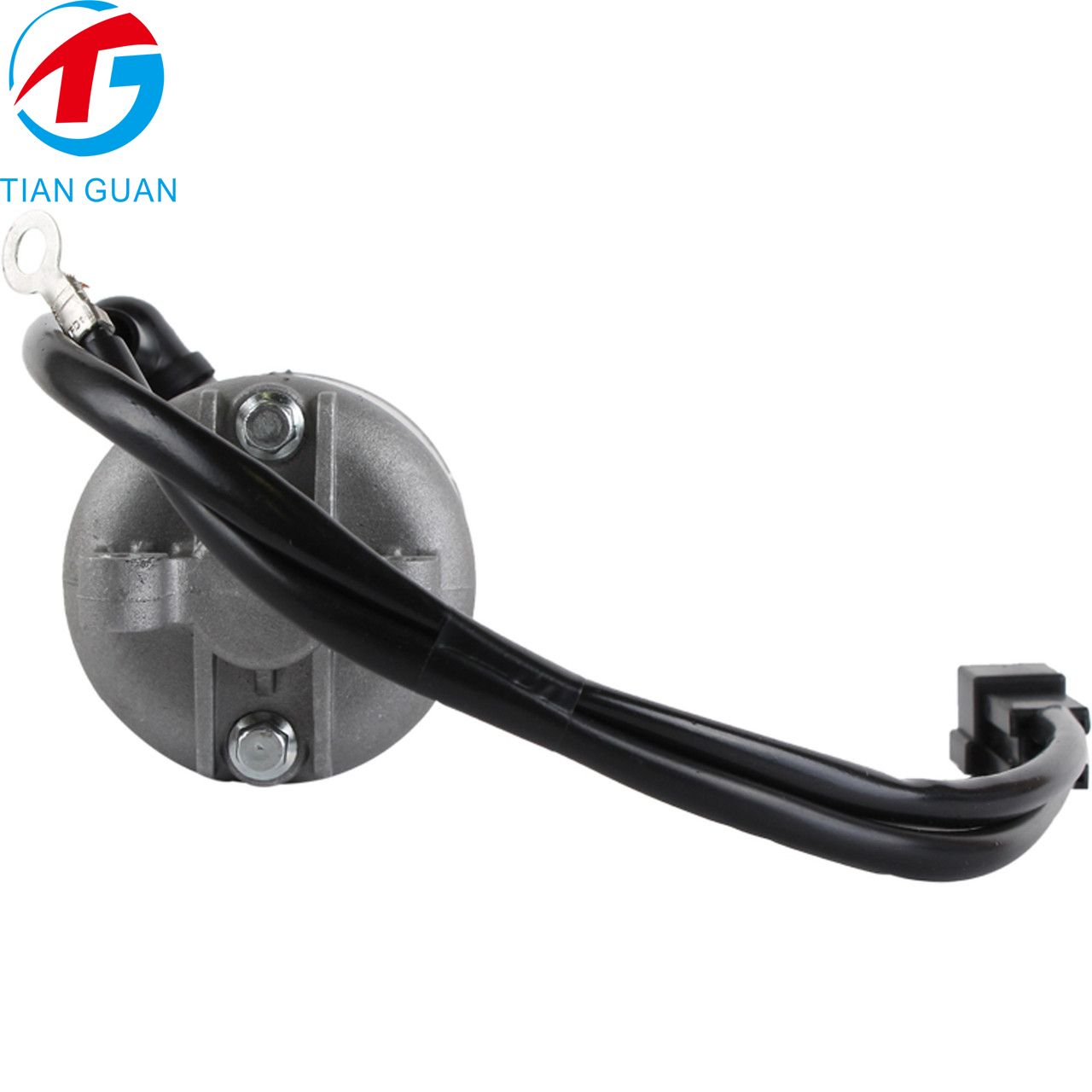

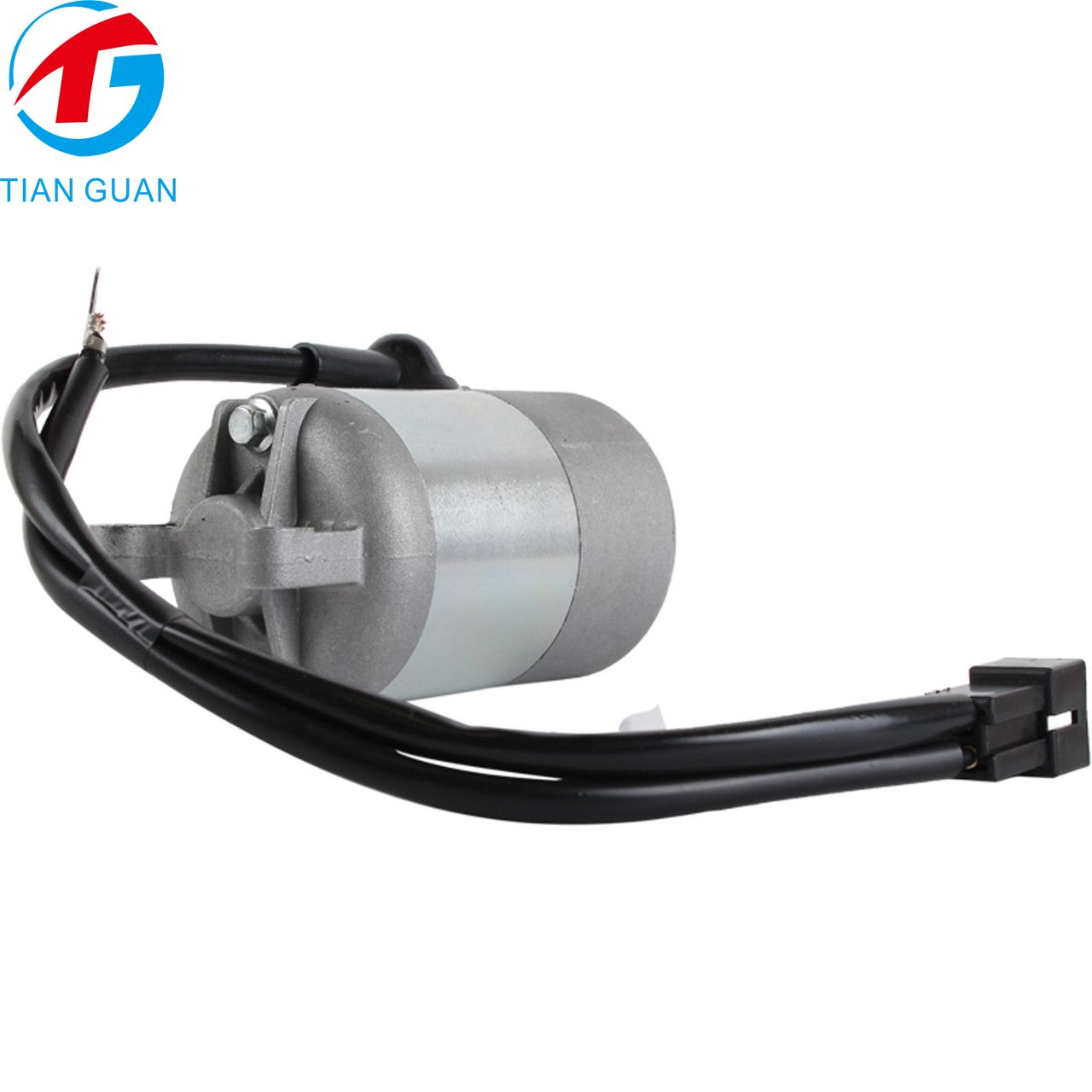

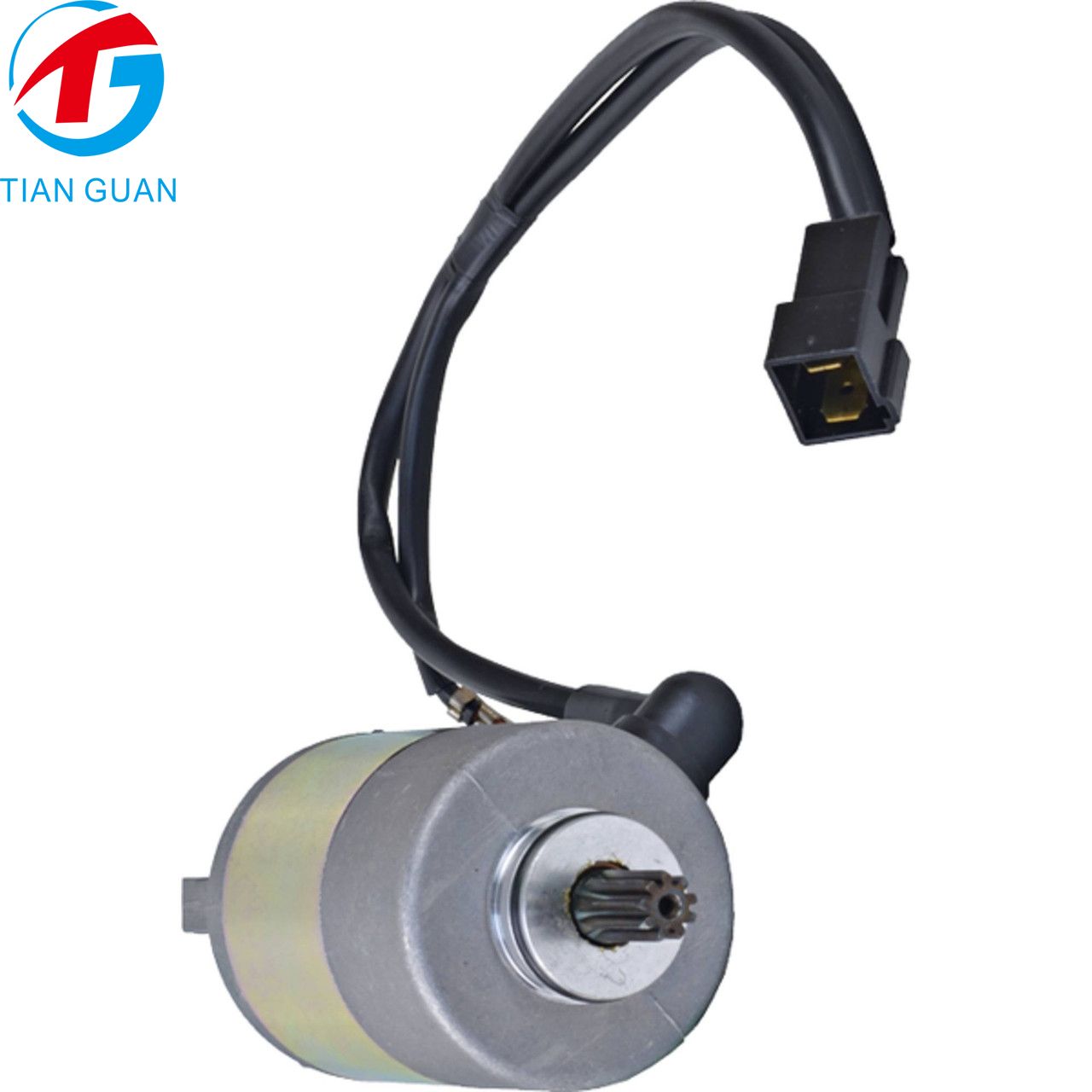

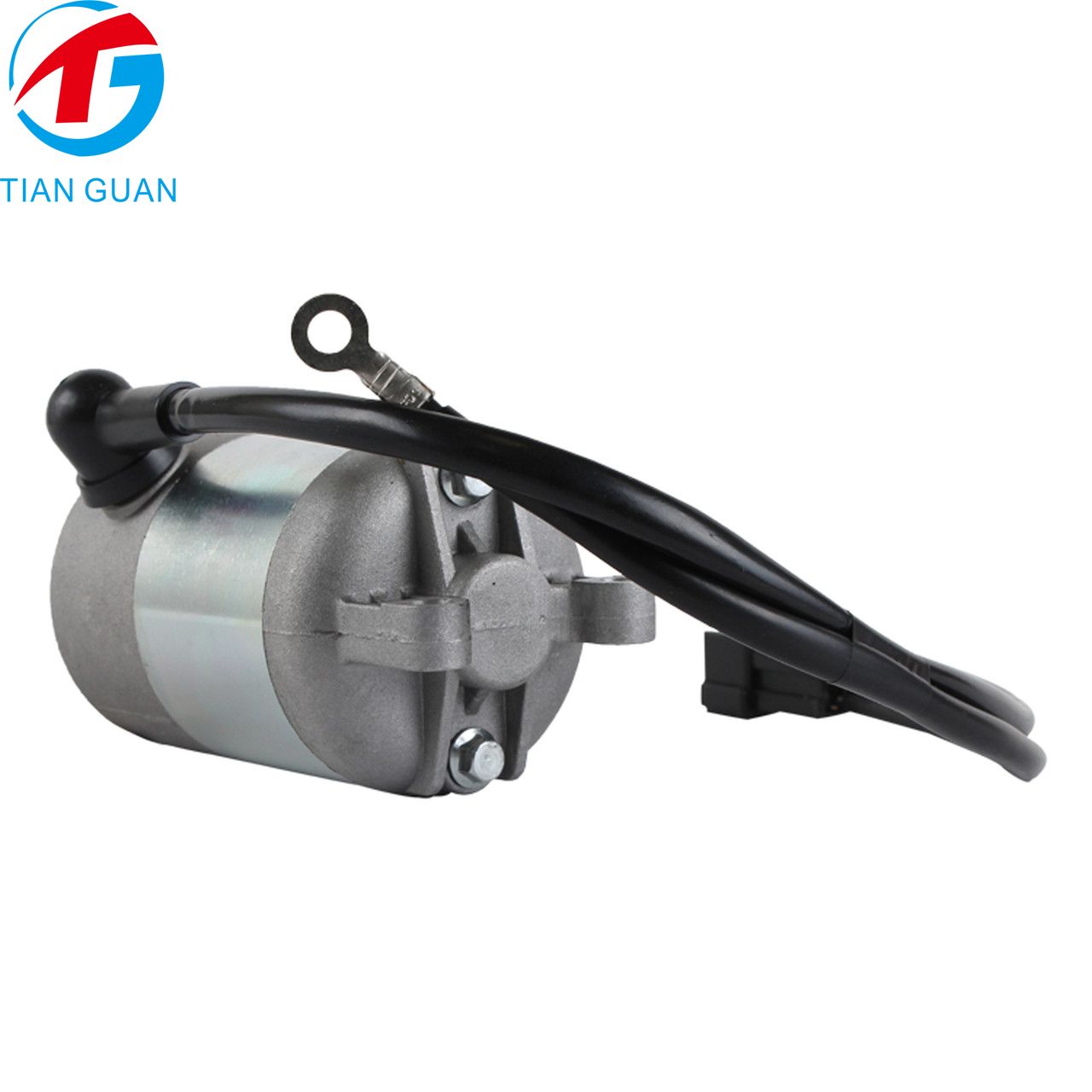

STG52813 Starter Motor 5S9-H1800-00 for Yamaha ZUMA 125 YW125 Scooter 2009-2014 | 12V 0.2KW 9T CW PMDD Replacement

Part Numbers

YAMAHA: 5S9-H1800-00 / 5S9-H1800-01 / 5S9-H1800-10

ARROWHEAD: SMU0526

J&N: 410-54099

LESTER: 19687

MITSUBA: SM-13

TUCKER ROCKY: 49-2005

Product Description

STG52813 Starter Motor is a new aftermarket replacement designed for Yamaha ZUMA 125 (YW125) scooter applications from 2009-2014.

Featuring a 12V, 0.2KW, 9-tooth, clockwise-rotation PMDD (Permanent Magnet Direct Drive) design, it provides reliable starting performance and smooth engine cranking for scooter and small motorcycle applications.

This starter replaces Yamaha 5S9-H1800-00 and corresponding aftermarket cross-reference numbers.

Product Specifications

Property	Value
Product Model	STG52813
Part Numbers	5S9-H1800-00 / 5S9-H1800-01
Voltage	12V
Power Output	0.2 KW
Number of Teeth	9T
Starter Type	PMDD (Permanent Magnet Direct Drive)
Rotation	CW
Condition	New Aftermarket
Application	Scooter Starter
Compatible Brand	Yamaha
Engine Type	125cc Gasoline Engine

OEM / Cross Reference Table

Brand	Part Number
YAMAHA	5S9-H1800-00 / 5S9-H1800-01 / 5S9-H1800-10
ARROWHEAD	SMU0526
J&N	410-54099
LESTER	19687
MITSUBA	SM-13
TUCKER ROCKY	49-2005

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
Yamaha	Scooter	Zuma 125 YW125	2009	125cc
Yamaha	Scooter	Zuma 125 YW125	2010	125cc
Yamaha	Scooter	Zuma 125 YW125	2011	125cc
Yamaha	Scooter	Zuma 125 YW125	2012	125cc
Yamaha	Scooter	Zuma 125 YW125	2013	125cc
Yamaha	Scooter	Zuma 125 YW125	2014	125cc
Yamaha	Scooter	Zuma 125 YW125	2015	125cc

Packing Information

Item	Value
Net Weight (NW)	1.0 KG
Gross Weight (GW)	1.3 KG
Carton Size	22 × 14 × 14 CM
Package Volume	0.0043 m³
Package Includes	1 × Starter Motor

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Yamaha ZUMA 125 Replacement	12V 0.2KW 9T Starter Motor	CW PMDD Design
YW125 Scooter Compatible	5S9-H1800-00 OEM Replacement	Small Motorcycle Application
2009-2014 Fitment	Reliable Starting Performance	Direct Aftermarket Replacement

SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination
