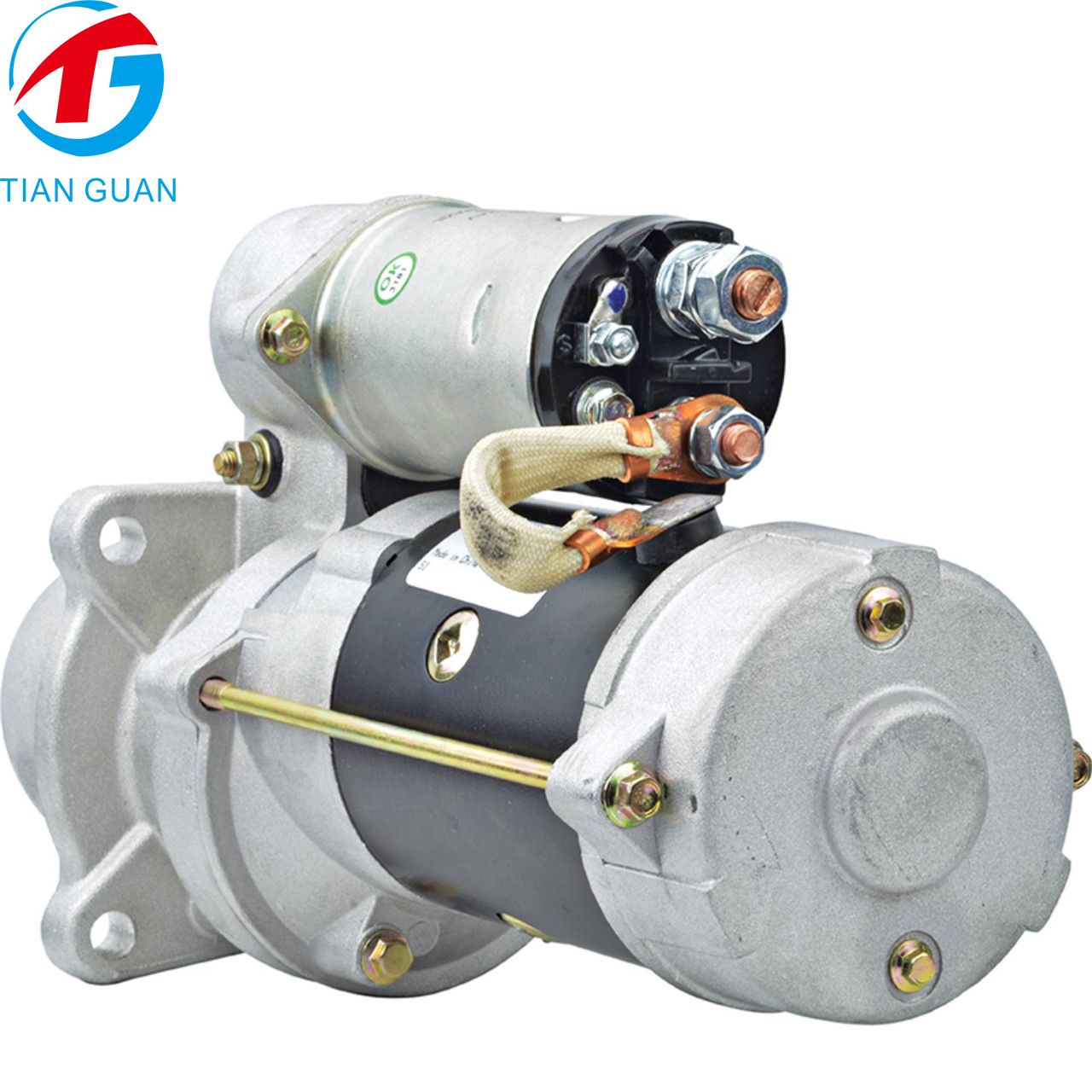

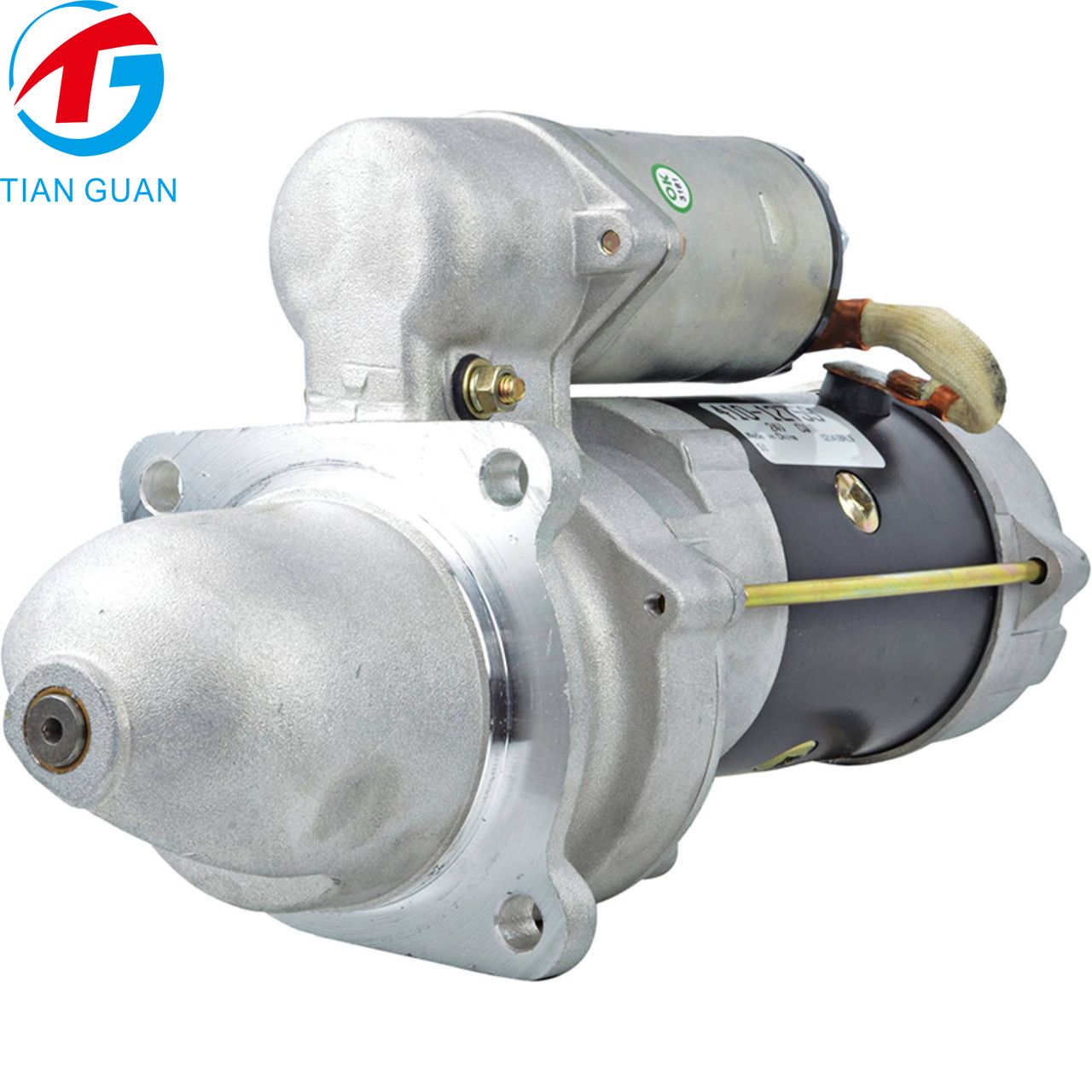

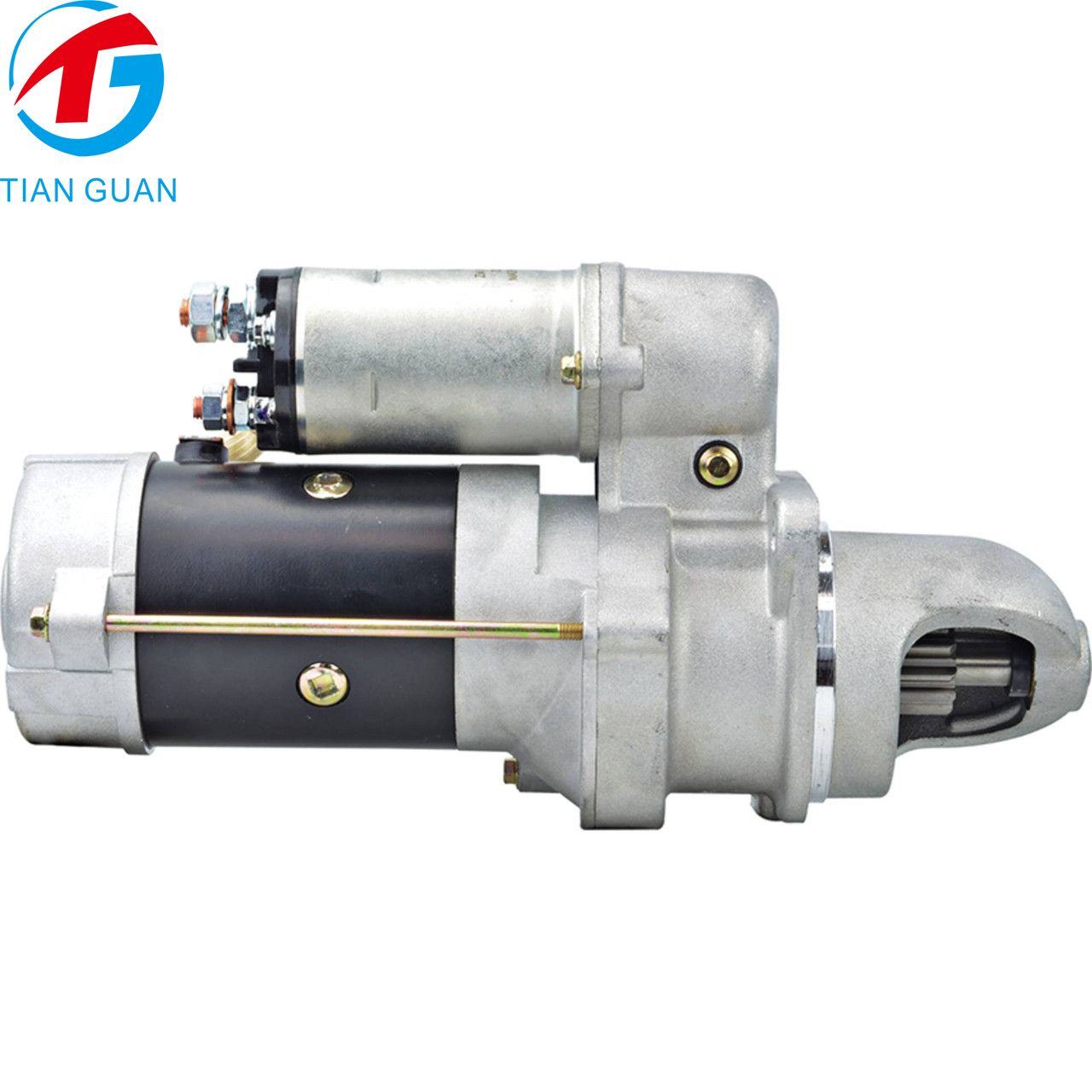

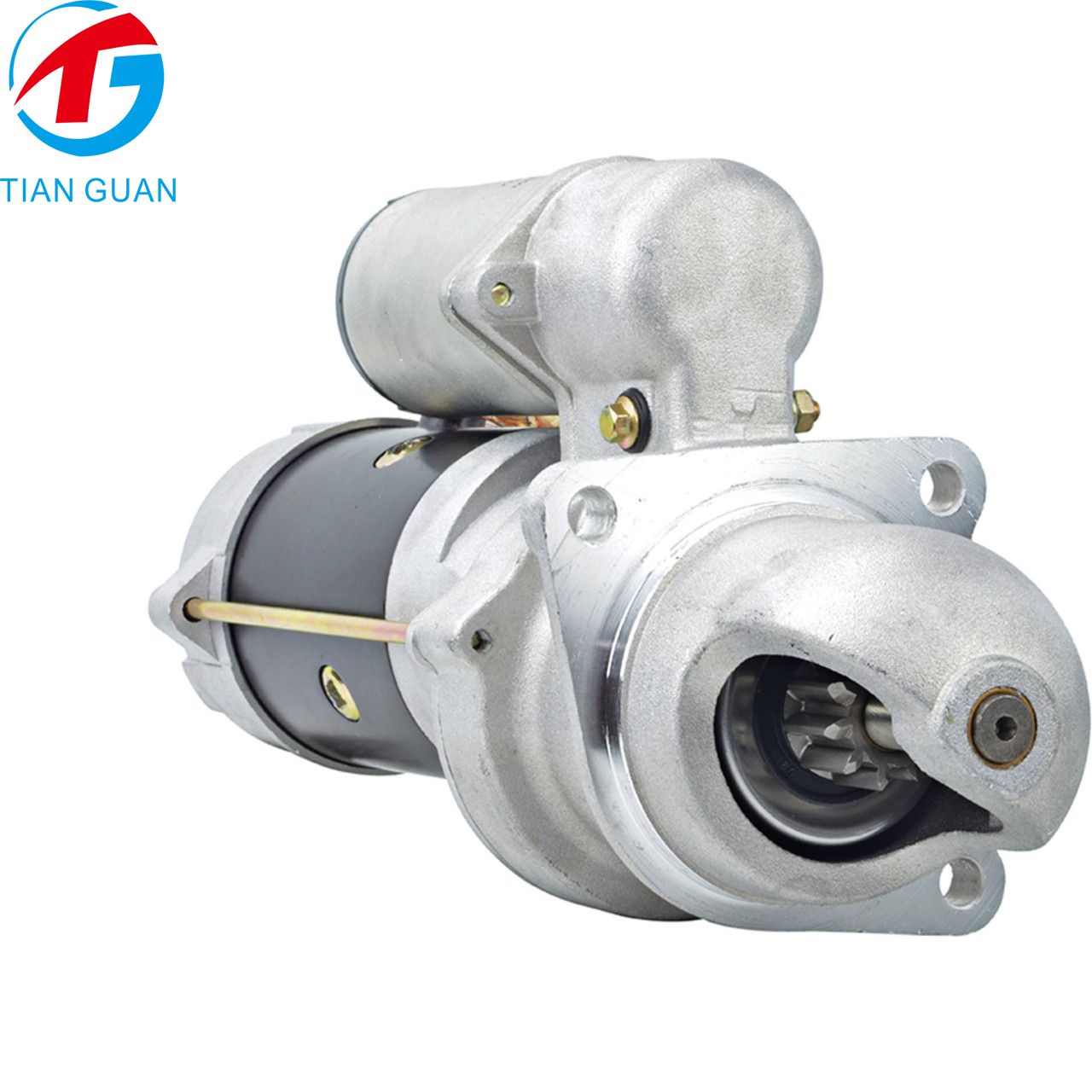

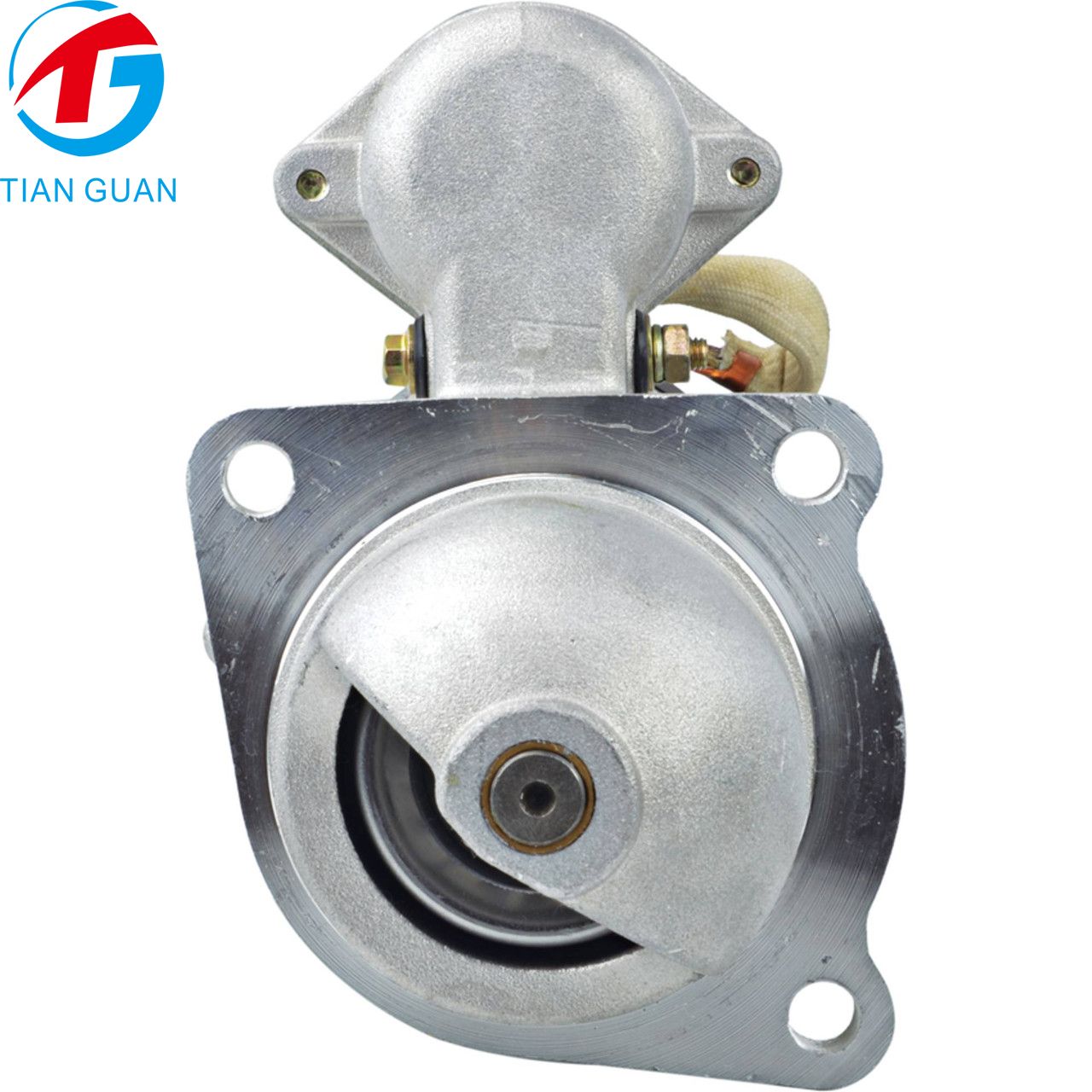

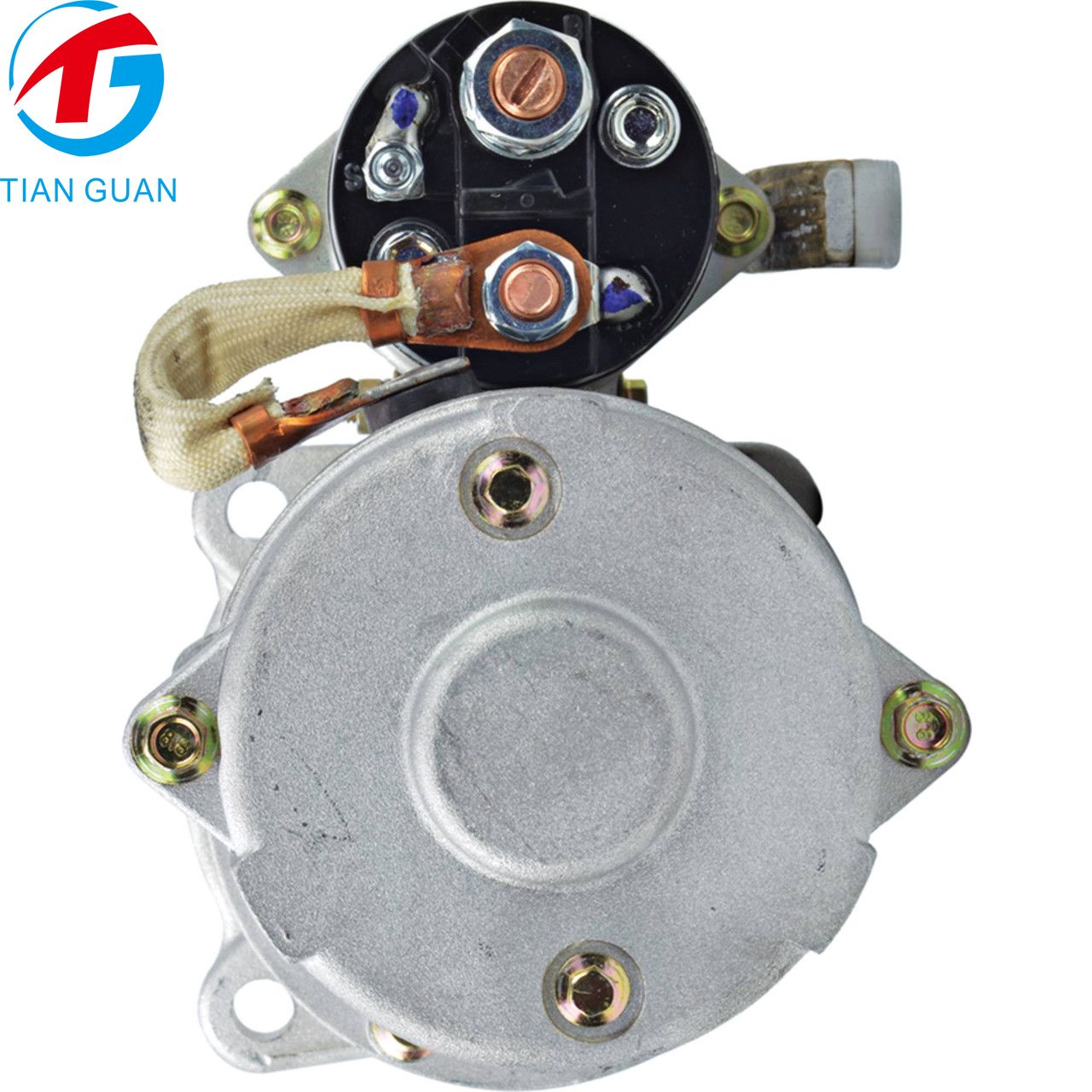

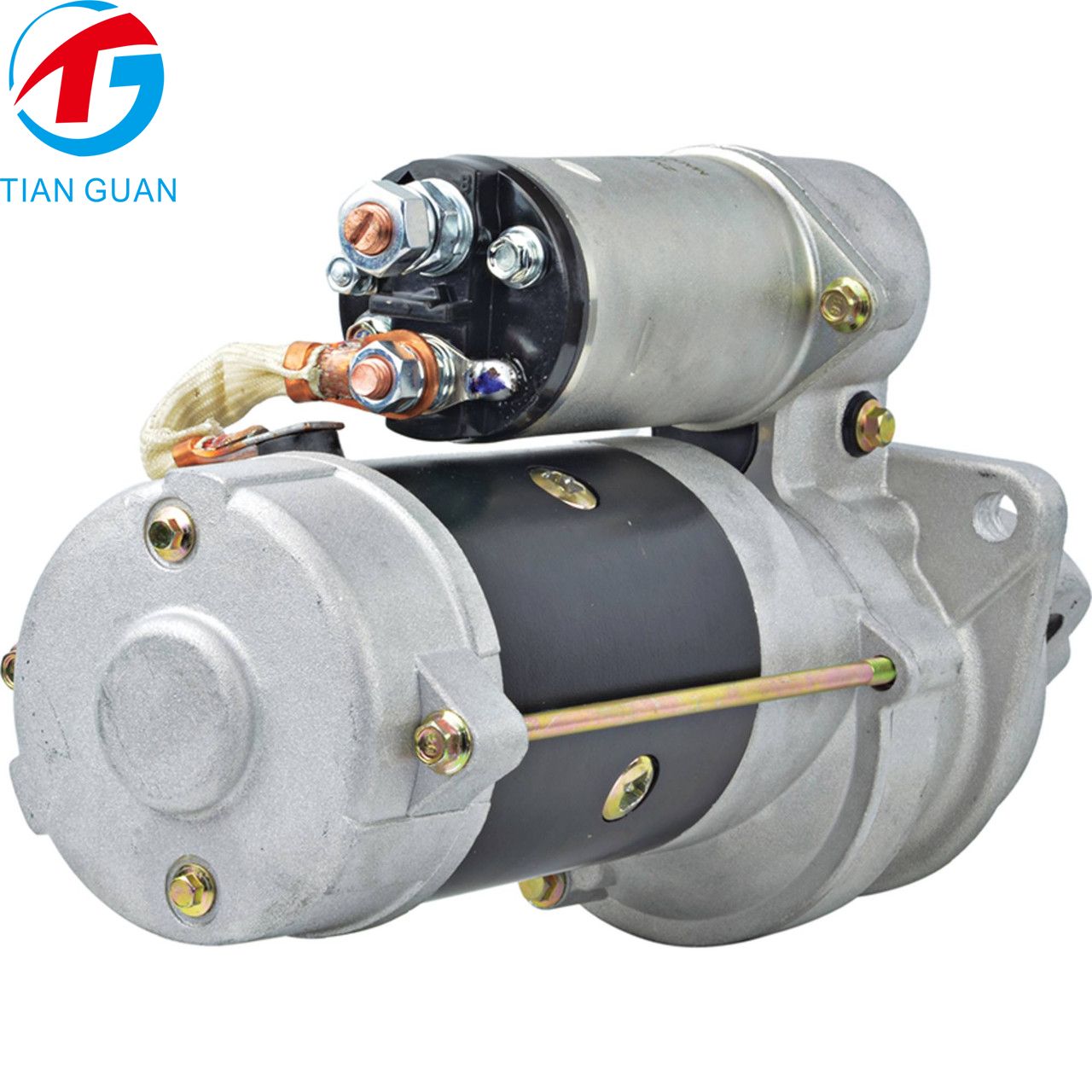

STG53325 Starter Motor 6574 6582 410-12759 for Champion 710 710A 716A 5.9L Cummins Engine | 24V 4.0KW 10T CW OSGR Replacement

3 Reviews

Add Your Review

US$139.00

ITEMNO： STG53325

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53325 Starter Motor 6574 6582 410-12759 for Champion 710 710A 716A 5.9L Cummins Engine | 24V 4.0KW 10T CW OSGR Replacement

Part Numbers

CHAMPION: 710 / 710A / 716A

LESTER: 6574 / 6582 / 6592

J&N: 410-12759 / 410-12111 / 410-12124

ARROWHEAD: 410-12759 / SNK0014 / SNK0019

CUMMINS: 3604677 / 3604677RX / 3675204RX / 3904057 / 3918377 / 3918378 / 3926932

DELCO: 10455500 / 10455502 / 10461283 / 10461286 / 10461468 / 10461469 / 10461486 / 10479622 / 10479623 / 10479655 / 1113277 / 1113291 / 1113594 / 1998459 / 1998488 / 323-911

MAHLE: IS1140 / MS242

NIKKO: 02-23-1013 / 02-23-1014 / 0-23000-2030 / 0-23000-2040 / 0-23000-2044 / 0-23000-2048 / 0-23000-2470

WAI: 6582N

LUCAS: LRS02448

JANNCO: 410-12111R / 410-12759N

Cross-reference data identifies Lester 6574/6582 and J&N 410-12759 as part of the same Delco 28MT, 24V, 10T, CW OSGR starter family.

Product Description

STG53325 Starter Motor is a heavy-duty aftermarket replacement designed for Champion 710, 710A and 716A motor graders equipped with Cummins 5.9L diesel engines.

Featuring a 24V, 4.0KW, 10-tooth, clockwise-rotation OSGR (Offset Gear Reduction) design, it provides high starting torque and reliable performance for heavy-duty construction and industrial equipment. Catalog data confirms the Champion 710/710A/716A applications and the 24V, 4KW, 10T, CW specifications.

Product Specs

Item Condition	Aftermarket Part
Description	Starter
Family	Delco 28MT
Volt	24
Power	4 kw
HP	5.364
Condition	New
Quality Type	Heavy Duty
Rotation Direction	Clockwise
Electric Starter Type	Offset Gear Reduction (OSGR)
Number Of Teeth	10
Gear OD	1.260"
Gear OD	32mm
Length	243.600 mm
Length	9.591"
Mount Hole ID 1	11mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mount Hole ID 3	11mm
Mount Hole 3 Type	Unthreaded
Wet Clutch Seal	TRUE
Warranty	1 Year
Notes	3-Terminal Solenoid

OEM / Cross Reference Table

Arrowhead	410-12759, SNK0014, SNK0019
Cummins	3604677RX, 3918377
Delco	10455500, 10455502, 10461283, 10461468, 10461486, 10479622, 10479623, 1113277, 1113291, 1113594, 1998459, 1998488, 323-911
J&N Electrical Products	410-12111, 410-12124, 410-12143
Jannco	410-12111R, 410-12759N
Lester	6574, 6582
Mahle	IS1140, MS242
Nikko	02-23-1013, 02-23-1014, 0-23000-2030, 0-23000-2040, 0-23000-2044, 0-23000-2048, 0-23000-2470

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
Champion		710	Cummins 5.	1989, 1990, 1991
Champion		710	5900cc, 5.9L	1989, 1990, 1991
Champion		710A	Cummins 5.	1989, 1990, 1991
Champion		710A	Cummins 5.	1992, 1993, 1994, 1995, 1996, 1997, 1998
Champion		710A	5900cc, 5.9L	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Champion		716A	Cummins 5.	1992, 1993, 1994, 1995, 1996, 1997, 1998
Champion		716A	5900cc, 5.9L	1992, 1993, 1994, 1995, 1996, 1997, 1998
Cummins		6BT 5.9L	6cyl 359ci 5.9
Cummins		6BT 5.9L	6cyl 359ci 5.9	1985, 1986, 1987, 1988, 1989
Cummins		6BT	5900cc, 5.9L/359CI 6-Cyl	1985, 1986, 1987, 1988, 1989, 1990
Cummins		B Series	5.9	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Cummins		B Series	5900cc, 5.9L	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Dresser	510B
Samsung	SE130	Cummins 3.9 Ds	1992, 1993, 1994, 1995, 1996, 1997, 1998
Samsung	SE130	3900cc, 3.9L Diesel , Diesel	1992, 1993, 1994, 1995, 1996, 1997, 1998
Timberjack		608	Cummins 5.9L Diese
Timberjack		608	Cummins 5.9L Diese

Packing Information

Item	Value
Net Weight (NW)	8.5 KG
Gross Weight (GW)	9.3 KG
Carton Size	38 × 28 × 28 CM
Package Volume	0.0298 m³
Package Includes	1 × Starter Motor

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Champion Motor Grader Replacement	24V 4.0KW 10T Starter Motor	CW OSGR Design
710 / 710A / 716A Compatible	Cummins 5.9L Diesel Application	6574 / 6582 Cross Reference
Delco 28MT Starter Family	Heavy-Duty Construction Equipment	High-Torque Starting Performance
