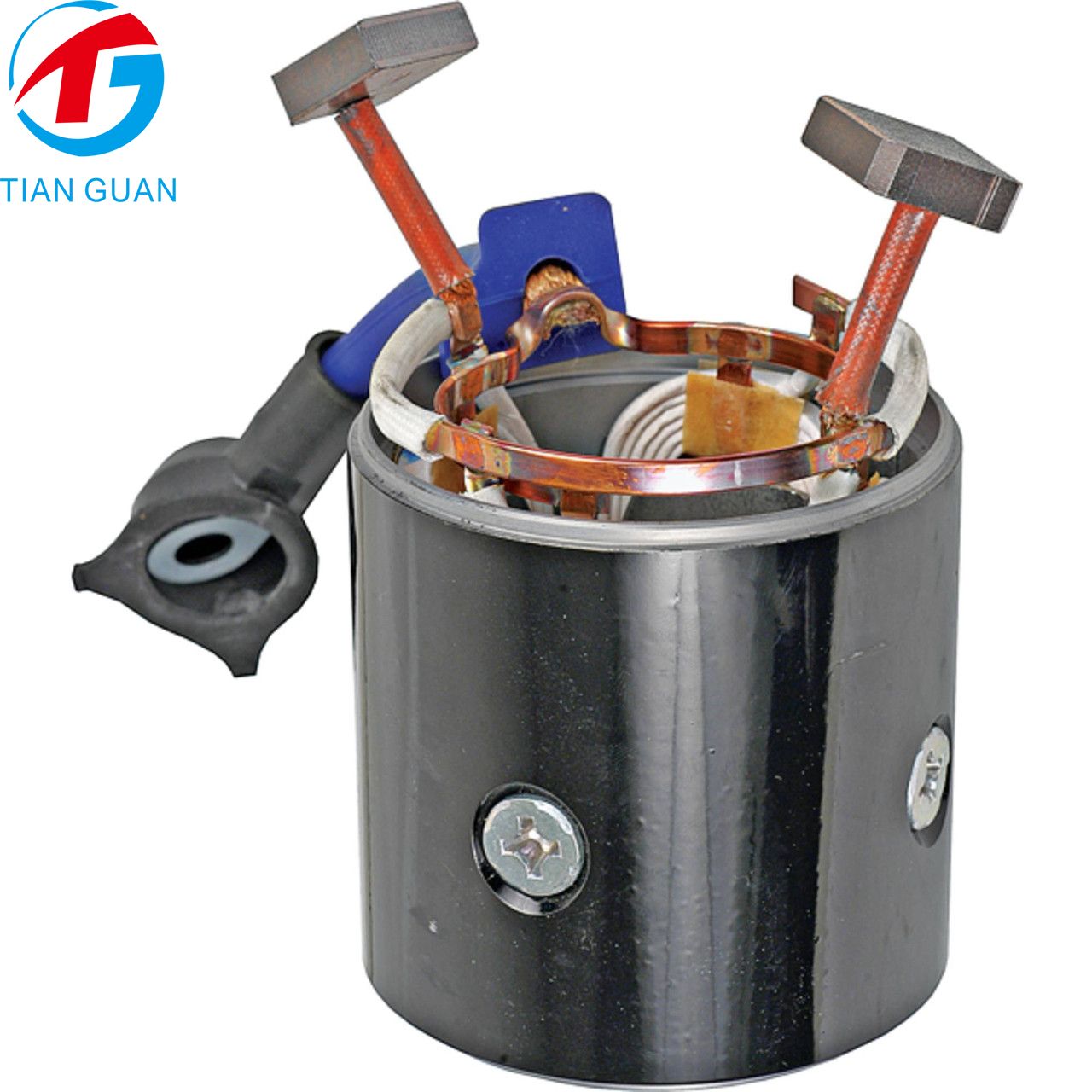

STG53341 Field & Frame Assembly 028100-3001 028100-3002 for Denso Starter | 12V CW Replacement

3 Reviews

Add Your Review

US$45.00

ITEMNO： STG53341

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53341 Field & Frame Assembly 028100-3001 028100-3002 for Denso Starter | 12V CW Replacement

OEM / Reference Part Numbers:
DENSO: 028100-3000 / 028100-3001 / 028100-3002 / 028100-3810
ARROWHEAD: ND028100-3001 / ND028100-3002 / ND028100-3810 / SND4001
J&N ELECTRICAL PRODUCTS: 261-52019
TOYOTA: 28120-47040
IAT: 06512
DIXIE: 5746-2511

Product Description

STG53341 is a new aftermarket Field & Frame Assembly for Denso OSGR starter motors. It is designed to replace Denso 028100-3000, 028100-3001 and 028100-3002, with 12V clockwise (CW) operation. The matching DB Electrical assembly is 261-52019, with a 90 mm outside diameter and 89.5 mm inside length.

The assembly is used with Denso starter families commonly found on Case, Caterpillar, Clark, Cummins, Isuzu, John Deere, Kubota, Komatsu, Toyota and Yanmar equipment. IAT also identifies Denso 028100-3001/3002 as a 12V field/coil housing assembly with a 90 mm OD.

Product Specifications

Property	Value
Product Model	STG53341
Product Type	Field & Frame Assembly
Main OEM	Denso 028100-3001 / 028100-3002
Voltage	12V
Rotation	CW
Outside Diameter	90 mm
Inside Length	89.5 mm
Inside Width	79 mm
Application	Denso OSGR Starter
Condition	New Aftermarket

OEM / Cross Reference Table

Brand	Part Number
DENSO	028100-3000 / 028100-3001 / 028100-3002 / 028100-3810
ARROWHEAD	ND028100-3001 / ND028100-3002 / ND028100-3810 / SND4001
J&N ELECTRICAL PRODUCTS	261-52019
TOYOTA	28120-47040
IAT	06512
DIXIE	5746-2511

Compatible Applications

Manufacturer	Application
DENSO	OSGR Starter Applications
CASE	Equipment using compatible Denso starters
CATERPILLAR	Equipment using compatible Denso starters
CLARK	Equipment with Perkins engines
CUMMINS	Diesel Engine Applications
ISUZU	Diesel Equipment
JOHN DEERE	Agricultural & Industrial Equipment
KUBOTA	Diesel Equipment
KOMATSU	Construction Equipment
TOYOTA	Pickup & Forklift Applications
YANMAR	Diesel Equipment

Weight & Package Information

Item	Value
Net Weight	2.2 KG
Gross Weight	2.7 KG
Package Size	18 × 18 × 14 CM

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Denso OSGR Starter Replacement	12V CW Field & Frame Assembly	90 mm Outside Diameter
028100-3001 / 028100-3002 Compatible	89.5 mm Inside Length	Direct Replacement Design
261-52019 Cross Reference	Suitable for Multiple Industrial Starters	New Aftermarket Construction
