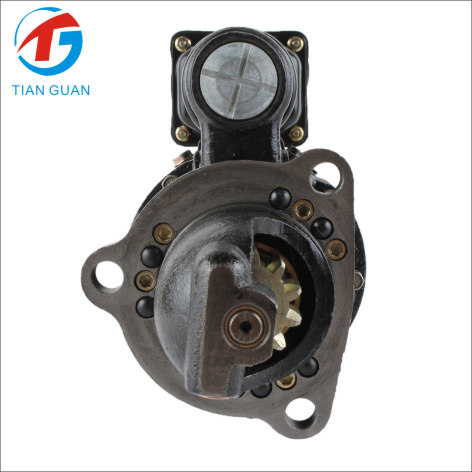

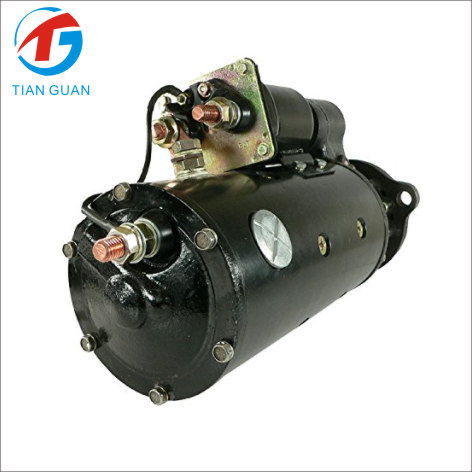

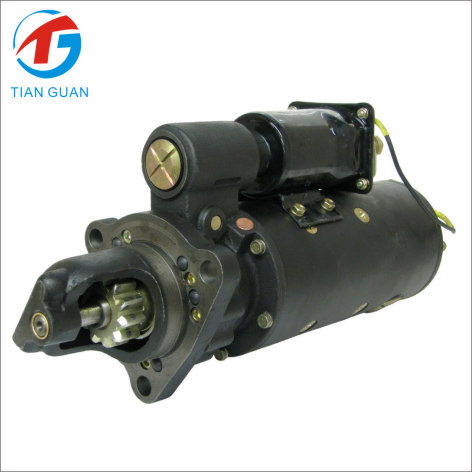

STG91609 Starter Motor for Caterpillar 1670 3406 3412 | 12V 5.5KW 11T CW Replacement

3 Reviews

Add Your Review

US$258.00

ITEMNO： STG91609

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS


    • STG91609 Starter Motor for Caterpillar 1670 3406 3412 | 12V 5.5KW 11T CW Replacement

      OEM / Reference Part Numbers:
      CATERPILLAR: 4N3188 / 6N9294 / 7N2211 / 9L8361 / 9L9116 / 10R-8909
      PRESTOLITE: M00141 / M00141A / M00141B
      LESTER: 10451 / 10530
      WAI: 10530N
      ARROWHEAD: SBO0215

      Product Description

      STG91609 is a heavy-duty aftermarket starter motor designed for Caterpillar 3406 and 3412 diesel engine applications, including selected Cat equipment such as the 1670. The requested specification is 12V, 5.5KW, 11-tooth and clockwise (CW).

      The Caterpillar starter catalog confirms that Cat offers 12V electric starters for heavy-duty applications and lists 11-tooth configurations among its starter range.

      A comparable 12V Caterpillar starter is catalogued with 5.50KW output, 11 teeth, CW rotation and three mounting holes, with a 92 mm flange diameter.

      Product Specifications

      PropertyValue
      Product ModelSTG91609/40MT
      ApplicationCaterpillar 1670 / 3406 / 3412
      Voltage12V
      Power Output5.5KW
      Starter TypeHeavy-Duty Gear Reduction
      RotationCW
      Teeth Count11T
      Mounting Holes3
      Flange Diameter92 mm
      Application TypeDiesel Engine / Heavy Equipment
      ConditionNew Aftermarket

    • OEM / Cross Reference Table

    • BrandPart Number
      LESTER3974N / 3974R
      DELCO10461045 / 1108802 / 1108830 / 1109800 / 1109807 / 1114002 / 1114004 / 1114025 / 1114051 / 1114054 / 1114055 / 1114056 / 1114058 / 1114064 / 1114067 / 1114072 / 1114073 / 1114074 / 1114076 / 1114078 / 1114081 / 1114084 / 1114086 / 1114087 / 1114088 / 1114090 / 1114091 / 1114092 / 1114095 / 1114096 / 1114098 / 1114099 / 1114102 / 1114107 / 1114113 / 1114115 / 1114118 / 1114119 / 1114122 / 1114124 / 1114126 / 1114128 / 1114130 / 1114133 / 1114140 / 1114143 / 1114145 / 1114147 / 1114148 / 1114150 / 1114157 / 1114164 / 1114165 / 1114170 / 1114172 / 1114179 / 1114180 / 1114185 / 1114186 / 1114187 / 1114188 / 1114189 / 1114193 / 1114197 / 11141994 / 1114700 / 1114720 / 1114722 / 1114723 / 1114725 / 1114726 / 1114732 / 1114741 / 1114747 / 1114749 / 1114750 / 1114751 / 1114752 / 1114761 / 1114766 / 1114769 / 1114795 / 1114811 / 1114812 / 1114814 / 1114815 / 1114816 / 1114819 / 1114820 / 1114889 / 1114890 / 1114891 / 1114892 / 1114893 / 1114894 / 1114895 / 1114896 / 1114897 / 1114898 / 1114899 / 1114900 / 1114901 / 1114906 / 1114913 / 1114928 / 1114937 / 1114941 / 1114946 / 1114961 / 1114965 / 1114978 / 1114983 / 1114984 / 1114985 / 1990306 / 1990323
      CASE121555C91 / 201295T91 / 262762C91 / 412732C91 / 415515C91 / 431481C91 / 431481R91 / 510275C91 / 522458C91 / 523579C91 / 530692C91 / 777525C91 / 782685C91 / 786086C91 / 875755R91
      CATERPILLAR0R5347 / 3T2654 / 3T2879 / 3T3154 / 4L9547 / 4N0956 / 4N1064 / 4N956 / 5L4160 / 5L4168 / 5L4169 / 5L5667 / 5L5867 / 8C3592 / 8C3593 / 8L8206 / 9L6200 / 9N0716 / 9N0721 / 9N716 / SL8206
      FORDC3TZ11001A / C5TF11000A / C5TZ11002C / C6TF11000A / C6TF11000C / C6TZ11002E / D3TF11001BA / D4TZ11002A / D4TZ11002B / C5TFA / C6TFA / C6TFC
      JOHN DEERERE10321 / TY6723
      MACK TRUCK8MJ4172P1 / 8MJ4172T / 8MJ417P1 / 8MJ498P3
      MASSEY FERGUSON536011M91
      PRESTOLITEMS2503
      VOLVO3945661
      WHITEV1114241

    Compatible Applications

    ManufacturerApplication
    CATERPILLAR1670
    CATERPILLAR3406 Diesel Engine
    CATERPILLAR3412 Diesel Engine
    CATERPILLARSelected Heavy-Duty Equipment
    CATERPILLARSelected Generator / Industrial Applications

    Weight & Package Information

    ItemValue
    Net Weight14.5 KG
    Gross Weight15.5 KG
    Package Size42 × 28 × 25 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    Caterpillar 3406 / 3412 Replacement12V 5.5KW High-Torque Starter11T CW Design
    Cat 1670 CompatibleHeavy-Duty Diesel Starting3-Hole Mounting
    Industrial Equipment ApplicationReliable Cold-Start PerformanceDurable Aftermarket Replacement

  • SHIPPING

    Item Details
    Processing Time Orders are processed within 1-3 business days after payment confirmation
    Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight
    Estimated Delivery Time Express shipping: 3-7 business days, depending on destination
    Packaging Export-standard cartons with protective inner packing
    Tracking Tracking number will be provided once the order is shipped
    Shipping Cost Calculated based on weight, dimensions, and destination
