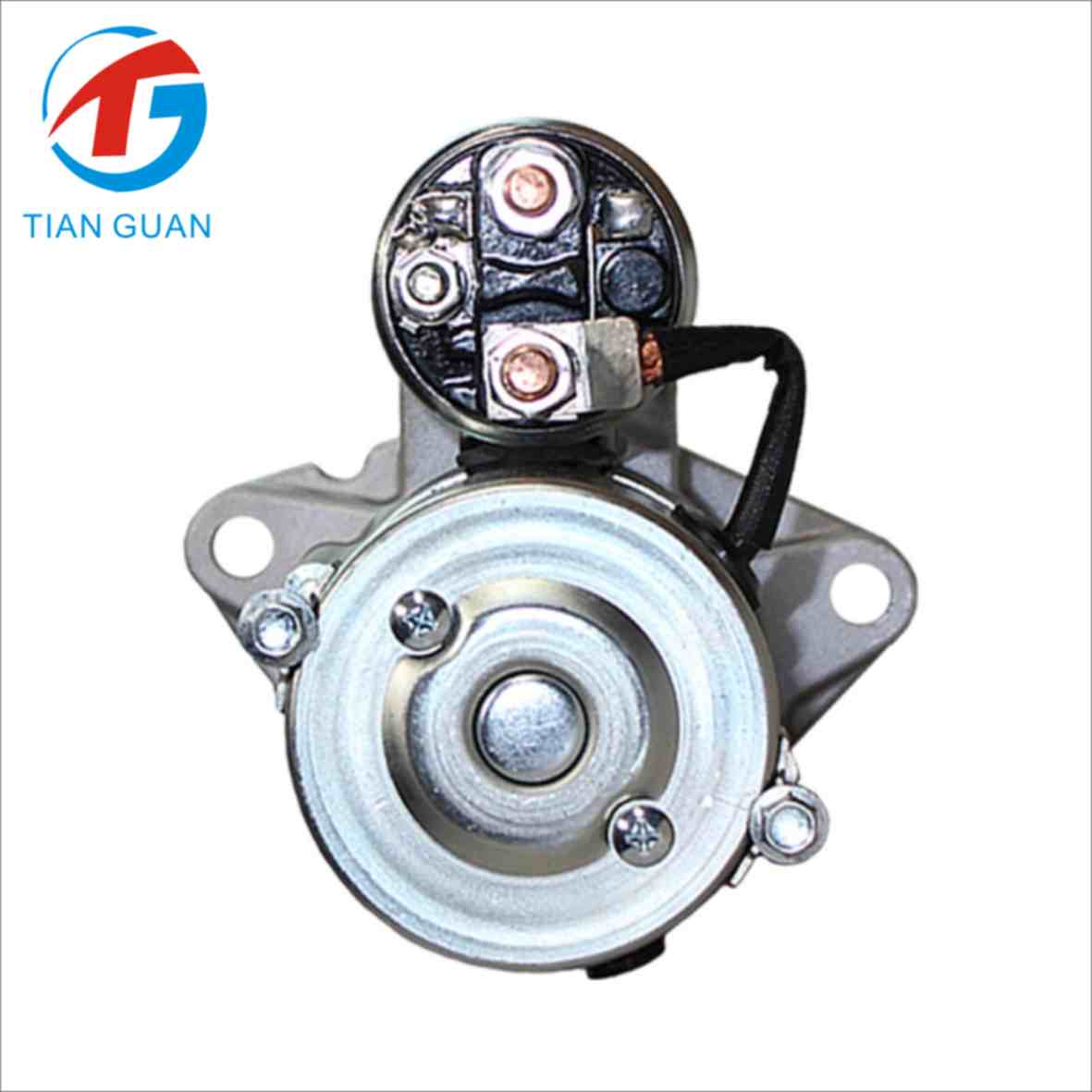

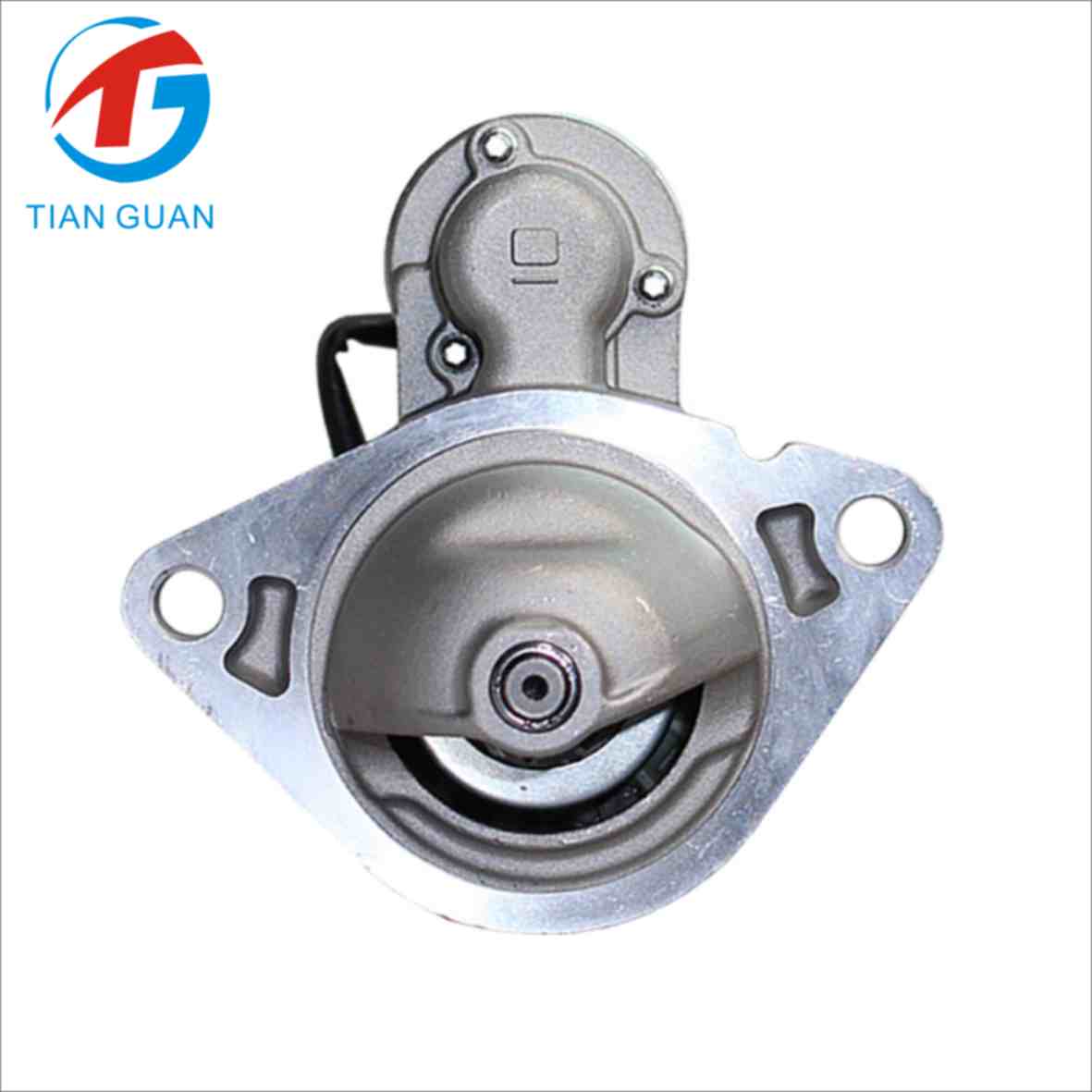

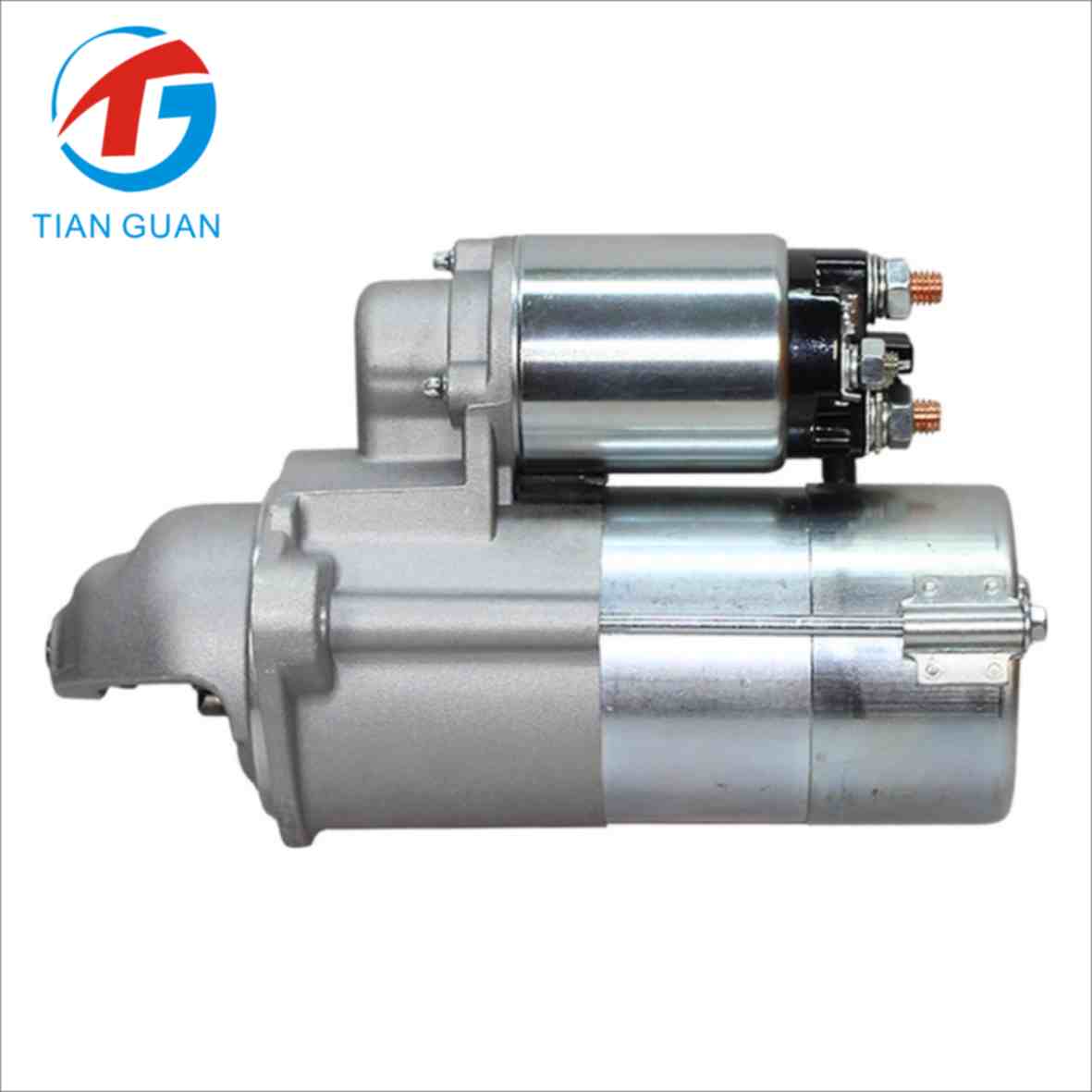

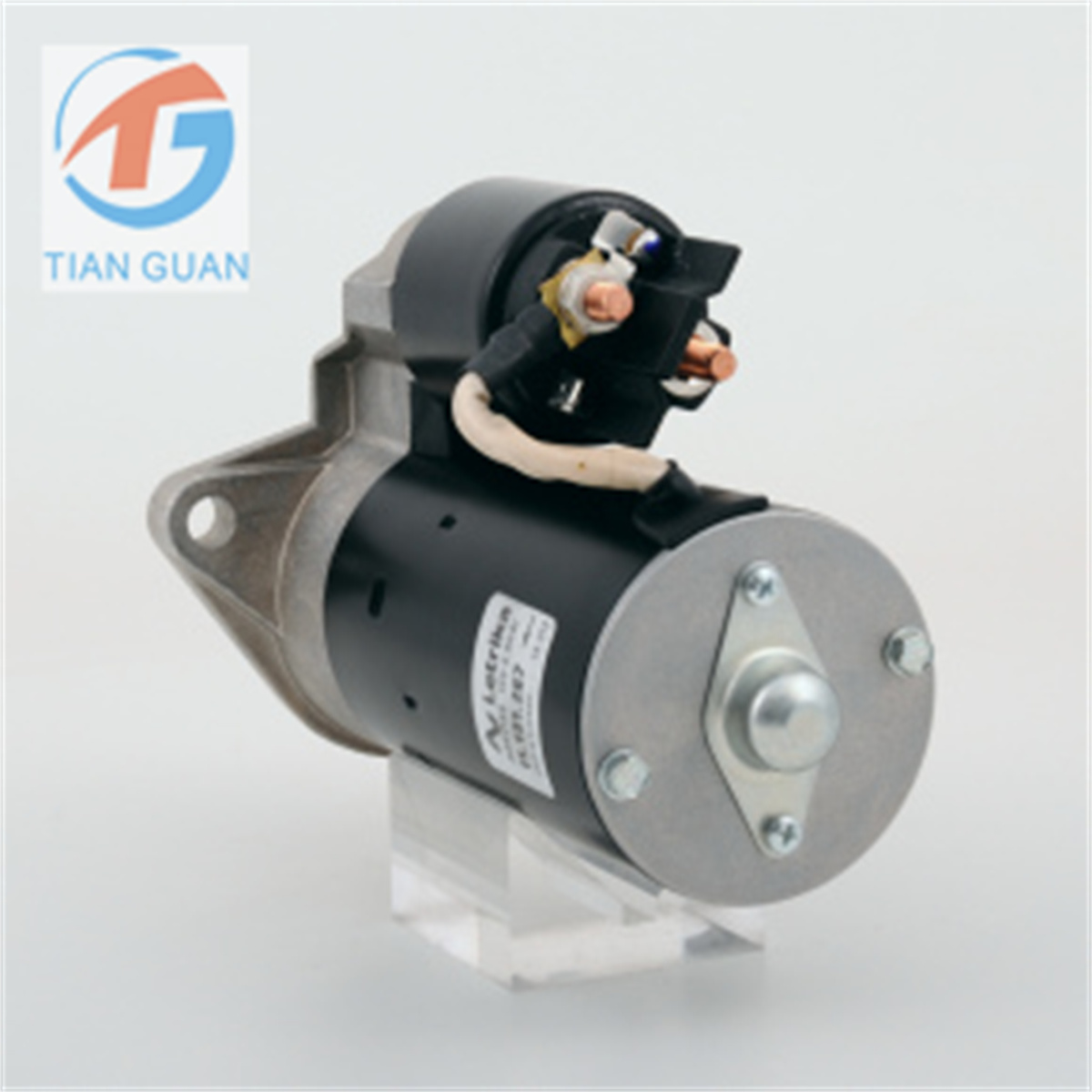

12V 2.0kW Starter Motor STG92496 AZE2155 11.131.267 333C5358 for JCB Perkins 403D-15 404C-22 404D-22 Engines

Part Numbers

Caterpillar: 3335930, 333-5930
General Motors: 8000417
JCB: 714-35600, 71435600, 71435600R, 71440482
Jungheinrich: 19960488, 19960489, 50027532
Perkins: 1850866, 3335930, 18508660, 185086600, P30DC03A, U5MK8260, U5MK8261, U85086770, U85086771, U85086790, U85086800
Bosch: 0001109035, 0986022440, F042002159
Delco: 8000111, 8000227, 8000277, 8000286, 8000344, 8000417, 8000509, 8000531, 8000532, DRS0012, DRS0012X, DRS3938, DRS3938N
Iskra: 11.131.267, 11131267, AZE2155, IS1101
Lucas: LRS01580, LRS02701, LRS1580
Magneti Marelli: 063521090350, 63521090350, MSN2023
Mahle: MS86
Cargo: 112534, 114476
HC-Parts: CS1471
Hella: 8EA738259-001, 8EA738299001
Krauf: STB1471, STD1471, STN1471
Messmer: 220888, 220888A
Motorherz: STB1471WA
WAI Global: 2-2553-BO
WPS: 18949N

Product Description

This 12V 2.0kW starter motor is a high-performance aftermarket replacement designed for a wide range of JCB, Perkins, and industrial diesel engines. Built on the DELCO PMGR platform, it delivers strong cranking power, reliable starting performance, and excellent durability in heavy-duty applications. It is engineered for construction, agriculture, and industrial machinery operating under demanding conditions.

Product Specifications

• Item Condition: 100% New Aftermarket

• Unit Type: Starter Motor

• Voltage: 12V

• Power Output: 2.0kW

• Rotation: Clockwise (CW)

• Pinion Teeth: 9-Tooth

• Technology: DELCO PMGR

• Weight: 4.2 KG

Engine Compatibility

• Perkins 403D-15 / 403D-11 / 403D-17

• Perkins 404C-22 / 404D-22 / 404D-22T / 404D-15

• Perkins 404C-20 / 404C-22G / 404D-22G

• JCB 8014 / 8016 / 8018 / 8020 / 8025 / 8030 / 8035 / 8045 / 8050 series

• Perkins industrial and generator engines (103 / 104 / 403 / 404 series)
