STG52468 Starter Motor TC620-16800 for Kubota L225 D1100A L3901H Tractor | 12V 1.4KW OSGR Replacement

3 Reviews

Add Your Review

US$106.00

ITEMNO： STG52468

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

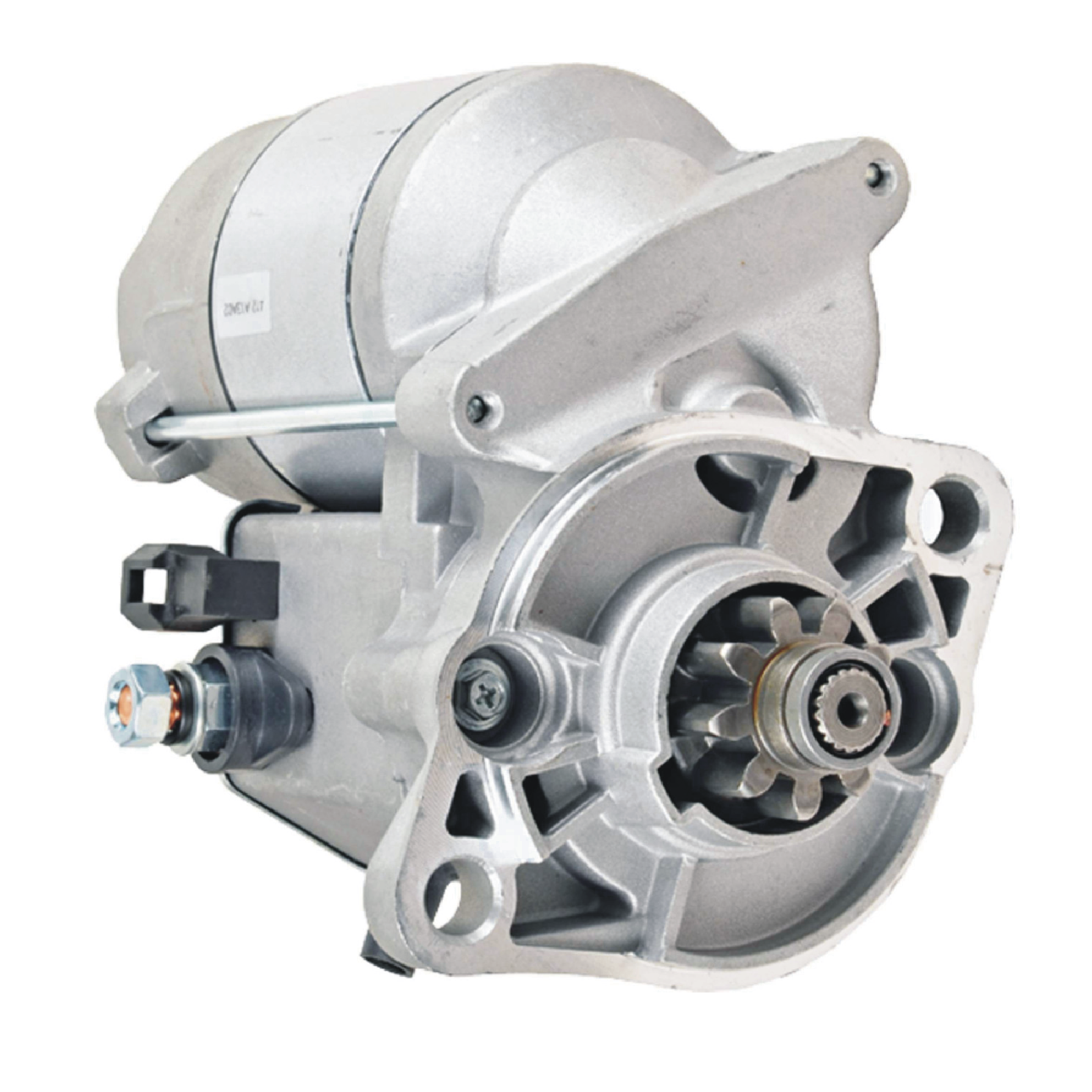

    STG52468 Starter Motor TC620-16800 for Kubota L225 D1100A L3901H Tractor | 12V 1.4KW OSGR Replacement

    OEM Part Number: TC620-16800
    Cross Reference: TC620-16800 Assembly Starter

    Product Description

    STG52468 Starter Motor is a high-quality aftermarket replacement designed for Kubota compact tractors and diesel engine applications, including Kubota L225 with D1100A engine and L3901H tractor models.

    This starter features a 12V OSGR (Offset Gear Reduction) design with clockwise rotation, providing reliable cranking power, high torque output, and stable engine starting performance for agricultural equipment. The Kubota L225 is equipped with a D1100A diesel engine rated at 24 HP and uses a 12V starting system.

    Key Specifications:

    SpecificationDetails
    Unit TypeDENSO Starter Motor
    Voltage12V
    Power1.2 kW
    RotationClockwise (CW)
    Teeth9T
    Weight3.85 kg

    Cross Reference / OEM Part Numbers

    BrandPart Number
    BOBCAT6653920 / 6655896 / 6662323 / 6988700
    CASEIH / FORD / NEW HOLLAND503470
    DELCODRS3226
    DENSO028000-4200 / 028000-4201 / 028000-4990 / 028000-4991 / 028000-6240 / 028000-6260 / 028000-6261 / 128000-0170 / 128000-0171 / 128000-018 / 128000-0180 / 128000-0181 / 128000-6640 / 228000-1020 / 228000-1021 / 228000-1022 / 228000-1080 / 228000-1081 / 228000-1082 / 228000-4920 / 228000-4921 / 228000-4922 / 9712809-017 / 9712809-664 / 9722809-102 / 9722809-108 / 9722809-492
    JANNCO410-52024R
    KIOTIE5500-63014
    KUBOTA15401-63010 / 15401-63011 / 15401-63012 / 15461-63010 / 15461-63011 / 15461-63012 / 15461-63013 / 15461-63014 / 15461-63015 / 15511-63010 / 15511-63011 / 15521-63010 / 15521-63011 / 15521-63012 / 17298-63010 / 17298-63011 / 17298-63012 / 17298-63013 / 17341-63010 / 17341-63011 / 17341-63013 / 17341-63015 / KEARS15461 / KEARS17298
    LESTER16645 / 16650 / 17368 / 18144
    LUCAS ELECTRICLRS01129 / LRS01225 / LRS01333

    Compatible Vehicles / Engines

    ManufacturerApplication
    KubotaCarriers KC15 (1977–1991) – DH1102BS Engine
    KubotaCarriers NSU18 (1974–ON) – DH1101BS Engine

    Packing Information

    ItemValue
    Net Weight (NW)3.85 KG
    Gross Weight (GW)4.5 KG
    Package Size28 × 18 × 18 CM


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature 1Feature 2Feature 3
    OEM Replacement TC620-1680012V 1.4KW OSGR Starter DesignFits Kubota Diesel Tractors
    9T Pinion Gear ConfigurationHigh Torque Starting PerformanceReliable Agricultural Application
    Direct Fit ReplacementDurable Gear Reduction StructureTested Before Shipment


  • SHIPPING

    Item Details
    Processing Time Orders are processed within 1-3 business days after payment confirmation
    Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight
    Estimated Delivery Time Express shipping: 3-7 business days, depending on destination
    Packaging Export-standard cartons with protective inner packing
    Tracking Tracking number will be provided once the order is shipped
    Shipping Cost Calculated based on weight, dimensions, and destination
