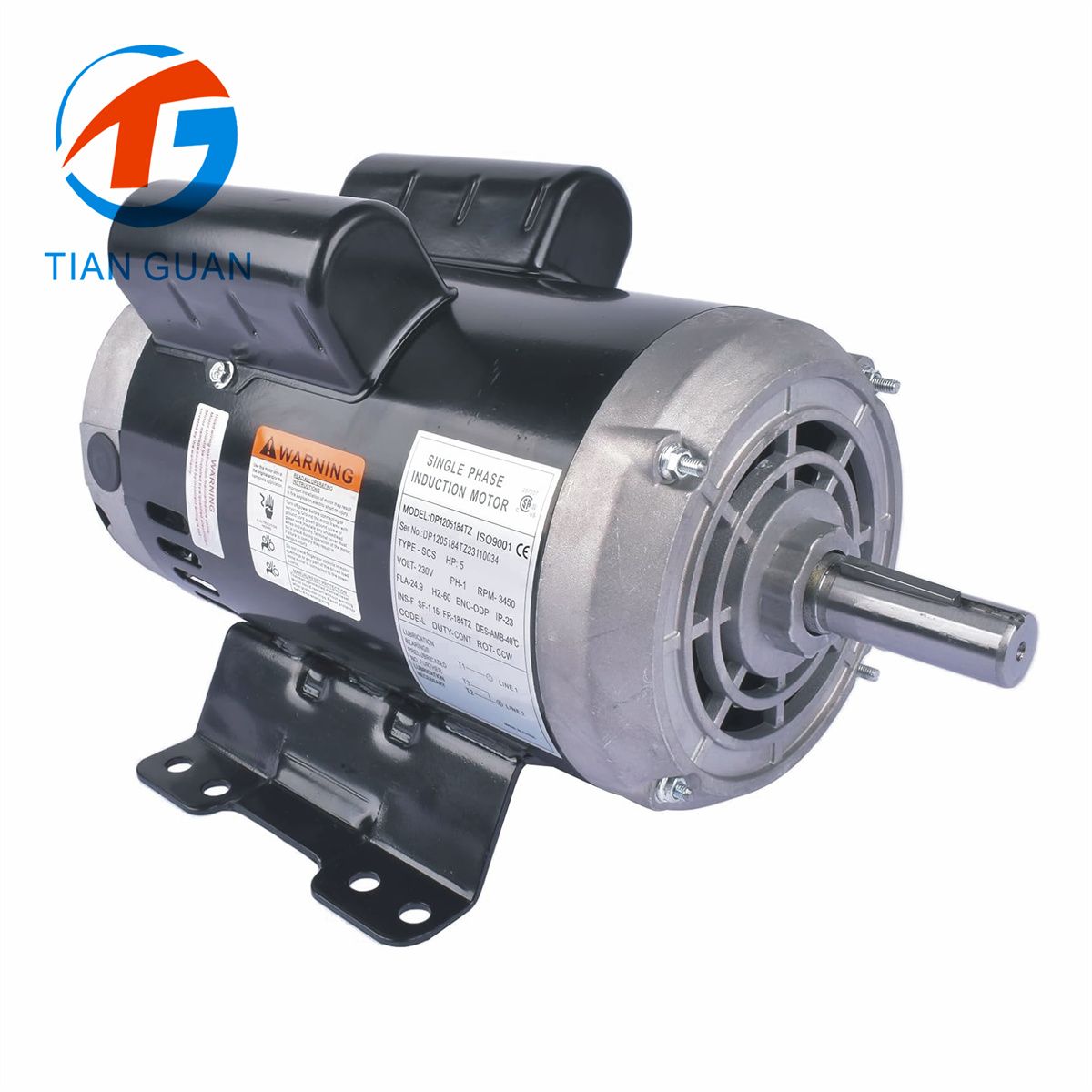

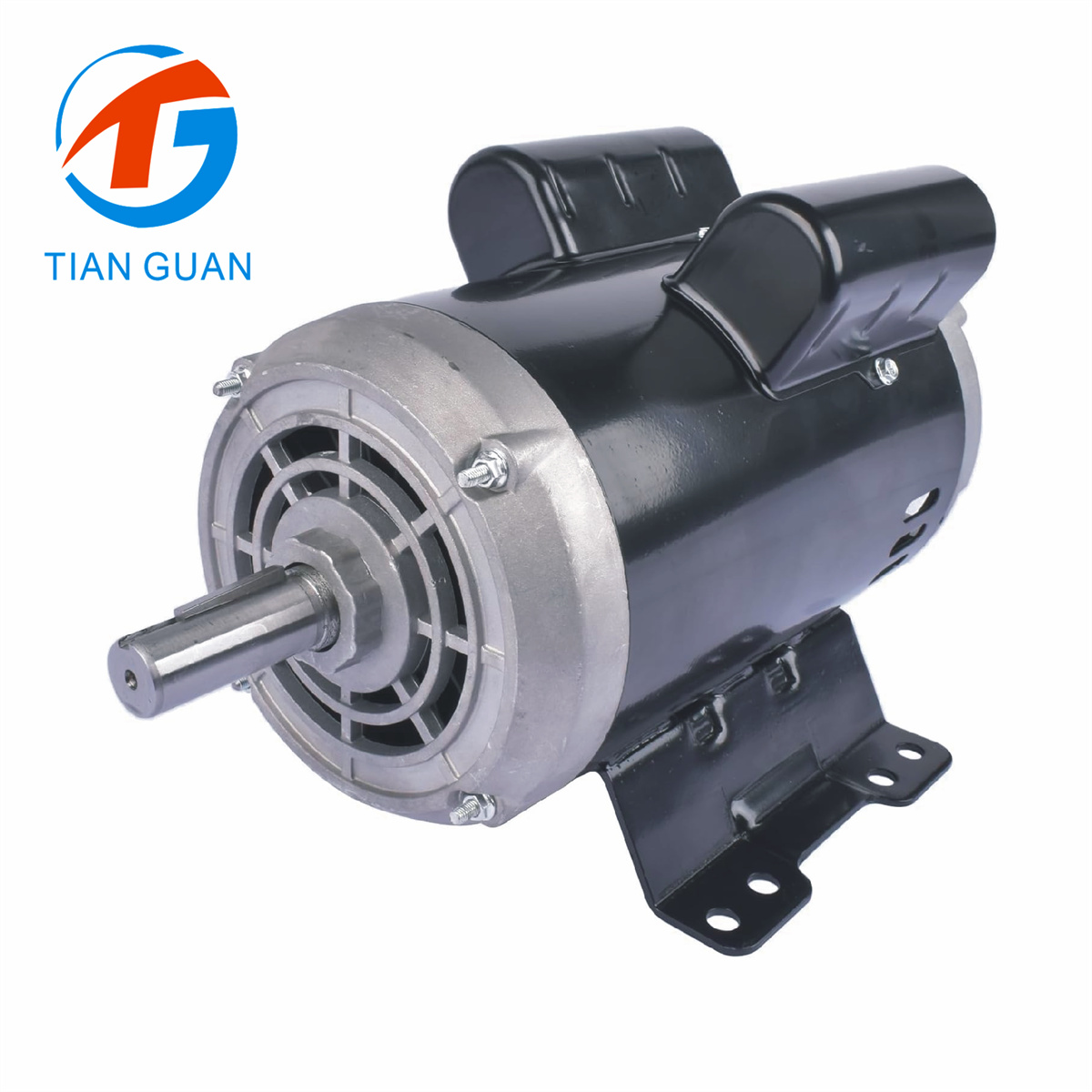

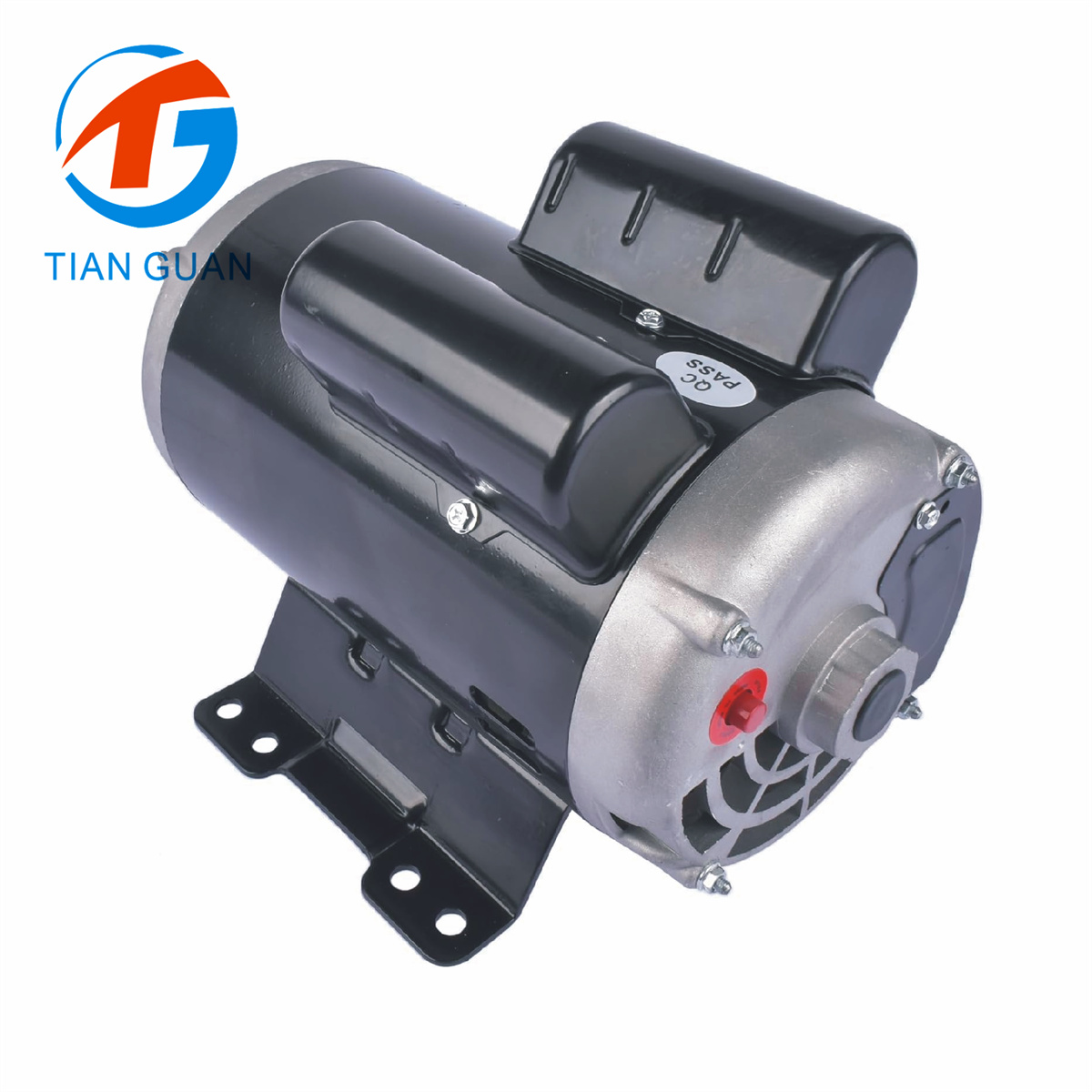

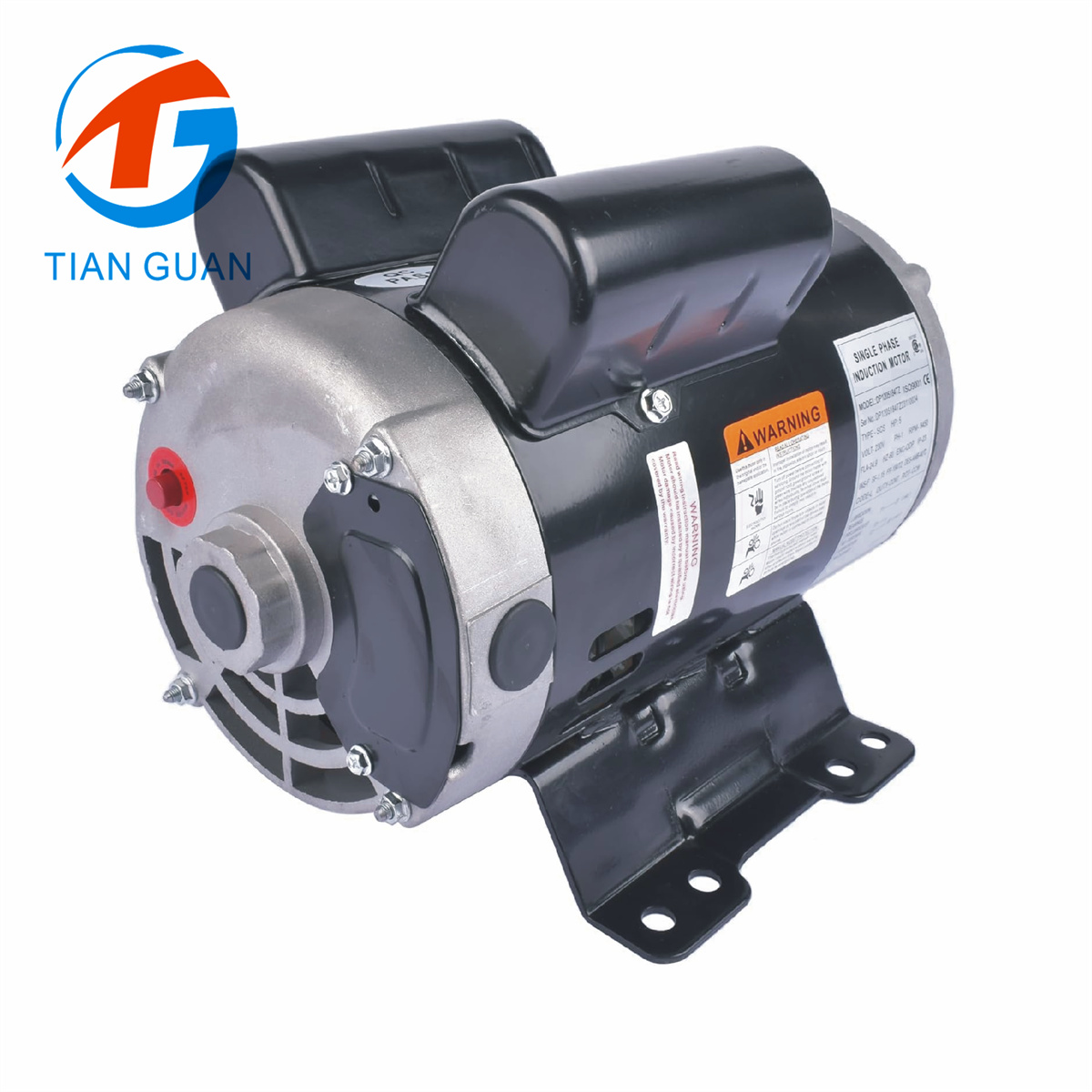

Air Compressor Electric Motor 56283138 23378805 5HP 208-230V Single Phase 184T Frame 3450RPM ODP for Lamerto Replacement Motor

Part Numbers

56283138, 23378805

Product Description

This high-quality Air Compressor Electric Motor is designed as a direct replacement for air compressor applications requiring a 5 HP single-phase motor. Built with a rugged 184T frame, Open Drip Proof (ODP) enclosure, and ball bearing construction, it delivers reliable performance, efficient operation, and long service life in workshop, industrial, and commercial environments.

• Power: 5 HP

• Voltage: 208-230V

• Frequency: 60Hz

• Phase: Single Phase

• Current (FLA): 24.9A

• Current (SFA): 27.3A

• Speed: 3450 RPM

• Frame Size: 184T

• Shaft Size: 7/8" x 2-1/4" with Keyway

• Shaft Height: 4.5" (Center Height)

• Service Factor: 1.15

• Insulation Class: Class B

• Bearing Type: Ball Bearings

• Enclosure: Open Drip Proof (ODP)

• Protection: Manual Overload Protection

• Mounting Type: Flat Rigid Base

• Weight: 21.6 KG

Specifications

Fitment

Suitable for air compressor systems requiring:

• 5 HP Electric Motor

• 208-230V Single Phase Power Supply

• 184T Frame

• 3450 RPM Operation

• Open Drip Proof (ODP) Enclosure

• Flat Rigid Base Mounting
