STG91206 Starter Motor 228000-5842 228000-8540 28100-21020 28100-21021 for Toyota Yaris 1.5L 2006-2010 | 12V 1.0KW 9T CW PLGR Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： STG91206

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

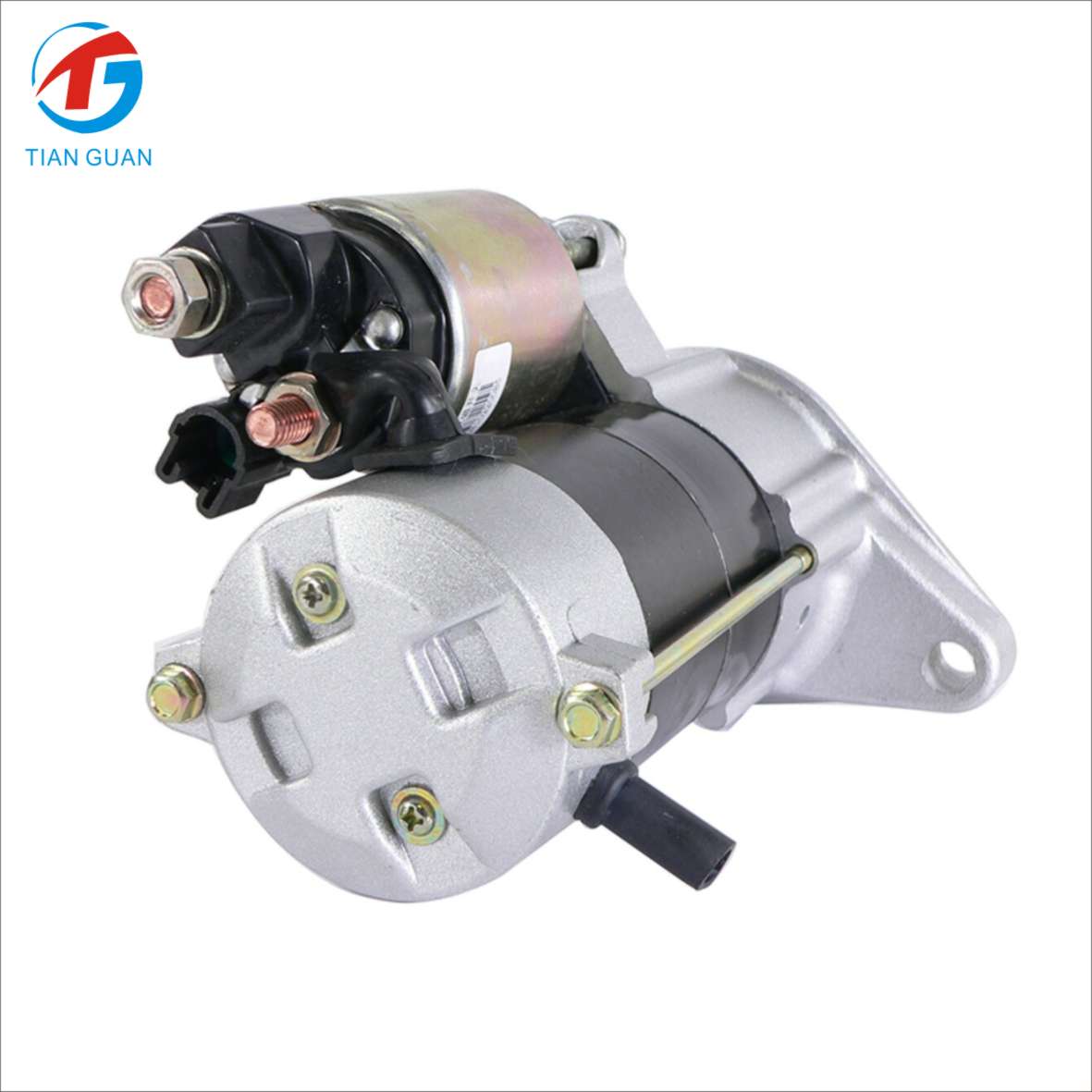

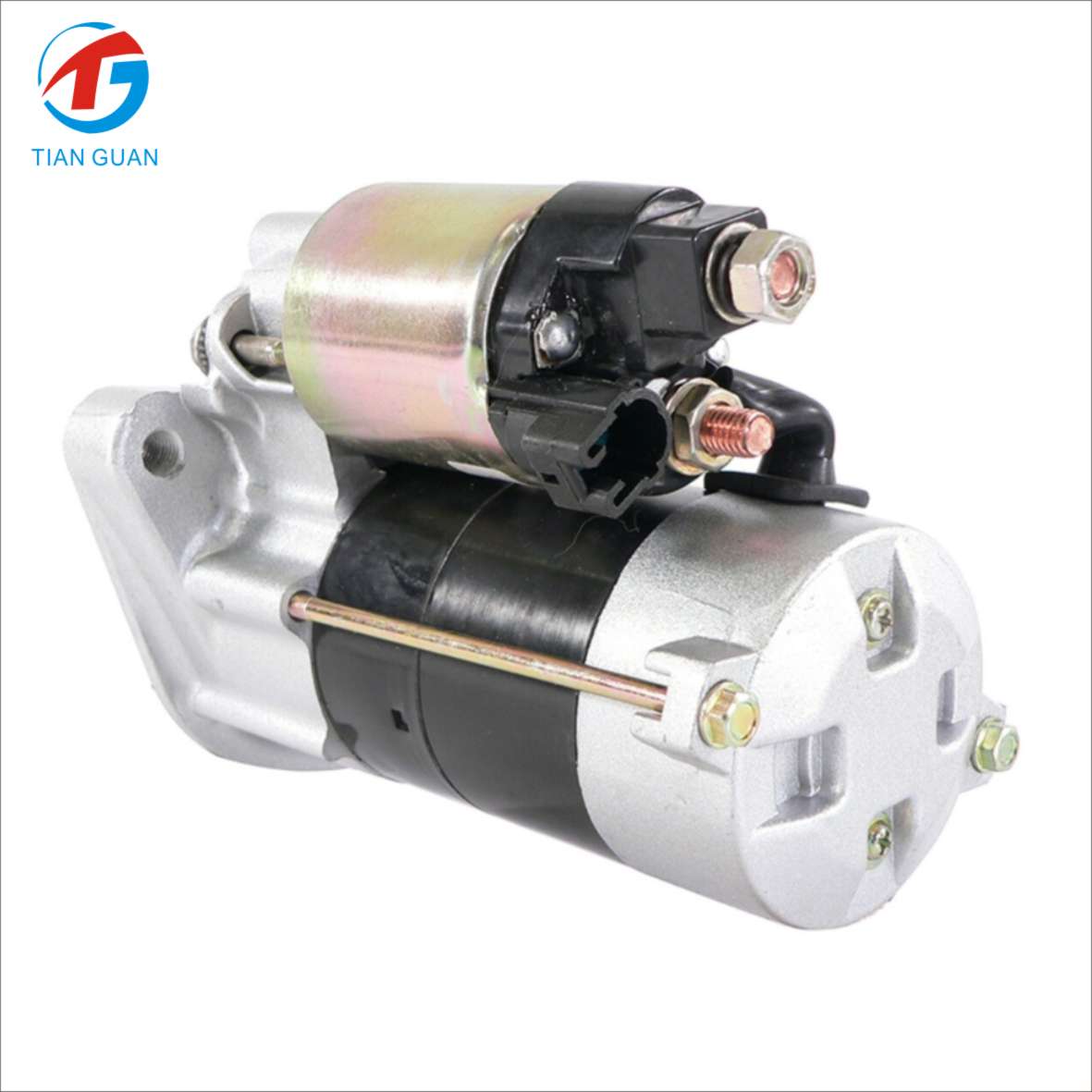

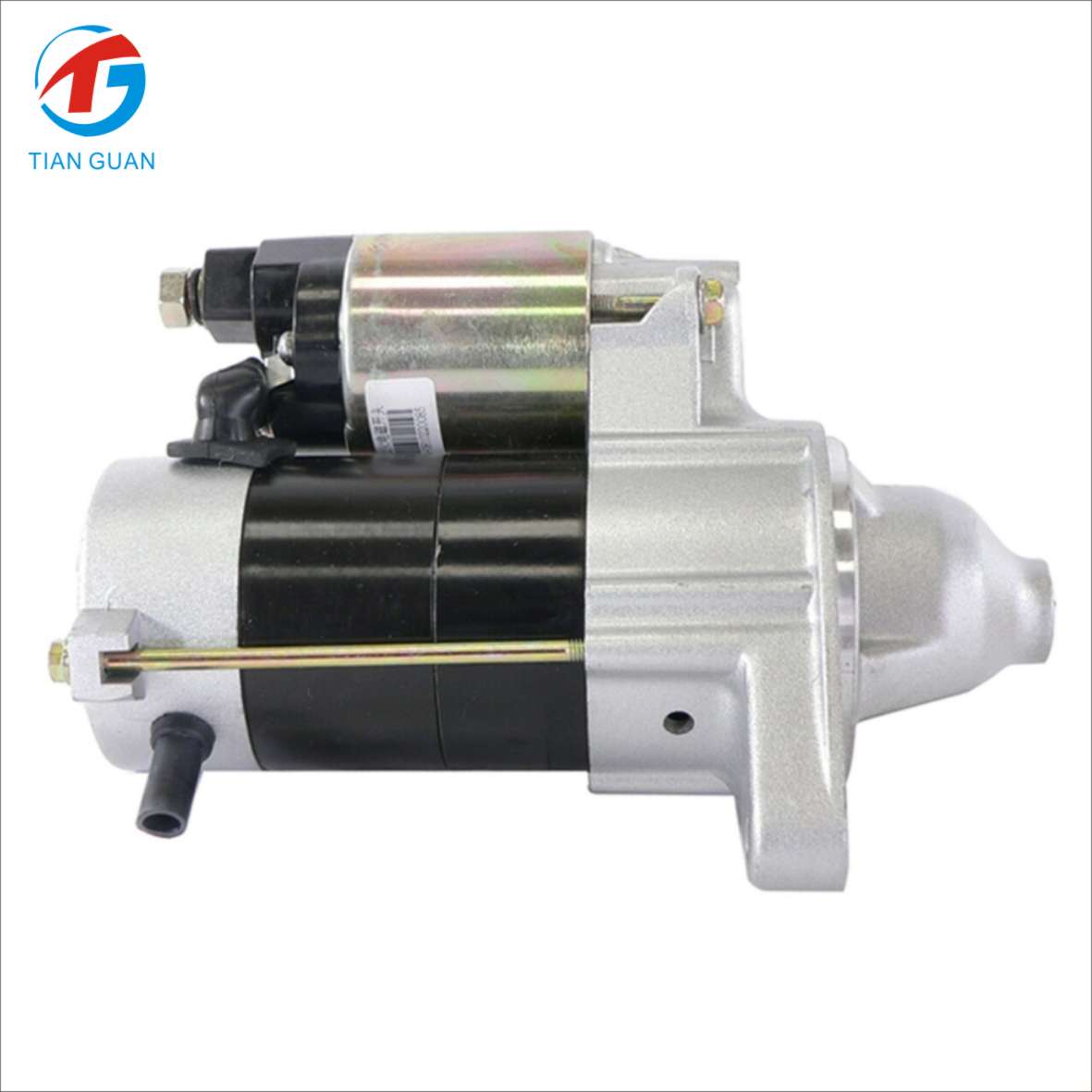

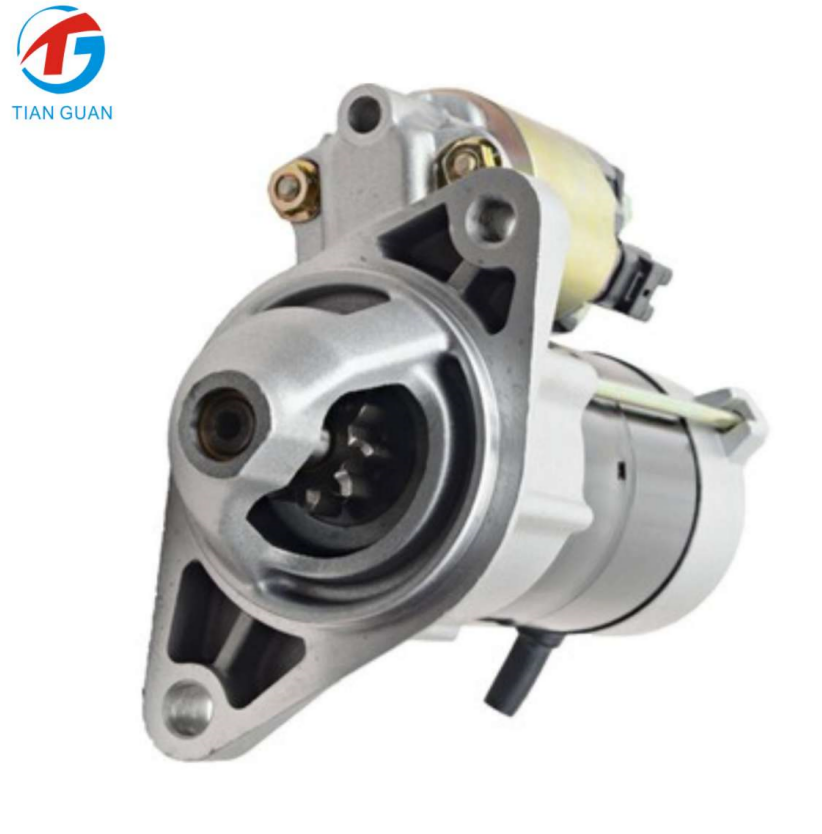

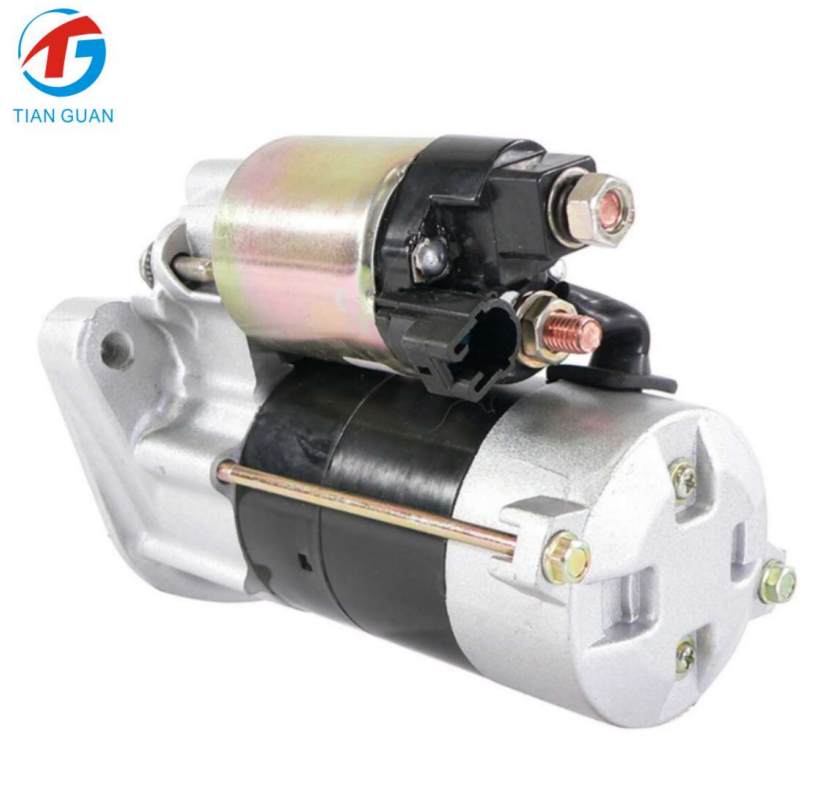

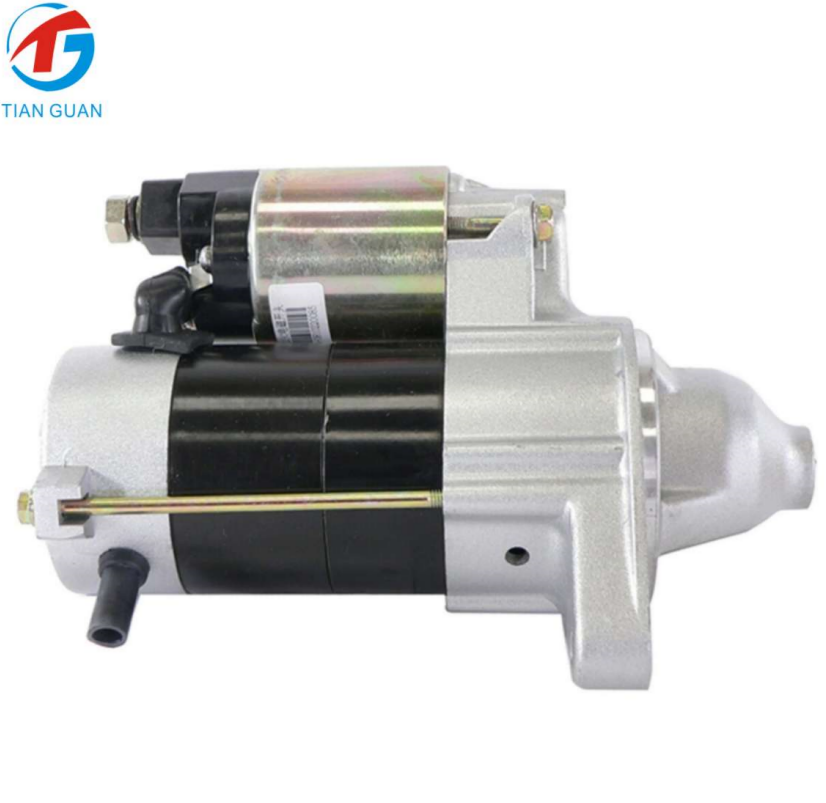

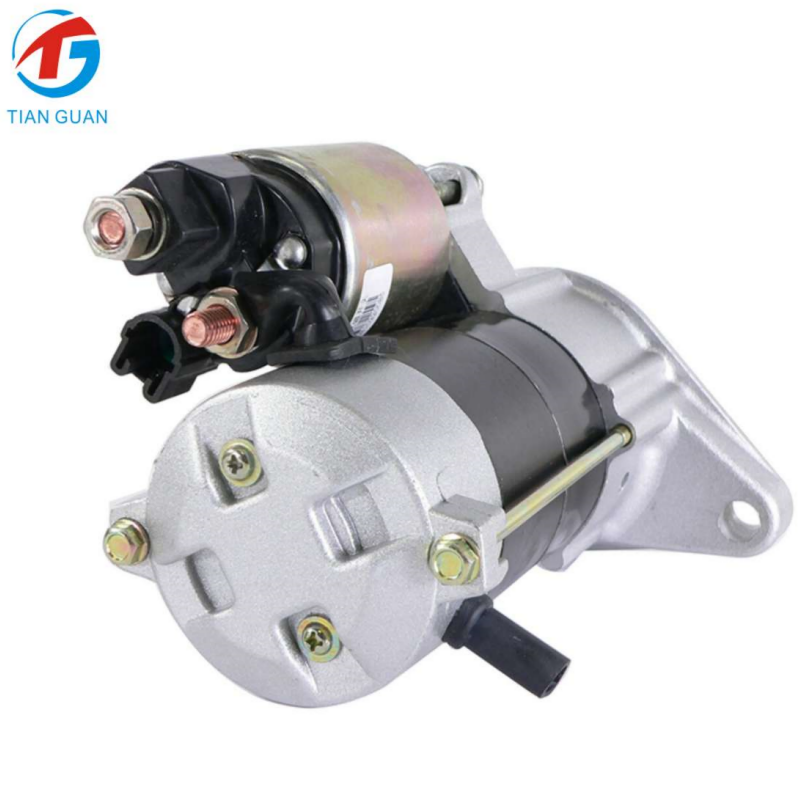

STG91206 Starter Motor 228000-5842 228000-8540 28100-21020 28100-21021 for Toyota Yaris 1.5L 2006-2010 | 12V 1.0KW 9T CW PLGR Replacement

Part Numbers

DENSO: 228000-5842 / 228000-8540 / 228000-8542

TOYOTA: 28100-21020 / 28100-21020-84 / 28100-21021 / 28100-21022

MAGNETI MARELLI: 063280055010

ARROWHEAD: SND0256 / SND0353

J&N: 280-0280 / 410-52176 / 280-0279 / 410-52271

LESTER: 17805 / 17806

WILSON: 91-29-5496 / 91-29-5487

Product Description

STG91206 Starter Motor is a high-quality aftermarket replacement designed for Toyota Yaris 1.5L applications. Featuring a 12V, 1.0KW, 9-tooth, clockwise-rotation PLGR design, it provides reliable cranking performance and dependable engine starting.

The starter cross-references Denso 228000-5842, 228000-8540 and 228000-8542, as well as Toyota 28100-21020 and 28100-21021. Application data identifies this starter family for Toyota Yaris 1.5L 2006-2012, with some listings specifically identifying manual-transmission applications.

Product Specifications

Property	Value
Product Model	STG91206
Part Numbers	228000-5842 / 228000-8540 / 28100-21020 / 28100-21021
Voltage	12V
Power Output	1.0 KW

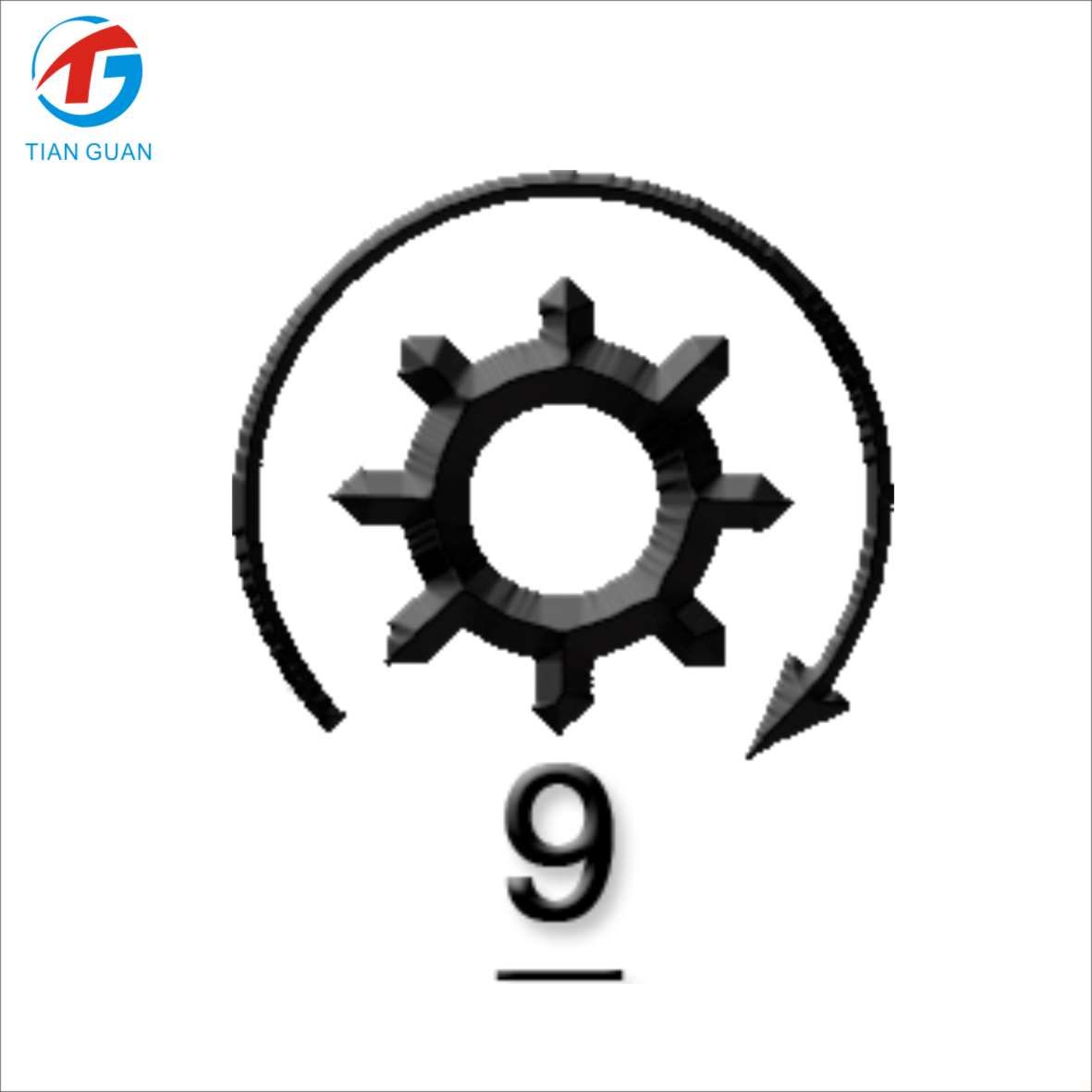

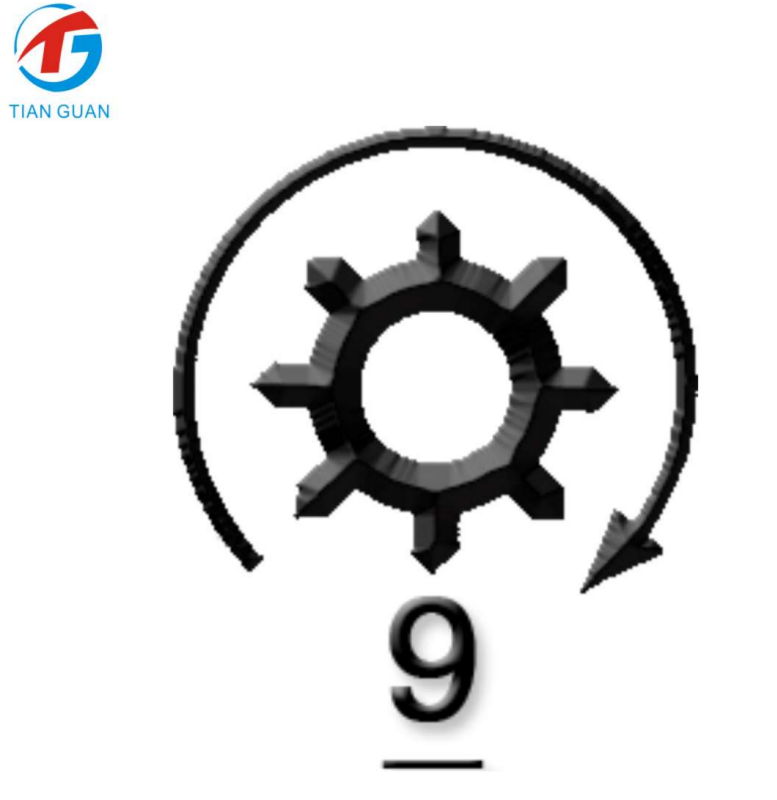

Number of Teeth	9T
Starter Type	PLGR (Planetary Gear Reduction)
Rotation	CW
Condition	New Aftermarket
Application	Automotive Starter
Compatible Brand	Toyota
Vehicle	Yaris
Engine	1.5L L4
Model Years	2006-2010

The 12V, 1.0KW, CW, 9-tooth and PLGR specifications are supported by current replacement-starter listings.

OEM / Cross Reference Table

Brand	Part Number
DENSO	228000-5842 / 228000-8540 / 228000-8542
TOYOTA	28100-21020 / 28100-21020-84 / 28100-21021 / 28100-21022
MAGNETI MARELLI	063280055010
ARROWHEAD	SND0256 / SND0353
J&N	280-0280 / 410-52176 / 280-0279 / 410-52271
LESTER	17805 / 17806
WILSON	91-29-5496 / 91-29-5487

These cross-reference numbers are corroborated by starter parts catalogs and replacement listings.

Compatible Applications

Engine Brand	Compatible Applications
TOYOTA	Yaris 1.5L L4, 2006
TOYOTA	Yaris 1.5L L4, 2007
TOYOTA	Yaris 1.5L L4, 2008
TOYOTA	Yaris 1.5L L4, 2009
TOYOTA	Yaris 1.5L L4, 2010
TOYOTA	Yaris 1.5L L4, 2006-2012
TOYOTA	Echo 1.5L L4, 2000-2005
TOYOTA	Yaris Verso, 2001-2006

Packing Information

Item	Value
Net Weight (NW)	3.8 KG
Gross Weight (GW)	4.5 KG
Carton Size	32 × 22 × 22 CM
Package Volume	0.0155 m³
Package Includes	1 × Starter Motor

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Toyota Yaris 1.5L Replacement	12V 1.0KW 9T Starter Motor	CW PLGR Design
228000-5842 Compatible	28100-21020 / 28100-21021 Cross Reference	Denso-Type Starter
2006-2010 Yaris Application	Reliable Engine Starting	Direct Aftermarket Replacement
