STG91437 Starter Motor 119209-77010 for Yanmar 366 Engine | 12V 1.4KW 15T CW OSGR Replacement

3 Reviews

Add Your Review

US$132.00

ITEMNO： STG91437

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

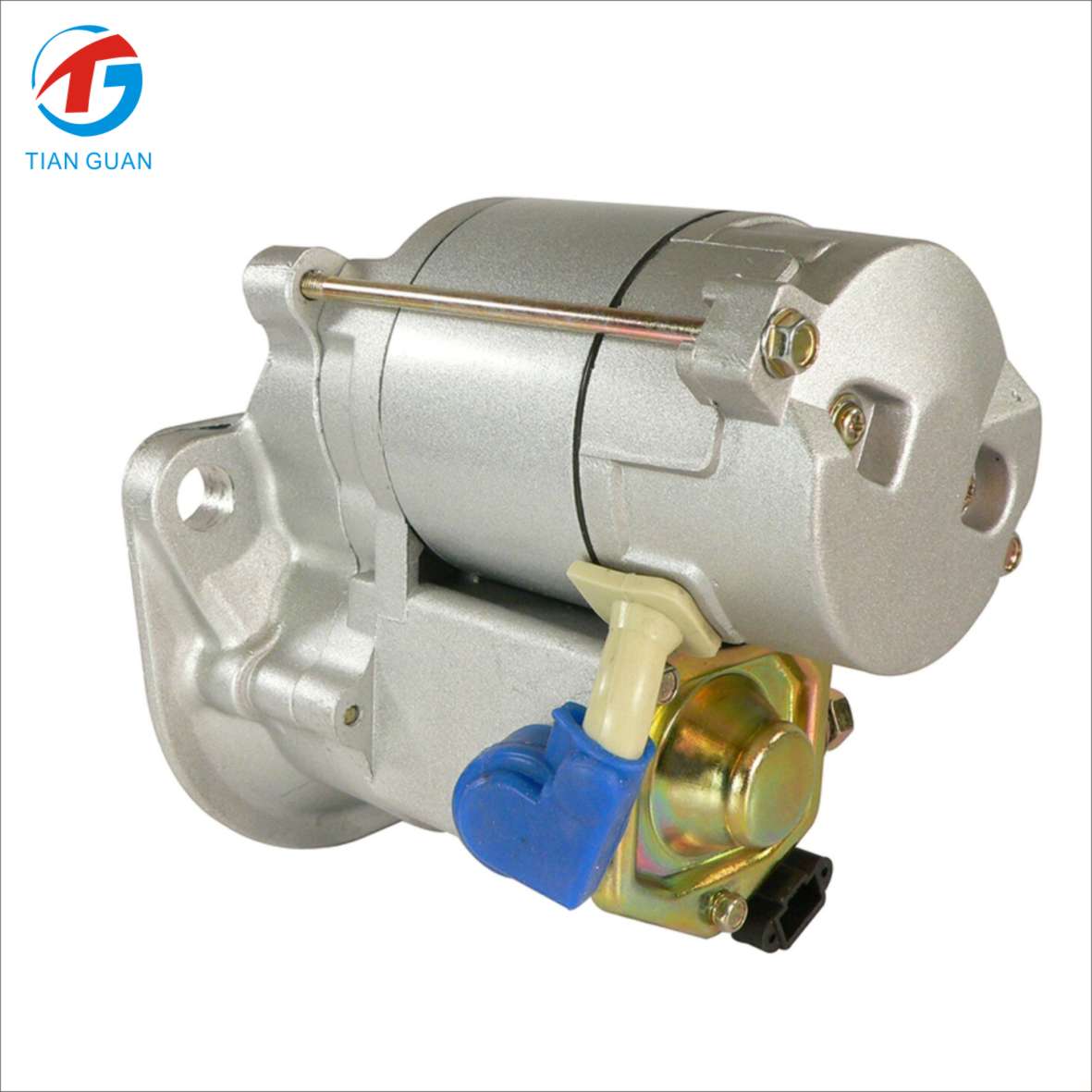

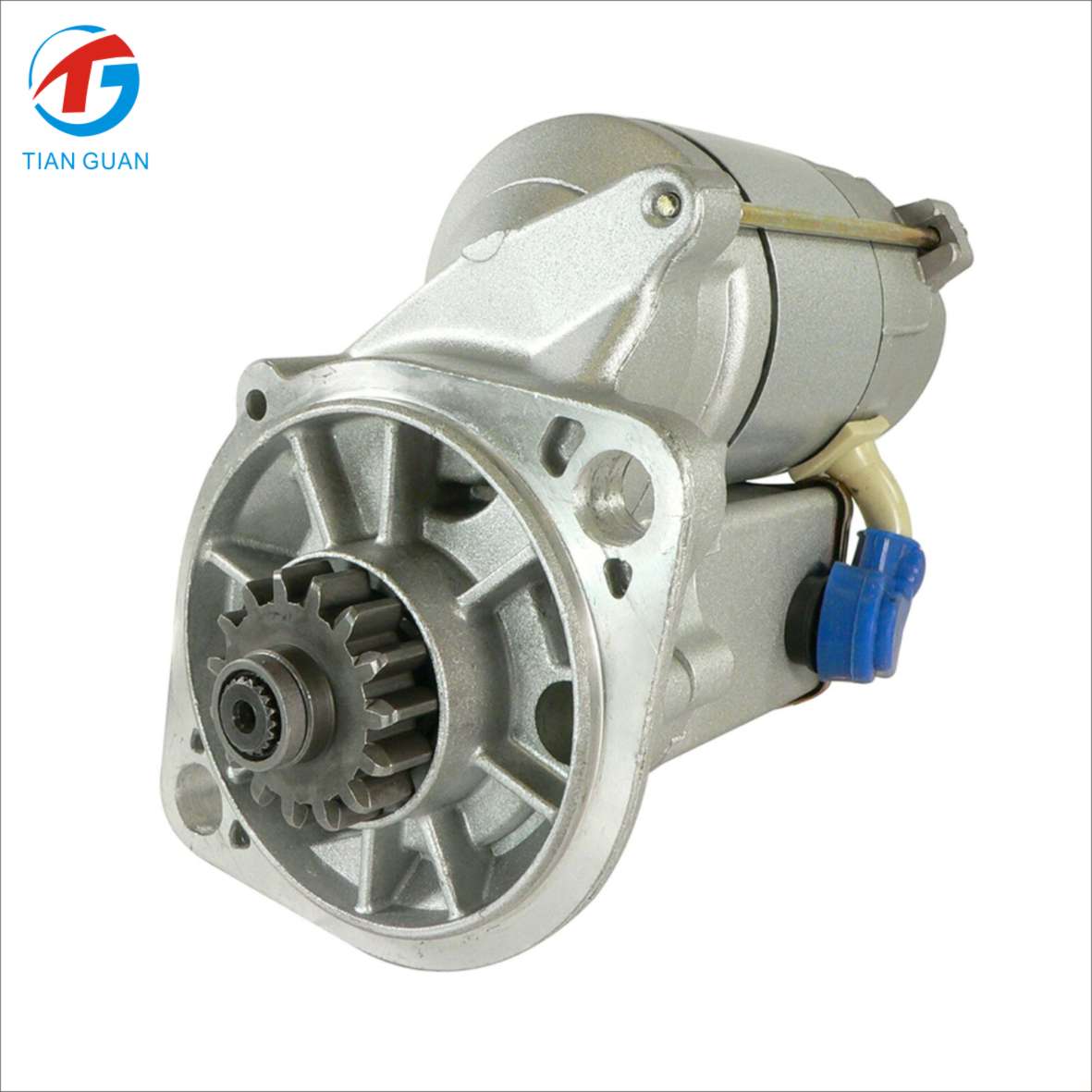

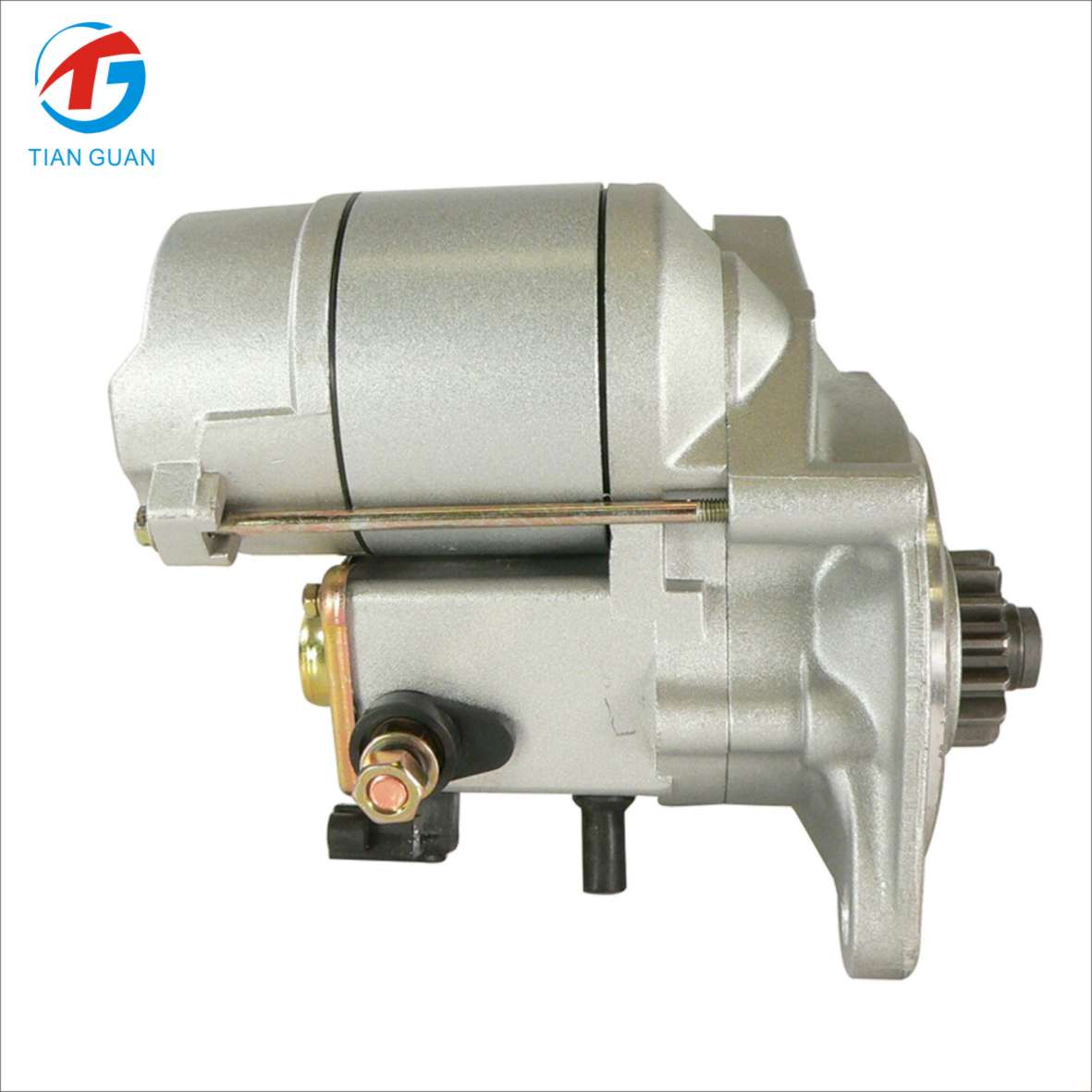

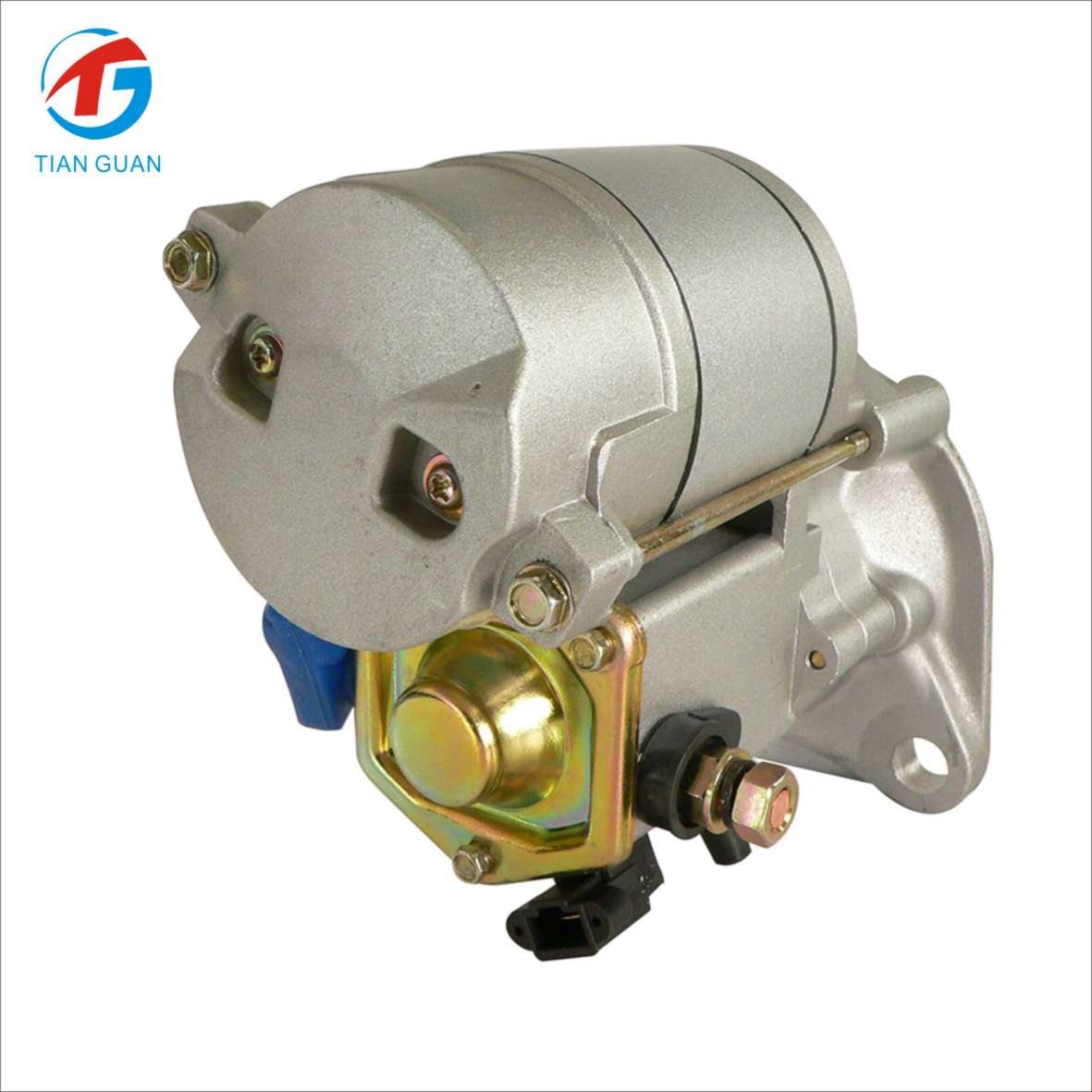

STG91437 Starter Motor 119209-77010 for Yanmar 366 Engine | 12V 1.4KW 15T CW OSGR Replacement

OEM / Reference Part Numbers:
YANMAR: 119209-77010 / 119285-77010 / 119385-77010 / 121120-77010 / 121120-77011 / 121120-77012 / 124520-77010
JOHN DEERE: AM877285 / CH12084 / CH12741 / CH15586 / CH19279 / CH19282 / CH19284 / SE501447 / SE501449 / TY6648 / TY6650 / TY6673 / TY6675 / TY6715 / TY6717
DENSO: 028000-5730 / 128000-0710 / 128000-0741 / 228000-0110 / 228000-0111 / 228000-3780 / 228000-3781 / 228000-3800 / 228000-3801 / 228000-3802
CUMMINS: 3675205RX
DELCO REMY: 10465440 / 10465583
LESTER: 16657 / 17099 / 17375 / 18013
ARROWHEAD: SND0377 / IMI214-007 / ND028000-5730 / ND128000-0710 / ND228000-0111 / ND228000-3781 / ND228000-3802
J&N: 410-52081

Product Description

STG91437 is a heavy-duty aftermarket starter motor designed for Yanmar 366 and 388 diesel engines used in John Deere tractors, skid steer loaders and Thermo King equipment.

This starter features a 12V 1.4KW OSGR (Offset Gear Reduction) design with 15-tooth pinion gear and CW (Clockwise) rotation, providing high starting torque and reliable engine cranking for agricultural, industrial and refrigeration equipment. Current starter catalogs confirm the 12V / 1.4KW / 15T / CW / OSGR specification and cross-reference Yanmar 119209-77010 / 119285-77010 with John Deere AM877285 / CH12084 / CH12741 / CH15586.

Product Specifications

Property	Value
Product Model	STG91437
Yanmar Part Numbers	119209-77010 / 119285-77010 / 119385-77010 / 121120-77010 / 121120-77011 / 121120-77012 / 124520-77010
John Deere Part Numbers	AM877285 / CH12084 / CH12741 / CH15586 / CH19279 / CH19282 / CH19284
Denso Part Numbers	028000-5730 / 128000-0710 / 128000-0741 / 228000-0110 / 228000-0111 / 228000-3780 / 228000-3781 / 228000-3800 / 228000-3801 / 228000-3802
Voltage	12V
Power Output	1.4KW
Starter Type	OSGR
Rotation	CW
Teeth Count	15T
Gear OD	44 mm
Application	Yanmar 366 / 388 Diesel Engine
Condition	New Aftermarket

OEM / Cross Reference Table

Brand	Part Number
DENSO	028000-5730 / 028000-7640 / 128000-0710 / 128000-0740 / 128000-0741 / 228000-0110 / 228000-0111 / 228000-0140 / 228000-0141 / 228000-0142 / 228000-3780 / 228000-3781 / 228000-3800 / 228000-3801 / 228000-3802 / 5702800-764 / 5712800-074 / 9712809-071 / 9712809-074 / 9722809-378 / 9722809-380 / 128000-7300 / 228000-7110 / 228000-7111
JOHN DEERE	AM877285 / CH12084 / CH12741 / CH15586 / CH19279 / CH19282 / CH19284 / SE501447 / TY6648 / TY6650 / TY6673 / TY6675 / TY6715 / TY6717 / AM79743 / AM879743 / TY25234
YANMAR	119209-77010 / 119285-77010 / 119385-77010 / 121120-77010 / 121120-77011 / 121120-77012 / 124520-77010 / 124520-77011 / 124250-77012 / 129429-77010 / 129429-77011 / 171006-77010
ISUZU	9712809071 / 9722809380
THERMO KING	10-45-1718 / 45-1312 / 45-1335 / 45-1718
CARRIER	20-45-1312 / 20-45-1718
CUMMINS	3675205RX
DELCO	10465440 / 10465583 / 10465584
ANDRE NIERMANN	15730 / 15731 / ND028000-5730 / ND5712800-074
ARROWHEAD	IMI214-007 / ND028080-5730 / ND1128080-0710 / ND128000-0710 / ND128000-0741 / ND228000-0111 / ND228000-0142 / ND228000-3781 / ND228000-3802 / ND9712809-071 / ND9712809-074 / ND9722809-380 / SND0393 / SND0377 / 410-52081
ATLANTIC	1400-0102 / 2800-0102
BARSANCO	590-16710 / 610-16657
CARGO	110485
DIXIE	S-8089 / S-8124 / S-8788 / S-8807 / S-8876 / 246-10102 / 246-14114 / 246-14115
EMP PARTS	APR-31
IAT	S16657
J & N ELECTRICAL PRODUCTS	410-52081
LESTER	16657 / 17099 / 17375 / 18013
LUCAS	LRS01125 / LRS01312 / LRS01626 / LRS02593
MINNPAR	57-2763
NSA	STR-8112
PIC	190-502 / 190-505 / 190-505A / 190-561 / 190-569 / 190-569A / 190-581
RCP	ST-16657
REMY	69009 / 69020
UNIPOINT	STR-8112
WAI	17375N / 2-1743-ND / 2-2705-ND
WILSON	91-29-5042 / 91-29-5140 / 91-29-5202 / 91-29-5324 / 71-29-16657
WOOD AUTO	STR23020 / STR70017

Compatible Applications

Manufacturer	Application
YANMAR	366 Engine Applications
JOHN DEERE	Equipment Using AM877285 / CH12084 / CH12741 / CH15586
THERMO KING	Refrigeration Equipment Using 10-45-1718 / 45-1312 Series
CARRIER	Refrigeration Equipment Using 20-45-1312 / 20-45-1718
ISUZU	Diesel Applications Using 9712809071 / 9722809380
CUMMINS	Applications Using 3675205RX

Weight & Package Information

Item	Value
Net Weight	3.8 KG
Gross Weight	4.3 KG
Package Size	28 × 20 × 18 CM

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Yanmar 366 / 388 Engine Replacement	12V 1.4KW High-Torque Starter	15T CW OSGR Design
John Deere AM877285 Compatible	Denso 228000 Series Replacement	44 mm Gear OD
119209-77010 / 119285-77010 Replacement	Heavy-Duty Tractor Application	Reliable Diesel Starting Performance
