ATG12086 Alternator 334-2491A 88864281 321-1798 for Chevrolet Express Astro GMC Cadillac Escalade 4.3L 5.3L 6.0L 12V 105A Heavy Duty Replacement

Part Numbers:
AC Delco: 321-1798, 321-1811, 321-1815, 321-1850, 334-2491, 334-2516, 334-2528
ACE: CA8229-3-14
Arrowhead (Old): ADR0319, ADR0358
Arrowhead: ADR0215
Barsanco: 110-8238, 110-8273
BBB HD (Old): 8238, 8291
Cargo: 112850
Delco: 10464455, 10464481, 10480326, 10480388, 10480476, 15755616, 15755616W, 15768829
Delco Reman: 10464438, 10464451
Dixie: A-1548, A-1548N
DuBois: 671388, 908291
Family: AD230
J & N: 400-12139
Lester: 8247, 8273, 8291
Minnpar: 47-1919, 47-1989
NAPA: 213-4837, 213-4838
NSA: ALT-1506, ALT-1509
PIC: 240-6225, 240-6415A, 240-6415B, 240-6417
Remy: 21798, 91602
WAI: 1-2320-21DR
Wilson: 90-01-4359, 90-01-4366, 90-01-4414, 90-01-4685, 90-01-4705

Product Description:

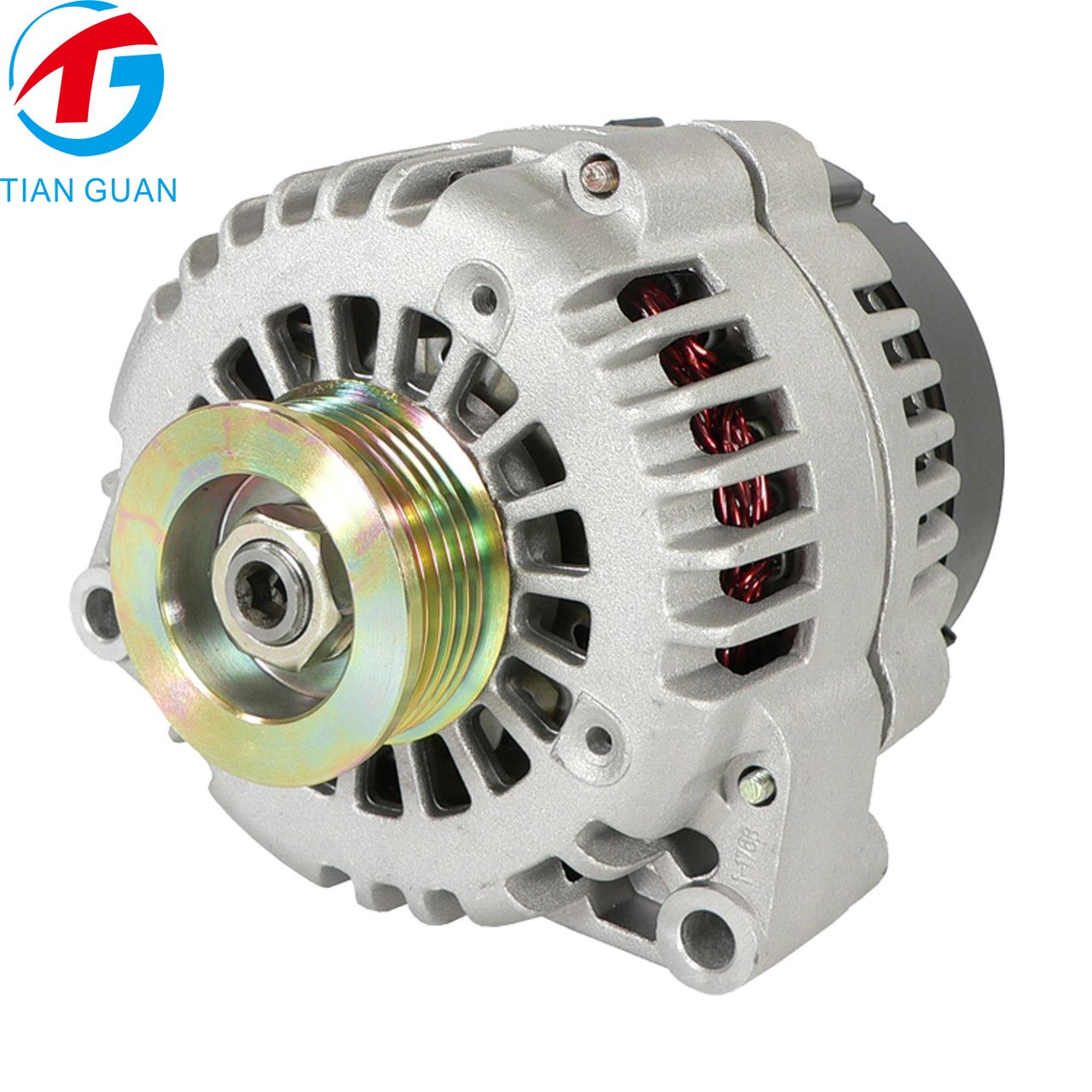

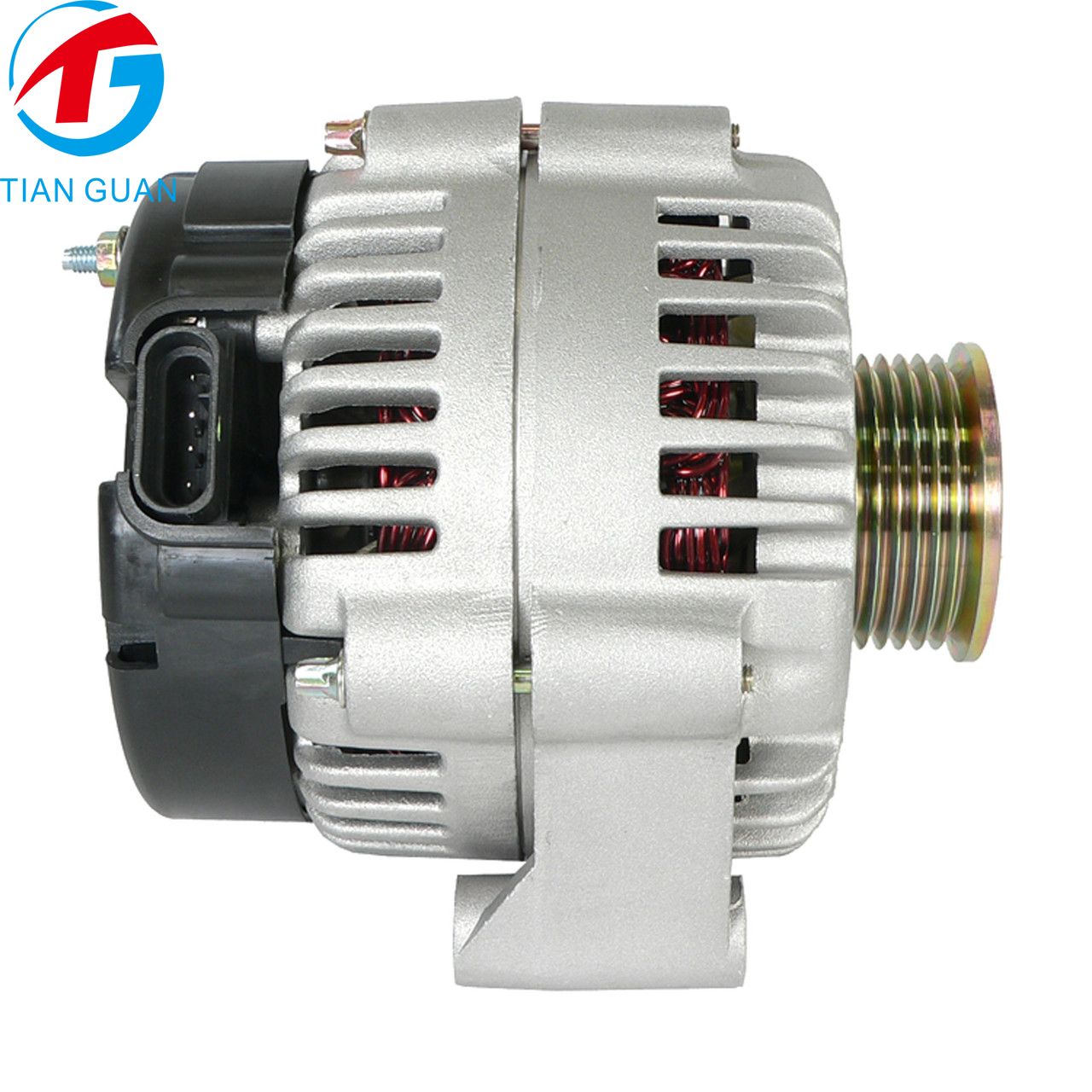

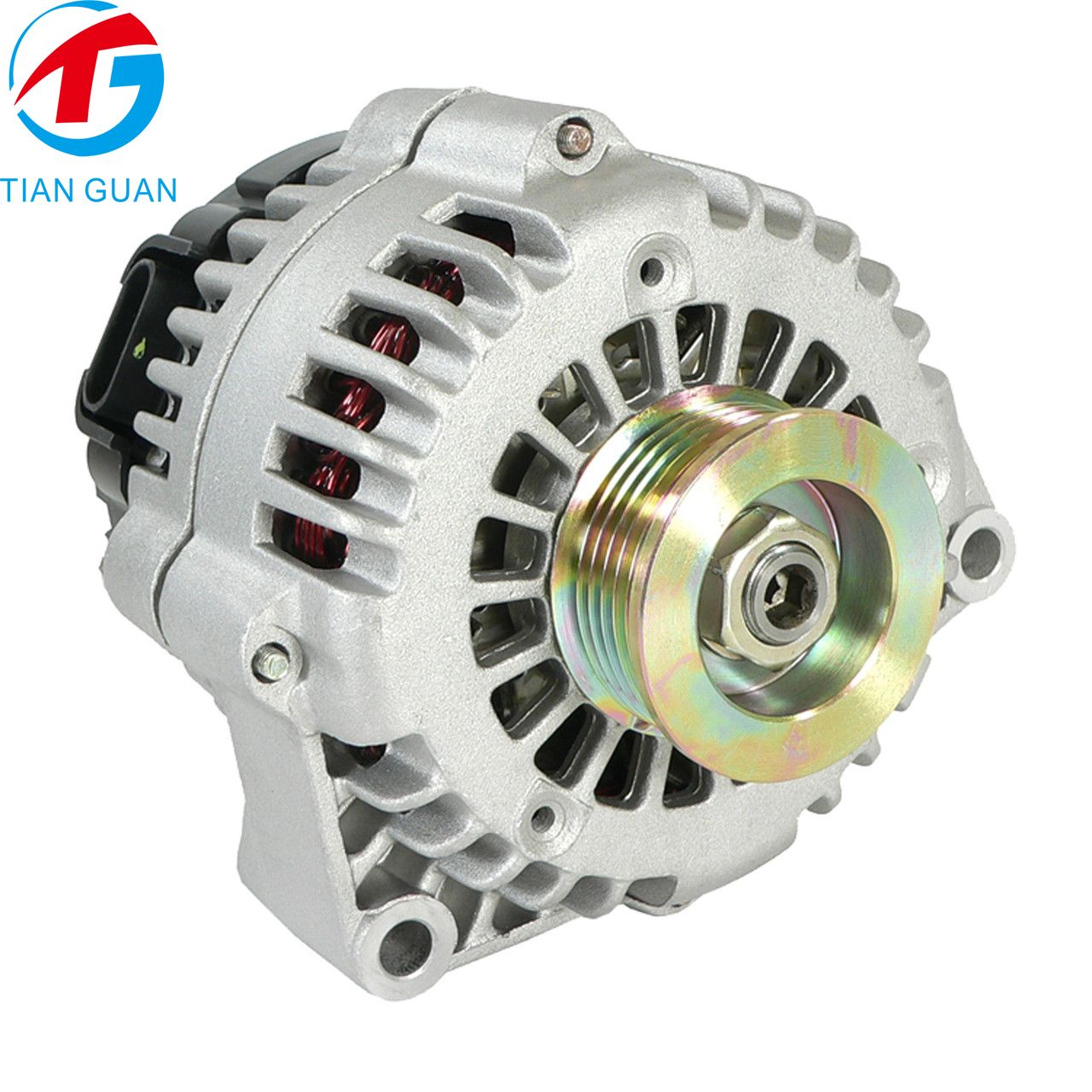

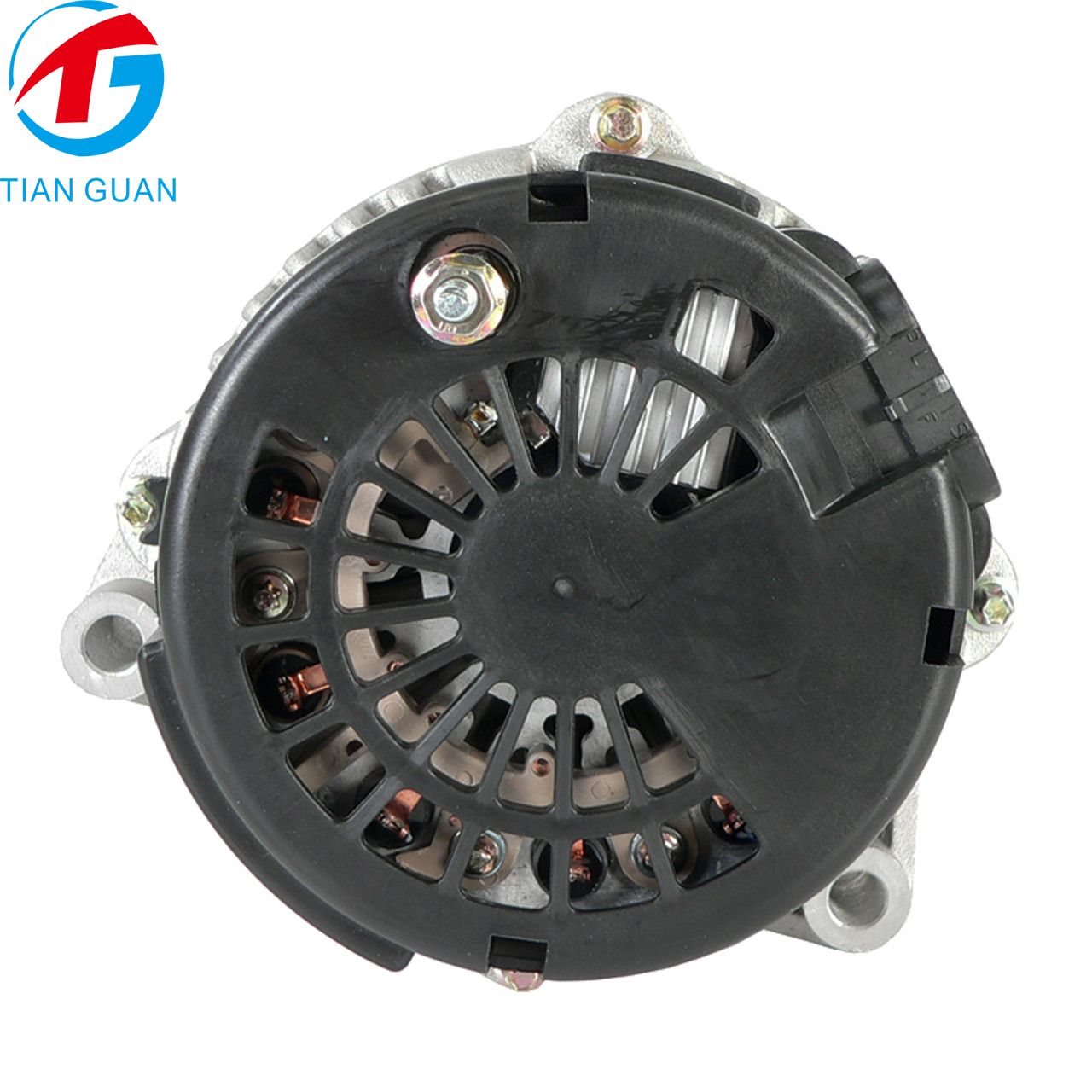

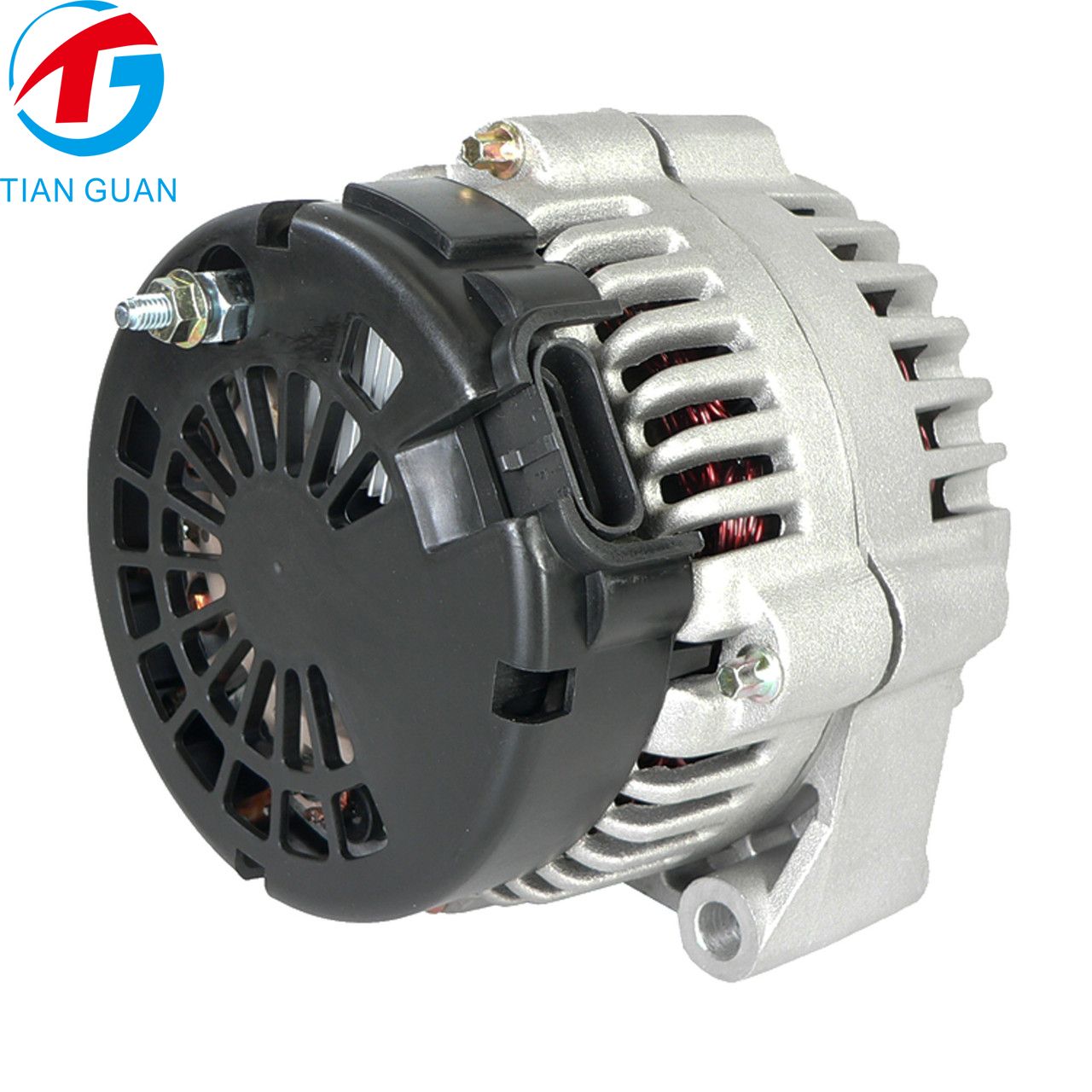

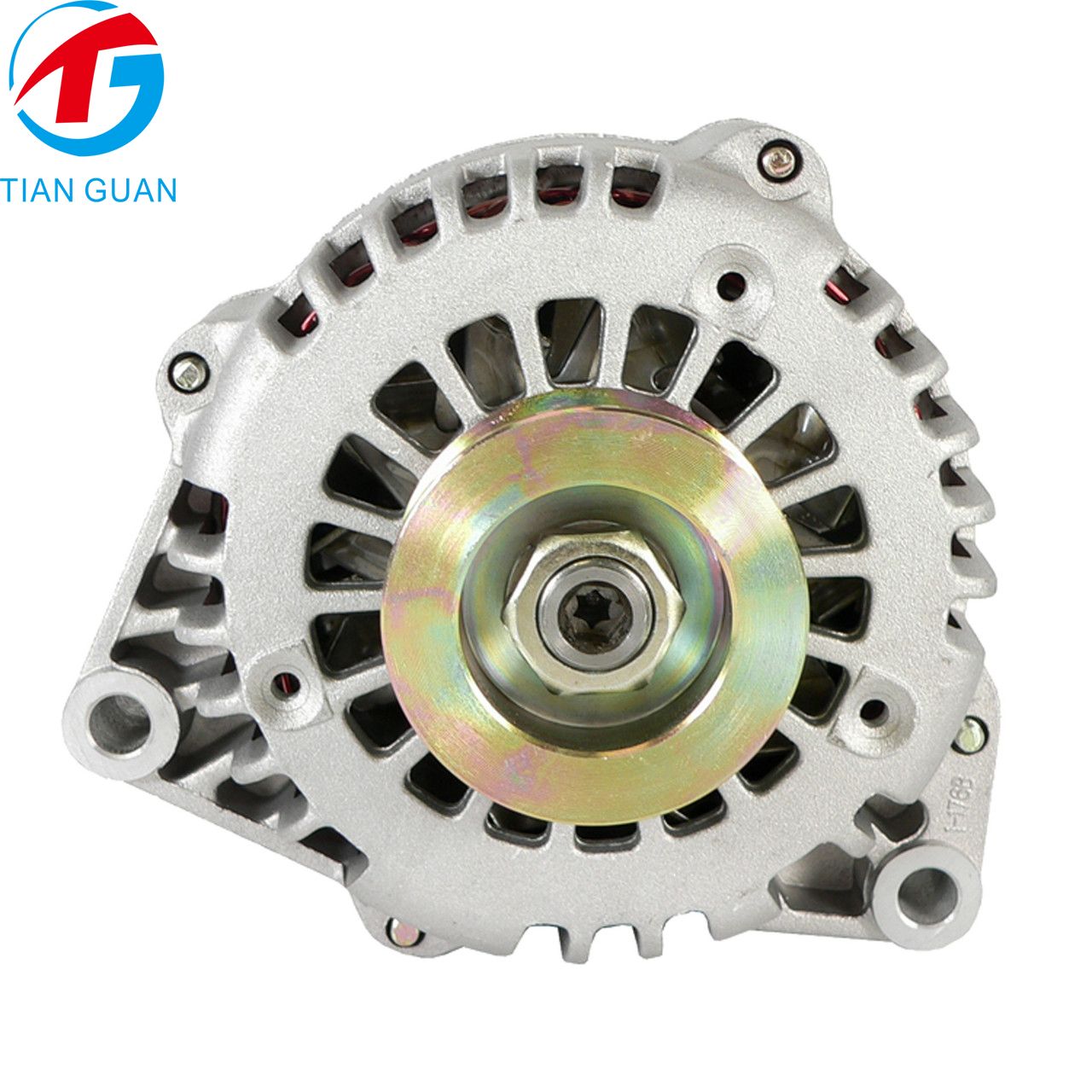

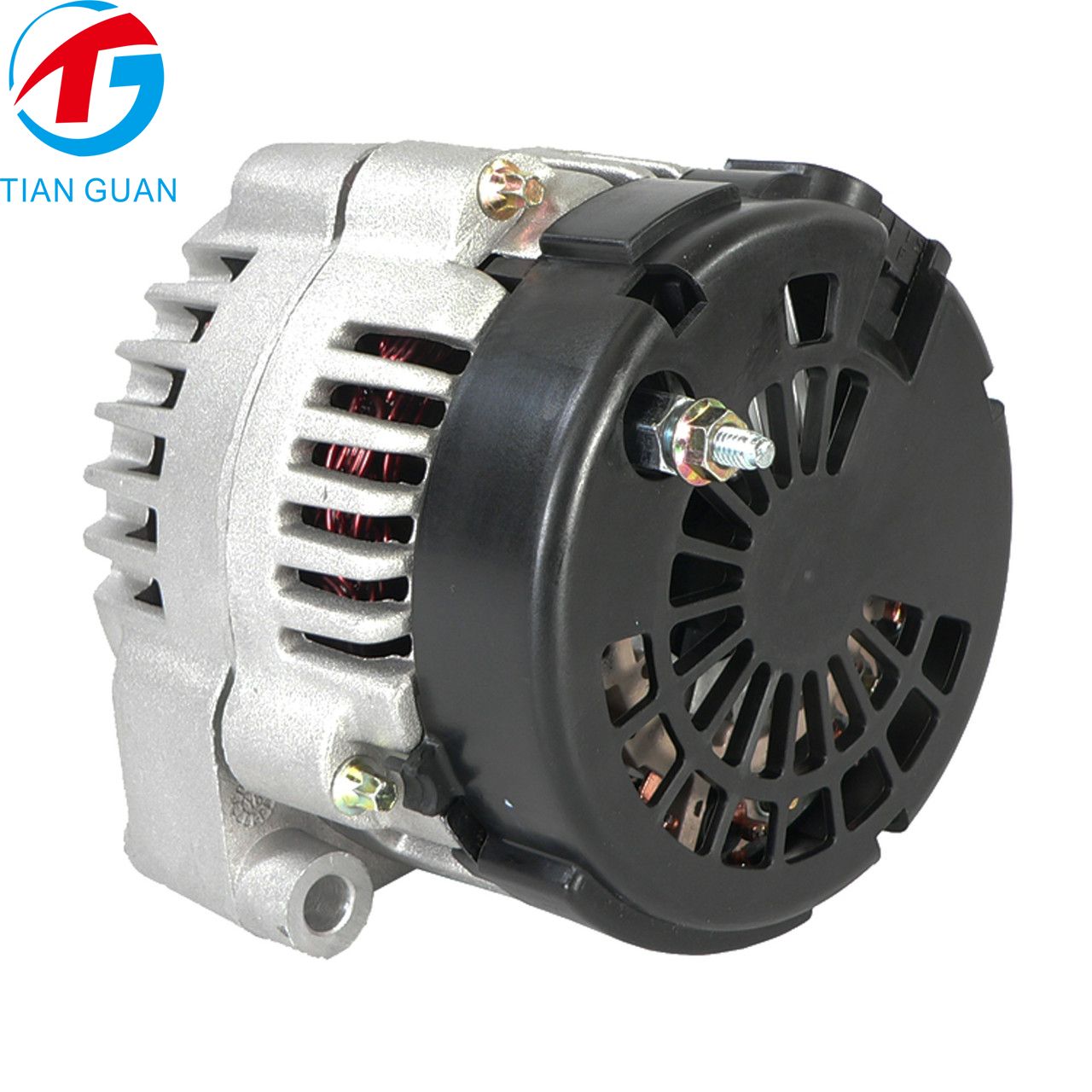

Heavy-duty Delco AD230 series alternator designed for reliable charging performance in GM, Chevrolet, GMC, and Cadillac vehicles. Built for high output stability and long service life under demanding automotive and light truck conditions.

• Voltage: 12V

• Amperage: 105A

• Rotation: CW

• Regulator: Internal Regulator (IR)

• Fan Type: Internal Fan (IF)

• Pulley Type: 6-groove (57mm OD)

• Clock Position: 11

• Condition: Aftermarket Part

• Application Series: Delco AD230

• Weight: 7.2KG

Specifications:

Fitment:
Chevrolet Astro Van 2001–2003 4.3L V6; GMC/Chevrolet Express Vans 2000–2002; Cadillac Escalade / Escalade ESV / Escalade EXT 2002–2004 with 5.3L / 6.0L V8 engines and compatible AD230 series charging systems.
