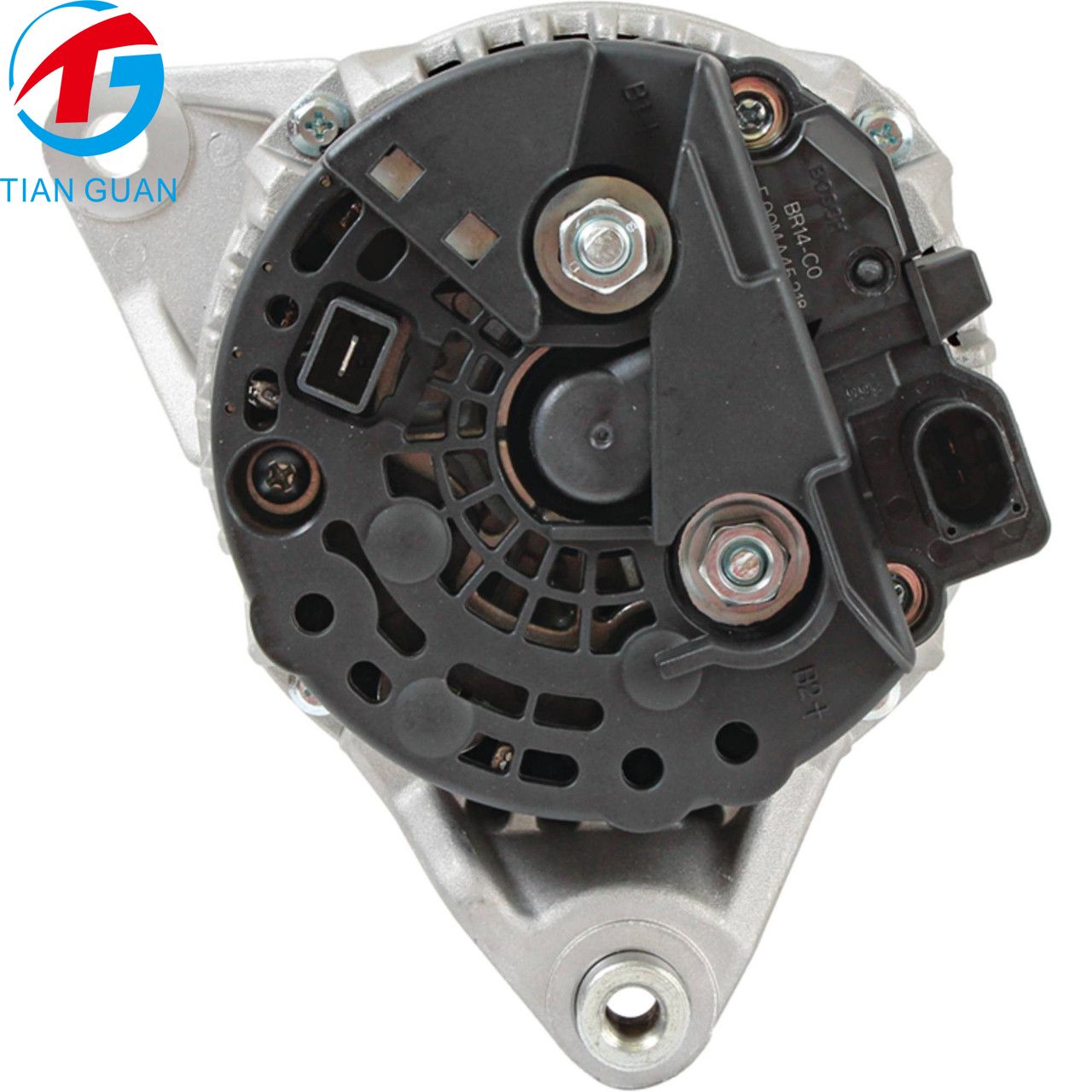

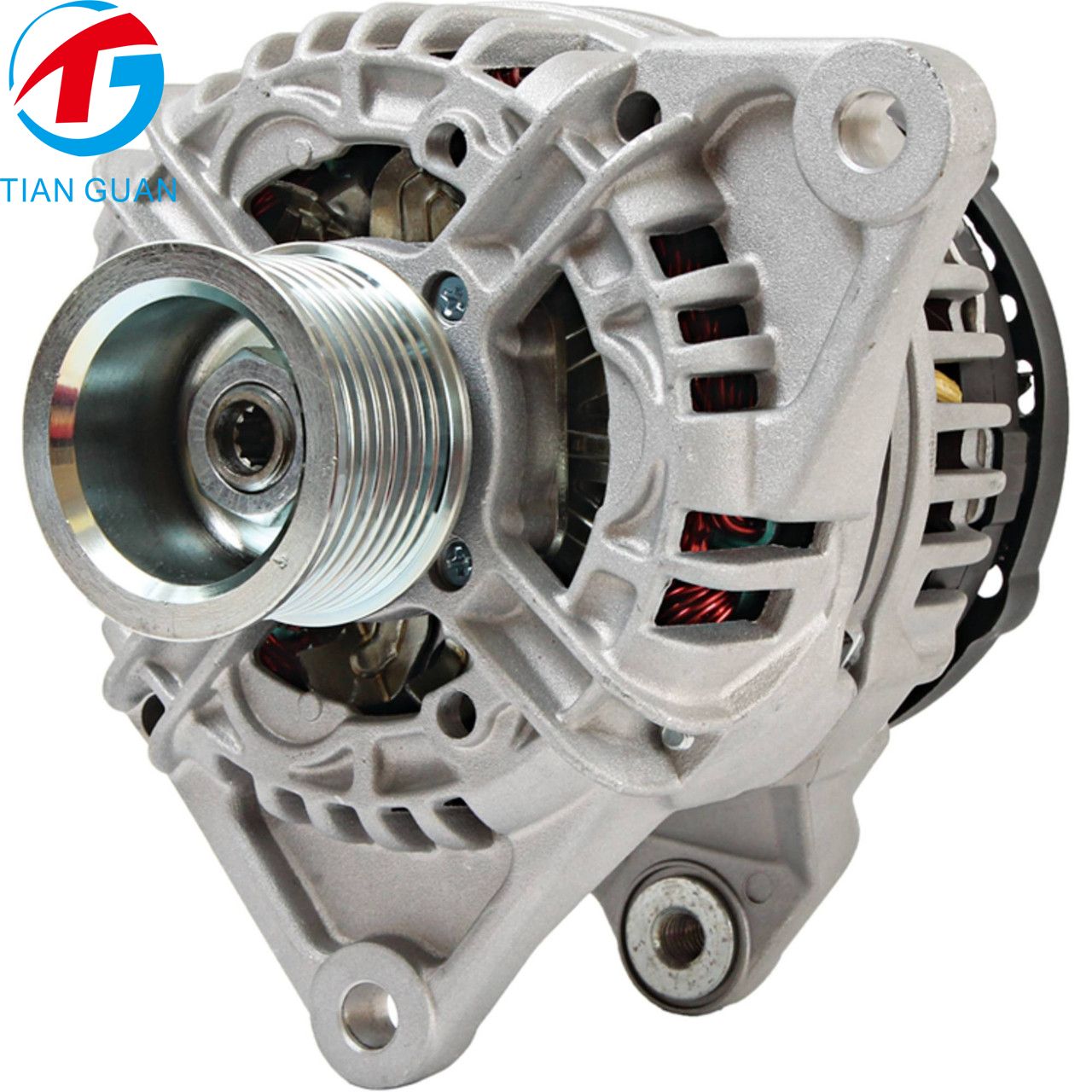

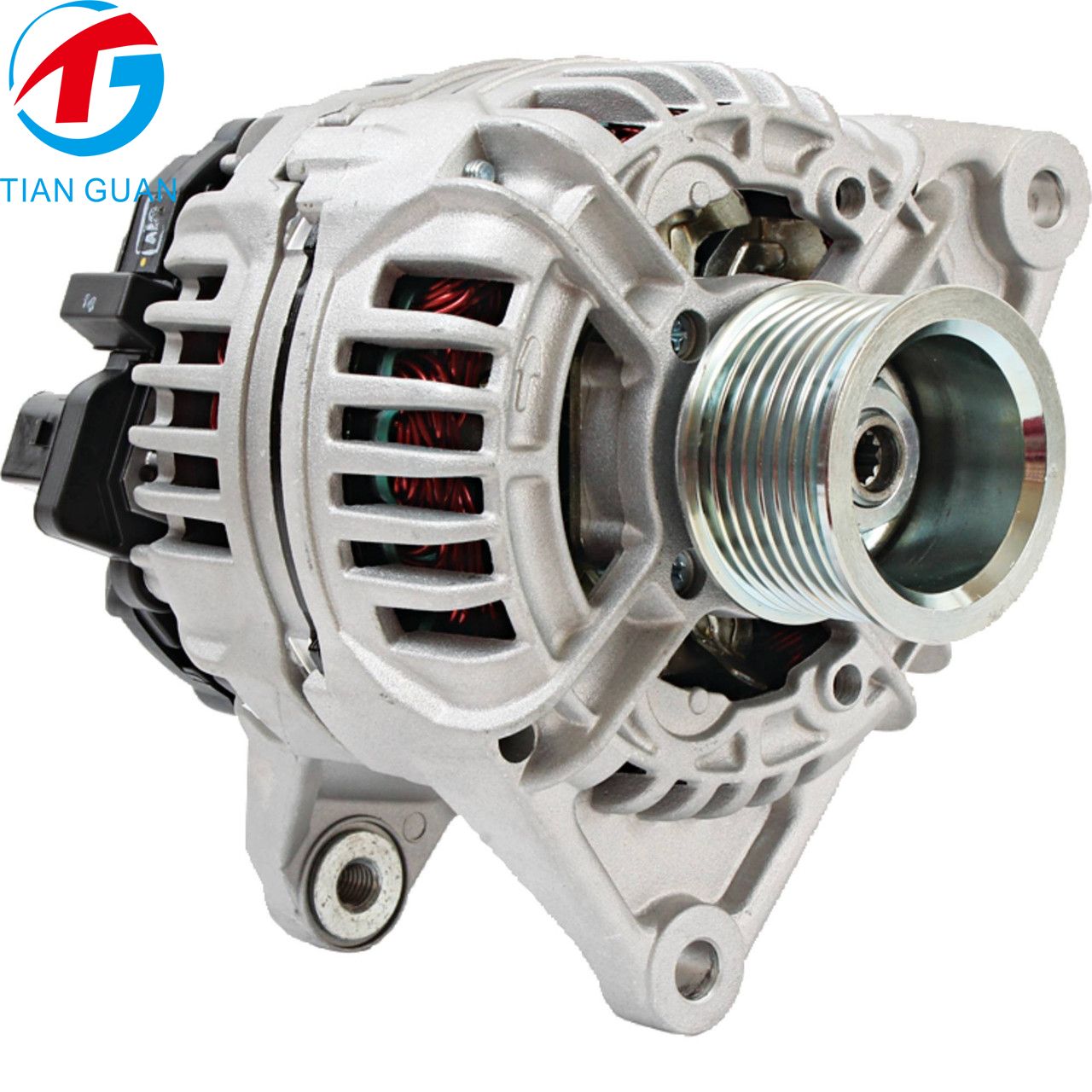

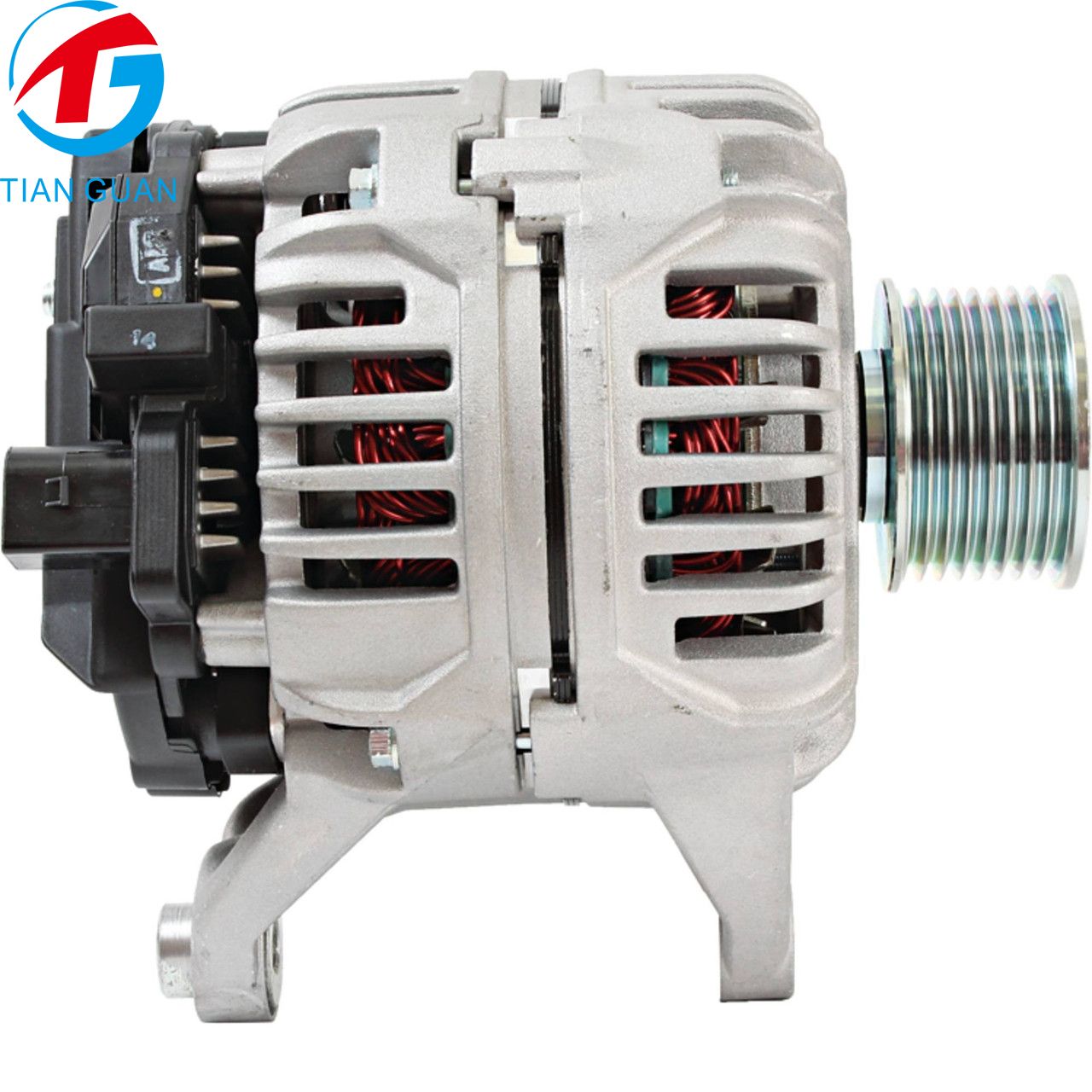

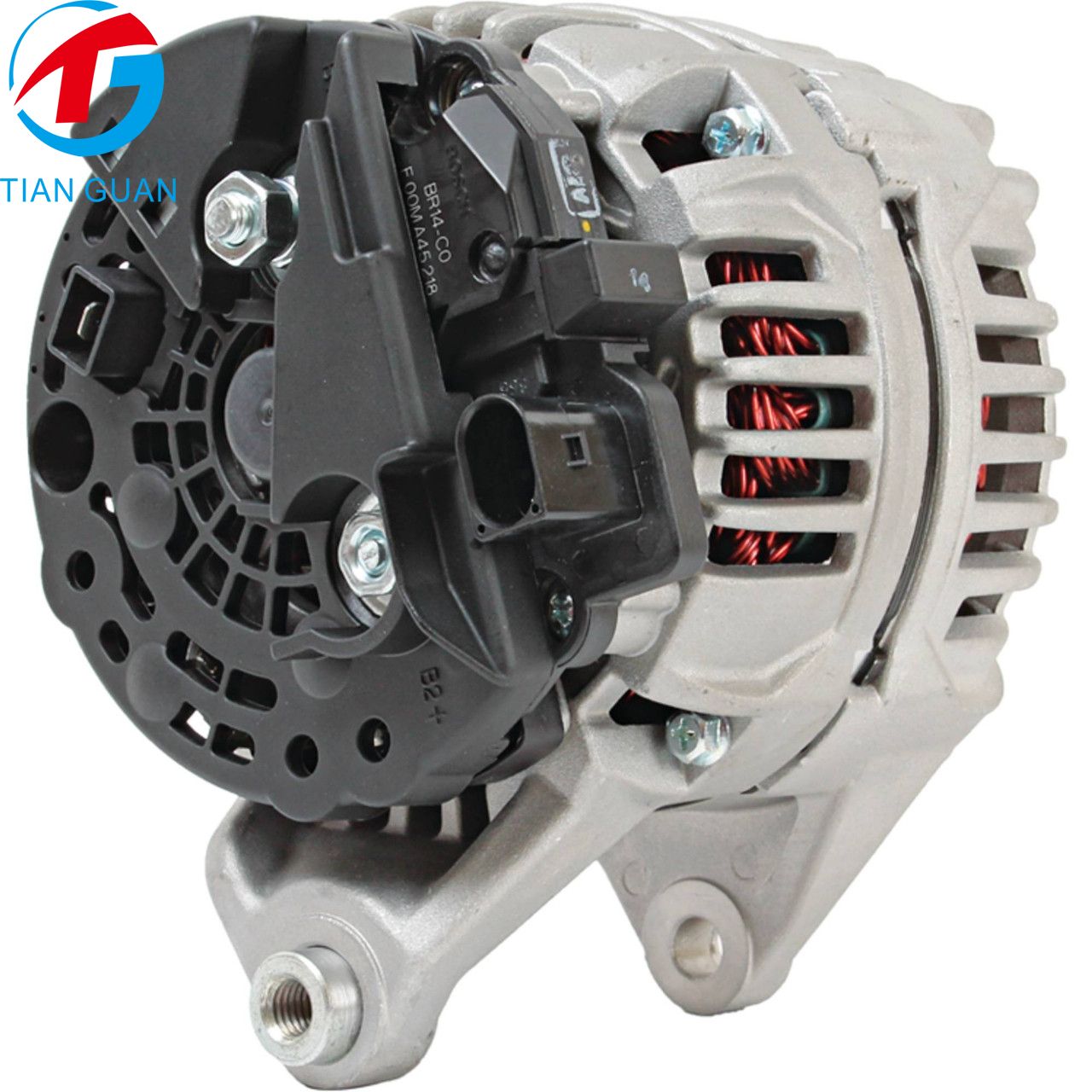

ATG12986 Alternator 504010576 504225814 2855975 0124325052 for New Holland LM5040 LM5060 LM5080 Replacement

3 Reviews

Add Your Review

US$136.00

ITEMNO： ATG12986

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG12986 Alternator 504010576 504225814 2855975 0124325052 for New Holland LM5040 LM5060 LM5080 Replacement

Replacement Part Numbers

Brand	Part Number
Arrowhead	ABO0467
Bosch	0-124-325-052
Case	2855975
Iveco	504010576, 504225814
J & N	400-24074R
Lester	20021
New Holland	504010576
VM	38522314F, 8520046A

Specification

Item	Specification
Product Type	Alternator
Internal Part Number	ATG12986
Voltage	12V
Amperage	90A
Rotation	CW
Regulator	IR
Fan Type	IF
Pulley Class	S8
Pulley Type	8-Groove
Pulley Outside Diameter	55 mm
Unit Type	UNIT
Condition	New Aftermarket
Weight	6.5 kg

Fit for Engine

IVECO NEF 3363cc 3-Cylinder Engine
IVECO NEF 4485cc 4-Cylinder Engine
IVECO NEF Engine Applications
New Holland LM5040, LM5060, LM5080 Telehandlers with IVECO NEF Engine
Claas Nectis 217, 227, 237, 247, 257, 267 3.4L 3-Cylinder
Redrock TH280S Telehandler with IVECO Engine

Applications

This ATG12986 12V 90A Alternator is designed as a replacement charging unit for compatible New Holland, Iveco and Claas applications. It is suitable for New Holland LM Series telehandlers, Iveco NEF engines and selected Claas Nectis tractors.

Featuring a 12V electrical system, 90A output, clockwise rotation and IR regulator, this alternator provides reliable electrical power for demanding agricultural, construction and telehandler applications.

The alternator is equipped with an 8-groove pulley with a 55mm outside diameter and weighs approximately 6.5 kg, making it suitable for replacement of compatible original alternator assemblies.

Vehicle Applications

Make	Type	Model	Year	Engine
NEW HOLLAND	Telehandlers	LM415A	2003 - On	4.5L 95HP Turbo
NEW HOLLAND	Telehandlers	LM435A	2003 - On	4.5L 110HP Turbo
NEW HOLLAND	Telehandlers	LM445A	2003 - On	4.5L 95HP Turbo
NEW HOLLAND	Telehandlers	LM5040	2007 - On	4.5L Iveco NEF
NEW HOLLAND	Telehandlers	LM5060	2007 - On	4.5L Iveco NEF
NEW HOLLAND	Telehandlers	LM5080	2007 - On	4.5L Iveco NEF

Product Highlights

Feature	Description
90A Charging Output	Provides stable electrical power for compatible 12V agricultural and construction equipment.
Heavy-Duty Replacement	Designed for New Holland, Iveco and Claas applications using compatible alternator specifications.
8-Groove Pulley	Features an 8-groove, 55mm OD pulley for matching compatible belt-drive systems.

Keywords: ATG12986 Alternator, New Holland LM5040 Alternator, 504010576 Alternator
