STG50010 Starter Motor 9000768 SDR0031-L for Mercruiser Marine 4.3L 5.0L GM | 12V 1.7KW 11T CW PMGR Replacement-Products-TIANGUAN-Page 1

Home Products

STG50010 Starter Motor 9000768 SDR0031-L for Mercruiser Marine 4.3L 5.0L GM | 12V 1.7KW 11T CW PMGR Replacement

3 Reviews

Add Your Review

US$128.00

ITEMNO： STG50010

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

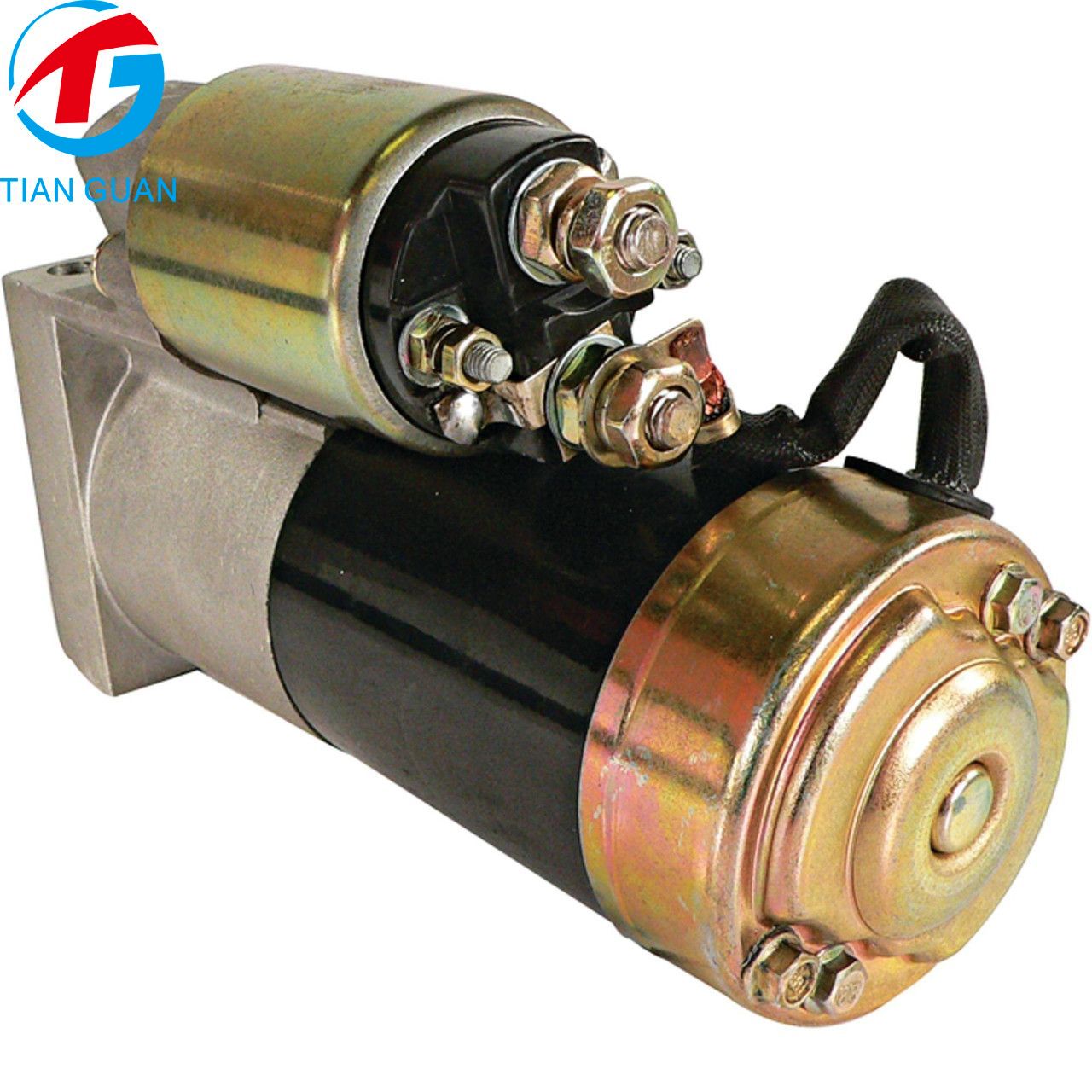

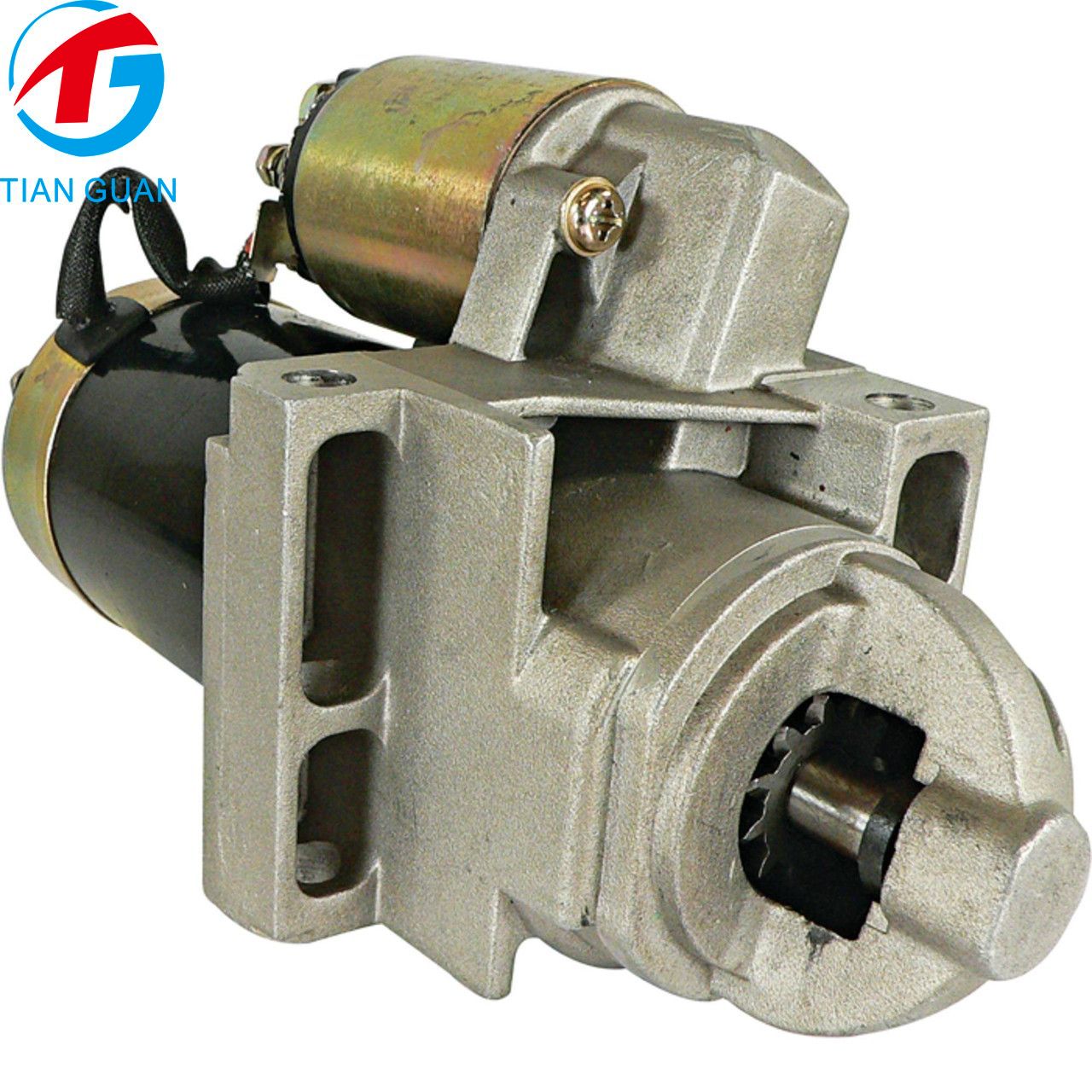

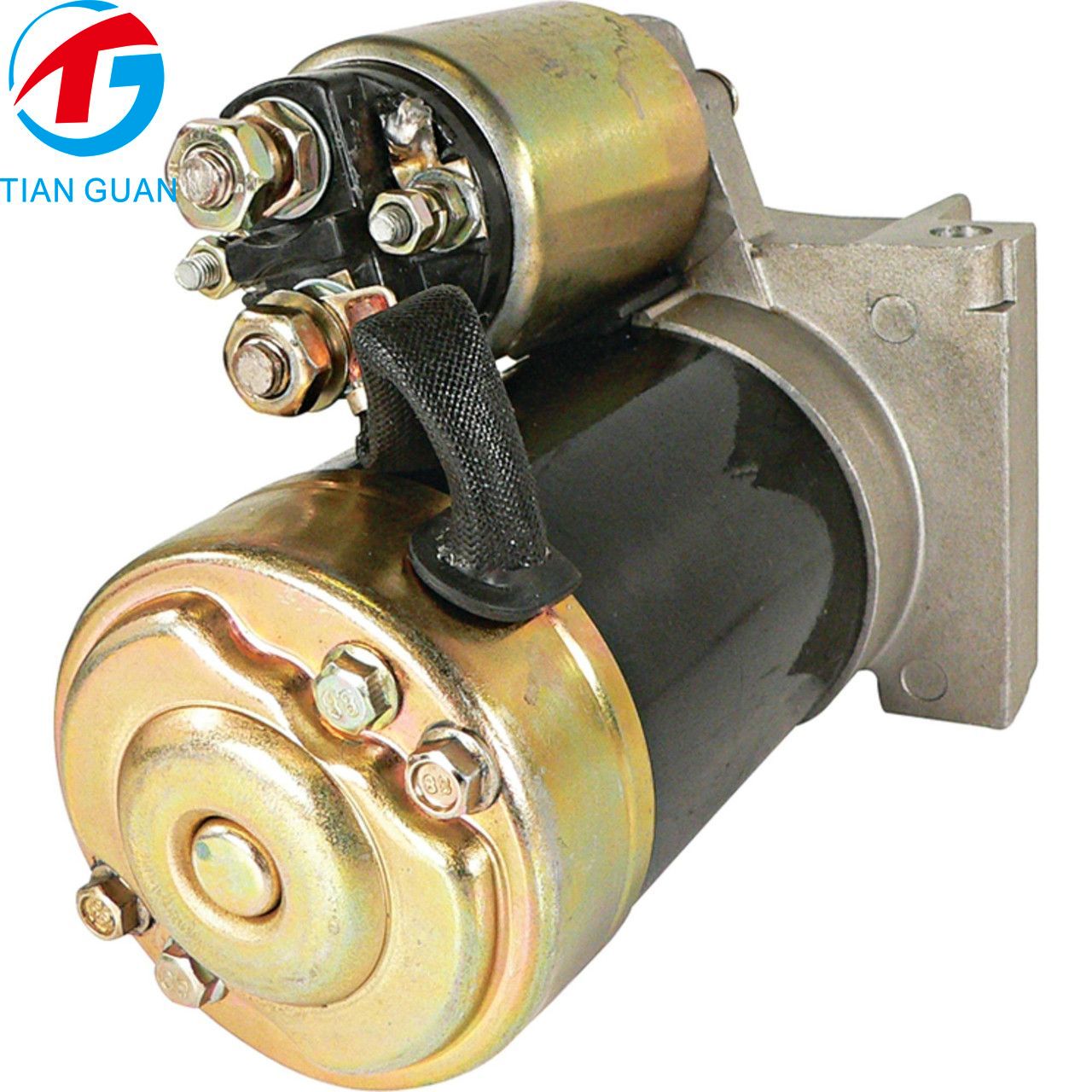

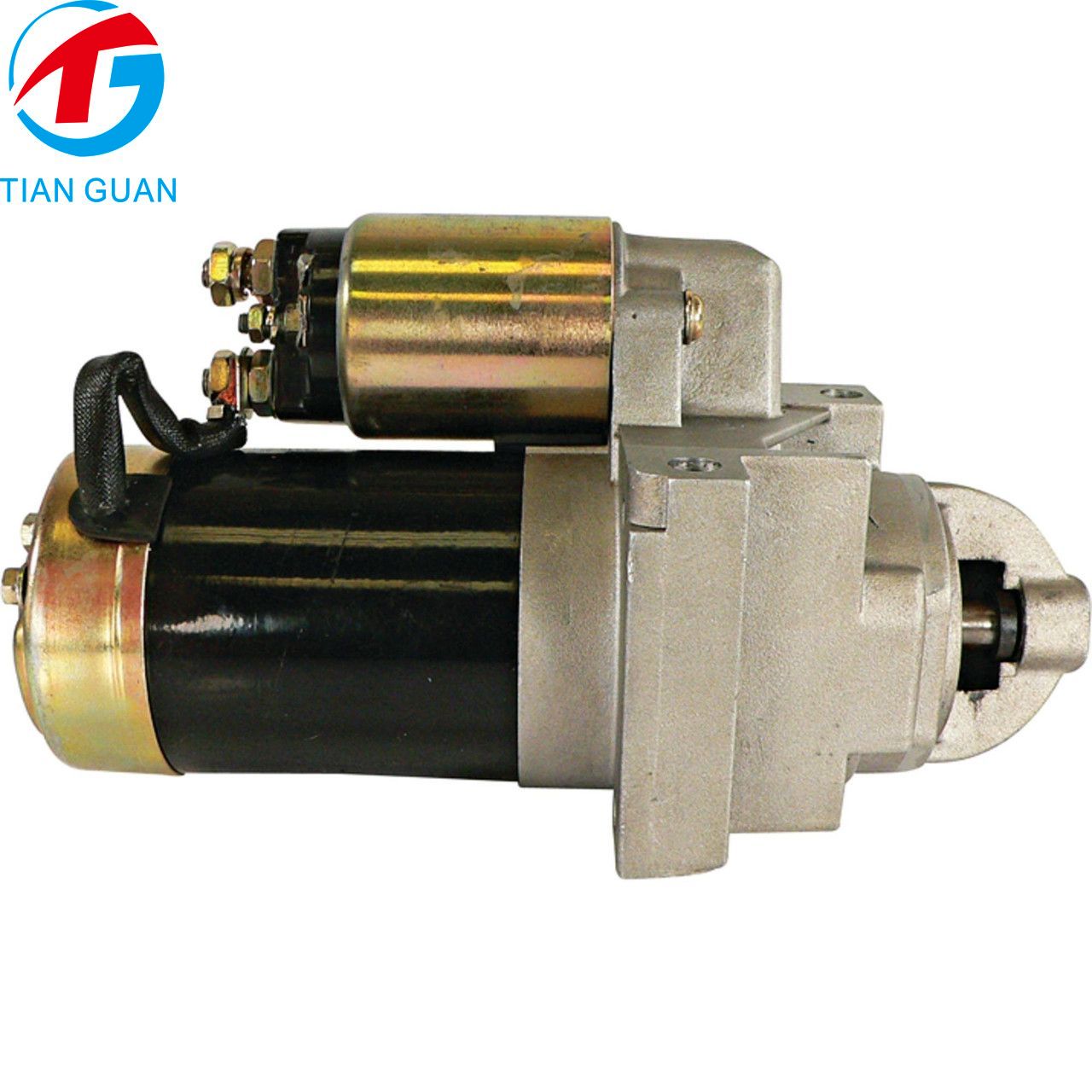

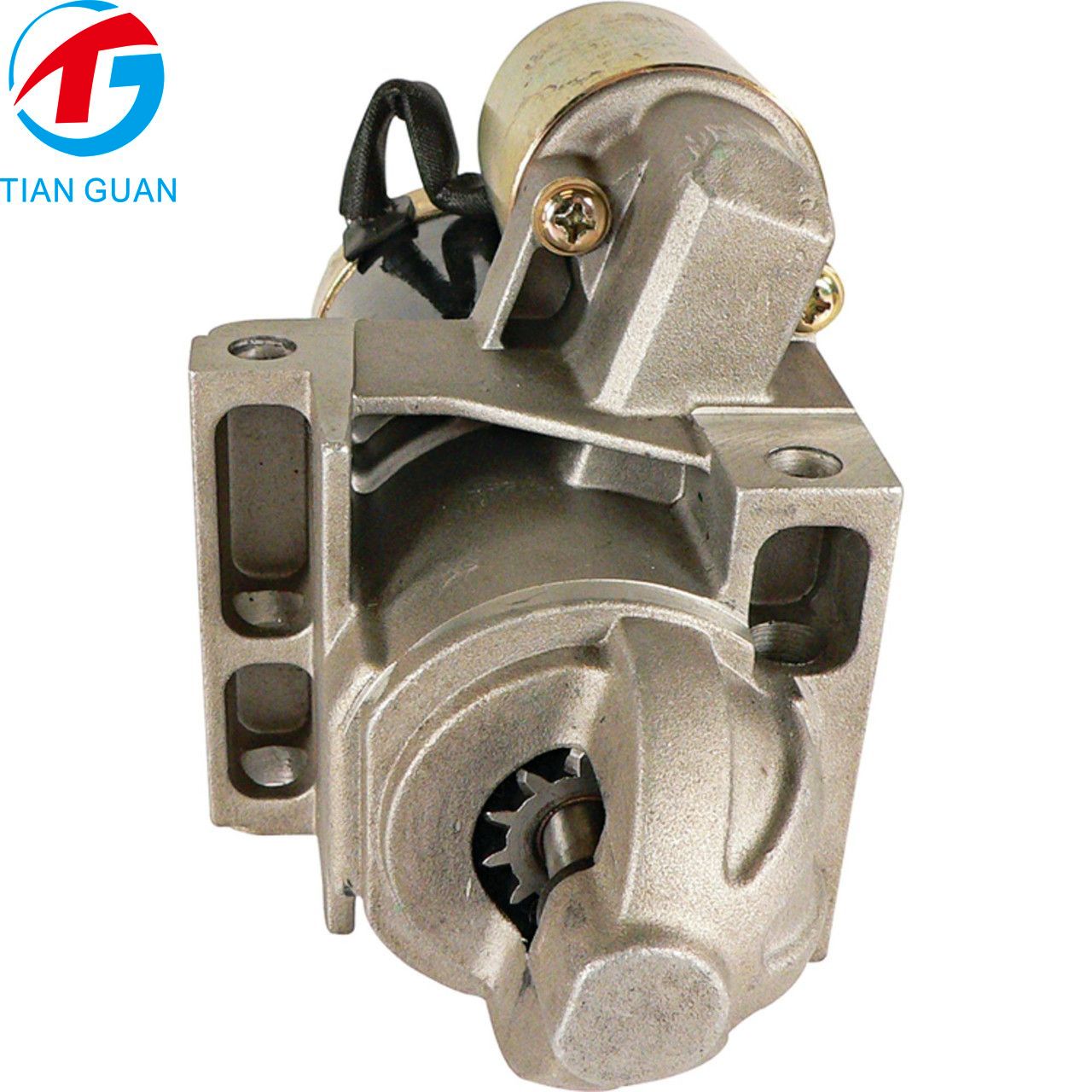

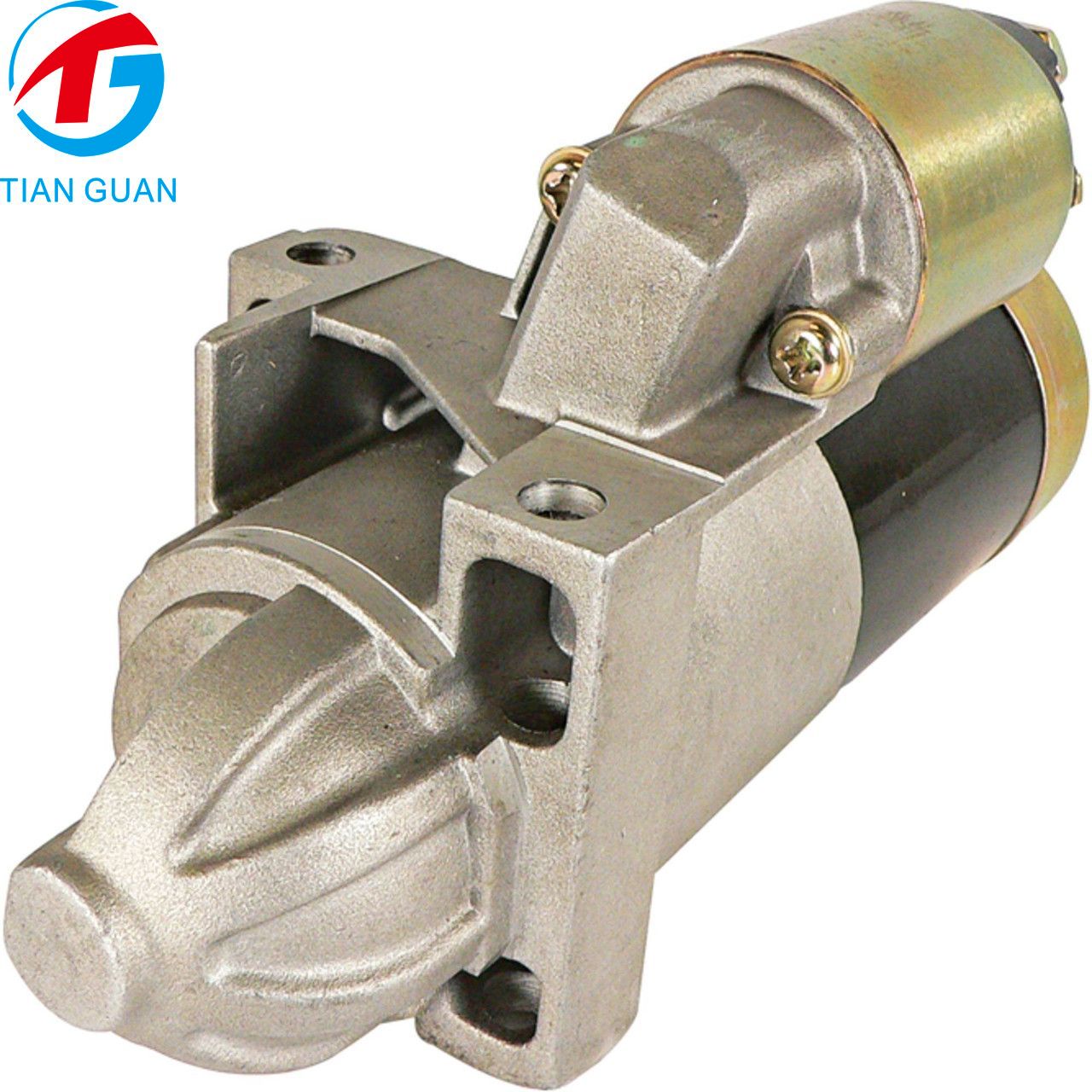

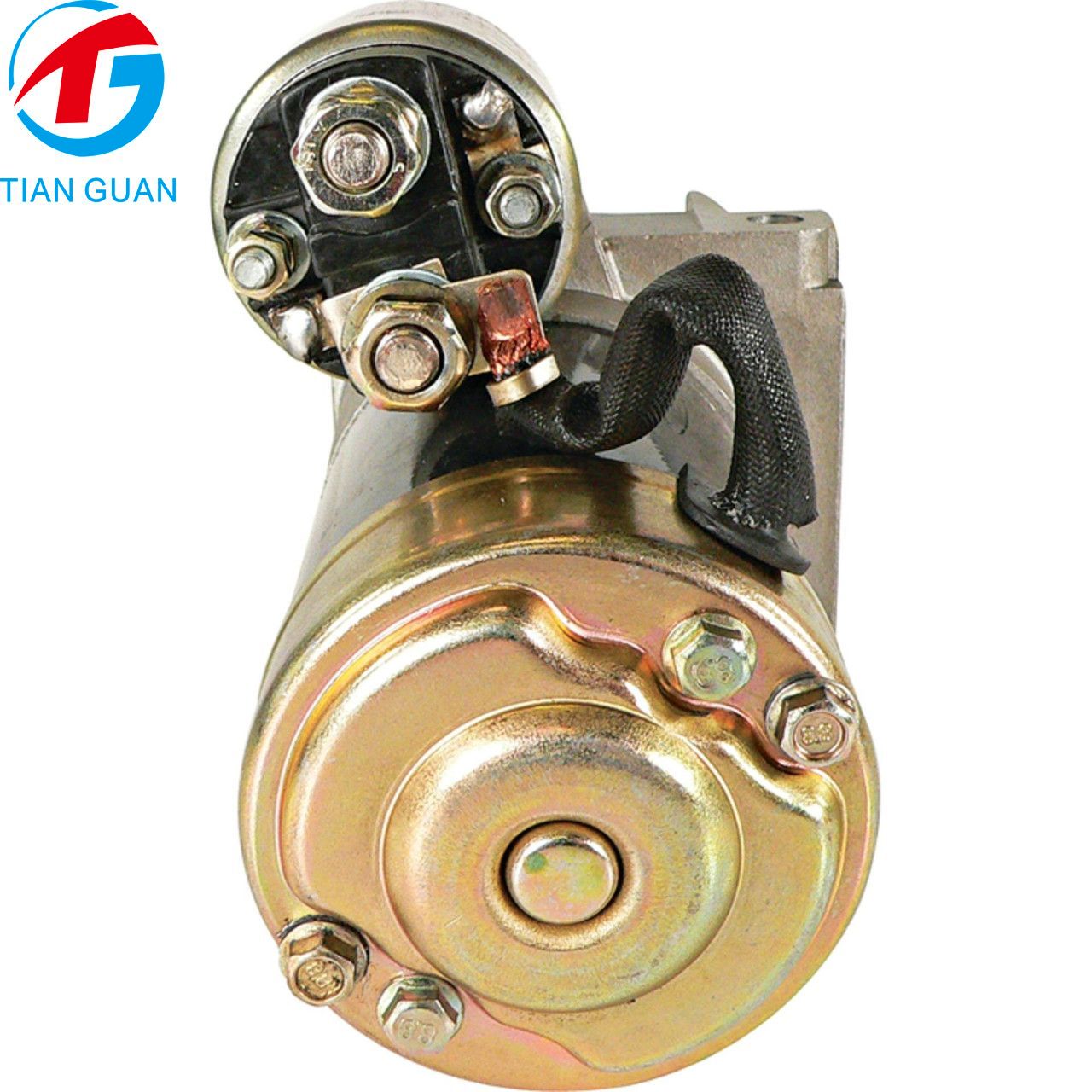

STG50010 Starter Motor 9000768 SDR0031-L for Mercruiser Marine 4.3L 5.0L GM | 12V 1.7KW 11T CW PMGR Replacement

OEM / Reference Part Numbers:
MERCURY MARINE: 9000768 / SDR0031-L / SDR0031-M / 50-807907 / 50-807907T
MANDO: M59601 / TM000A12301
DELCO: 8000108

Product Description

STG50010 Starter Motor is a high-quality aftermarket replacement designed for Mercruiser Marine, GM V6 and V8 marine engine applications.

The starter uses a 12V 1.7KW PMGR (Permanent Magnet Gear Reduction) design with 11-tooth pinion gear and CW rotation. It is suitable for a wide range of Mercruiser 4.3L and 5.0L marine engines, with additional applications across selected 5.7L, 7.4L and 8.2L models. The published specifications confirm 12V, 1.7KW, 11T, CW and PMGR.

Product Specifications

Property	Value
Product Model	STG50010
OEM Part Numbers	9000768 / SDR0031-L / SDR0031-M / 50-807907
Mando Part Numbers	M59601 / TM000A12301
Delco Part Number	8000108
Voltage	12V
Power Output	1.7KW
Starter Type	PMGR
Rotation	CW
Teeth Count	11T
Gear OD	29.5 mm
Mounting Ear C-to-C	82.7 mm
Registry OD	67.7 mm
Application	Mercruiser / GM Marine
Condition	New Aftermarket

OEM / Cross Reference Table

ARCO MARINE	30450HD
ARROWHEAD	SDR0031-M, V412301
CARGO	111786
DELCO	8000108
EMP PARTS	4-5913
J & N	410-46007, 410-46009, 410-46017,410-12174
LESTER	19715
MANDO	M59601, TM000A12301
MERCURY MARINE	50-807907
VALEO	TM000A24301
WAI	6792N-MD

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1990	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1991	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1992	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1993	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1994	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1995	GM 8.9L - 540ci - 8cyl
MERCRUISER	Hi-Perf. Engine Models	Model 500 Bulldog	1996	GM 8.9L - 540ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag EFI Ski (TBI)	1994	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag EFI Ski (TBI)	1995	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag EFI Ski (TBI)	1996	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1991	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1992	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1993	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1994	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1995	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 350 Mag Ski	1996	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 454 EFI Ski (Gen V)	1995	GM 7.4L - 454ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1987	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1988	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1989	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1990	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1991	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1992	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1993	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1994	GM 5.7L - 350ci - 8cyl
MERCRUISER	Ski Engine Models	Model 5.7L Competition Ski	1995	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 175	1991	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 175	1992	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 200	1987	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 205	1988	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 205	1989	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 205	1990	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 205	1991	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 230	1987	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 260	1987	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1988	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1989	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1990	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1991	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1992	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1993	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1994	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 350 Mag Alpha	1995	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II) (2-BBL)	1992	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II) (2-BBL)	1993	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II) (2-BBL)	1994	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II) (2-BBL)	1995	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II)	1992	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II)	1993	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II)	1994	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3L (Gen II)	1995	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3LX (Gen II) (4-BBL)	1992	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3LX (Gen II) (4-BBL)	1993	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3LX (Gen II) (4-BBL)	1994	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 4.3LX (Gen II) (4-BBL)	1995	GM 4.3L - 262ci - 6cyl
MERCRUISER	Stern Drive Models	Model 454 EFI (Gen V)	1994	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 EFI (Gen V)	1995	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 EFI (Gen V)	1996	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo (Gen V)	1992	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo (Gen V)	1993	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo (Gen V)	1994	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo	1988	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo	1989	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo	1990	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo	1991	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 454 Mag Bravo	1992	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1988	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1989	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1990	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1991	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1992	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1993	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1994	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.0LX	1995	GM 5.0L - 305ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1989	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1990	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1991	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1992	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1993	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1994	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 5.7L Bravo	1995	GM 5.7L - 350ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 EFI (Gen V)	1993	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 EFI (Gen V)	1994	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 EFI (Gen V)	1995	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 Mag Bravo (Gen V)	1992	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 Mag Bravo (Gen V)	1993	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 Mag Bravo	1990	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 Mag Bravo	1991	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 502 Mag Bravo	1992	GM 8.2L - 502ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo (Gen V)	1992	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo (Gen V)	1993	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo (Gen V)	1994	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo (Gen V)	1995	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo (Gen V)	1996	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo	1988	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo	1989	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo	1990	GM 7.4L - 454ci - 8cyl
MERCRUISER	Stern Drive Models	Model 7.4L Bravo	1991	GM 7.4L - 454ci - 8cyl

Weight & Package Information

Item	Value
Net Weight	4.0 KG
Gross Weight	4.5 KG
Package Size	28 × 22 × 22 CM

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
Mercruiser Marine Replacement	12V 1.7KW Starter Motor	11T CW PMGR Design
GM 4.3L / 5.0L Engine Compatible	Permanent Magnet Gear Reduction	OEM 9000768 Replacement
SDR0031-L / SDR0031-M Equivalent	Marine-Grade Construction	Reliable High-Torque Starting
