STG50014 Starter Motor 428000-3130 for John Deere Gator & Kawasaki KAF400 Mule | 12V 9T CCW Direct Drive Replacement

OEM Part Numbers: AM134946 / MIA11410 / 21163-7020 / 21163-7028
DENSO Part Numbers: 428000-3130 / 428000-3131
Cross Reference: 18533 / SND0490 / 410-52101 / LESTER 18533

Product Description

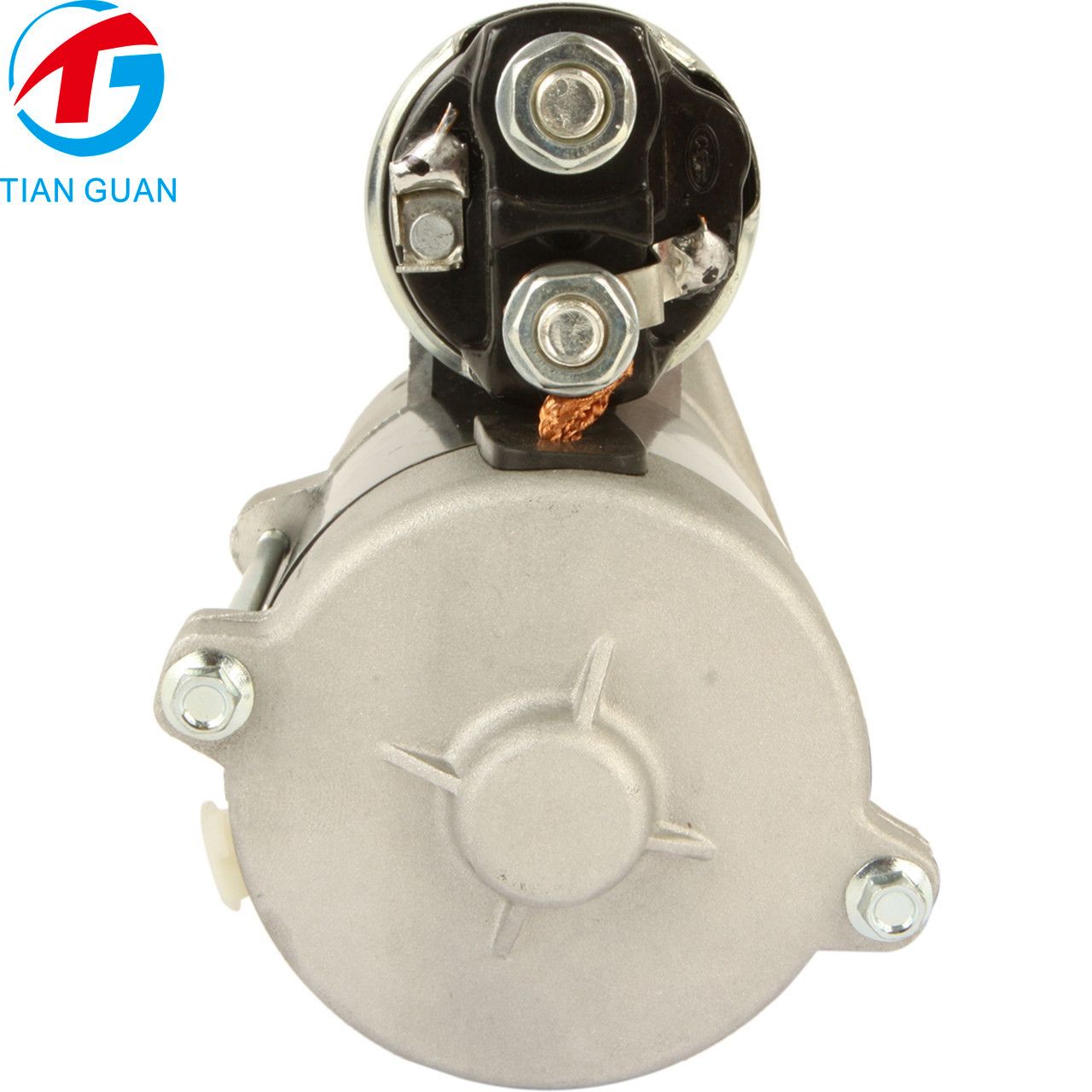

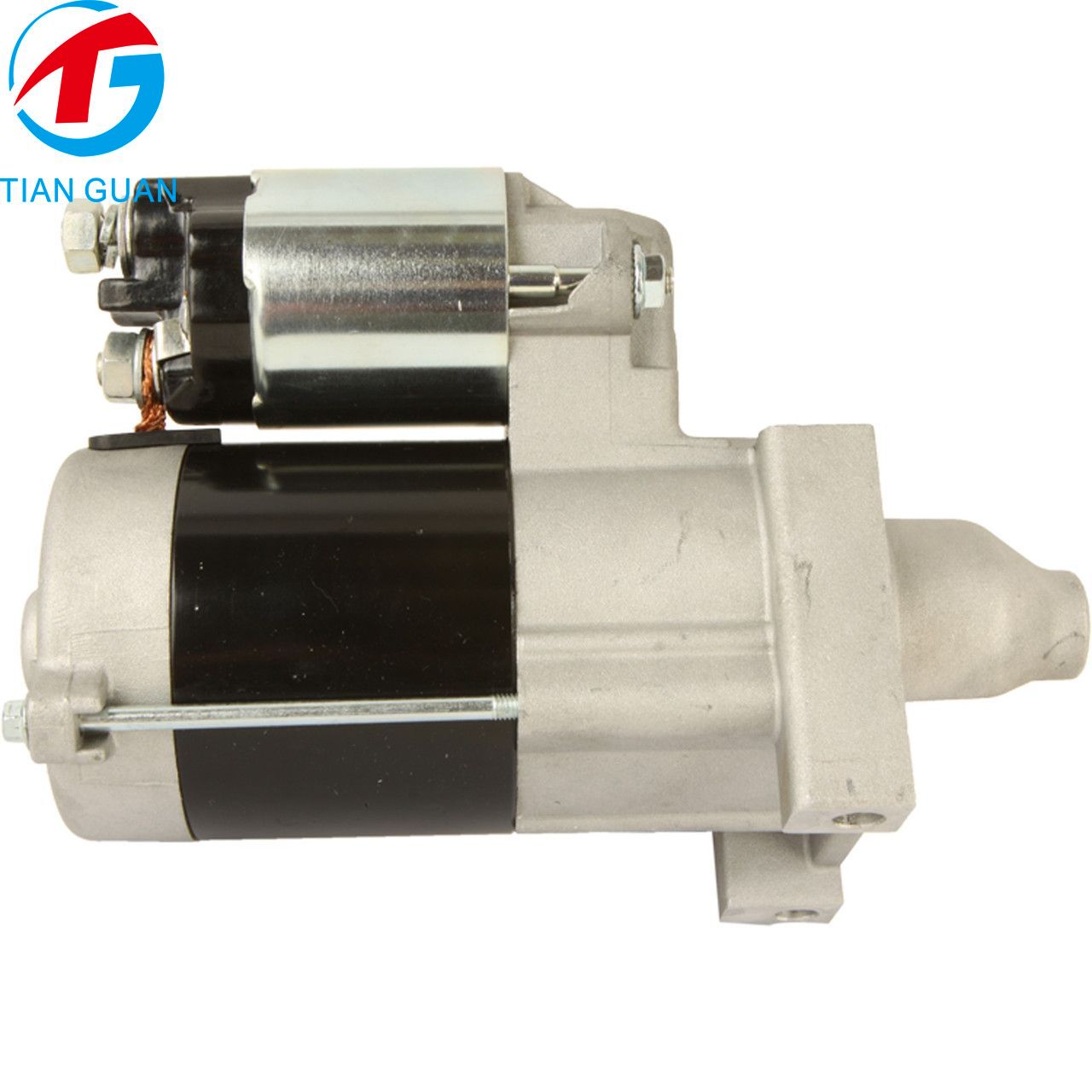

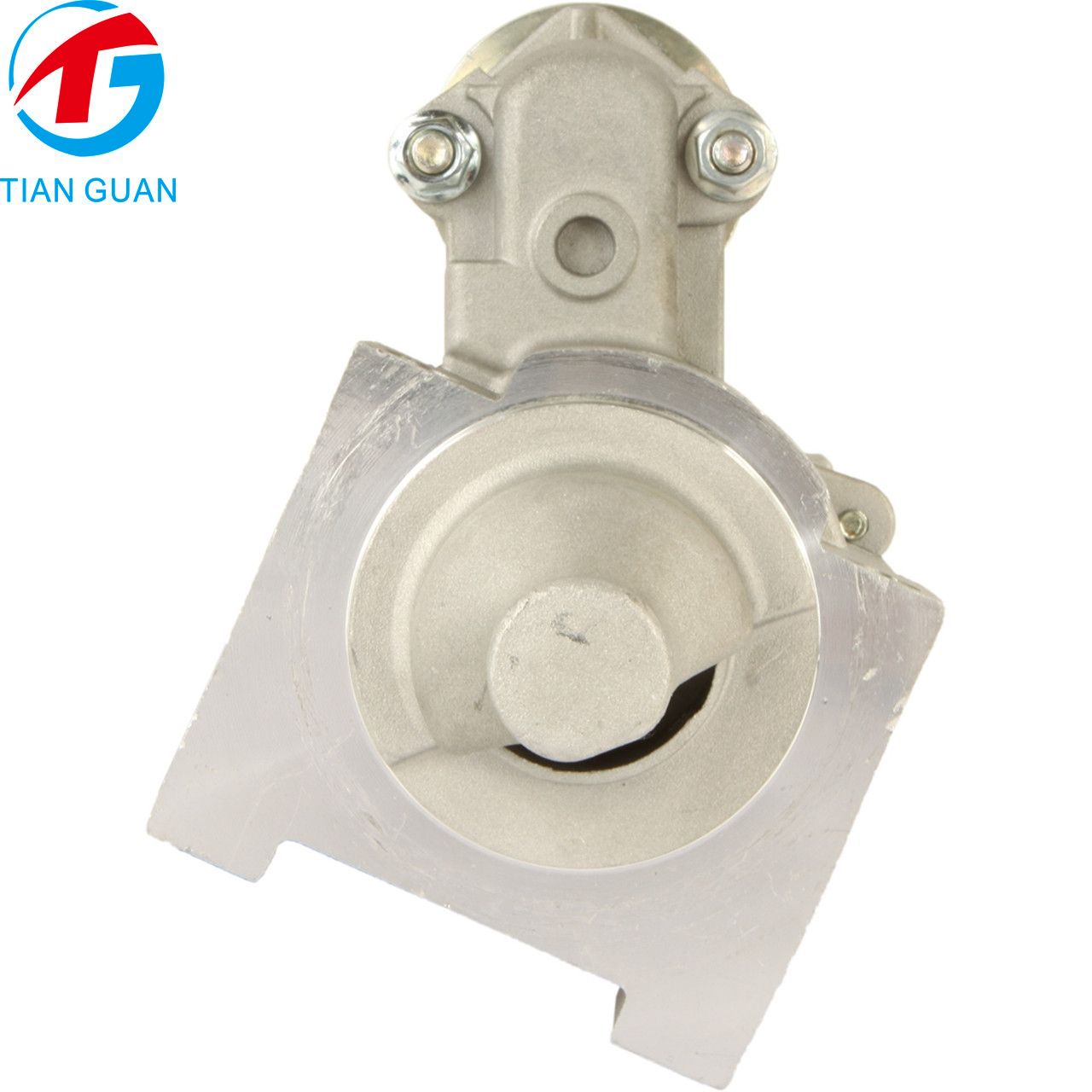

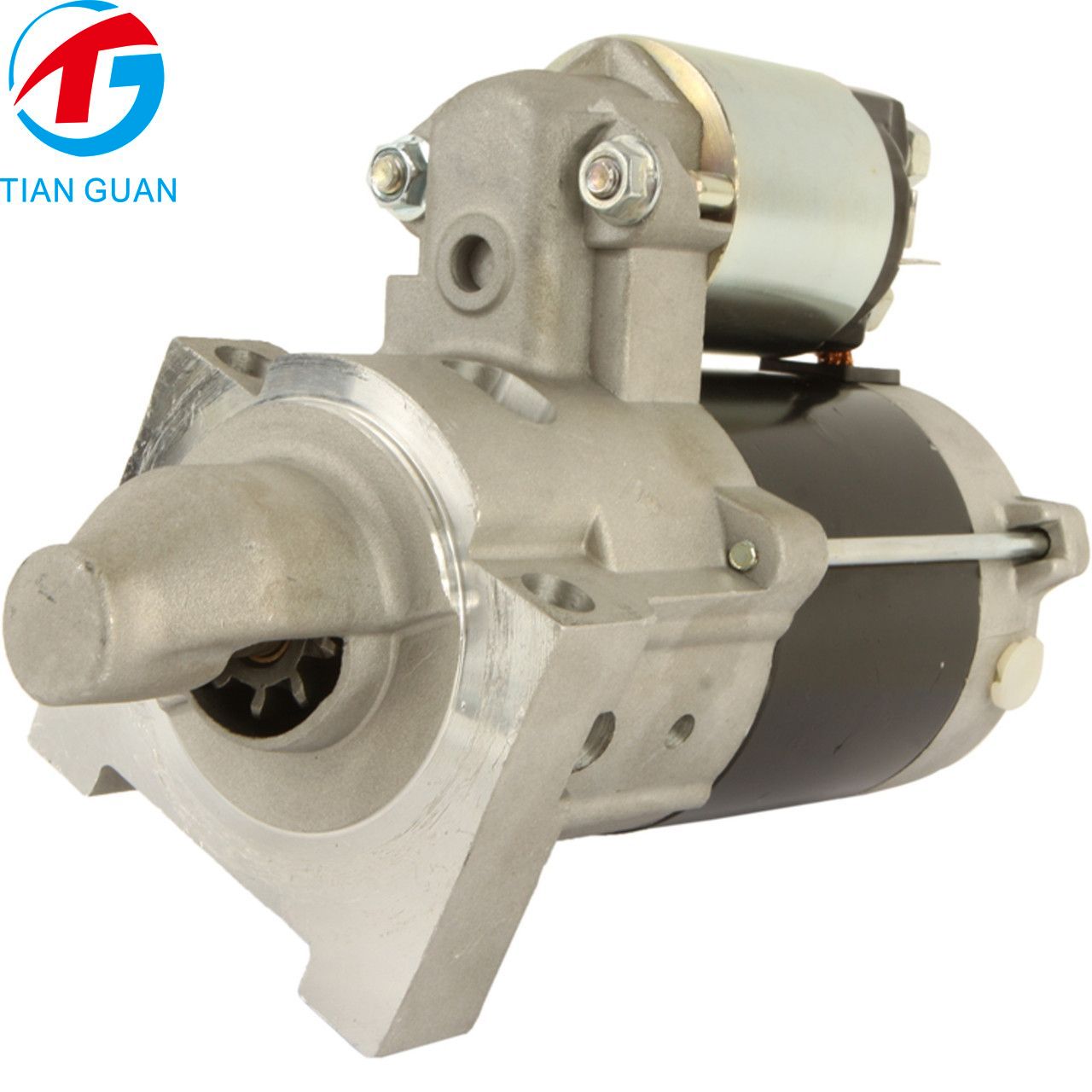

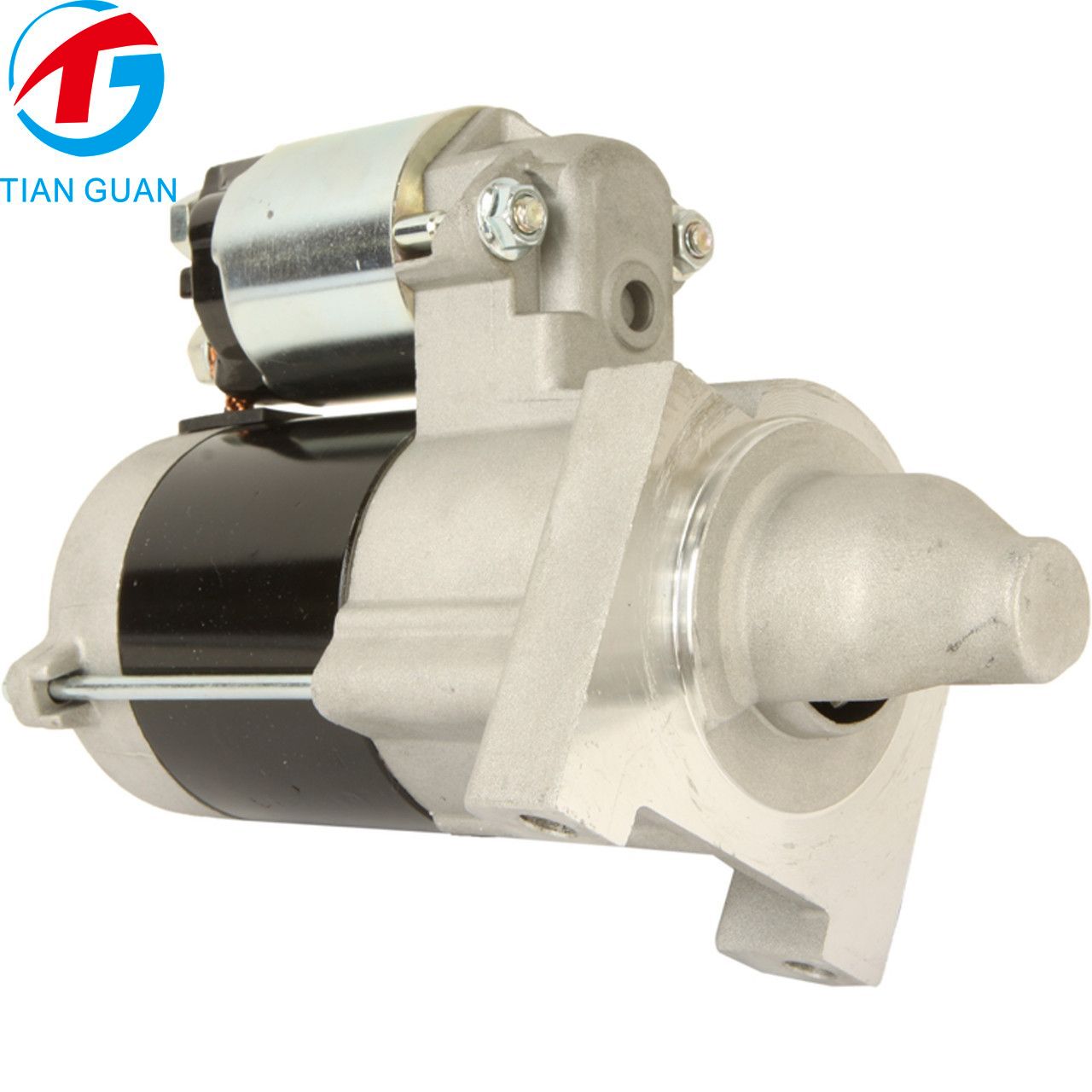

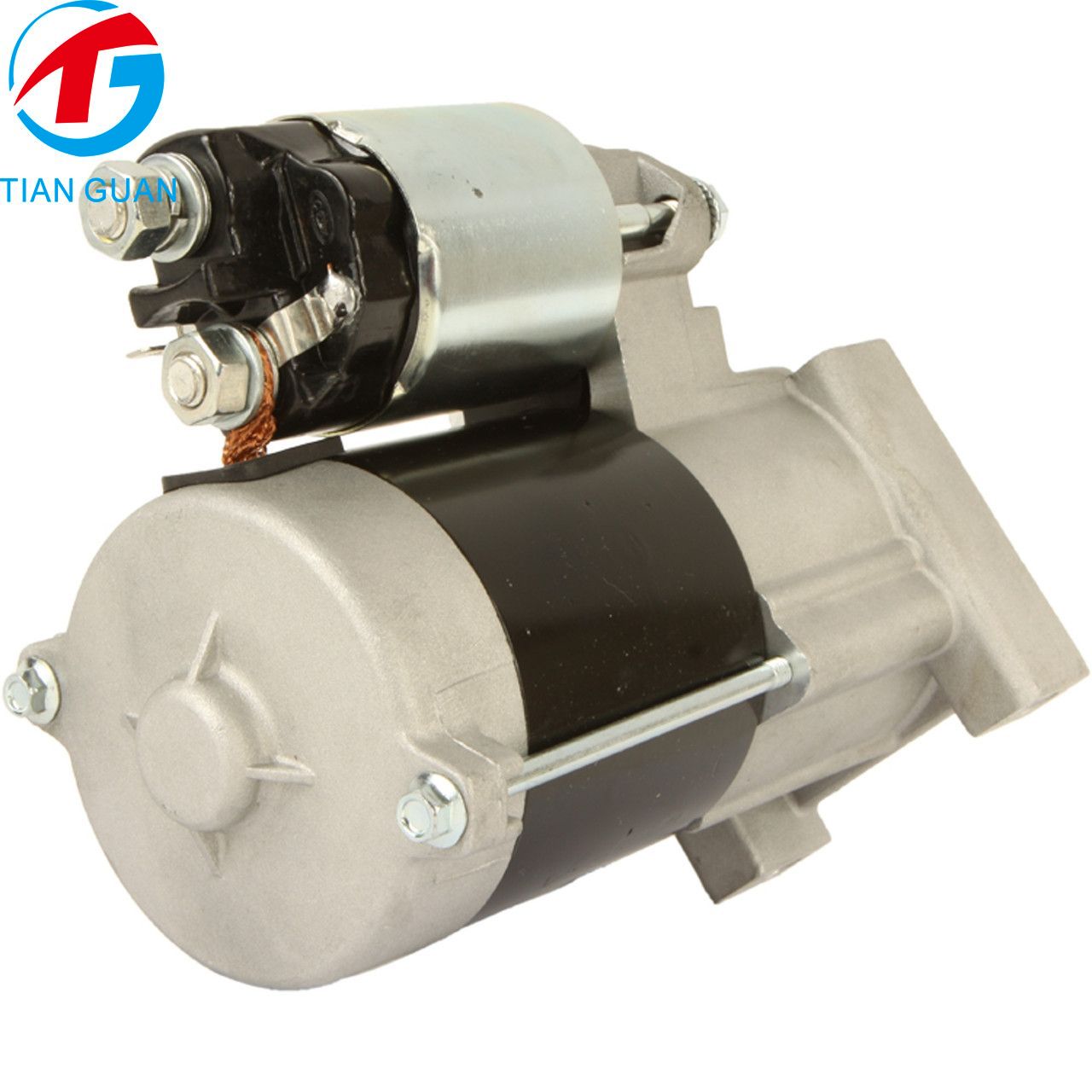

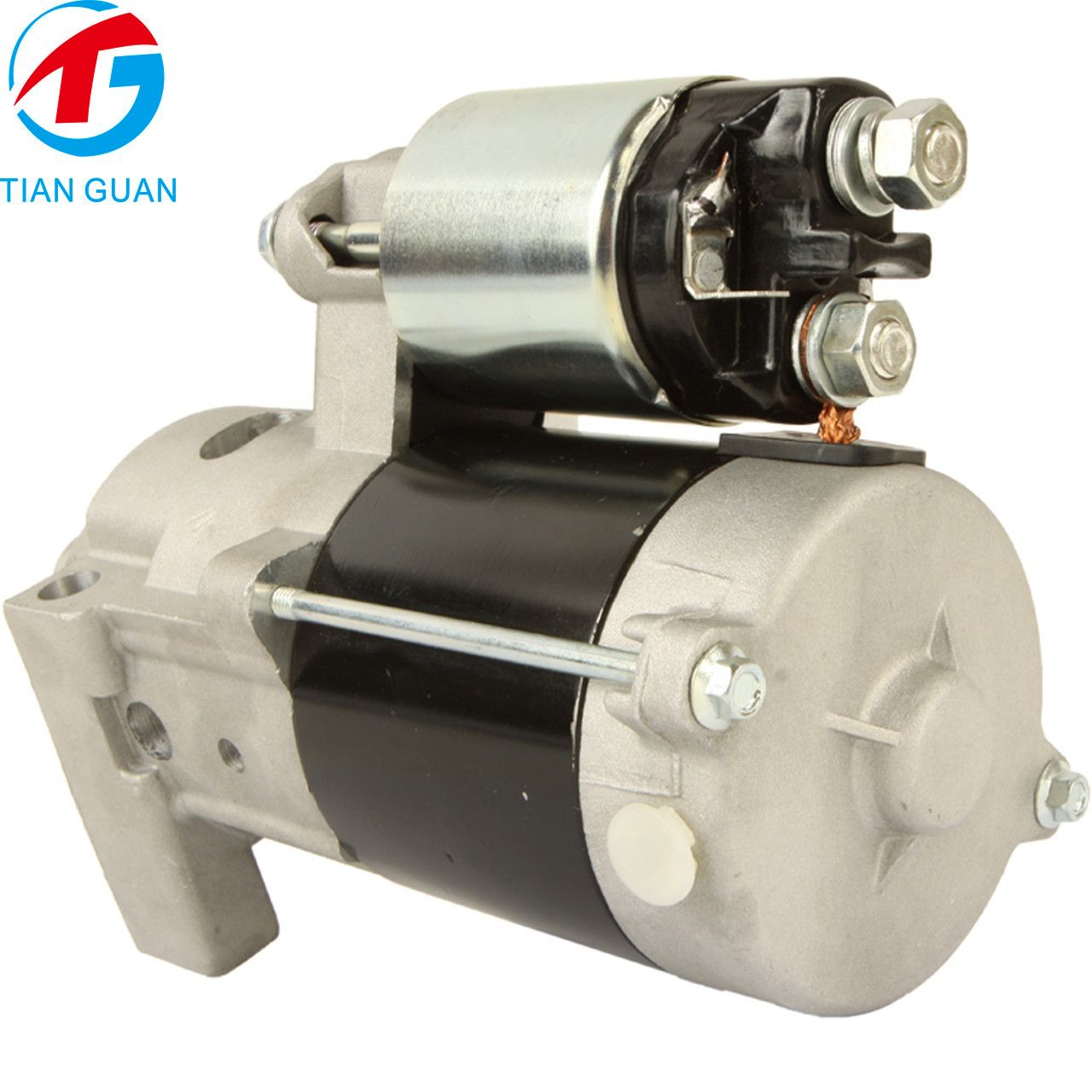

STG50014 Starter Motor is a reliable aftermarket replacement designed for John Deere Gator and Kawasaki KAF400 Mule UTV applications.

This starter features a 12V PMDD (Permanent Magnet Direct Drive) design with 9-tooth pinion gear and CCW (Counterclockwise) rotation, providing dependable starting performance, compact structure, and long service life for utility vehicles and small engines.

Product Specifications

Property	Value
Product Model	STG50014
OEM Part Numbers	AM134946 / MIA11410 / 21163-7020 / 21163-7028
Denso Part Numbers	428000-3130 / 428000-3131
Cross Reference	18533 / SND0490 / 410-52101
Voltage	12V
Starter Type	PMDD (Permanent Magnet Direct Drive)
Rotation	CCW (Counterclockwise)
Teeth Count	9T
Gear OD	27.6 mm
Application	John Deere Gator / Kawasaki Mule
Condition	New Aftermarket

OEM / Cross Reference Table

ARROWHEAD	SND0490, 410-52101
ATLANTIC	1400-0134, 3200-7020
BARSANCO	610-18533
DENSO	428000-3130, 428000-3131
DIXIE	MS-832
EMS	18533N
HI LEVEL	STK0490
J & N	410-52101, 410-52395
JOHN DEERE	AM134946, MIA11410
KAWASAKI	21163-7020, 21163-7028
LESTER	18533
MINNPAR	57-2654
PIC	190-6114
RCP	ST-18533
STENS	435-530
TUCKER ROCKY	49-5776, 495776
WAI	2-2743-ND
WILSON SMALL ENGINE	71-29-18533

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
JOHN DEERE	UTV	Gator TX	All	Kawasaki 15.5HP
KAWASAKI	UTV	KAF400 Mule 600	2005	401cc
KAWASAKI	UTV	KAF400 Mule 600	2006	401cc
KAWASAKI	UTV	KAF400 Mule 600	2007	401cc
KAWASAKI	UTV	KAF400 Mule 600	2008	401cc
KAWASAKI	UTV	KAF400 Mule 600	2009	401cc
KAWASAKI	UTV	KAF400 Mule 600	2010	401cc
KAWASAKI	UTV	KAF400 Mule 600	2011	401cc
KAWASAKI	UTV	KAF400 Mule 600	2012	401cc
KAWASAKI	UTV	KAF400 Mule 600	2013	401cc
KAWASAKI	UTV	KAF400 Mule 600	2014	401cc
KAWASAKI	UTV	KAF400 Mule 600	2015	401cc
KAWASAKI	UTV	KAF400 Mule 600	2016	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2005	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2006	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2007	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2008	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2009	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2010	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2011	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2012	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2013	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2014	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2015	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4	2016	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Hardwoods	2006	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Hardwoods	2007	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Hardwoods	2008	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Hardwoods	2009	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2006	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2007	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2008	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2009	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2010	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2011	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 Realtree APG	2012	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2010	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2011	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2012	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2013	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2014	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC	2015	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC Realtree APG	2011	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC Realtree APG	2012	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC Realtree APG	2013	401cc
KAWASAKI	UTV	KAF400 Mule 610 4x4 XC Realtree APG	2014	401cc
KAWASAKI	UTV	KAF400 Mule SX	2017	401cc
KAWASAKI	UTV	KAF400 Mule SX	2018	401cc
KAWASAKI	UTV	KAF400 Mule SX	2019	401cc

Weight & Package Information

Item	Value
Net Weight	3.6 KG
Gross Weight	4.1 KG
Package Size	28 × 20 × 18 CM

PRODUCT HIGHLIGHTS

Product Highlights

Feature 1	Feature 2	Feature 3
John Deere Gator Replacement	12V 9T PMDD Starter Design	Kawasaki Mule KAF400 Compatible
Denso 428000 Series Equivalent	CCW Rotation Configuration	Reliable UTV Starting Performance
Direct OEM Replacement	Compact Lightweight Structure	Durable Utility Vehicle Application
